Fanless Industrial Mini PC Intel N100 N150 4 Port 2.5G I226-V LAN 2*RS232 COM DDR4 Firewall Router PfSense Server Computer

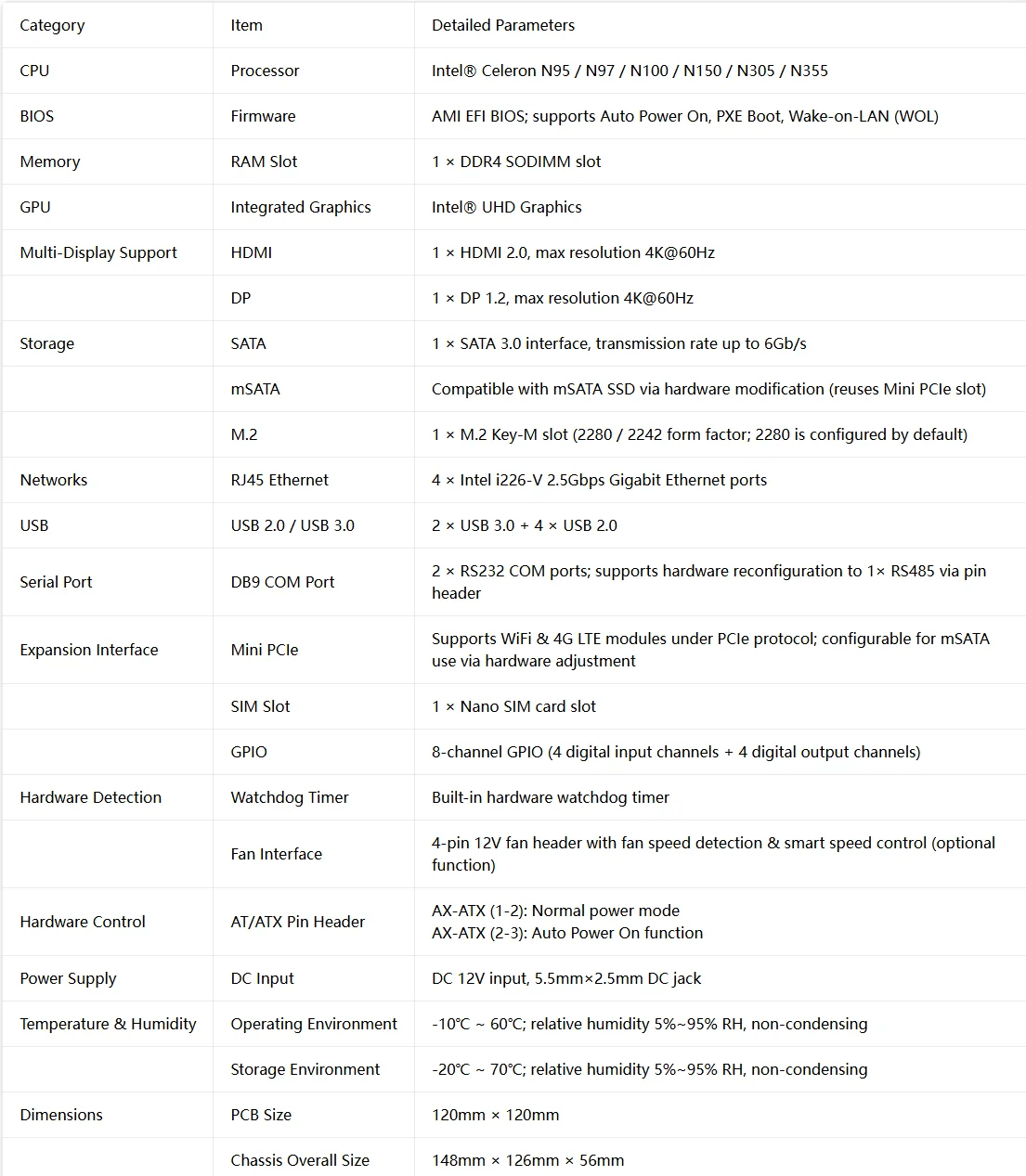

Processor parameter for referance only

Product Highlights

Interface Configuration

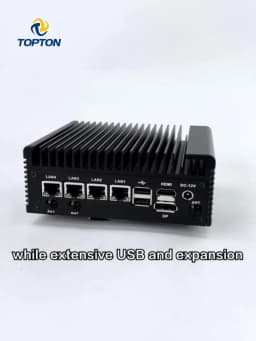

Equipped with 4×Intel i226-V 2.5G RJ45 Ethernet ports, 2×USB 3.0, 4×USB 2.0, 2×RS232 COM serial ports, 1×HDMI port and 1×DP port.

Memory Expansion

Features one DDR4 SODIMM non-ECC memory slot, supporting a maximum capacity of 32GB with operating frequencies of 2666MHz / 3200MHz.

Dual Storage Options

Dual storage installation available:

1× M.2 2280/2240 SSD (NVMe PCIe3.0 x1 or SATA)

1×2.5-inch SATA 3.0 7mm SSD/HDD

Wireless & Cellular Expansion

Built with 1×Mini PCIe slot and 1×SIM card slot; WiFi module and 4G LTE module are available as optional extra purchases.

Dual 4K Display Output

Supports dual-screen display via HDMI + DP interfaces, delivering dual 4K UHD resolution video output.

Practical Industrial Functions

Comes with built-in AES-NI encryption acceleration, hardware watchdog timer, automatic power-on, RTC timing wake-up, PXE network boot, Wake-on-LAN and other practical functions.

High-Efficiency Passive Heat Dissipation

Adopts upgraded solid aluminum alloy housing with lengthened finned heat sinks paired with thermal copper pads for accelerated heat transfer, greatly improving overall heat dissipation efficiency.

Fanless Silent Stable Operation

Entirely fanless passive cooling design for zero operating noise and outstanding reliability. Suitable for home networking deployment and industrial onsite operation, stable enough for continuous 7×24-hour non-stop running.

Energy-Saving & Flexible Installation

Low TDP power consumption design; compatible with VESA mounting brackets (sold separately) for wall-mounting or rear mounting on monitors.

Package Contents

1 × Fanless Mini PC Host

1 × DC Power Adapter

1 × Power Cord (EU / US / UK / AU plug will be matched automatically according to the buyer’s receiving country)

1 × SATA Connection Cable

Welcome to click the picture of VESA Bracket to order together if you need:
