12th Gen Intel Pentium 4417U 2.5G Soft Router 4X I226-V LANS RJ45 Fanless Mini PC HD DP USB-C PfSense OPNsense Firewall PVE ESXI

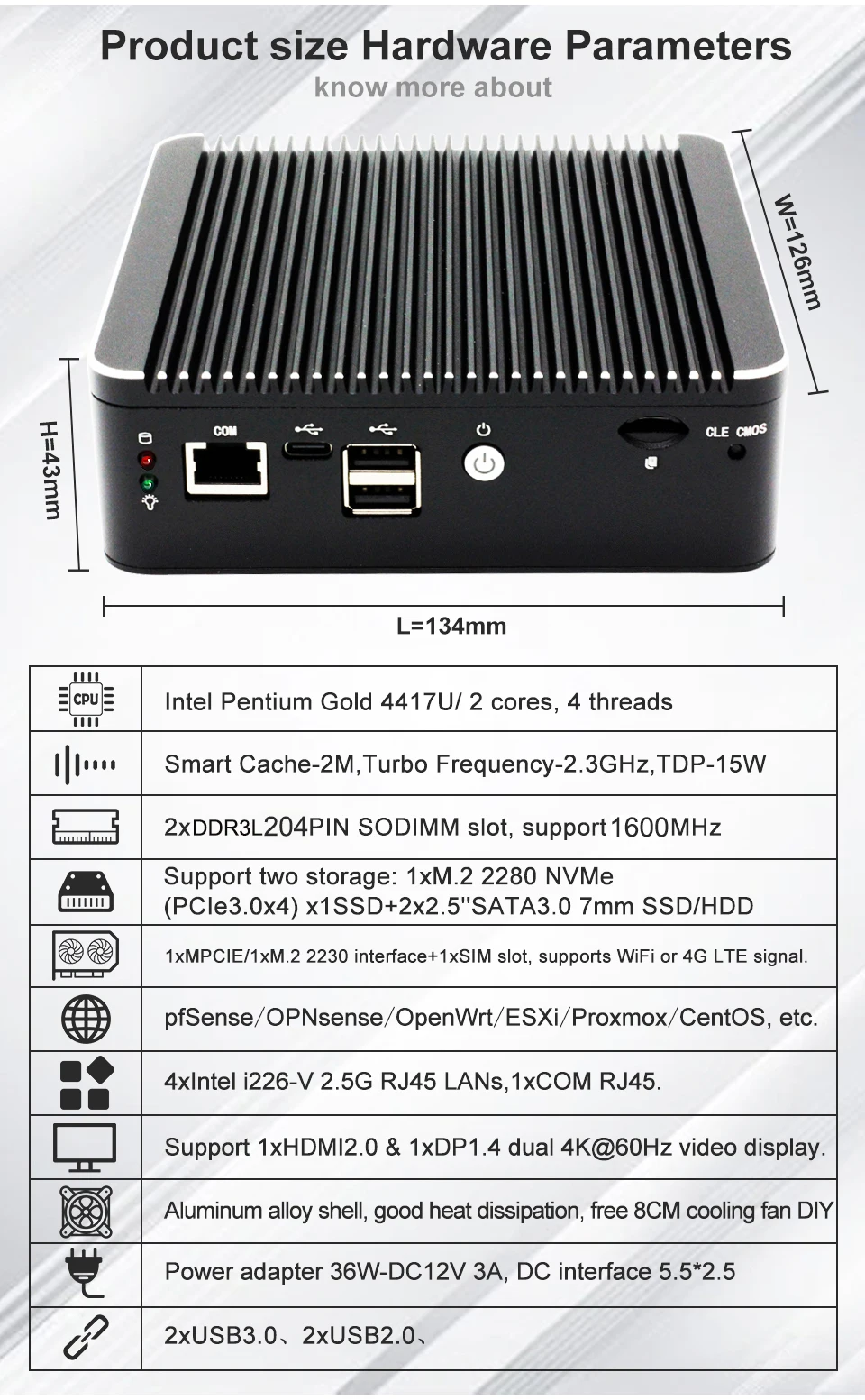

Product Highlight:

l Processor: Intel Pentium Gold 4417U (2 cores-4 threads,Smart Cache-2MB, frequency-2.3GHz,TDP-15W)

l Ram: 2 x DDR3L 204 PIN SO-DIMM slot, support 1600MHz（Inconsistent frequency&Incorrect installation-Not working）.

l Support 2 storage: 1xM.2 2280 NVMe(PCIe3.0x4) x1 SSD+2x2.5''SATA3.0 7mm-SSD/HDD(motherboard has 2 SATA interfaces)

l Extended Bus：1×MINI PCI-E/ 1×M.2 2230 interface（PCIE3.0 1X/USB signal）+1xSIM slot, supports WiFi or 4G LTE signal.

l HD interface: Support 1xHDMI2.0 and 1xDP1.4 dual 4K@60Hz video display.

l Data interface: 2xUSB3.0, 2xUSB2.0

l Support AES-NI, ESXI, PVE, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN etc.

l Full Aluminum Alloy solid-built shell, excellent cooling performance.

l Fanless system without cooling fan, noiselessness and durability fit for industrial grade field.

l COM interface: COM cannot be used as a network port. It has no network speed and does not transmit data.

l The serial communication port (cluster communication port) is the COM port, or serial port for short.

l It can be used for many purposes, such as connecting a mouse, printer or modem, and it can also connect Industrial instrumentation.

Package List:

l 1xIntel Pentium Gold 4417U Soft Router (Ship according to order specifications).

l 1xSATA Cable.

l 1xScrews Bag.

l 1xCorner Cushion Bag.

l 1x8CM silent fan (free-while supplies last-DIY).

l 1xPower Adapter(Select the socket to be shipped according to the order).

we care about you:

l Suggest to install newest version of following systems with supportable kernel: pfSense,OPNsense, OpenWrt,ESXi, Proxmox, CentOS etc.

l We only provide hardware support & don't sell any commercial system software. Do it yourself.

l This product has certain network expertise and is recommended for professional network engineers to purchase.
