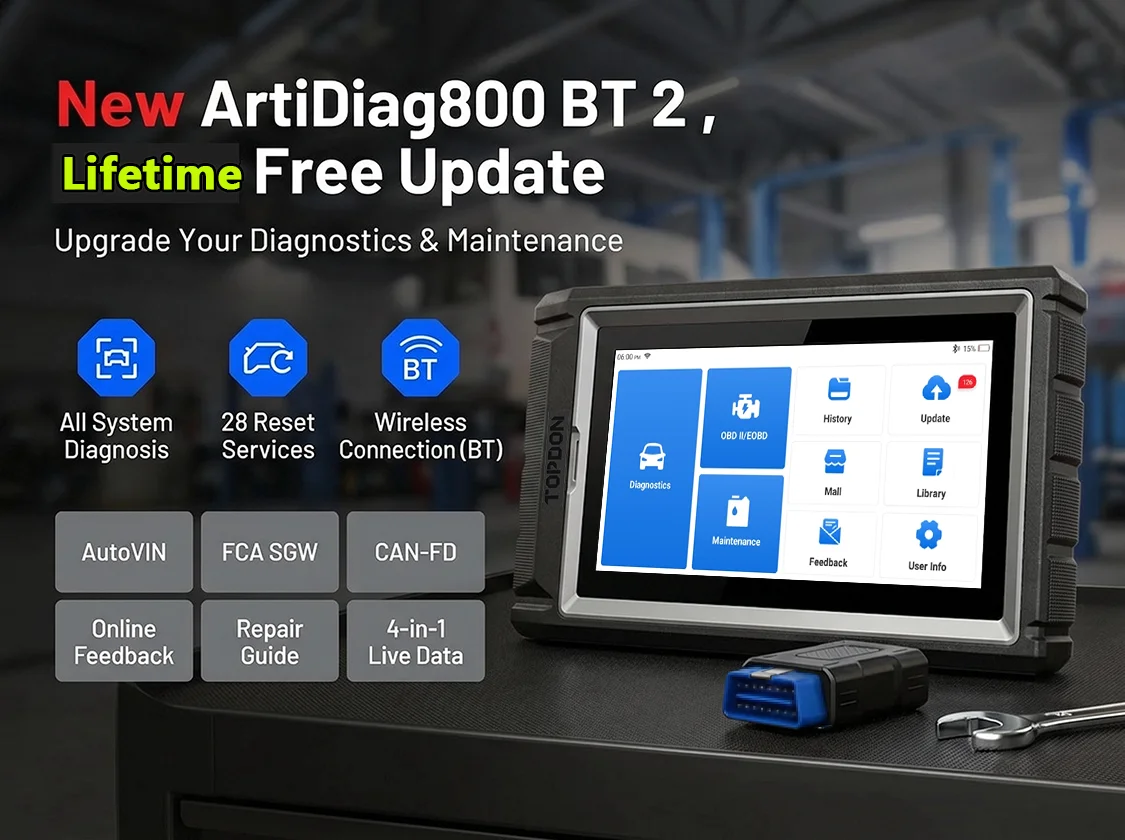

TOPDON AD800 BT 2 OBD2 All System Scanner Professional Car Diagnostic Tool Automotive Scanner Active Test AUTOVIN Scanner

TOPDON NEW AD800BT 2,
Lifetime Free Update,
Full-System Diagnosis,
28+ Reset Services,
Fast diagnosis, less time wasted, lower repair costs!

🏆 Description

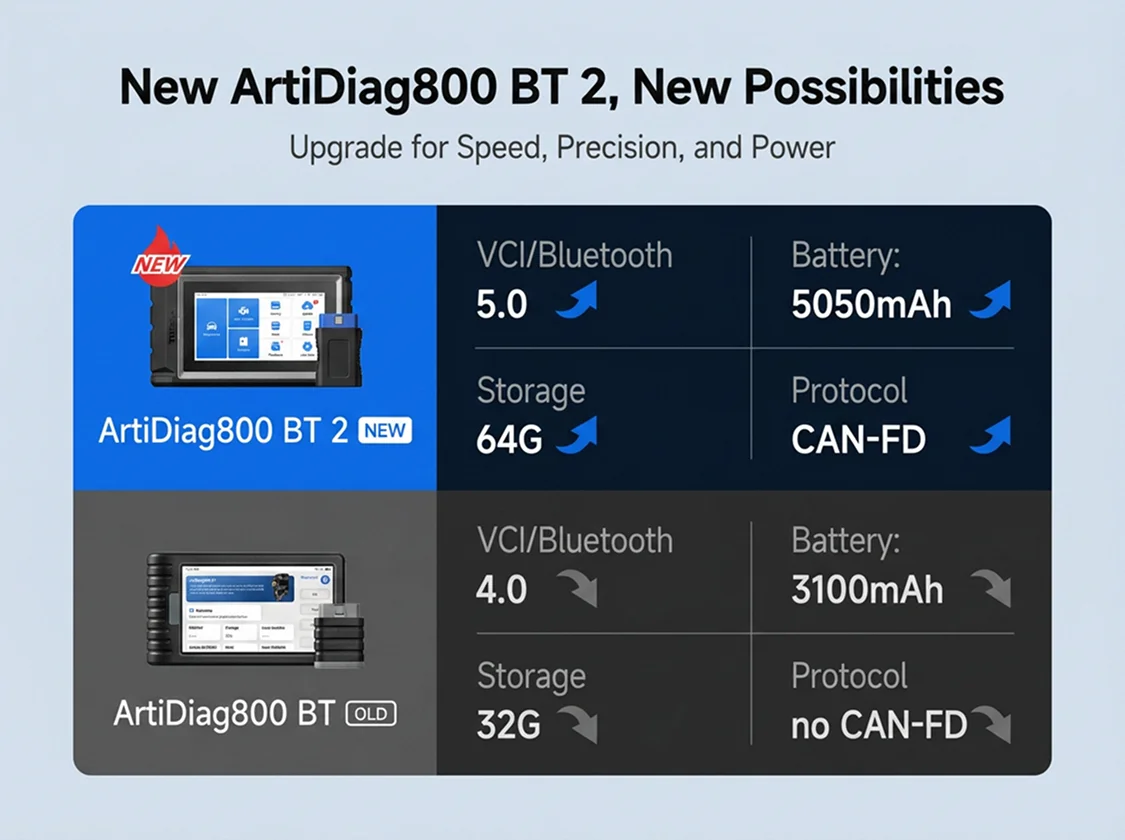

Enhance your diagnostics with the upgraded TOPDON ArtiDiag800 BT 2, now featuring CAN-FD protocol support and FCA Gateway Access for expanded coverage, including Chrysler, Fiat, and GM models.

🏆 Features

📌【28 Hot Reset Services】

This tool offers pop-up guidance for easy access to 28 popular maintenance services, including Oil, SAS, EPB, Tire Pressure Reset, Injector Coding, SAS Calibration, ABS Bleeding, DPF Regeneration, Battery, Throttle, Headlight, Gearbox & Anti-theft Matching, EGR Adaption, Tooth Learning, and Sunroof Initialization.

Note:Menus vary by make, model, and year of gasoline or diesel engine vehicle. Email us your VIN data.

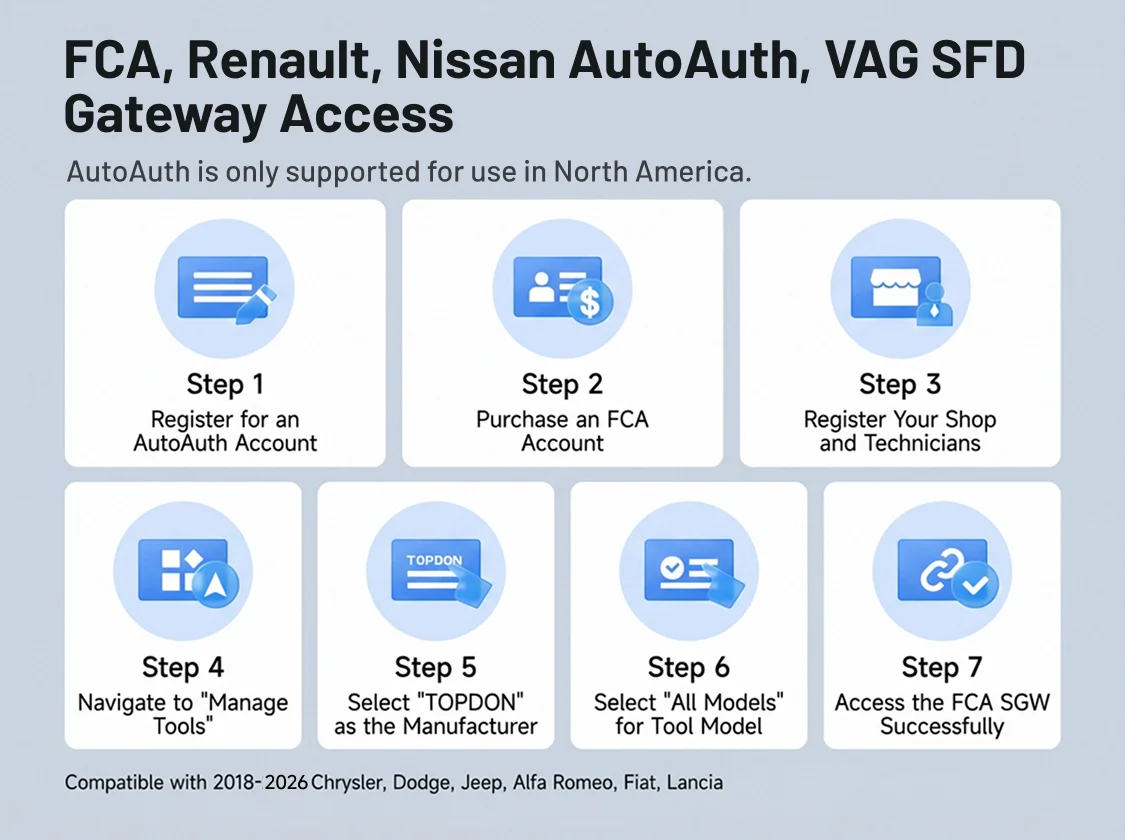

📌【All Systems Car Scanner, Autoauth for FCA Gateway Access】

This TOPDON diagnostic scanner can get OE-level analysis of ECM, ABS, SRS, SAS, DPF, EVAP, TPMS, BMS, EPB, among other available on-board systems. Pull, clear their codes; turn off related warning lights; check freeze frame data; view live stream in detailed text, merged graph you need to diagnose, repair, and maintain for majority of car makes and models worldwide.

📌【Bidirectional Scan Tool】

This bidirectional OBD2 scanner sends commands to the vehicle's E-CU for active testing, enabling users to accurately and quickly locate faulty components such as injectors, coolant pumps, windows, wipers, headlights, mirrors, etc. The bidirectional control scanner is the ideal choice for workshops/automotive repair shops as it significantly reduces mechanic's diagnostic time.

📌【Wireless & Bluetooth + AUTOVIN + 64G ROM】

Experience no strings attached wireless diagnostics with long working range of 33 feet (10m) thanks to the included Blue-tooth 5.0 VCI dongle. Automatically identify vehicle’s make, model, year information, and quickly match the right software at a single touch upon this scan tool, with a full, clear, and accurate report automatically generated for further analysis.

Note:AutoVIN doesn’t work on ALL cars. Feel free to enter the VIN data manually.

📌【The most wide-applicable Diagnostic tool + Work on 80+ Vehicle Brands】

This tool provides full-system diagnostics for over 80 vehicle makes, with access to critical systems like the engine, transmission, airbags, and gateway. It can retrieve ECU information, read and clear DTCs, and monitor live data to help you diagnose and resolve issues efficiently.

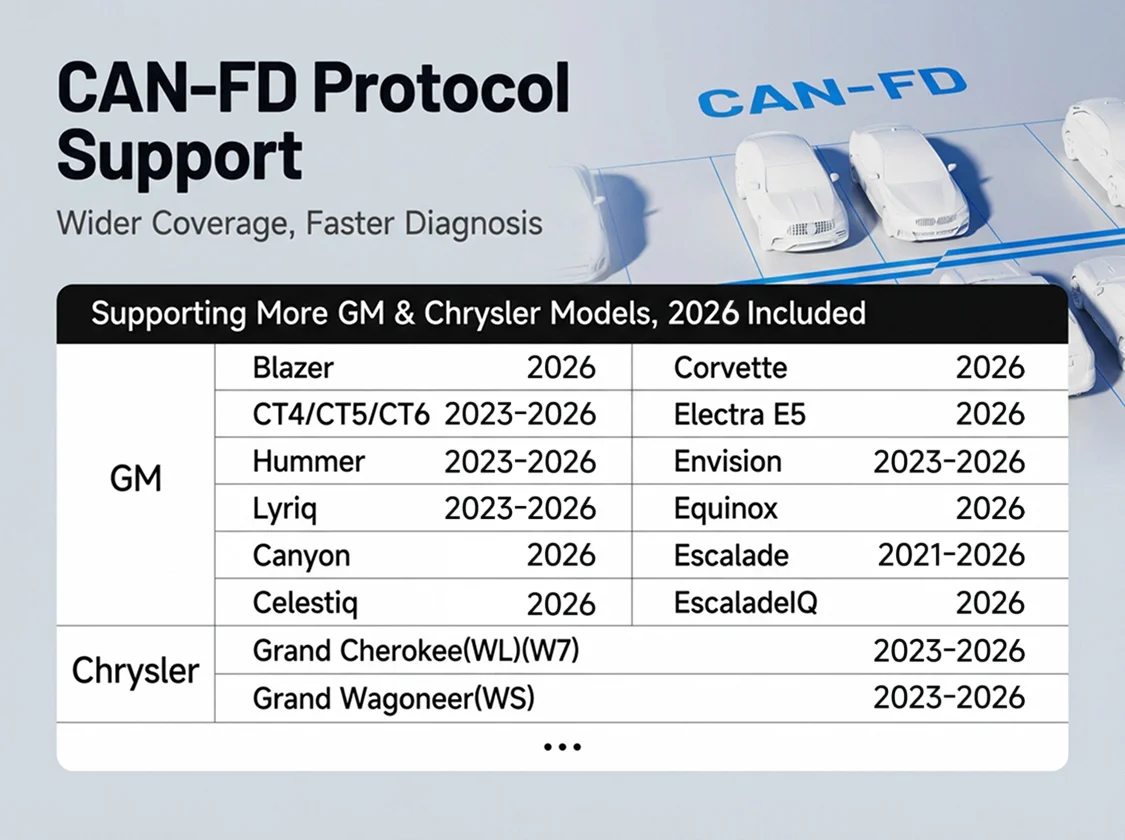

📌【CAN-FD Protocol, Faster Solutions】

Unlock the advantages of the CAN-FD Protocol, designed to handle larger data volumes for faster and more efficient data transmission. As more manufacturers adopt CAN-FD, you'll be prepared to diagnose an increasing range of new vehicles, including GM and Chrysler models from 2020 onwards.

📌【Real-time Performance Tracking with Live Data】

This tool shows real-time vehicle performance in numbers, graphs, and combined visuals, making it easier to spot patterns and anomalies. It can merge up to four data streams into a single view, so you can compare waveforms more intuitively and analyze issues more efficiently.

📌【Support Multiple Laguages]

This tool supports English, French, German, Spanish, Portuguese, Russian, Japanese, Italian, Korean, Traditional Chinese, Hungarian, Dutch, Polish, Slovak, Swedish, Danish, Greek, and Arabic.

Please note that vehicle software requires re-downloading after switching the language.

🏆 Specifications

Display: LCD 6-Inch, 1400 * 720
CPU: MT6761 4-Core Cortex-A53, 1.8 GHz
Operating System: Android 10.0
RAM: 2G
ROM 64G
Battery: 5050mAh / 3.7V
Operating Voltage: 5V
Storage Temperature: -20℃~60℃ ( -4 ℉ ~140 ℉)
Working Temperature: 0℃~50℃ (32 ℉ ~122 ℉)
Dimension: 215 * 126 * 46 mm (8.5 * 5.0 * 1.8 inch)
Package Size: 274 * 188 * 106 mm (10.79 * 7.40 * 4.17 inch)
Net Weight: 660 g (1.46 lb.)
Gross Weight: 1520 g (3.70 lb.)

🏆 Package List

1 * TOPDON ArtiDiag800BT 2 Diagnostic Tool;
1 * VCI dongle;
1 * Protective Case;
1 * Power Adapter;
1 * USB C Cable;
1 * User Manual;
1 * Password Letter.

TPMS Sensor

Please check the Vehicle List below before Purchase

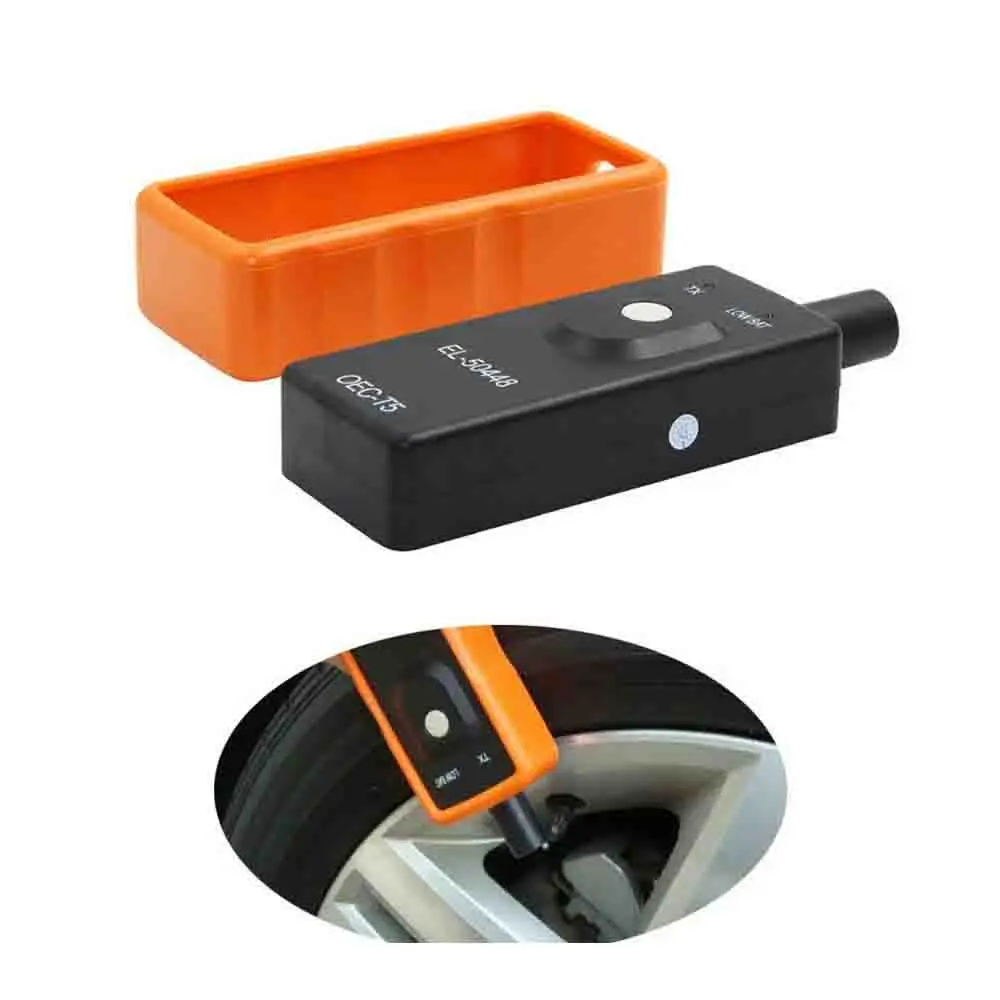

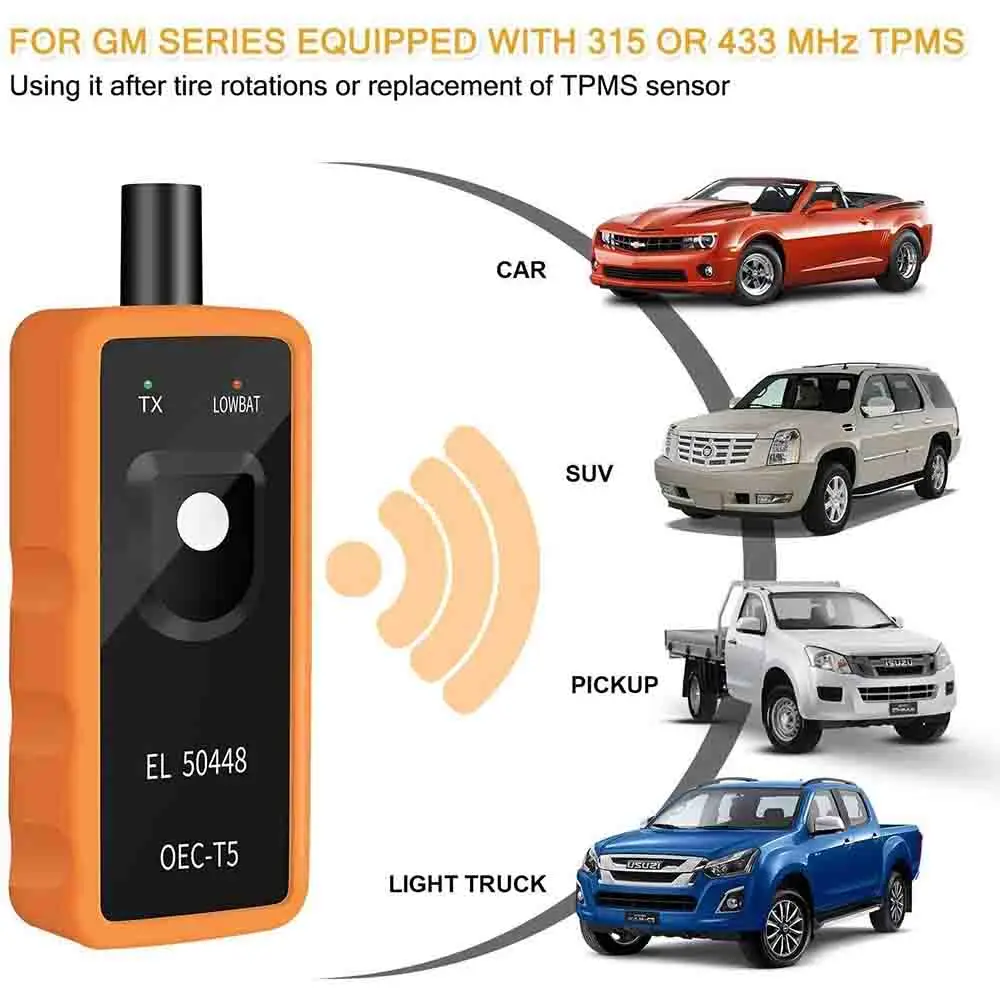

NEW Tire Pressure Monitor Sensor TPMS Activation Tool

For vehicles equipped with a 315 or 433 MHz Tire Pressure Monitoring (TPM) system, a "Sensor Re-Learn Procedure" must be performed after tire rotations, Remote Control Door Lock Receiver Module replacement or Tire Pressure Sensor replacement. This re-learn procedure can be performed by using special tool.

How to use:

The tire pressure sensor on models in and after 2012 can be read, only with some specified diagnostic tools. Before tire pressure monitoring system works normally properly, the body control module will record ID information of each position in the tire pressure sensor; and use the following methods to read the tire pressure sensor. After replacing a tire or wheel speed sensor.
Please refer to the specific methods as follows:
Step 1 - Enter leaning mode
>Set the gearshift lever to "P"
>Put the ignition switch to "ON"
>Enter the interface of tire pressure display by DIC
>DIC shows "Press Set / Ctrl to re-learn"
>Press "Set / Ctrl"
>The turn signal is lighted for 3 seconds and the horn beep sound twice to enter the learning mode
Step 2 - Read tire pressure sensor information
>Start from the front-left wheel
>Make the Diagnostic Tool antenna up against the valve core position & close to the rim of the tire sidewall
>This tire pressure tool starts by the start switch
>Successful to read the tire pressure sensor information when the horn bleeps once
Step 3 - Same method to read other tire pressure information
>Follow the instruction above to read tire pussure of the front-right, rear-right, rear-left wheels
>Turn signals is lighted for 3 seconds and the horn bleeps twice when the learning is complete

Packing List:

1*TPMS Reset Tool
NOTE: The package does not include the charger and battery, please buy them by yourself

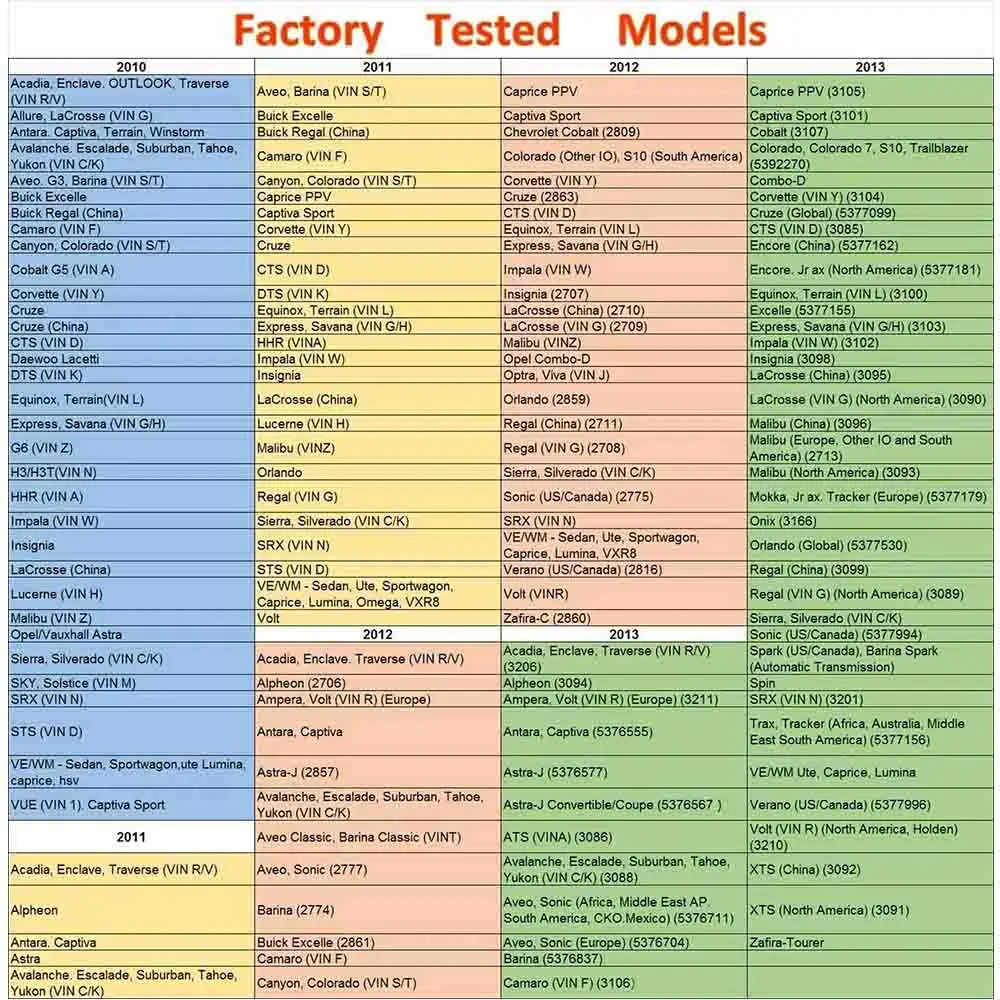

Vehicle List:

2010 9-5
2010 Acadia, Enclave, OUTLOOK, Traverse (VIN R/V)
2010 Allure, LaCrosse (VIN G)
2010 Antara, Captiva, Terrain, Winstorm
2010 Avalanche, Escalade, Suburban, Tahoe, Yukon (VIN C/K)
2010 Aveo, G3, Barina (VIN S/T)
2010 Buick Excelle
2010 Buick Regal (China)
2010 Camaro (VIN F)
2010 Canyon, Colorado (VIN S/T)
2010 Cobalt, G5 (VIN A)
2010 Corvette (VIN Y)
2010 Cruze (China)
2010 Cruze
2010 CTS (VIN D)
2010 Daewoo Lacetti
2010 DTS (VIN K)
2010 Equinox, Terrain (VIN L)
2010 Express, Savana (VIN G/H)
2010 G6 (VIN Z)
2010 H3/H3T (VIN N)
2010 HHR (VIN A)
2010 Impala (VIN W)
2010 Insignia
2010 LaCrosse (China)
2010 Lucerne (VIN H)
2010 Malibu (VIN Z)
2010 Opel/Vauxhall Astra
2010 Sierra, Silverado (VIN C/K)
2010 SKY, Solstice (VIN M)
2010 SRX (VIN N)
2010 STS (VIN D)
2010 VE/WM - Sedan, Sportwagon, Ute, Lumina, Caprice, HSV
2010 VUE (VIN Z), Captiva Sport
2011 Acadia, Enclave, Traverse (VIN R/V)
2011 Alpheon
2011 Antara, Captiva
2011 Astra
2011 Avalanche, Escalade, Suburban, Tahoe, Yukon (VIN C/K)
2011 Aveo, Barina (VIN S/T)
2011 Buick Excelle
2011 Buick Regal (China)
2011 Camaro (VIN F)
2011 Canyon, Colorado (VIN S/T)
2011 Caprice PPV
2011 Captiva Sport
2011 Corvette (VIN Y)
2011 Cruze
2011 CTS (VIN D)
2011 DTS (VIN K)
2011 Equinox, Terrain (VIN L)
2011 Express, Savana (VIN G/H)
2011 HHR (VIN A)
2011 Impala (VIN W)
2011 Insignia
2011 LaCrosse (China)
2011 Lucerne (VIN H)
2011 Malibu (VIN Z)
2011 Orlando
2011 Regal (VIN G)
2011 Sierra, Silverado (VIN C/K)
2011 SRX (VIN N)
2011 STS (VIN D)
2011 VE/WM - Sedan, Ute, Sportwagon, Caprice, Lumina, Omega, VXR8
2011 Volt
2012 Acadia, Enclave, Traverse (VIN R/V)
2012 Alpheon (2706)
2012 Ampera, Volt (VIN R) (Europe)
2012 Antara, Captiva
2012 Astra-J (2857)
2012 Avalanche, Escalade, Suburban, Tahoe, Yukon (VIN C/K)
2012 Aveo Classic, Barina Classic (VIN T)
2012 Aveo, Sonic (2777)
2012 Barina (2774)
2012 Buick Excelle (2861)
2012 Camaro (VIN F)
2012 Canyon, Colorado (VIN S/T)
2012 Caprice PPV
2012 Captiva Sport
2012 Chevrolet Cobalt (2809)
2012 Colorado (Other IO), S10 (South America)
2012 Corvette (VIN Y)
2012 Cruze (2863)
2012 CTS (VIN D)
2012 Equinox, Terrain (VIN L)
2012 Express, Savana (VIN G/H)
2012 Impala (VIN W)
2012 Insignia (2707)
2012 LaCrosse (China) (2710)
2012 LaCrosse (VIN G) (2709)
2012 Malibu (VIN Z)
2012 Opel Combo-D
2012 Optra, Viva (VIN J)
2012 Orlando (2859)
2012 Regal (China) (2711)
2012 Regal (VIN G) (2708)
2012 Sierra, Silverado (VIN C/K)
2012 Sonic (US/Canada) (2775)
2012 SRX (VIN N)
2012 VE/WM - Sedan, Ute, Sportwagon, Caprice, Lumina, VXR8
2012 Verano (US/Canada) (2816)
2012 Volt (VIN R)
2012 Zafira-C (2860)
2013 Acadia, Enclave, Traverse (VIN R/V) (3206)
2013 Alpheon (3094)
2013 Ampera, Volt (VIN R) (Europe) (3211)
2013 Antara, Captiva (5376555)
2013 Astra-J Convertible/Coupe (5376567)
2013 Astra-J (5376577)
2013 ATS (VIN A) (3086)
2013 Avalanche, Escalade, Suburban, Tahoe, Yukon (VIN C/K) (3088)
2013 Aveo, Sonic (Africa, Middle East, AP, South America, CKD, Mexico) (5376711)
2013 Aveo, Sonic (Europe) (5376704)
2013 Barina (5376837)
2013 Camaro (VIN F) (3106)
2013 Caprice PPV (3105)
2013 Captiva Sport (3101)
2013 Cobalt (3107)
2013 Colorado, Colorado 7, S10, Trailblazer (5392270)
2013 Combo-D
2013 Corvette (VIN Y) (3104)
2013 Cruze (Global) (5377099)
2013 CTS (VIN D) (3085)
2013 Encore (China) (5377162)
2013 Encore, Trax (North America) (5377181)
2013 Equinox, Terrain (VIN L) (3100)
2013 Excelle (5377155)
2013 Express, Savana (VIN G/H) (3103)
2013 Impala (VIN W) (3102)
2013 Insignia (3098)
2013 LaCrosse (China) (3095)
2013 LaCrosse (VIN G) (North America) (3090)
2013 Malibu (China) (3096)
2013 Malibu (Europe, Other IO and South America) (2713)
2013 Malibu (North America) (3093)
2013 Mokka, Trax, Tracker (Europe) (5377179)
2013 Onix (3166)
2013 Orlando (Global) (5377530)
2013 Regal (China) (3099)
2013 Regal (VIN G) (North America) (3089)
2013 Sierra, Silverado (VIN C/K) (3087)
2013 Sonic (US/Canada) (5377994)
2013 Spark (US/Canada), Barina Spark (Automatic Transmission) (5421555)
2013 Spin
2013 SRX (VIN N) (3201)
2013 Trax, Tracker (Africa, Australia, Middle East, South America) (5377156)
2013 VE/WM Ute, Caprice, Lumina
2013 Verano (US/Canada) (5377996)
2013 Volt (VIN R) (North America, Holden) (3210)
2013 XTS (China) (3092)
2013 XTS (North America) (3091)
2013 Zafira-Tourer
