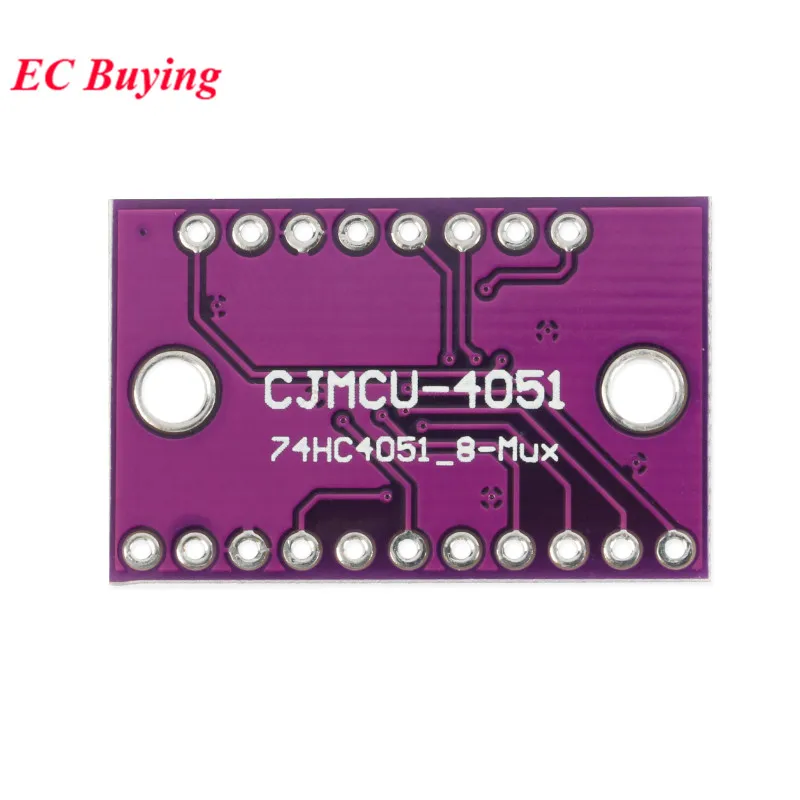

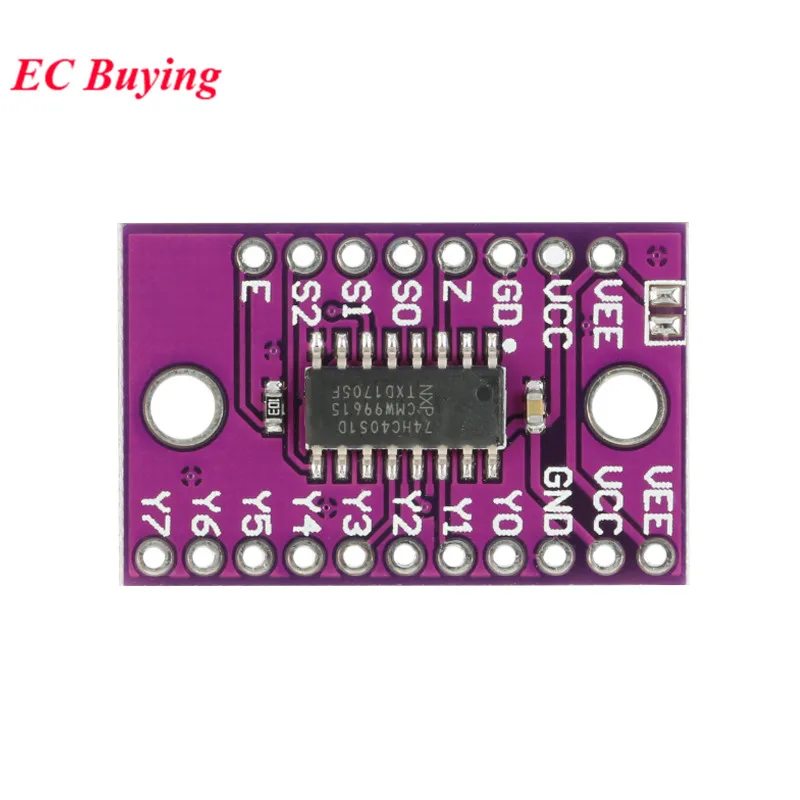

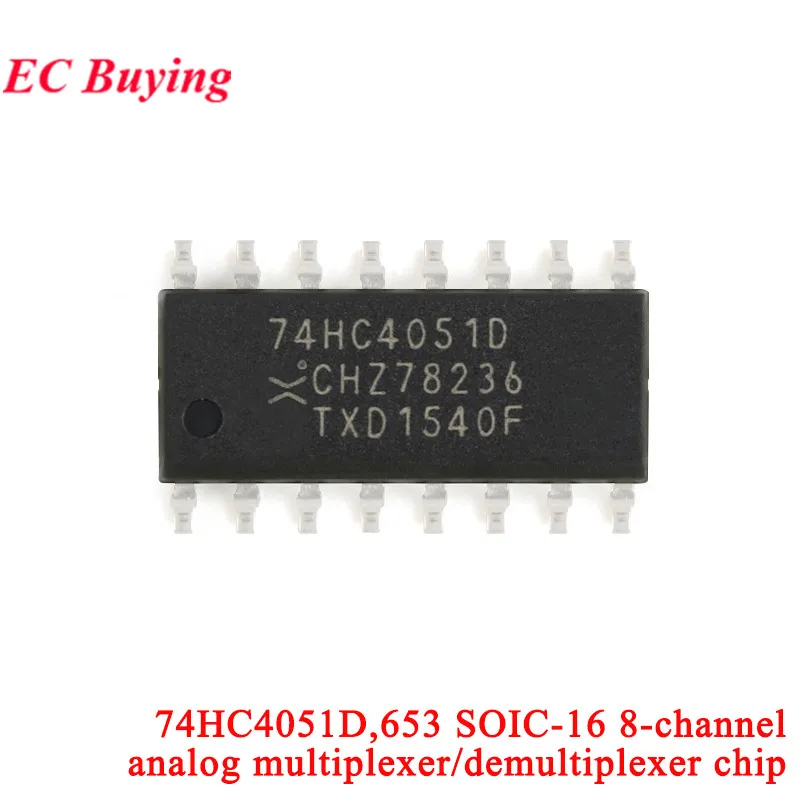

1-10Pcs 74HC4051 8 Channel Analog Multiplexer Selector Module CJMCU-4051 Multiplexers Distributor Resolver 74HC4051D CD74HC4067

Applications:

Analog multiplexing and demultiplexing

Digital multiplexing and demultiplexing

Signal gating

Analog input and output voltage: -5~5v

Interface communication type: digital simulation

Module size: 19.2*18.6*3.3mm

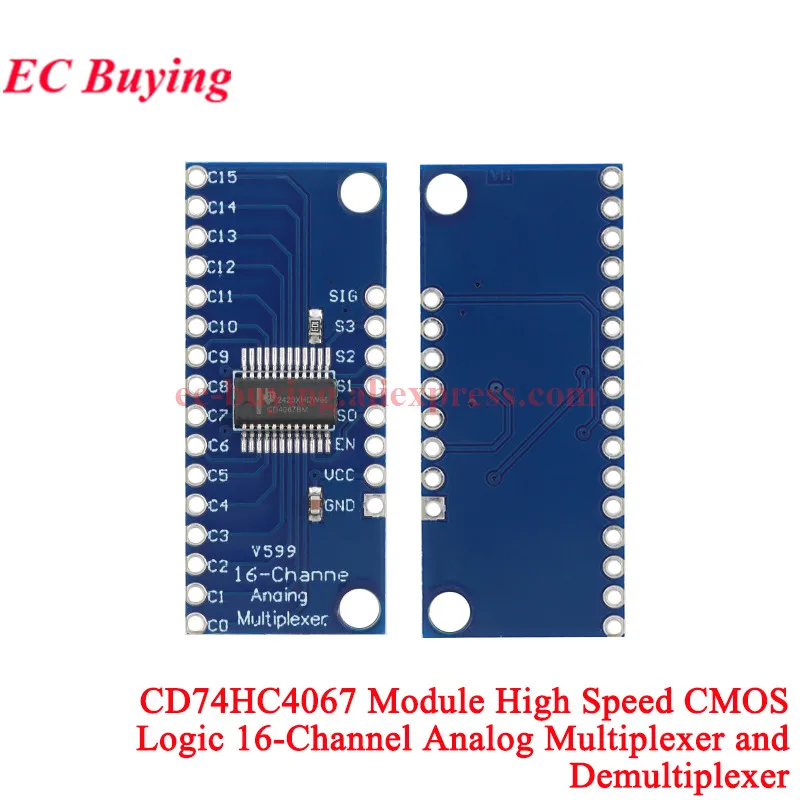

CD74HC4067 are digitally controlled analog switches that use CMOS technology and leverage the low power consumption characteristics of standard CMOS integrated circuits to achieve operating speeds close to L STTL. These analog multiplexers and demultiplexers control the analog voltage, which may vary over the entire supply voltage range. They are bidirectional switches, so any analog input can be used as an output, and vice versa. These switches have low on-resistance and low off-leakage. In addition, all these devices have an enable control, which when high will disable all switches and put them in the off state.

Product Parameters

1. The working voltage is 2V-6V.

2. Wide operating temperature range: -55°C to 125°C

3. Analog signal input: C0-C15 (16 channels)

4. Analog output: DIG

5. Channel control: S0-S3

6. Function: use one ADC to collect 16 analog signals
