GEYA G2R ATS Automatic Transfer Switch 220V 230V Din Rail Dual Power Electrical Selector Switches Uninterrupted Power 63A 110V

GEYA G2R Din Rail ATS Dual Power Automatic Transfer Switch Electrical Selector Switches Uninterrupted Power 2P4P 25A 40A 63A 230V/110V

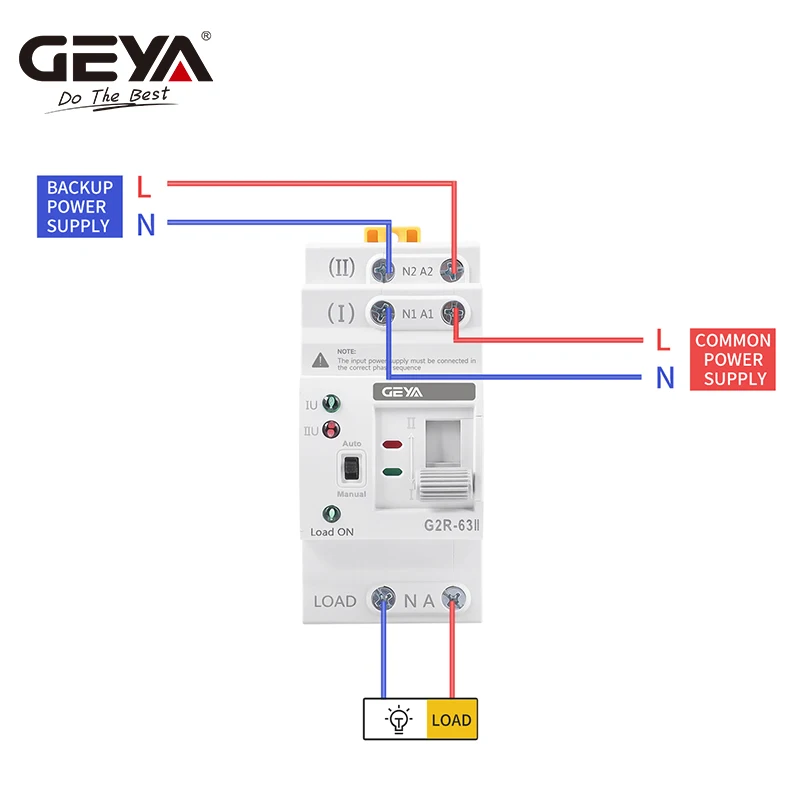

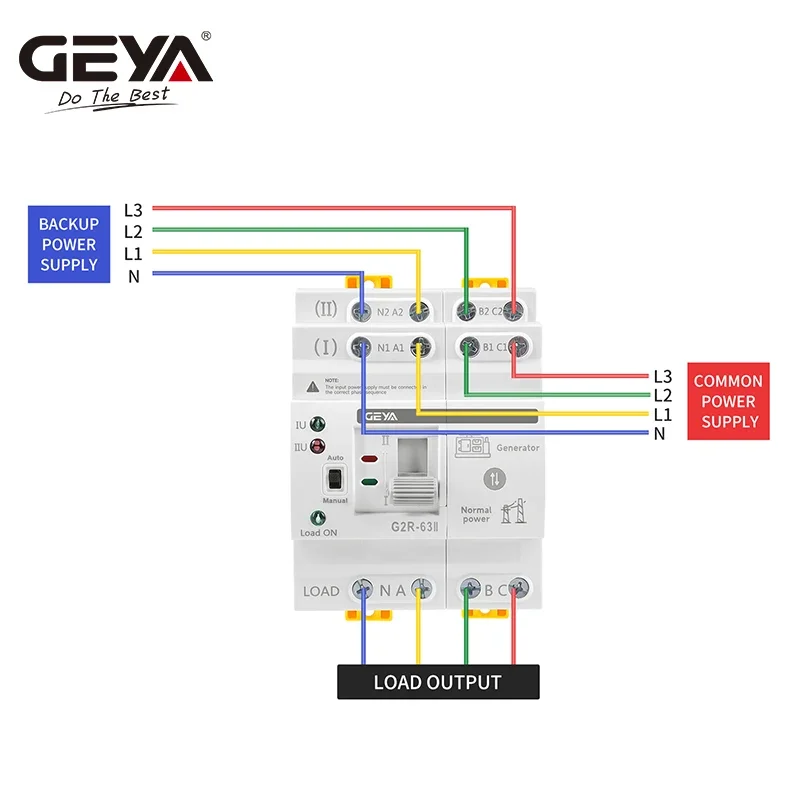

City Power ⇆ Generator
(If use Pure Sine Power Supply Inverter, Power need above 3000W)

General

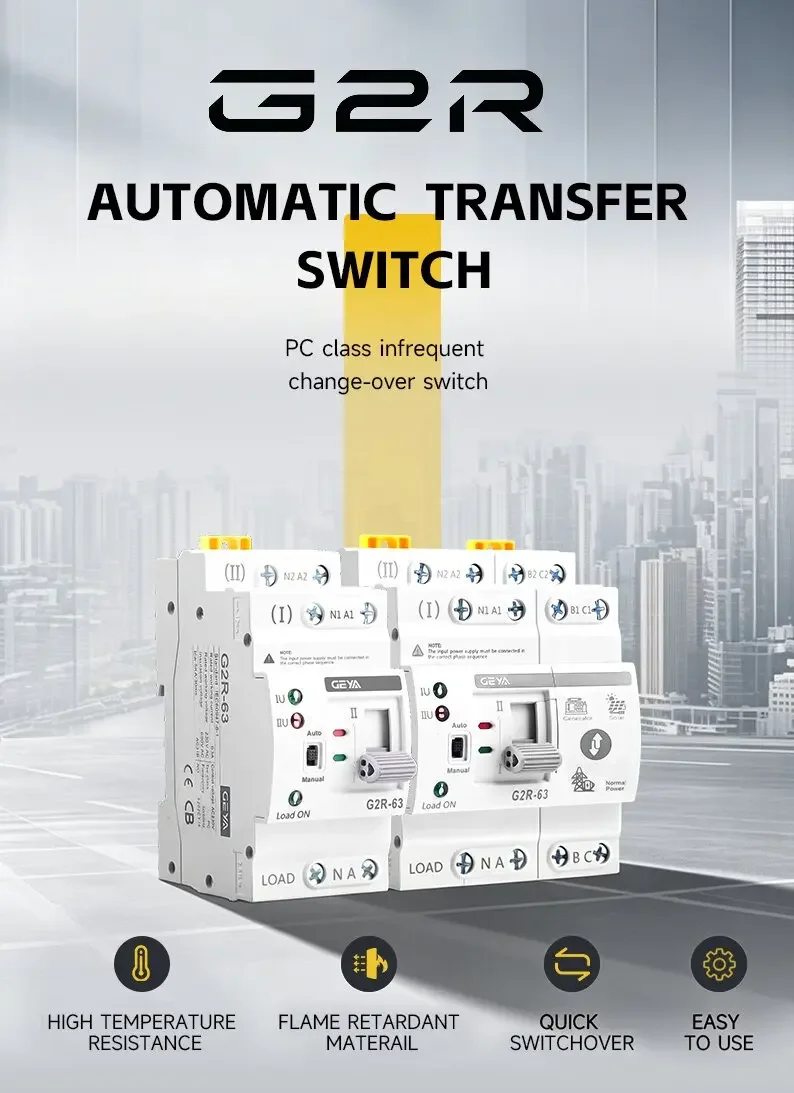

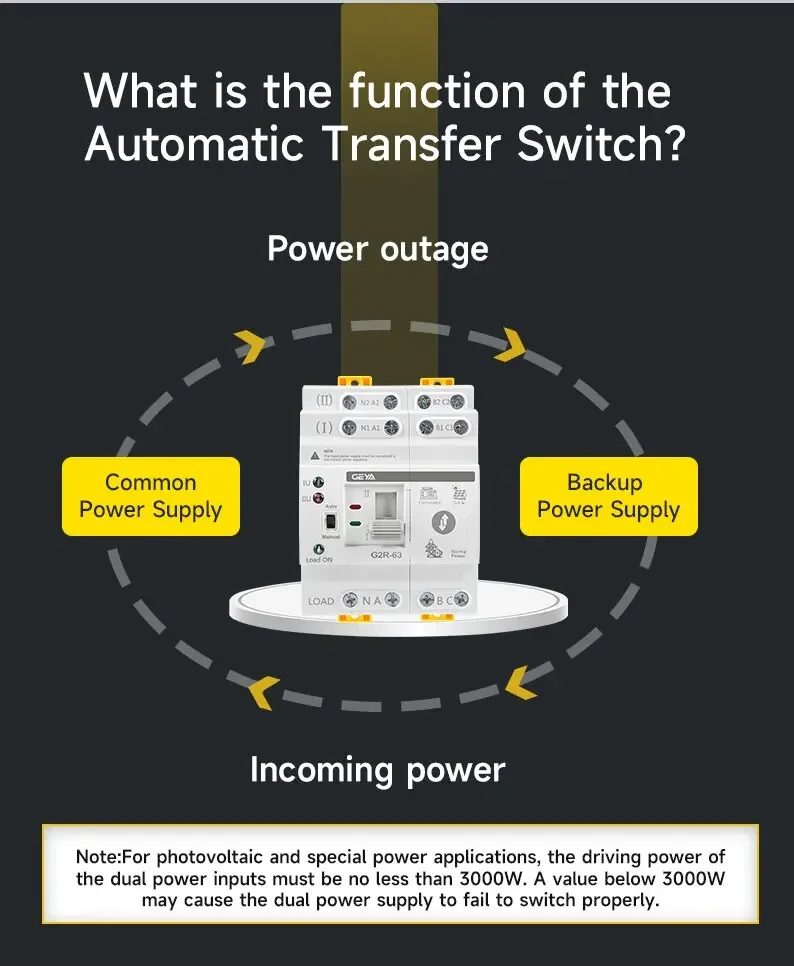

GEYA G2R-63 automatic transfer switch is a PC class infrequent change-over switch, with two-station design (commonly used for A and standby for B), suitable for AC systems with AC 50-60hz and rated current 6A-63A. The main function of the automatic transfer switch is when the main power (common power supply A) fails, the ATS will automatically switch to the backup power (Backup power supply B) to continue working (switching speed <50 milliseconds), which can effectively solve the troubles caused by power outages.
When both A and B have electricity, priority is using A Power

NOTE:
1. Manual/automatic operation can ensure the opening and closing performance of electrical operation, but in manual operation , there is no guarantee due to the different _opening/closing speeds of the operators. In manual operation, there's possible for excessive silver alloy loss . Therefore, the selector switch should only be pulled to the manual position after all power has been cut off for inspection and maintenance of the operating system and contact information.

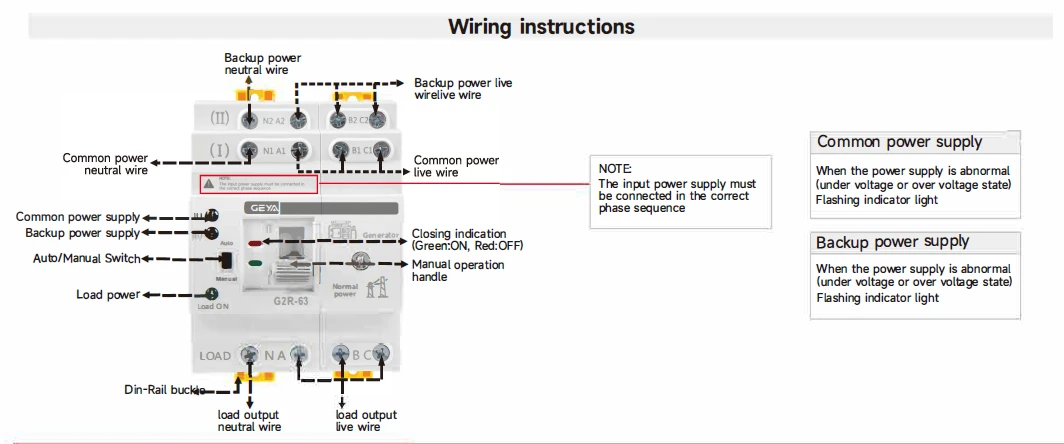

2, Normally, pull the selector switch to the electric position. When manual operation is required, pull the selector switch to the manual position. After manual operation is complete, pull the selector switch from the manual position to the automatic position.
The control circuit TSE is immediately energized. After the change over is completed, the internal switch will damage the coil in the control circuit, and the coil can work normally at 85%-110% of the rated operating voltage. Too low input voltage may cause the coil to overheat and burn out.

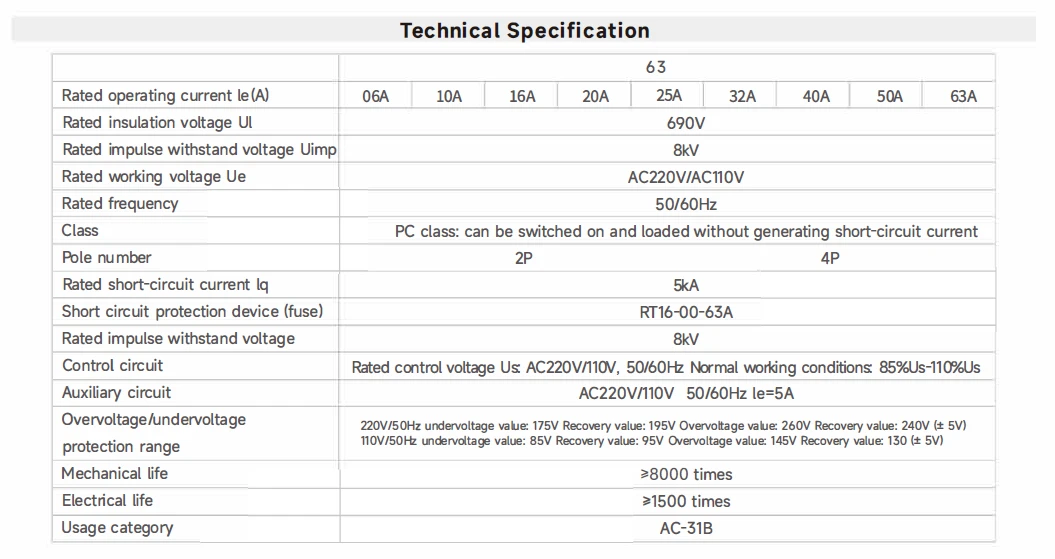

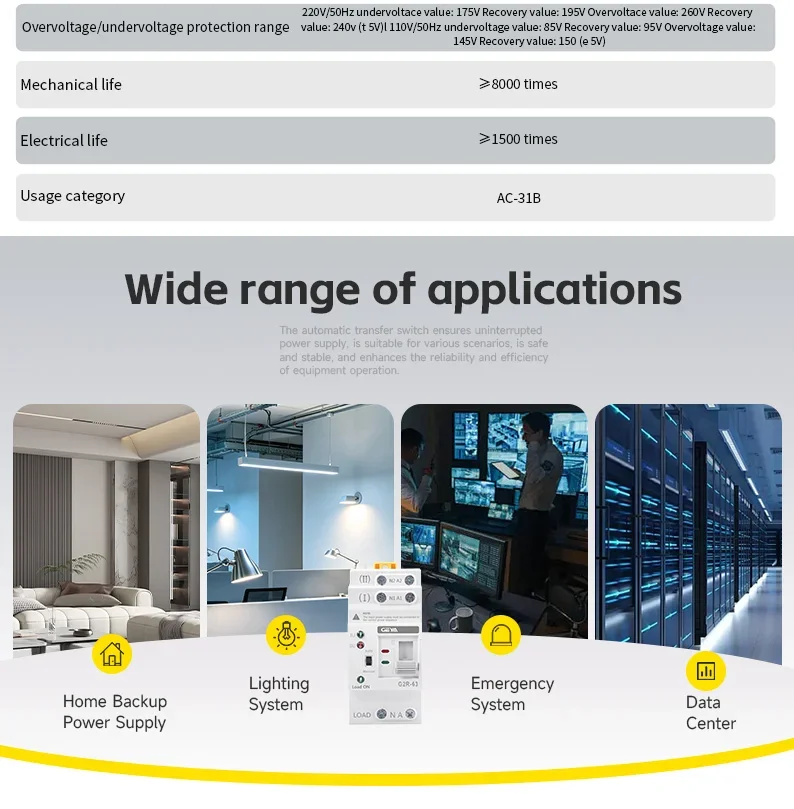

Voltage Protection Parameters:
220V G2R：Undervoltage Value 175V, Recovery Value 190V
Overvoltage  Value 270V, Recovery Value 250V
Delay:  Trip: 10s; Reset: 30s

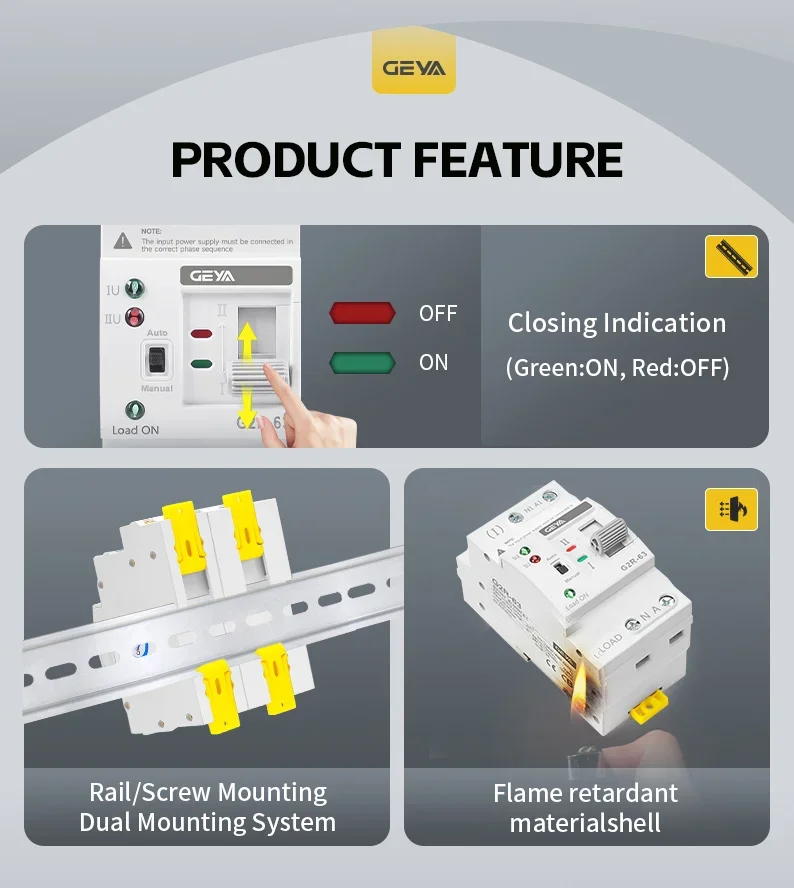

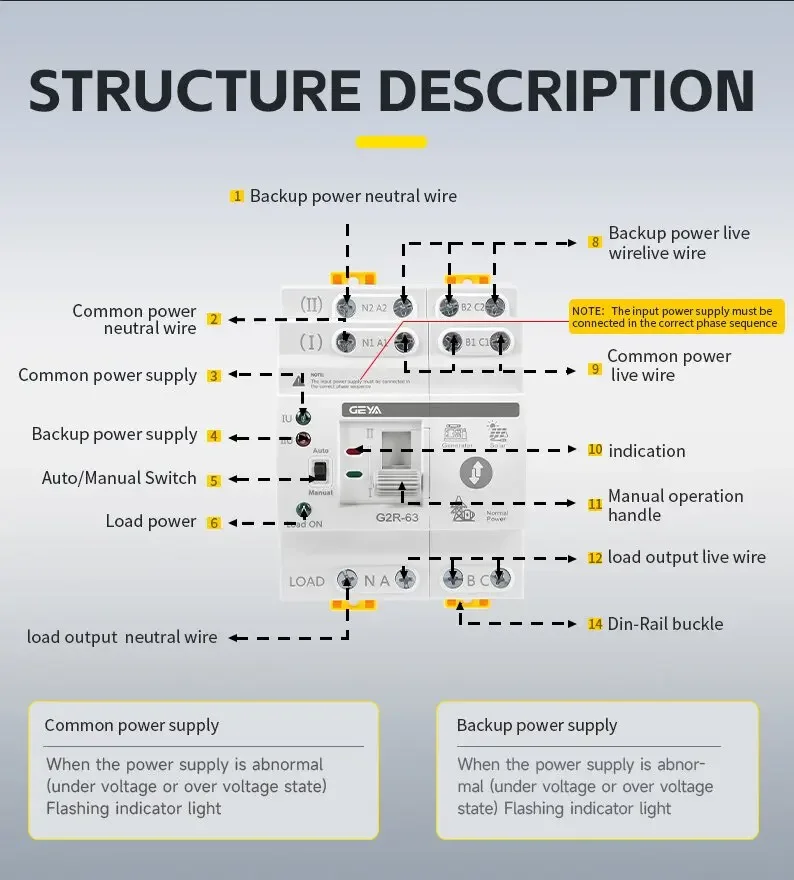

When the voltage is normal, the two LEDs stay on constantly.
When the voltage is abnormal:
voltage abnormality: Switches to standby power after a 10-second delay (default setting).
Overvoltage status: LED flashes twice every 2 seconds.
Undervoltage status: LED flashes once every 2 seconds.
voltage abnormality: LED displays a breathing effect (10-second default). It dims gradually during undervoltage and brightens gradually during overvoltage.

Attention!When manual operation the mode selection switch must be in "manual" position
