RVPOZWER 12.8V 400/200/100W Rigid Solar Panel 12BB N-Type Solar Cells Monocrystalline Silicon Waterproof Solar Panel Home/RV

RVPOZWER 12.8V 400/200/100W Rigid Solar Panel 12BB N-Type Solar Cells Monocrystalline Silicon Waterproof Solar Panel Home/RV

Product Datas:
Maximum Power(Pmax): 100W/Pcs
Open circuit voltage(Voc): 24.62V
Short circuit current(IsC): 5.36A
Peakpowervoltage(Vmp): 20.52V
Peak power current (Imp): 4.87A
Component efficiency(%): 25.2%
Weight: 4.9kg
Voc and Isc Tolerance:±5%
Maximum System Voltage: 1500V
Maximum Series Fuse Rating: 25A
Operating Temperature: -40°C~85°C
Protection Class: ClassII
Size: About 1010×460×30mm
Product Material:
1. Front Panel: High-transmission Tempered Glass
Adopted high light transmittance tempered glass. It effectively captures sunlight and improves photoelectric conversion efficiency. Hardened surface is scratch-resistant, impact-proof, and can withstand harsh outdoor environments.
2. Aluminum Alloy Frame
Thickened aerospace-grade aluminum alloy frame features high hardness and good toughness. It reinforces the overall structure, prevents bending and deformation, and provides excellent wind and snow resistance. Easy for installation and fixing.
3. Encapsulation Material
High-quality EVA adhesive film fully encapsulates battery cells. It has great adhesion, anti-aging performance and UV resistance. Avoids internal aging, delamination and water penetration under long-term outdoor use.
4. Multi-layer Backsheet
Durable composite backsheet isolates heat, moisture and dust. It protects internal circuits and cells, reduces power attenuation, and ensures stable output for years.
5. Overall Sealing Process

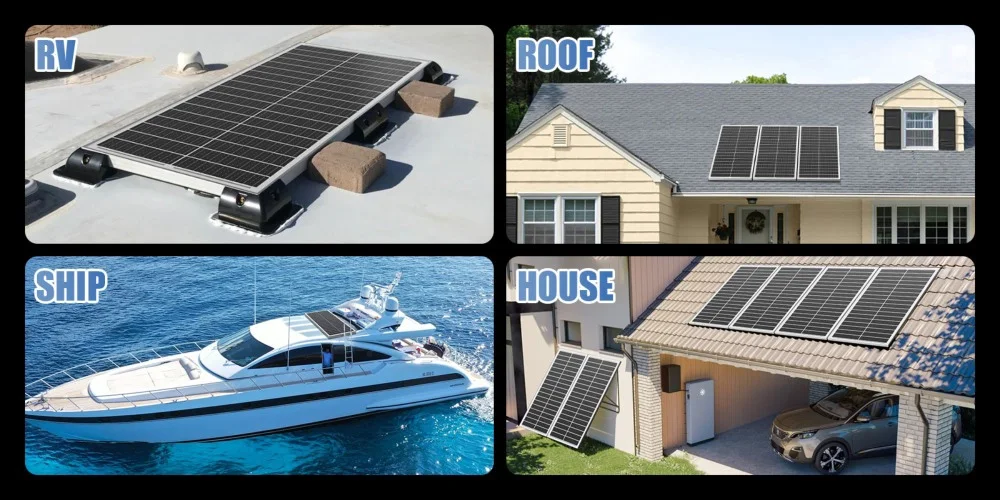

Fully sealed craft creates an all-round protective barrier. Excellent waterproof, dustproof and weatherproof performance, suitable for home, outdoor, RV and electric vehicle charging scenarios.
Product Features:
1. High aesthetic value: Minimalist white frame design, perfectly integrating RV and courtyard styles;

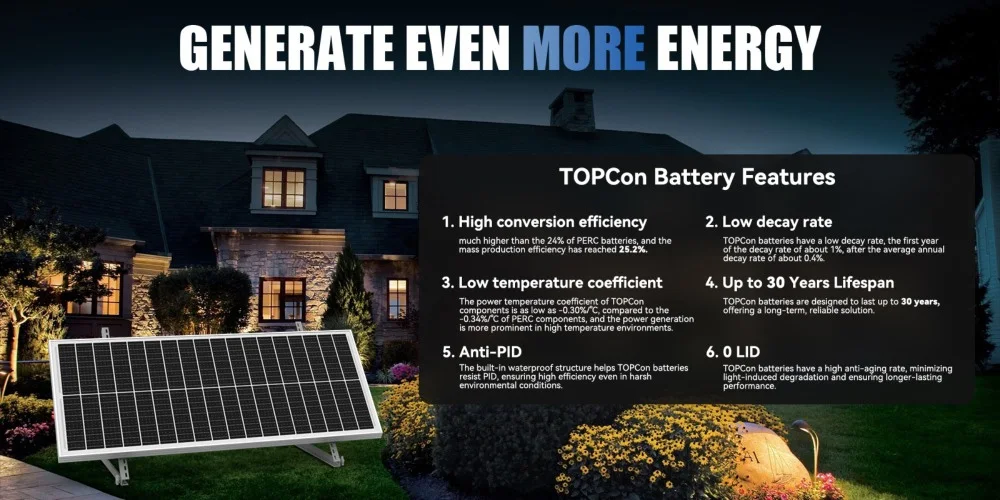

2. High quality: N-type Solar Cells, Fine Line Printing, effectively utilizing every inch of sunlight;
3. High conversion rate: The Mass Production Efficiency Has Reached 25.2%;
4. High output: 25 Years commitment to maintain 84.5% output;
