150W-600W Semi-Flexible Monolithic Monocrystalline Solar Panel Kit, 19.8V PV Module, 12V/24V/36V Off-Grid Battery Charger for RV

Xinpuguang 150W - 600W Solar Panel Battery charger Kit 12V / 24V/36V Monolithic semi-flexible monocrystalline solar panel power 19.8V 150W

About this item

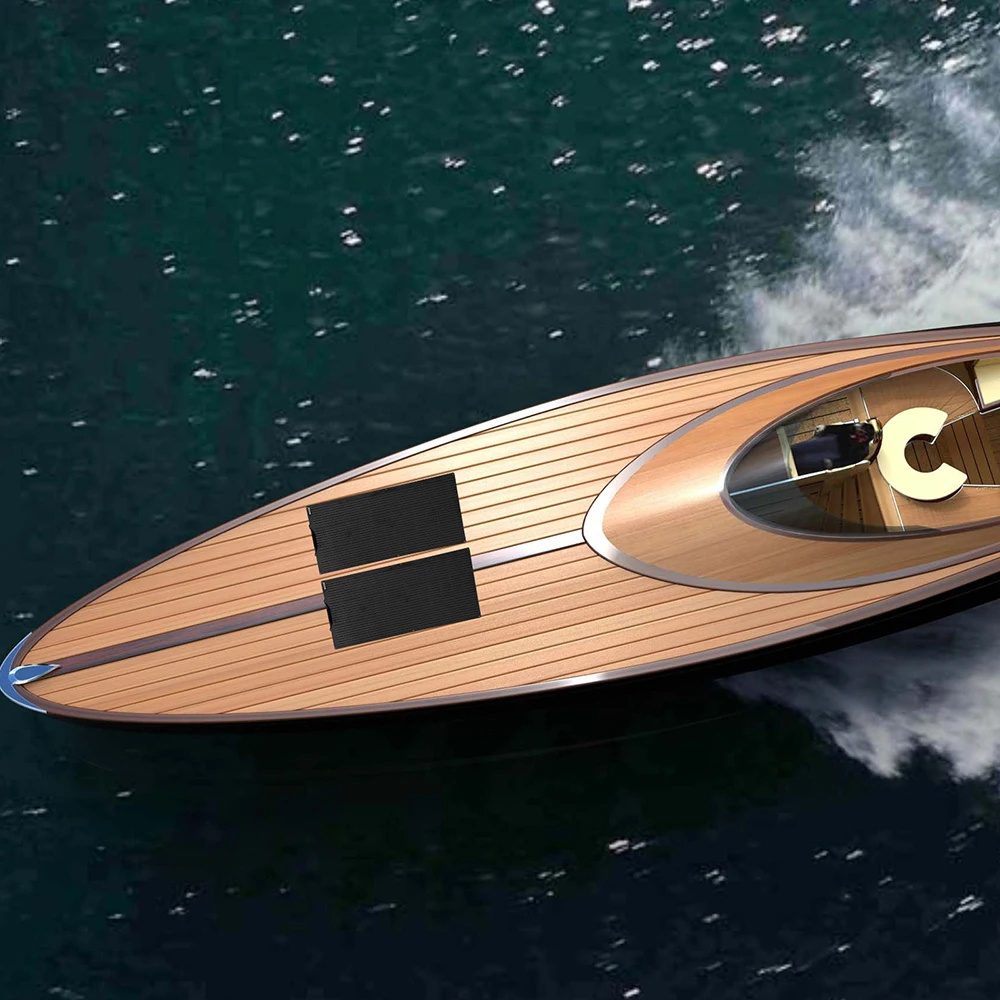

Wide Application: 150W is a semi-flexible high-performance solar cell that is ideally suited both as a solar module for the mobile home and especially for marine use on sailing yachts, motor yachts and other types of boats.
Maximum Stability: Our semi-flexible solar modules Thanks to the integrated bypass diodes in the junction box.

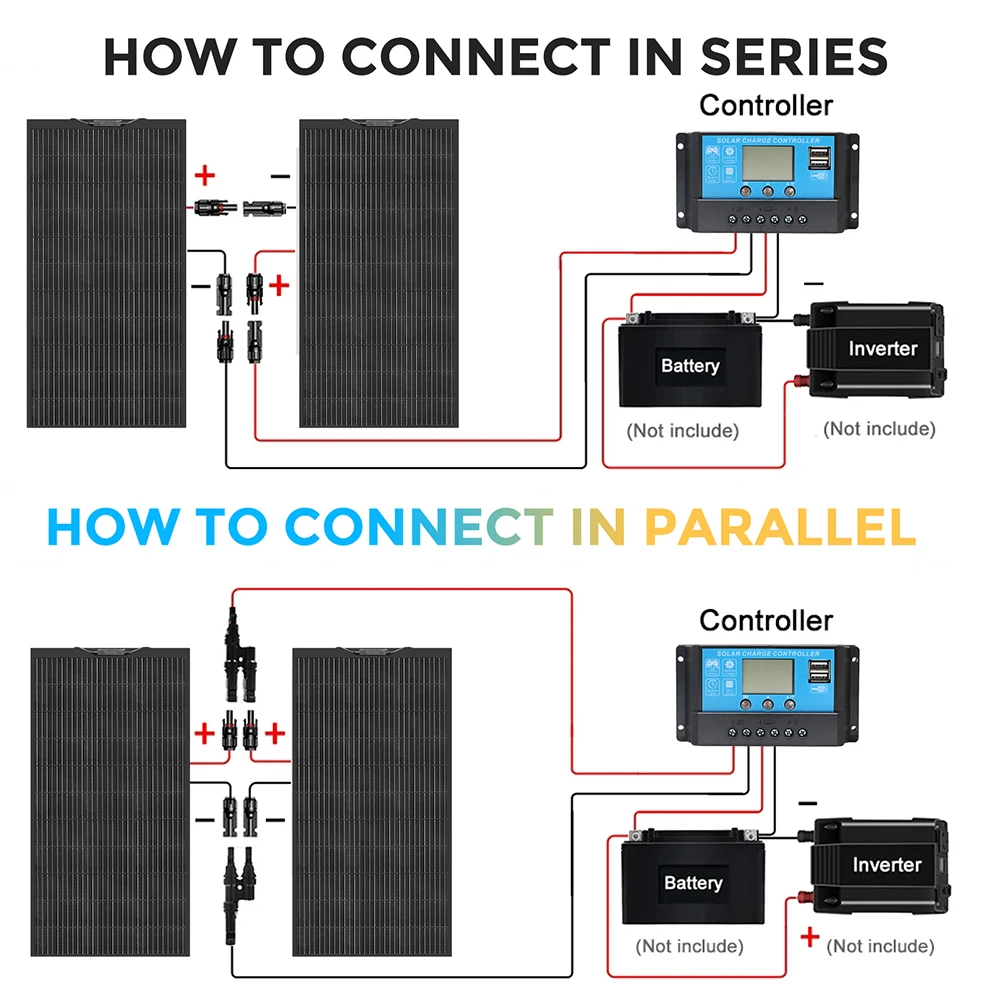

Waterproof: The junction box and diodes have been pre-installed and are sealed and waterproof. The solar panel is supplied with a 90cm solar cable with which several panels can be connected in series or in parallel.
Anti-Backflow: Built-in blocking diode to prevent battery discharge at night ,and prevent flexible panel from current backflow to damage circuit board in cells.
Easy Construction: Thanks to the junction box on the front, the modules can be glued to almost any surface.

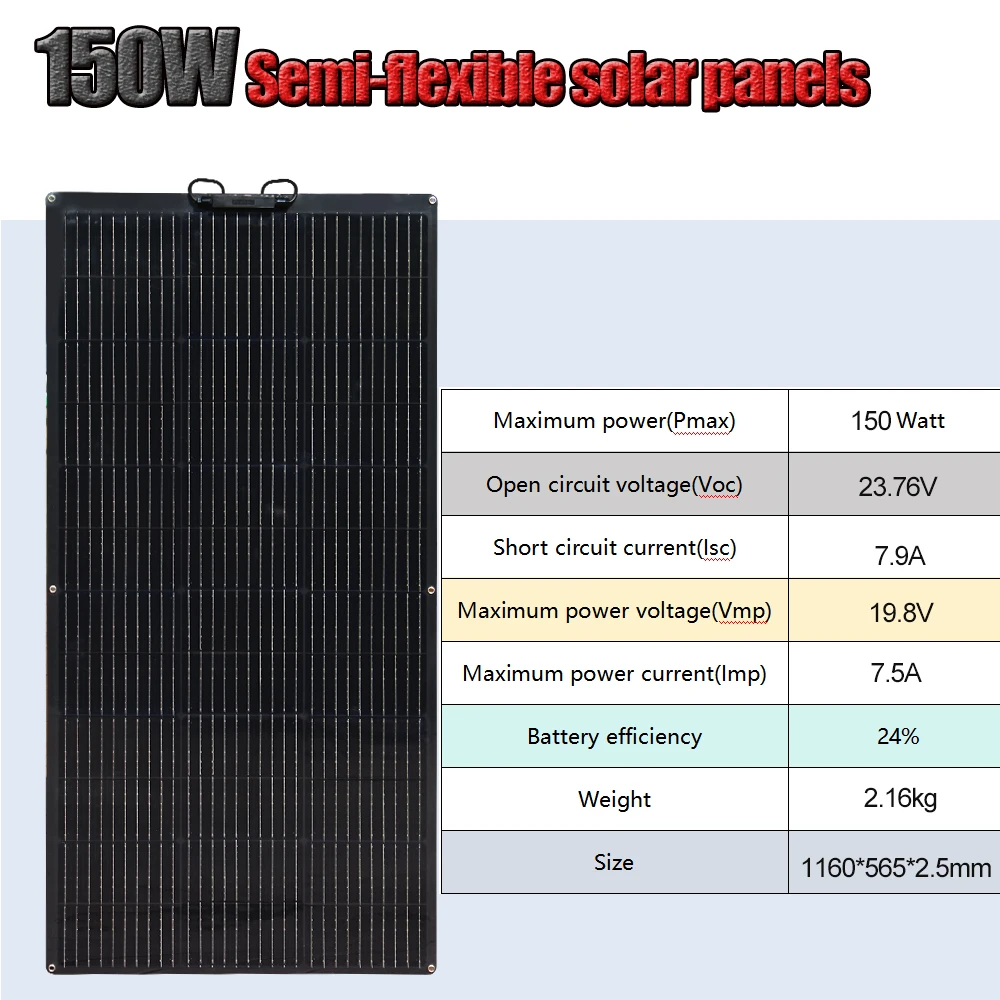

19.8V 150W Flexible Solar Panel Specification:

Maximum power (Pmax) 150W

Maximum system voltage 1000V DC

Open circuit voltage (cov) 22,56V

Short circuit current (Isc) 7.87 A

Vmp 19.8V

Maximum power current(Imp) 7.5 A

Temperature range -40℃～+80℃

Cell Monocrystalline silicon cell

Number of cells 36 pieces

Cell efficiency 24%.

Weight 2.16kg

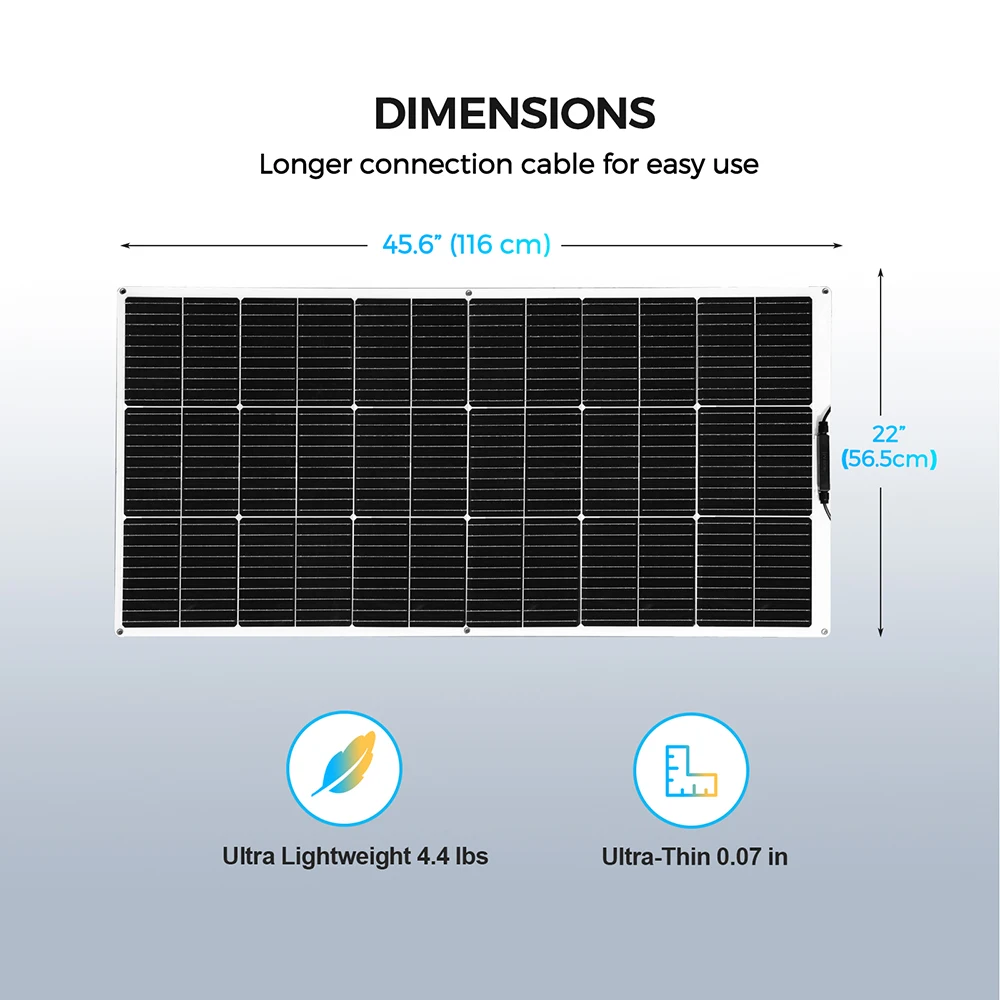

Size 1160*565*2.5mm

Standard test conditions lrradiance 1000w/m^2,Temperature 25℃, AM=1.5

Output port 0.9 m long MC -4 connector wire
Cable length 90cm/10FT
Operating Temperature -45℃ to 80℃ /-49℉ to 176℉

Operating temperature(NOCT) 45 plus or minus 2 Celsius system

STC: lrradiance1000w/m2,Temperature 25 Celsius system, AM=1.5

Please note: If you test the solar panel, the solar panel must be tested under the sun. The solar panel is exposed to sunlight at different times and the temperature is different, which will affect the output power of the solar panel.

1 Years Warranty, 10 Year Lifetime
Minor reduction in efficiency under partial load conditions at 25degC: at 100 W/m2, 95%- (+/-5%) of the STC efficiency (1000 W/m2) is achieved.

Extra: We keep right to change the specification of the data, and there is about ±5%deviation for all specification, pls notice this point.

Solar panels need to be in the sun to have output, and depending on the light, temperature, the output power will vary

OR

Features:

1.[Excellent performance] Using high-quality monocrystalline silicon cells, high-efficiency monocrystalline silicon solar cells provide good performance even in low light conditions

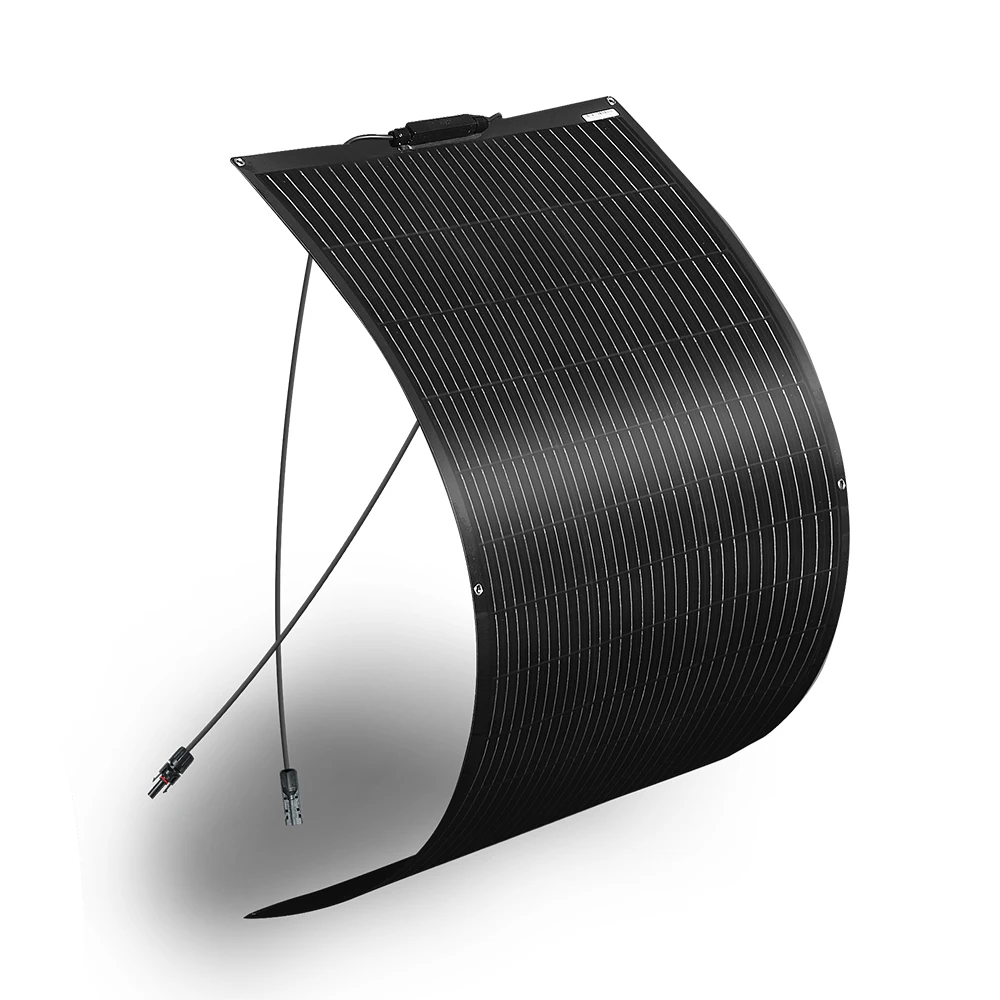

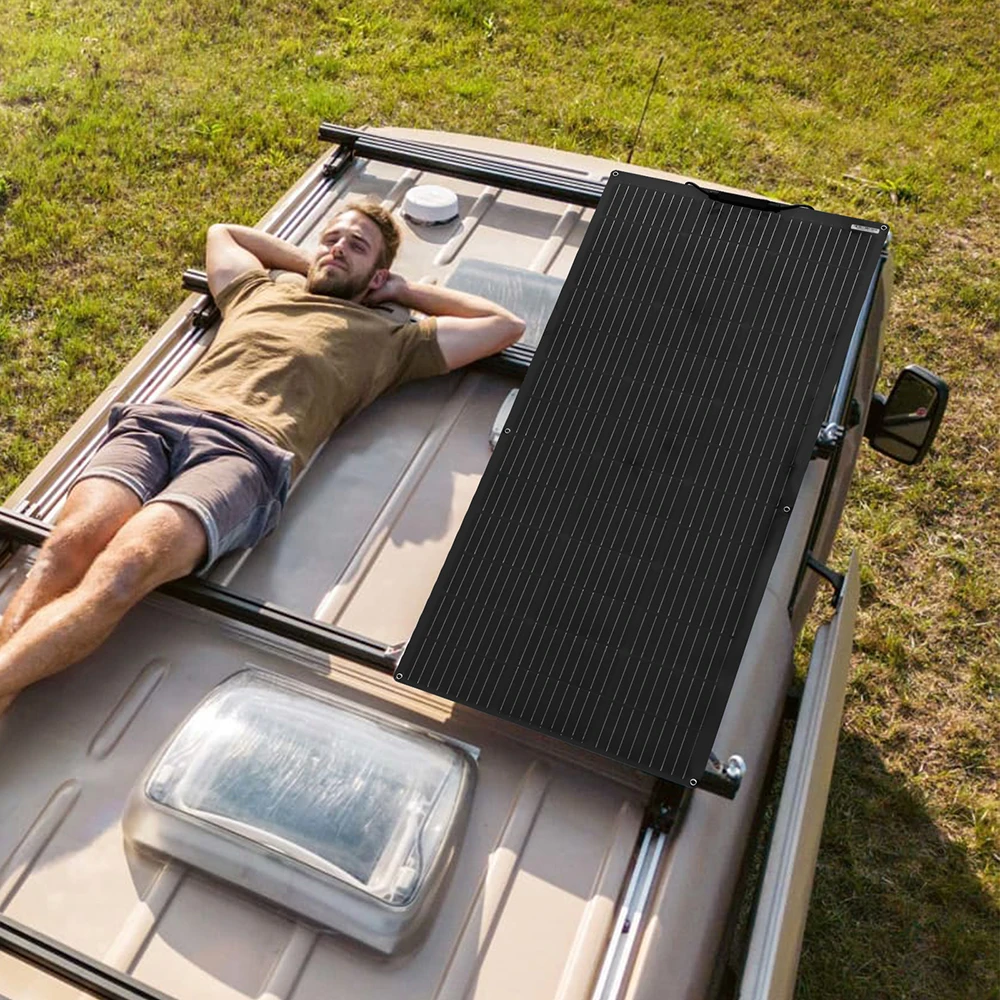

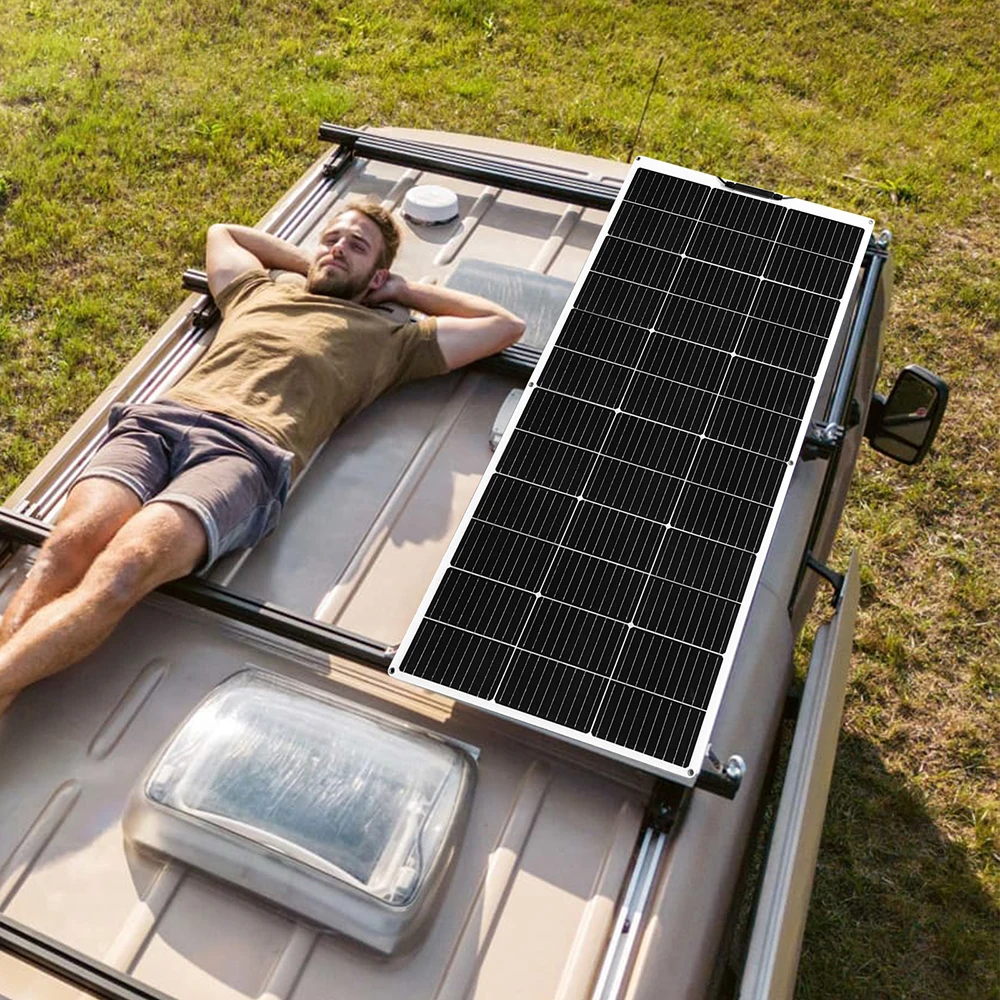

2.[Flexible] This flexible solar panel is a good choice for curved surfaces of RV, boat,sailboat, yacht,truck, car, coach, cabin, camper , tent , trailer, golf cart or any other irregular surface.
3.[Practicality] Light energy converts electrical energy and has strong practicability. It is a good supplement for power shortages and places where the city power cannot reach, such as mountains, marine, deserts, etc.
4.[Nice Details] The water resistant flexible solar panel is far more durable than traditional glass and aluminum models; The junction box is sealed and waterproof.
5.[Easy Installation]The solar panel has 6 grommet mounting holes are available to attach fasteners,and can also be installed with silicone and adhesive tape. 12-month guarantee service.

Packing list

1 x 150W 19.8V Solar Panel (150W)

OR

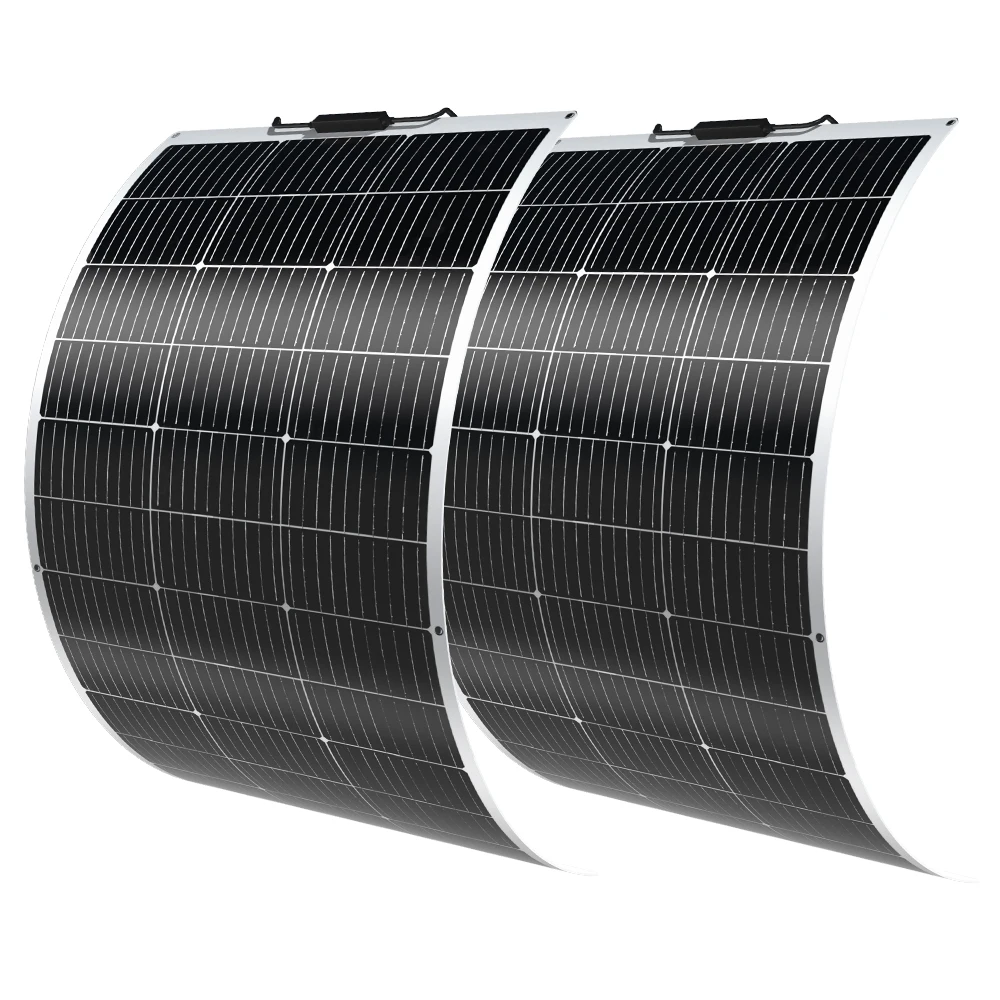

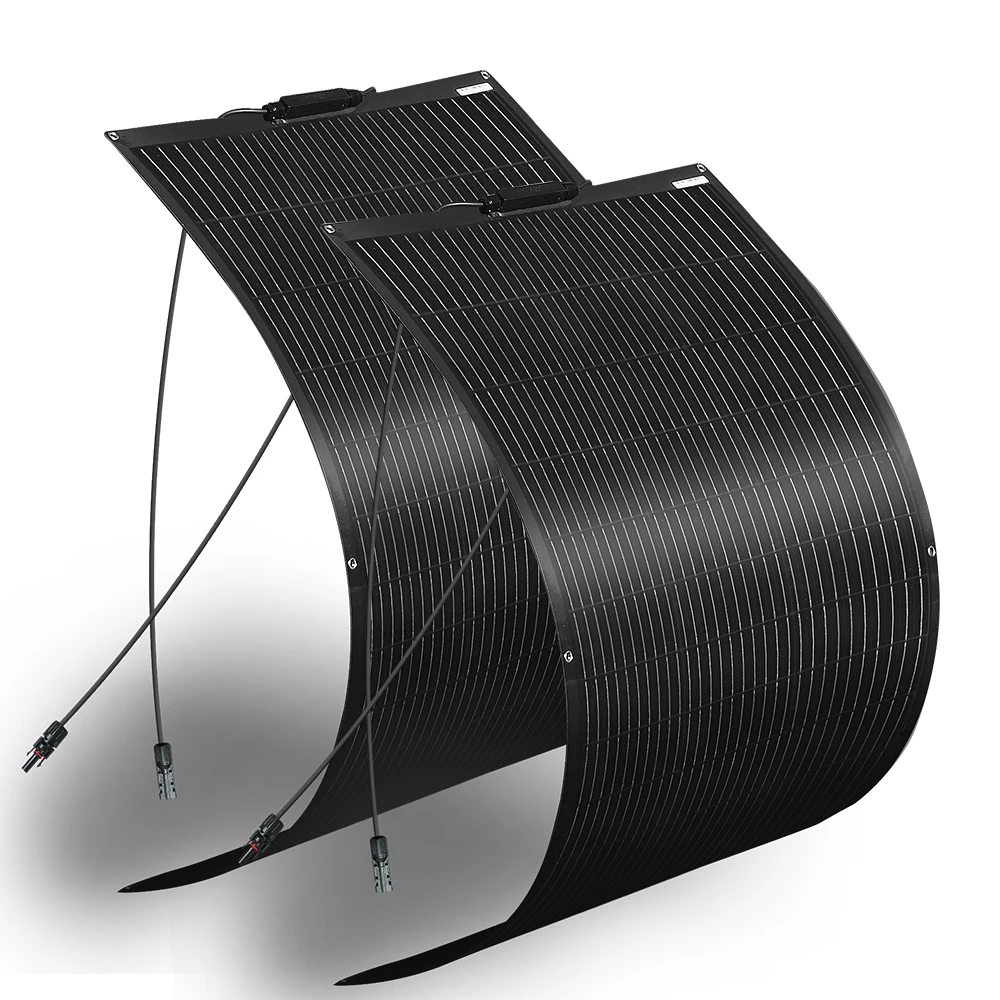

2 x 150W 19.8V Solar Panel (300W)

OR 150W 12V kit

1 x 150W 19.8V Solar Panel
2. 1x 10A 12V/24V solar controller
3. 1x 3M PV extending connecting cable
4. 1x 3M alligator clip solar cable

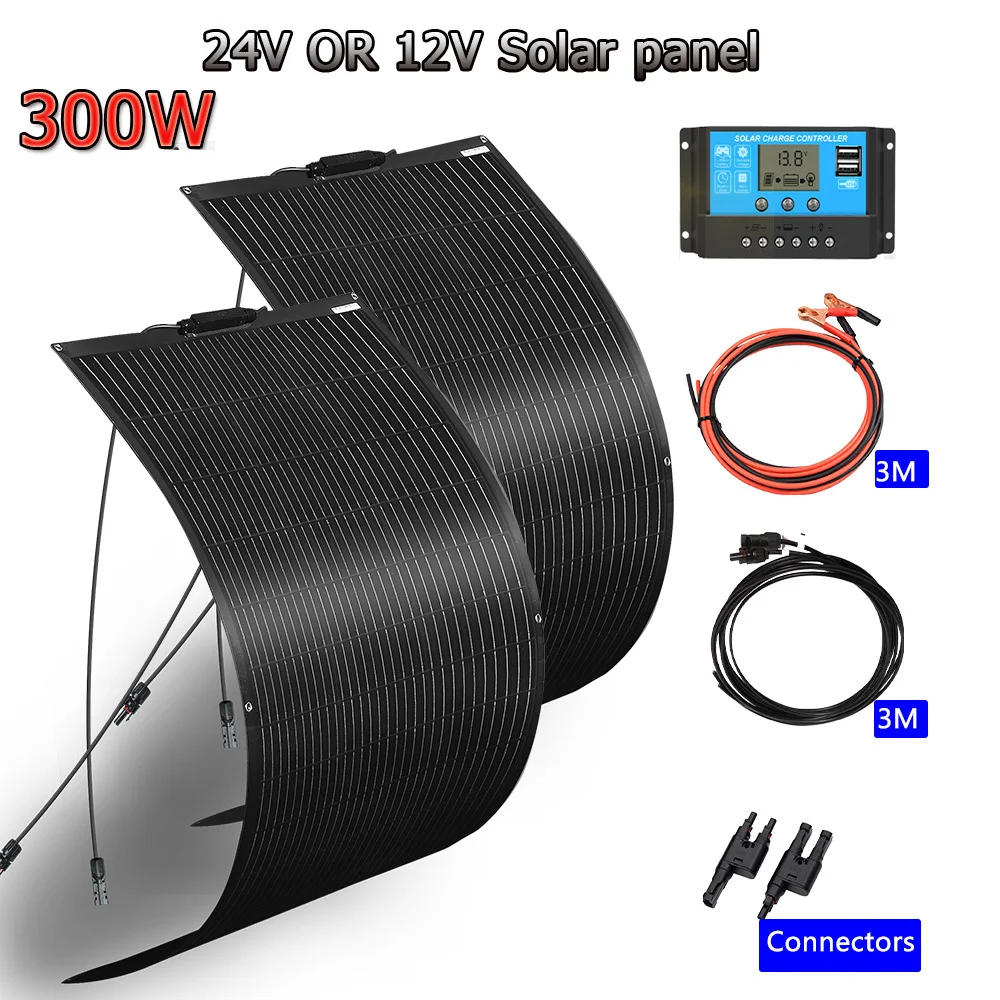

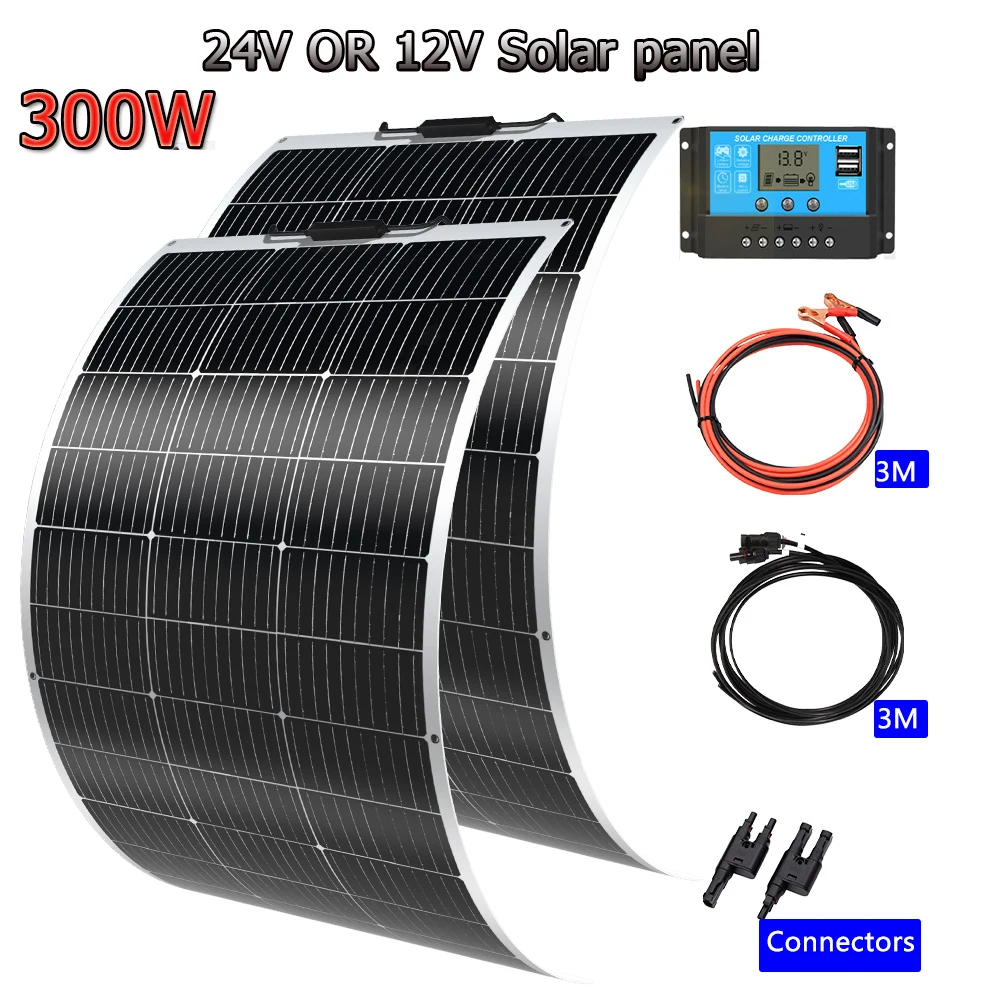

OR 300W 12V 24v kit

2 x 150W 19.8V Solar Panel
2. 1x 20A 12V/24V solar controller
3. 1x 3M PV extending connecting cable
4. 1x 3M alligator clip solar cable
5. 2 in 1 adaptors

OR 450W 12V 36V kit

3x 150W 19.8V Solar Panel
2. 1x 30A 12V/24V 36V solar controller
3. 1x 3M PV extending connecting cable
4. 1x 3M alligator clip solar cable
5. 3 in 1 adaptors

OR 600W 12V 48V kit

4 x 150W 19.8V Solar Panel
2. 1x 40A 12V/24V solar controller
3. 1x 3M PV extending connecting cable
4. 1x 3M alligator clip solar cable
5. 4 in 1 adaptors
