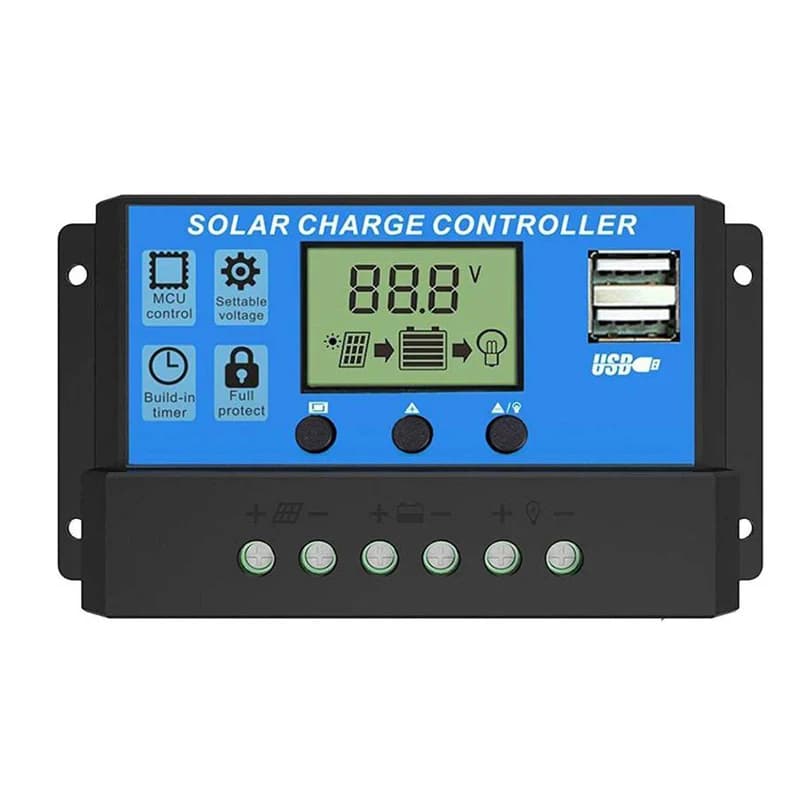

Solar Charge Controller 10A to 100A LCD Display Dual USB Auto Regulator for Solar Panel Battery System Charging

Specifications
1. Rated voltage: 12/24V
2. Rated current: 10/20/30/40/50/60/100A
Function:
1. Always keep the battery on fill voltage condition.
2. Prevent the battery from over-charging.
3. Prevent the battery from over-discharging.
4. Prevent the battery from reverse charging to solar panels during
nights.
5. Reverse Polarity Protection for Battery
6. Reverse Polarity Protection for Solar Panels
7. When the battery voltage is low, the controller will
automatically cut off the load from the system. If the voltage of
battery is back to normal and the load will restart working.
8. Thunder protection
9. According to the battery voltage grade, the controller can
automatically set charge-off voltage, the load-off voltage, the
load- restore voltage. (The parameter is default under 25celsius
condition, locked by the CPU procedure, cannot adjust.)
10. The controller will automatically compensate the temperature of
the charging voltage according to the changes of ambient temperature.
Feature：
1.Build-in industrial micro controller.
2.Big LCD display,all adjustable parameter.
3.Fully 4-stage PWM charge management.
4.Build-in short-circuit protection,open-circuit protection,reverse protection,over-load protection.
5.Dual mosfet Reverse current protection ,low heat production.
Connection：
1.Connect the battery to the charge regulator - plus and minus.
2.Connect the photovoltaic module to the regulator - plus and minus.
3. Connect the consumer to the charge regulator - plus and minus.
The reverse order applies when deinstalling!
An improper sequence order can damage the controller!
Package Includes:
1 x Solar Panels Battery Charge Controller
Product Parameter：
MODEL
RBL-10A
RBL-20A
RBL-30A
RBL-40A
RBL-50A
RBL-60A
Battery Voltage
12V 24V Auto
Charging Current
10A
20A
30A
40A
50A
60A
Discharging Current
10A
10A
10A
20A
30A
30A
Max Solar input
48V(for 24V battery) 24V(for 12V battery)
Equalization
14.4V(Sealed) 14.2V(Gel) 14.6V(Flood)
Float charge
13.7V(defaul,adjustable)
Discharge stop
10.7V(defaul,adjustable)
Discharge reconnect
12.6V(defaul,adjustable)
Charge reconnect
13V
Voltage of open light
Solar Panel 8V(Light lights delay)
Voltage of close light
Solar Panel 8V(Light off delay)
USB output
5V/3A
Self-consume
<10mA
Operating temperature
-35°C~+60°C
Size
133.5*70*35mm
188*90*47mm
