BOGUANG Rigid Solar Panel Glass Solar Cell Power 100W | 120W | 150W Charger for 12V Battery Home Car RV Yachts Golf Carts Etc.

BOGUANG Rigid Glass Solar Panel Solar Cell Power 100W | 120W |150W charger for 12V battery home car RV yachts golf carts etc.

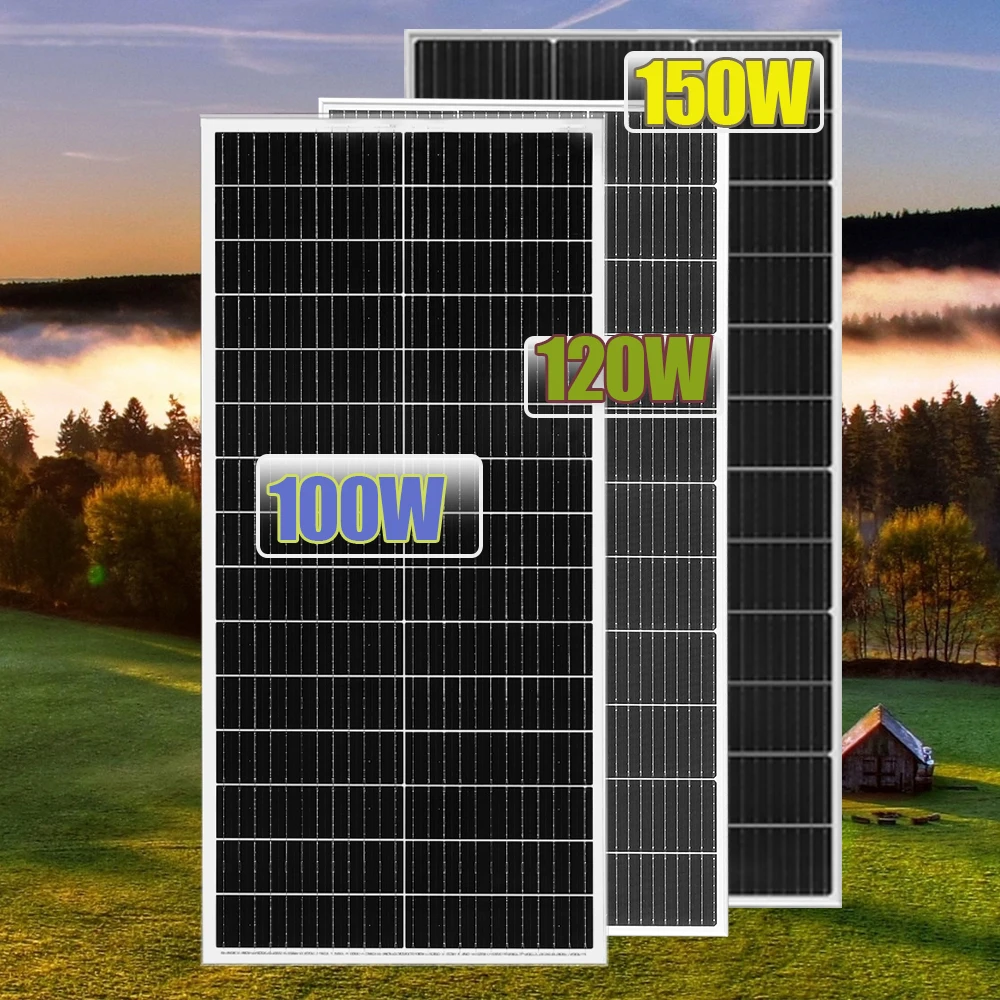

Glass Solar Panel: 100W, 120W ,150W Solar Panel is available for selection.

Glass 19.8V 150W SOLAR PANEL Product specification

specificationMaximum power (Pmax) 150W

Maximum system voltage 1000V DC

Open circuit voltage (cov) 23.76V

Short circuit current (Isc) 7,94 A

Vmp 19.8V

Maximum power current(Imp) 7,57 A

Temperature range -40℃～+80℃

Cell Monocrystalline silicon cell

Number of cells 36 pieces

Cell efficiency 24%.

Weight 6.9kg

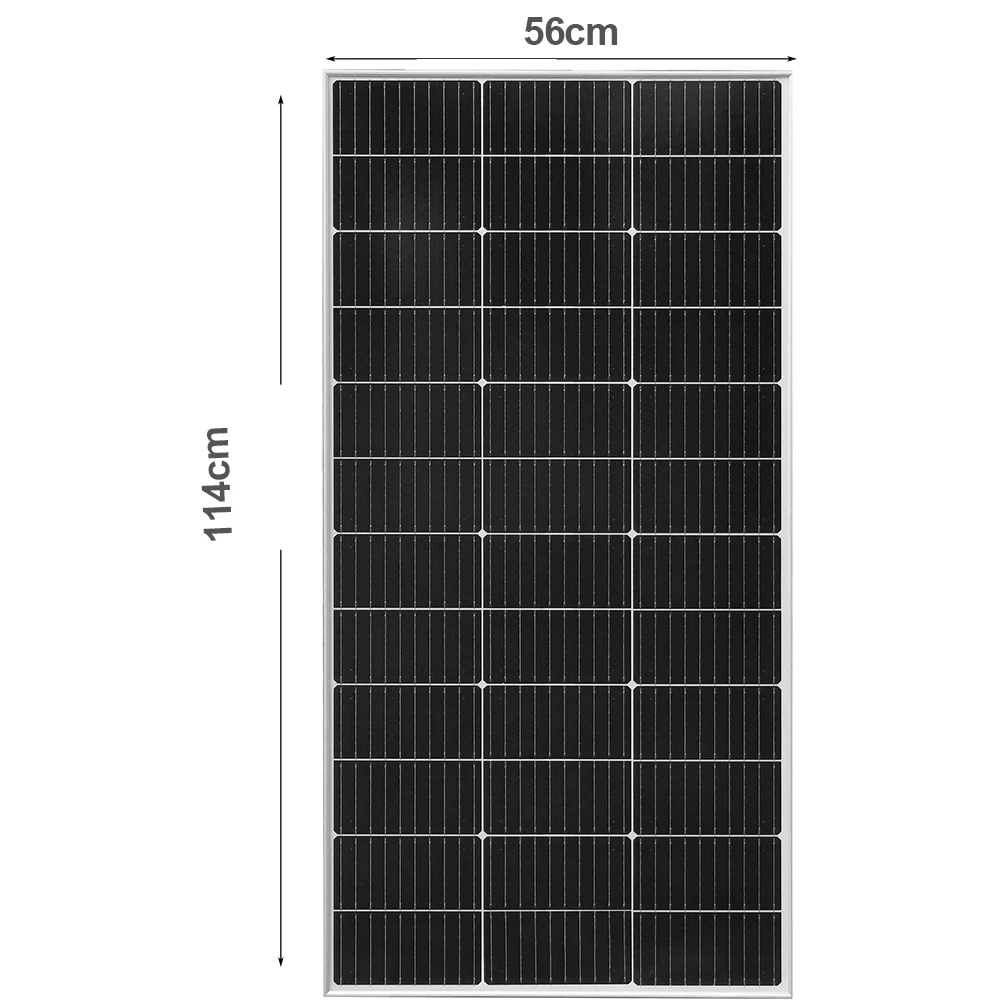

Size 1140*560*25mm

Standard test conditions lrradiance 1000w/m^2，Temperature 25℃, AM=1.5



Surface material Toughened glass

Standard Test Conditions ： lrradiance 1000w/m^2，Temperature 25℃, AM=1.5

【Reliable】Advanced encapsulation material with multi-layered sheet laminations enhance cell

performance and provide a long service life.

【Durable】Guaranteed positive output tolerance (0-3%); withstands high winds (2000Pa) and

snow loads (4000Pa)

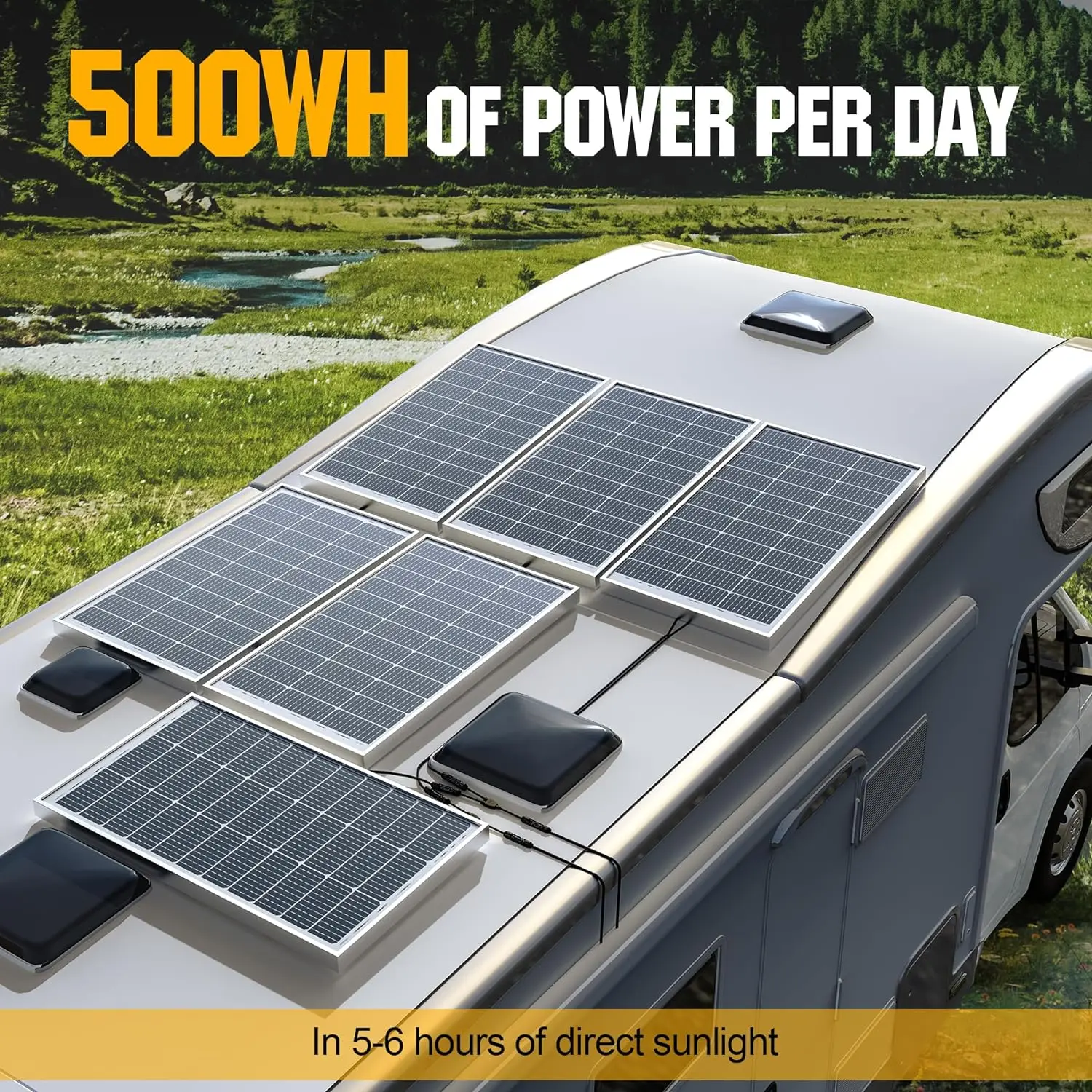

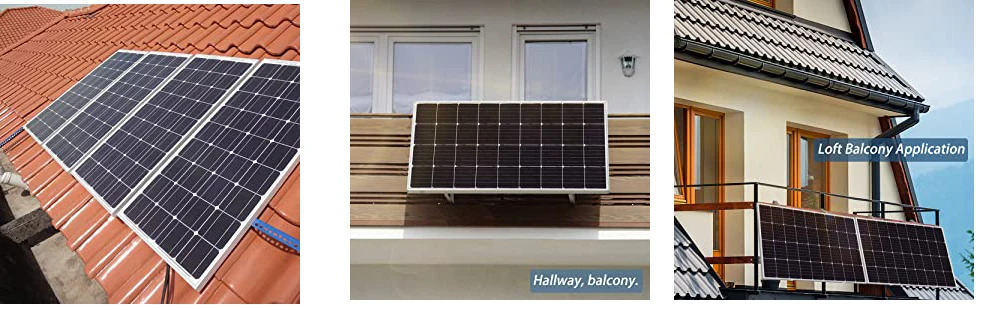

【Versatile】Use it for your RV when camping, or during beach trips with the family, either way

this monocrystalline panel provides you with the most efficiency per space.

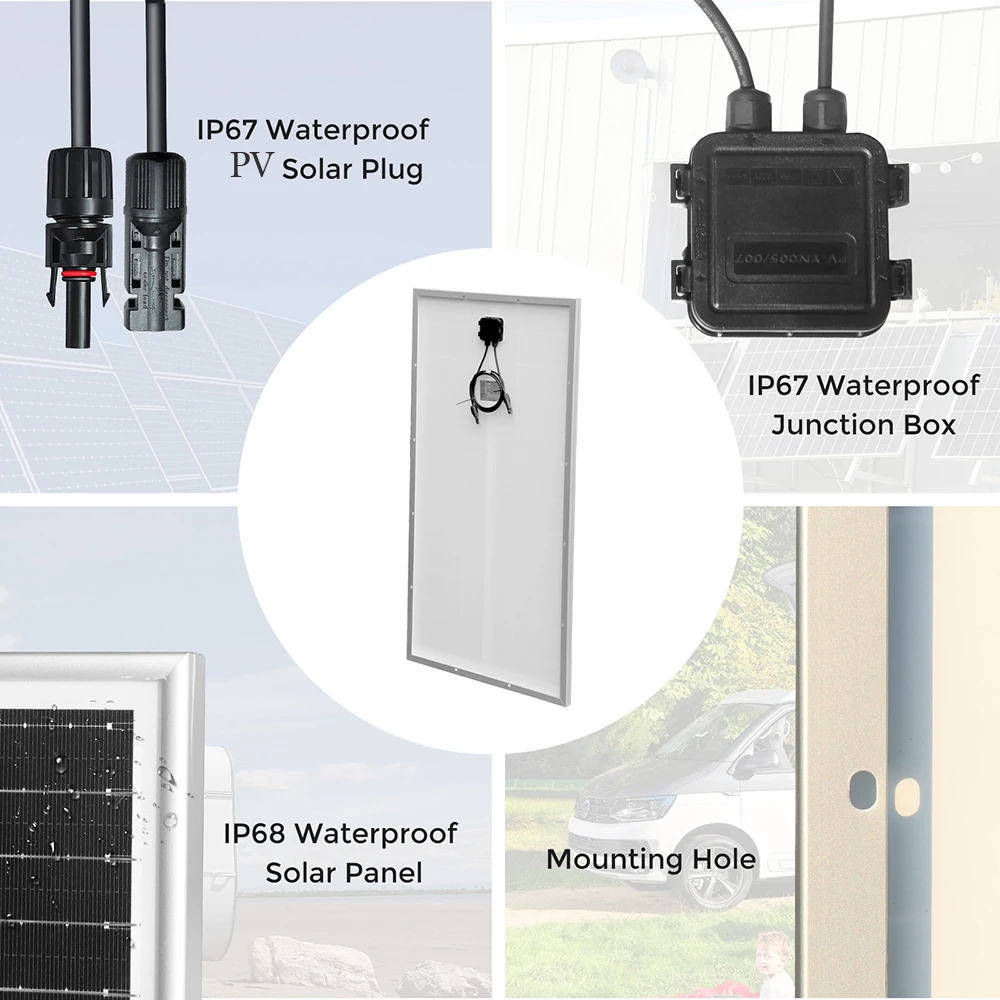

【Installation Ready】Pre-drilled holes on the back of the panel allow for fast mounting and securing.

Advanced encapsulation material with multi-layer sheet metal laminations to improve cell performance and guarantee a long service life.

Bypass diodes minimize the drop in performance caused by shadows and ensure excellent performance in low light conditions.

Positive tolerance guarantee (0-3%); Withstand high wind (2400Pa) and snow loads (5400Pa) and the IP65 junction box offers complete protection against environmental influences and low-pressure water jets.

Corrosion-resistant aluminum frame for extended outdoor use so the solar panels can last for years.

Specification of 120w 18.15V

Maximum power(Pmax) 120W

Output tolerance ± 5%

Maximum system voltage 700V DC

Open circuit voltage(Voc) 21.78V

Maximum power voltage(Vmp) 18.15V

Short circuit current(Isc) 6.9 A

Maximum power current(Imp) 6.6A

Cell efficiency 24%

Operating temperature（NOCT) 45±2℃

Temperature range -40℃～+80℃

Number of cells 33pcs

Weight 6.6kg

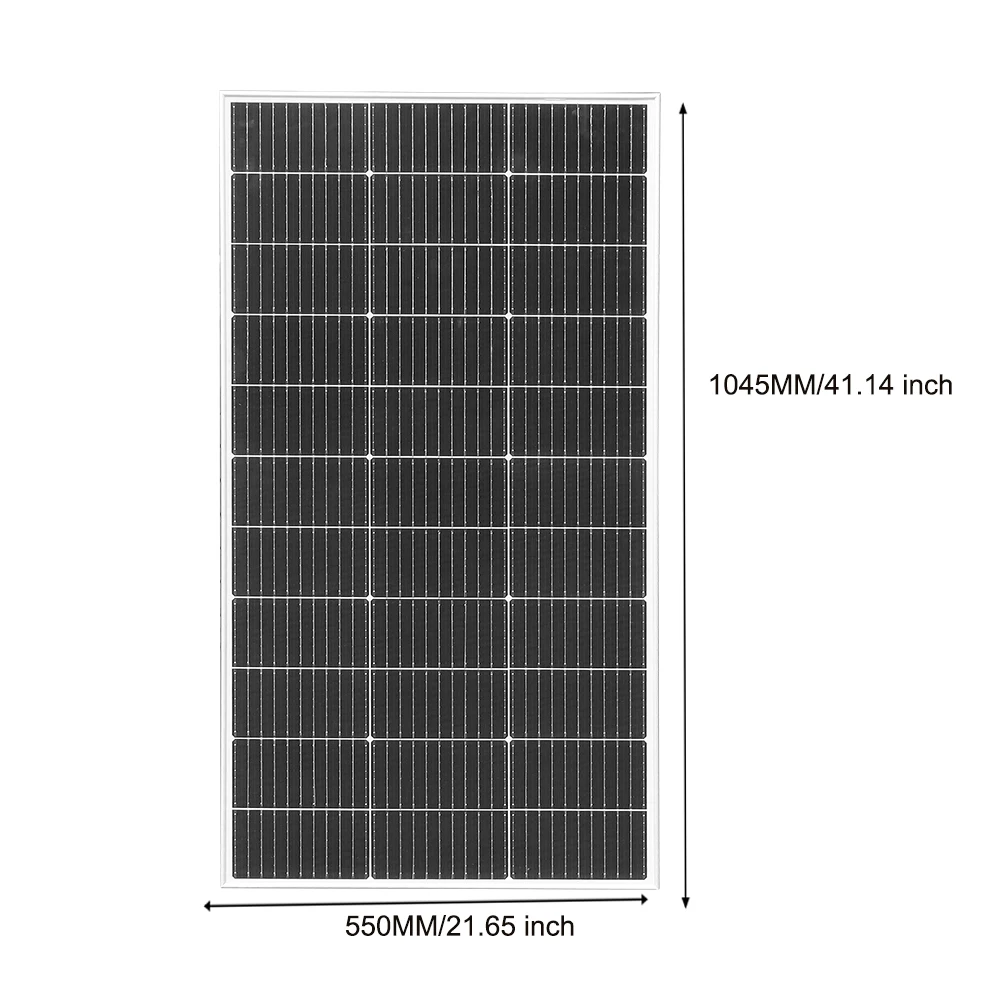

Size 1045*550*25 mm
Standard Test Conditions ： lrradiance 1000w/m2，Temperature 25℃,AM=1.5

High Efficiency Monocrystalline Solar Cells, heavy duty anodized aluminum frame, the corrosion-proof aluminum frame and tempered glass coating shield the panel from weathering and wear.
Lightweight and Durable:The four corners are equipped with protective cases to better protect the glass plate and be more sturdy.Easy to install with pre-drilled holes on the back of panels for fast mounting and securing.Compare with similar items

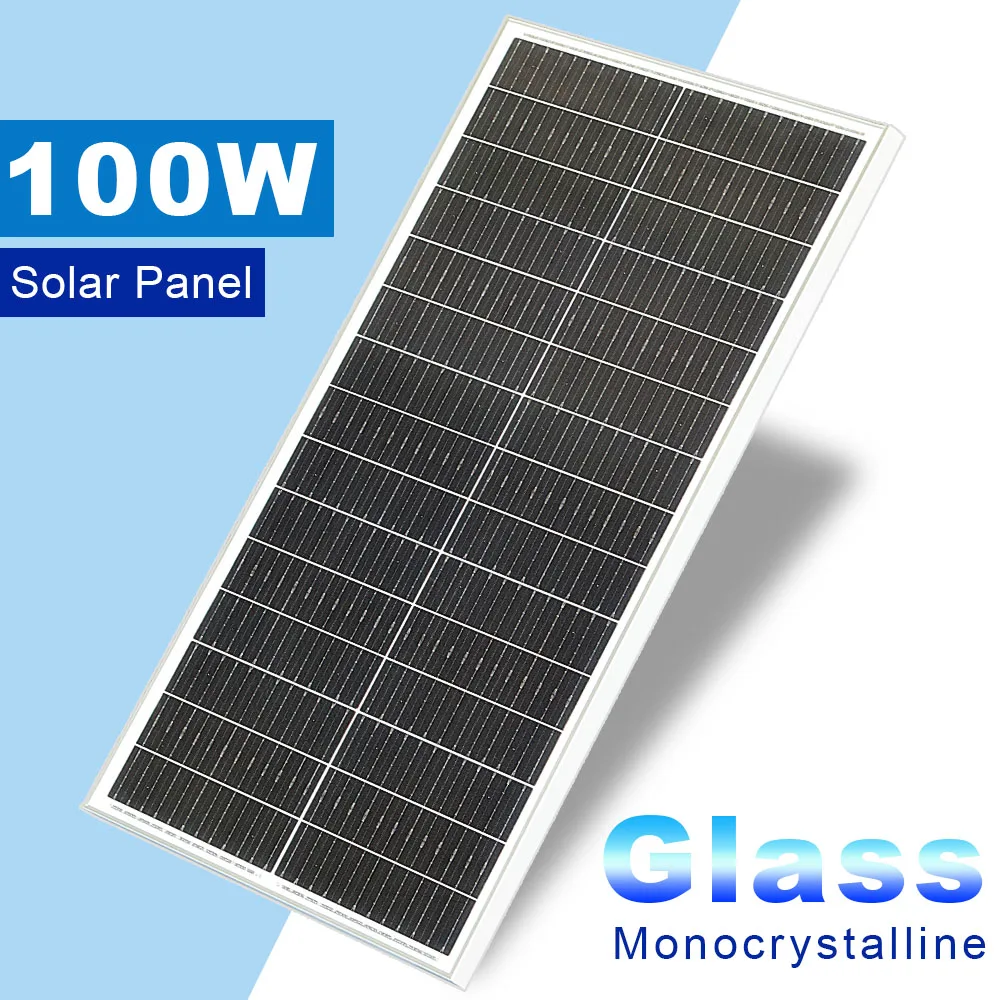

16.5V 100W Glass Solar Panel Specifications

Technical Parameters:

100W solar panel

Monocrystalline high efficiency

Rated power: 100W

Open Circuit Voltage (Voc): 19.8V

Maximum supply voltage (Vpm): 16.5V

Short circuit current (Isc): 6.36A

Working current (Iop): 6.06A


Output tolerance: ±5%

Temperature range: -40℃ to +80℃

Size: 44.33x18.03x0.98inch (1126*458*25mm)

Weight: 13.22 lbs (6kg)


Surface material Toughened glass

Back film Color White

Output port 0.9 m long PV connector wire

Standard Test Conditions ： lrradiance 1000w/m^2，Temperature 25℃, AM=1.5

Please note: If you test the solar panel, the solar panel must be tested under the sun. The solar panel is exposed to sunlight at different times and the temperature is different, which will affect the output power of the solar panel.

The solar panels can be directly connected to a portable battery with control function (note the voltage input required for the battery)

Off-grid solar panel system: solar panels need to be configured with a controller and batteries to be used together.

Safety Instructions:

1.Make sure your battery has enough voltage for the controller to recognize the battery type before first installation.

2.The battery cable should be as short as possible to minimize loss.

3.Please note that your controller is suitable for your battery type!

4.The charge regulator is only suitable for regulating solar modules. Never connect another charging source to the charge regulator.

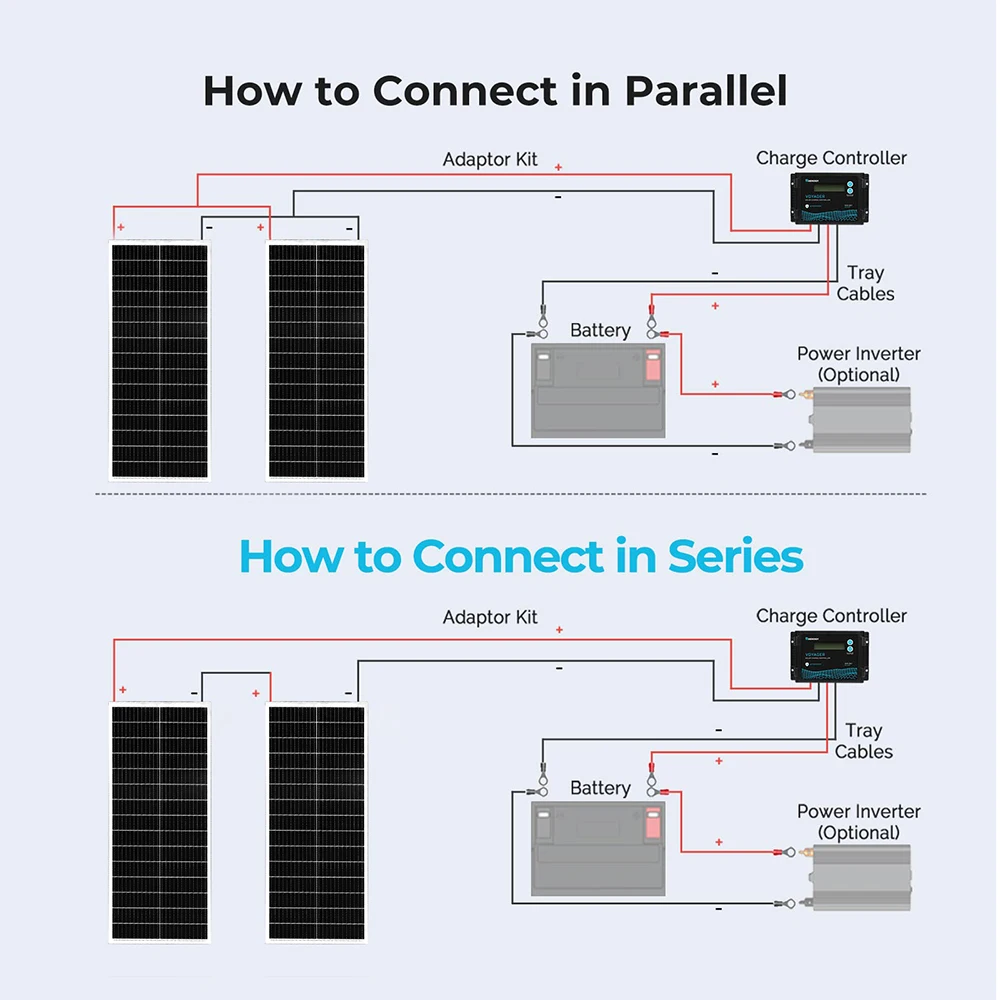

System Connection:

1.Connect the battery to the charge regulator - plus and minus.it will show 1 ,if it detects 12V battery, 2 if it detects 24V battery.

2.Connect the photovoltaic module to the regulator - plus and minus.

3. Connect the consumer to the charge regulator - plus and minus.

By-pass Diodes are pre-installed in junction box and a pair of 2.5MM2 cables with connectors comes with the panel automatically.
