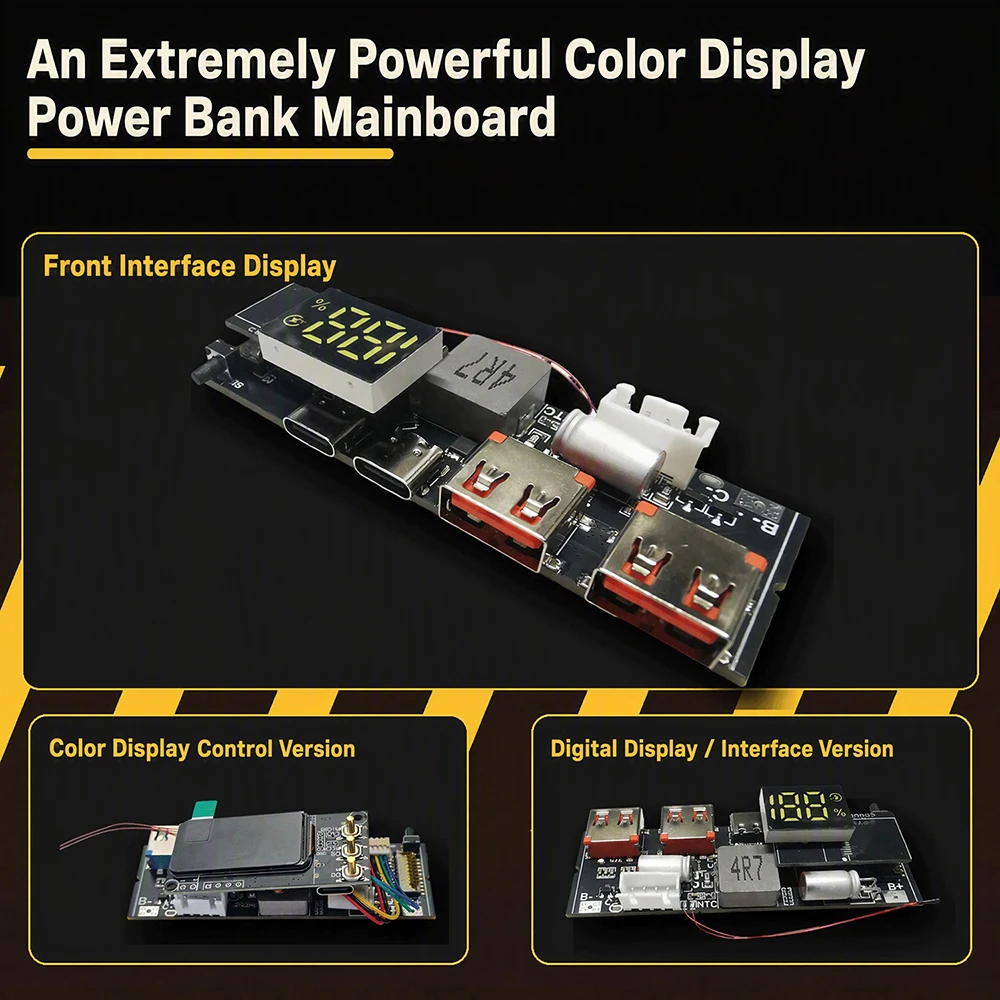

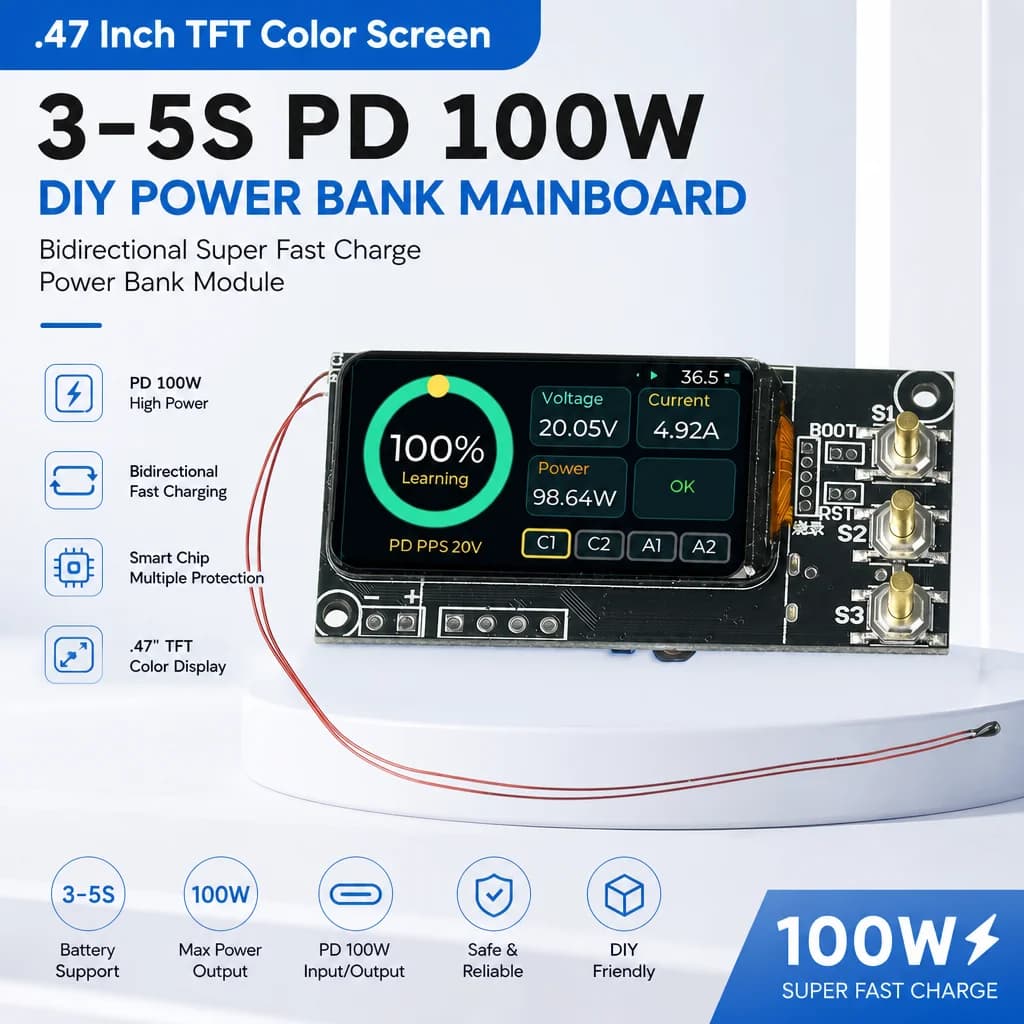

3-5S PD 100W Power Bank Module With MPPT Solar Charging DIY Mainboard For Lithium Battery Protection And Fast Charging

Features
1. Supports full 100W power for both input and output, compatible with 3-5S lithium-ion batteries and voltages ranging from 3.6V to 4.5V, offering broad applicability.
2. Built-in MPPT (Maximum Power Point Tracking) functionality allows connection to solar panels for efficient utilization of solar energy.
3. Utilizes automatic step-up/step-down technology with intelligent switching between PWM and PSM modes to balance efficiency and power consumption.

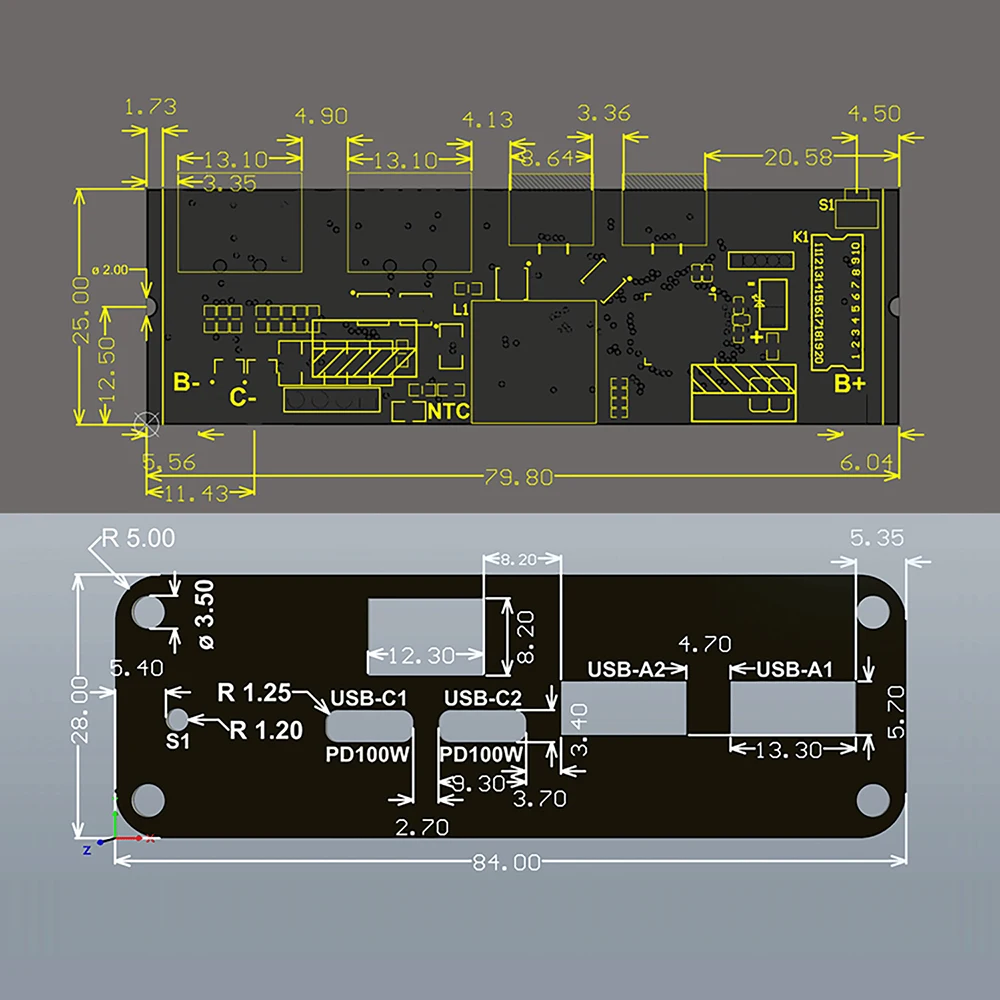

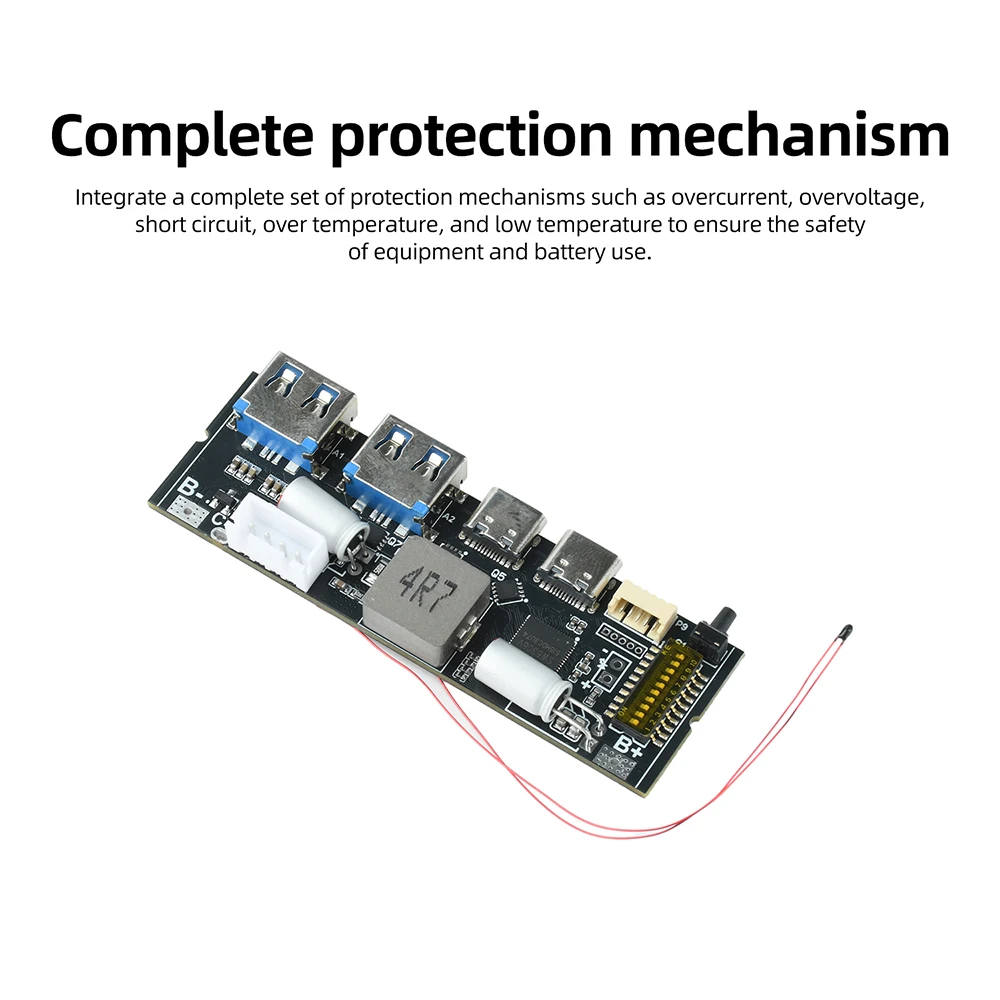

4. Integrates a full suite of protection mechanisms—including overcurrent, overvoltage, short circuit, over-temperature, and under-temperature protection—to ensure safe operation of both the device and the battery.

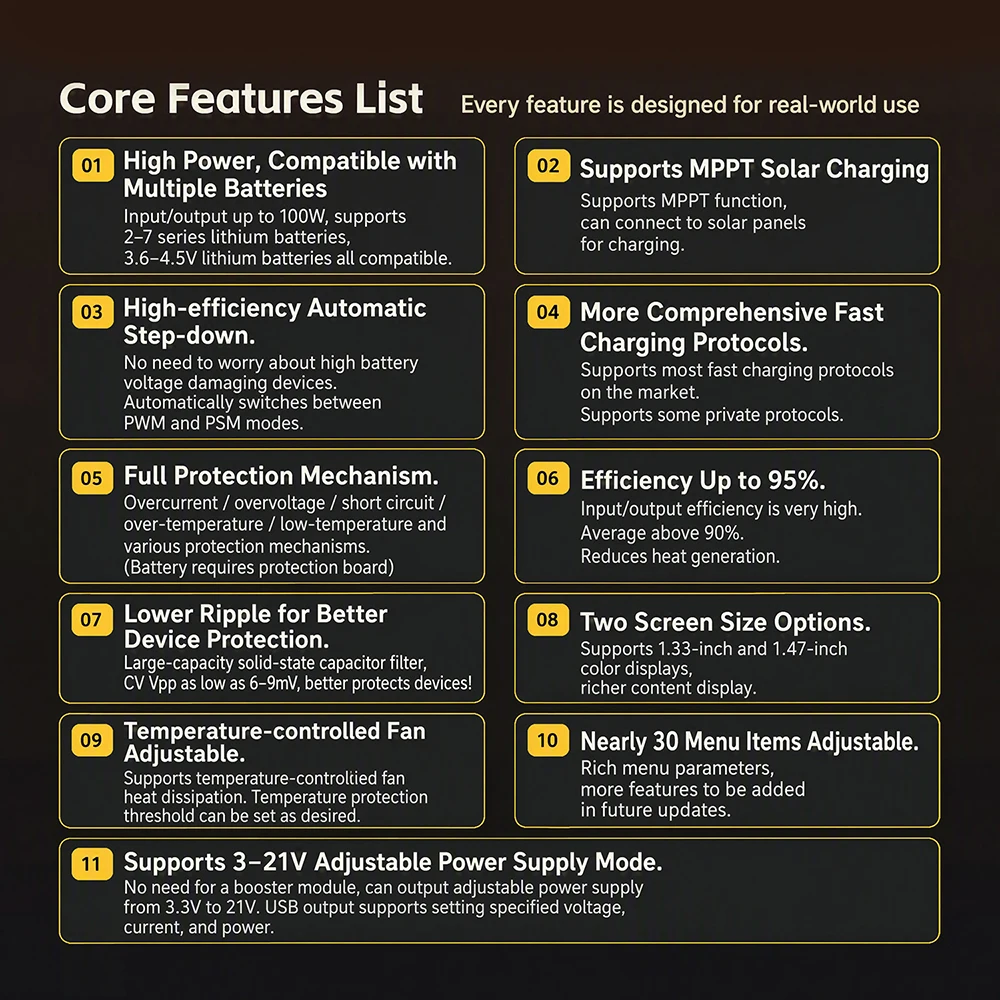

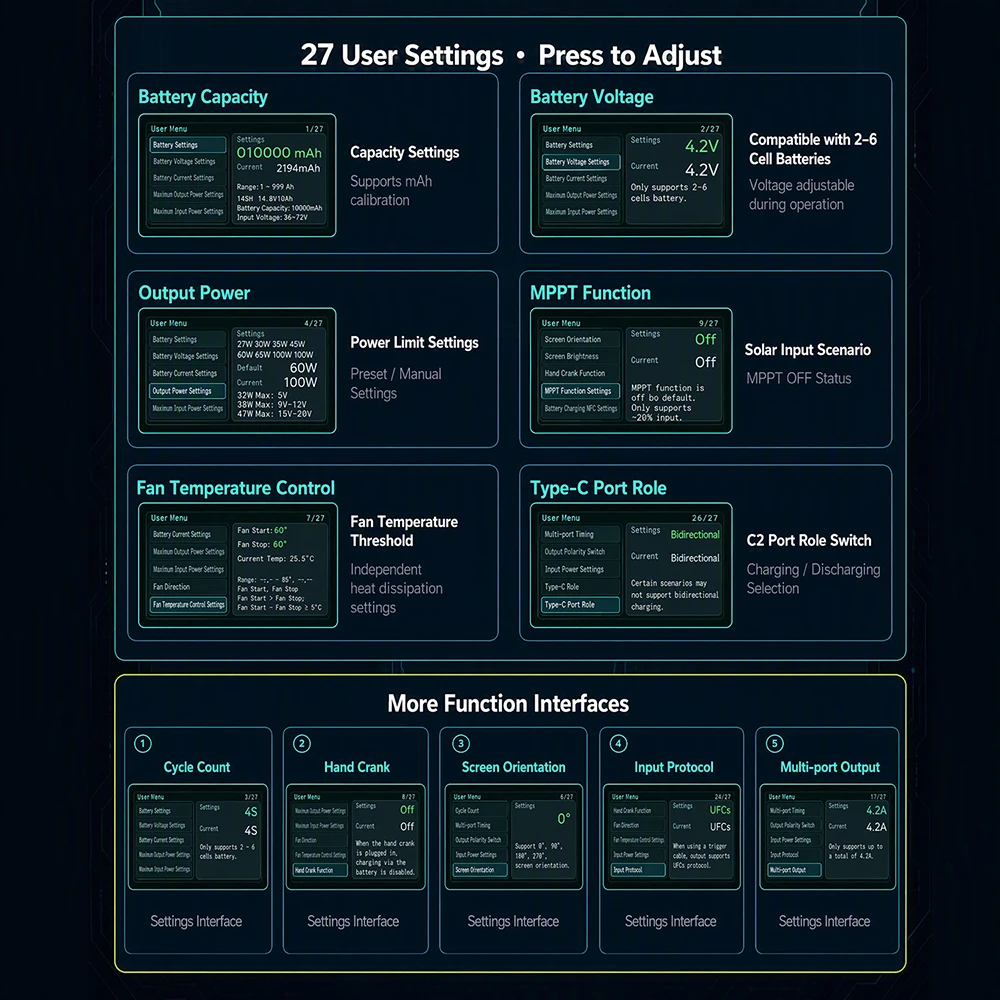

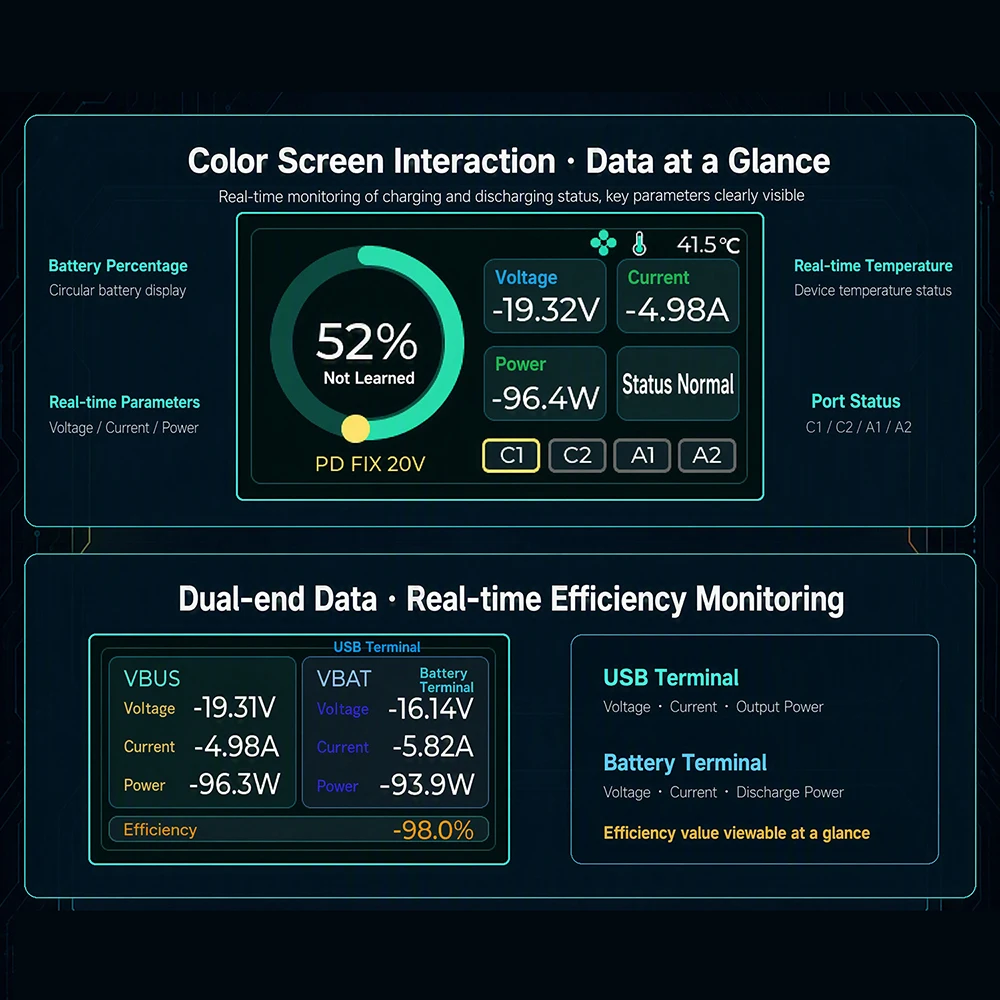

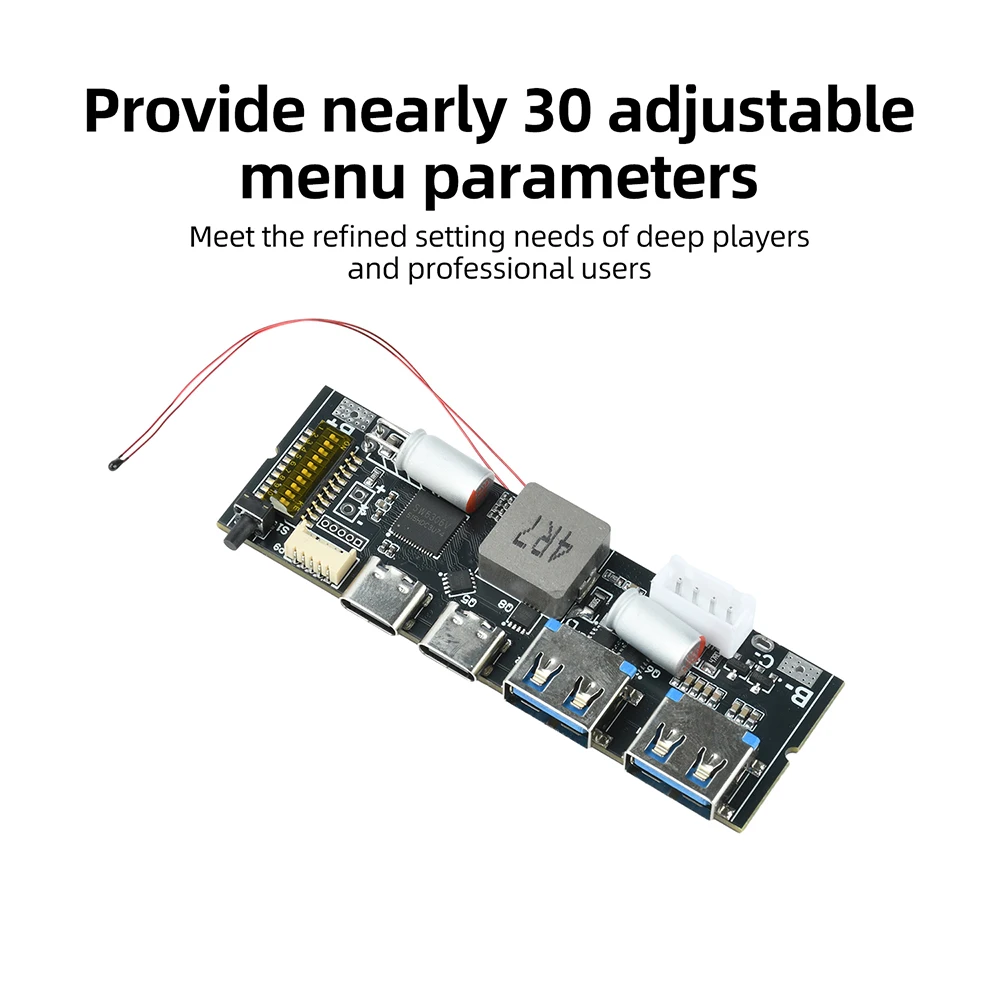

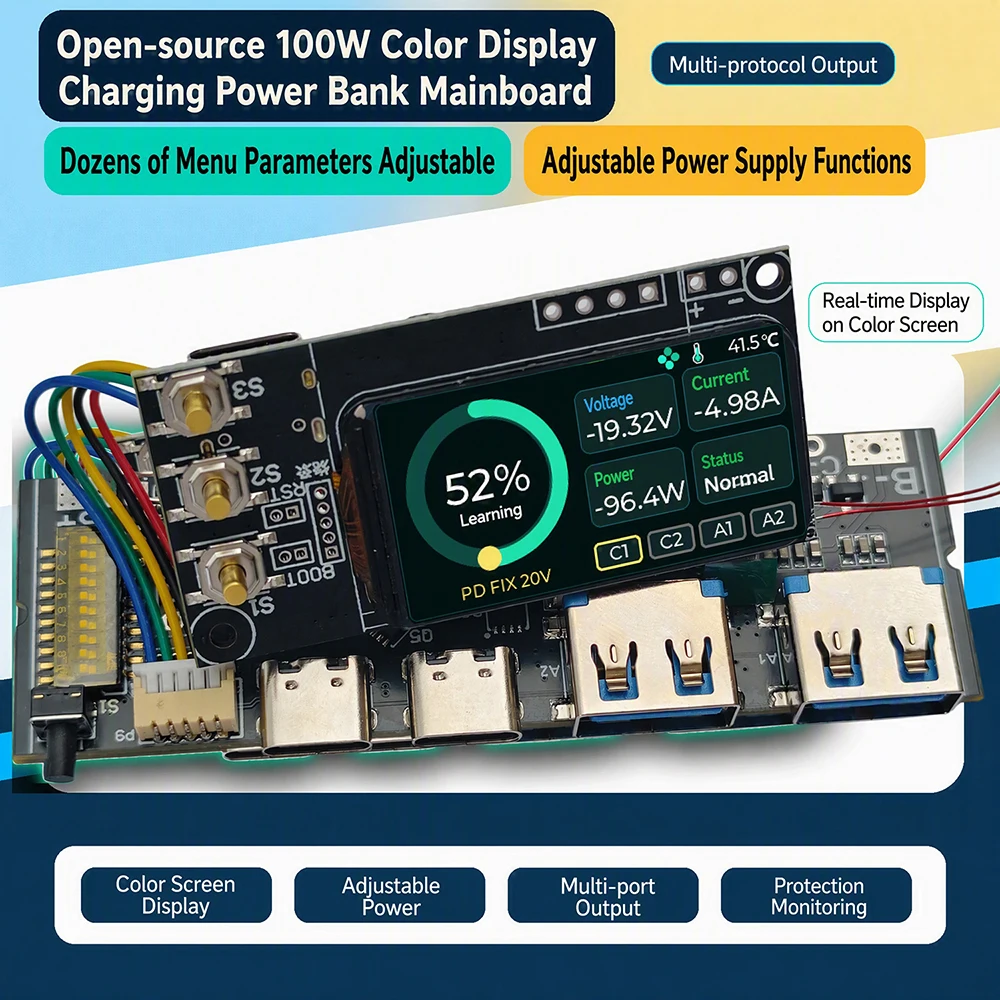

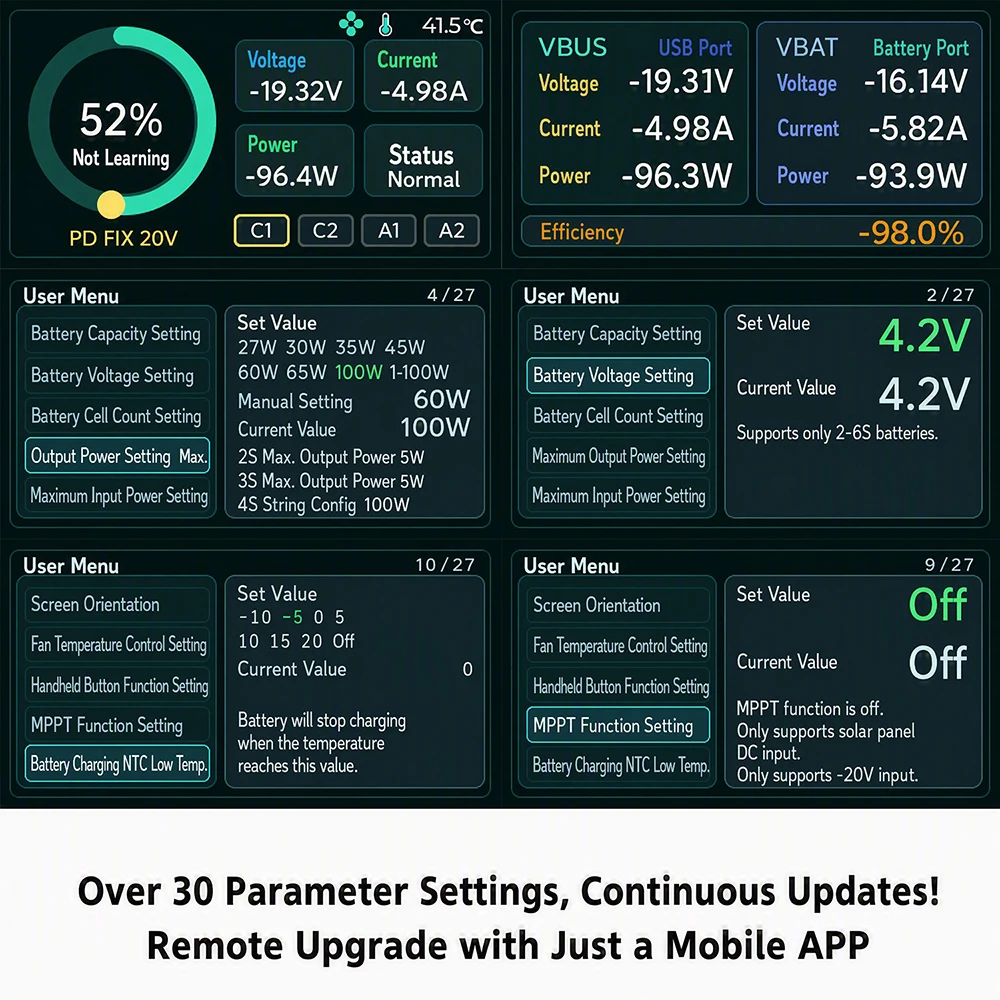

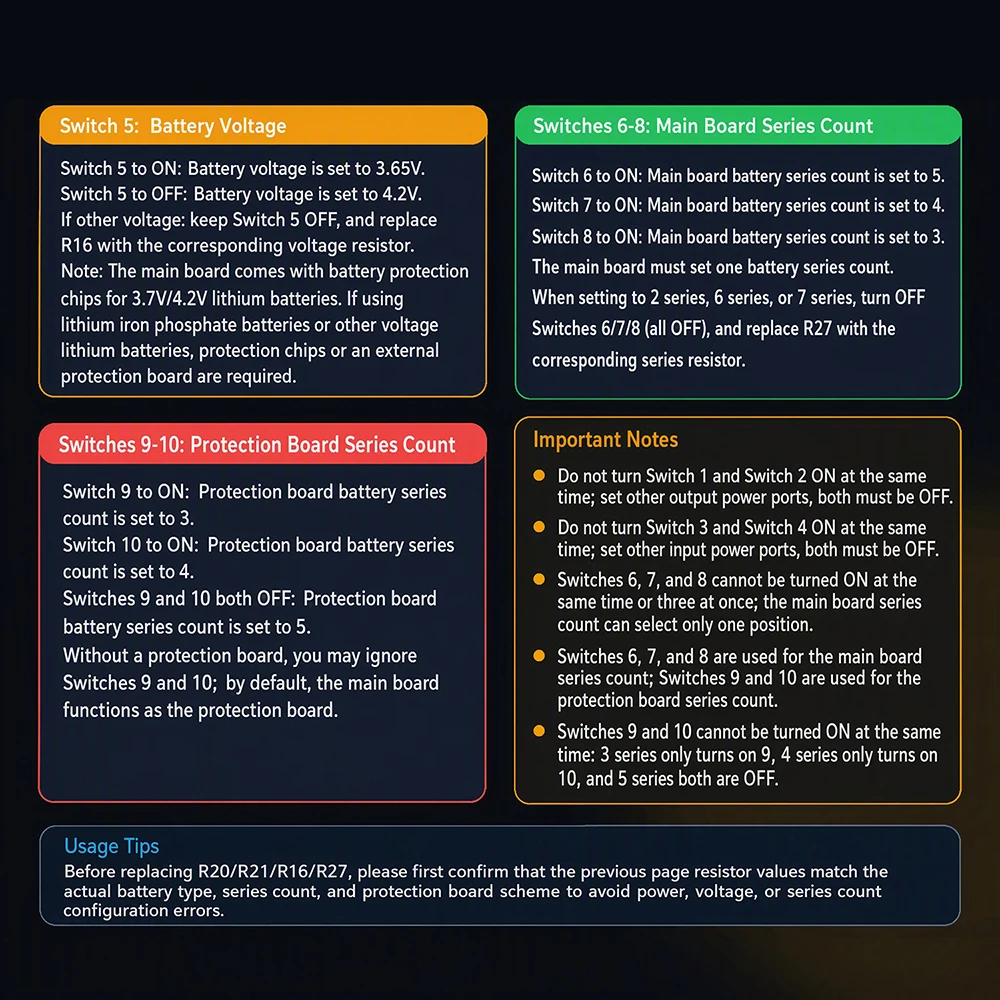

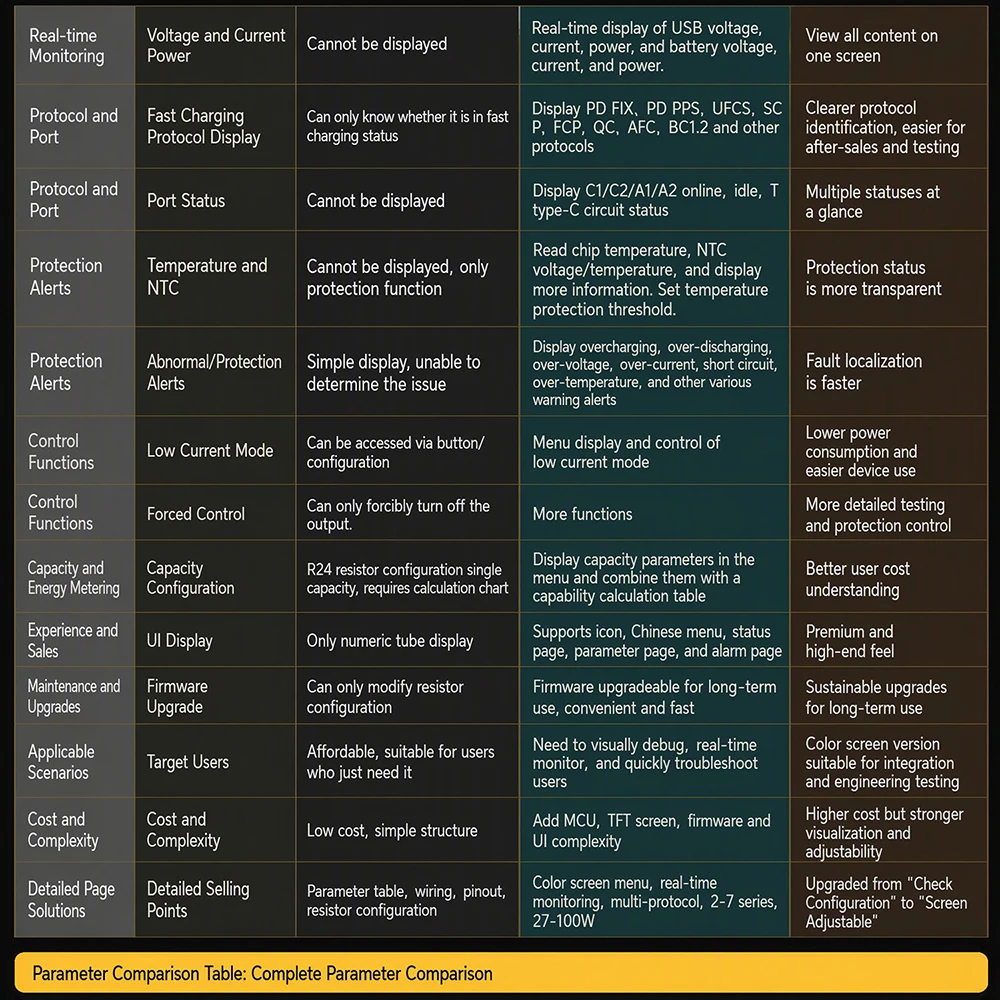

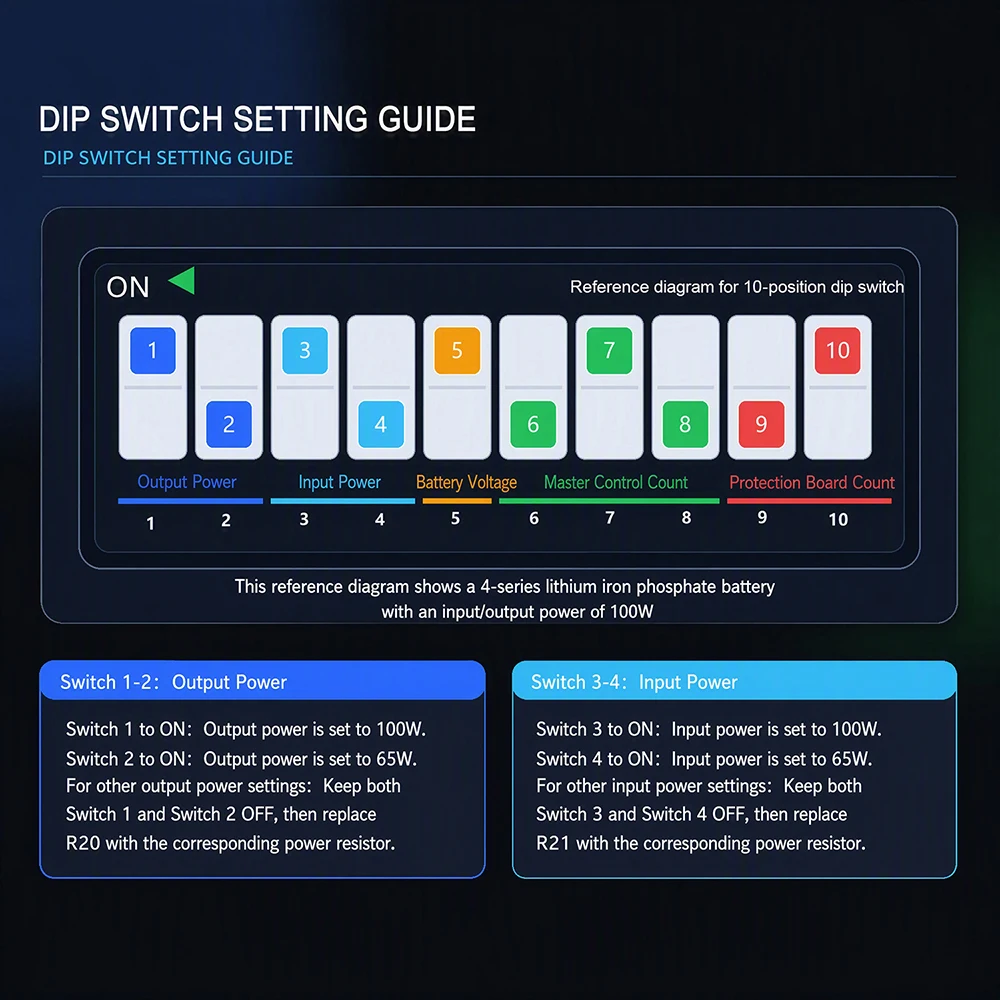

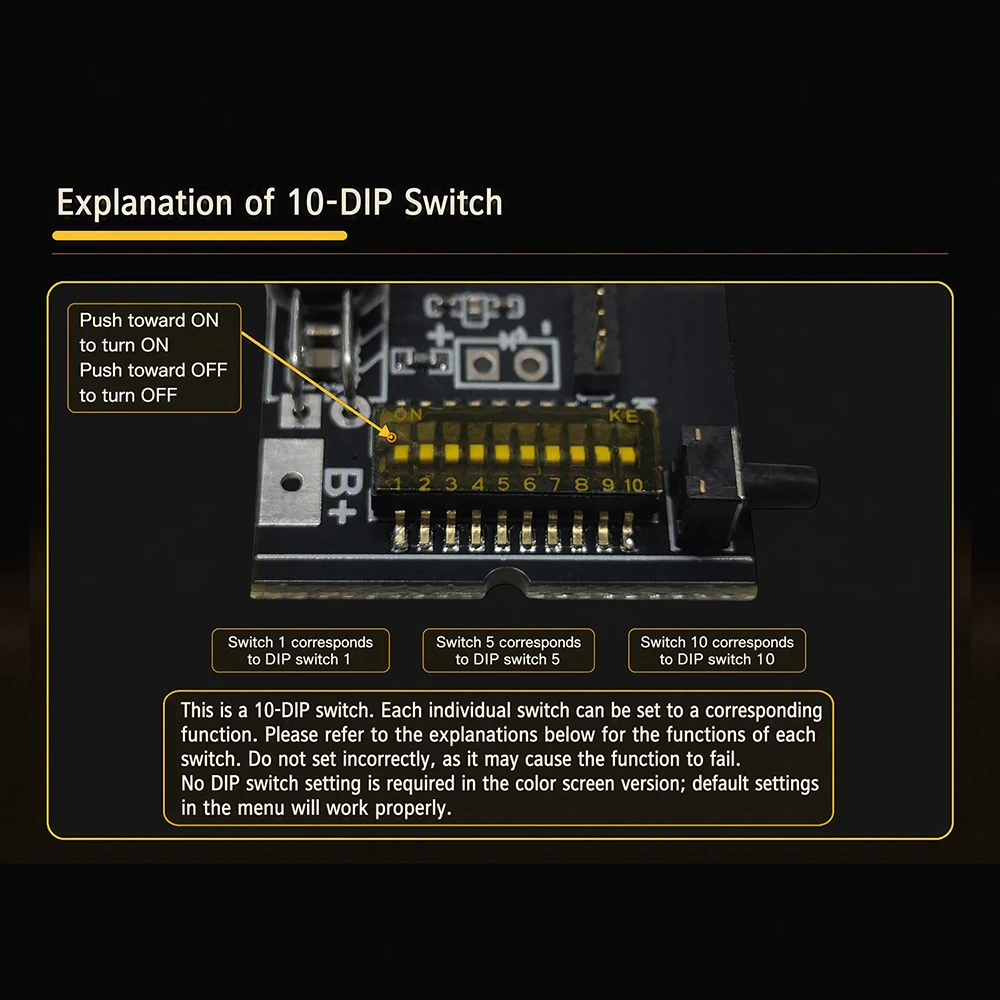

5. Offers nearly 30 adjustable menu parameters to meet the needs of advanced enthusiasts and professional users for fine-tuned settings.

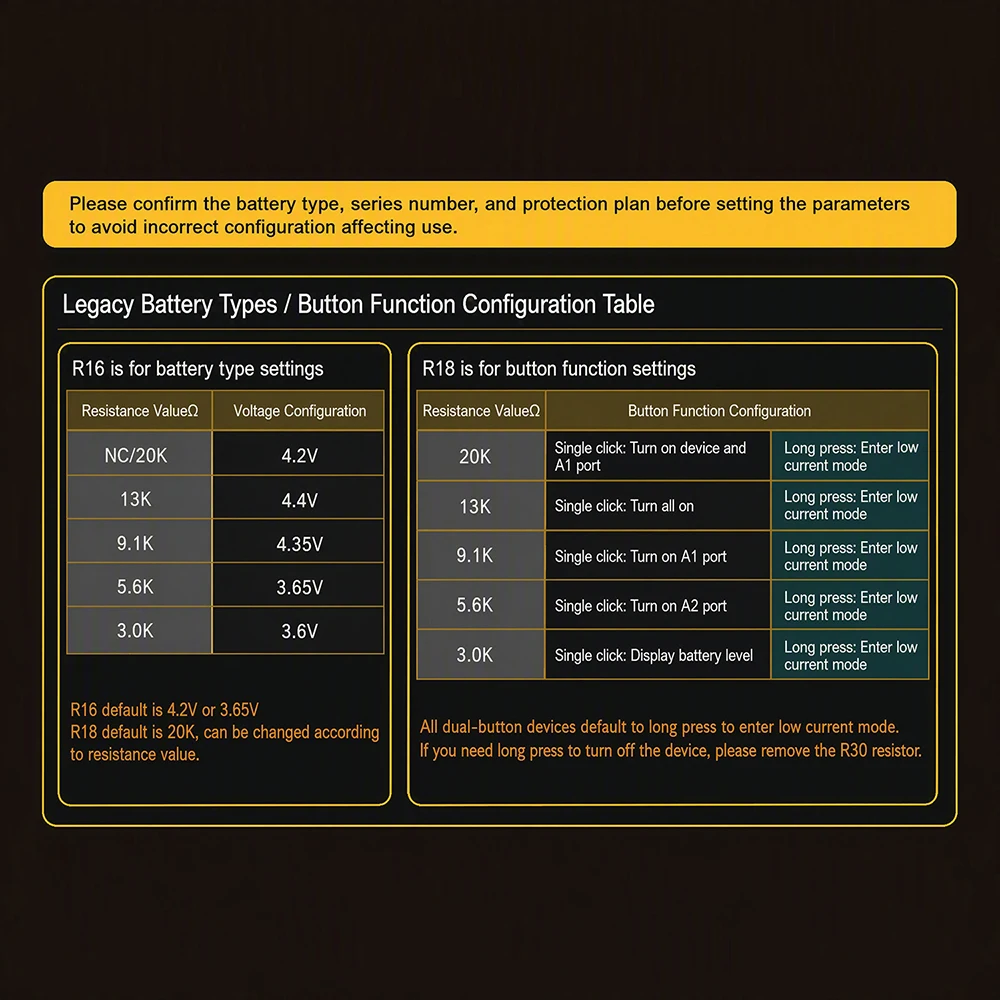

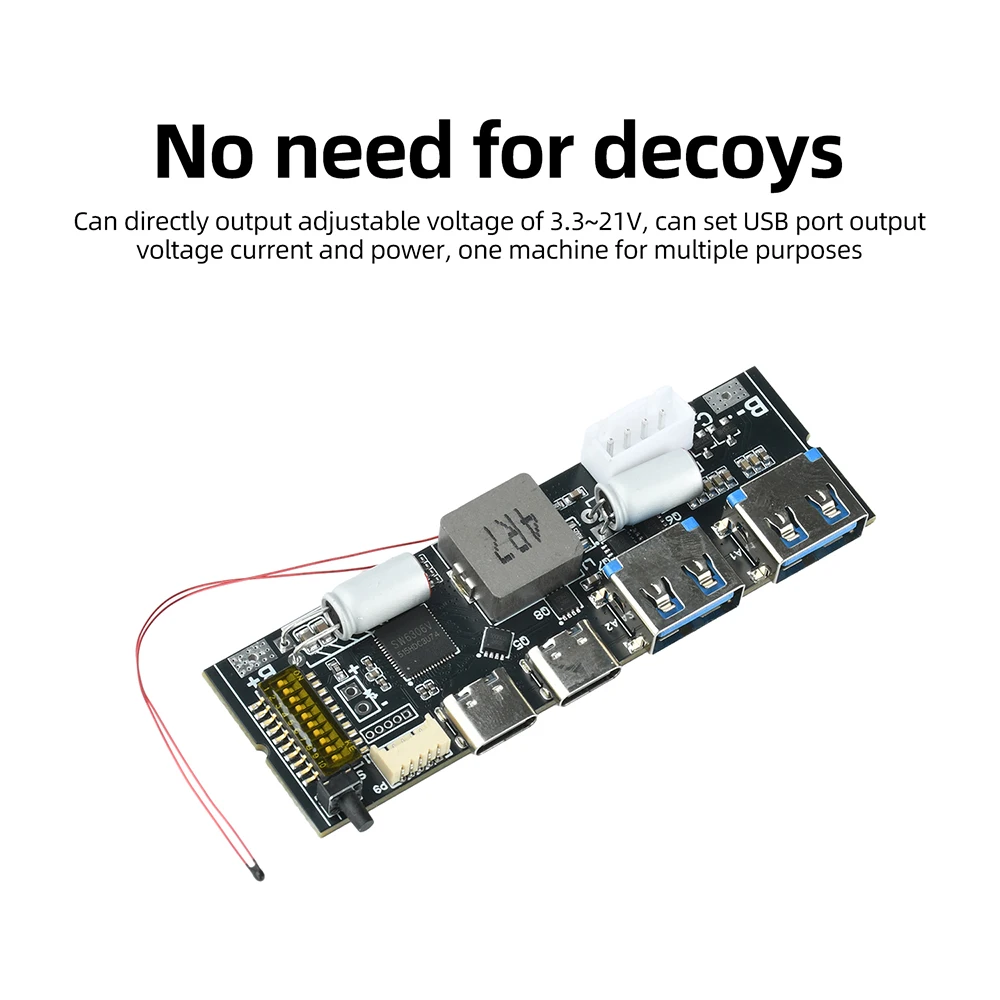

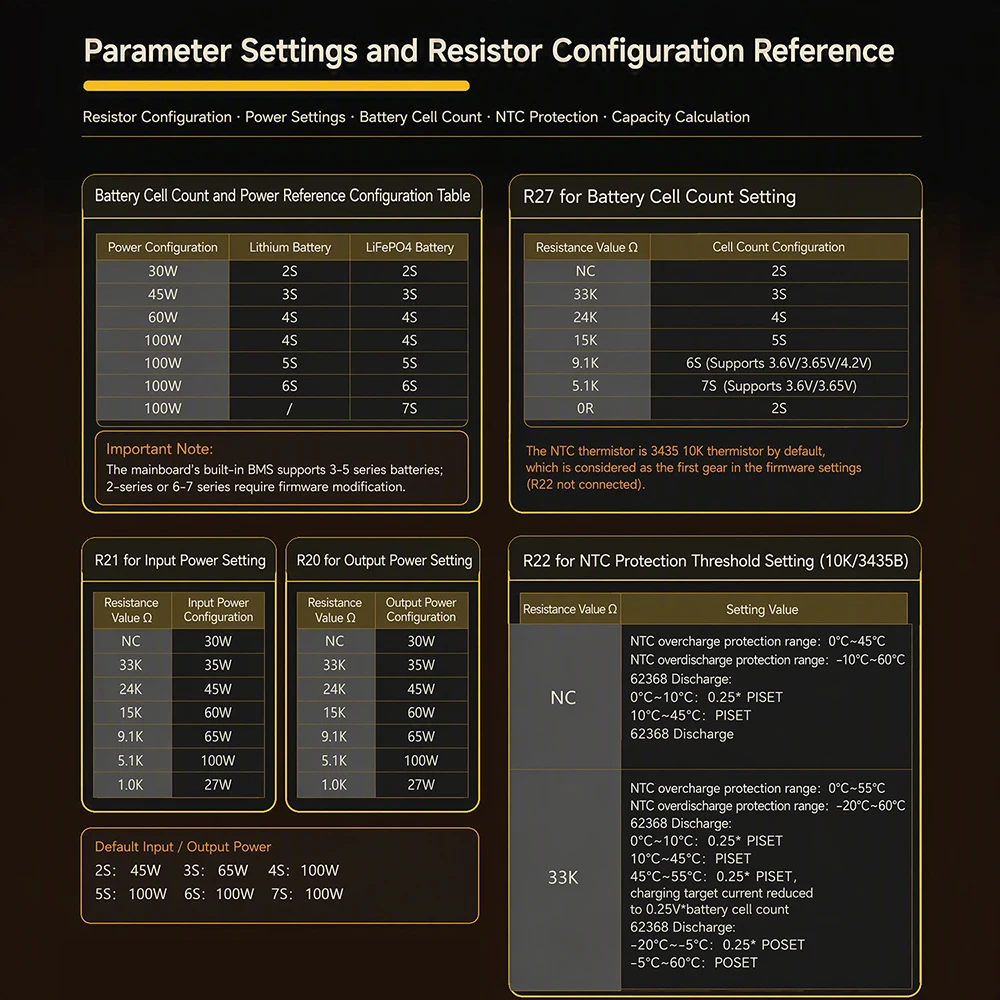

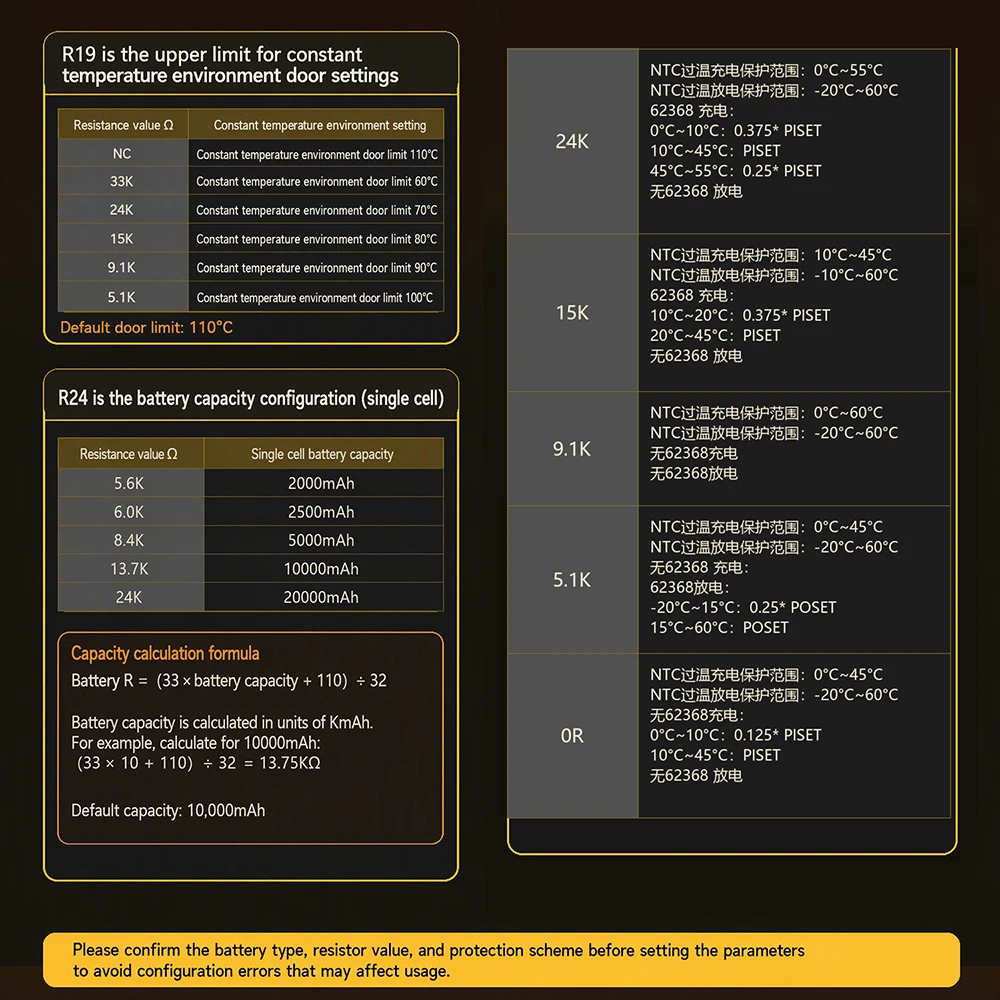

6. No need for a voltage simulator; directly outputs adjustable voltages from 3.3 to 21V. USB port output voltage, current, and power can be configured, making it a versatile all-in-one solution.

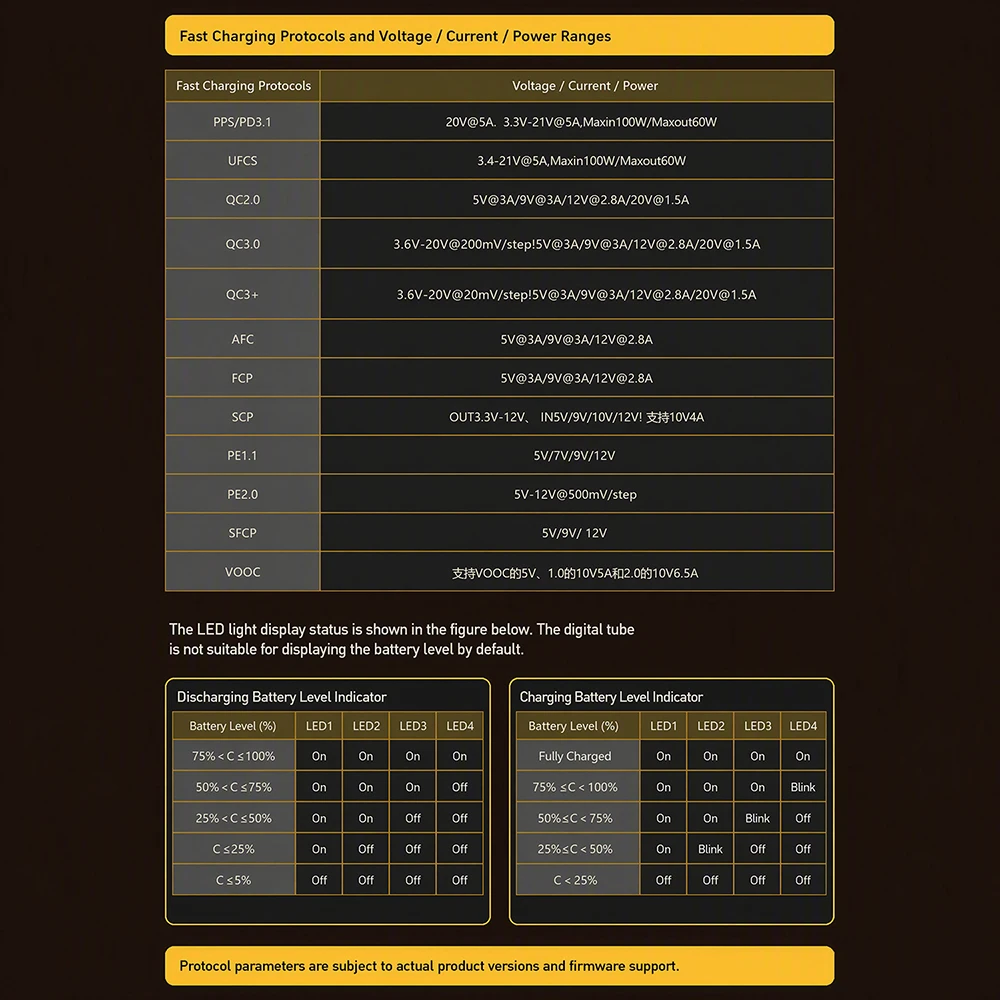

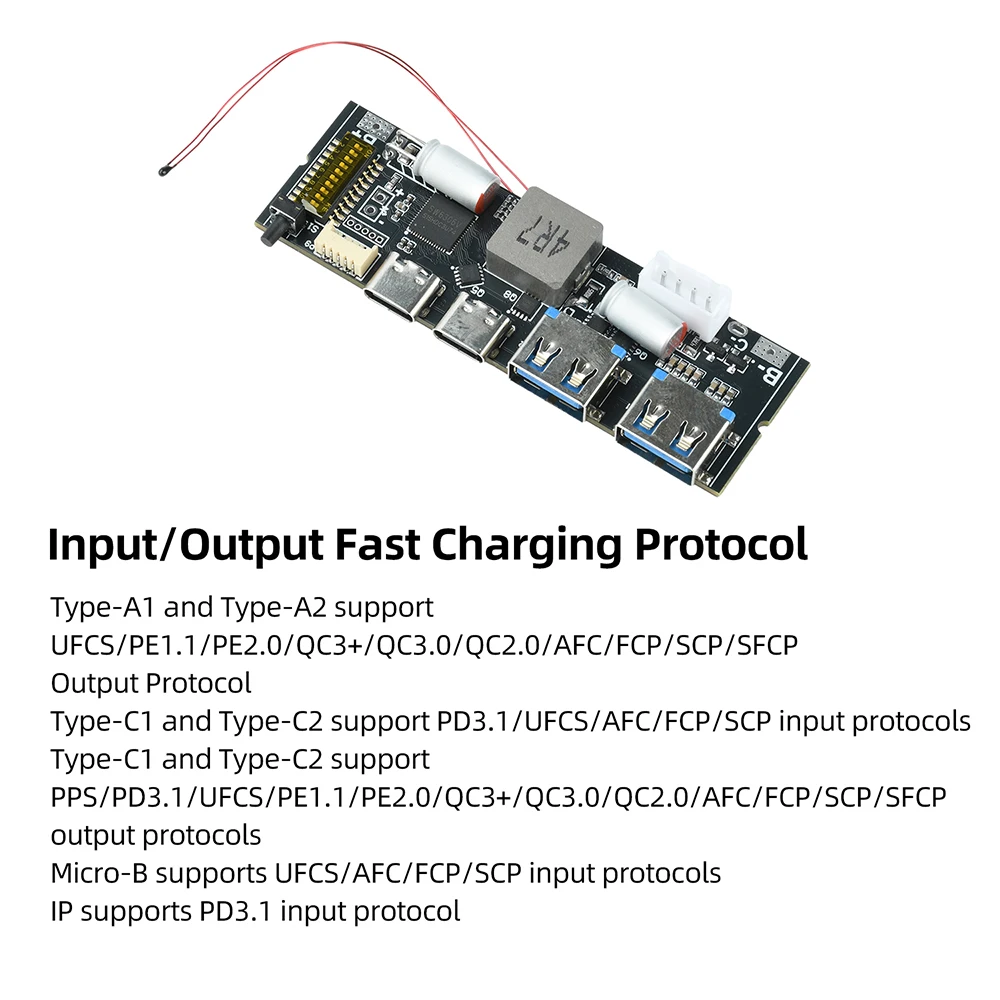

Input/Output Fast Charging Protocols
Type-A1 and Type-A2 support
UFCS/PE1.1/PE2.0/QC3+/QC3.0/QC2.0/AFC/FCP/SCP/SFCP
Output Protocols
Type-C1 and Type-C2 support PD3.1/UFCS/AFC/FCP/SCP input protocols
Type-C1 and Type-C2 support PPS/PD 3.1/UFCS/PE 1.1/PE 2.0/QC 3+/QC 3.0/QC 2.0/AFC/FCP/SCP/SFCP output protocols; Micro-B supports UFCS/AFC/FCP/SCP input protocols
IP supports PD 3.1 input protocol



Voltage, Current, and Power
PPS/PD 3.1: 20V @ 5A, 3.3V–21V @ 5A, Max In 100W / Max Out 60W
UFCS: 3.4–21V @ 5A, Max In 100W / Max Out 60W
QC 2.0: 5V 3A / 9V 3A / 12V 2.8A / 20V 1.5A
QC 3.0: 3.6V–20V @ 200mV/step! 5V @ 3A / 9V @ 3A/[email protected]/20V @ 1.5A
QC3+: 3.6V–20V @ 20mV/step! 5V @ 3A / 9V @ 3A/[email protected]/20V @ 1.5A
AFC: 5V 3A / 9V 3A / 12V 2.8AFCP: 5V 3A / 9V 3A / 12V 2.8A
SCP: OUT 3.3V–12V, IN 5V/9V/10V/12V, supports 10V 4A
PE1.1: 5V/7V/9V/12V
PE2.0: 5V–12V @ 500mV/step
SFCP: 5V/9V/12V
VOOC: Supports VOOC 5V, 1.0 10V 5A, and 2.0 10V 6.5A

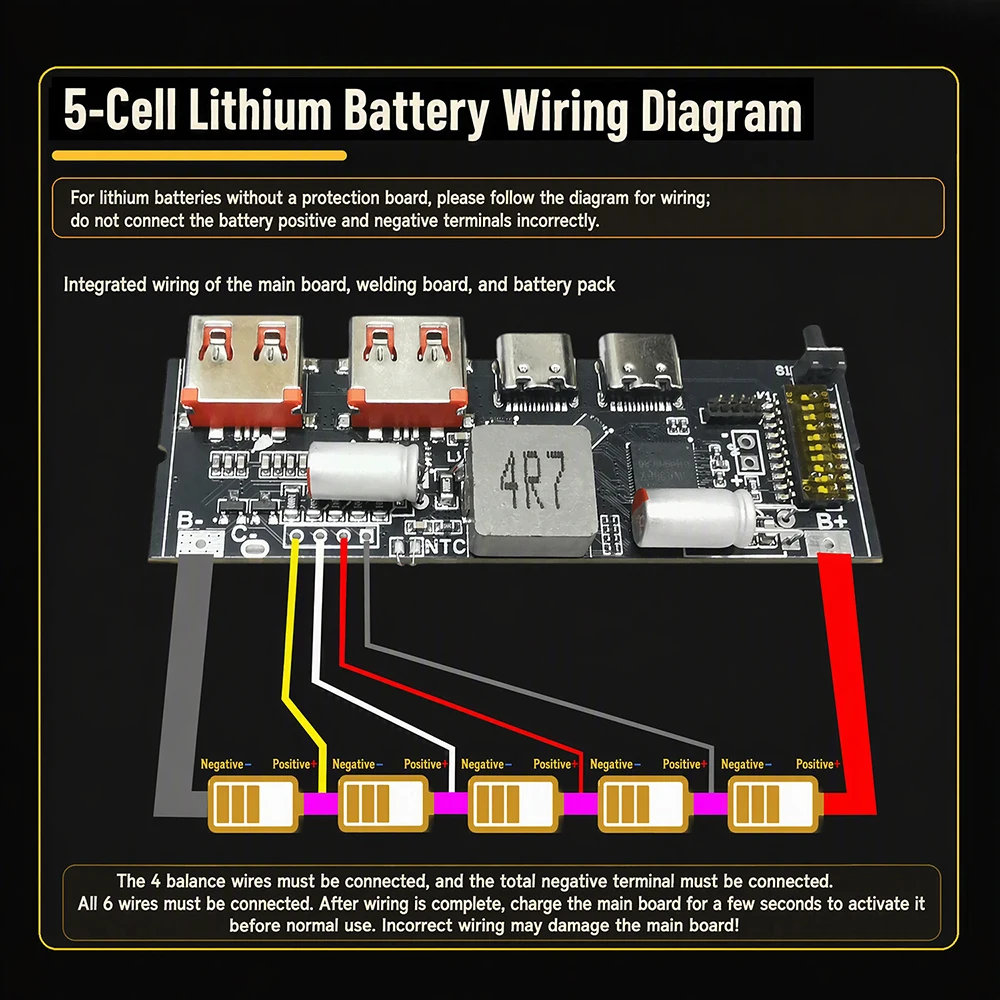

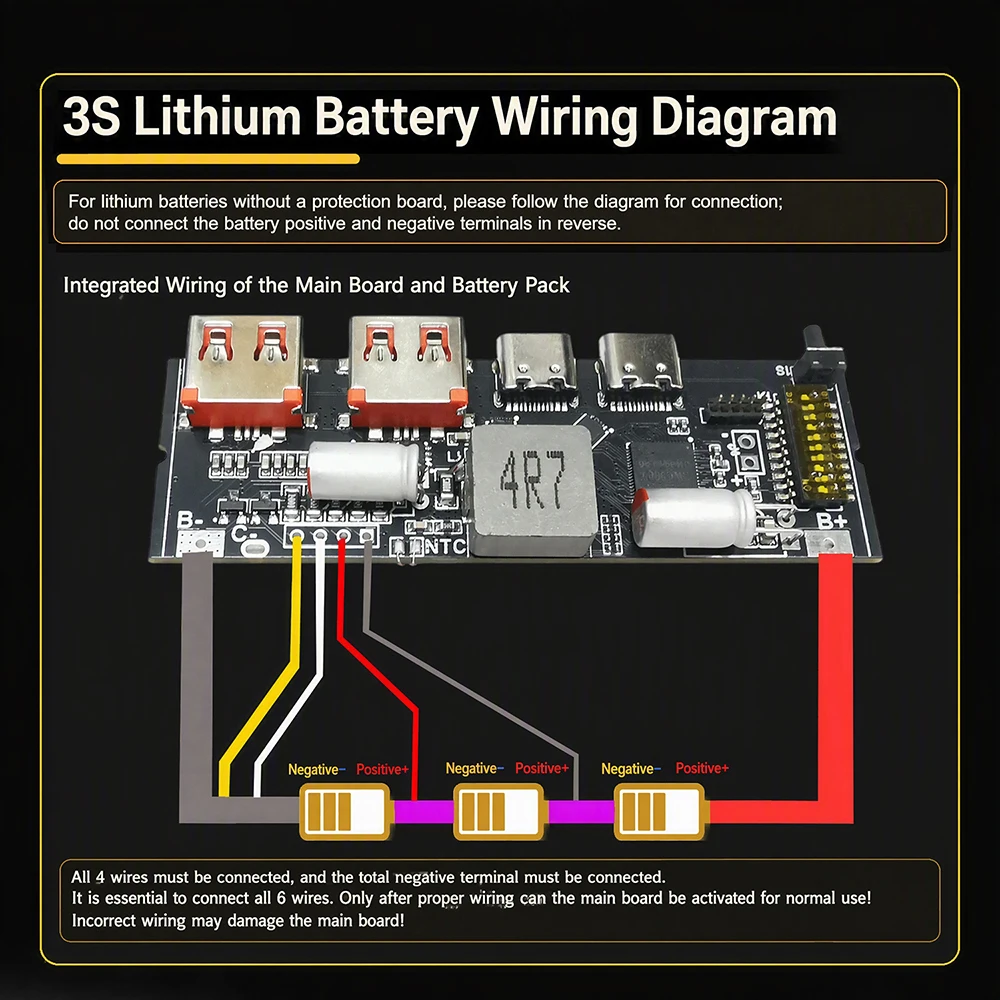

The mainboard must be connected to the battery exactly as shown in the diagram. If the battery has its own protection board, simply connect the battery's positive and negative terminals to the B+ and C- pads on the mainboard. Otherwise, if the mainboard has built-in protection, you must follow the diagram exactly and connect the balancing wire; failure to do so will prevent normal activation and use!!!



Package include
Power Bank Module *1
Balancing Wire *1
