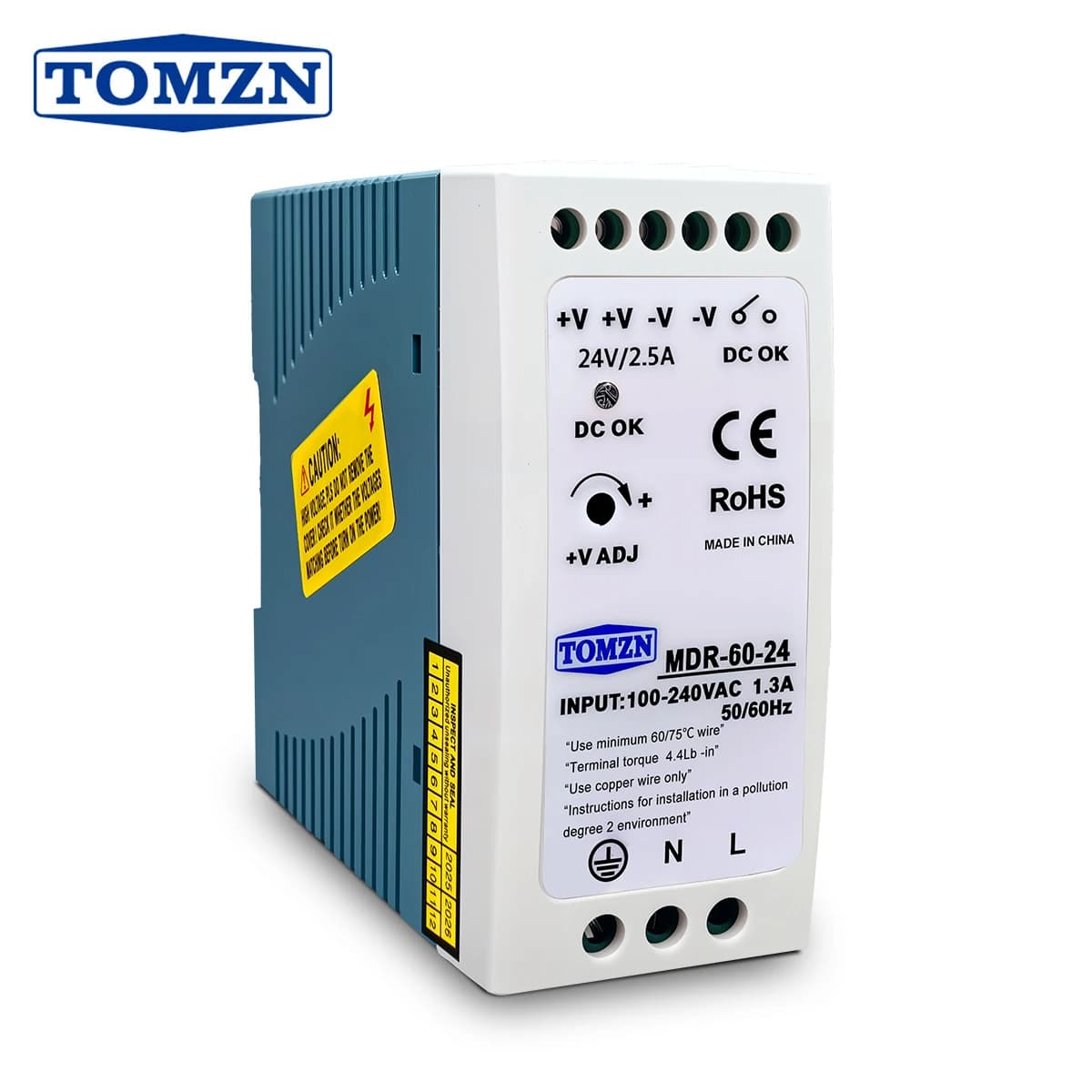

TOMZN DIN RAIL 60W AC-DC SMPS Single Output Switching Power Supply Input 110V 220V Output 5V 12V 15V 24V 36V 48V Adjustable
16.35$
15.86$
Quantity:
1
Availability:
Input Voltage
Output Voltage
Power (W)
Card Payments
Crypto Payments
Easy return
Reliable Shipping
Function: MDR-60 series can convert AC110V/220V voltage to DC5V/12V/15V/24V/36V/48V voltage.
Rail type products, easy to install.
Specifications:
100% full load burn-in test.
Universal AC input / full range.
It's good quality & high performance.
Input: AC110-220V 50/60Hz.
Output: 5VDC,12VDC,24VDC,36VDC,48VDC
Protections: overload/ over voltage/ short circuit.
Cooling by free air convection.
(Not suggest for use in bathroom)
Connection:
L, N: AC power input
GND: Ground wire
-V: DC power output "-"
+V: DC power output "+"
ADJ: Adjust the output voltage ±10%
Safety Compliance: CE
Working Temperature: -20~70℃.
Storage Temperature: -40~85℃.
Ambient Humidity: 0~95% Non-Condensation
High price-effective, reliability with industry standards
Built-in over voltage, over current, and short circuit protection
