Wireless ON OFF Switch RF433 Module Remote Control Light Switch 1/2/3 Gang Wall Switch for Light Bulb Chandelier 10A 110V 220V

Feature:

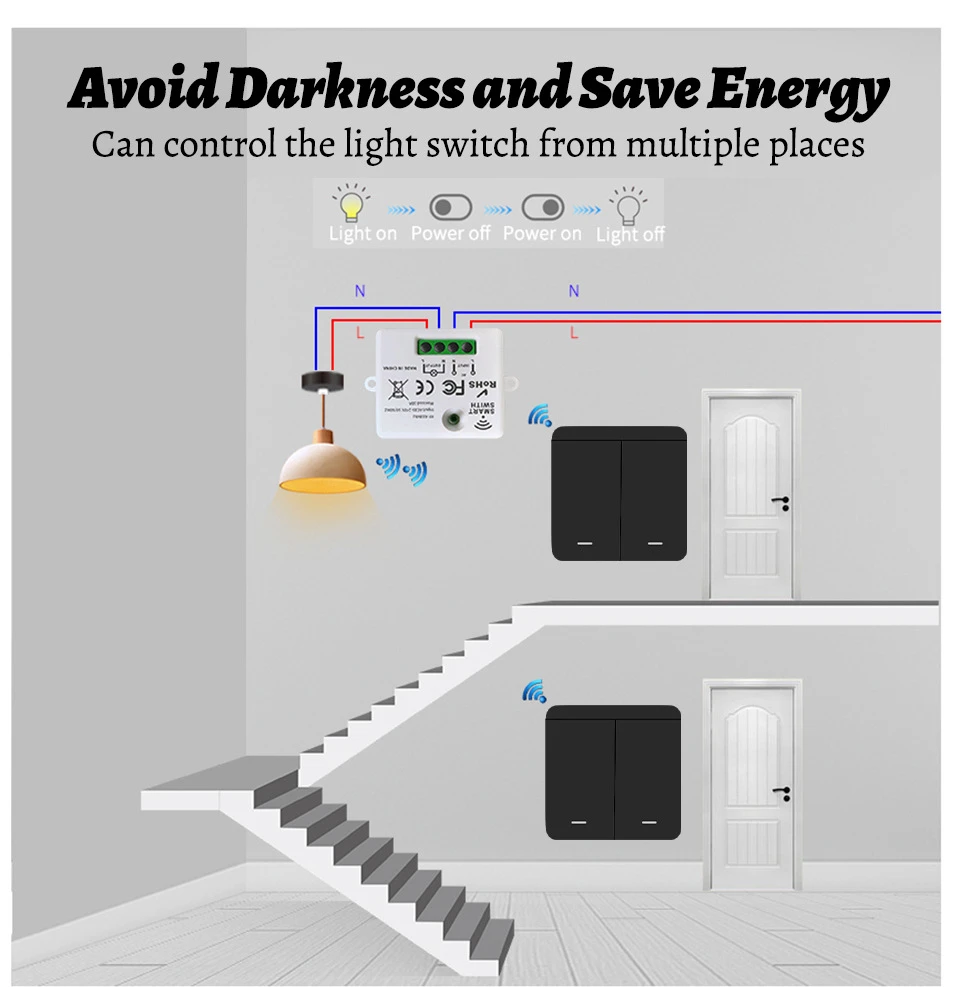

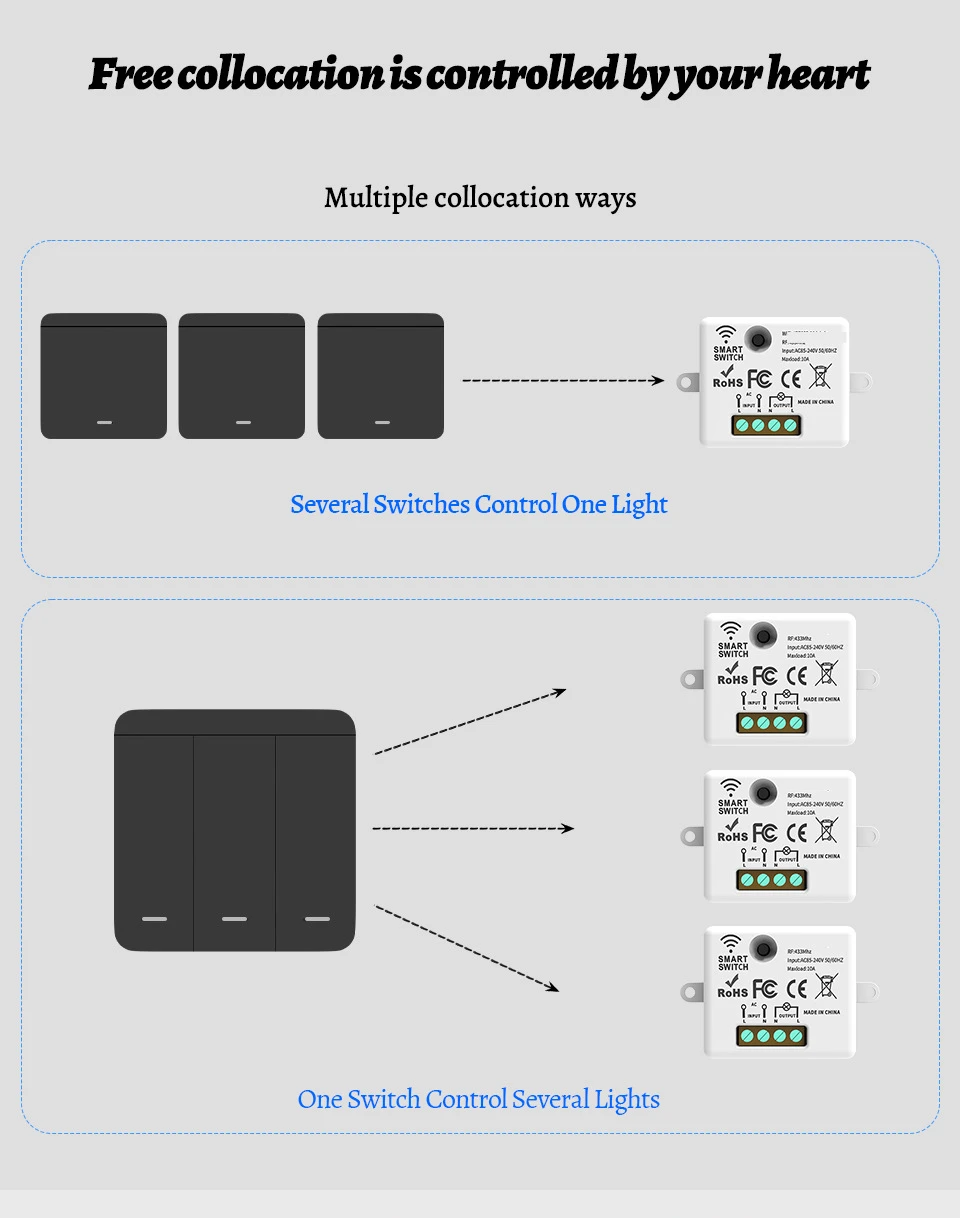

1.Multi switches can control different receivers.Save energy,avoid darkness.

2.Working with all kinds of Lights and Ceiling Fan.LED,CFL,Fluorescent lamp can load 300W,other can load 2500w.

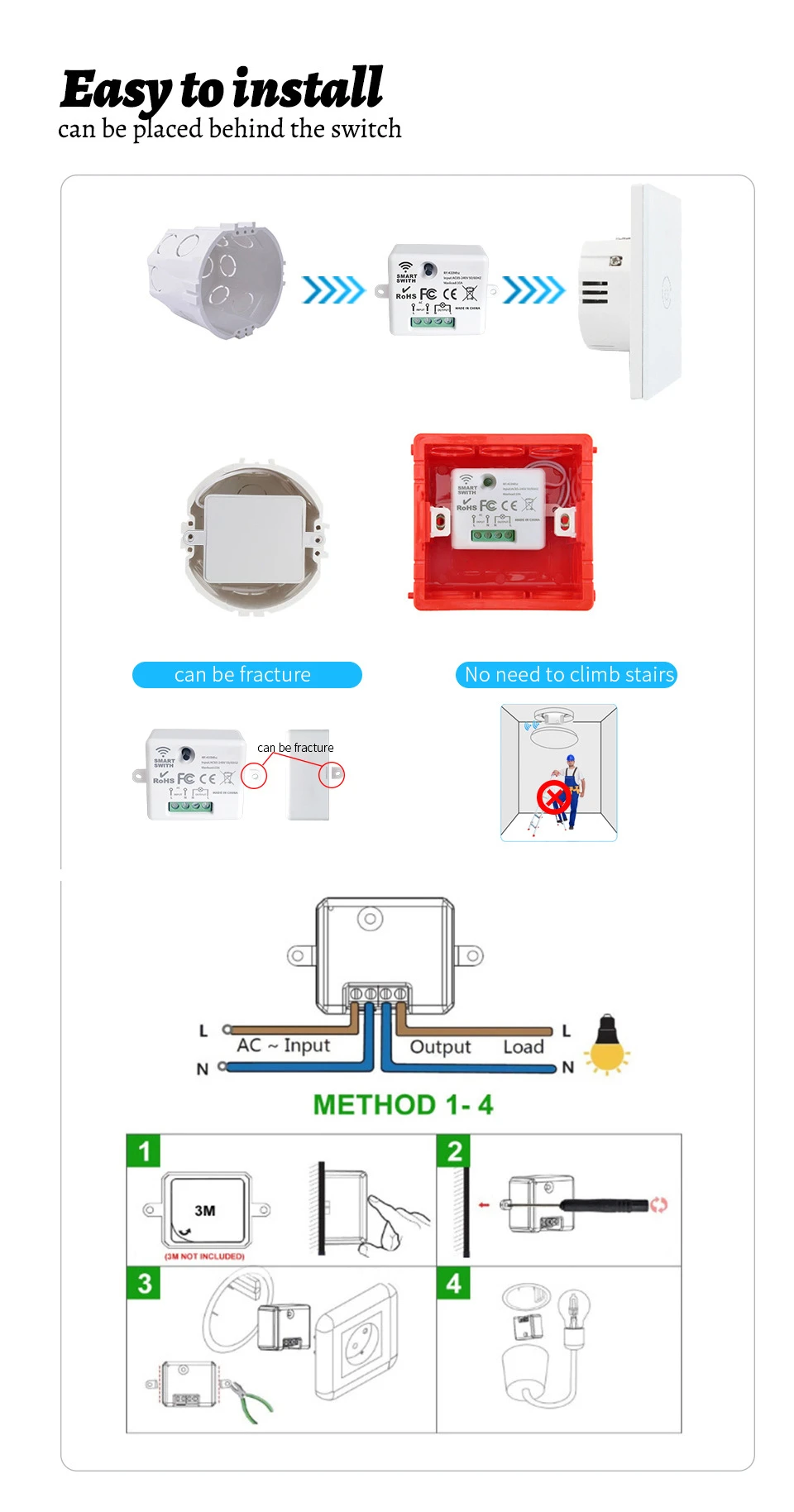

3.It is a 86 wall panel that can be stuck onto anywhere. It is a learning code transmitter EV1527 IC Chip. It can be learned into most of the learning code receiver.

Specification:

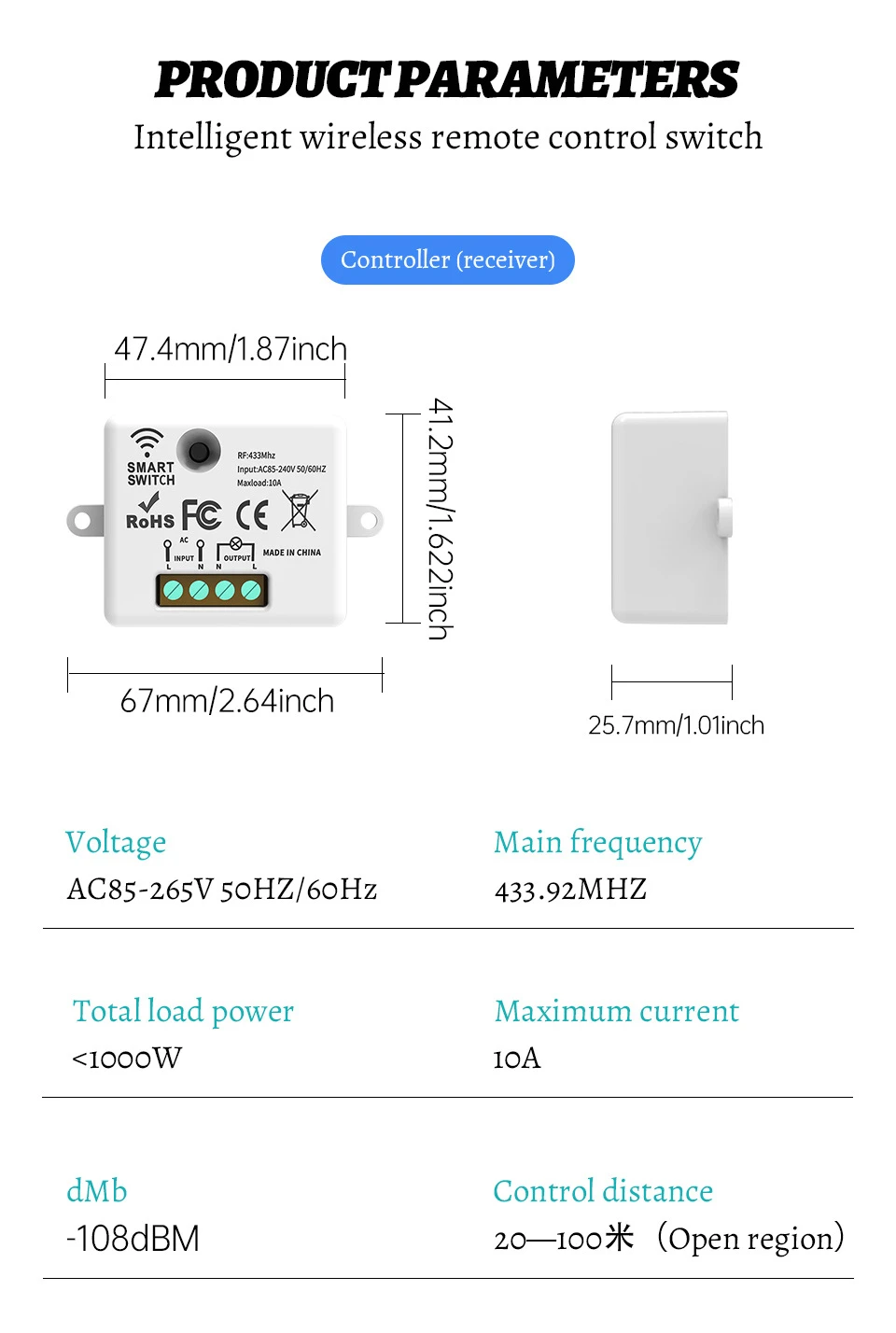

controller (Receiver)

Working voltage: AC85-240V 60HZ/50HZ

Working frequency: 433MHZ

Power consumption in standby mode: <0.3W

Load power: <1100W

Receiving sensitivity: -108dBM

Working way:wireless control

Coding way: learning code

Modulation: ASK

Working temperature: -10*C~+70"C

Size: 47.4*42*22.8 (mm)

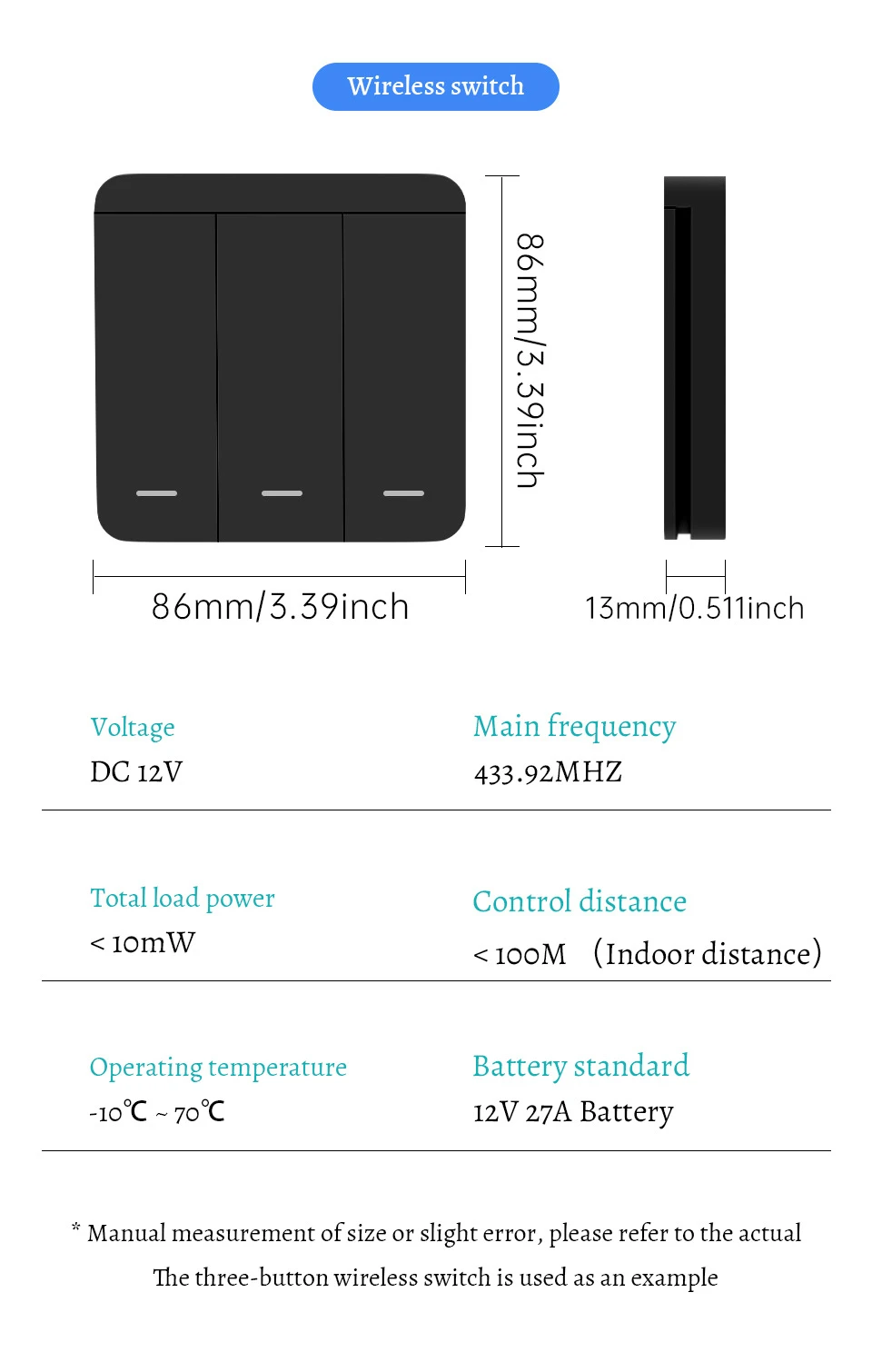

Wireless Wall Switch

Working voltage: DC3.0V

working frequency:433MHZ

Power consumption in standby mode:<1uA

Transmitter power: <10mW

Working way: wireless control

Coding way: EV1527 learning code

Modulation: ASK

Working temperature:-10"C~+70*C

Size: 86*86* 15mm

Working principle of RF433 circuit breaker:

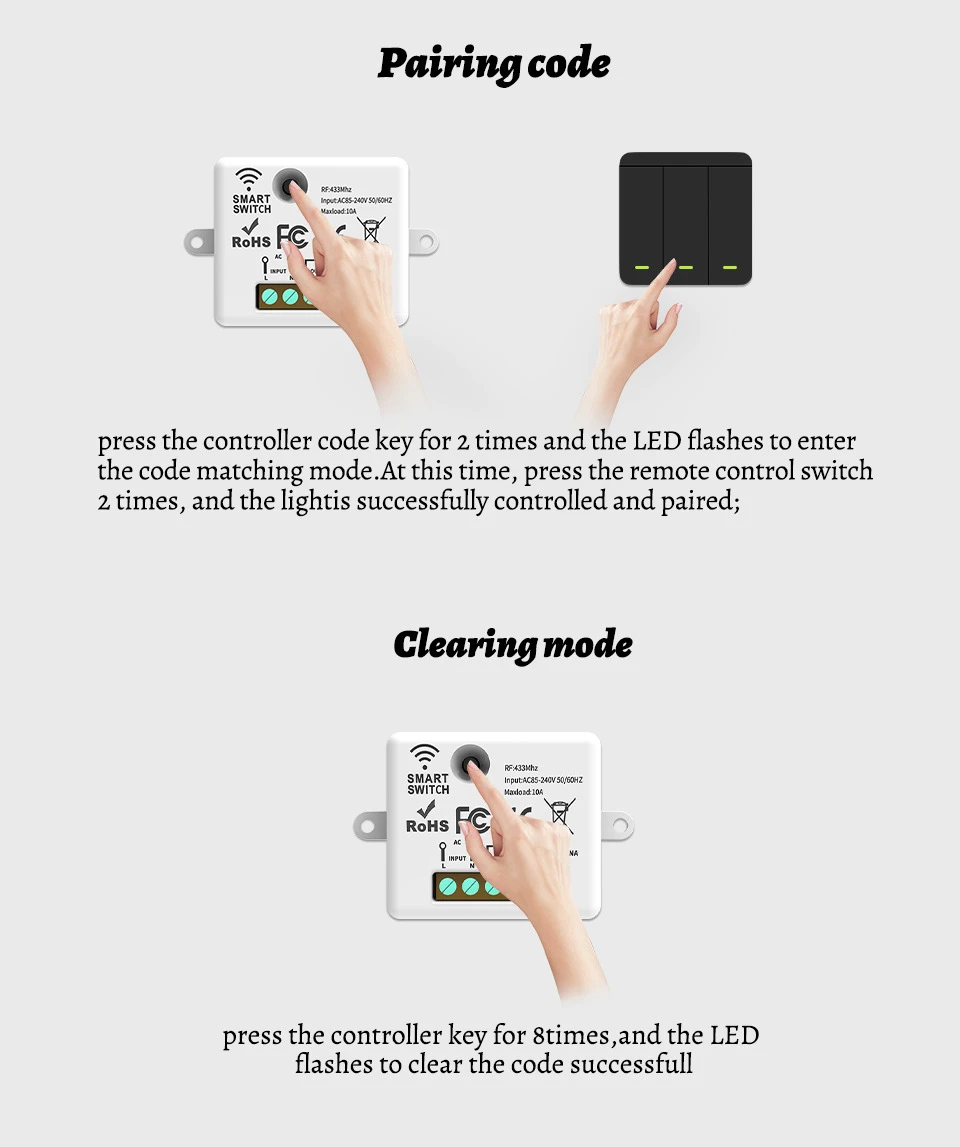

1. Press the learning button (433 circuit breaker) once, then press the remote control button that comes with it again, and the indicator light will flash twice (learning switch).

2. Press the learning button (433 circuit breaker) twice in a row, and then press the button on the remote control that needs to be equipped. The indicator light will flash twice (learning on).

3. Press the learning button (433 circuit breaker) three times in a row, and then press the remote control button to be equipped. The indicator light will flash twice (learning off).

4. Press the learning button (433 circuit breaker) continuously for 6 times, and the light will flash 3 times (power on start function), and it will default to the on state when powered on.

5. Press the learning button (433 circuit breaker) continuously for 7 times, and the light will flash 3 times (the function will not be activated when powered on).

6. Press and hold the learning button (433 circuit breaker) for more than 5 seconds, the indicator light will flash twice (cancel all remote control codes).
