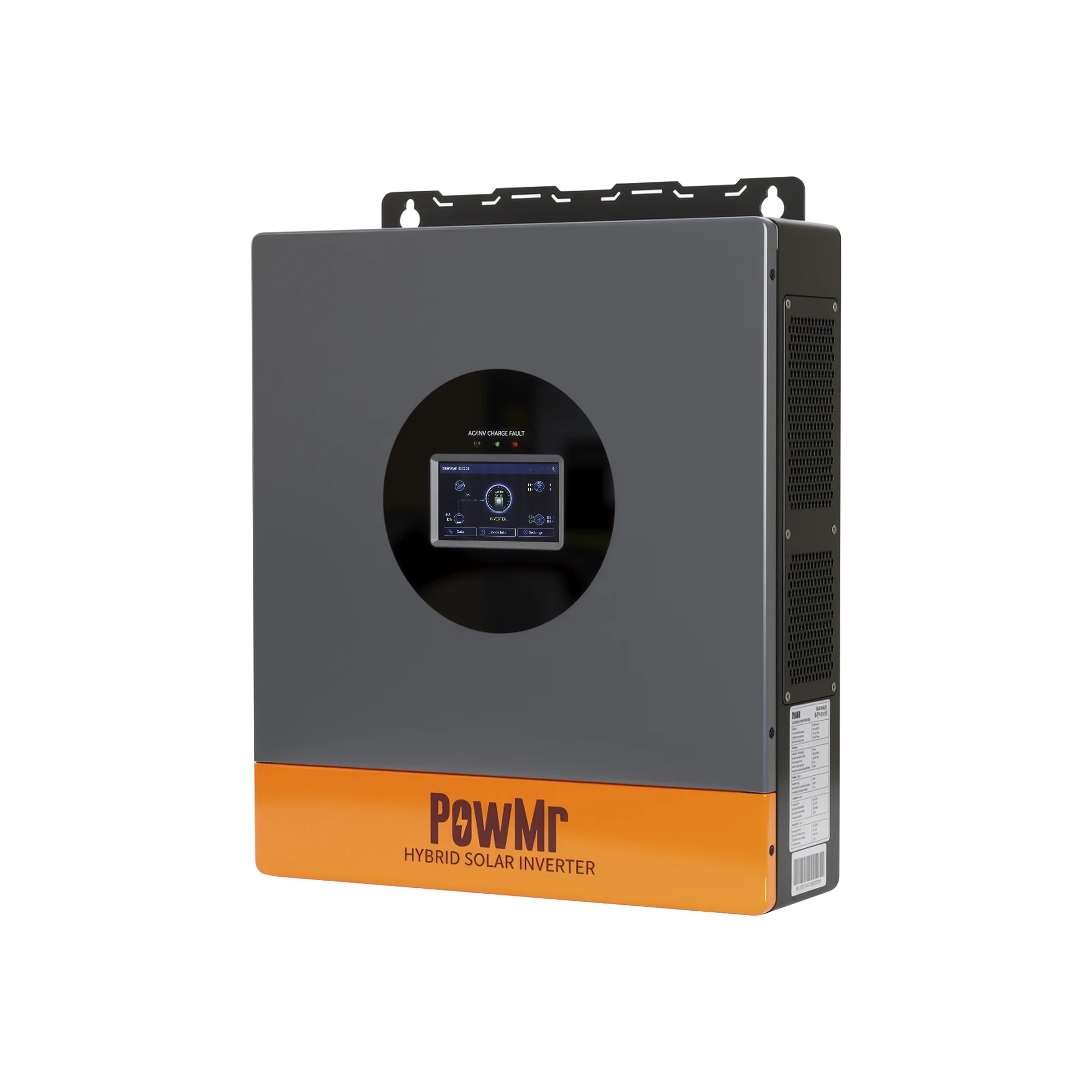

PowMr Split-Phase Solar Inverter 8KW 12.5KW DC 48V to 120V 240V AC MPPT Solar Charger Pure Sine Wave Off-Grid Home Inversor Fit Lithium Batteria

PowMr Split-Phase Solar Inverter 8KW 12.5KW DC 48V to 120V 240V AC MPPT Solar Charger Pure Sine Wave Off-Grid Home Inversor Fit Lithium Batteria

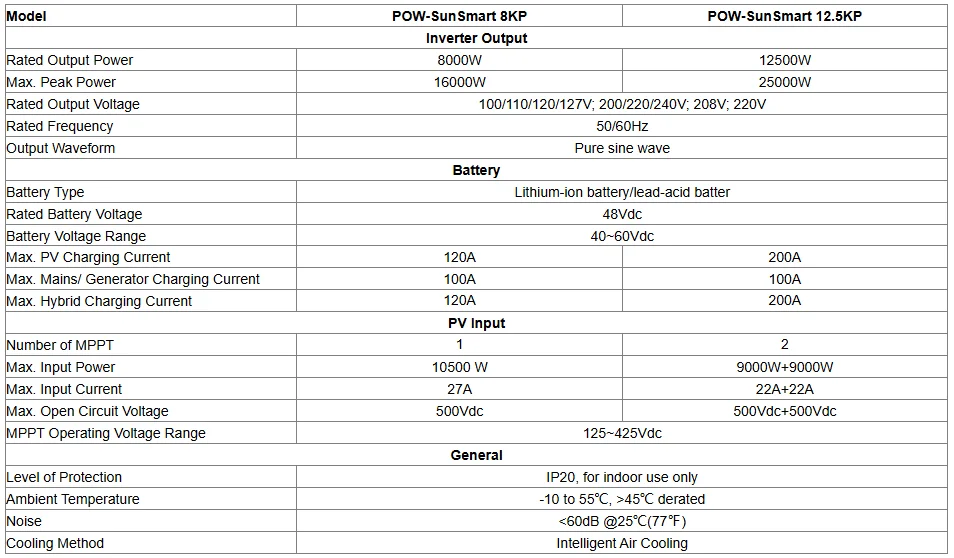

8KW Main Feature

Rated output power: 8000W

Battery Voltage: 48V

Rated Output Voltage: 100/110/120/127V; 200/220/240V; 208V; 220V

Max. Hybrid Charging Current: MPPT 120A

Max. Input Power: 10500W

Max. Open Circuit Voltage: 500Vdc

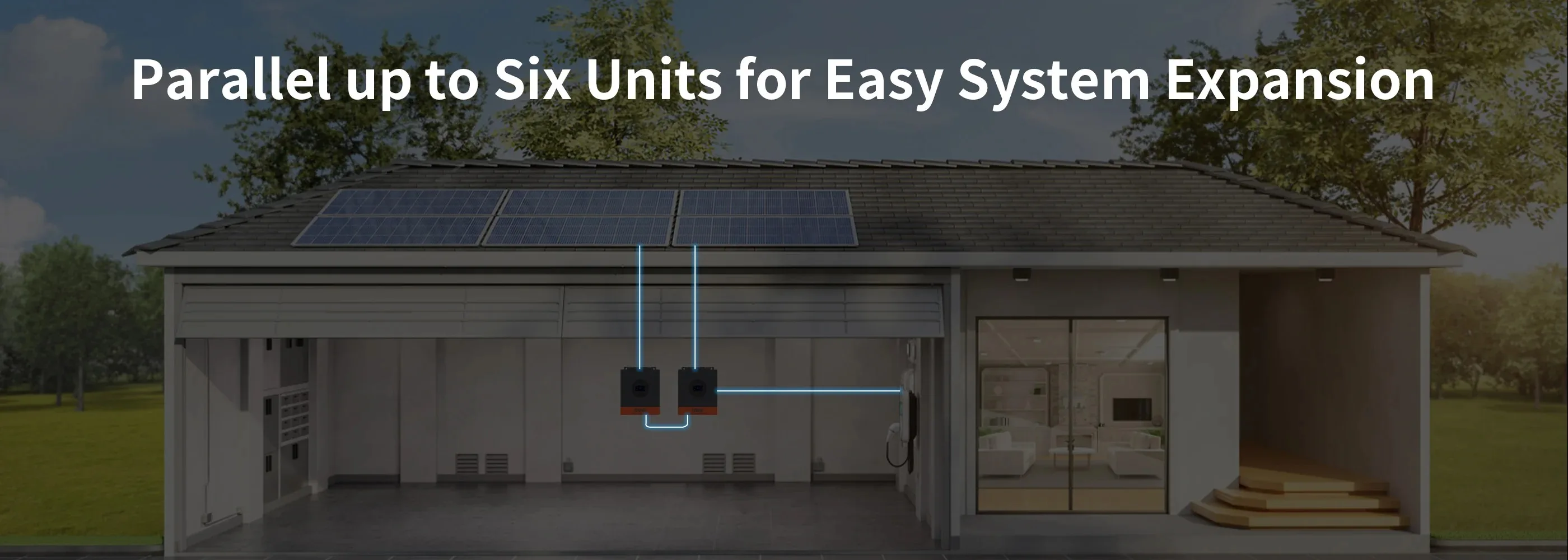

Parallel Funtion: Up to 6 Units

12.5KW Main Feature

Rated output power: 12500W

Battery Voltage: 48V

Rated Output Voltage: 100/110/120/127V; 200/220/240V; 208V; 220V

Max. Hybrid Charging Current: MPPT 200A

Max. Input Power: 9000W+9000W

Max. Open Circuit Voltage: 500Vdc

Parallel Funtion: Up to 6 Units

Inverter Feature

1. Supports various types of energy storage batteries, such as lead-acid batteries and lithium-ion batteries.

2. Supports single-phase and split-phase pure sine wave output.

3. Supports voltage adjustment for each phase within the range of 100 to 130V

4. Supports single-channel photovoltaic input and features the function of simultaneously featuring a single MPPT tracker that can track the maximum power point. The MPPT efficiency reaches up to 99.9%, and the maximum current per channel is 27A.

5. Has two output modes of mains bypass and inverter output, with uninterrupted power supply function.

6. Offers two charging modes: photovoltaic only, and hybrid charging.

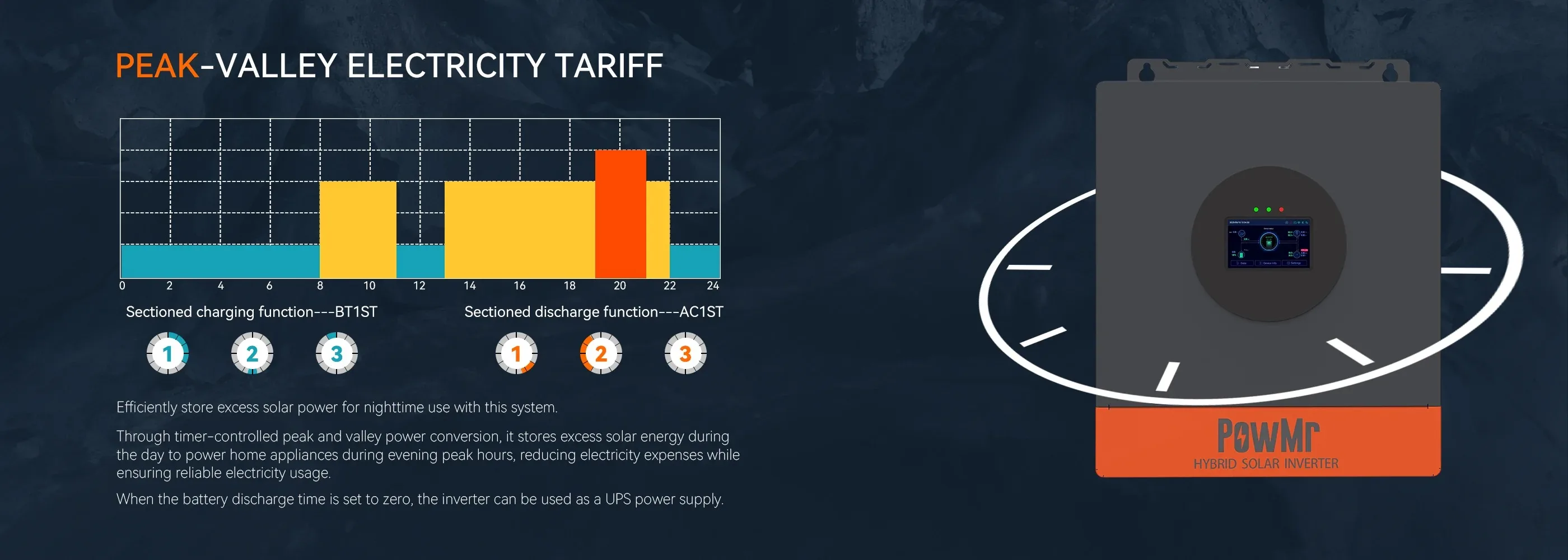

7. Supports timed battery charging and timed battery discharging.

8. The single unit energy saving mode function reduces no-load energy loss.

9. Equipped with multiple protection functions to comprehensively protect the safety of photovoltaic panels, batteries, loads, and the controller itself.

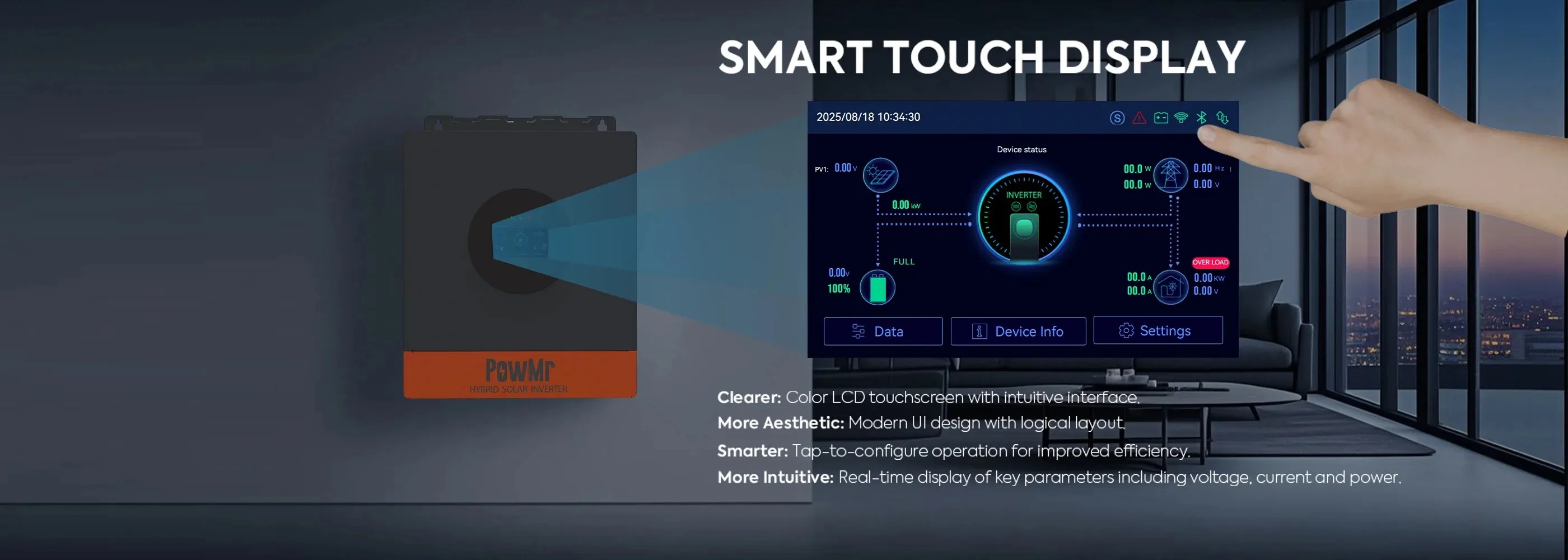

10. Features a capacitive intelligent touch screen, menu based operation, and intuitive and convenient parameter setting.

11. Supports 256 event records and 512 day historical data storage.
