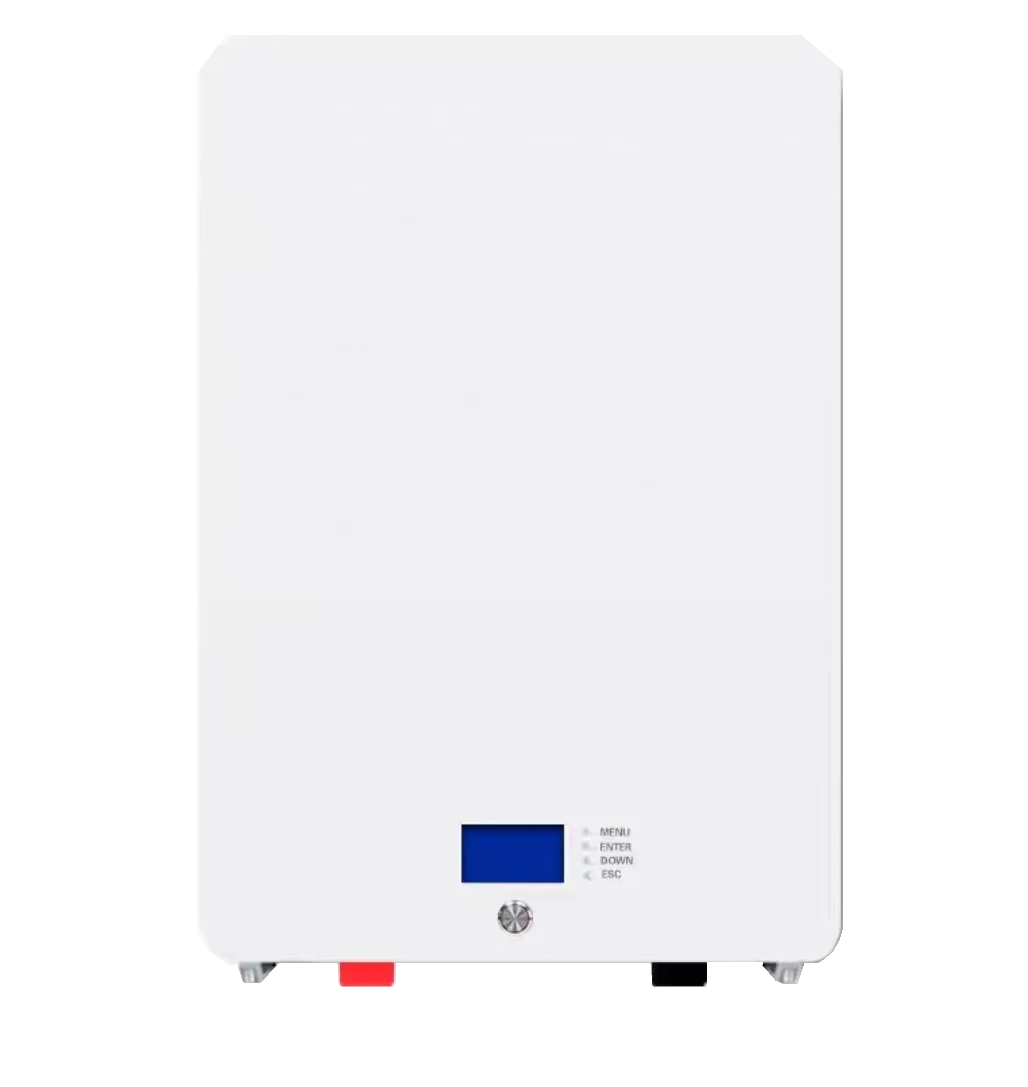

24V 48V 2KW 3KW 5KW Solar energy 100ah 150ah 200ah 50ah Lithium Lifepo4 Battery for Energy Storage PV Household Inverte power

Warm noted: If you are in EU, United States, Canada etc. the delivery time is about 50-69days.

If you need it urgently, please feel free to contact us !

Welcome to JACK Battery Store.

Our website is: https://www.aliexpress.com/store/1104467157/pages/all-items.html?spm=a2g0o.store_pc_feedback.pcShopHead_2011297138602.1&shop_sortType=bestmatch_sort

2KW 3KW 5KW 24V 48V 100ah 150ah 200ah 50ah Lithium Lifepo4 Battery for Energy Storage PV Household Inverter

24V Specifications:

Nominal Voltage : 24V

Rate Capacity :100Ah/150Ah/200Ah/300Ah

Energy : 2400Wh/3600Wh/4800Wh/7200Wh/

Cycle Life : ≤6000 times @0.2C80% DOD

Self discharge rate: <3%@0.2C

Discharge efficiency: 96-99%@1C

Max Charging Voltage : 29.2V

Charging mode: Charge to 29.2V at 0.2C, then adjust the charging current to 0.02C

Charging current: Stad 10A ,max 50A

Charging off voltage：20V+0.2V

Continuous discharge current：

100A about 5KW for 100Ah battery、200A about 10KW for 150Ah-300ah battery

Discharge cut-off voltage: 40V

Charging temperature : 0~45 ℃

Discharge temperature : -20 ~ 60 ℃

Storage temperature : -20 ~ 45 ℃

Environmental humidity requirement: ≤ 65% RH

Communication Protocol: RS485/CAN

Bluetooth APP: Yes , monitor your battery status in real time!

Size：

24V 100Ah: 400*180*320mm

24V 150Ah: 450*200*340mm

24V 200Ah: 500*220*360mm

24V 300Ah: 530*230*380mm

48V Specifications:

Nominal Voltage : 51.2V

Rate Capacity : 50Ah/100Ah/150Ah/200Ah

Energy : 2400Wh/4800Wh/7200Wh/9600Wh

Cycle Life : ≤6000 times @0.2C80% DOD

Self discharge rate: <3%@0.2C

Discharge efficiency: 96-99%@1C

Max Charging Voltage : 58.4V

Charging mode: Charge to 54.8V at 0.2C, then adjust the charging current to 0.02C

Charging current: Stad 10A ,max 50A

Charging off voltage：55.5V+0.2V

Continuous discharge current：

100A about 5KW for 50-100Ah battery、200A about 10KW for 150Ah-200ah battery

Discharge cut-off voltage: 40V

Charging temperature : 0~45 ℃

Discharge temperature : -20 ~ 60 ℃

Storage temperature : -20 ~ 45 ℃

Environmental humidity requirement: ≤ 65% RH

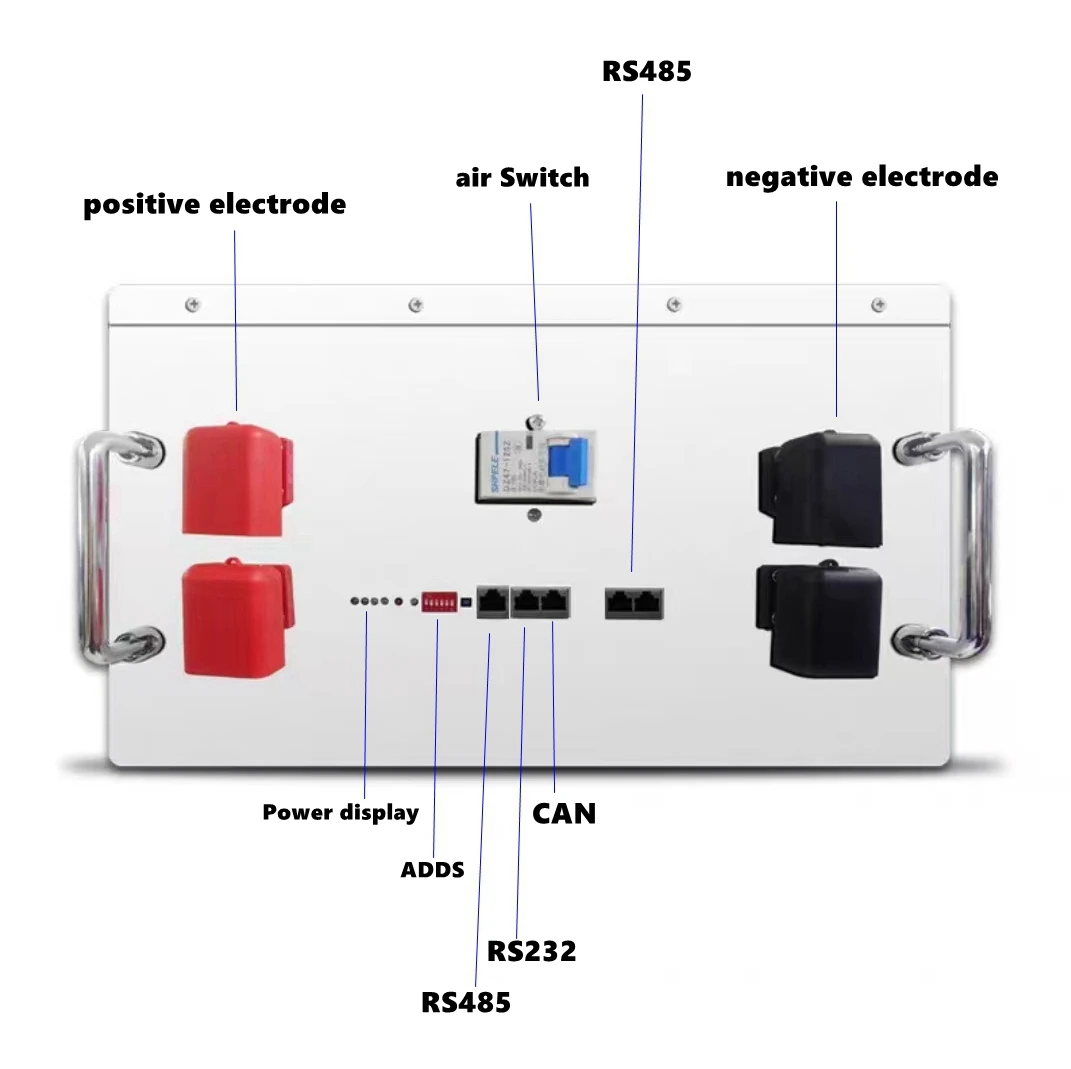

Communication Protocol: RS485/CAN

Bluetooth APP: Yes , monitor your battery status in real time!

Size ：

50Ah: 400*320*180mm with 100ABMS≈5KW

100Ah: 450*350*180mm  with100A BMS≈5KW

150Ah: 500*360*210mm  with 200A BMS≈10KW

200Ah:550*400*230mm  with 200A BMS≈10KW

Package List :

1. 1pcs 48V Lifepo4 Battery , BMS Built in with RS485/CAN communication/Bluetooth APP.

2. 1pcs 58.4V 10A Charger for 50-150Ah Battery / 20A Charger for 200Ah Battery

( choose one EU/US/UK/AU AC Charger plug we can offer )
