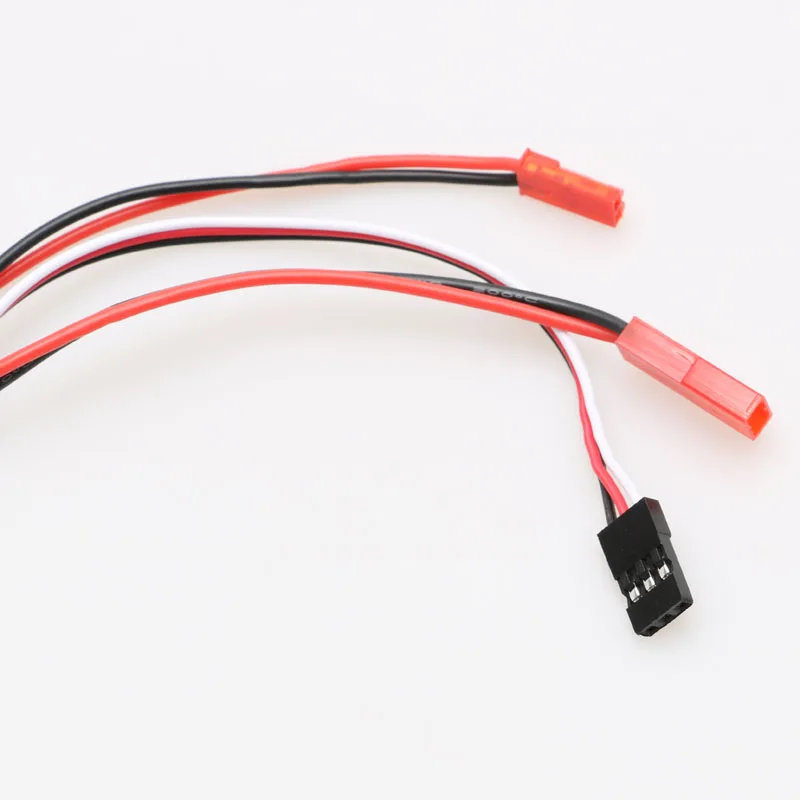

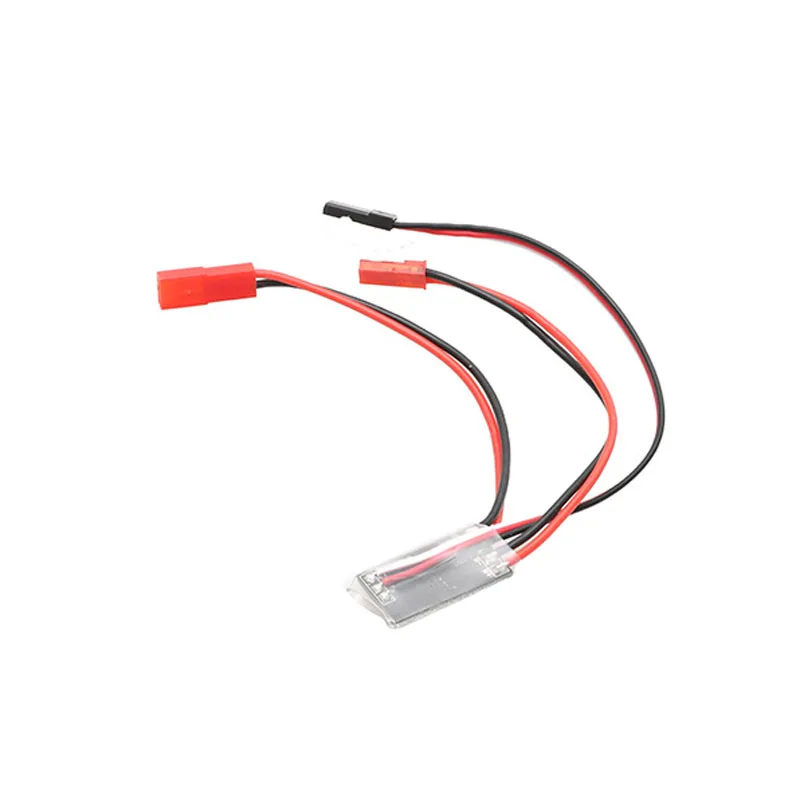

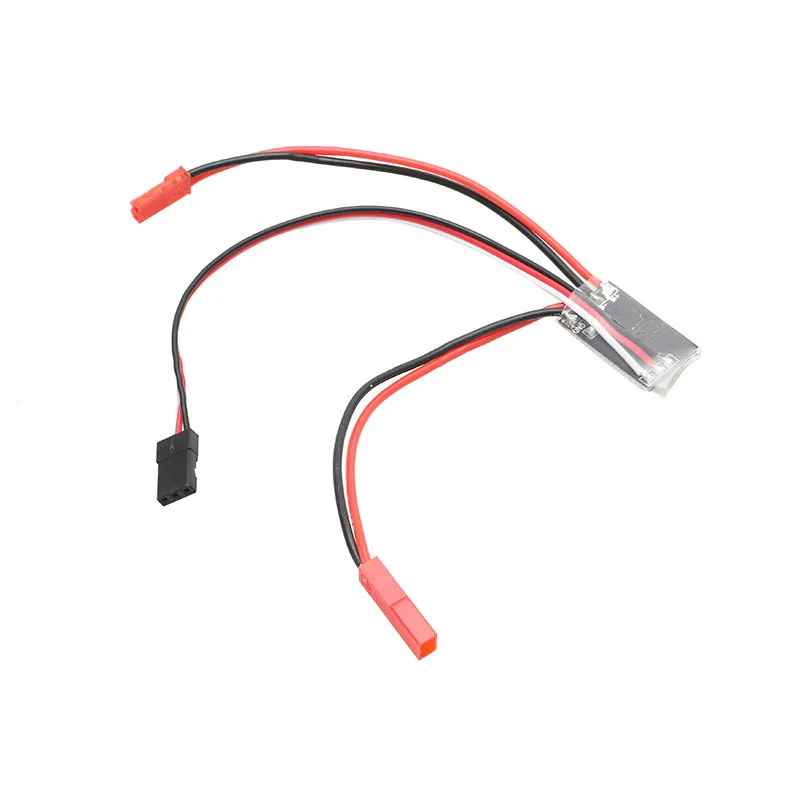

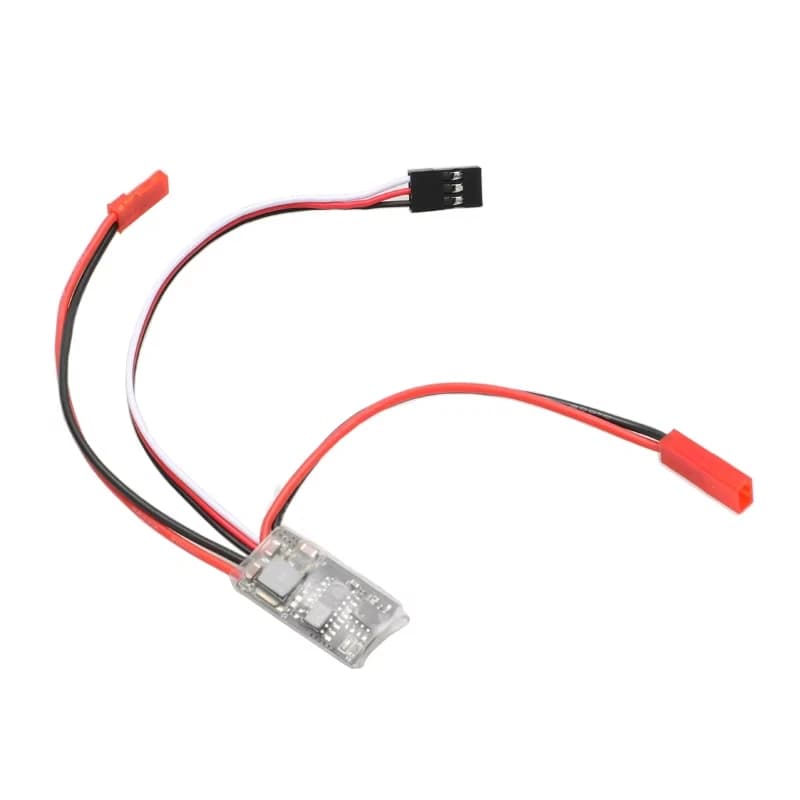

1PCS 10A Brushed ESC 1-3S Two Way Motor Speed Controller with Brake/without Brake 1A BEC for RC Vehicle Car Boat Model

1PCS 10A Brushed ESC 1-3S Two Way Motor Speed Controller with Brake/without Brake 1A BEC for RC Vehicle Car Boat Model

Specification:
- Voltage: 3.2V-12.6V, 1S-3S lithium battery 3-9 cell NiMH battery
- Size: 25x14x6mm (length x width x height)
- BEC voltage: In the mode of 1S power supply, the BEC voltage is equal to the input voltage; In 2-3S power supply mode, BEC voltage is stable at 5V 1A
- With indication, LED, etc. change with throttle size

Description:
1. Dual-way ESC with brake, the handle is up, the motor is rotating forward, if the car wants to brake, turn the handle to the reverse position, then the motor does not move and is in the braking state. If you want to move forward or backward, after the handle return to the middle, operating forward or backward.
2. Dual-way ESC without brake, the handle is up, the motor is rotating forward, the handle is back to the middle, stop at the natural speed. The handle is down, the motor reverses, the handle returns to the middle, stop at the natural speed. When the vehicle or ship is in the forward state, turn the handle down and ESC reverse. If want to stop, when the motor is just to be reversed,handle back to the middle, the vehicle and ship stop.
3. One way for aircraft model version, generally used for fixed wing or multi axis aircraft models, it can control the rotation speed of the motor in one direction, but cannot reverse. When the joystick is in the low position, the motor stops rotating, and when it is in the high position, the motor speed is the highest.

Note: the size is measured manually and there is an error

Package included:
1pc x ESC
