MPPT Solar Charge Controller regulator 12V,24V Auto 30 40 50 60 80 100A Compatible with Lead-Acid, Lithium and LiFePO4 Batteries

30A-100AMPPT Solar Charge Controller Dual USB Charging Board Controller 12v 24v Regulator for Lifepo4 Gel Lead-acid Lithium Battery

Parameters:

Type: MPPT

USB Output Voltage: 5V/2A

Working temperature: -35~+60

Material: PVC

Max Input Voltage: 50V

Rated discharge current: 30A/40A/50A/60A/70A/80A/90A/100A optional

Battery voltage: 12V/24V adaptive

Product size: 170*95*40mm

Packaging size: 175*105*45mm

Gross weight: 310g

Features:

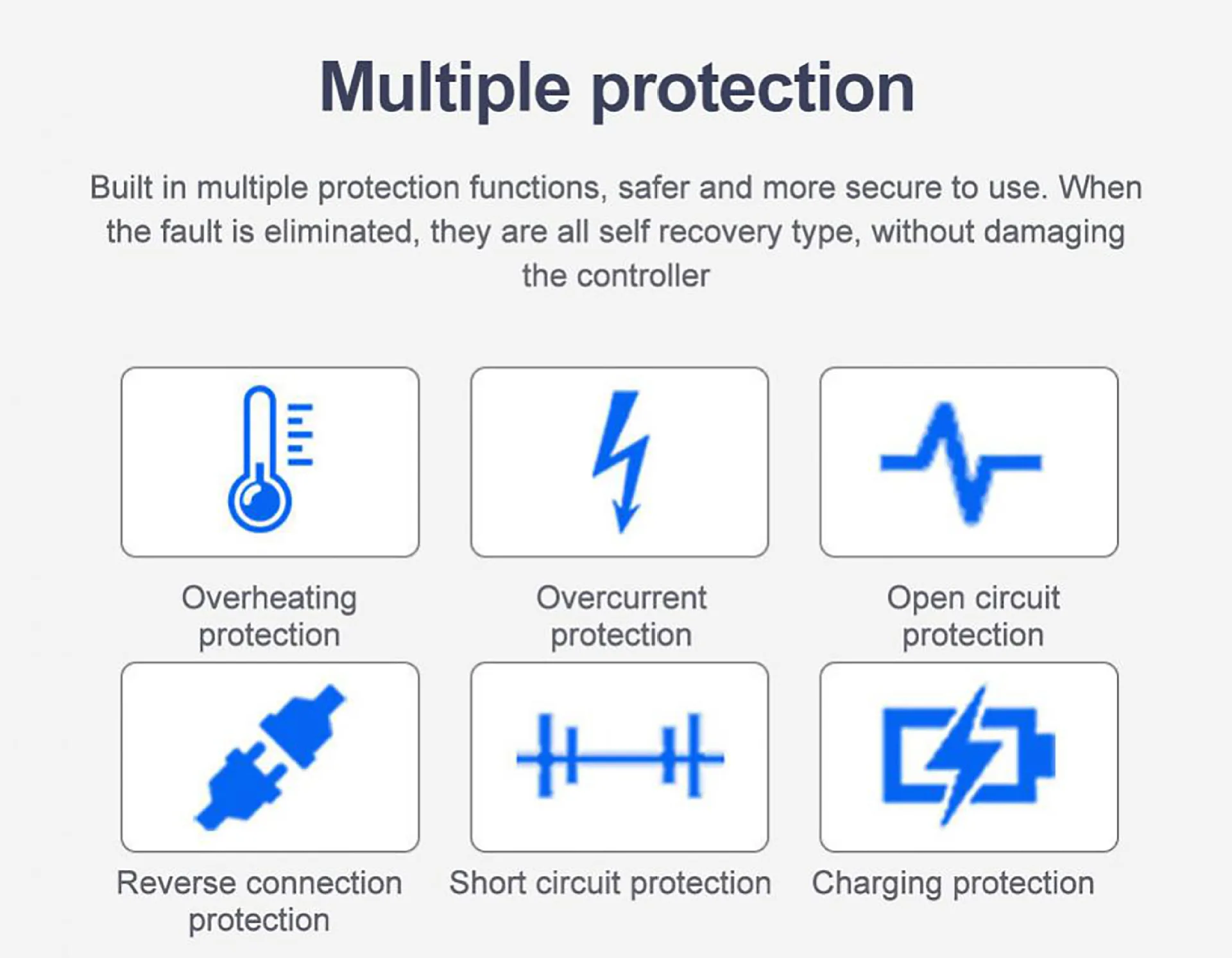

1.Multiple protections: Built-in multiple protection functions for safer and more assured use.After troubleshooting, they are all self-recovery types and will not damage the controller.

2.Industrial-grade main control chip: Using industrial-grade main control chip, 16-bit AD sampling accuracy, accurate real-time display of temperature and charging current, clear view of power generation

3.Auto Focus MPPT Tracking Charging: High charging efficiency, uninterrupted detection during charging process, bidirectional focus tracking

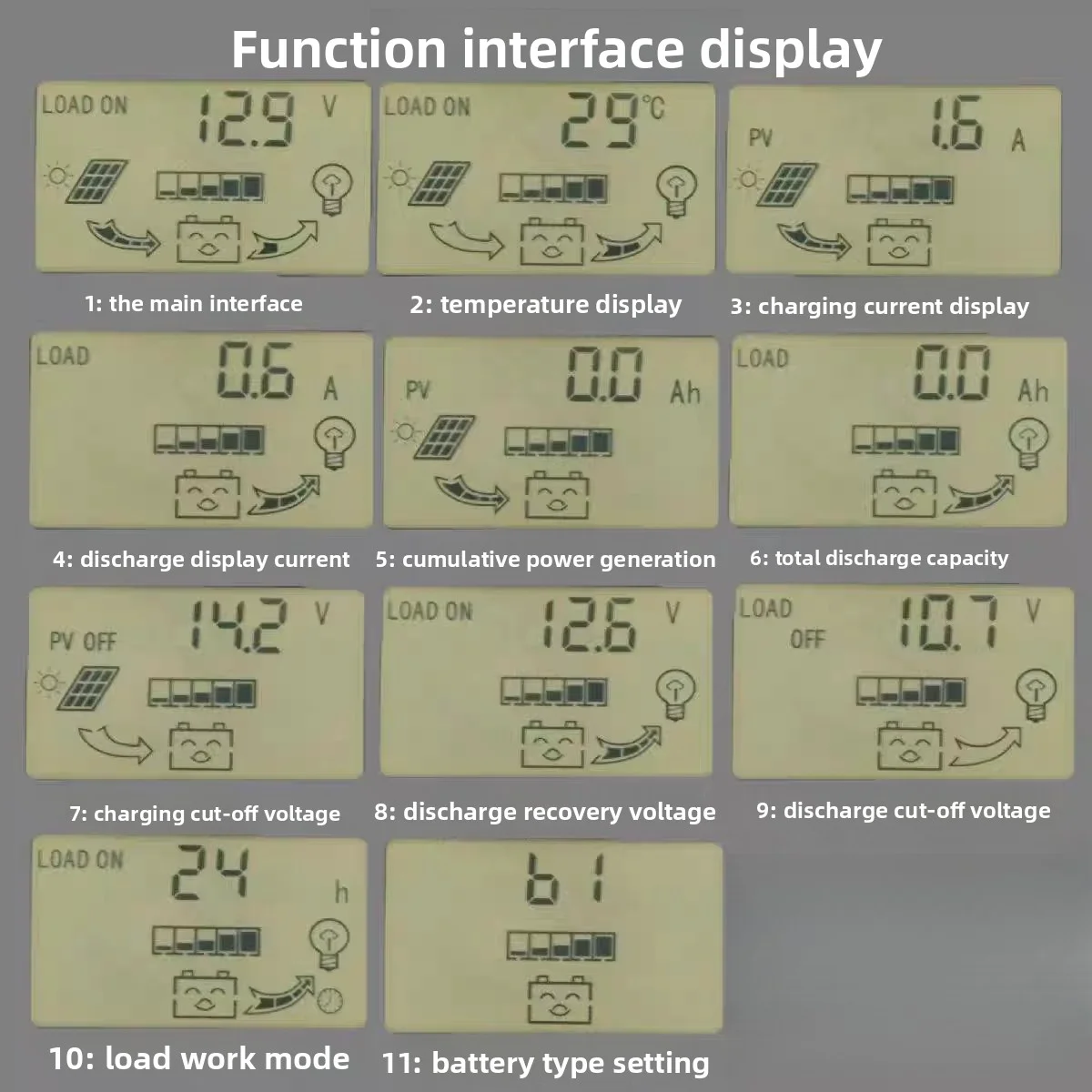

4.Colorful LCD display: adjustable charge and discharge parameters.Ultra-wide charge and discharge adjustable, as long as you understand the battery characteristics and set the corresponding charging parameters, you can charge any battery

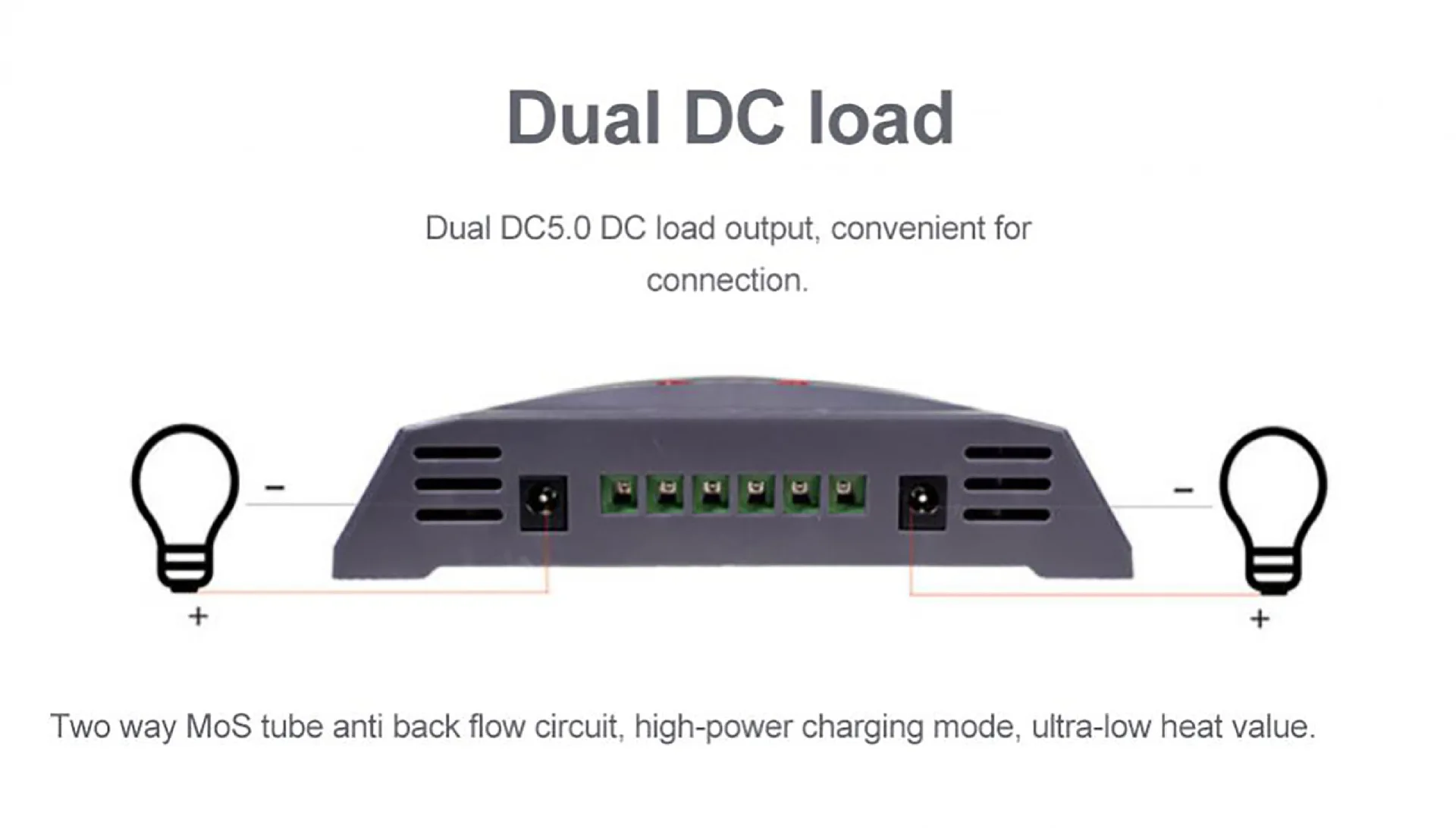

5.Dual DC Load: Dual DC5.0 DC load output for easy connection.

Package Includes

1 * Solar Charge Controller    Instruction manual

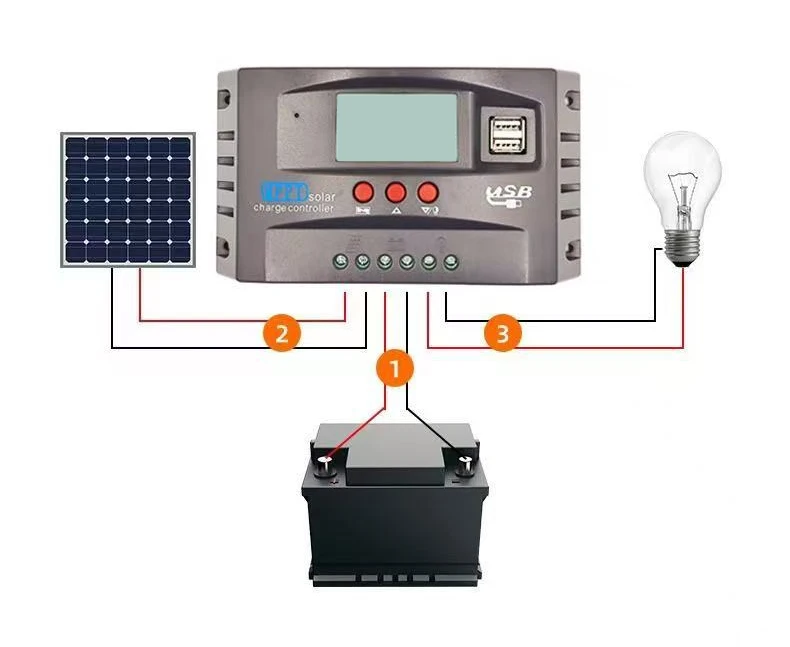

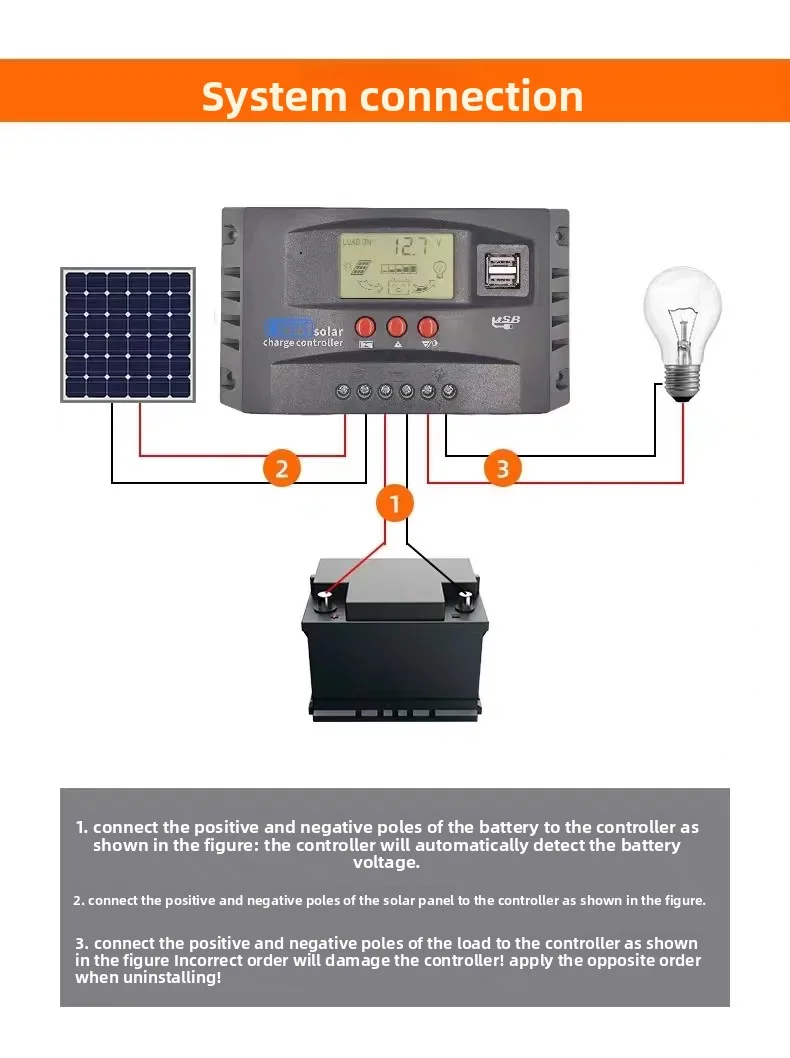

Title: System Connection

Connect the positive and negative terminals of the battery to the controller as shown. The controller will automatically detect the battery voltage.
Connect the positive and negative terminals of the solar panel to the controller as shown.
Connect the positive and negative terminals of the load to the controller as shown. Incorrect connection order may damage the controller! Use the reverse order when disconnecting!

Title: System Connection

Connect the positive and negative terminals of the battery to the controller as shown. The controller will automatically detect the battery voltage.
Connect the positive and negative terminals of the solar panel to the controller as shown.
Connect the positive and negative terminals of the load to the controller as shown. Incorrect connection order may damage the controller! Use the reverse order when disconnecting!
