35dBi Outdoor Digital HD TV Antenna 6000miles Long Range Signal Amplifier 4K 1080P Free HDTV Channel for ATSC/DVB-T/DMB-T/ISDB-T

Specifications:

(1) Global, signal support: DTMB national standard, ATSC Europe and America,

      DVB-T Asia/Europe Africa, DMB-T Korea, ISDB-T Brazil

(2) Gain: 35 DBI

(3) Product size: 250*800*100MM

(4) Operating frequency: 174-240/ 470-862mhz

(5) Supports 1080p high-definition mode

(6) 6000 mile range

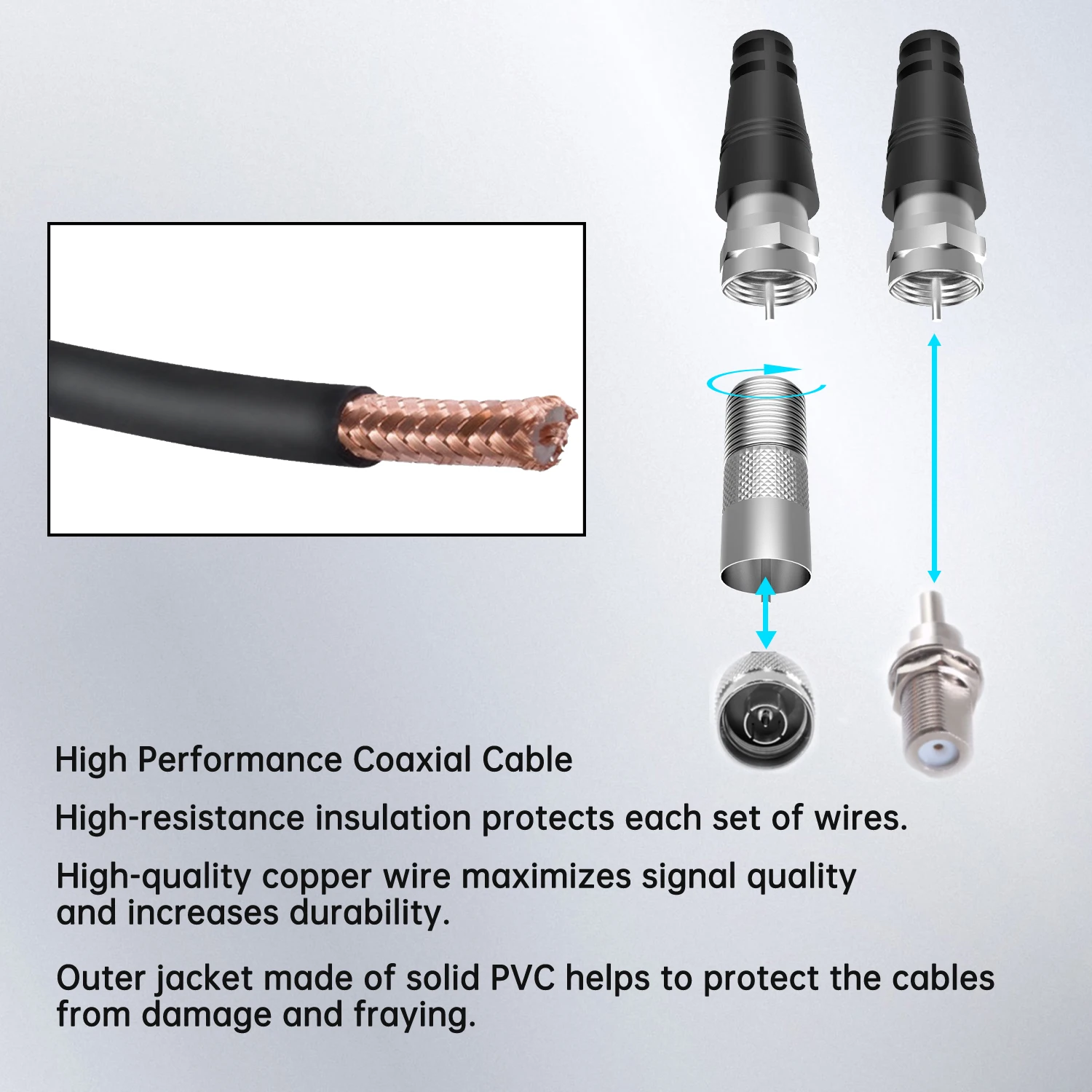

(7) Cable length: 5 meters extension cable

(8) Connector type: F male or IEC head

(9) Standing wave ratio: ≤ 1.5, maximum value: 1

(10) Impedance: 75Ω

(11) Can receive all 'free' channels

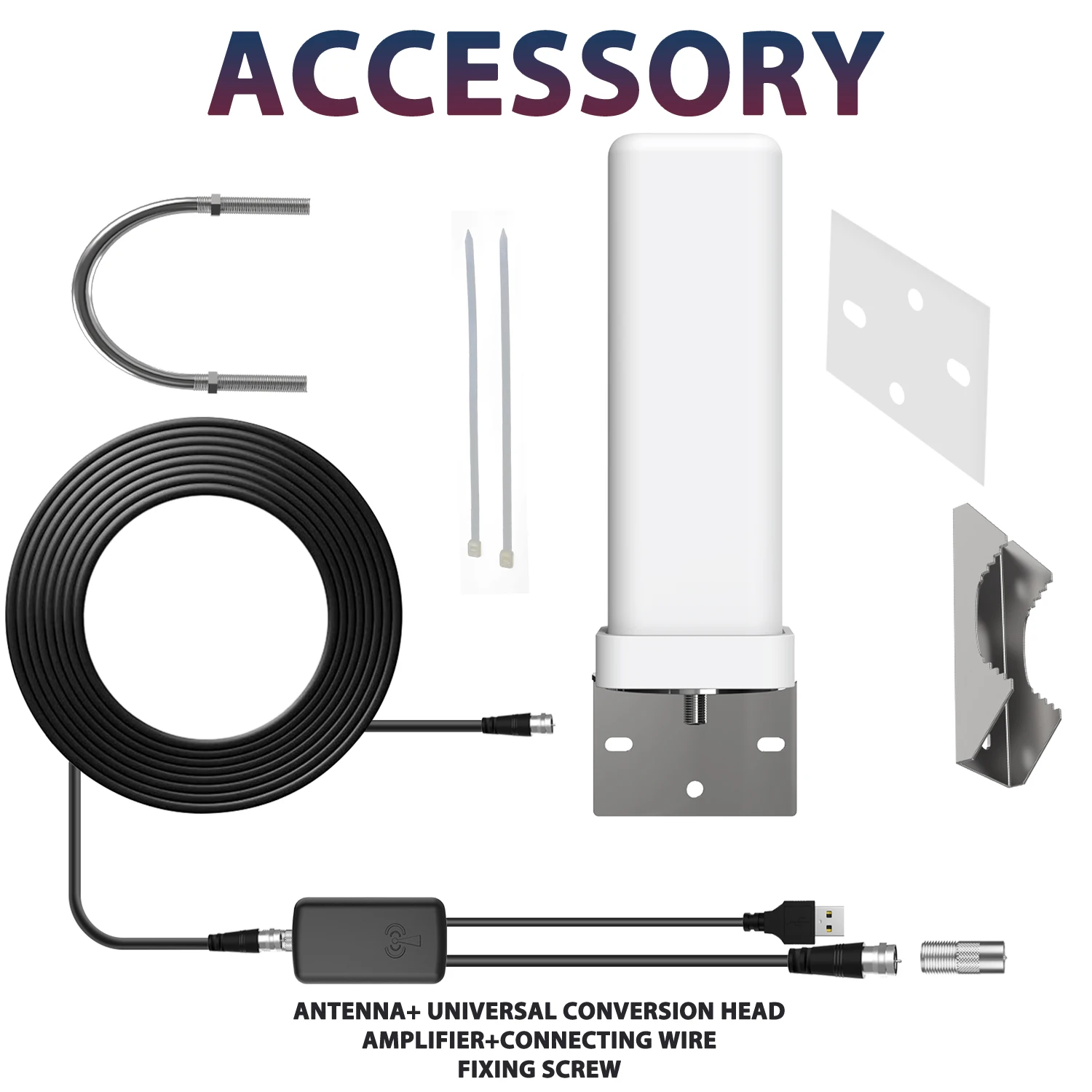

Package List:

1x antenna

1x universal conversion head

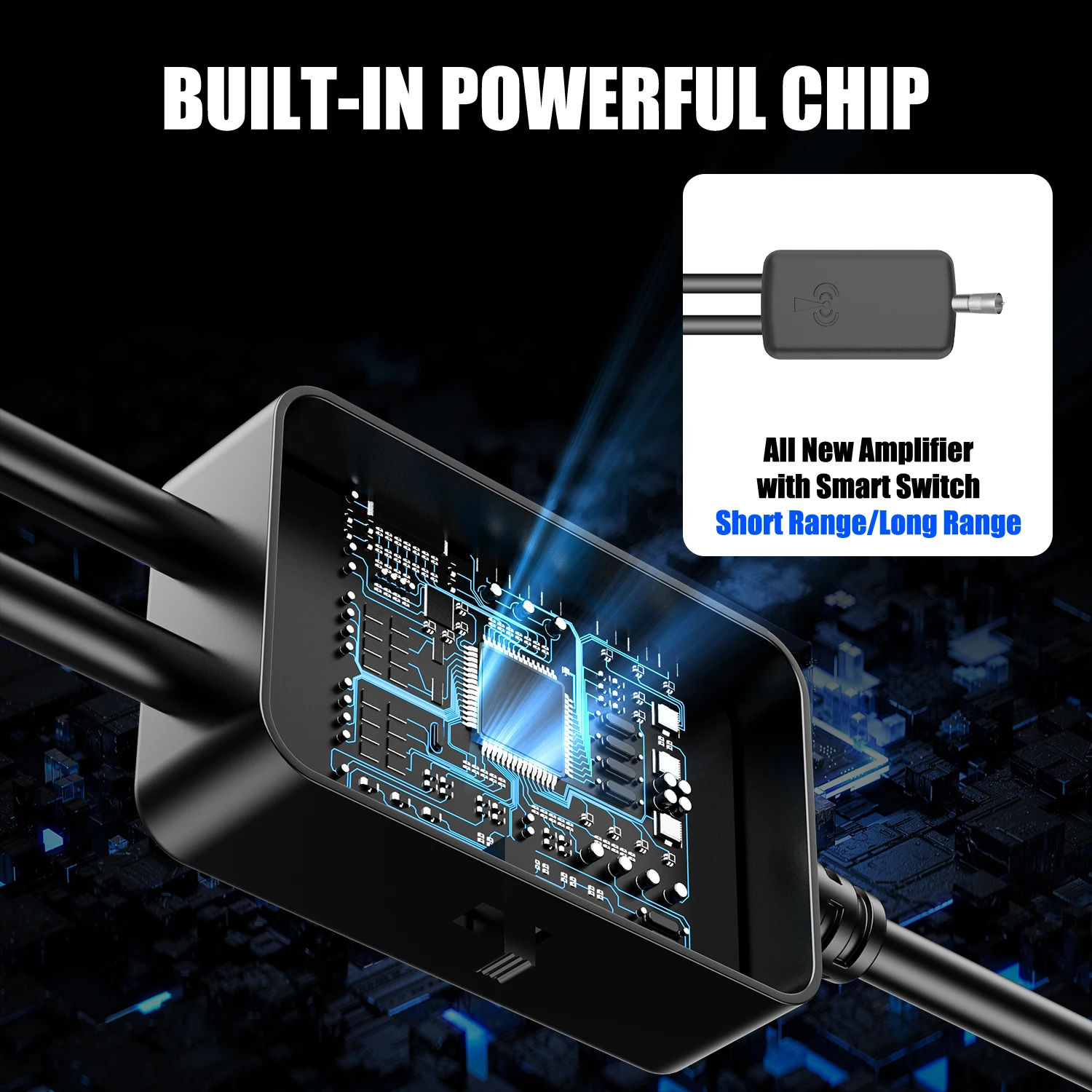

1x amplifier

1x connecting wire

1x fixing screw

How to Use

Step 1: connect the end(f-male) of an attached coaxial cable to the ANT/IN connector on the back of the TV or DVB-T tuner.

Step 2: In the TV’s setup menu, set the tuner mode to “Antenna” or “Air”. for more detailed instructions, please refer to your TV manual.

Step 3: In the Tv’s setup menu, set TV to “scan” for channels. this can sometimes be listed as auto-program, auto-scan, channel search or channel scan. consult the TV manual for detailed instructions.

Step 4: if the reception is sporadic, try moving the antenna to another location and rescanning the TV until the optimal position is found.

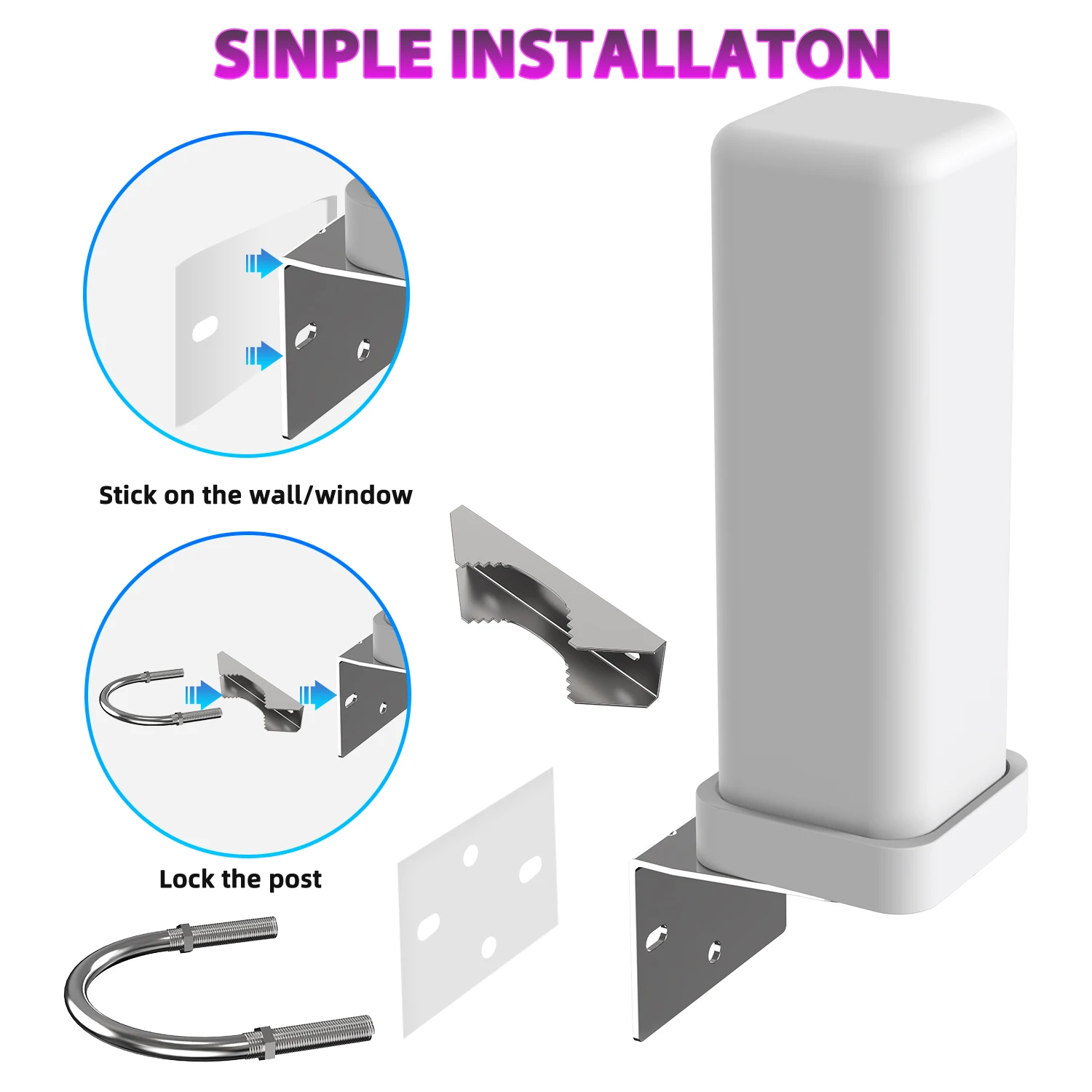

Step 5: fix the antenna at the optimal position you found.
