NEEBRC 2g 4.3g 5g 8g 12g 21g Digital Micro Servo for RC Plane Drone Mini Car Helicopter Fixed-wing Wltoys K969 K989 XKS X450

NEEBRC 2g 4.3g 5g 8g 12g 21g Digital Micro Servo for RC Plane Drone Mini Car Helicopter Fixed-wing Wltoys K969 K989 XKS X450

Features:
1.Quick response high performance digital standard.
2.Low noise and long service life.
3.Small volume and large torque.
4.Suit for RC plane helicopter Mini car boat model.
Specifications:

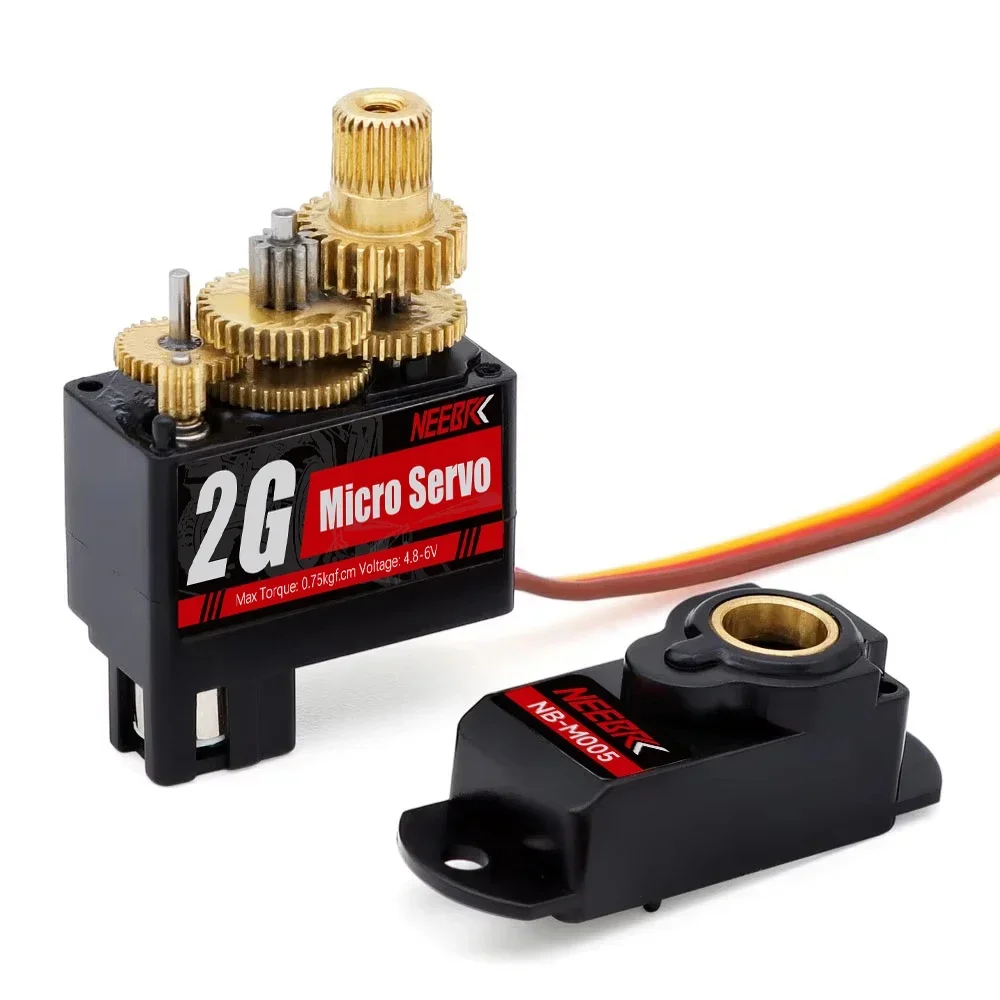

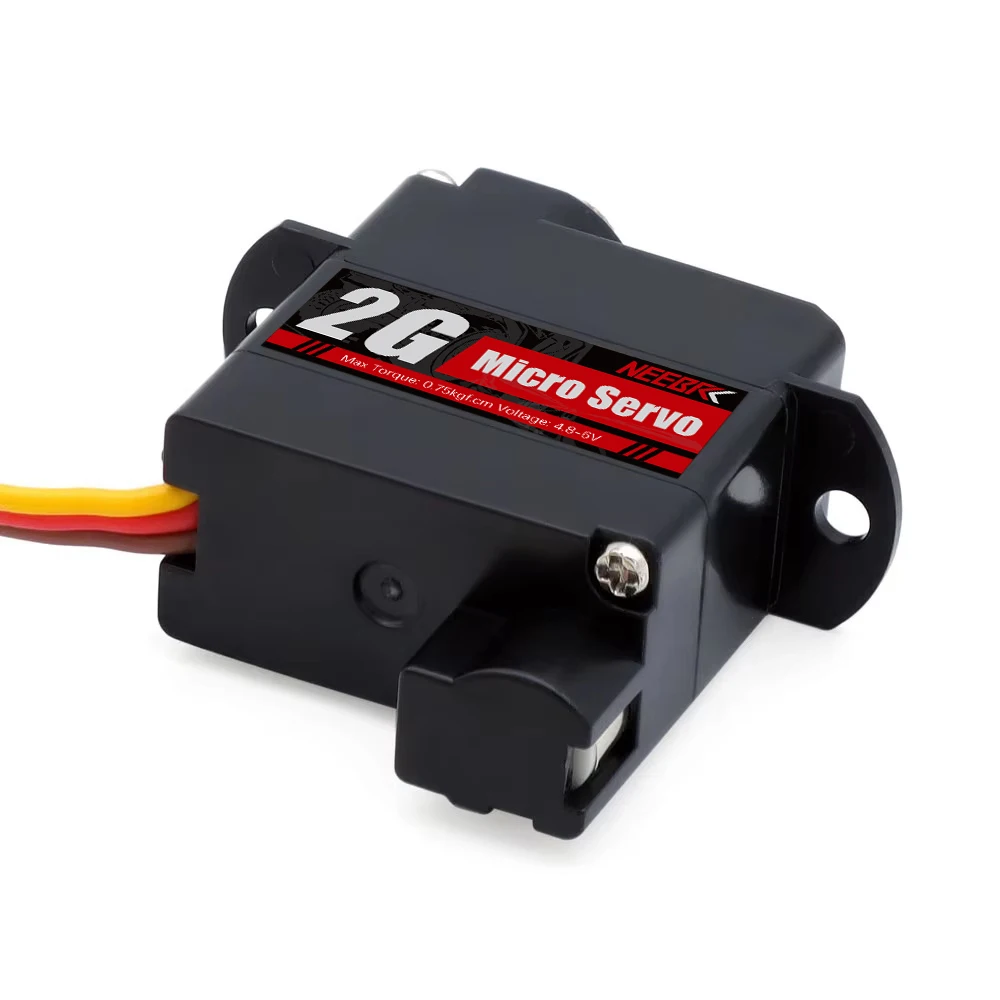

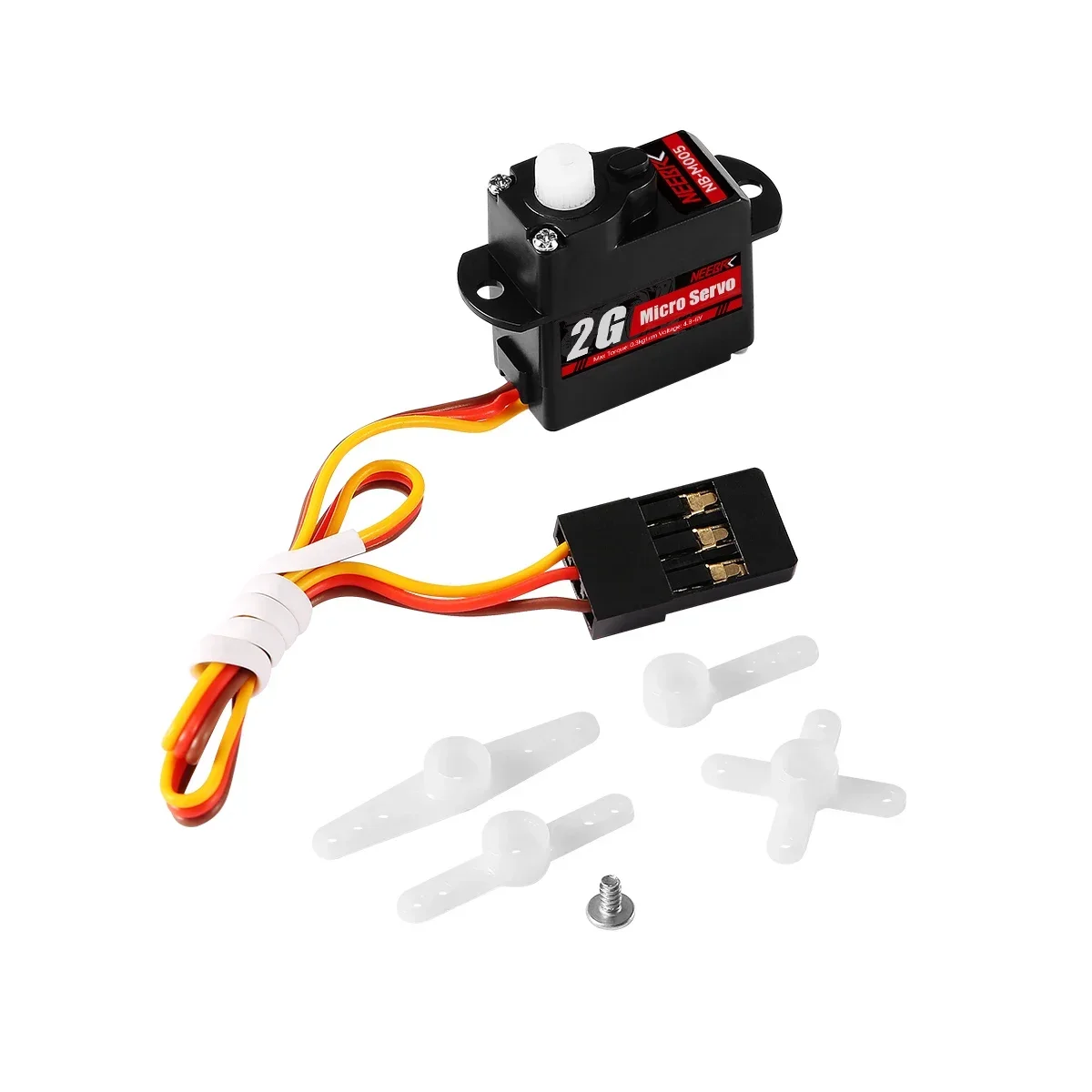

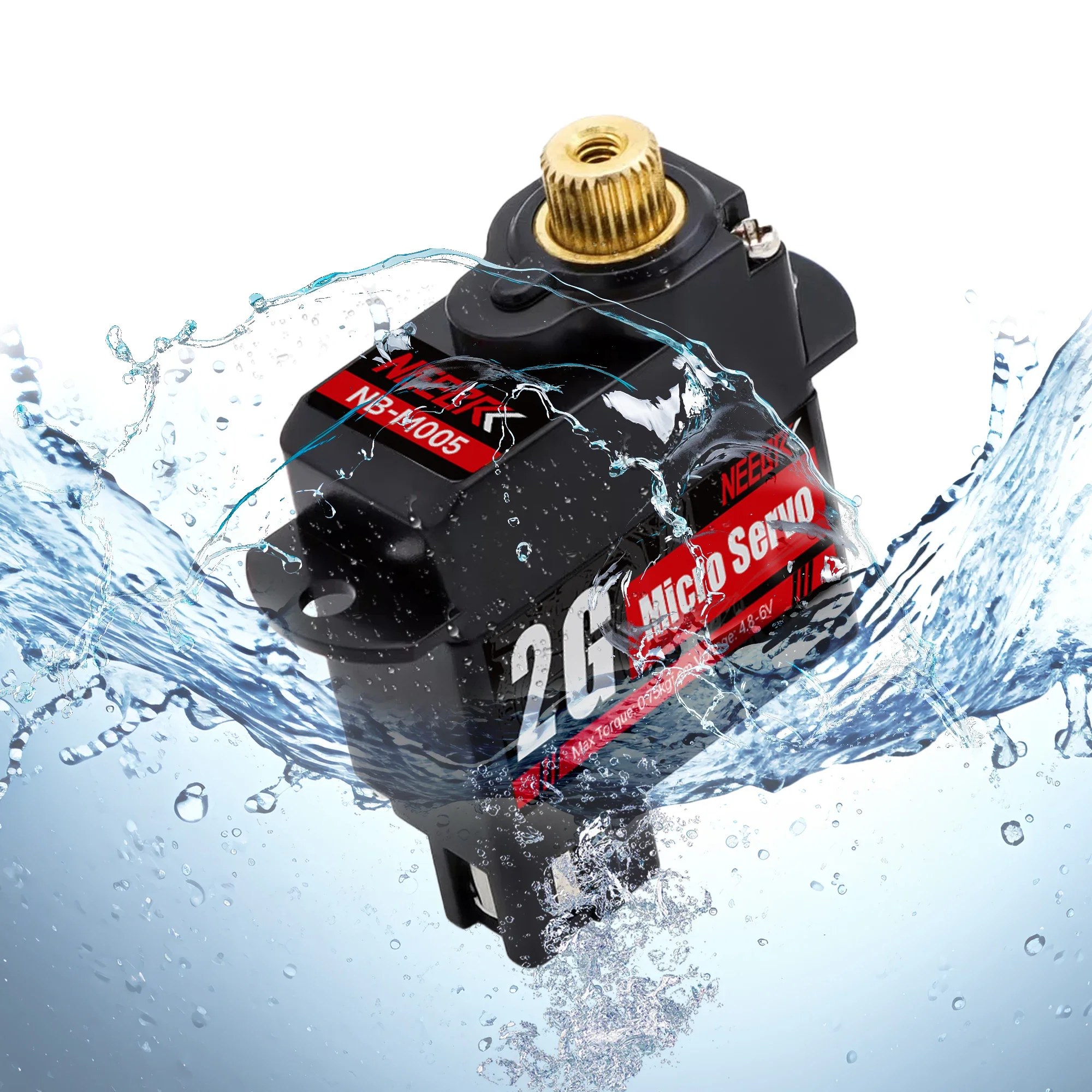

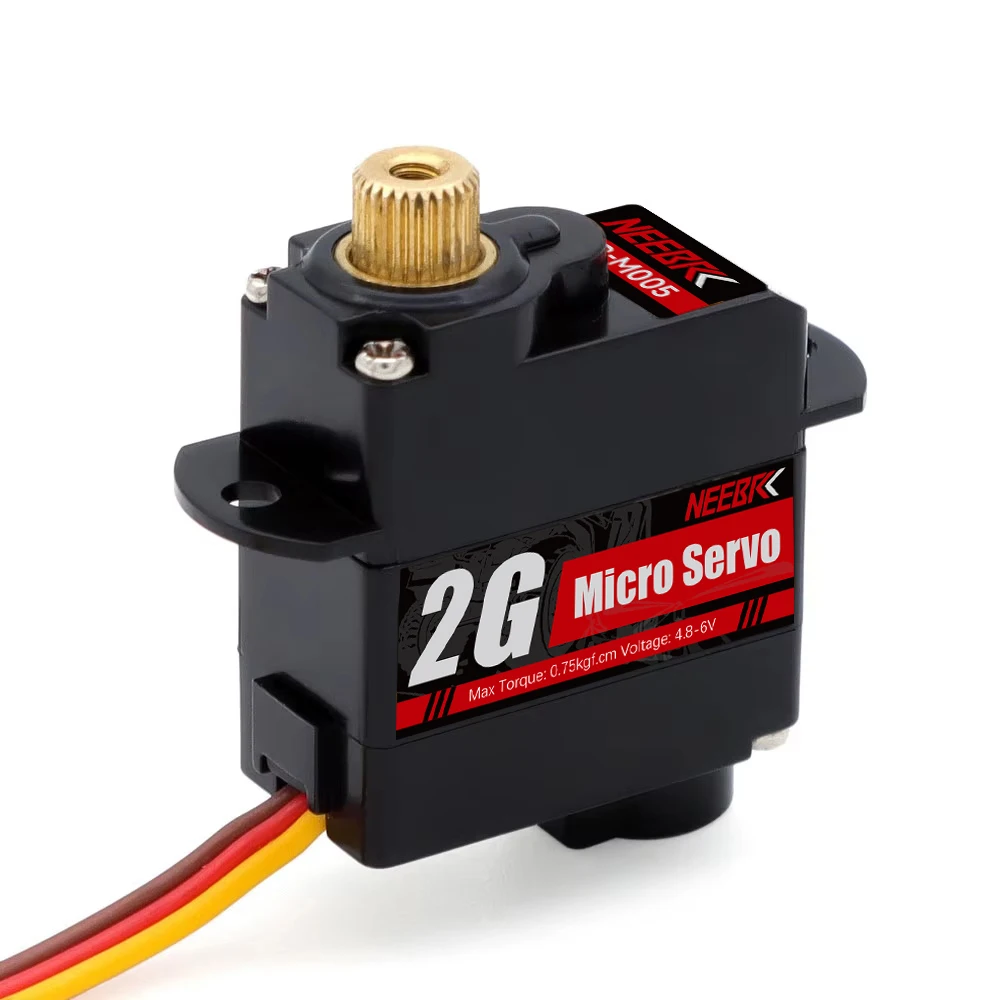

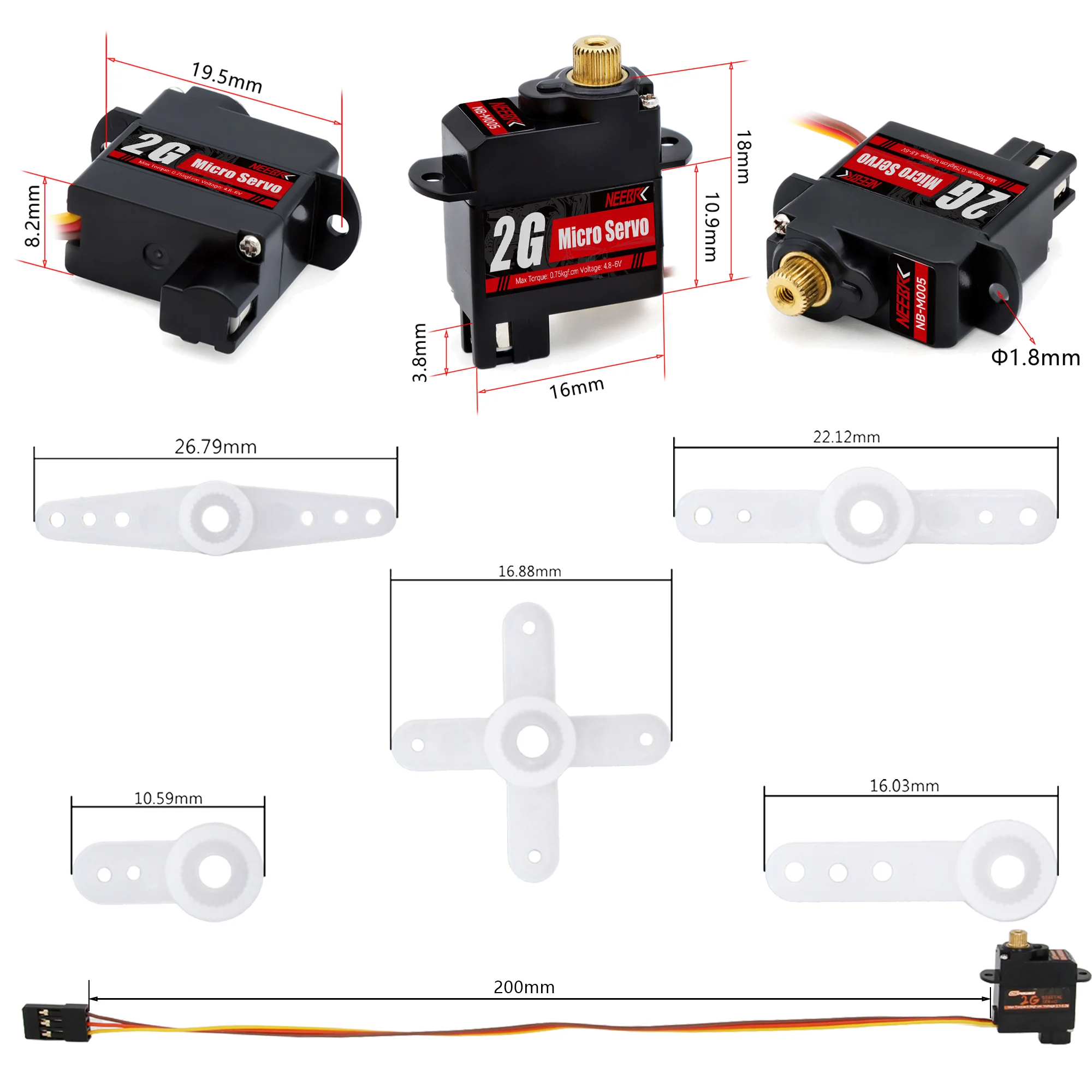

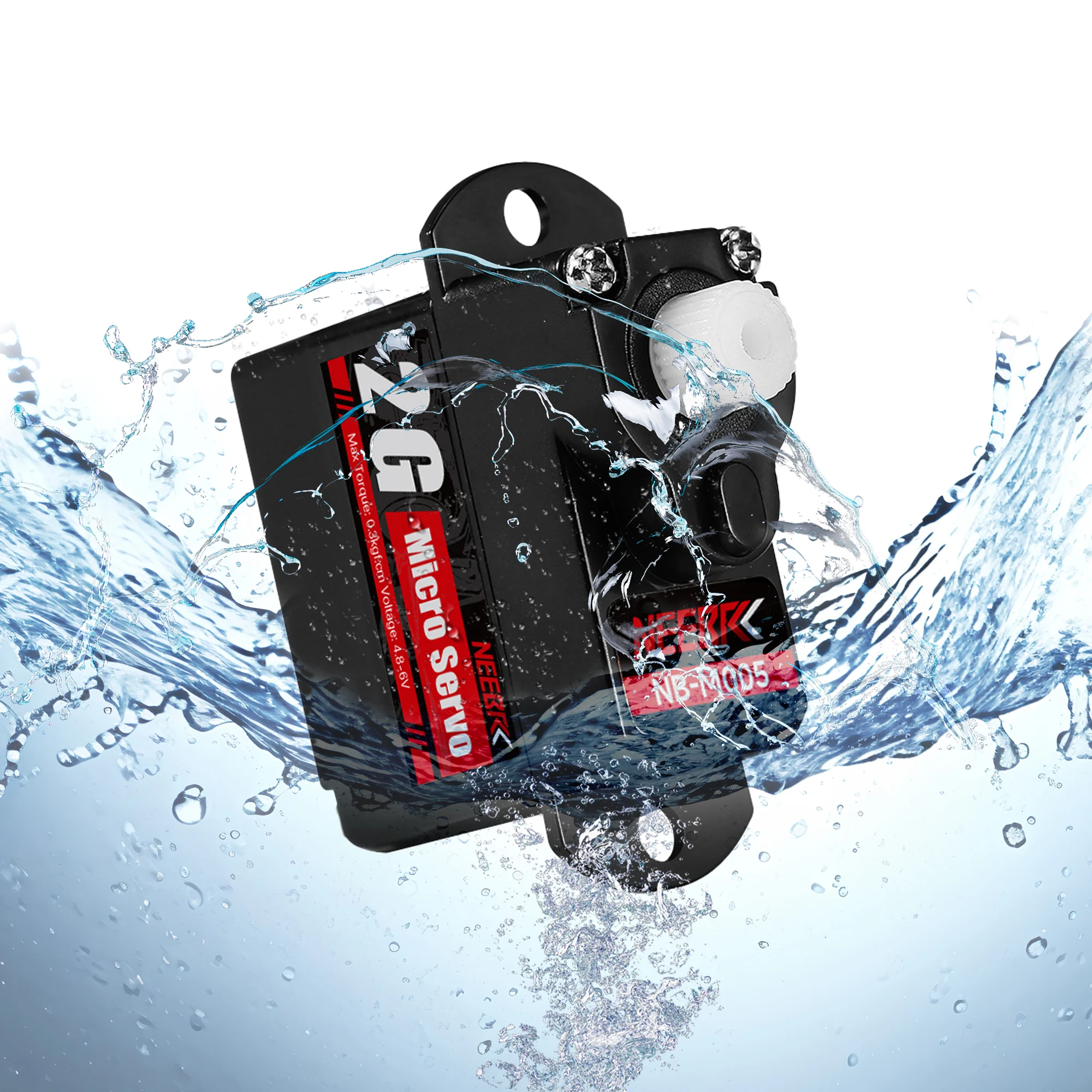

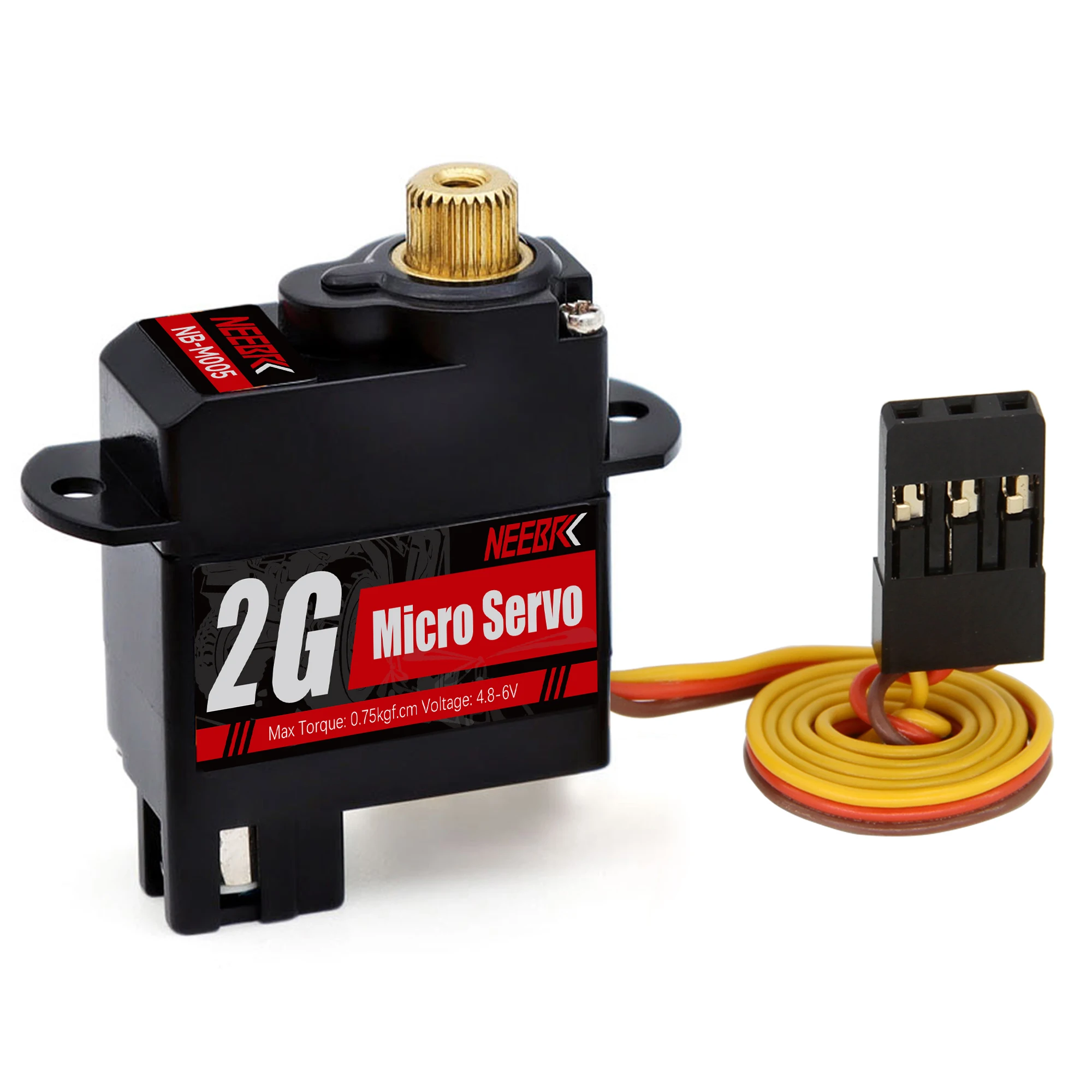

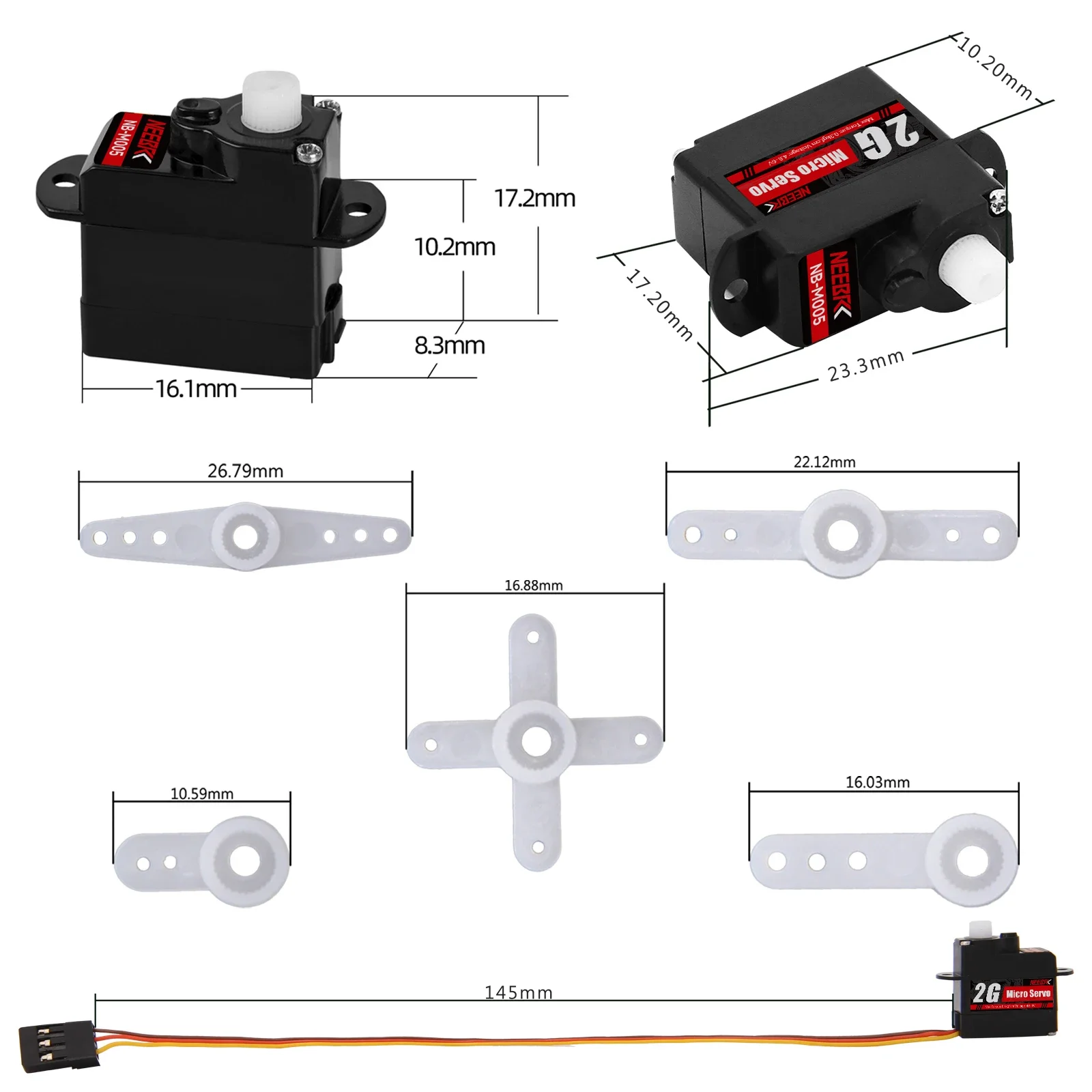

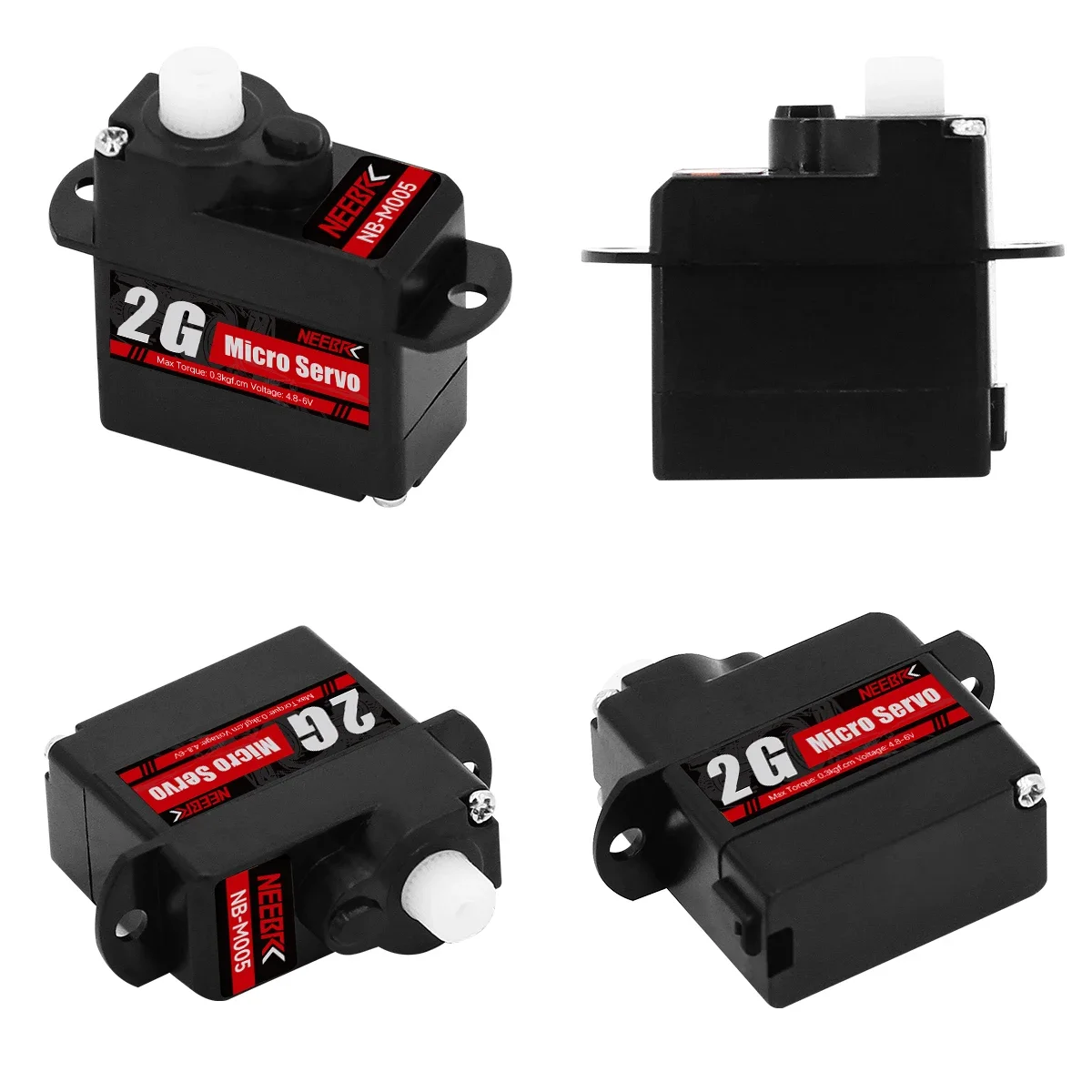

Item name: NEEBRC NB-M005
Quantity: 1pcs
Operating Voltage : 4.8~6V DC
Max. Torque : 0.3kgf·cm/0.75kgf·cm
No Load Speed : 3.7V≦0.08sec/60° ; 4.2V≦0.06sec/60°
Stall Current:3.7V≦320mA;4.2V≦350mA
Consumption Current* (No Load):3.7V ≦50mA ;4.2V≦60mA
Max. Operating Travel Angle:180° ±10° (500~2500 us)
Dead Band Width: ≤ 1us
Mechanical Limit Angle: 360°
Communication Interface: PWM
Motor Type: Coreless motor
Case Material: ABS
Gear Set Material : Plastic/Metal gear
Weight: 3.3g/5.5g
Size: 16.7 × 8.2 × 17mm
Length of Connector cable:JR 200±5mm (exposed without plug)

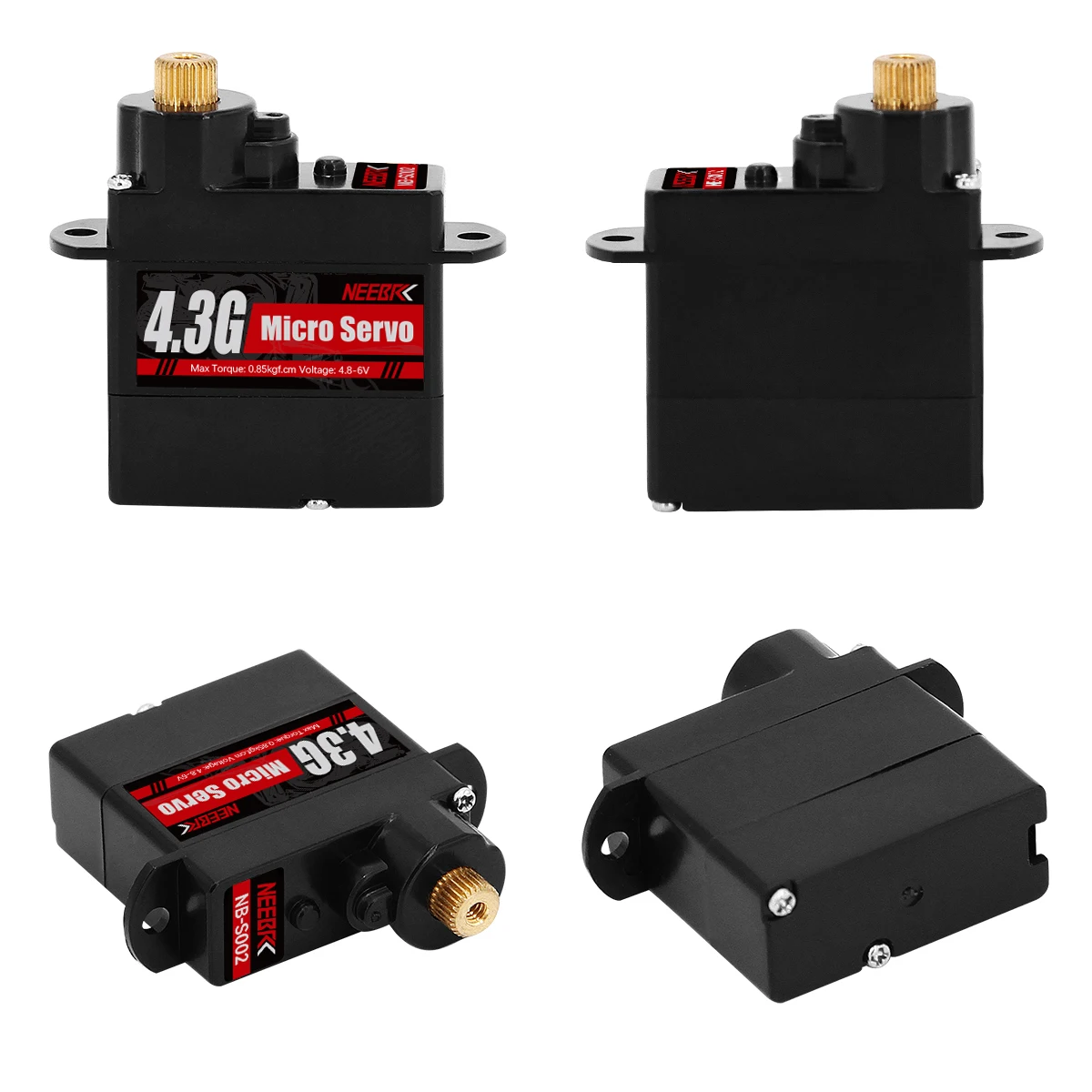

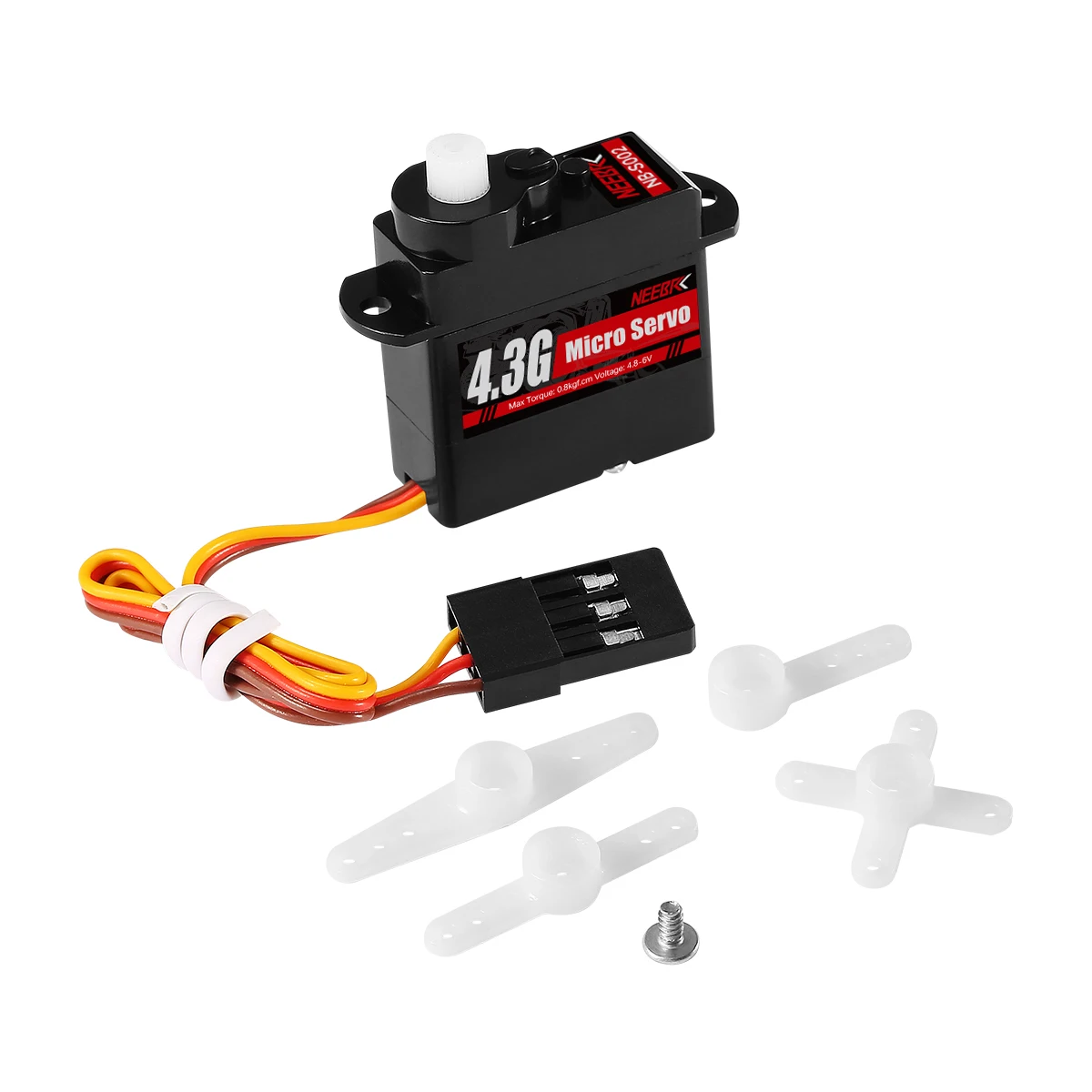

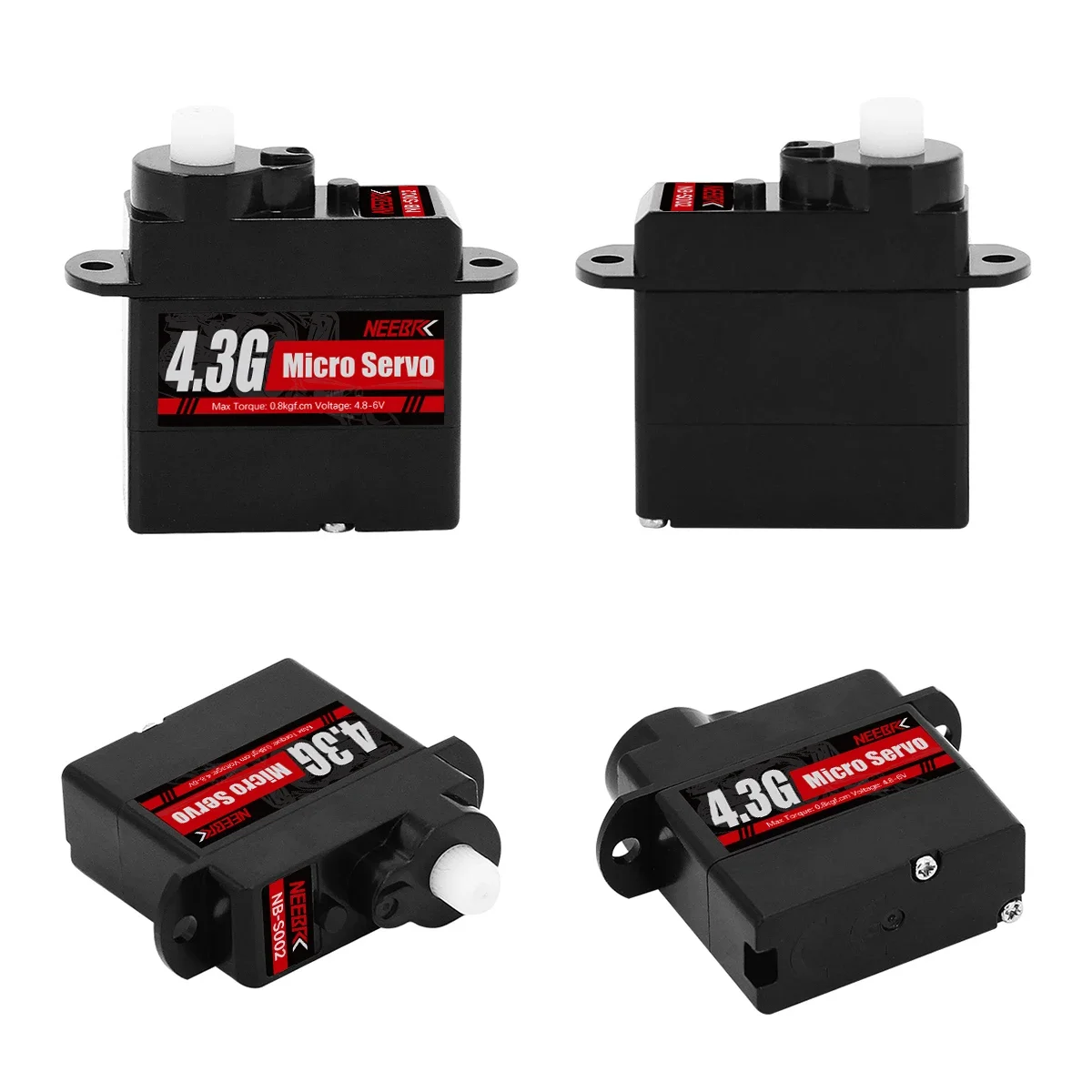

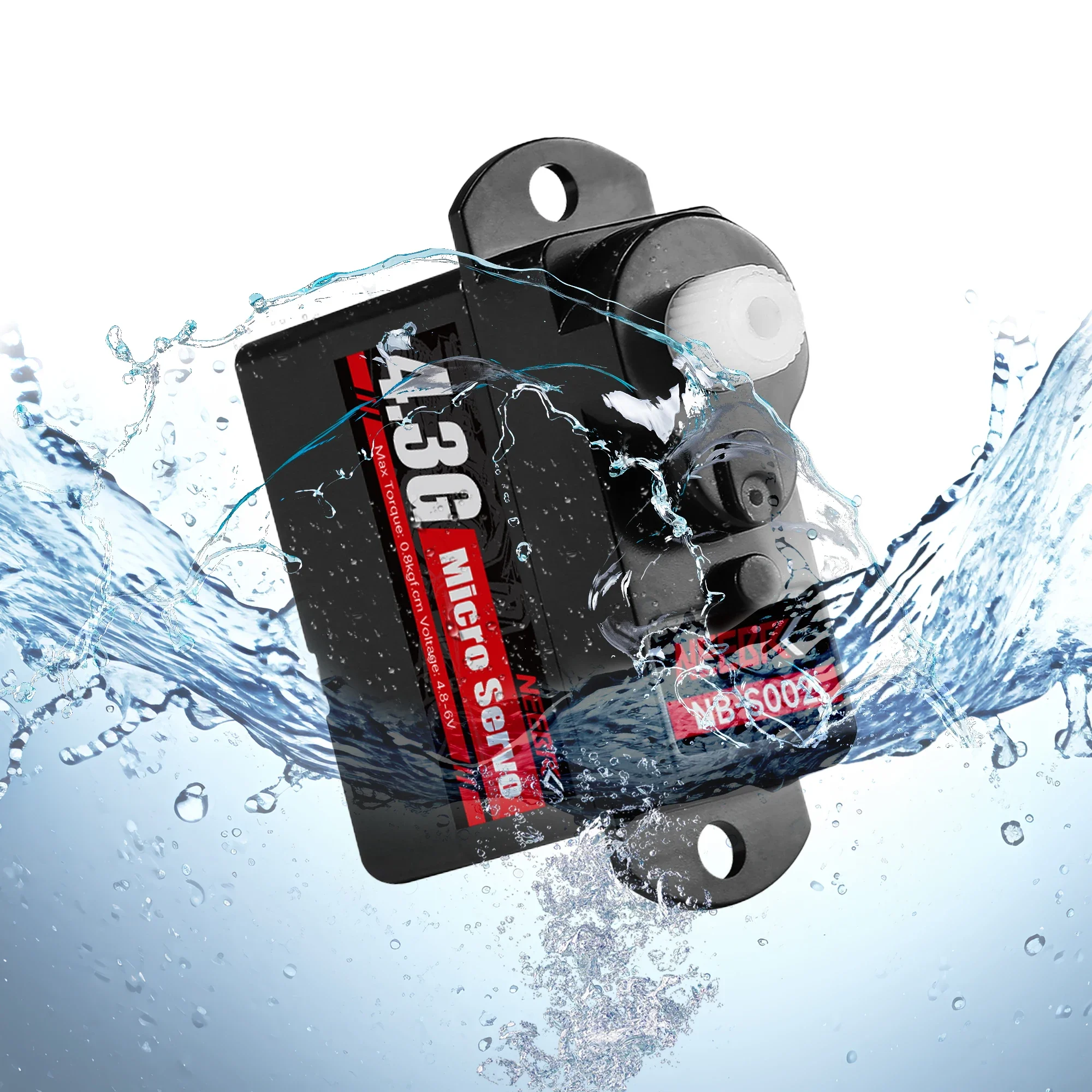

Item name: NEEBRC NB-S002
Quantity: 1pcs
Operating Voltage : 4.8~6V DC
Max. Torque : 0.8kgf·cm
No Load Speed : 3.7V≦0.12sec/60° ; 5.0V≦0.10sec/60°
Stall Current:3.7V≦550mA;5.0V≦650mA
Consumption Current* (No Load):3.7V ≦80mA ;5.0V≦100mA
Max. Operating Travel Angle:180° ±10° (500~2500 us)
Dead Band Width: ≤ 1 us
Mechanical Limit Angle: 360°
Communication Interface: PWM
Motor Type: Coreless motor
Case Material: ABS
Gear Set Material : Plastic gear
Weight: 5.1g
Size: 27.4 × 8.5 × 22.3mm
Length of Connector cable:JR 200±5mm (exposed without plug)

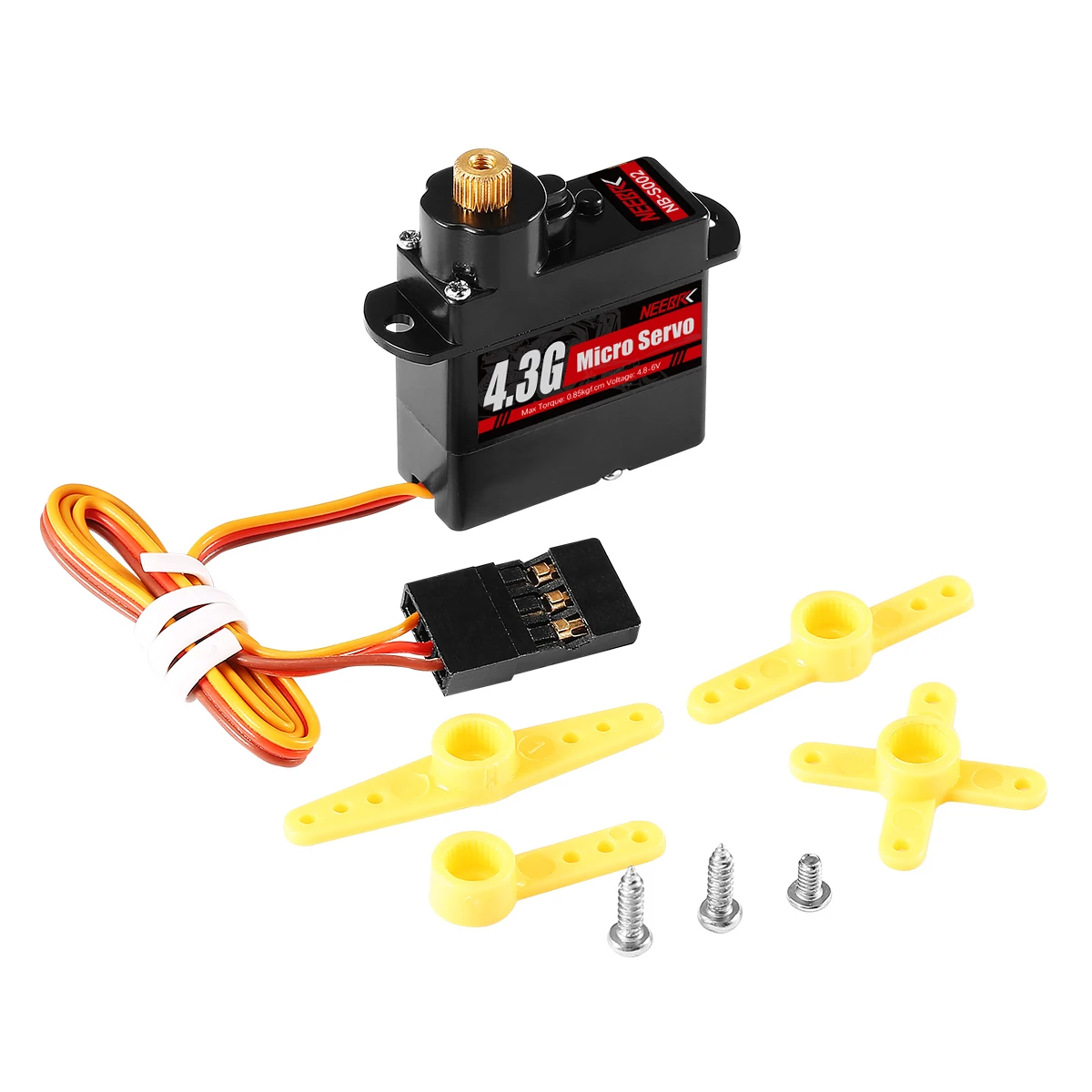

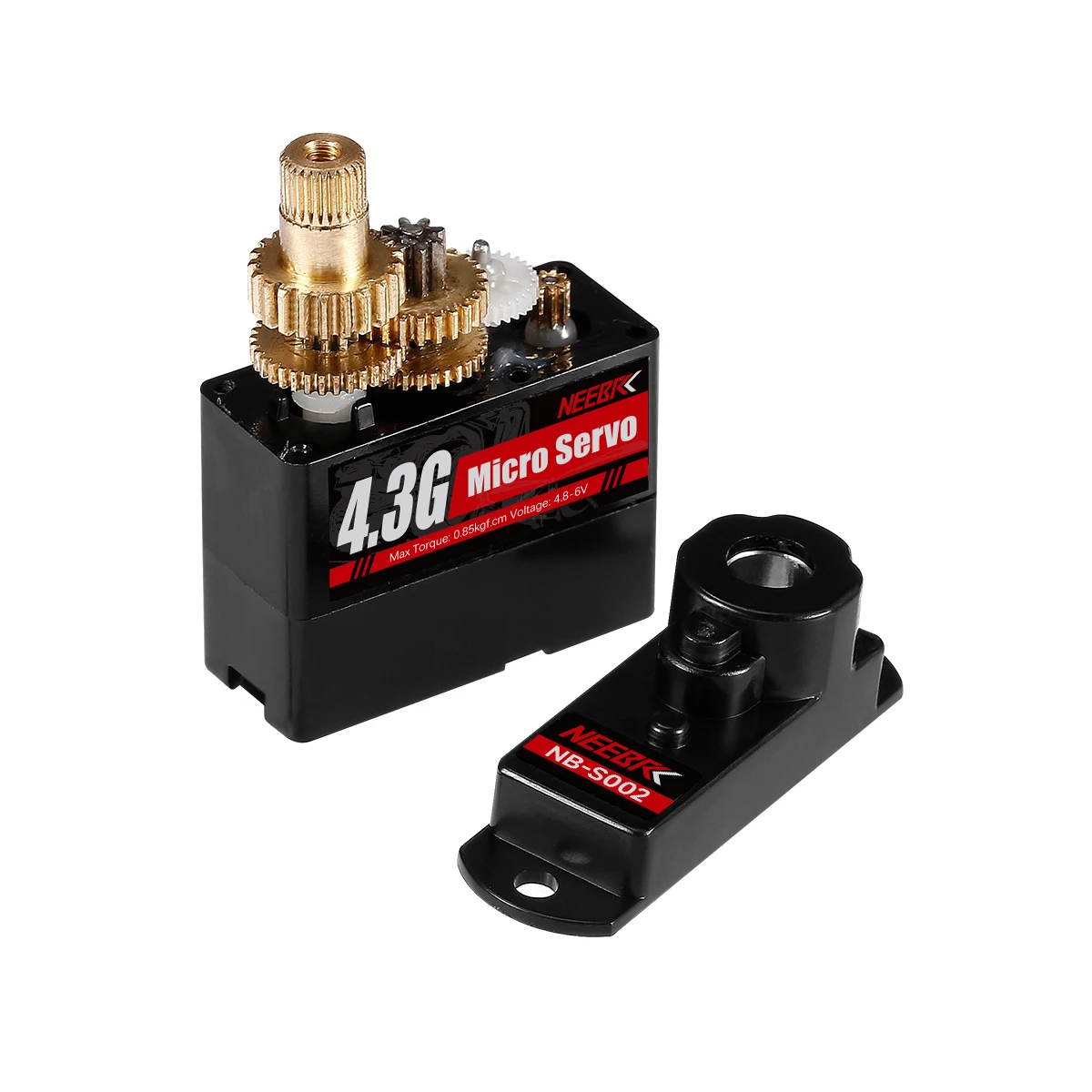

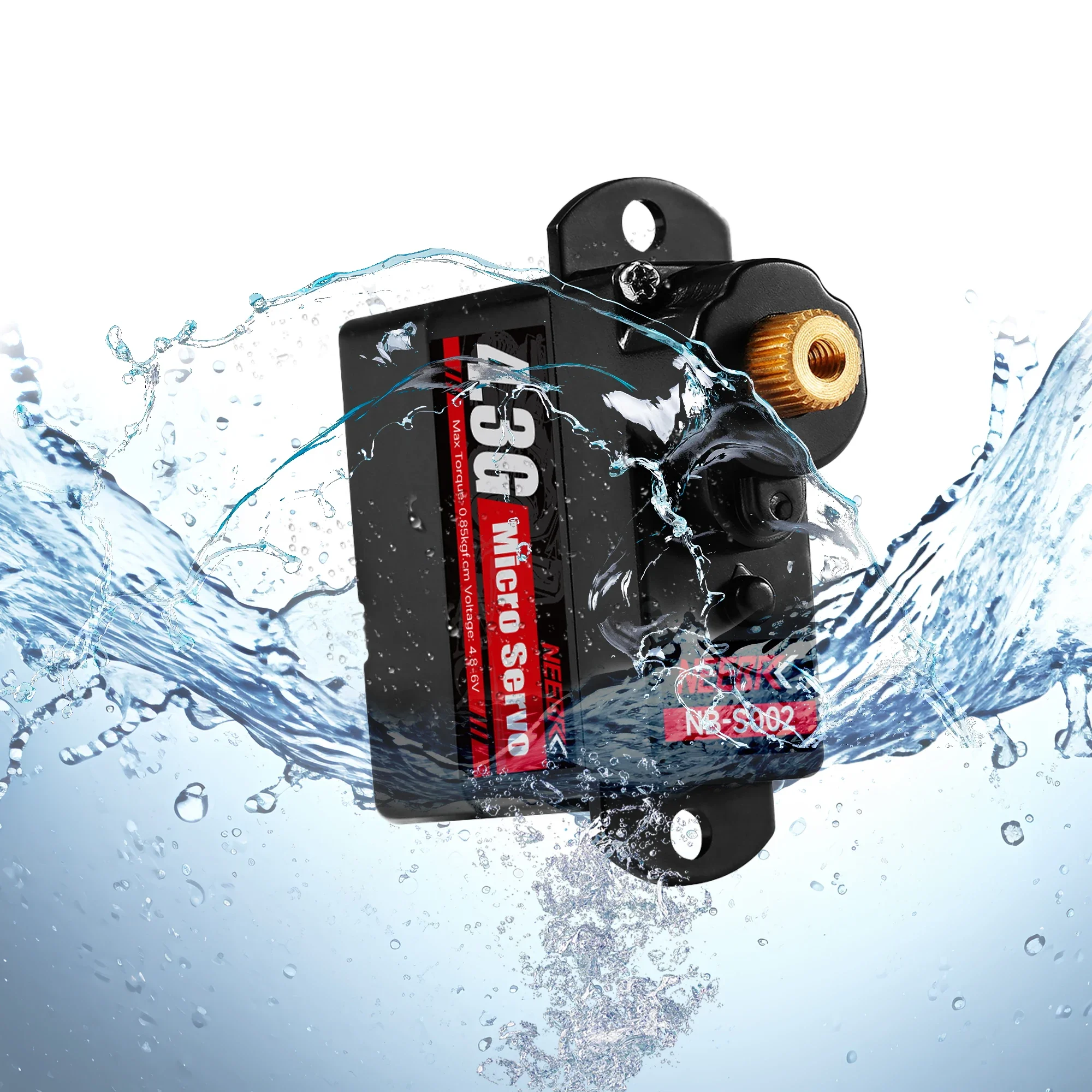

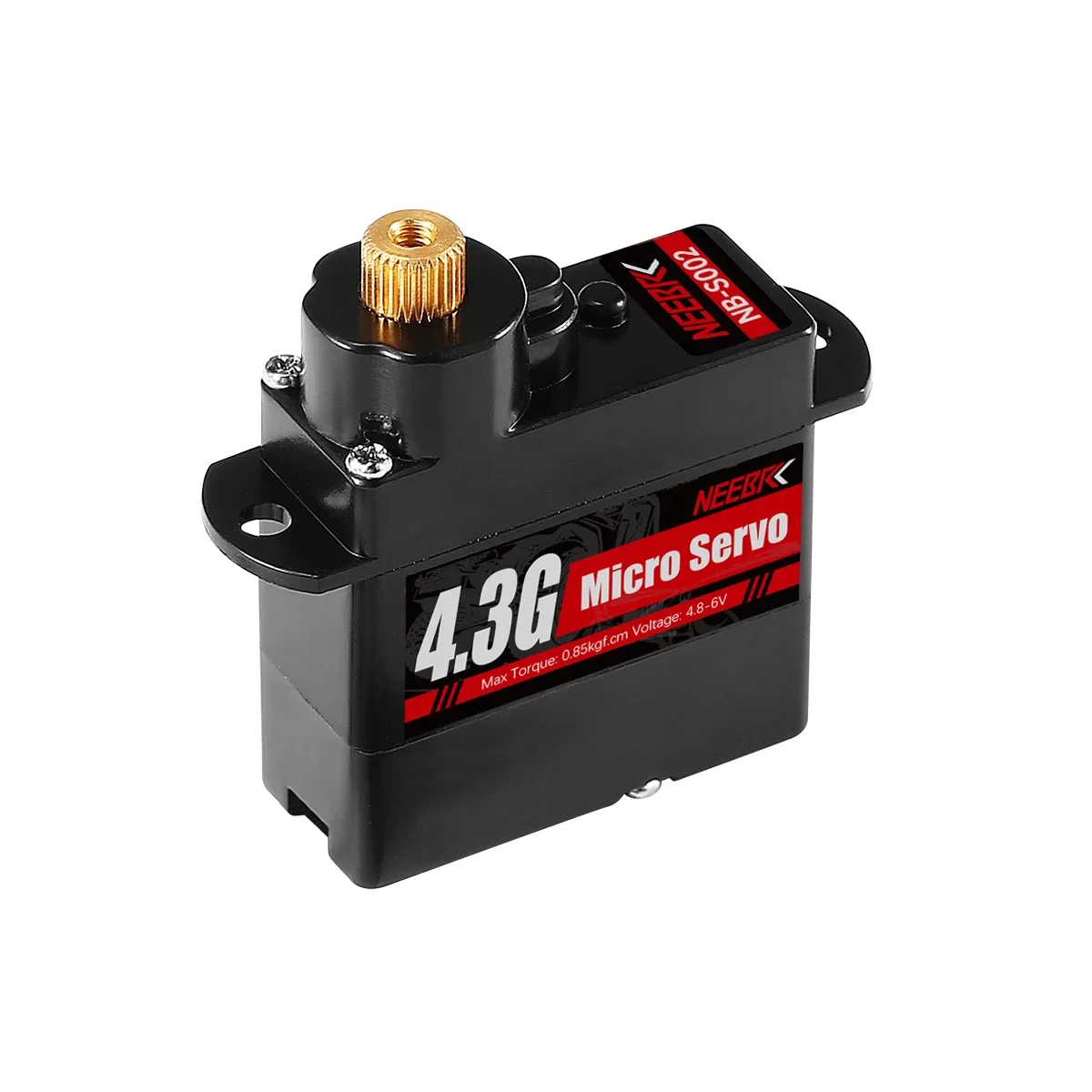

Item name: NEEBRC NB-S002
Quantity: 1pcs
Operating Voltage : 4.8~6.0V DC
Max. Torque : 4.8V≥0.58kgf·cm ; 6.0V≥0.85kgf·cm
No Load Speed : 4.8V≦≤0.15sec/60° ; 6.0V≦≤0.12sec/60°
Stall Current:4.8V≦500mA;6.0V≦550mA
Consumption Current* (No Load):4.8V ≦80mA ;6.0V≦90mA
Max. Operating Travel Angle:180°±10°(500~2500μs)
Dead Band Width: ≤ 1 us
Mechanical Limit Angle: 360°
Communication Interface: PWM
Motor Type: Coreless motor
Case Material: ABS
Gear Set Material : Metal gear
Weight: 6.9 g
Size: 27.4 × 8.5 × 22.3mm
Length of Connector cable:JR 200±5mm (exposed without plug)

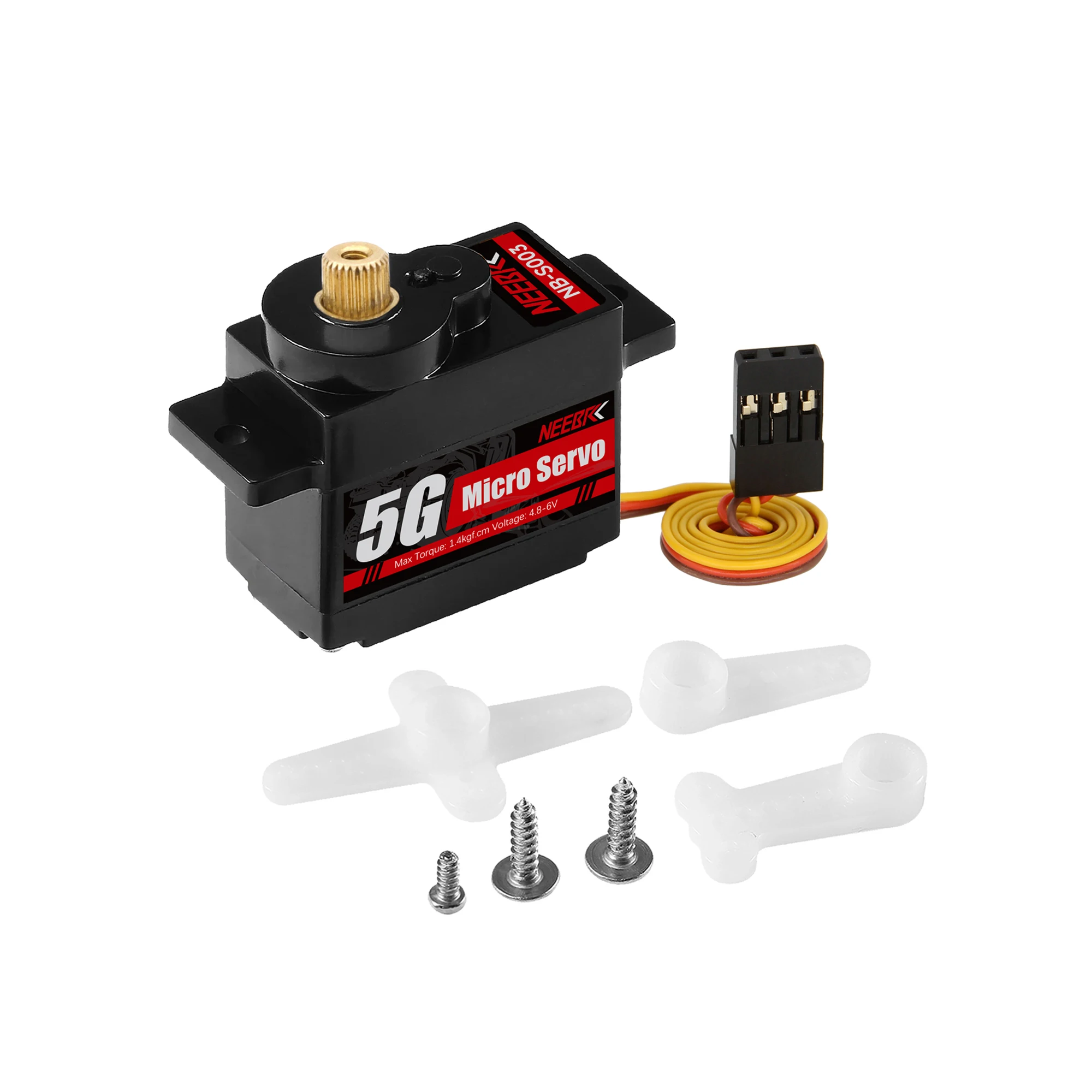

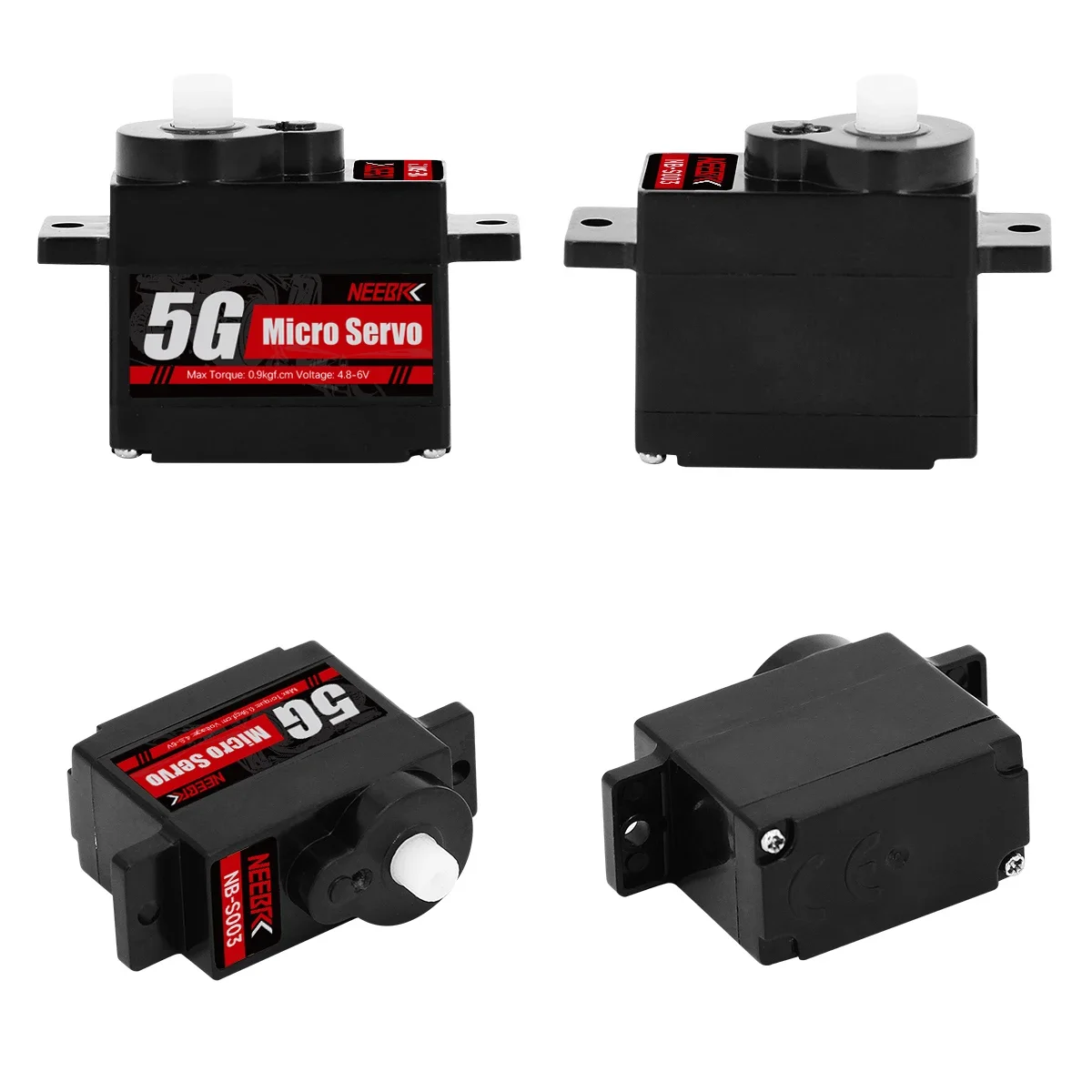

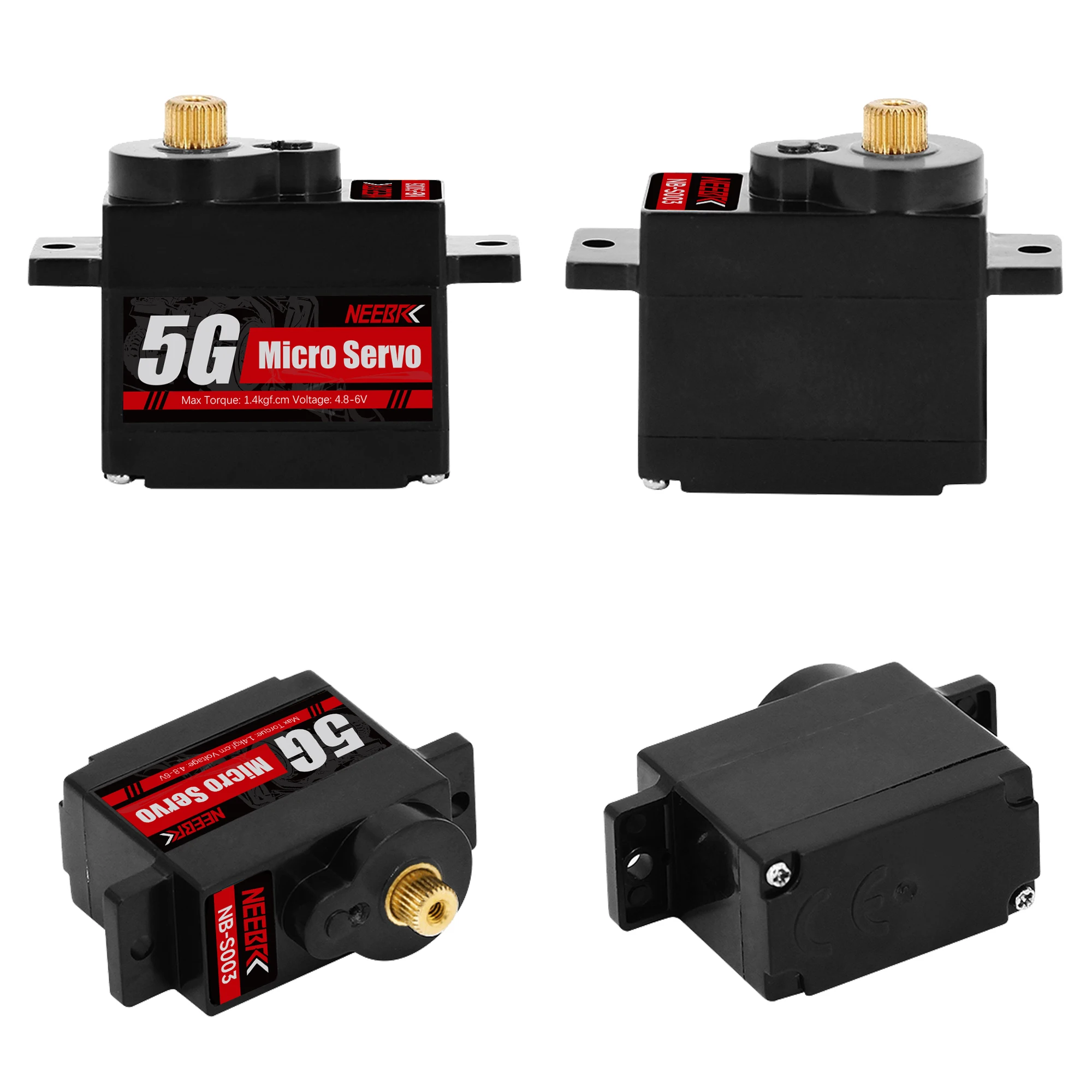

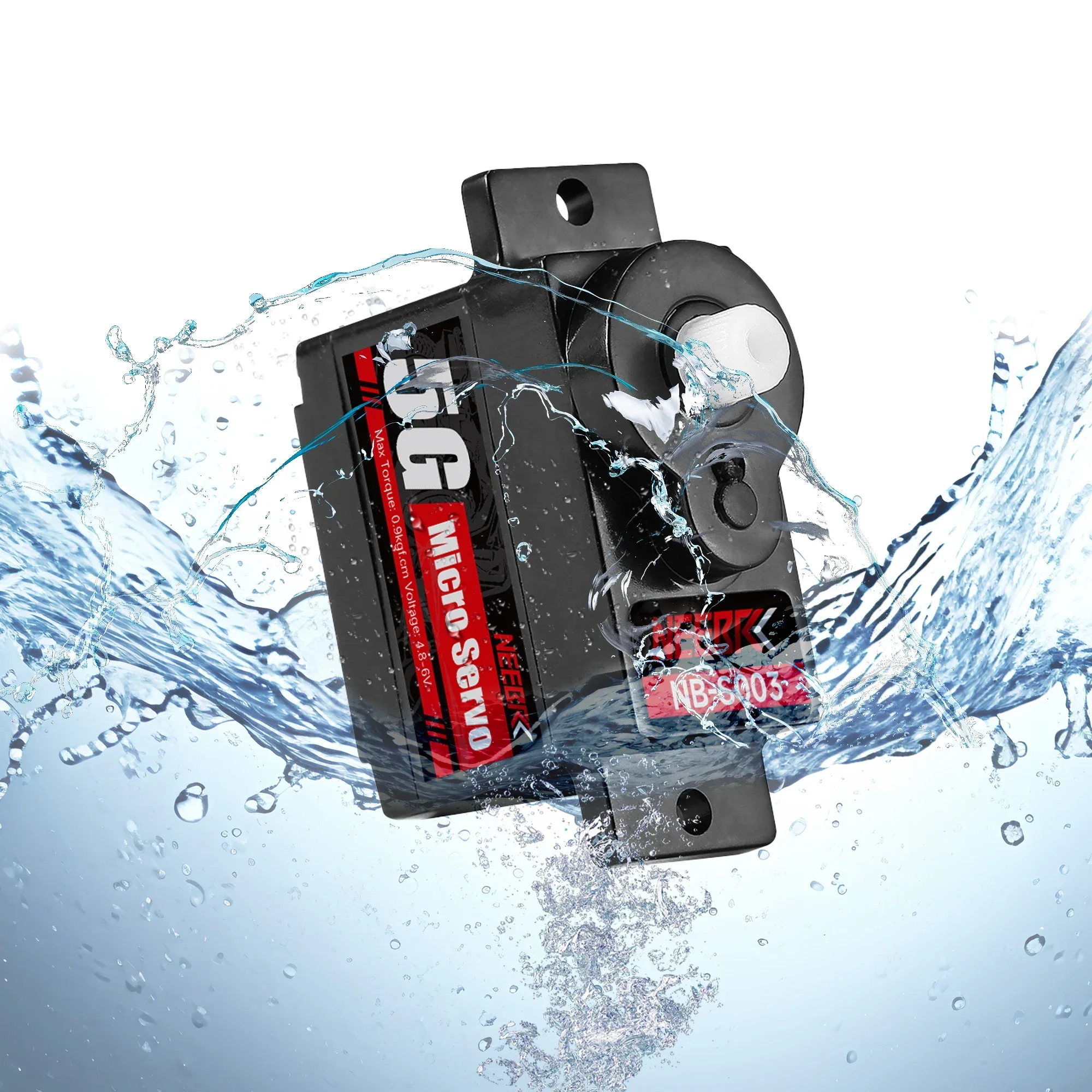

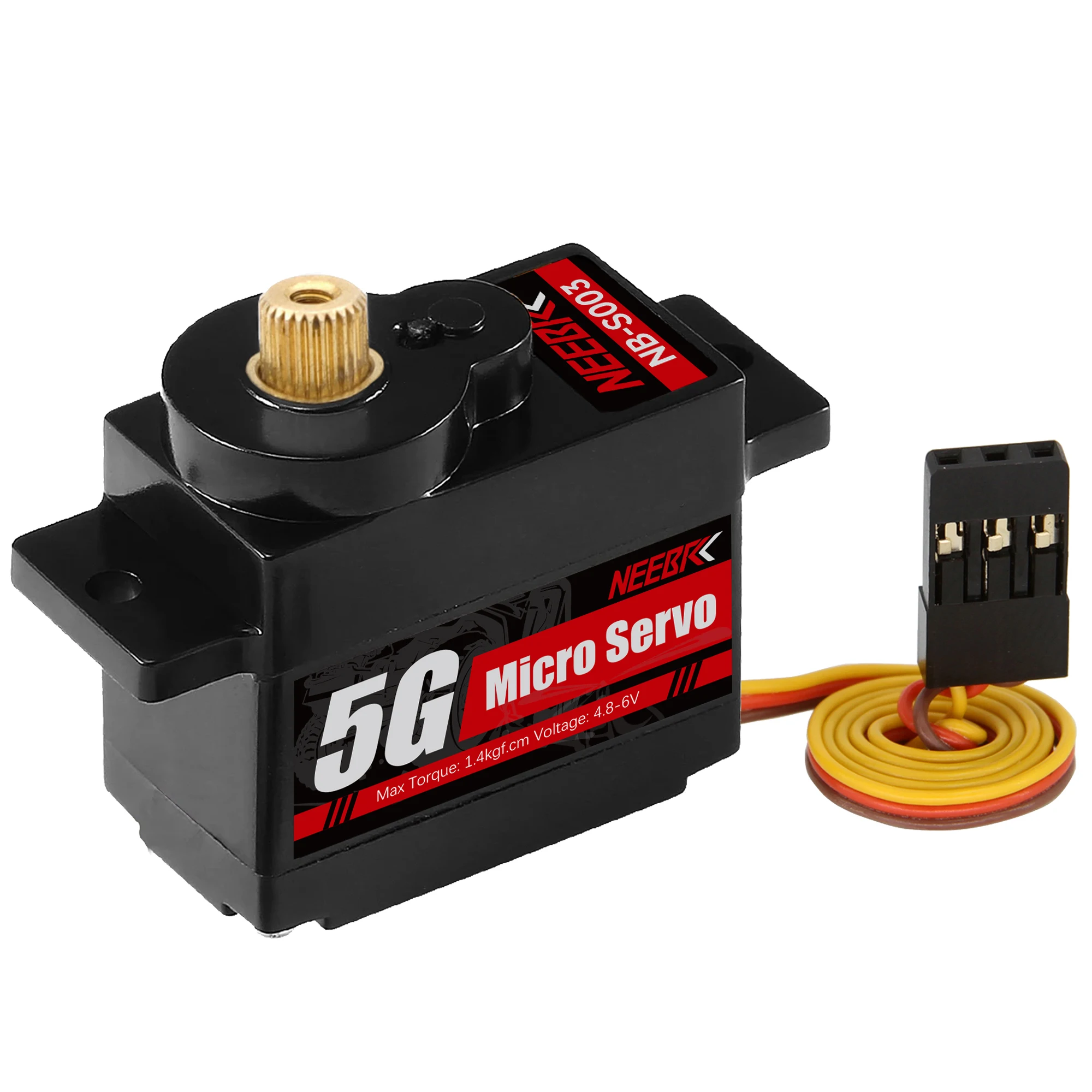

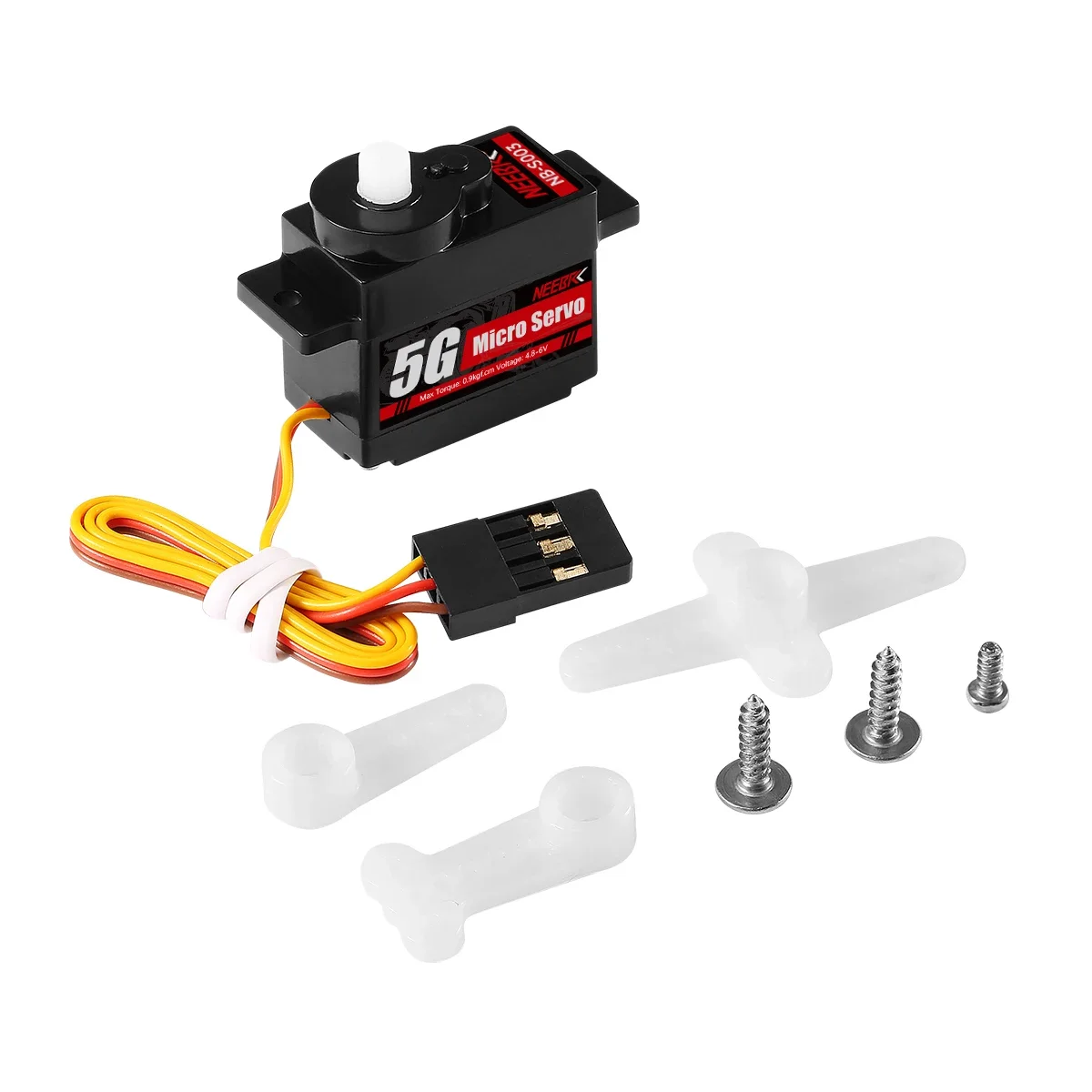

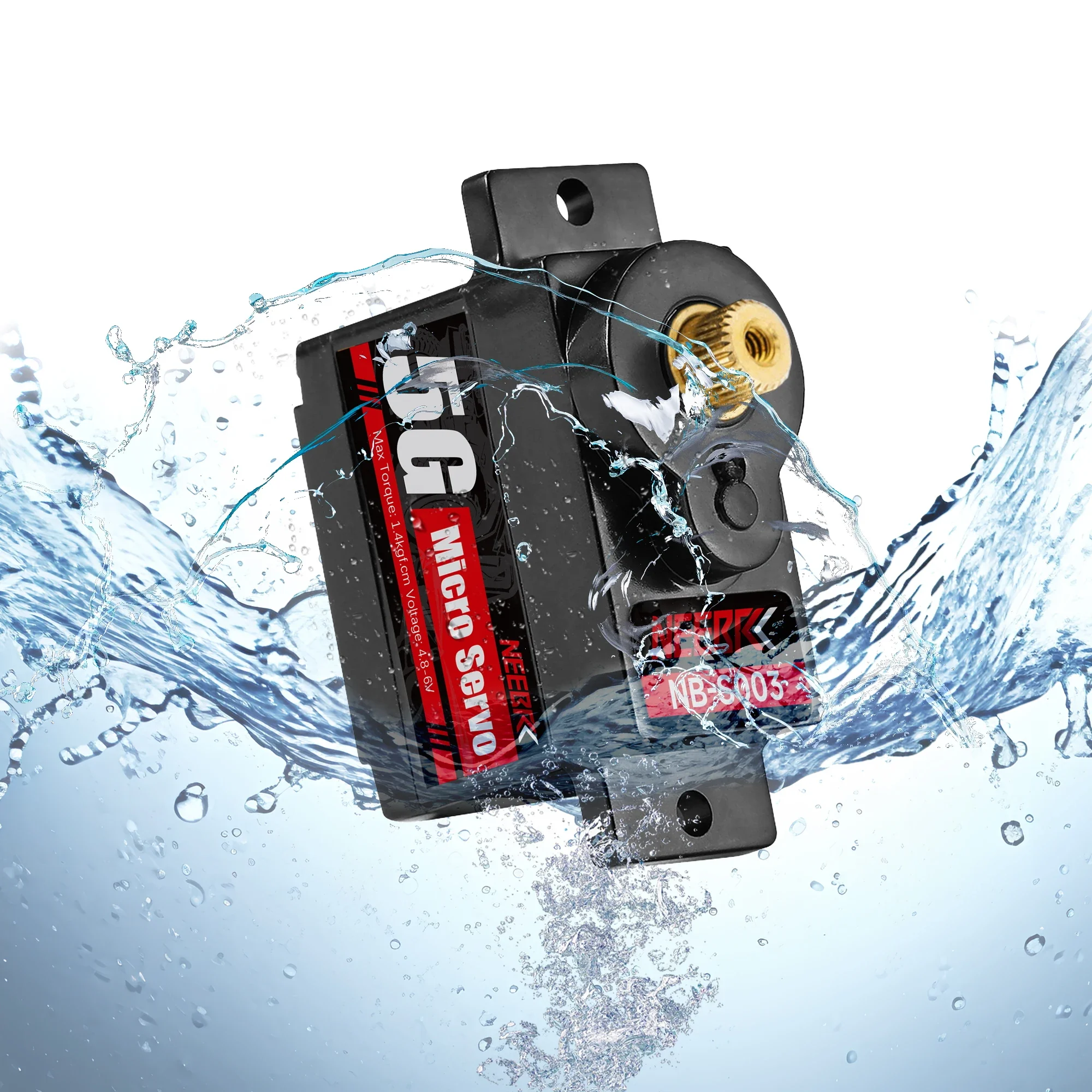

Item name: NEEBRC NB-S003
Quantity: 1pcs
Operating Voltage : 4.8~6.0V DC
Max. Torque : 0.9kgf·cm/1.4kgf·cm
No Load Speed : 4.8V≤0.08sec/60°; 6.0V≤0.07sec/60°
Stall Current:4.8V≦800mA;6.0V≦950mA
Consumption Current* (No Load):4.8V ≦100mA ;6.0V≦110mA
Max. Operating Travel Angle:90°±10°(1000~2000μs)
Dead Band Width: ≤ 1 us
Mechanical Limit Angle: 210°
Communication Interface: PWM
Motor Type: Coreless motor
Case Material: ABS
Gear Set Material : Plastic/Metal gear
Weight: 5.9g
Size: 20 × 11.5 × 21.3mm
Length of Connector cable:JR 200±5mm (exposed without plug)

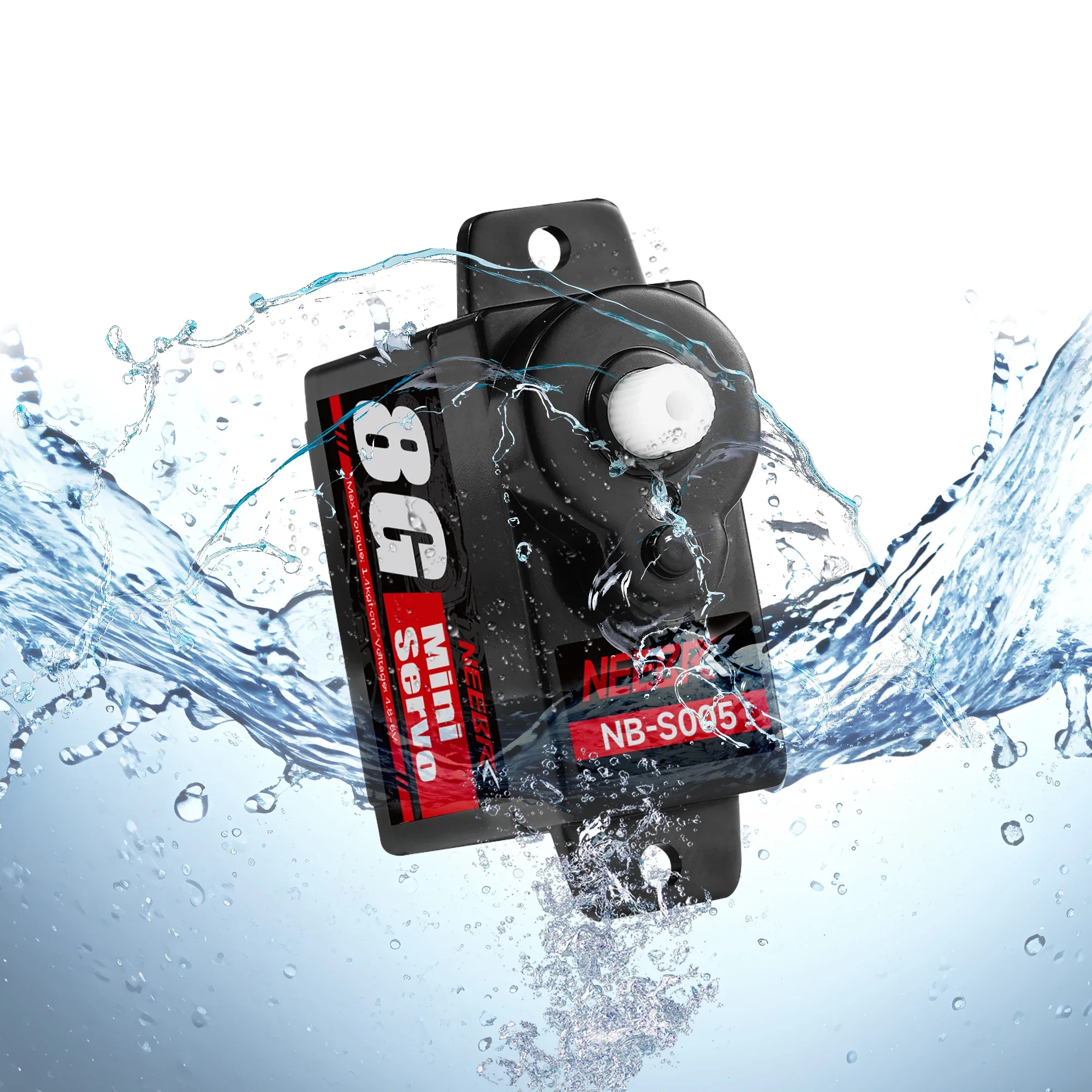

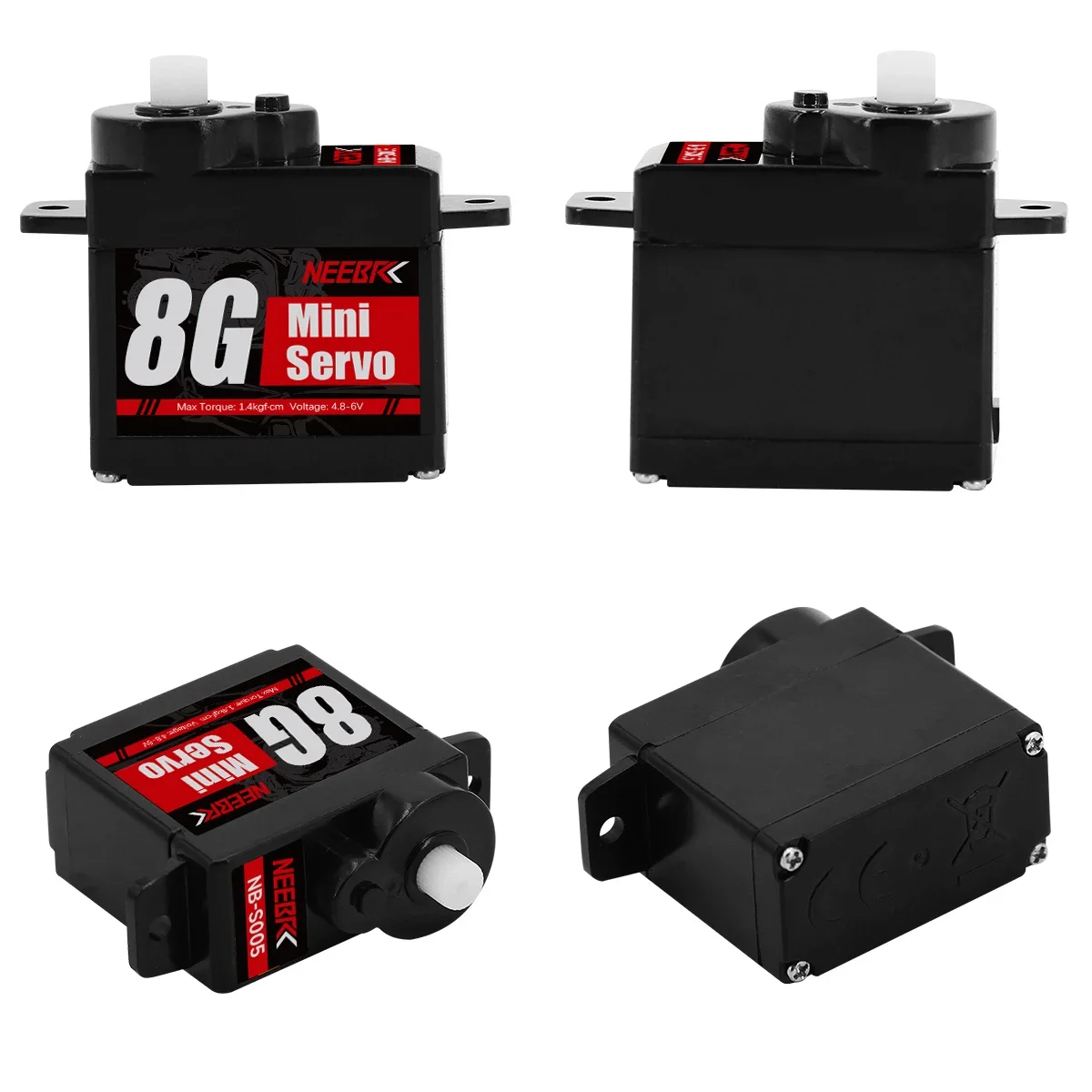

Item name: NEEBRC NB-S005
Quantity: 1pcs
Operating Voltage : 4.8~6.0V DC
Max. Torque : 4.8V≥1.10kgf·cm ; 6.0V≥1.40kgf·cm
No Load Speed : 4.8V≤0.14sec/60°; 6.0V≤0.12sec/60°
Stall Current:4.8V≦680mA;6.0V≦780mA
Consumption Current* (No Load):4.8V ≦130mA ;6.0V≦150mA
Max. Operating Travel Angle:180°±10°(500~2500μs)
Dead Band Width: ≤ 3us
Mechanical Limit Angle: 360°
Communication Interface: PWM
Motor Type: Coreless motor
Case Material: ABS
Gear Set Material : Plastic gear
Horn Gear Spline:28T/Φ3.90mm
Weight: 7.2 g
Size: 26.5 × 11.5 × 22.8mm
Length of Connector cable: JR 200±5mm (exposed without plug)

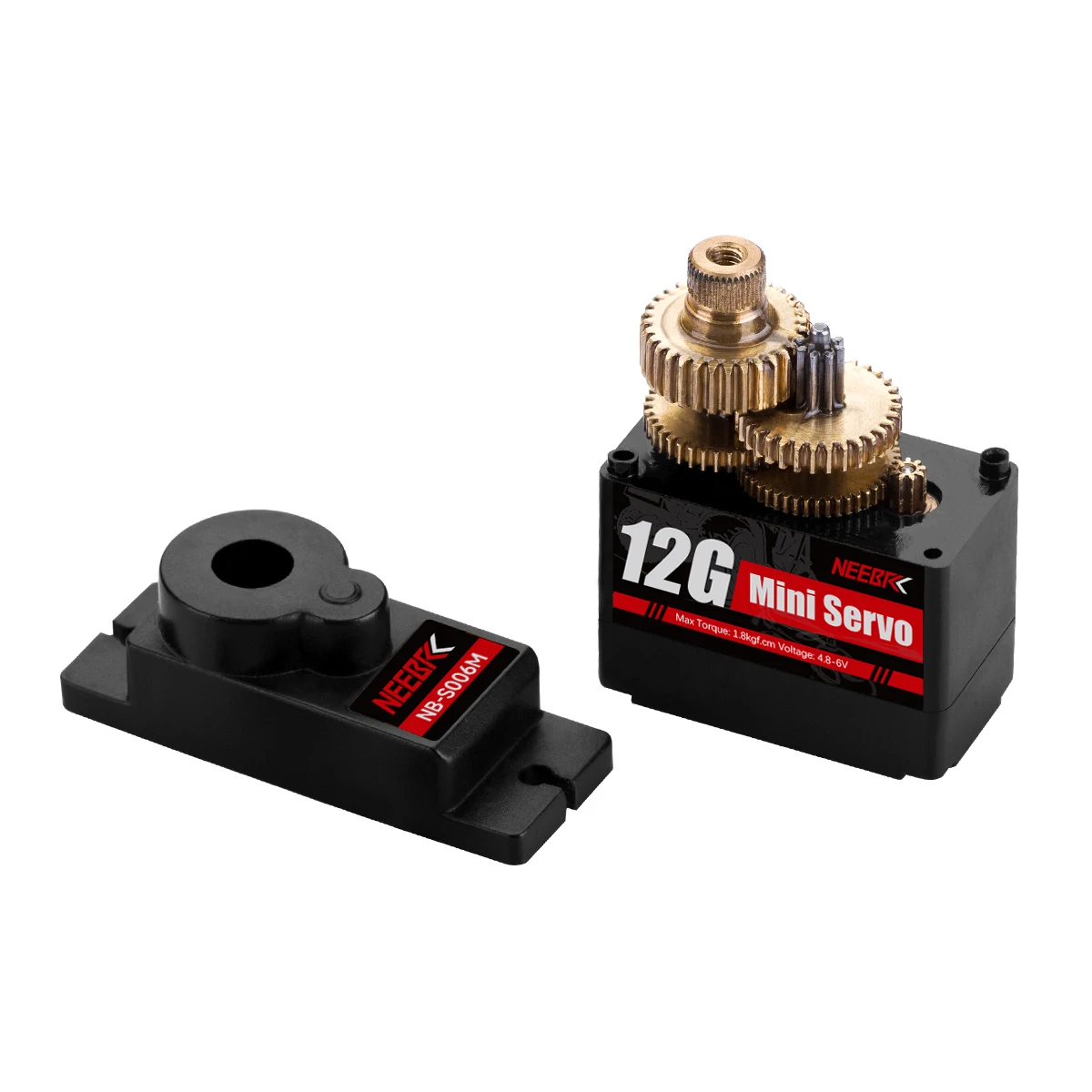

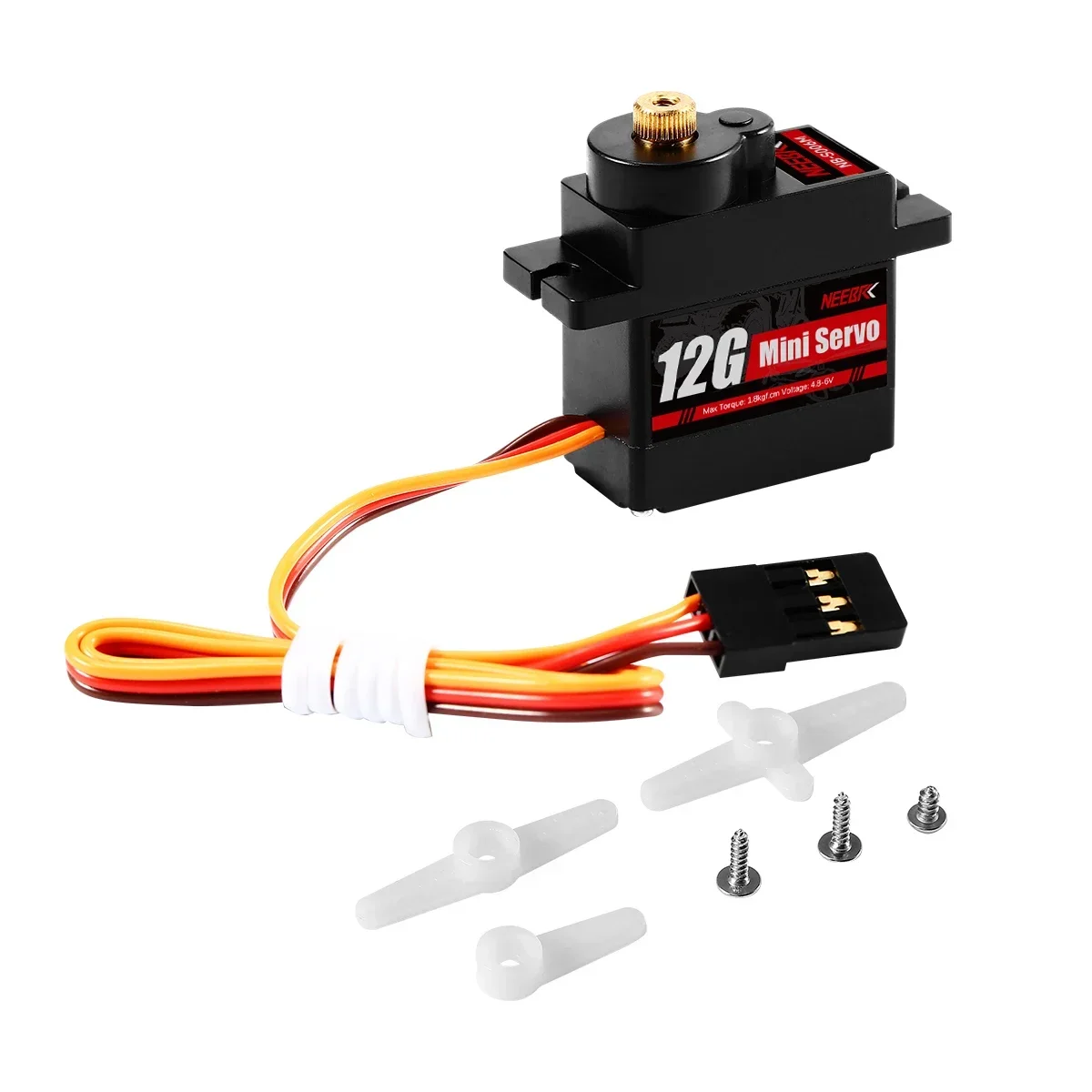

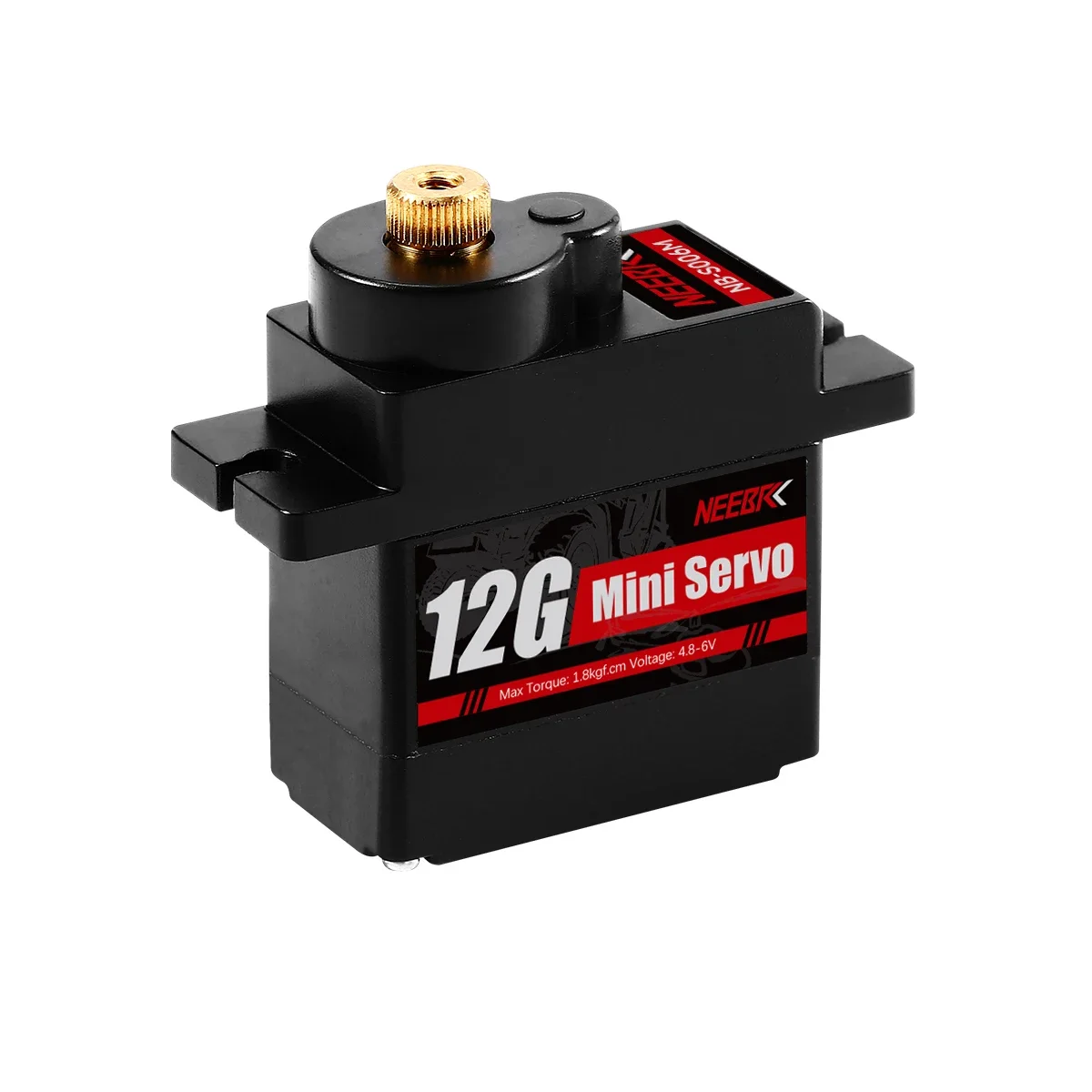

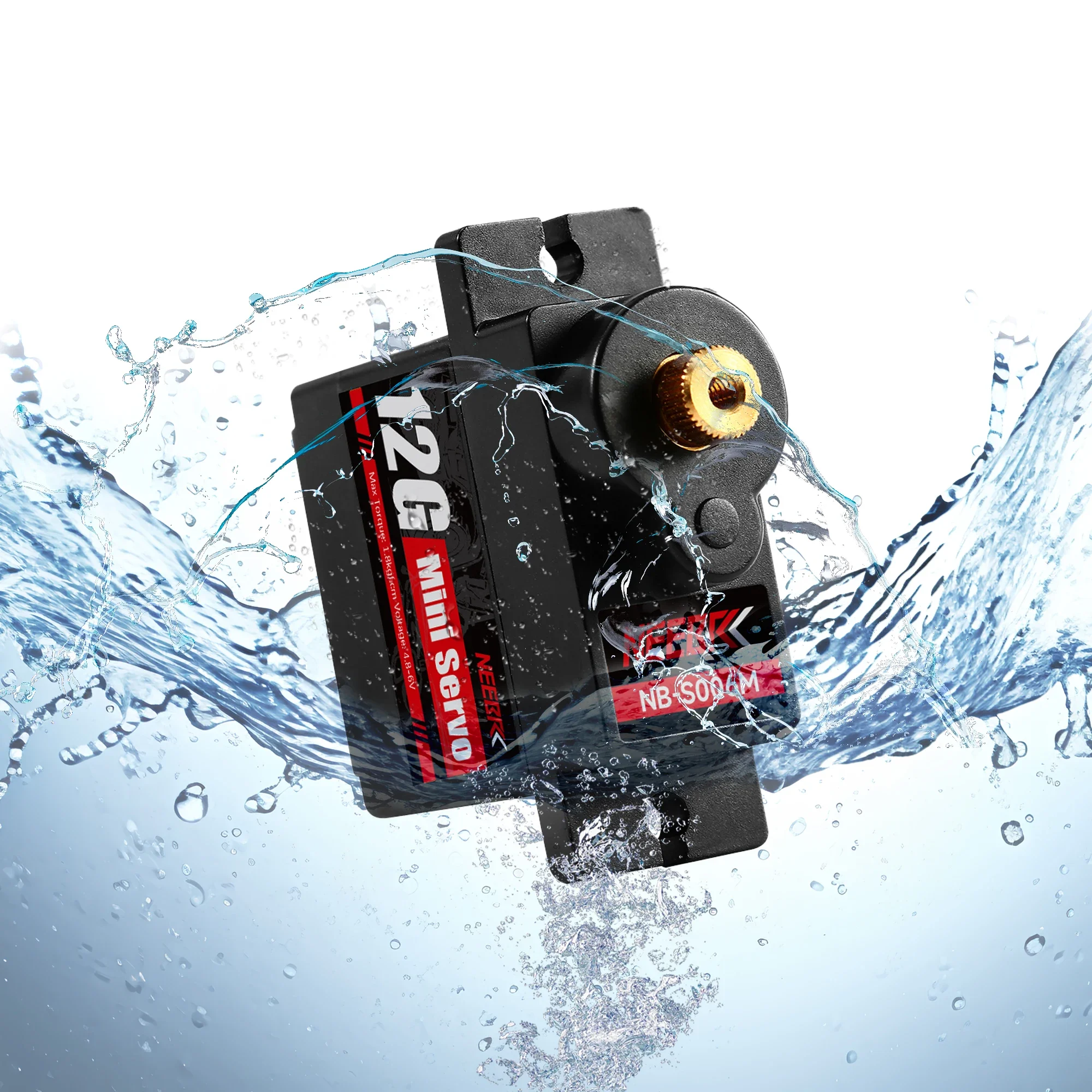

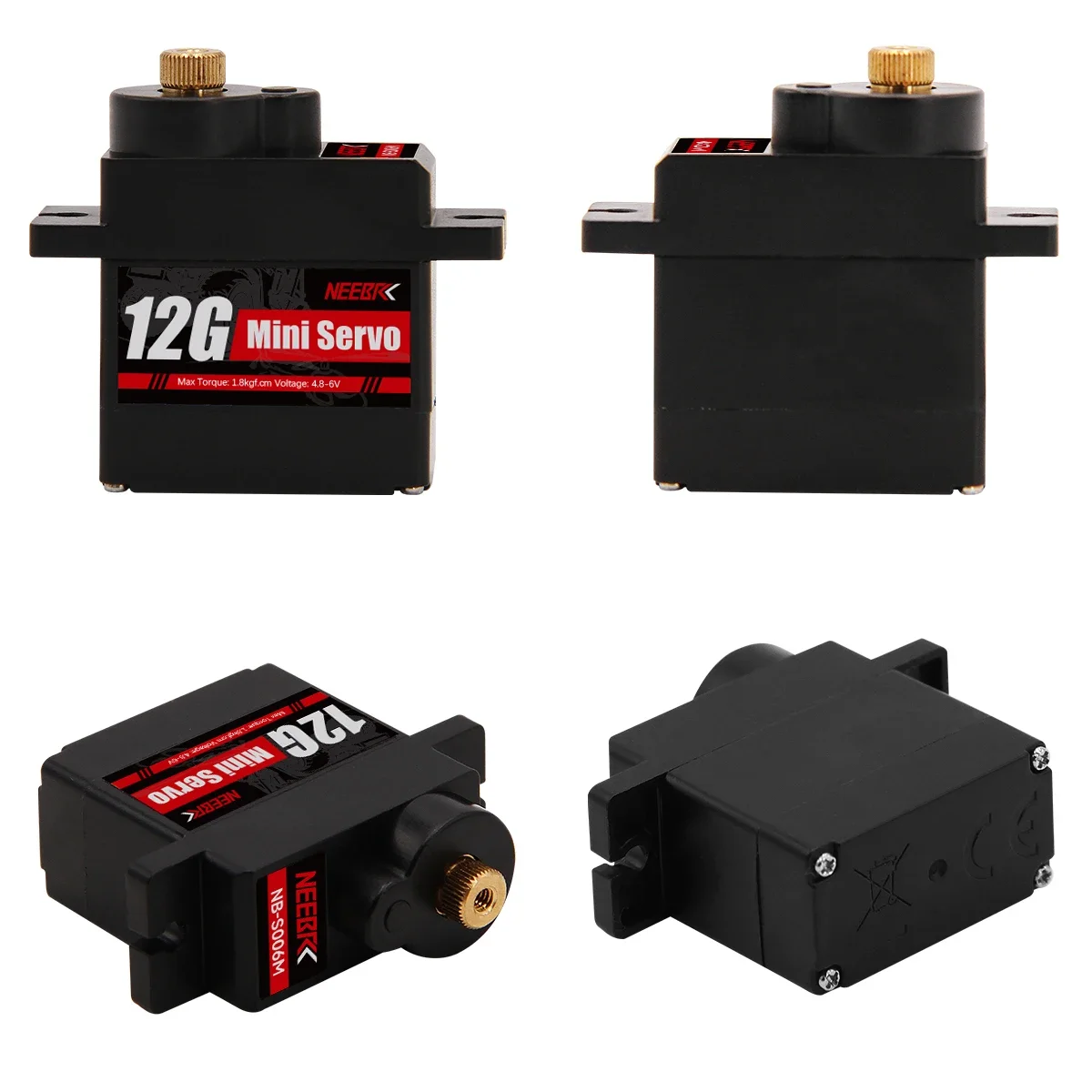

Item name: NEEBRC NB-S006M
Quantity: 1pcs
Operating Voltage : 4.8~6.0V DC
Max. Torque : 4.8V≥1.30kgf·cm ; 6.0V≥1.80kgf·cm
No Load Speed : 4.8V≤0.13sec/60°; 6.0V≤0.11sec/60°
Stall Current:4.8V≦700mA;6.0V≦800mA
Consumption Current* (No Load):4.8V ≦150mA ;6.0V≦170mA
Max. Operating Travel Angle:180°±10°(1000~2000μs)
Dead Band Width: ≤ 3us
Mechanical Limit Angle: 360°
Communication Interface: PWM
Motor Type: Core motor
Case Material: ABS
Gear Set Material : Metal gear
Horn Gear Spline:40T/Φ4.85mm
Weight: 13.5 g
Size: 27.3 × 12 × 23mm
Length of Connector cable: JR 250±5mm (exposed without plug)

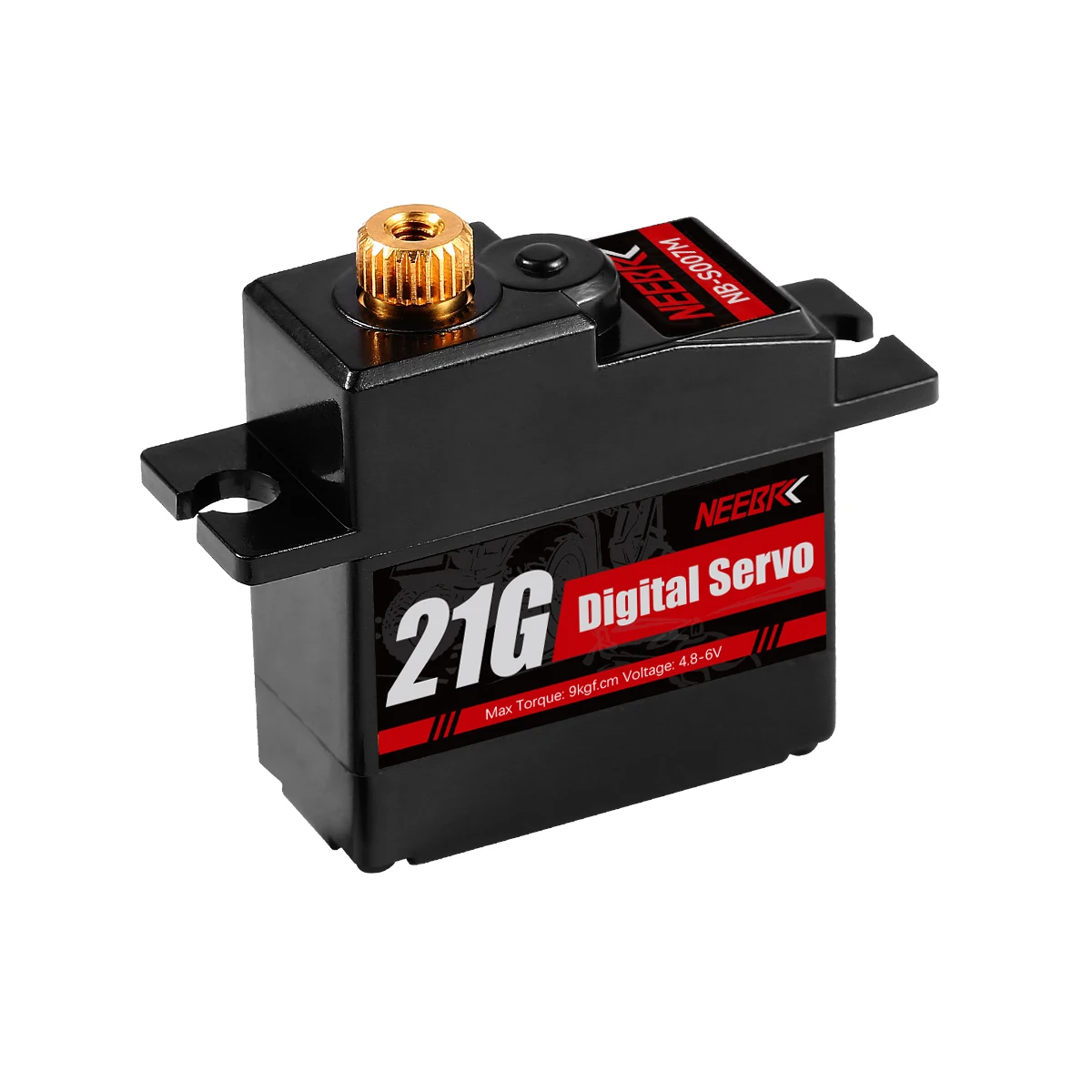

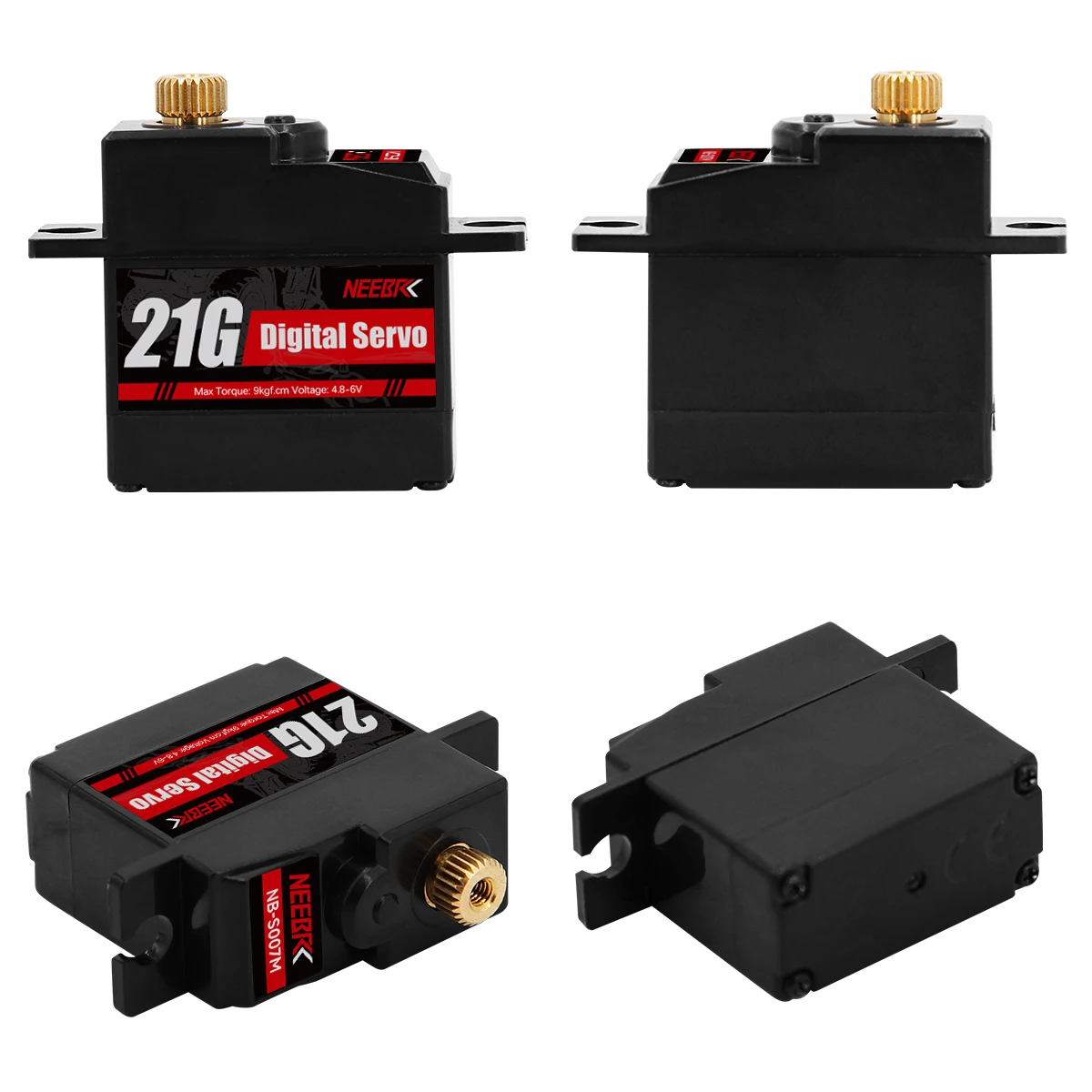

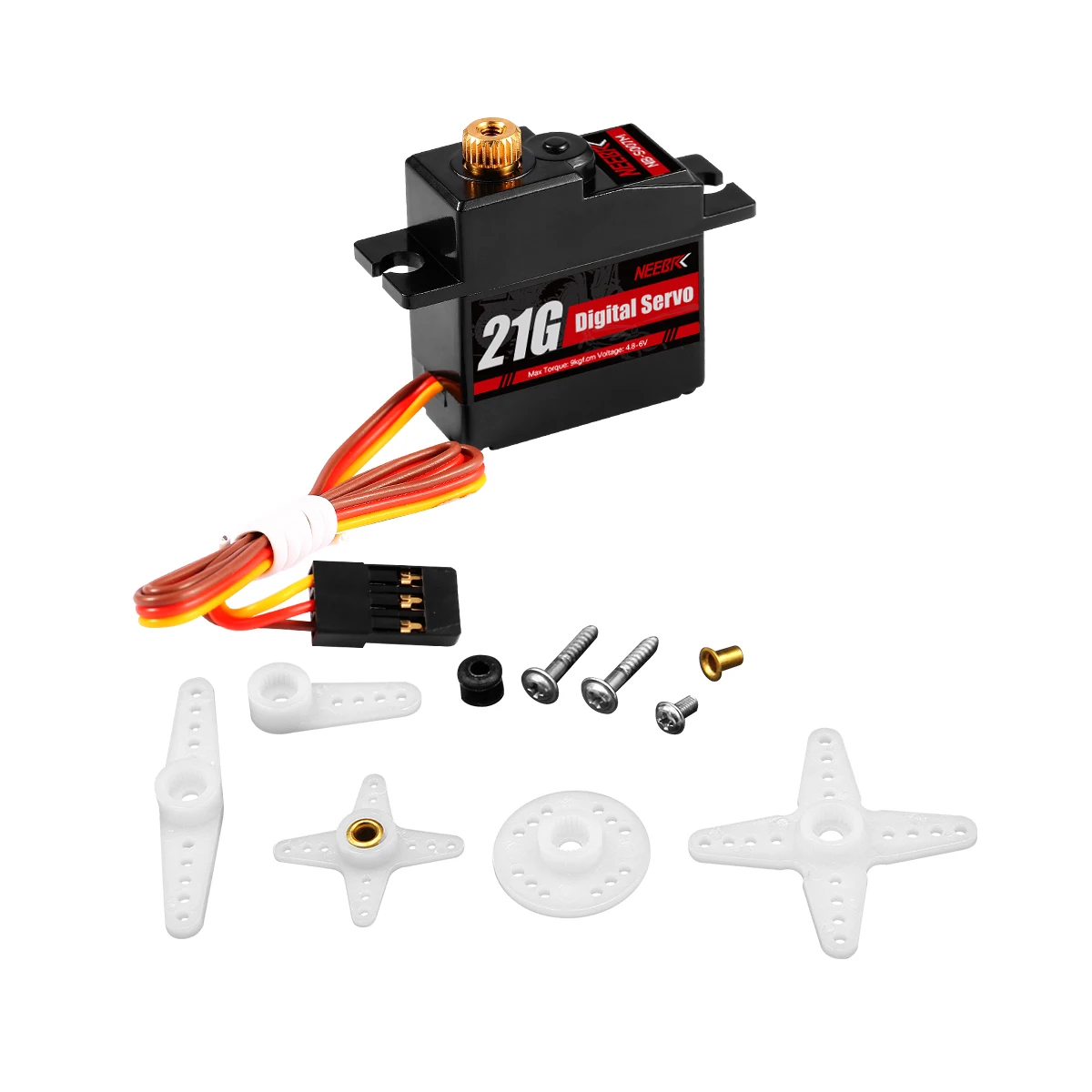

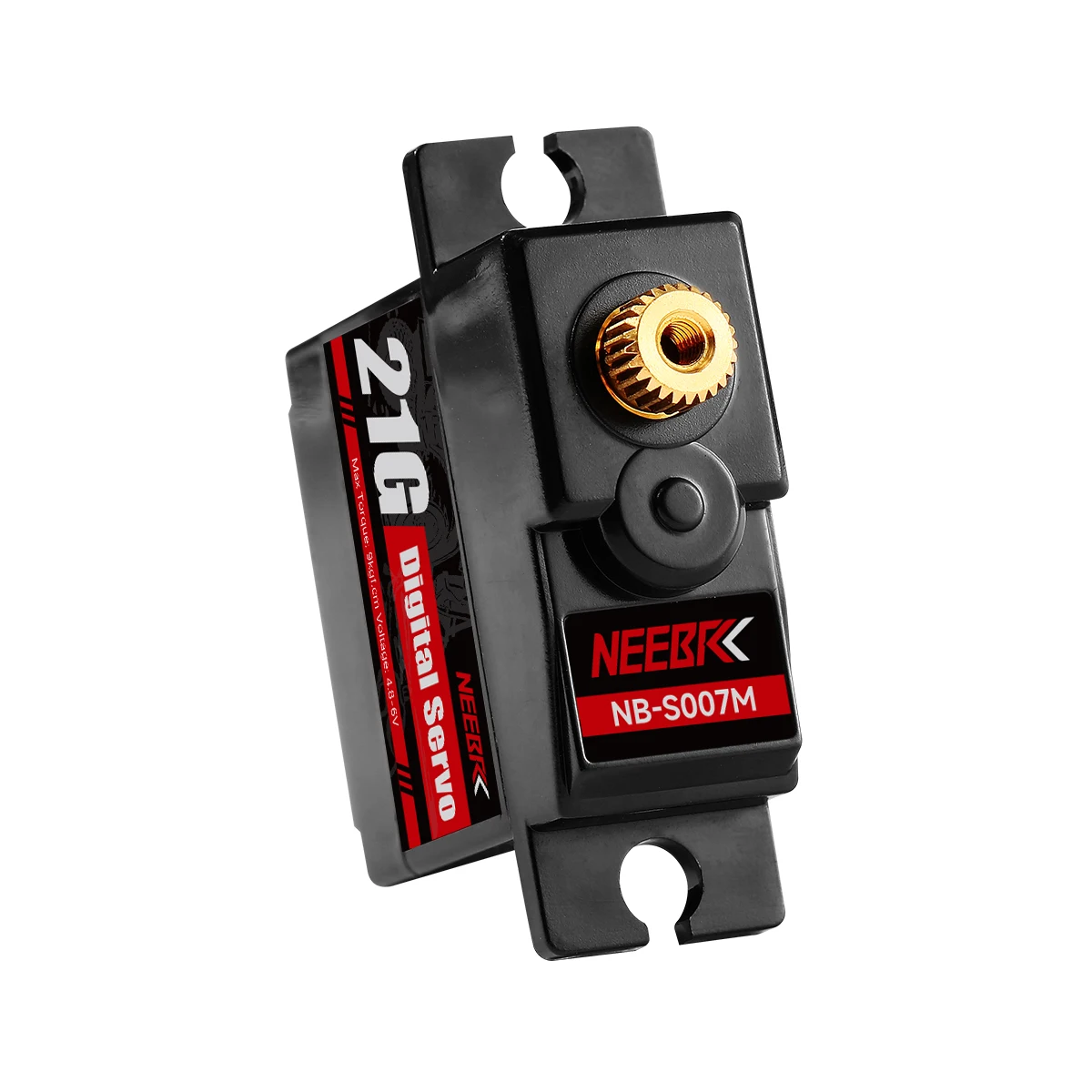

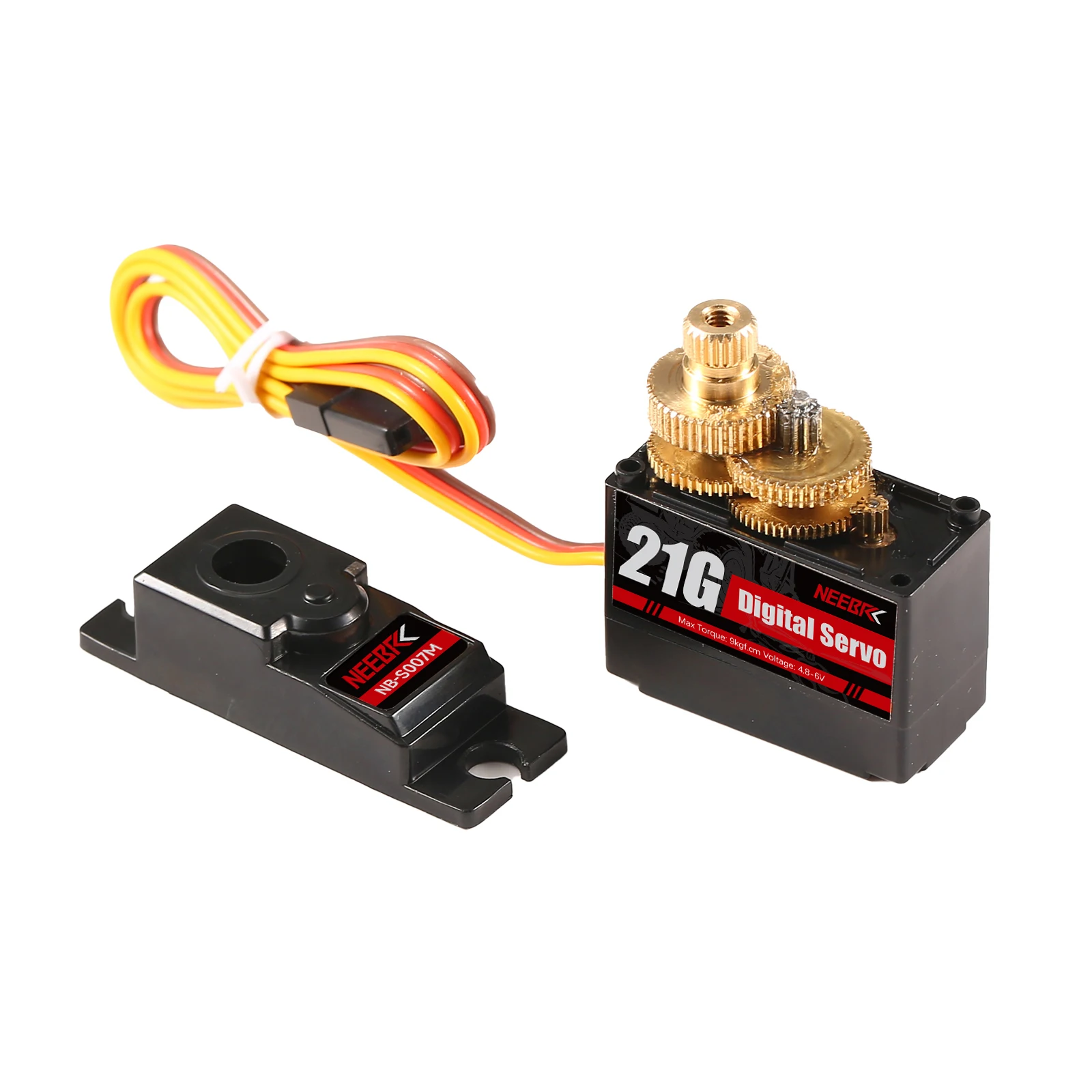

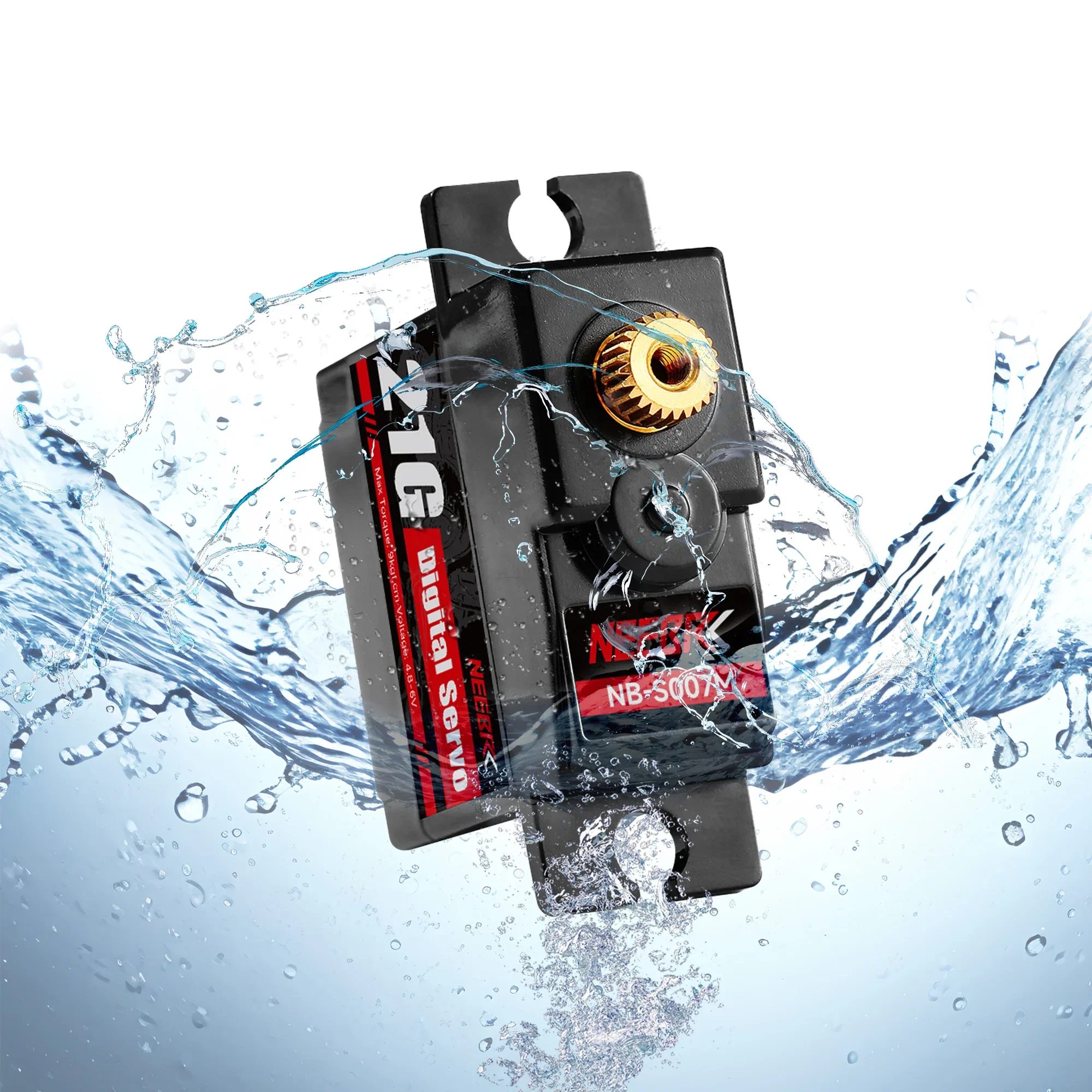

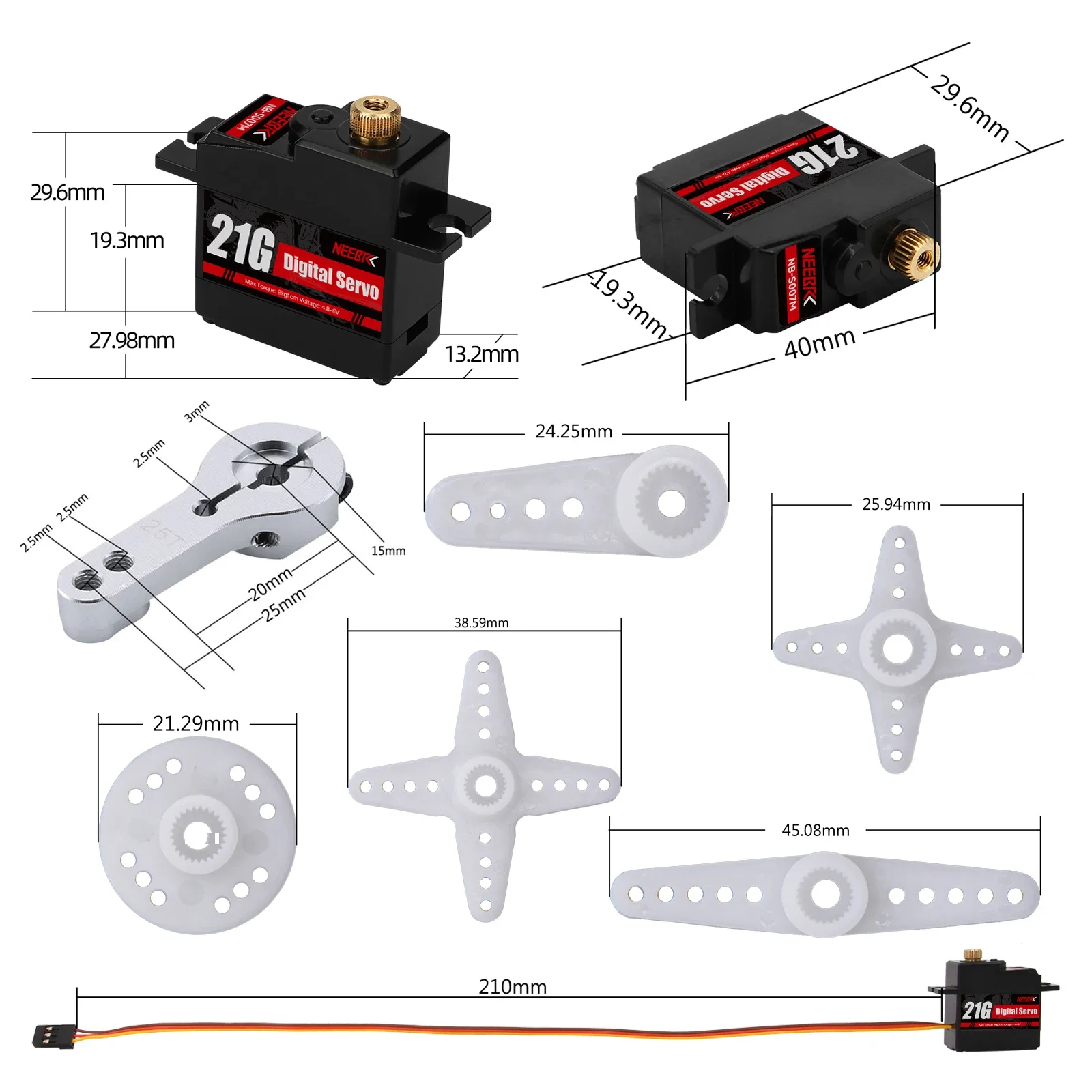

Item name: NEEBRC NB-S007M
Quantity: 1/5/10/20pcs
Operating Voltage : 4.8~6.0V DC
Max. Torque : 4.8V≥3.80kgf·cm ； 6.0V≥4.20kgf·cm
No Load Speed : 4.8V≤0.10sec/60°; 6.0V≤0.12sec/60°
Stall Current：4.8V≦1500mA；6.0V≦1800mA
Consumption Current* (No Load)：4.8V ≦200mA ；6.0V≦210mA
Max. Operating Travel Angle：180°±10°(1000~2000μs）
Dead Band Width: ≤ 5us
Mechanical Limit Angle: 360°
Communication Interface: PWM
Motor Type: Core motor
Case Material: ABS
Gear Set Material : Metal gear
Weight: 21 g
Size: 29.6 × 13.2 × 40mm
Length of Connector cable: JR 250±5mm (exposed without plug)
Package included:
1 * 2g/4.3g/5g/8g/12g/21g Digital Servo
1 * Servo Arm Accessories
