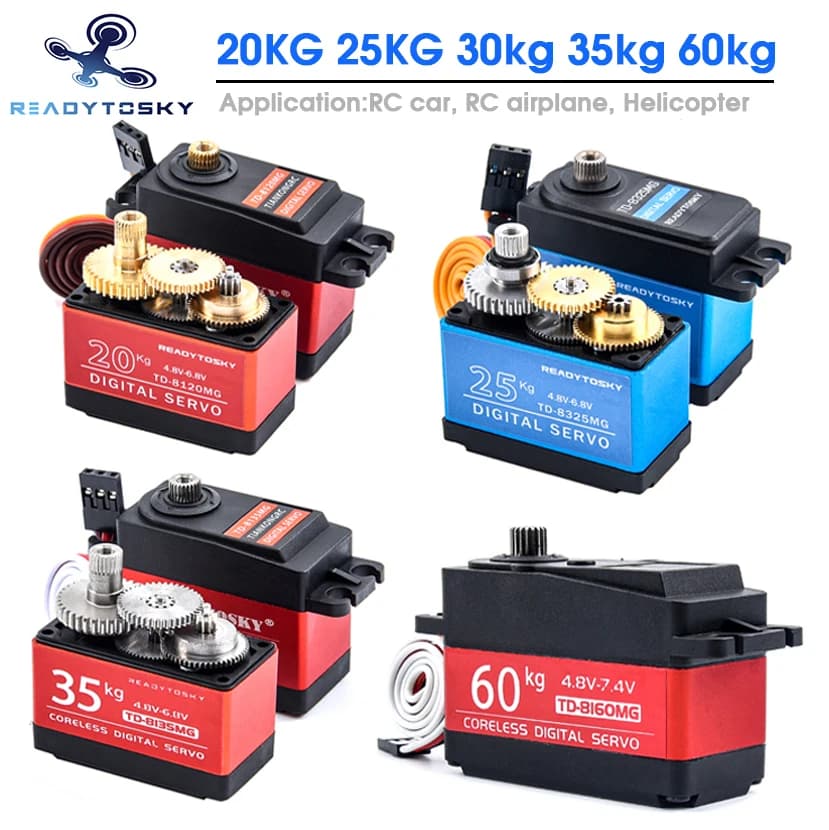

Waterproof 180/270/360 Degree 20KG 25KG 30kg 35kg 60kg Large Torque Digital Coreless Servo Aluminium Metal Gears 25T Arm RC Car

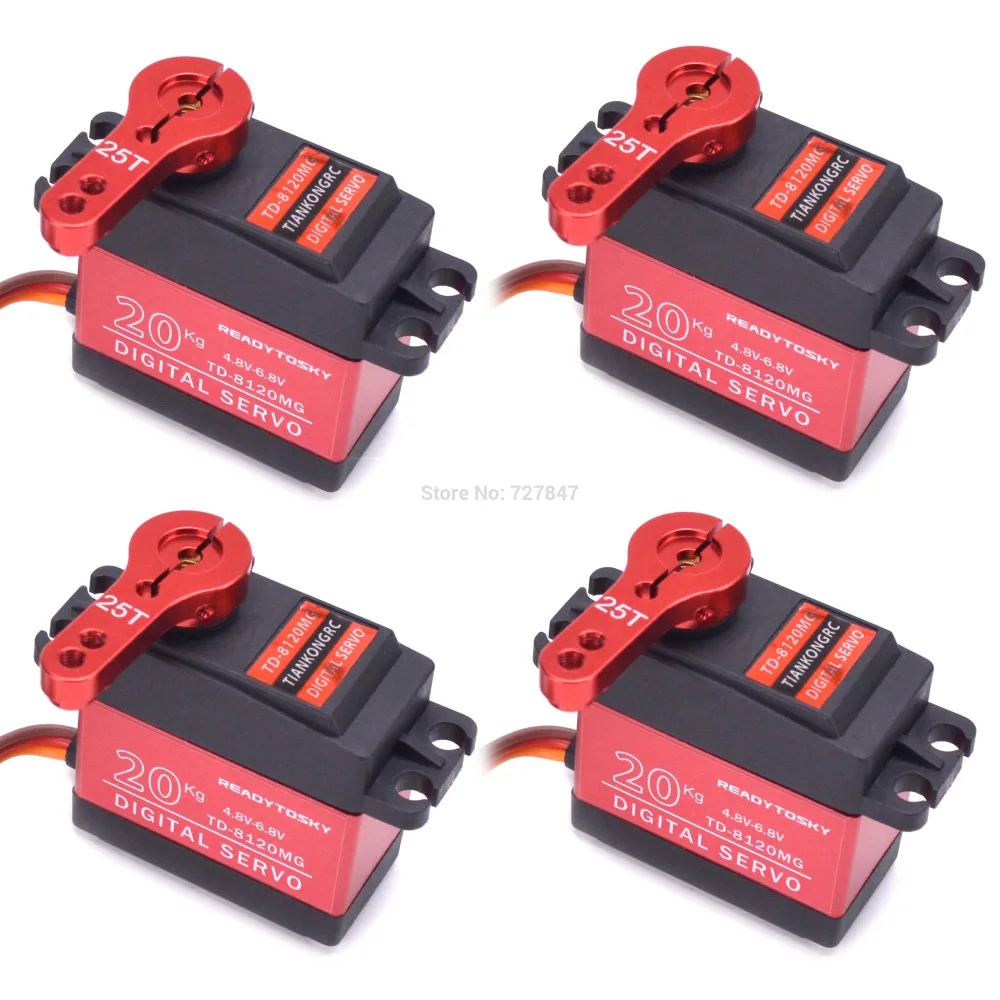

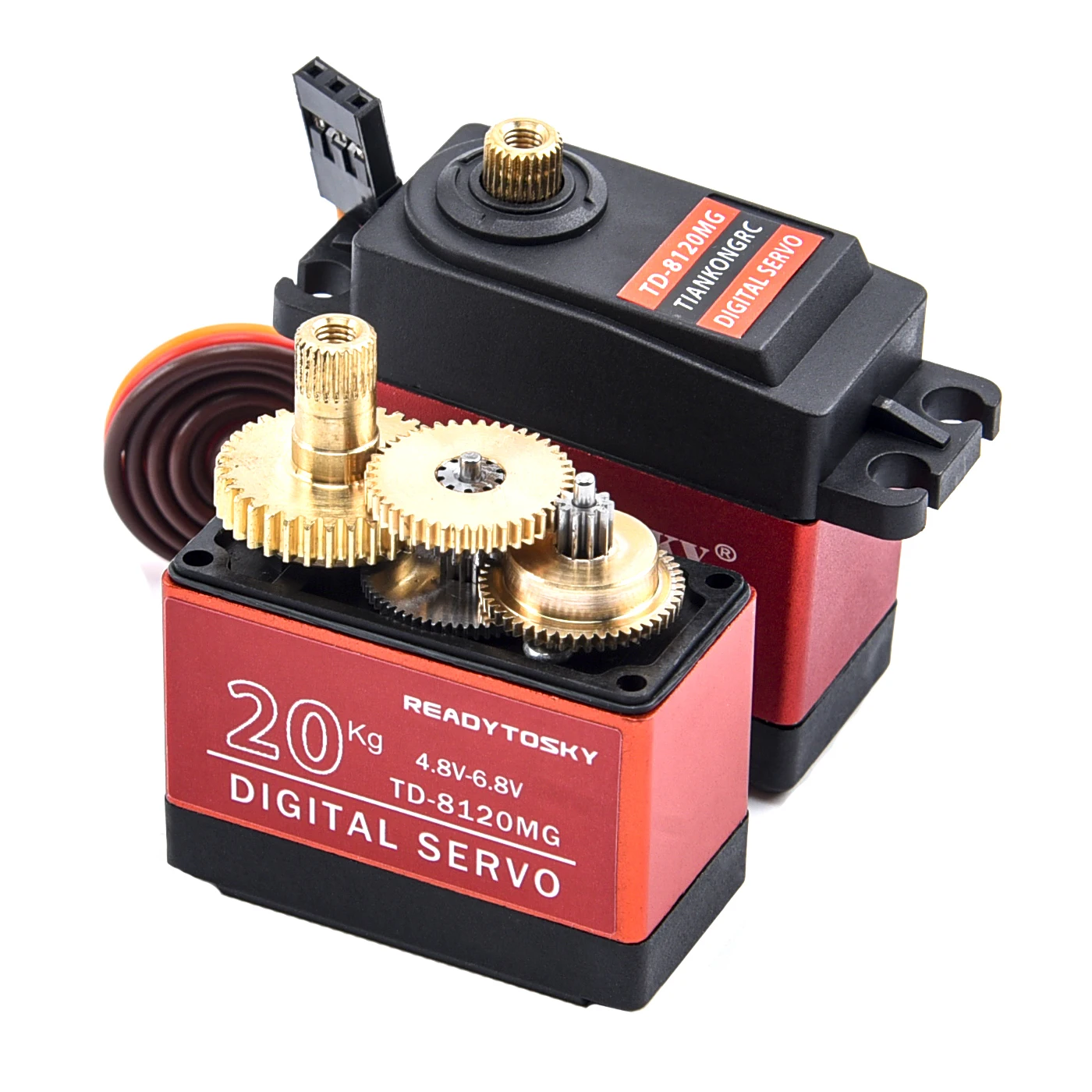

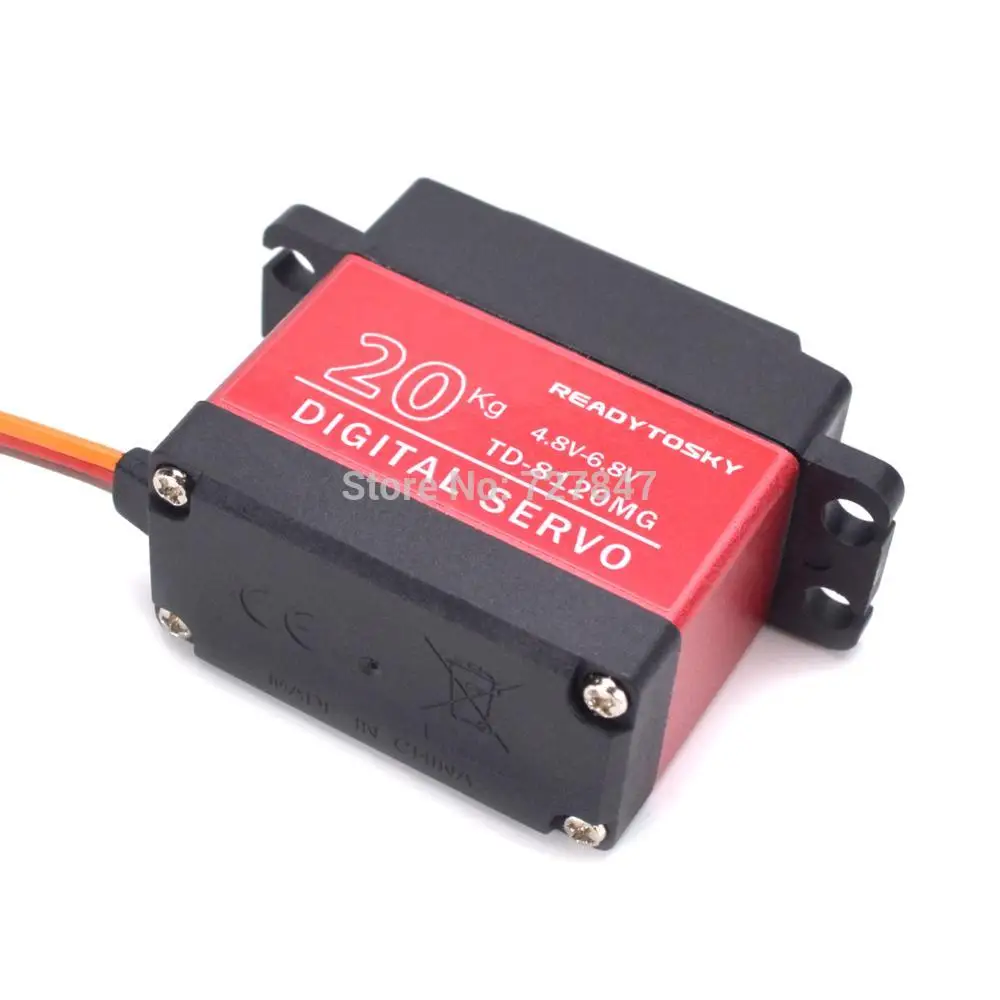

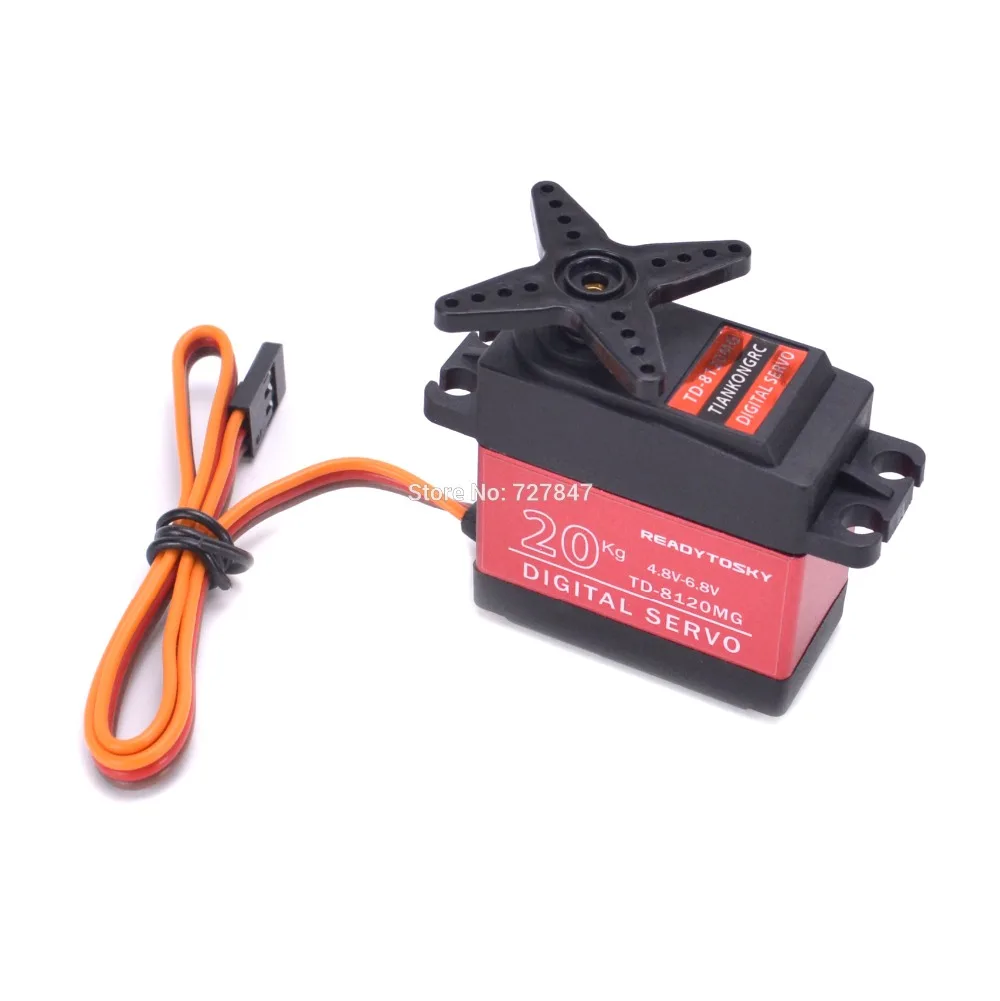

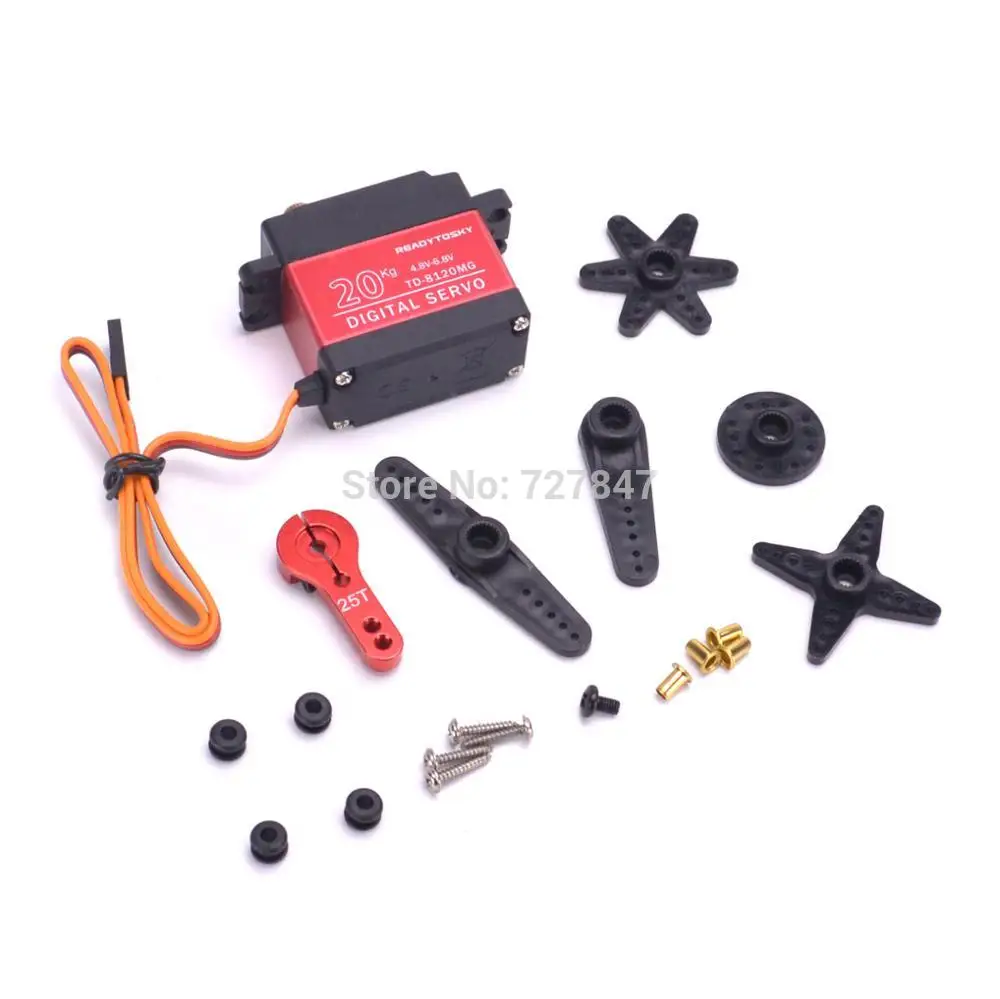

20KG Servo 180/270 Degree:

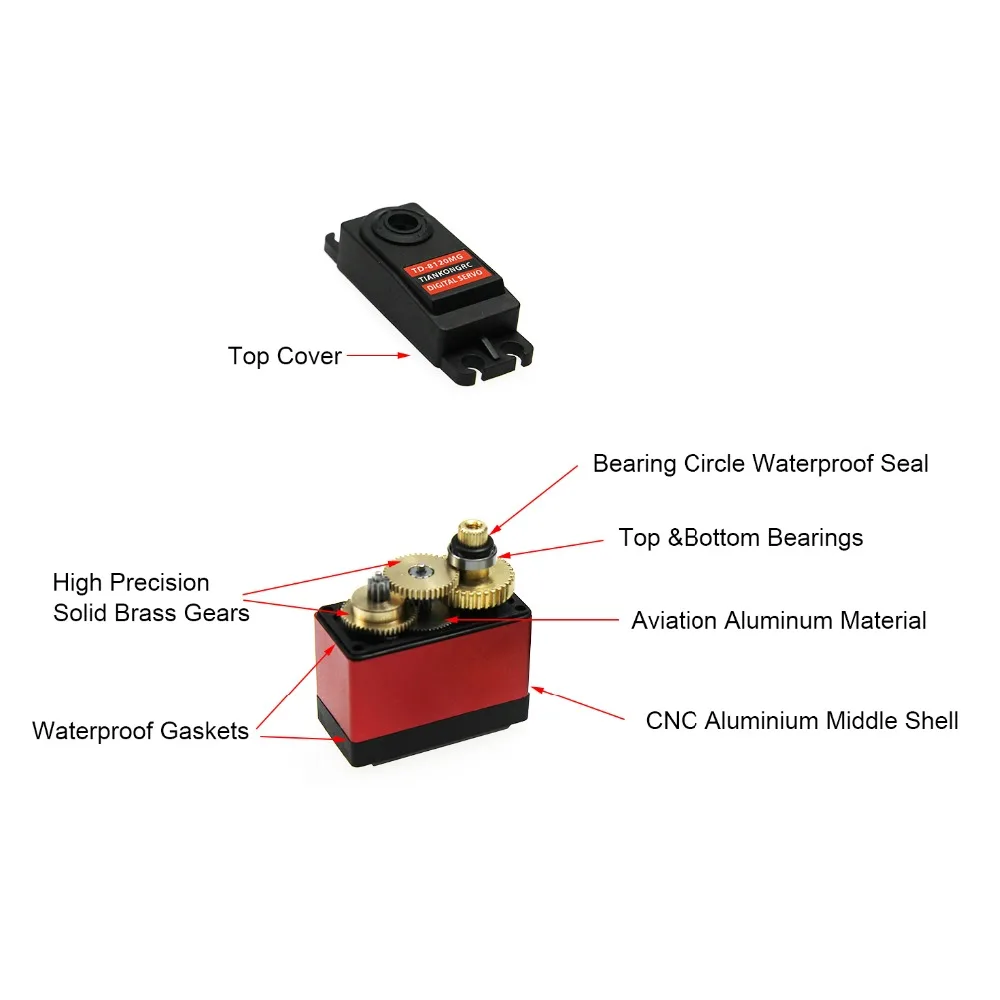

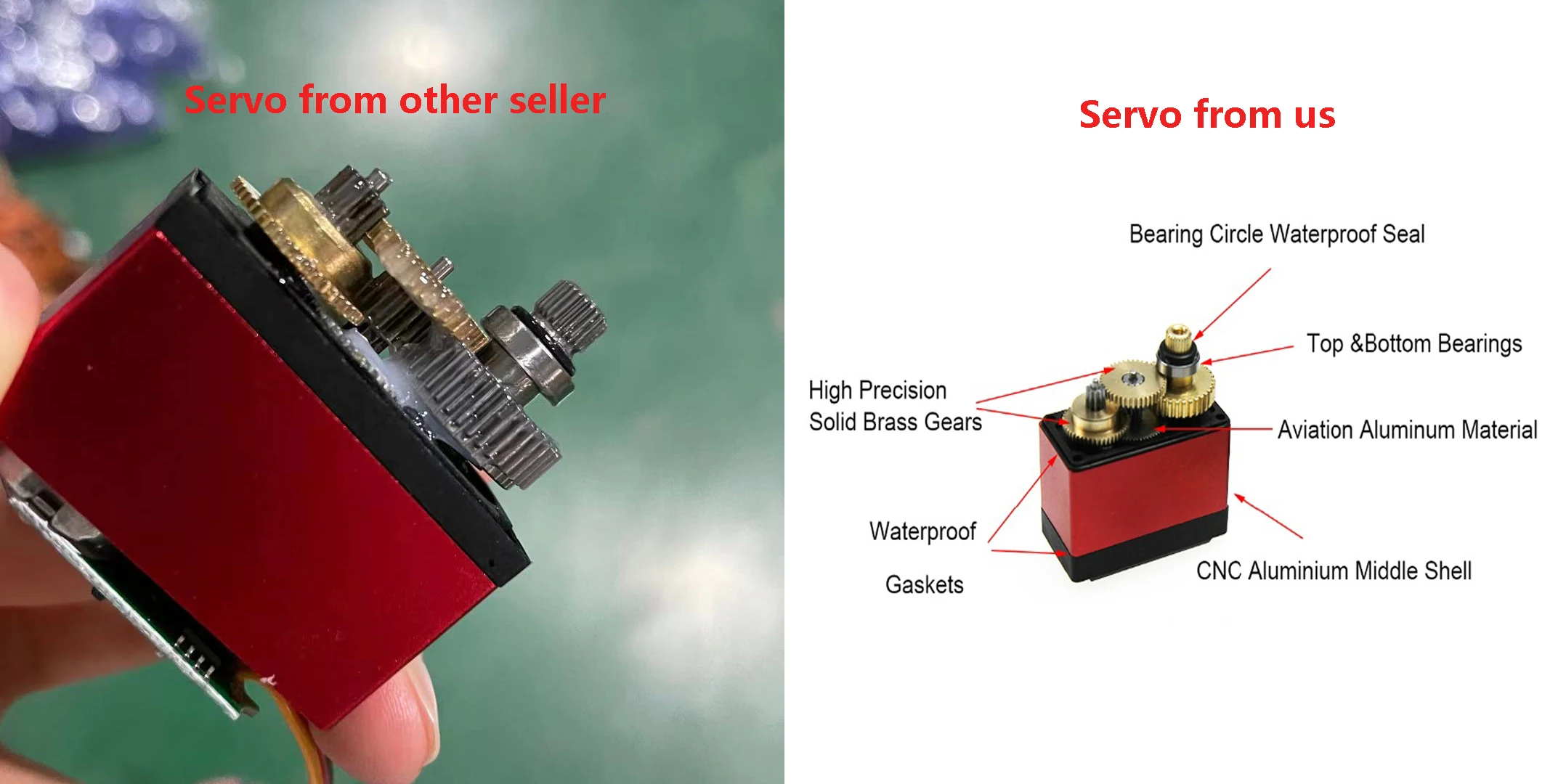

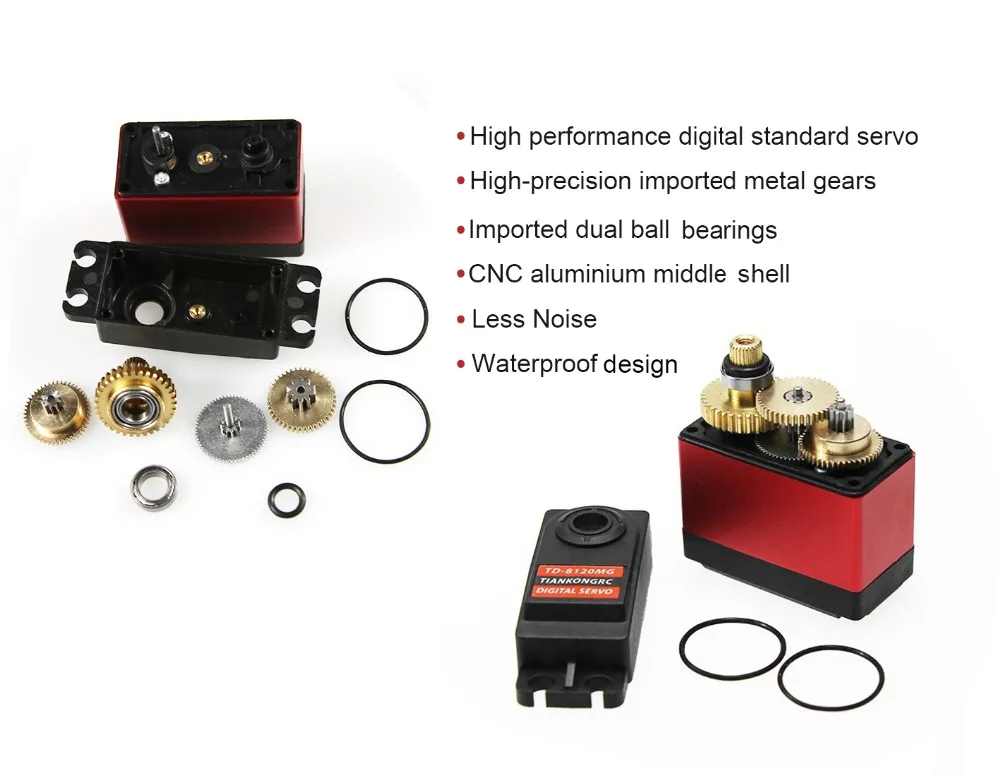

- High-precision metal gears with hard anodizing
- CNC aluminium middle Shell,
Control system :PWM control (1500 u-sec is the central point)
Working voltage:4.8V ~ 6V
Working temperature: -20C°~ +60C°
Torque :4.8V /17.2kg.cm
6.0V /20.3kg.cm
Idle speed :4.8V/0.15sec / 60 deg
6.0V/0.13sec / 60 deg
Steering angle: 180 / 270 degree
Idle current:4.8V/470mA 6.0V /650mA
Load current :4.8V/750mA 6.0V /950mA
Dead band :2usec
Lifetime:>15000 times without load
Moving angle:60°±10°
Drive type: MOS drive
Motor type:Cored motor
Potentiometer type:Direct drive
Signal booster type:Digital

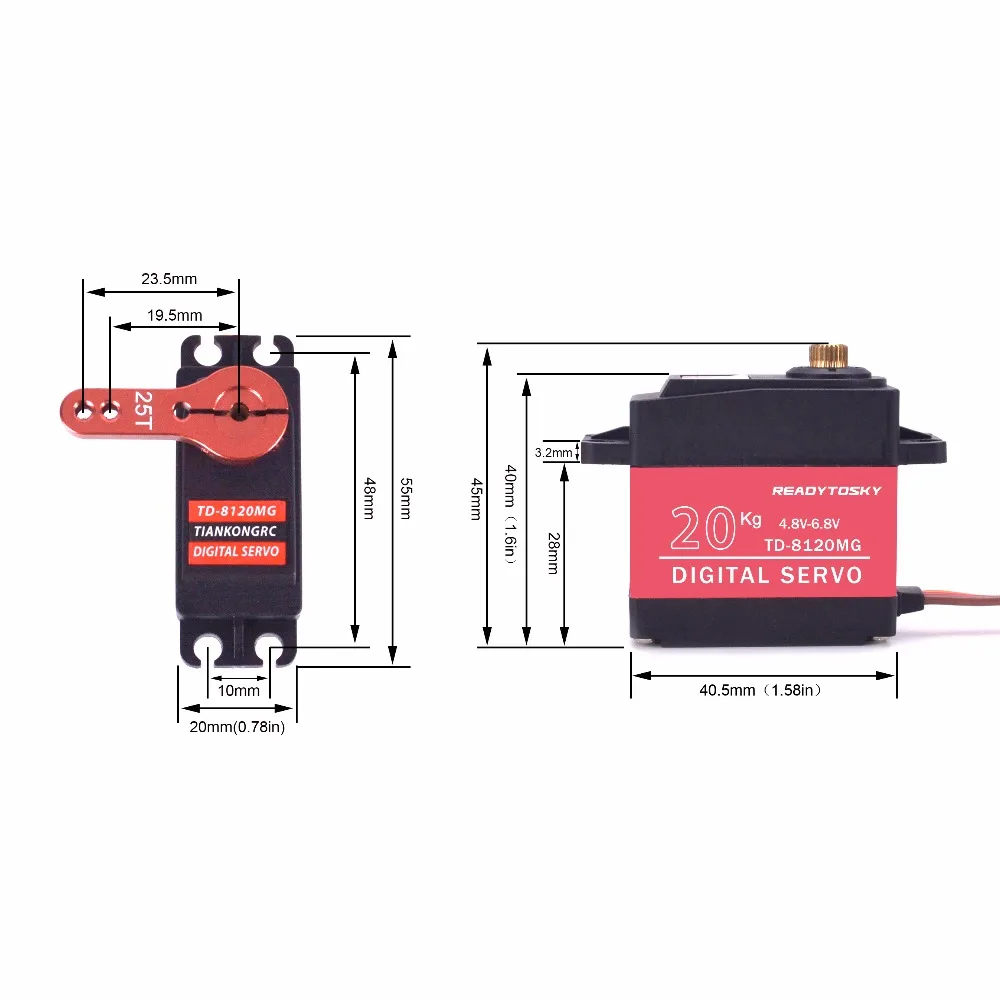

Size:40.5X20.2X40.3mm
Weight : 62g (without accessories)
Ball Bearing:2BB
Gear material:Metal gear
Case material: PA66+fiber40%
Wire length:260mm
Wire gauge No and plug type:26AWG,JR plug
Brown wire:Negative
Red wire:Positive
Orange wire:Singal
Application:RC car, RC airplane, Helicopter

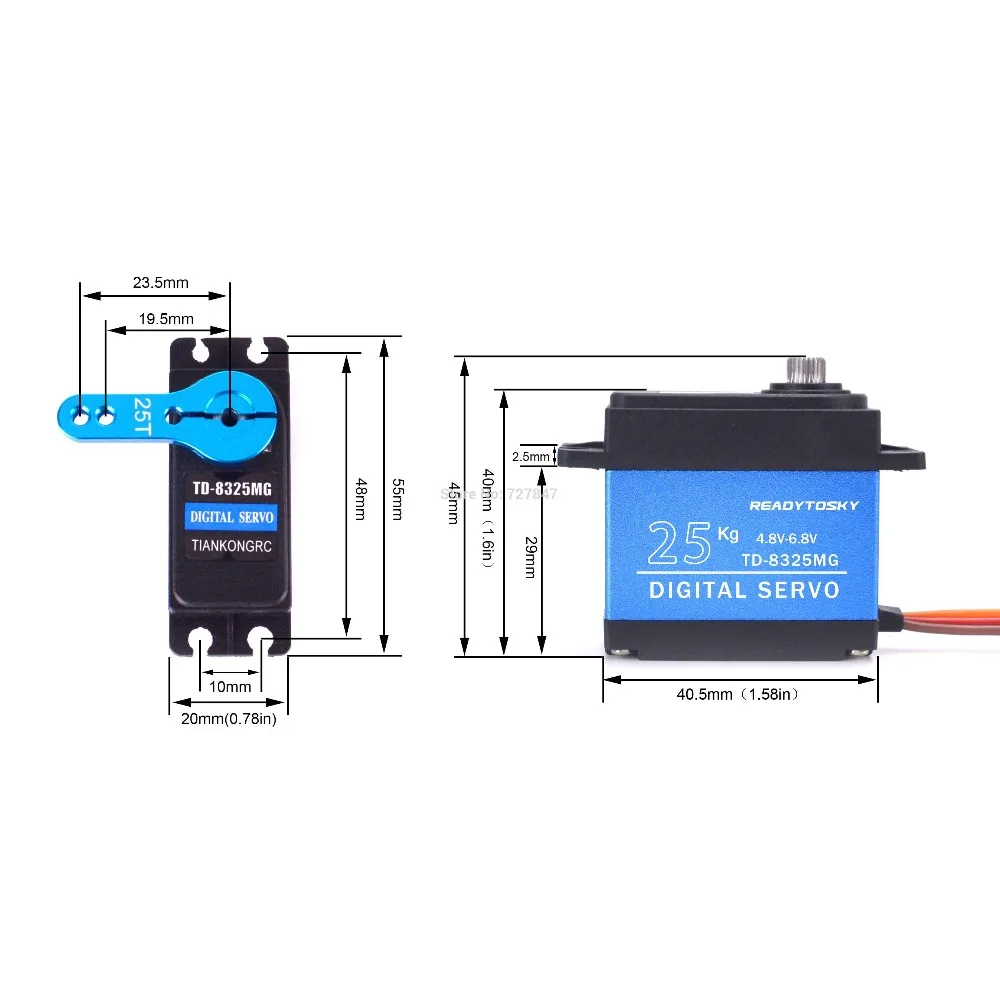

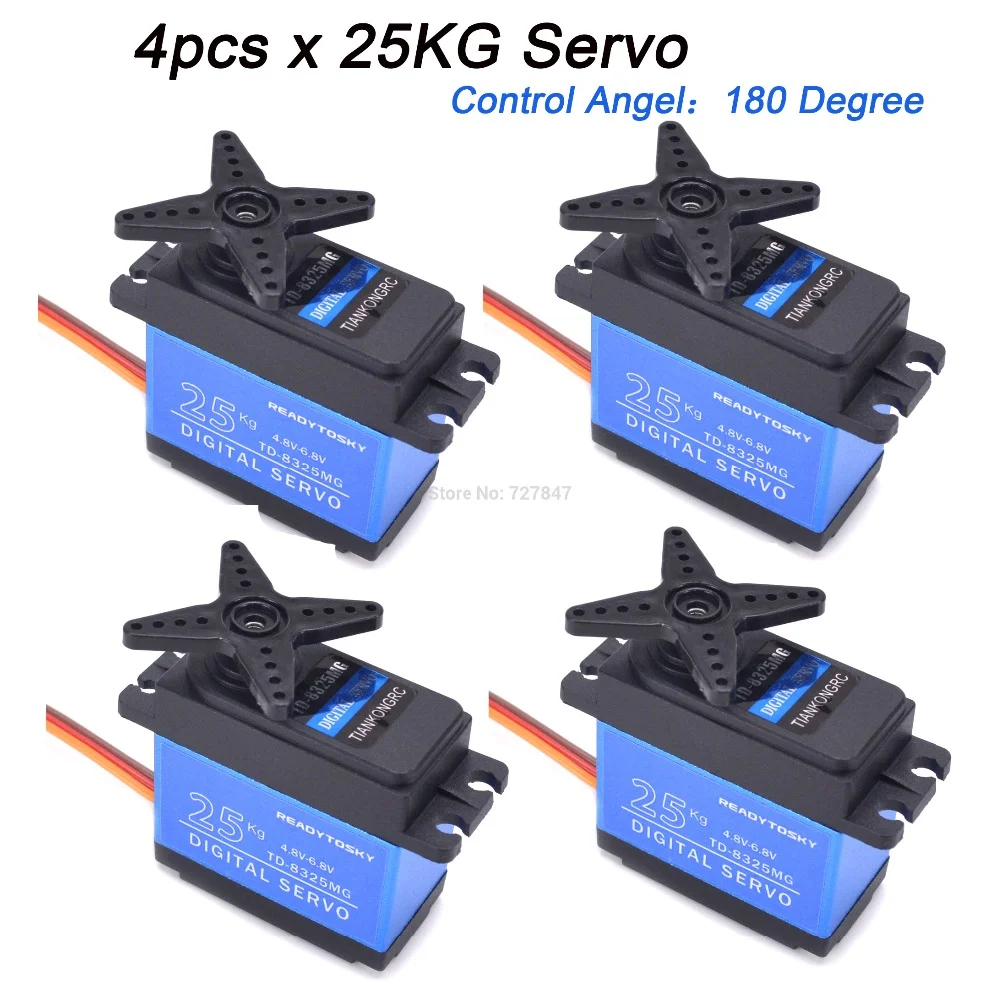

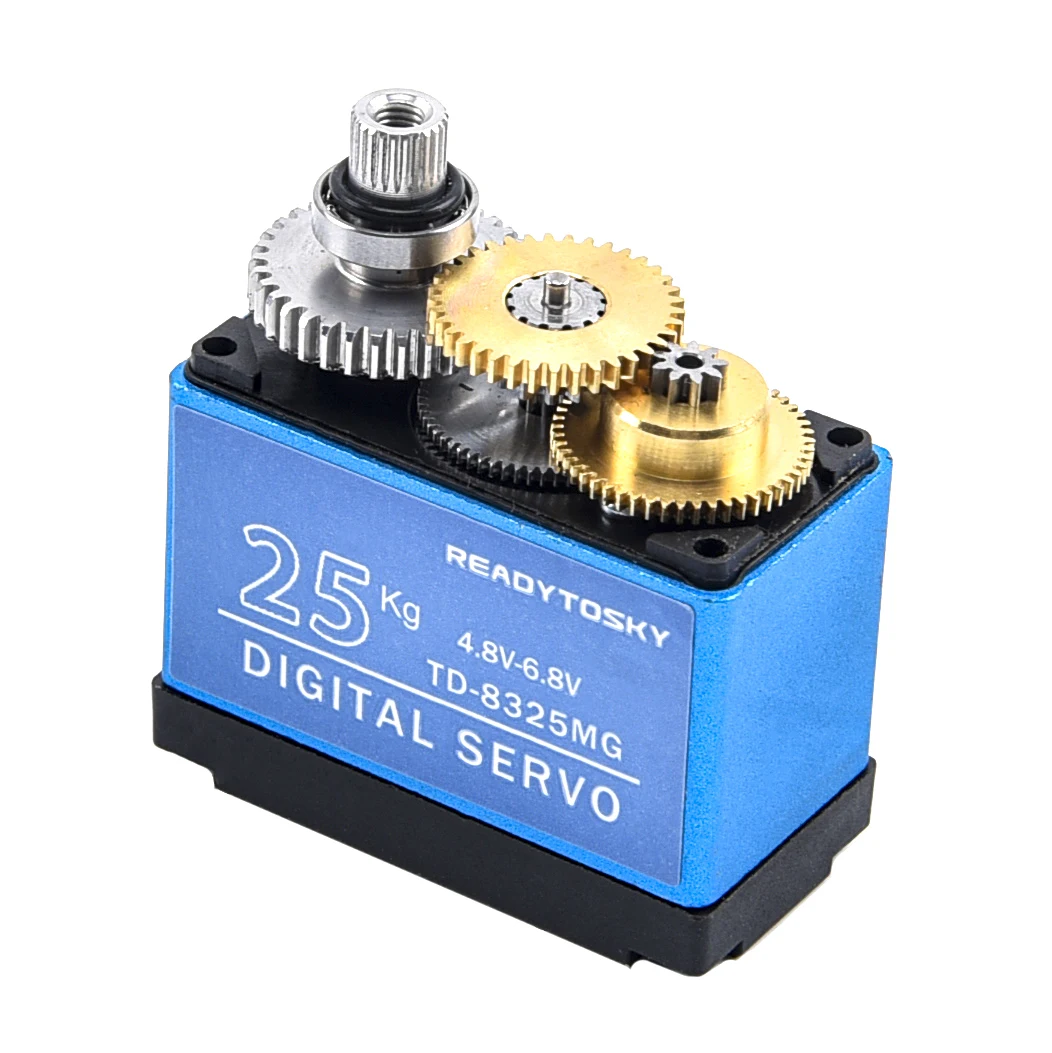

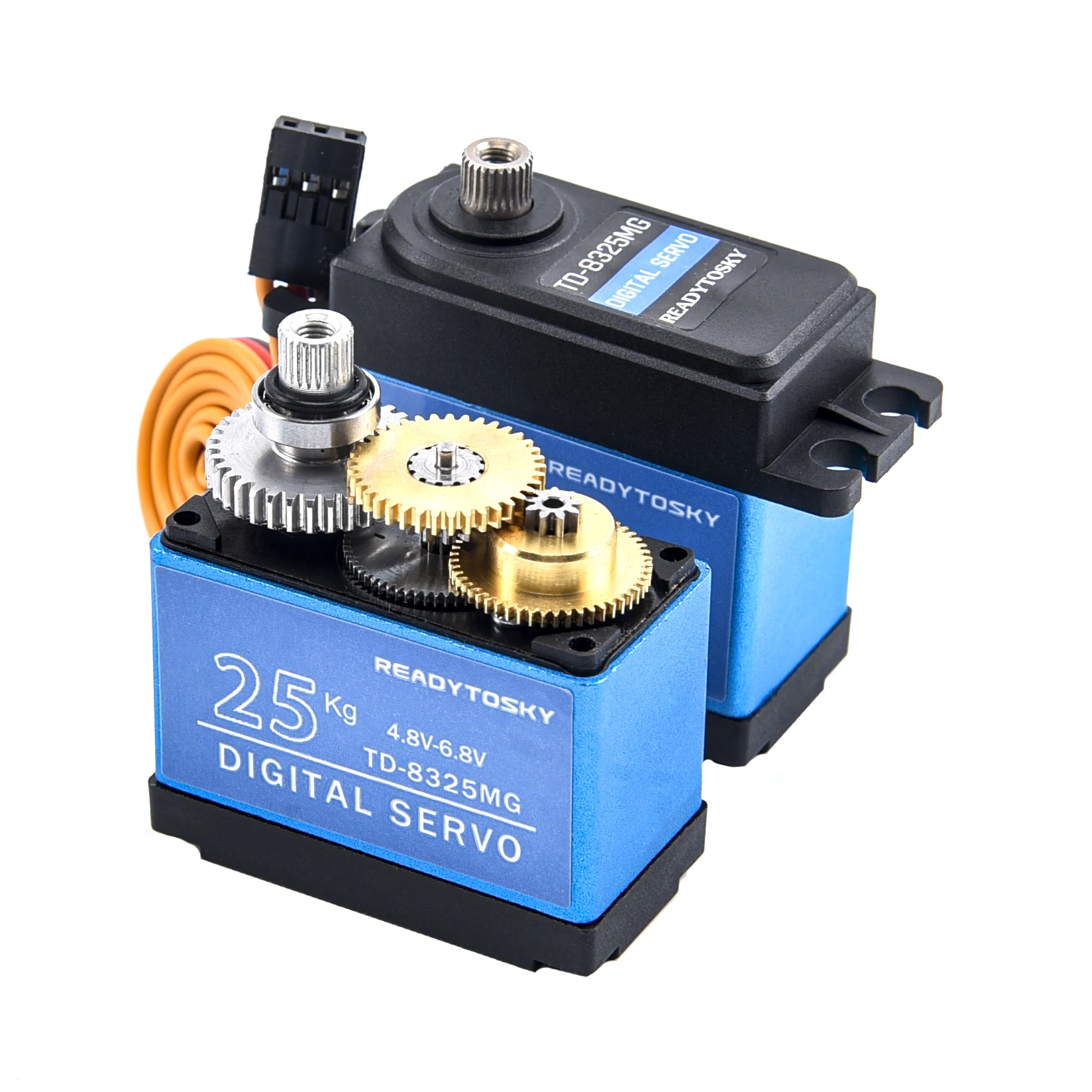

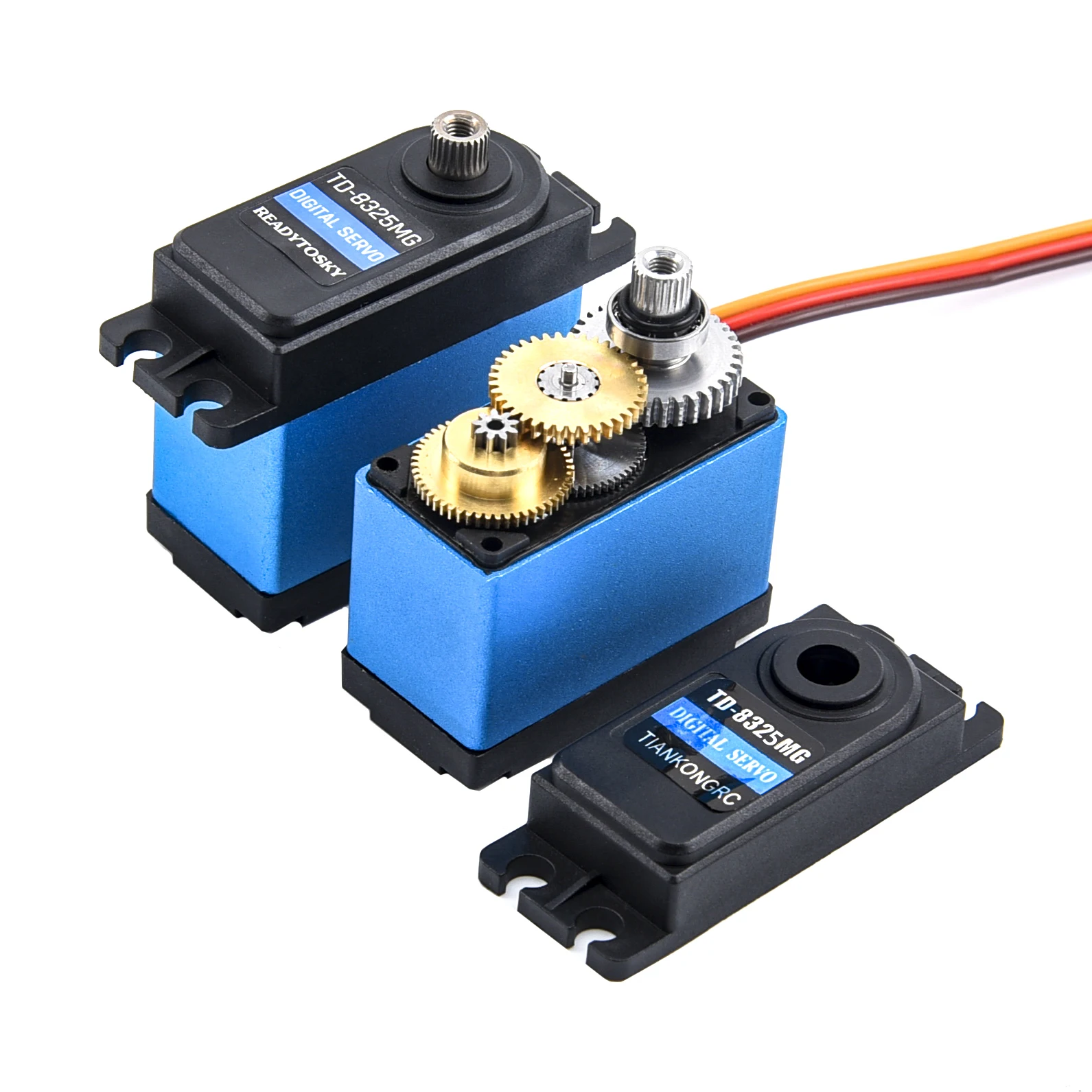

25KG Servo 180 Degree:

Apply Environmental Conditon:
1.Storage Temperature Range: -30°C～80°C
2.Operating Temperature Range: -25°C～70°C
Standard Test Environment:
1.Temperature Range: -25°C～70°C
2.Humidity Range: 65%±10%
Mechanical Specification:
1. Size: 40.0*20.5*40.5mm
2. Weight: 56g±2g
3. Gear type: 5 Metal
4. Limit angle: 360°
5.Bearing: 2BB
6. Horn gear spline: 25T Diameter:5.9mm
7. Horn type: Plastic, POM
8.Case : Engineering plastics(PBT)+Aluminum alloy
9. Connector wire: 320mm±5mm
10.Motor: Carbon brush motor
Electrical Specification:
1.Operat voltage: 4.8V - 7.2V
2.No load speed: 0.18sec/60° - 0.14sec/60°
3.Running current: 140mA - 200mA
4.Peak stall torque: 23.5kg.cm-26.8kg.cm
5.Stall current: 2600mA±10% - 3400mA±10%
6.Working voltage range: 4.8 - 7.2V
Control Specification:
1.Command signal: Pulse width modification
2.Amplifier type: Digital controller
3.Pulse width range: 500～2500usec
4.Neutral position: 1500usec
5.Running degree: 180°±3°(when 500～2500usec)
6.Dead band width: 5 usec
7.Rotating direction Counterclockwise: (when 1000～2000usec)

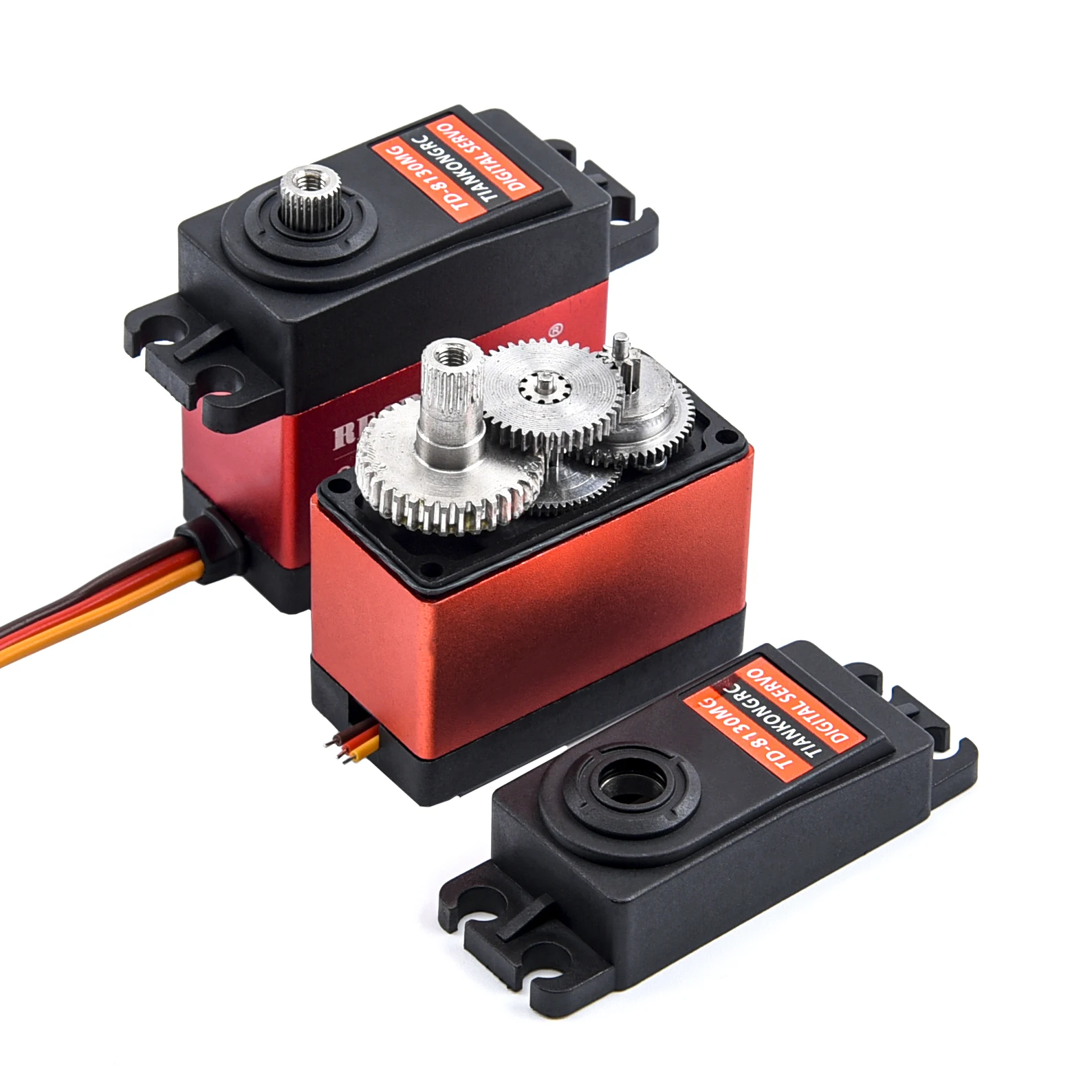

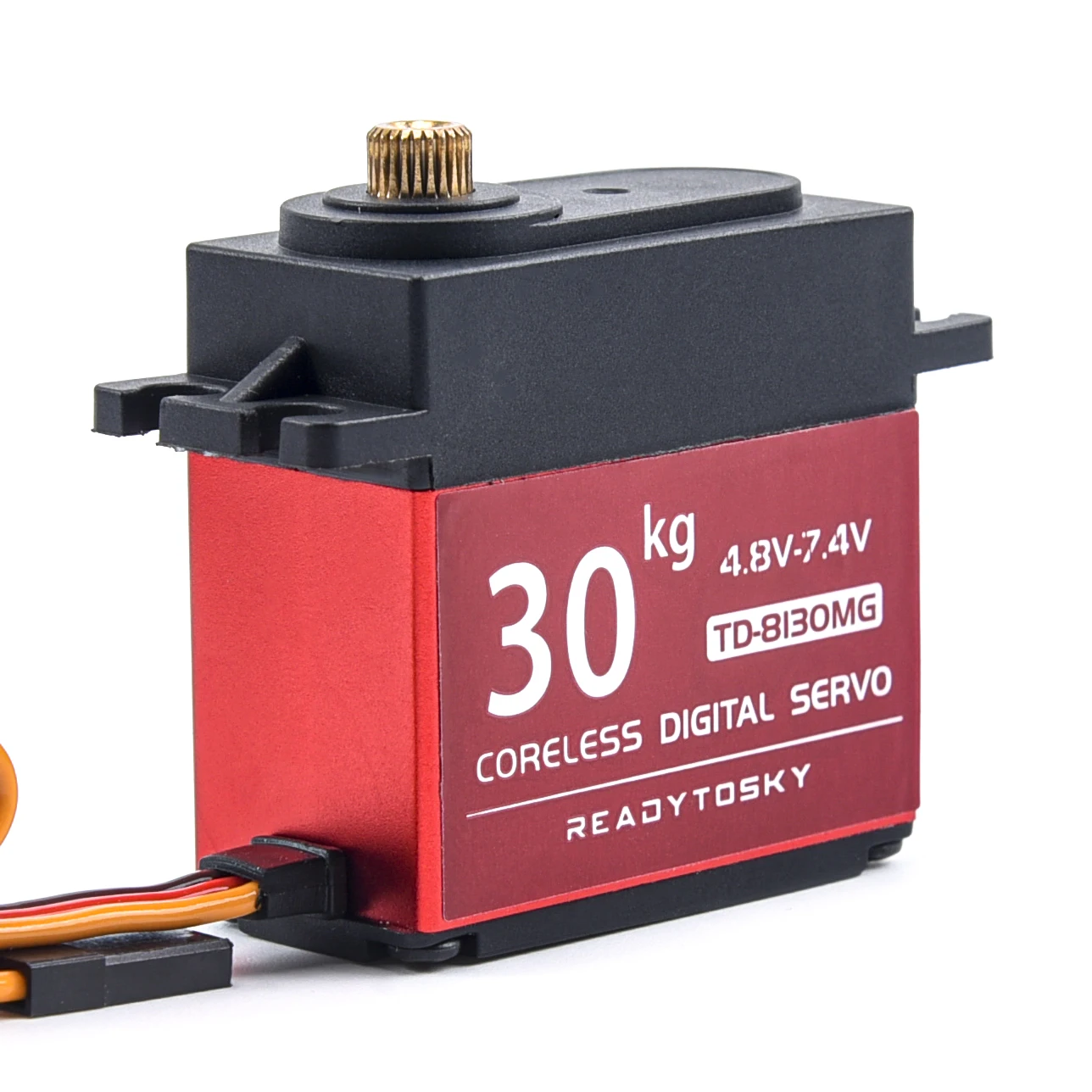

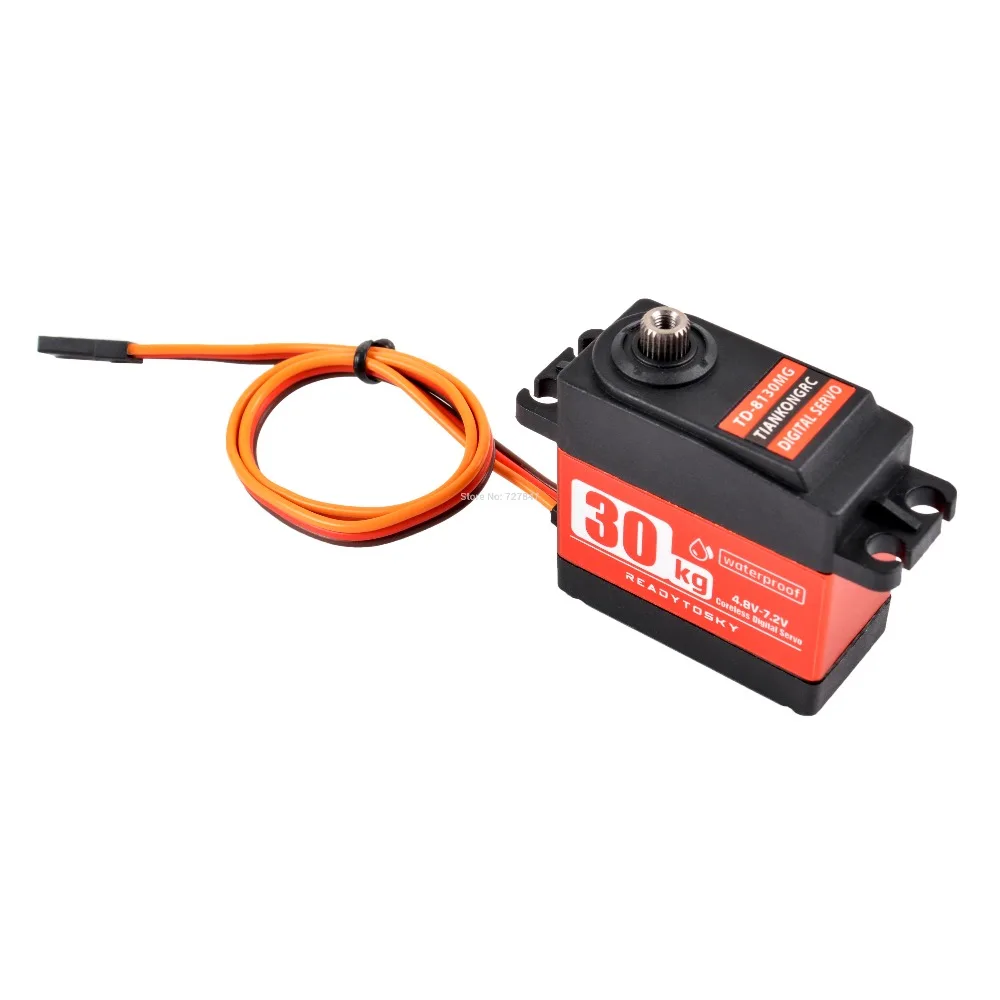

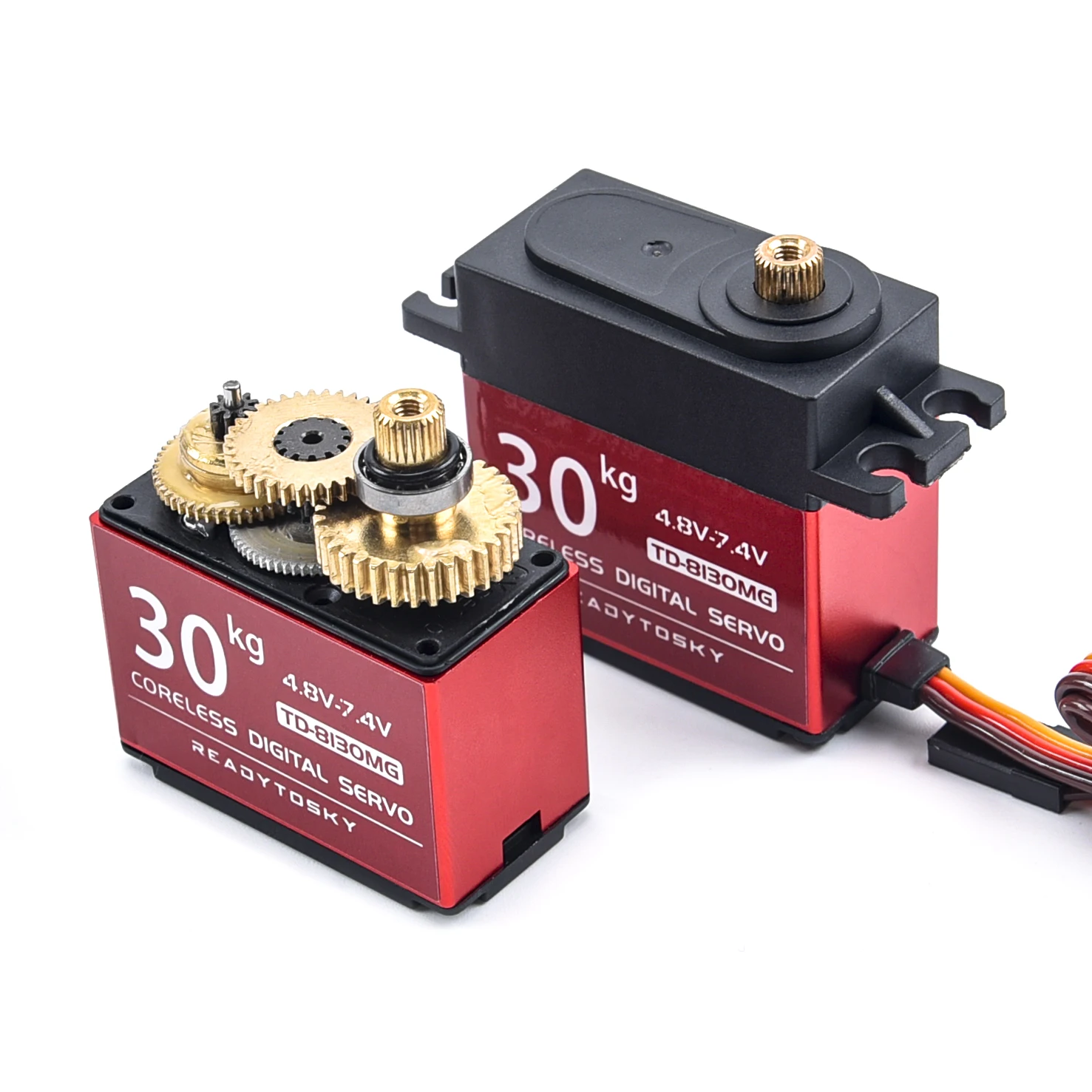

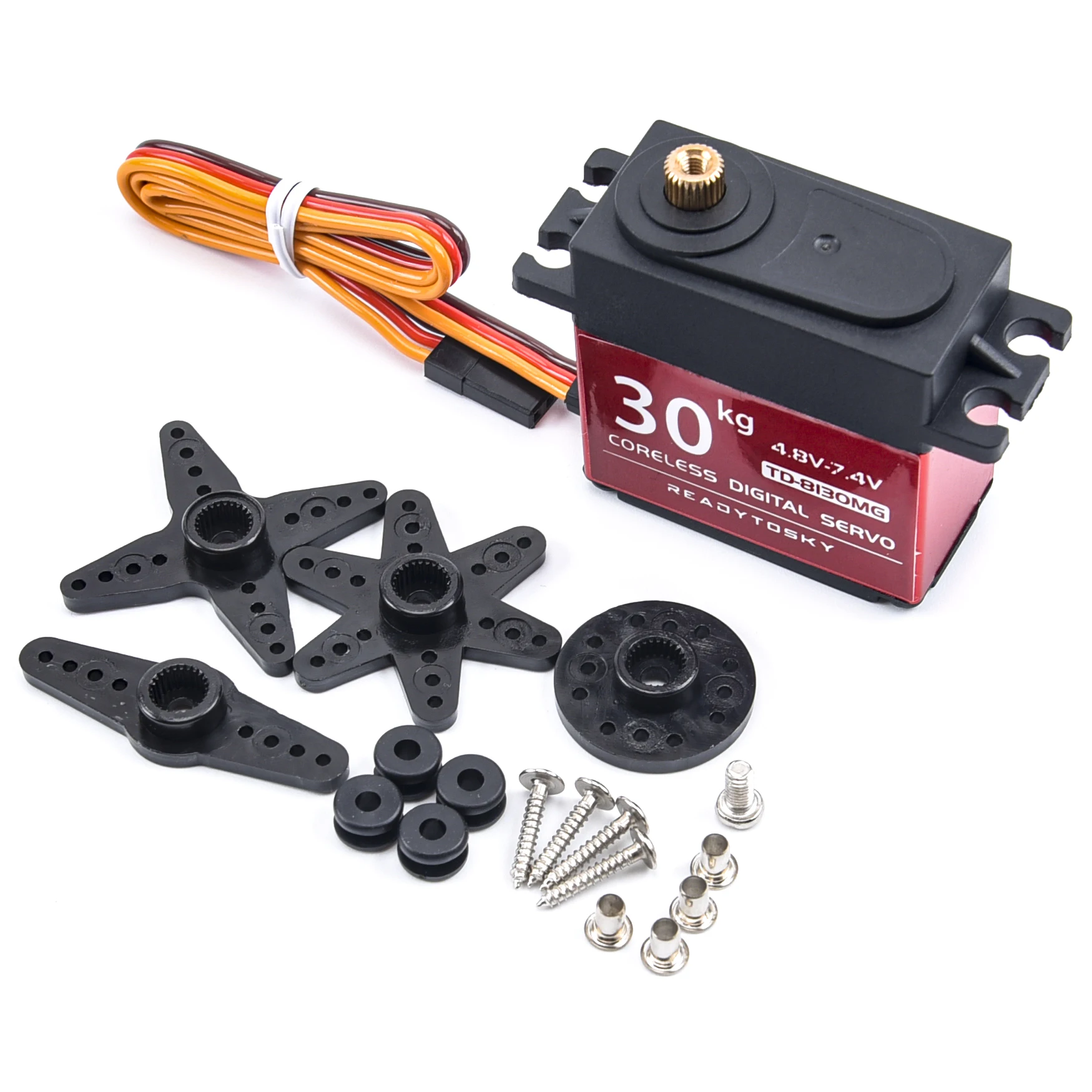

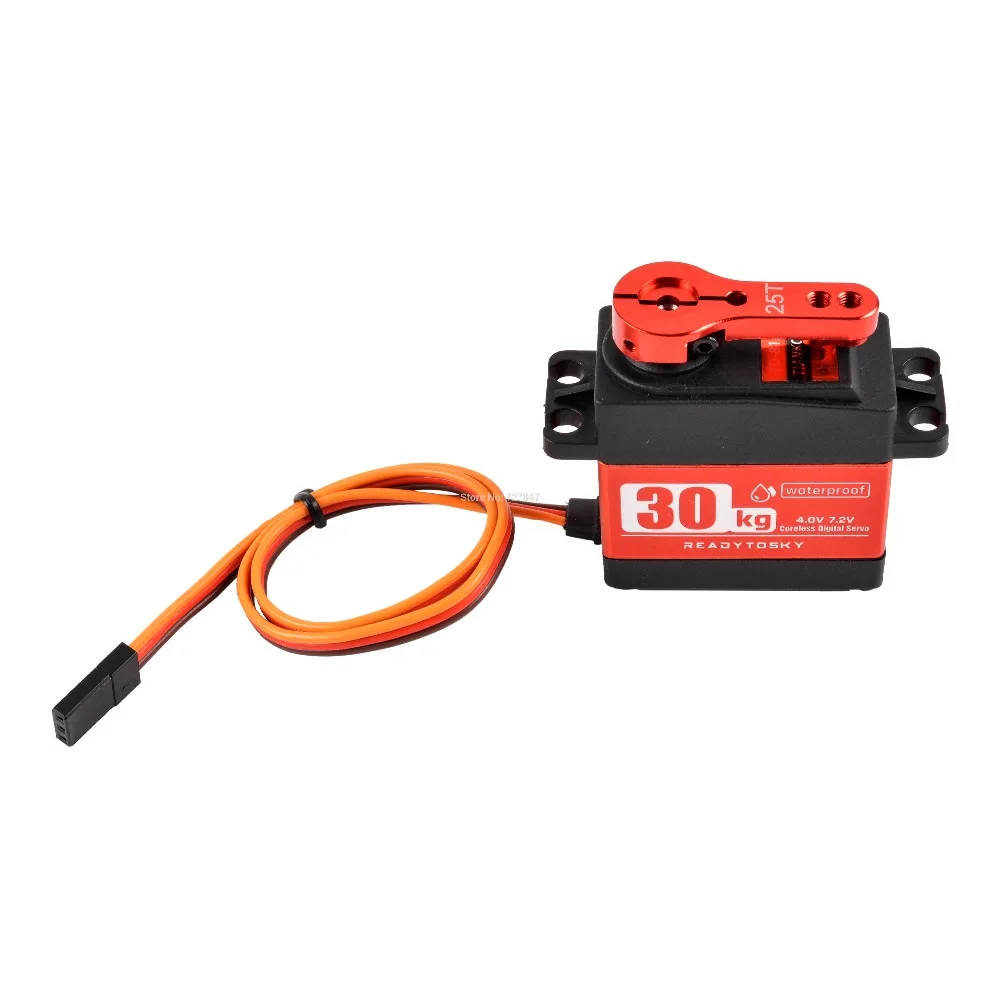

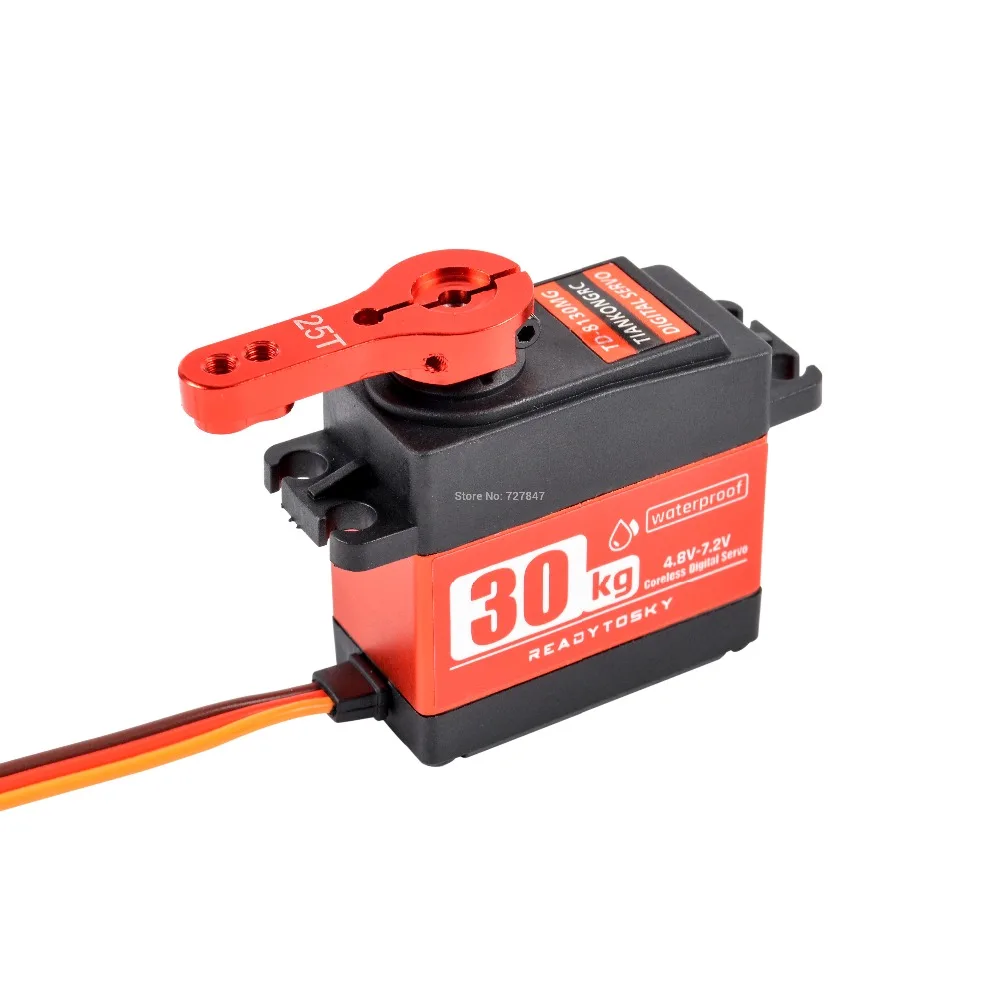

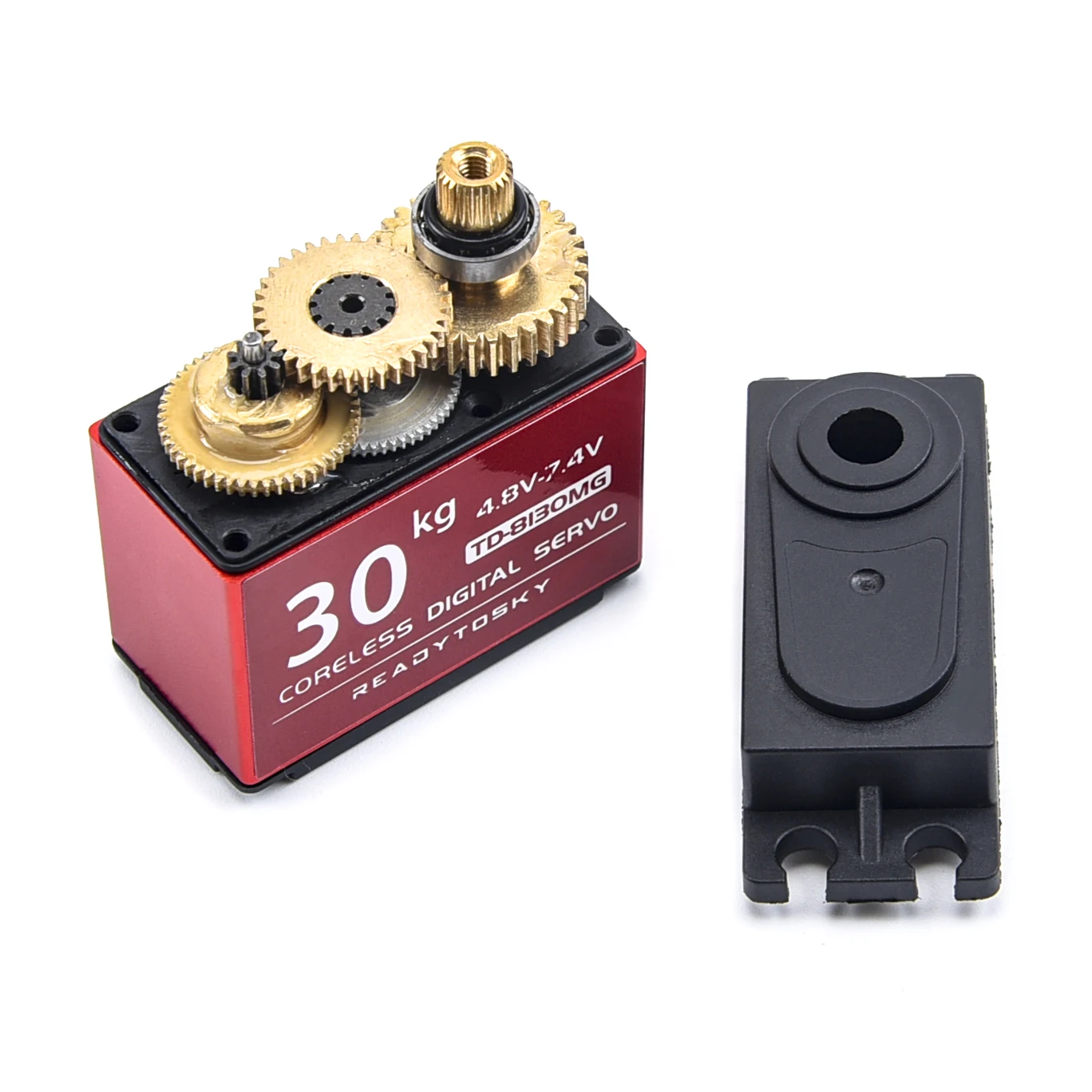

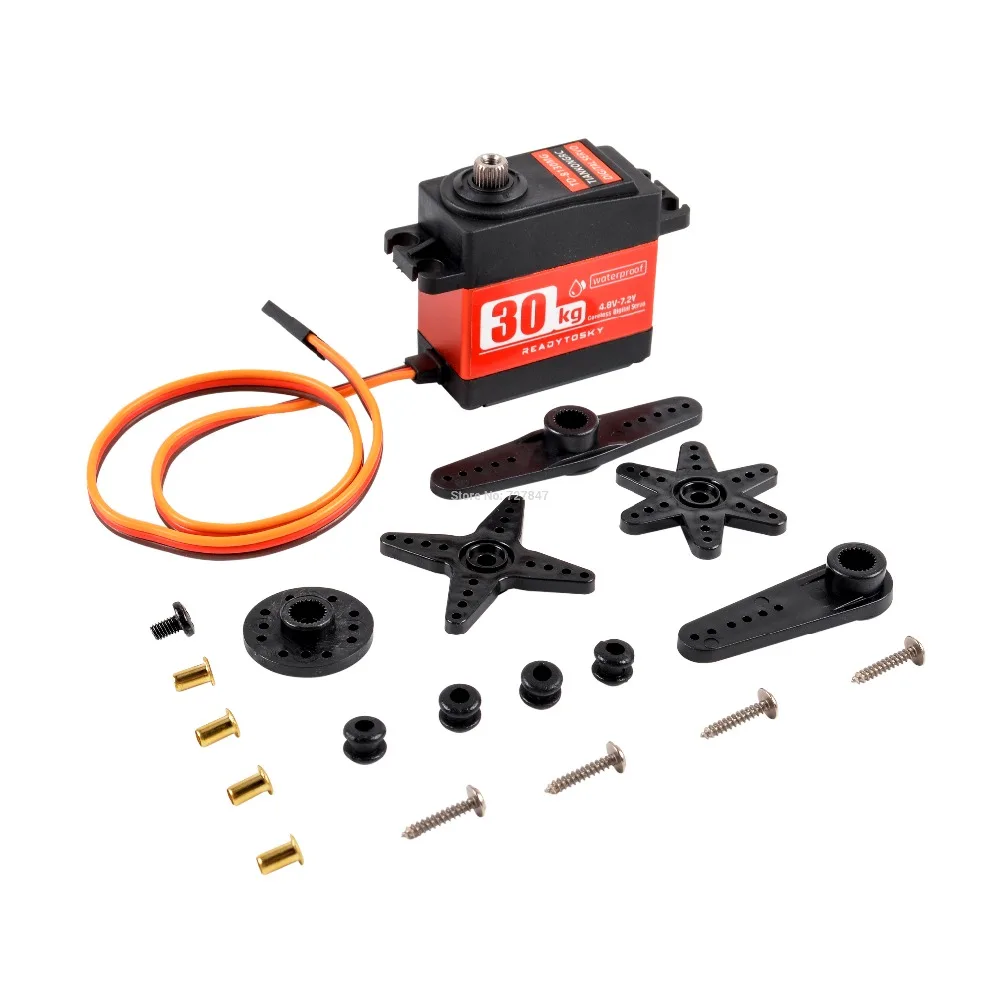

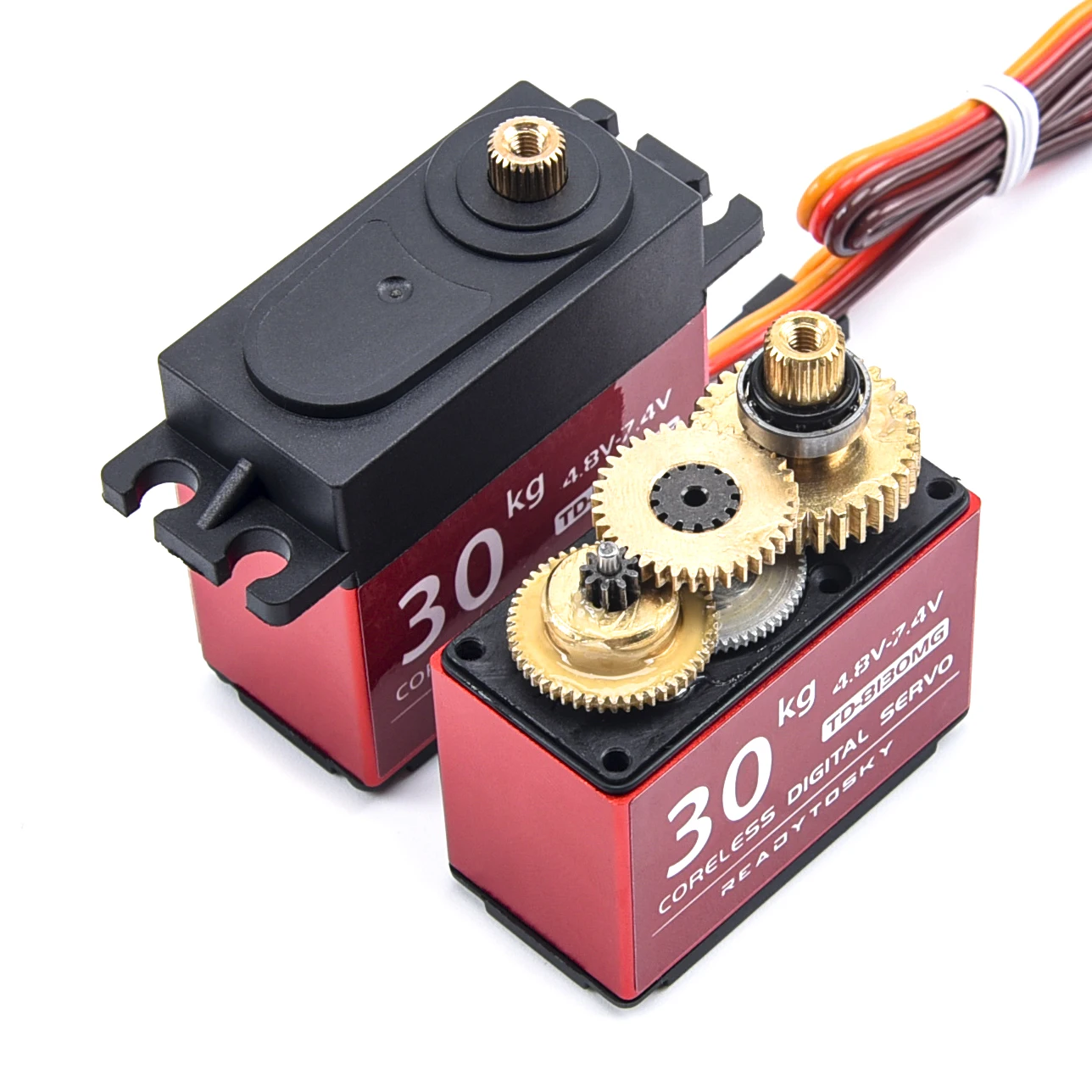

30KG Servo 180 /270 Degree:

Apply Environmental Conditon:
1. Storage Temperature Range: -30°C～80°C
2. Operating Temperature Range: -25°C～70°C
Standard Test Environment:
1.Temperature Range: 25°C～70°C
2. Humidity Range: 65%±10%
Mechanical Specification:
1. Size: 40.0*20.5*40.5mm
2. Weight: 56g±2g
3. Gear type: 5 Metal
4. Limit angle:360°
5. Bearing:2BB
6. Horn gear spline: 25T Diameter: 5.9mm
7. Horn type: Plastic, POM
8. Case: Engineering plastics(PBT)+Aluminum alloy
9. Connector wire320mm±5mm
10. MotorCarbon brush motor
Electrical Specification:
1. Operat voltage: 4.8V - 7.2V
2. No load speed: 0.24sec/60° - 0.17sec/60°
3. Runnig current: 140mA - 200mA
4. Peak stall torque:29.5kg.cm - 32kg.cm
5. Stall current: 2600mA±10% - 3400mA±10%
6. Working voltage range: 4.8 - 7.2V
Control Specification:
1. Command signal: Pulse width modification
2. Amplifier type: Digital controller
3. Pulse width range: 500～2500usec
4. Neutral position: 1500usec
5. Running degree: 180°±3°(when 500～2500usec)
6. Dead band width: 5 usec
7. Rotating direction: Counterclockwise (when 1000～2000usec)

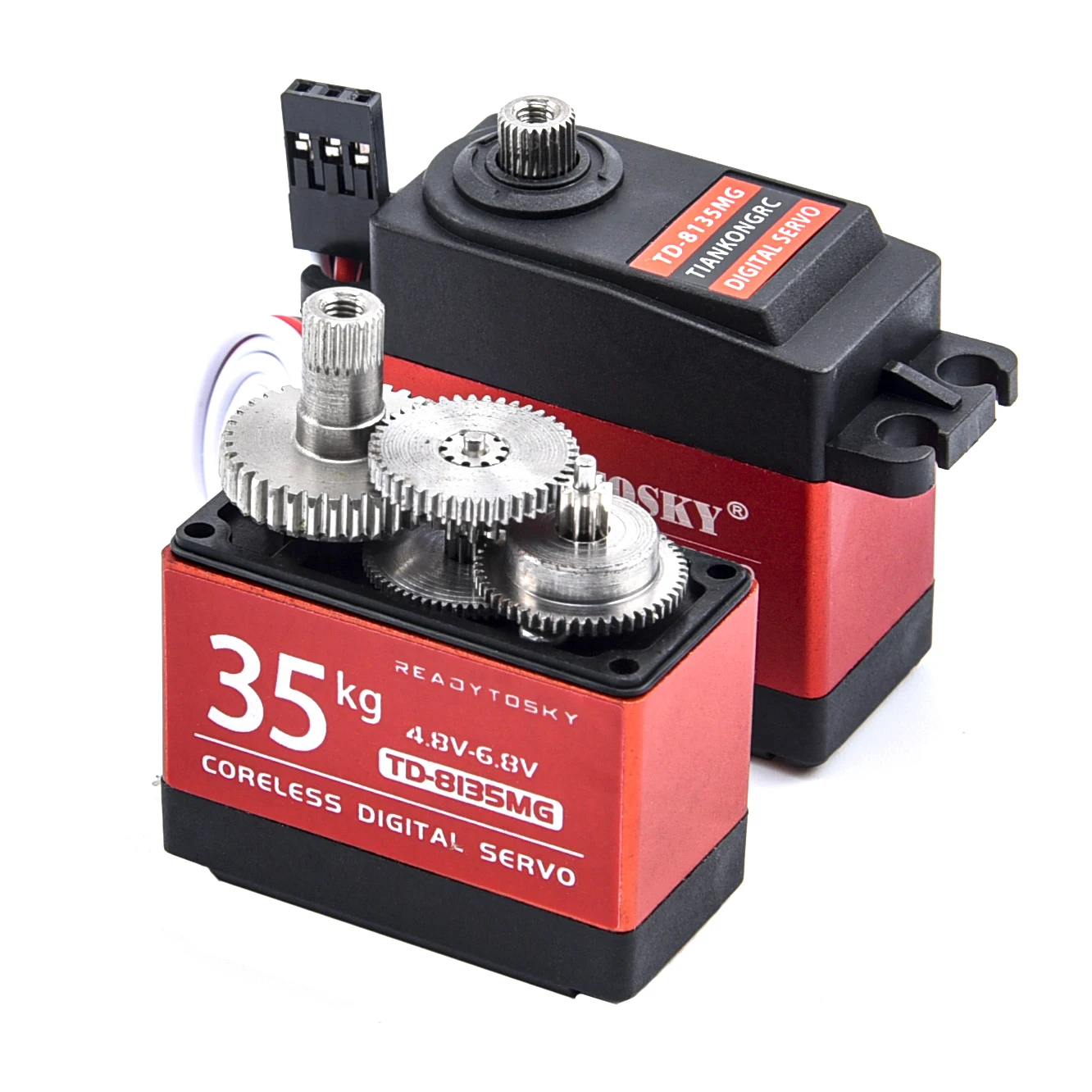

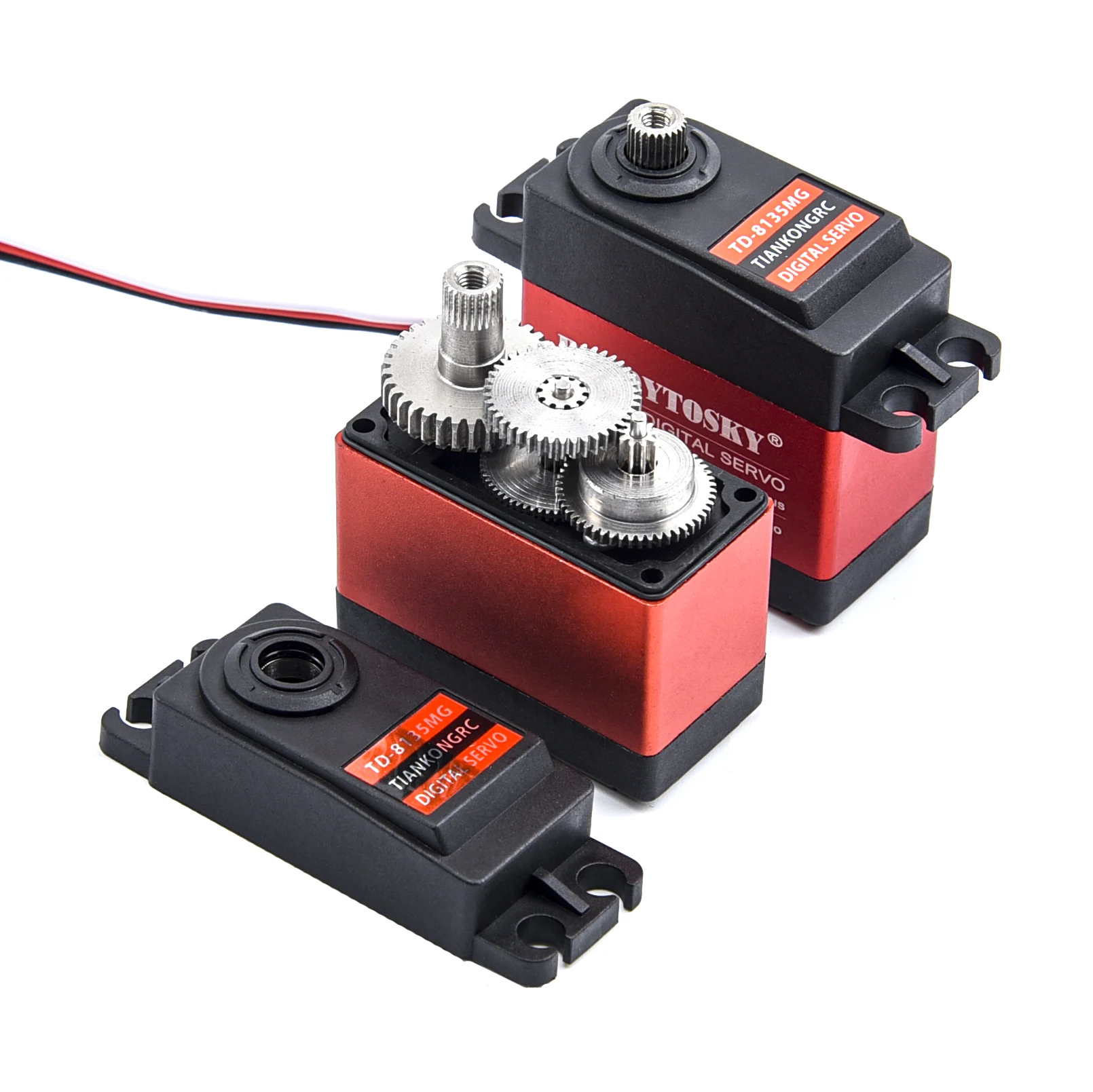

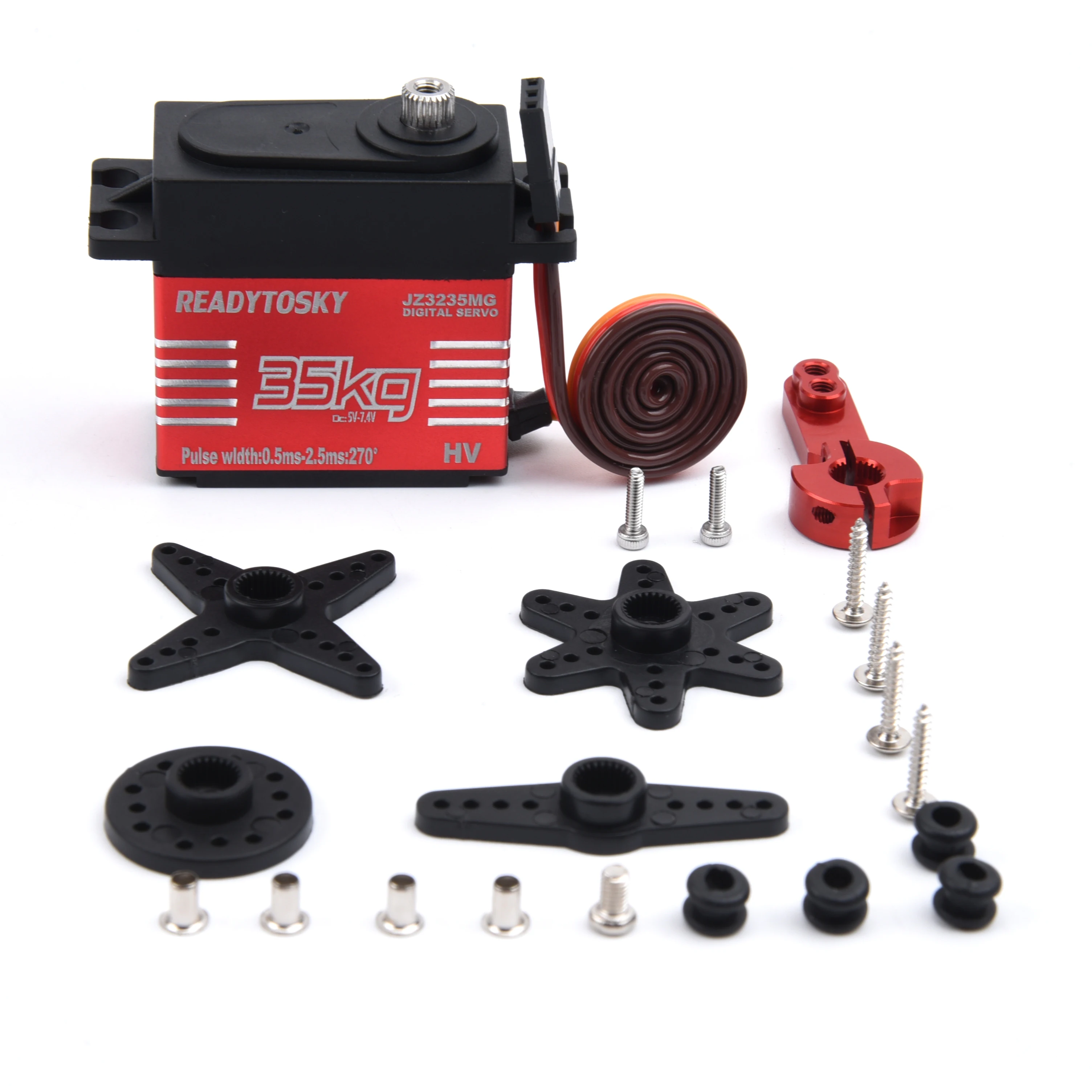

35KG JZ3235MG 180 270 Degree Metal Gear Digital Servo For Rc Car Crawler 1:10 1:8 Rc Car Truck Robot Parts

35KG Motor Core servo Specifications:

Model: JZ3235MG Pro

Item Name: JZ3235MG pro Digital Servo ;

Rotation angle:180 / 270 degree

Dead Band: 3μsec

Operating Voltage: 5.0V~7.4V

Operating Speed (6V): 0.19sec / 60° at no load ;

Operating Speed (7.4V): 0.17sec / 60° at no load ;

Stall Torque (6V): 35 kg/cm

Stall Torque (7.4V): 39 kg/cm

Motor: Motor core

Motor Type: Carban Brush Motor

Gear Type: Copper & Aluminum

Working Frequency: 1520μs / 333hz

CE Certification: Yes

Size: 40.5 * 40 * 20.2mm

Weight: 73g

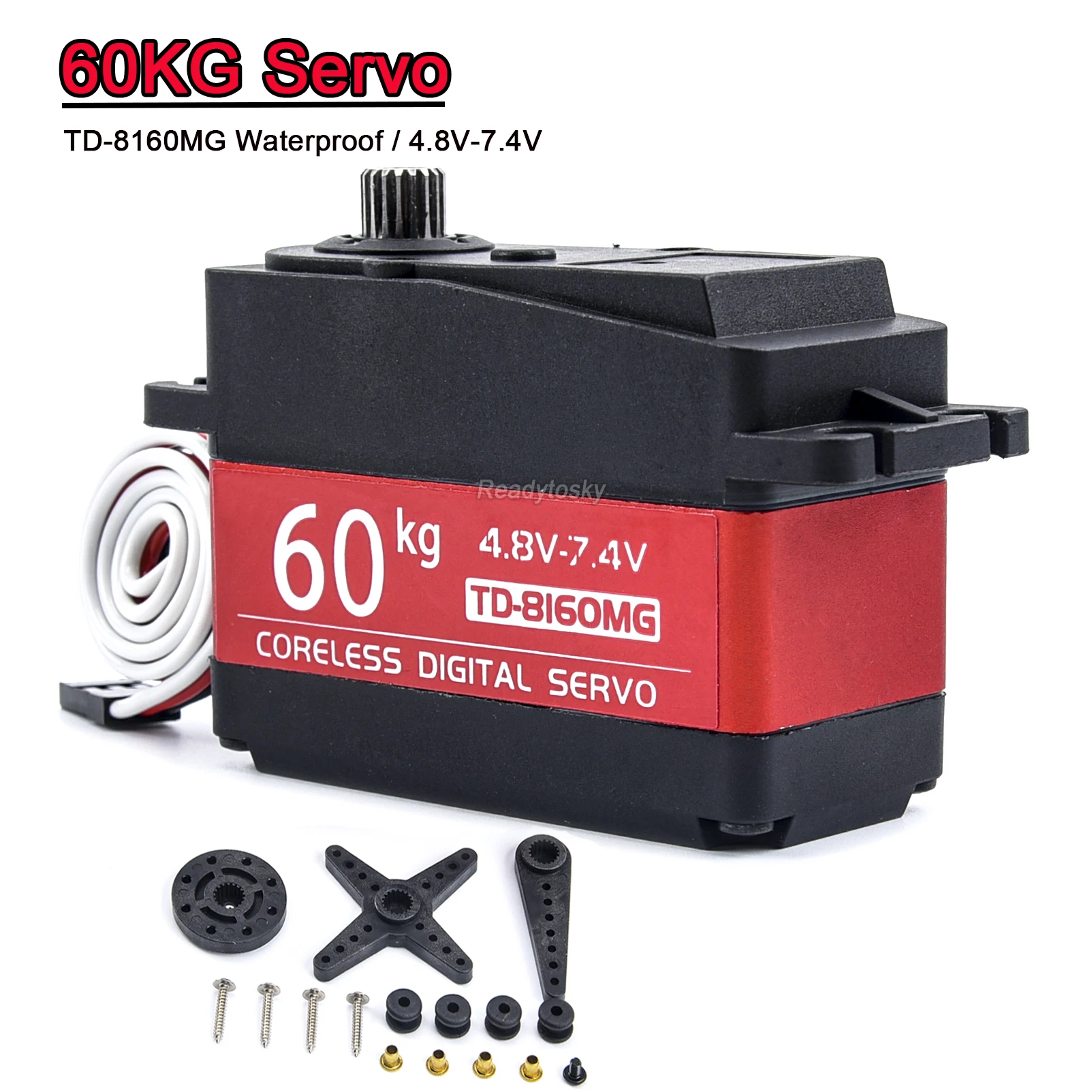

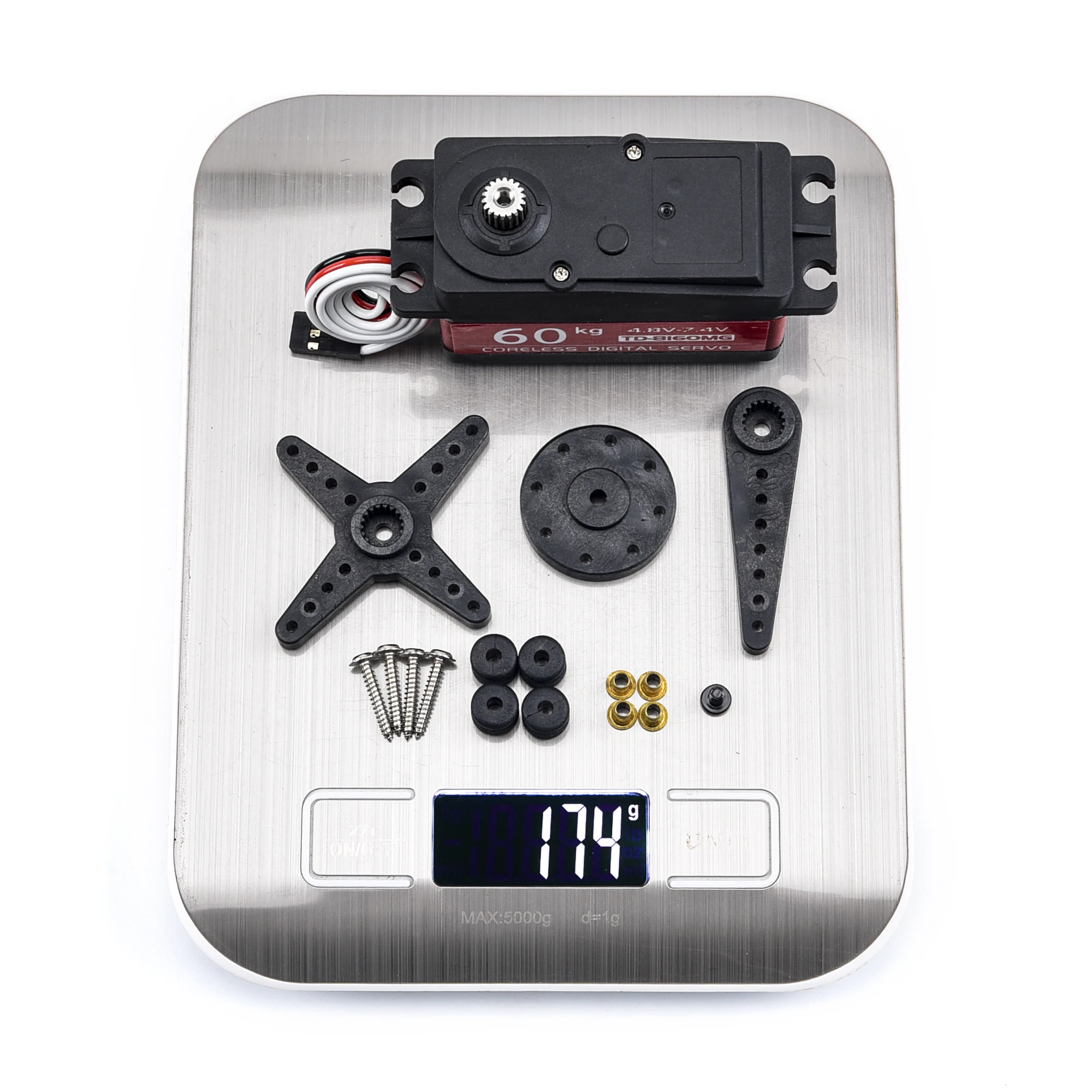

Products Name:60kg Digital Servo

1.Apply Environmental Conditon


No. Item Specifcation


1.1 Storage Temperature Range -30°C～80°C

1.2 Operating Temperature Range -25°C～70°C


2. Standard Test Environment


2.1 Temperature Range -25°C～70°C

2.2 Humidity Range 65%±10%


3. Mechanical Specification


3.1 Size 65.0*30.0*48.0mm

3.2 Weight 158g±5%

3.3 Gear type "6 Metal"

3.4 Limit angle 360°

3.5 Bearing 2BB

3.6 Horn gear spline 18T diameter:8.1mm

3.7 Horn type Plastic, POM

3.8 Case "Engineering plastics(PBT)+Aluminum alloy"

3.9 Connector wire 320mm±5mm

3.10 Motor Carbon brush motor

3.11 Splash water resistance



4.Electrical Specification


No. Operat voltage 6V 8.4V

4.1 Idle current 5mA 5mA

4.2 No load speed 0.17sec/60° 0.13sec/60°

4.3 Runnig current 400mA 510mA

4.4 Peak stall torque 58.5kg.cm 70kg.cm

4.5 Stall current 8.5A±10% 10.4A±10%

4.6 Working voltage range

" 4.8-8.4V


5.Control Specification



5.1 Command signal Pulse width modification

5.2 Amplifier type Digital controller

5.3 Pulse width range 500～2500usec

5.4 Neutral position 1500usec

5.5 Running degree 180°±3°(when 500～2500usec)

5.6 Dead band width 5usec

5.7 Rotating direction Counterclockwise (when 1000～2000usec)

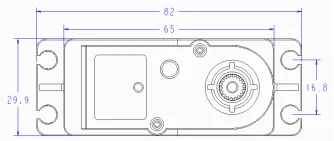

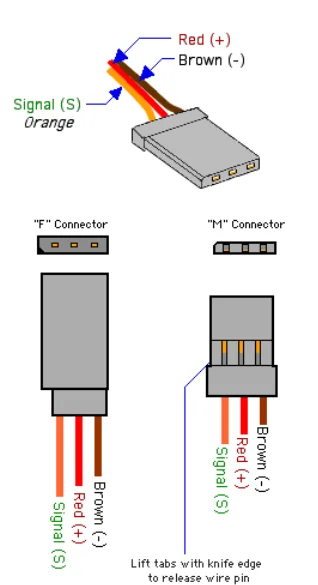

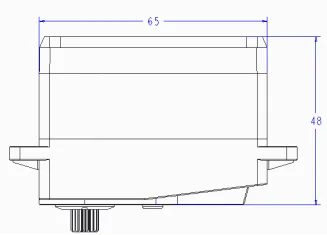

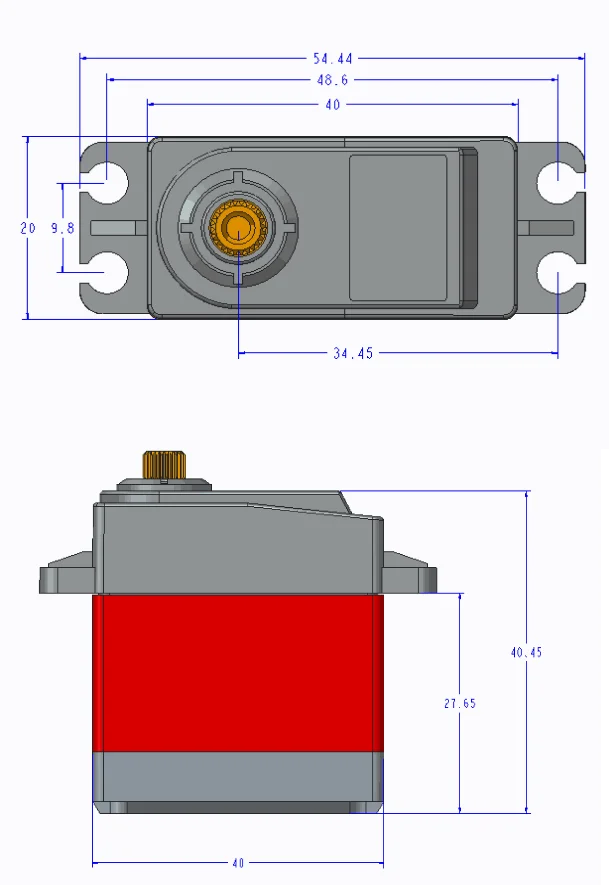

6.The Drawings: The Wire and plug:
