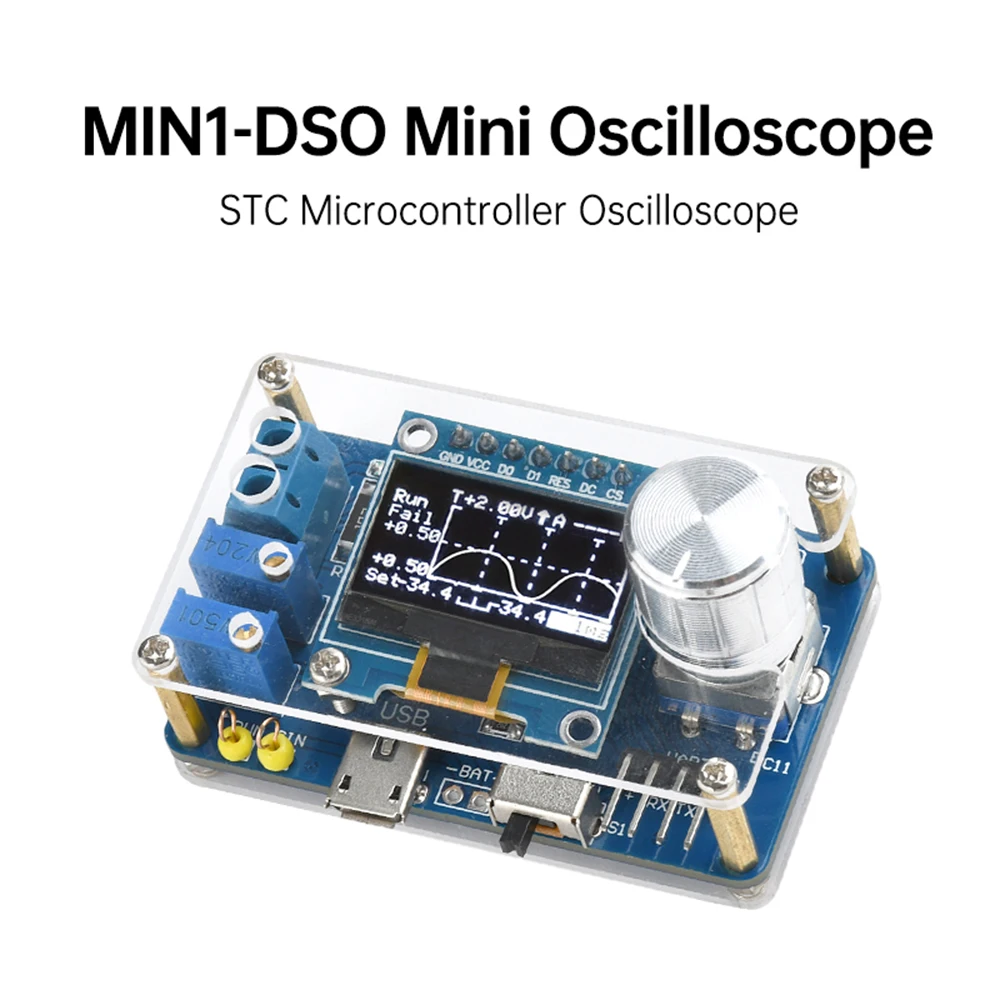

DIY Mini Digital Oscilloscope Kit STC8K8A Microcontroller Electronic Component Soldering Practice Loose Kit

Please refer to the video for the assembly steps of the oscilloscope kit. If you still have any usage issues, please contact our customer service and we will answer them as soon as possible~

DIY Mini Digital Oscilloscope Kit STC8K8A Microcontroller Electronic Component Soldering Practice Loose Kit

1. Indicator light: Usually the indicator light is on to indicate that sampling is running

2. There are three trigger modes: automatic mode, normal mode, and single mode

3. Trigger slope: The trigger slope determines whether the trigger point is on the rising or falling edge of the signal

4. Trigger level: For repetitive signals, the trigger level can make it display stably. For single-shot signals, the trigger level can capture

5. Save settings: When exiting the setting interface, all parameters of the setting interface and the main interface will be saved in the EEPROM

6. Waveform generator: PWM (PWM generator) and SIN (sine wave generator), adjust RP1 and RP2 to change the amplitude respectively

Power supply voltage: DC 5V (micro usb)

Voltage range: 0~30V (LSB needs to be adjusted)

Level sampling: 10kHz@100us/div

Sec/div: 500ms, 200ms, 100ms, 50ms, 20ms,

10ms, 5ms, 2ms, 1ms, 500us, 200us, 100us

Circuit board size: 57*35mm

Finished product size: 57*35*30mm

DIY oscilloscope parts*1
