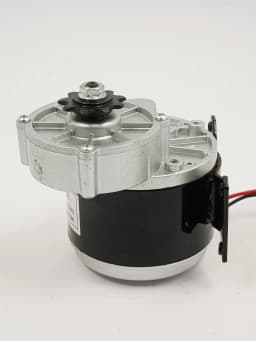

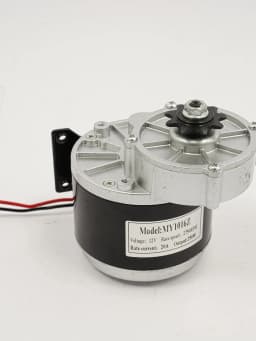

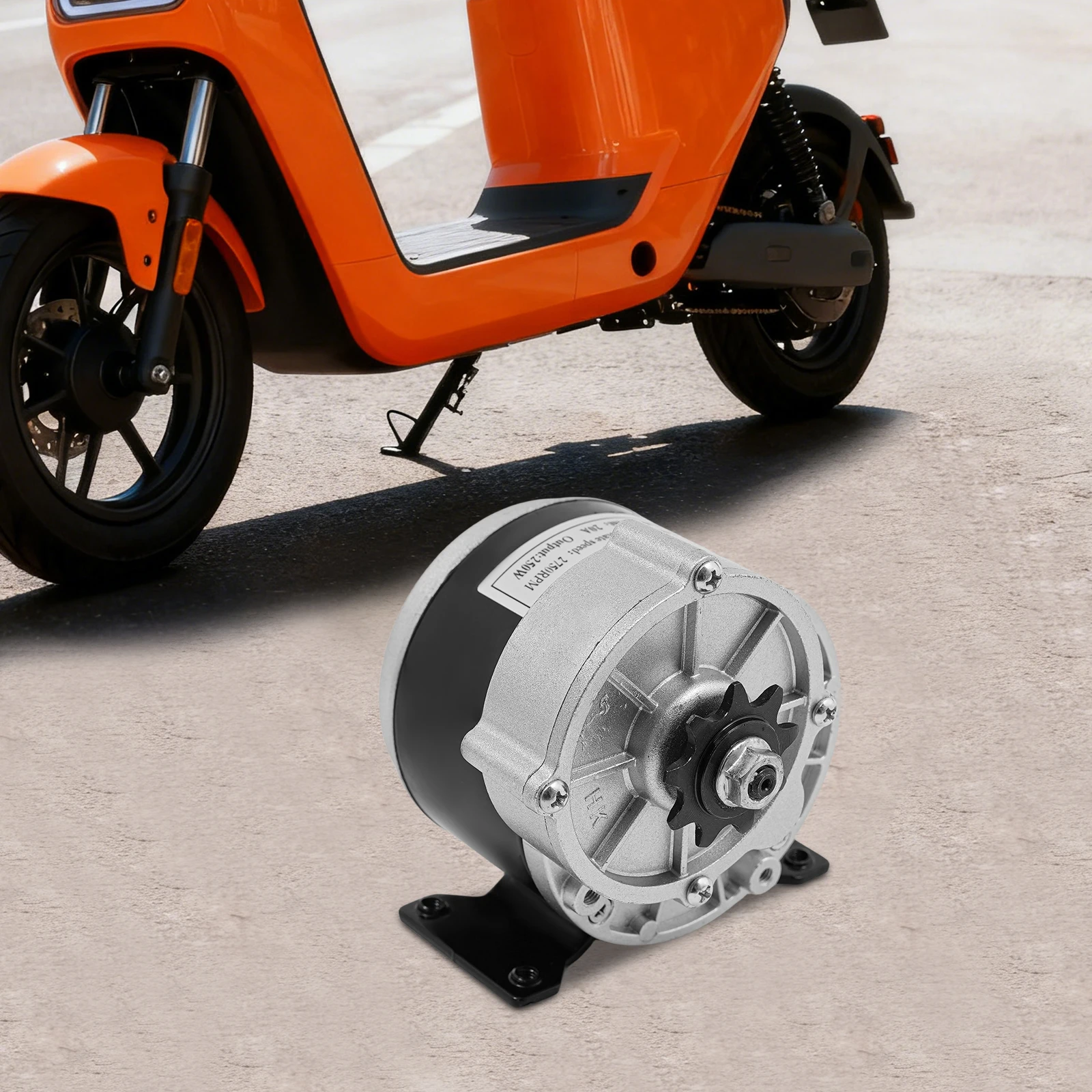

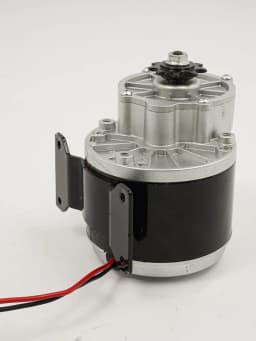

250W 12V Brushed DC Gear Reduction Motor Geared Speed Reducer Motor 2750RPM Electric Motor for E-bikes Scooters Electric Vehicle

250W 12V Brushed DC Gear Reduction Motor Geared Speed Reducer Motor 2750RPM Electric Motor for E-bikes Scooters Electric Vehicle

Description

Our 12V gear reduction electric motor can help you achieve high-efficiency deceleration for your e-bike. It comes with a sturdy iron casing and a 250W high-efficiency copper wire motor with the advantages of fast heat dissipation, long service life, and sturdiness. It adopts gear transmission to reduce the speed of the high-speed motor to realize the smooth starting and low-speed riding of the e-bike, which can bring users a more convenient and comfortable riding experience.

Key Features

🛡️High-quality Material: The product is made of iron, with high hardness, high-temperature resistance, and corrosion resistance, ensuring a long service life.

⚡Excellent Performance: The 250W pure copper brushed motor has a 2750rpm speed and high torque to effectively decelerate and withstand high loads.

🔄Thoughtful Design: The gear DC motor can be changed to rotate clockwise or counterclockwise by reversing the motor's power cord to increase flexibility and extend the life of the motor.

🏋️Large Load Capacity: Compared to high-speed motors, this gear motor produces greater low-end torque and can support a heavy load of up to 220 lbs, providing a more powerful operation.

🔇Smooth Operation: The pure copper brushed motor with low noise and a sturdy base makes the product operate more smoothly and quietly.

Details

✨Smooth Edges:The smooth and burr-free edges enhance the beauty of the product and better care for your skin when installing and cleaning it.

✨Long Power Cable: The long power cable adds convenience and extraordinary mobility when using and installing this motor.

Application

It's suitable for motorized bicycles, mopeds, bikes, pocket bikes, electric dirt bikes, scooters, e-bikes, electric vehicles, electric vehicle modifications, and several small mechanical equipment.

Specifications

Model: MY1016Z

Material: Iron, Pure Copper

Color: Black, Silver

Style: Modern

Shape: Round

Assembly Required: No

Voltage: 12V

Rate Speed: 2750RPM

Rate Current: 20A

Output: 250W

Reduction Ratio: About 9:1

Motor Load Capacity: About 100kg/220lbs

Gross Weight: 2.8kg/6.2lbs

Gear Diameter: 95mm/3.74inch

Mounting Foot Hole Spacing: 41mm/1.61inch
Product Size: 95*75*128mm/3.74*2.95*5.04inch
Package Size: 15*15*18cm/5.9*5.9*7.09in

Notes
1.Please note that if you need to adjust the speed, you need to use it with a controller (not included).
2.Please note that this product does not contain a cooling fan, please do not use in a small confined space.
3.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.
