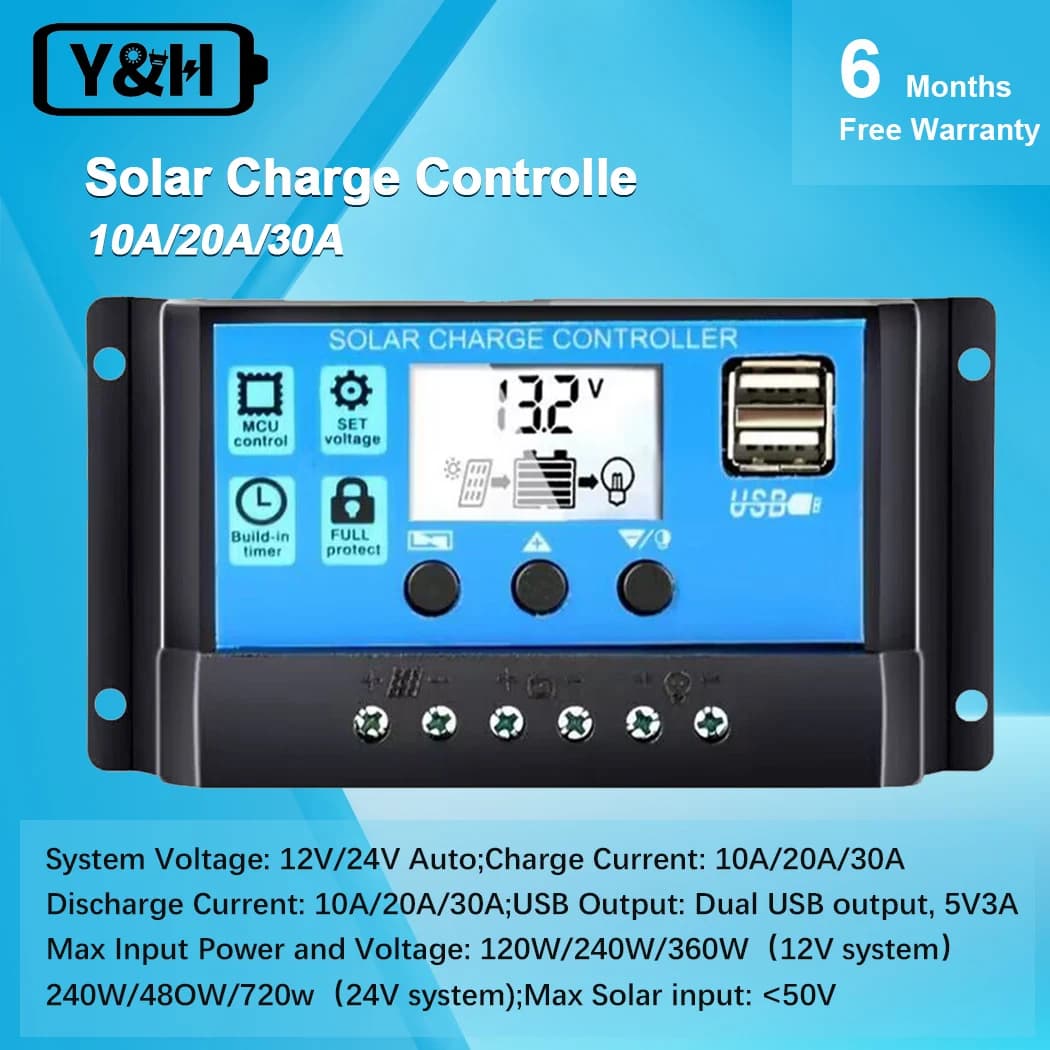

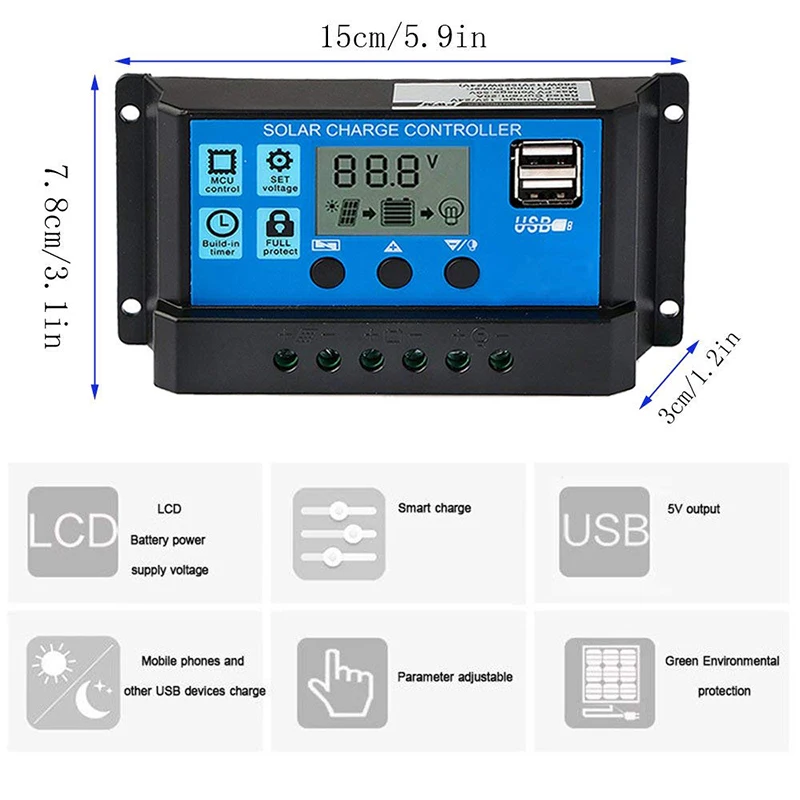

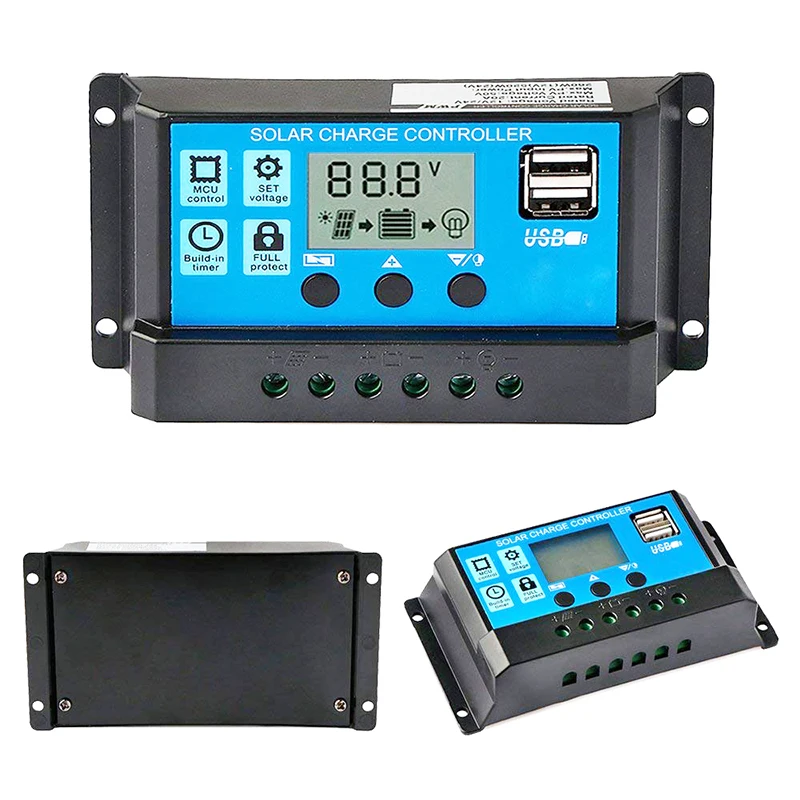

Regolatore solare 12V/24V 30A 20A 10A regolatore solare caricabatteria PWM Display LCD doppia uscita USB 5V

RBL-10A , Max Voc : 24V (12V), 48V (24V); Max Power: 120W (12V), 240W (24V)

RBL-20A , Max Voc : 24V (12V), 48V (24V); Max Power: 240W (12V), 480W (24V)

RBL-30A , Max Voc : 24V (12V), 48V (24V); Max Power: 360W (12V), 720W (24V)

RBL-40A , Max Voc : 24V (12V), 48V (24V); Max Power: 520W (12V), 1040W (24V)

RBL-50A , Max Voc : 24V (12V), 48V (24V); Max Power: 650W (12V), 1300W (24V)

RBL-60A , Max Voc : 24V (12V), 48V (24V); Max Power: 780W (12V), 1560W (24V)

Features

1.Build-in industrial micro controller.

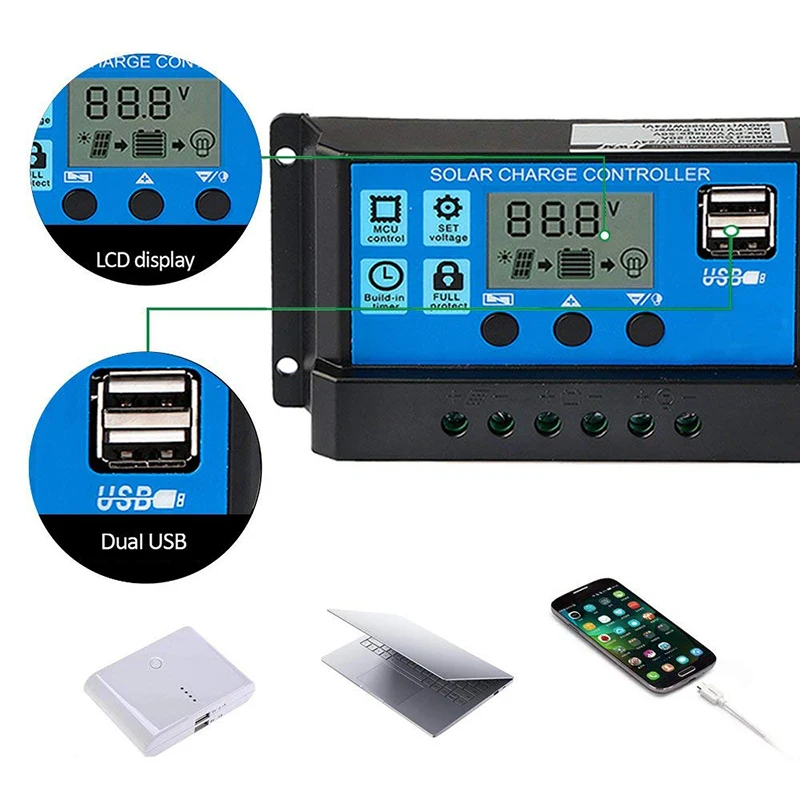

2.Big LCD display,all adjustable parameter.

3.Fully 4-stage PWM charge management.

4.Build-in short-circuit protection,open-circuit protection,reverse protection,over-load protection.

5.Dual mosfet Reverse current protection ,low heat production.

Product Specification:

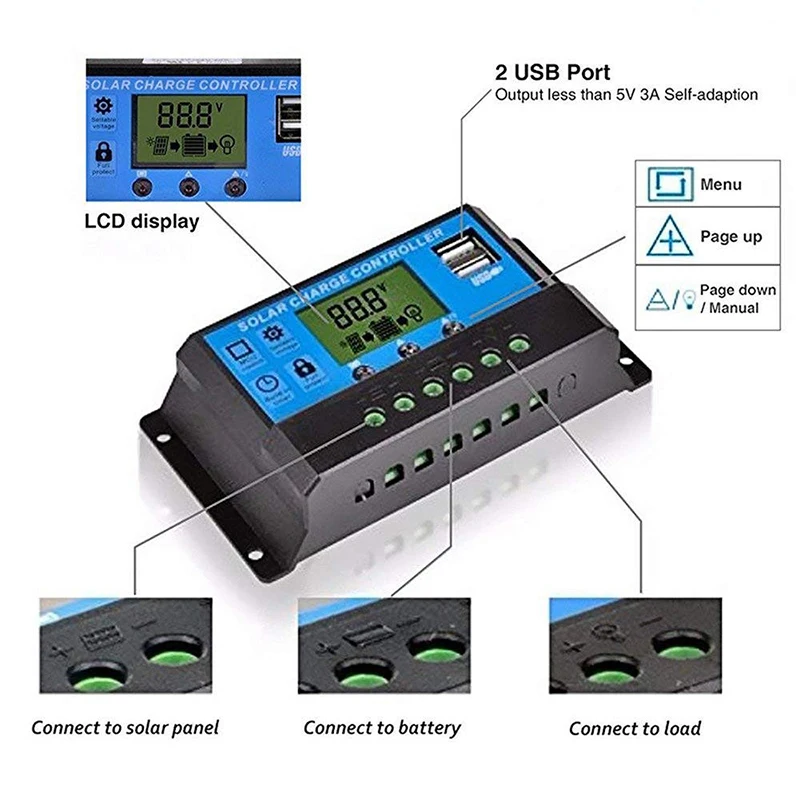

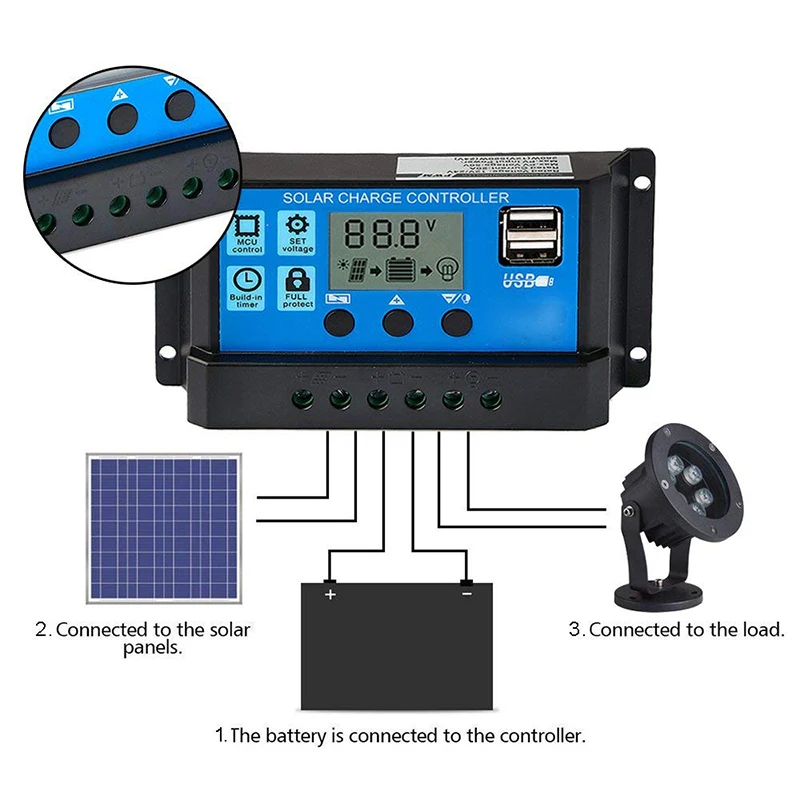

Connection

1.Connect the battery to the charge regulator - plus and minus.

2.Connect the photovoltaic module to the regulator - plus and minus.

3. Connect the consumer to the charge regulator - plus and minus.

The reverse order applies when deinstalling! An improper sequence order can damage the controller!
