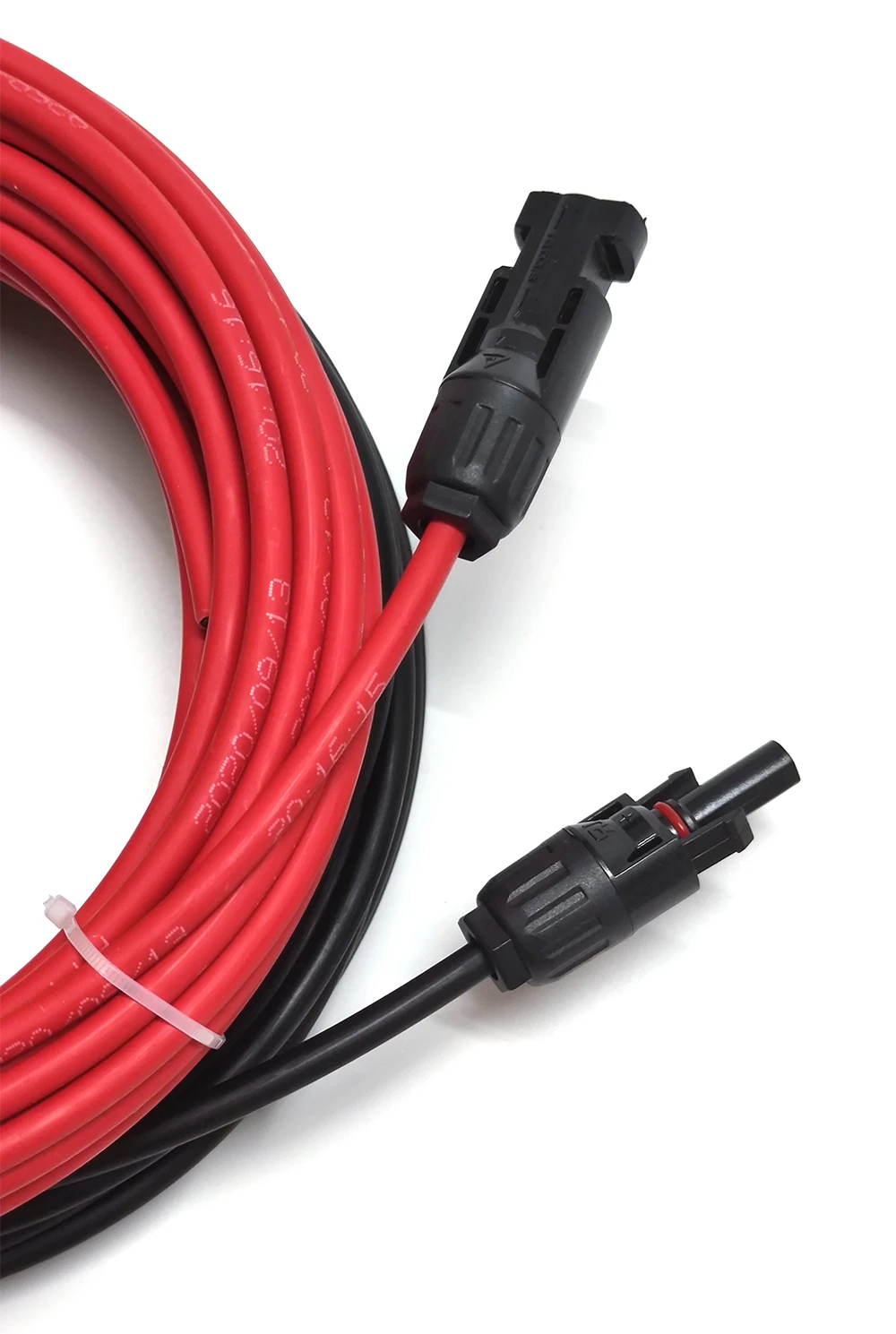

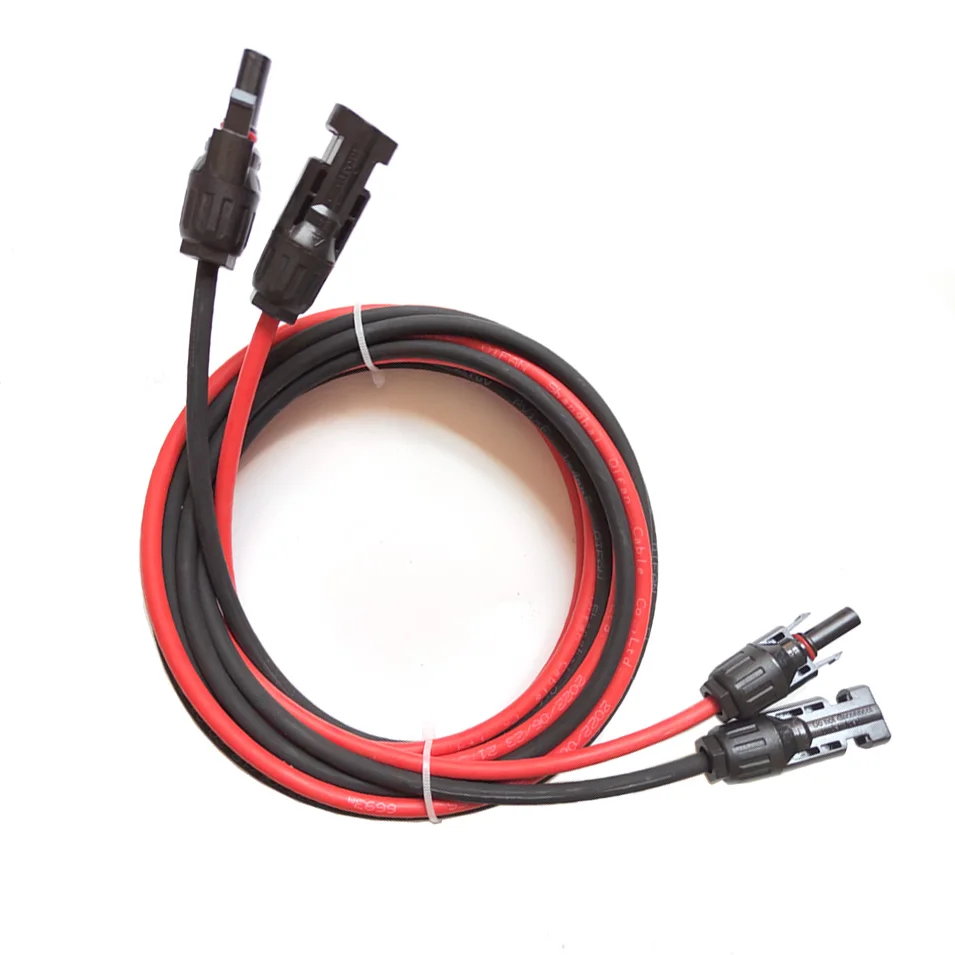

Solar Panel Extension Cable 6/4/2.5/1.5mm2 10/12/14/16AWG Black and Red Tinned-Copper Wire with Solar PV Cable Connectors
Cable size range : 6mm2(10AWG)/4mm2(12AWG)/2.5mm2(14AWG)/1.5mm2(16AWG)
1 pair solar cable with connector, red female, black
male , 6mm/4mm/2.5mm(10AWG/12AWG/14AWG)
1 Meters (3.28ft) / 2 Meters (6.56ft) / 3 Meters (9.84ft) / 5 Meters (16.4ft) / 10 Meters (32.8ft)
PV1-F Solar PV Cable
INTRODUCTION
specifications:1.5/2.5/4/6mm²
Rated voltage:AC 0.6/1KV,DC1.5KV
Color:Red / Black
Feature: Double insulation cover,TUV approved
Conductor material:stranded tin-plated ~ 99.95% oxygen-free copper
Outer Sheath:Halogen-free low-smoke polyolefin(XLPO)
Inner Insulation:Halogen-free low-smoke polyolefin(XLPO)
Service life:25 years (-40 ℃ +90 ℃)
Application:Indoor and outdoor solar installations
Fire rating:UL94-V0
Seller declaration: This item is double-sheathed cable, which is not as soft as single-sheathed cable and silicone cable, please pay attention to the distinction
Specification
Rate voltage: AC 0.6/1KV,DC1.5KV
Rate current :28A ( 2.5MM2 ) 36A ( 4MM2 ) 48A( 6MM2 )
Safety Class: Ⅱ
Protection Degree : IP67
Locking system: Snap in
Protection degree: IP67
Insulation material: PPO + PA
Contact Material : Copper cn , Plate with nickel sn
Contact resistance: ≤0.5mΩ
Insulation resistance: >500mΩ
Cable outer diameter : Φ5mm ～Φ 7mm
