16Modes Flow Light KEY Control TYPEC/battery Powered LED Sequential lamp Rotational, breathing, flashlight Model Lighting Effect

16-Mode flow light LED Sequential Light | CR2032 or Type-C Powered | Model Lighting Effect Module

Note: We will ship according to the version and color you have chosen

Power Options:

Version A: CR2032 lithium coin cell (3V)

Note: Batteries may not be at full capacity (typically backup battery grade)

Version B: Type-C 5V DC input

⚠️ CRITICAL WARNING: Standard 5V chargers only - fast chargers will damage IC

Product Description

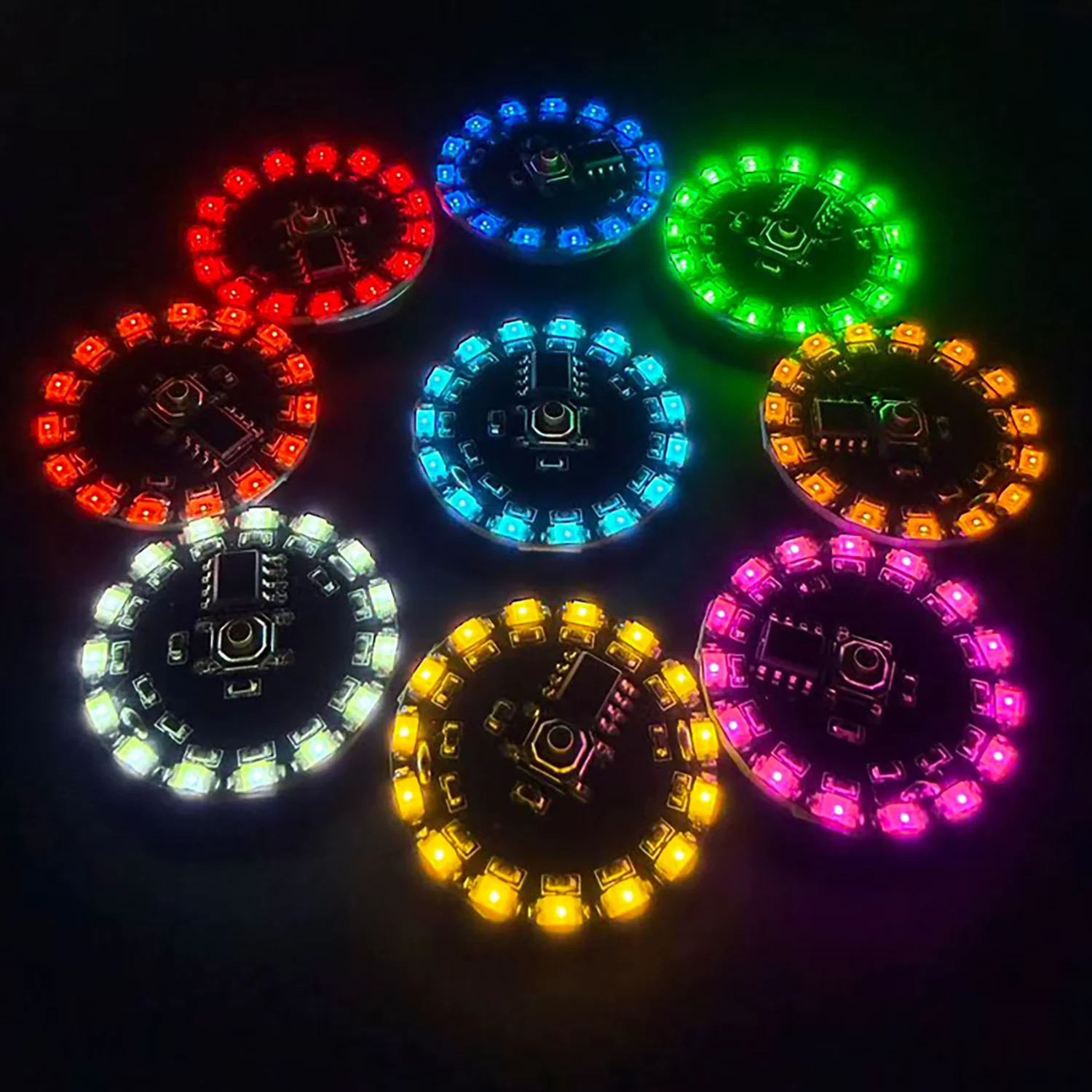

Compact circular LED lighting module featuring 16 programmable lighting effects with memory function. Available in two power versions (CR2032 battery or Type-C 5V), this 26mm diameter module offers versatile lighting patterns for models, decorations, and DIY projects. Simple push-button control with pattern memory makes installation and operation effortless.

Key Features

16 Lighting Effects: Rotational, breathing, random, and static patterns

Dual Power Options:

CR2032 battery version (portable, wireless)

Type-C 5V version (continuous powered)

Memory Function: Remembers last used pattern after power cycle

Compact Size: 26mm diameter circular PCB

Simple Control: Single button for pattern selection and power toggling

Visual Effects: Directional rotation, variable speed, breathing, and random patterns

Technical Specifications

Model: 16-Mode Sequential LED Light

Diameter: 26mm circular PCB

Power Options:

Version A: CR2032 lithium coin cell (3V)

Note: Batteries may not be at full capacity (typically backup battery grade)

Version B: Type-C 5V DC input

⚠️ CRITICAL WARNING: Standard 5V chargers only - fast chargers will damage IC

LED Configuration: Multiple LEDs arranged in circular pattern

Control Interface: Single push-button

Memory: Last pattern saved during power loss

⚠️ Power Supply Warnings

Type-C Version:

Use only standard 5V chargers

Fast chargers (9V/12V) will destroy the circuit

Damage from improper chargers is user responsibility

CR2032 Version:

Batteries may arrive with partial charge (typical for backup batteries)

Replace with fresh CR2032 for optimal performance

16 Lighting Modes

Rotational Patterns:

Slow Counterclockwise Rotation

Medium Counterclockwise Rotation

Fast Counterclockwise Rotation

Slow Clockwise Rotation

Medium Clockwise Rotation

Fast Clockwise Rotation

Variable Speed Alternating Rotation

Variable Speed Counterclockwise Rotation

Variable Speed Clockwise Rotation

Special Effects:

10. Single LED Chase (enter & exit rotation)

11. Full Rotation Light & Extinguish

12. Breathing Effect (smooth brightness pulsing)

13. Random LED Activation

14. All LEDs On (constant illumination)

15. Flashing (all LEDs synchronized blink)

16. All LEDs Off

Operation Guide

Basic Control:

Short Press: Cycle through 16 lighting modes

Long Press: Toggle power on/off

Memory: Last selected mode automatically recalled when powered on

Power Management:

CR2032 Version:

Install fresh CR2032 battery (observe polarity)

Typical battery life: 10-40 hours depending on pattern

Type-C Version:

Connect to standard 5V USB power source

Ensure charger output is exactly 5V (no fast charging)

Installation Tips:

Mounting: Can be attached with adhesive or small screws

Visibility: Consider transparent or diffusing covers for best effect

Wiring: Type-C version requires secure 5V connection

Heat Management: Minimal heat generation during normal operation

Applications

Scale model lighting (cars, aircraft, ships)

DIY craft and decoration projects

Costume and cosplay lighting

Educational electronics projects

Display case illumination

Special effects for photography

Package Includes

LED sequential light module
