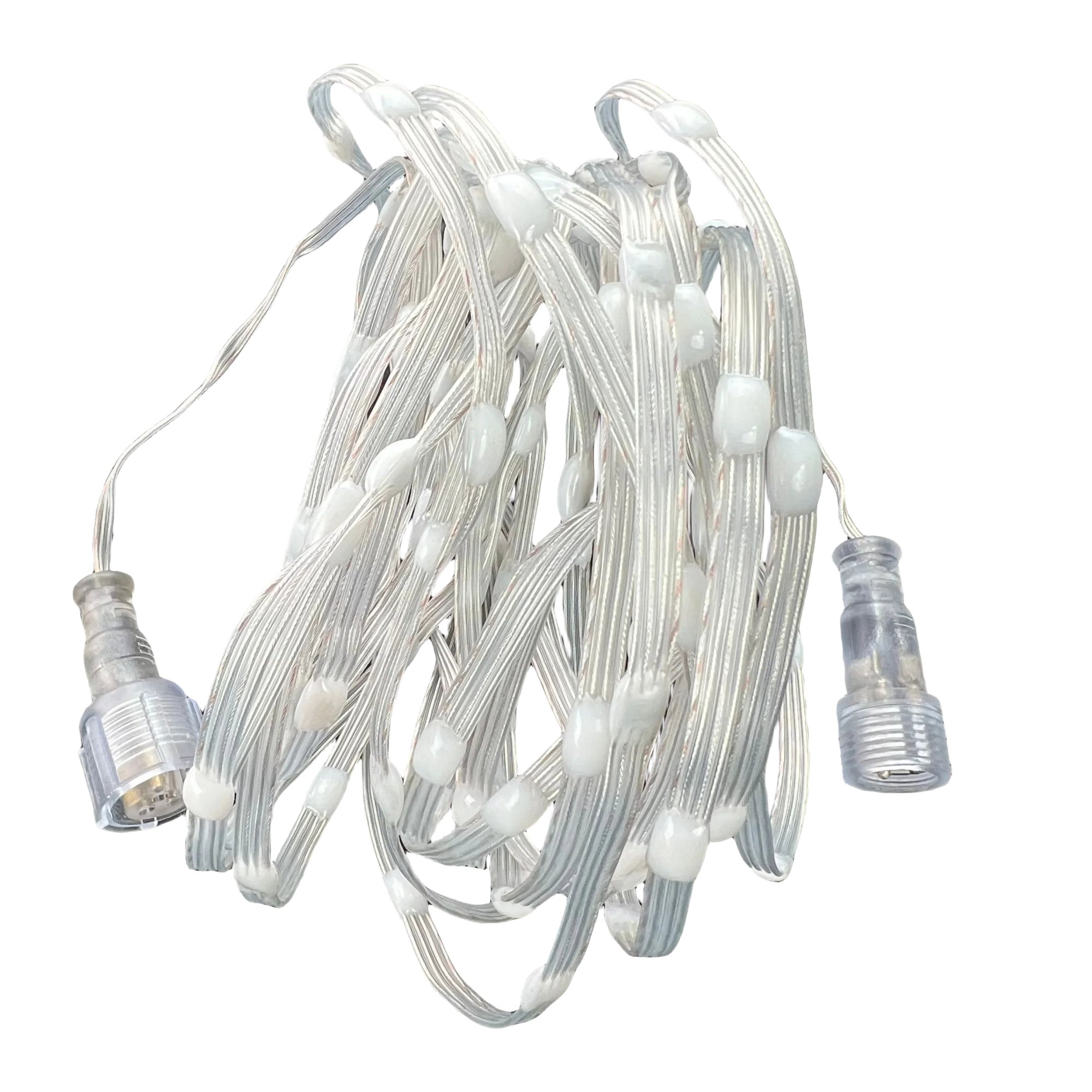

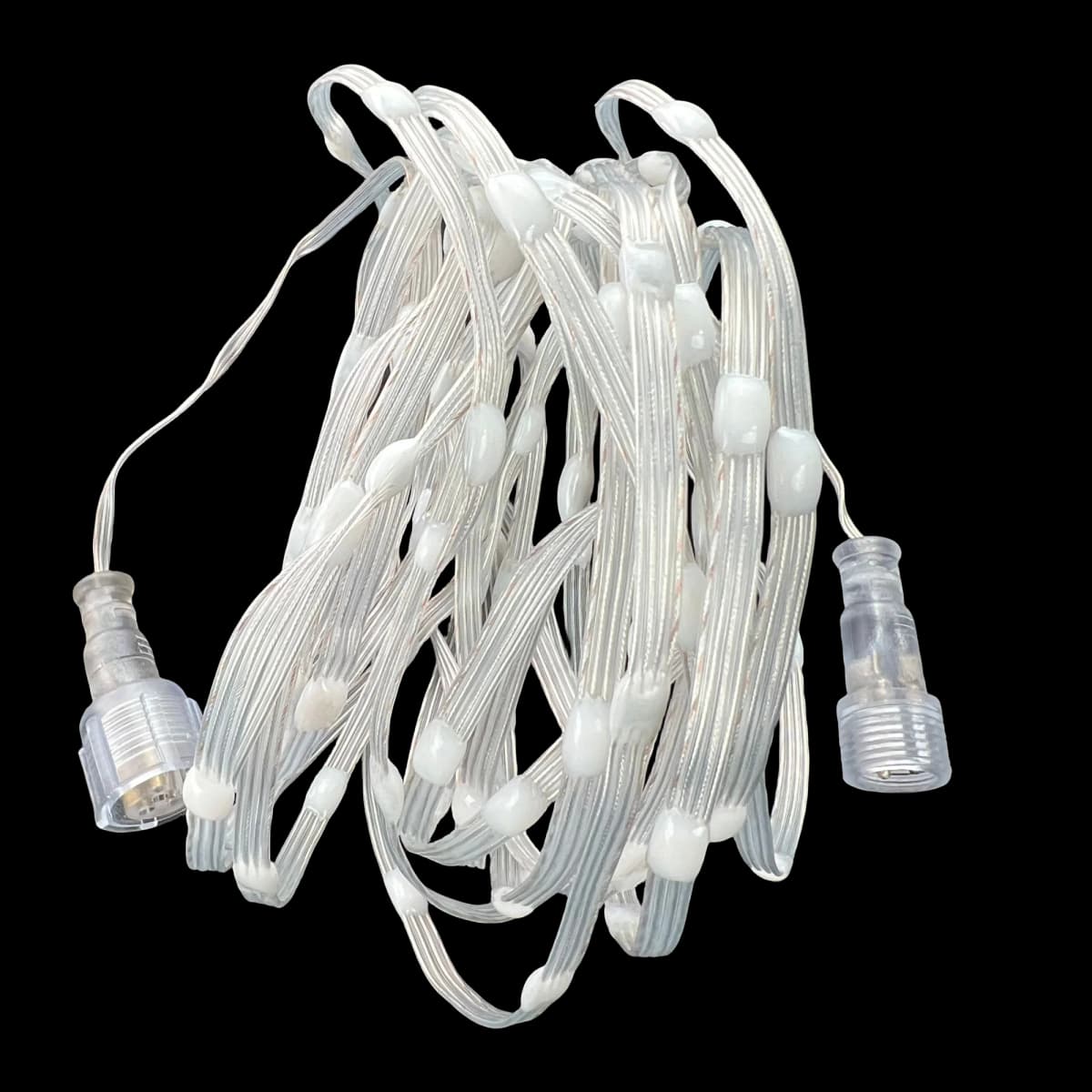

DC5V 12V WS2815/WS2818 Pebble Seed LED Pixel String Light RGB Addressable IP67 Clear Wire 5cm/10cm Pitch 50ct/100ct/200ct Long

DC5V 12V WS2815/WS2818 Pebble Seed LED Pixel String Light RGB Addressable IP67 Clear Wire 5cm/10cm Pitch 50ct/100ct/200ct Long 4 Core xConnect/13.5mm/4Pin JST SM Connector

50ct with 5cm pitch=2.5m long;   50ct with 10cm pitch  =5m long

100ct with 5cm pitch=5m long;    100ct with 10cm pitch=10m long

200ct with 5cm pitch =10m long;  200ct with 10cm pitch =20m long

Working Input Voltage:                        DC5V or DC12V

Current/Pixel:                                      5mA(5V); 8mA(12V)

Output Power:                                     0.1W/pcs led.

Emitted Color:                                     WS2818/WS2815 RGB IC,Dual Signal addressable RGB full color

Color Order:                                        5V: G-R-B;  12V: R-G-B

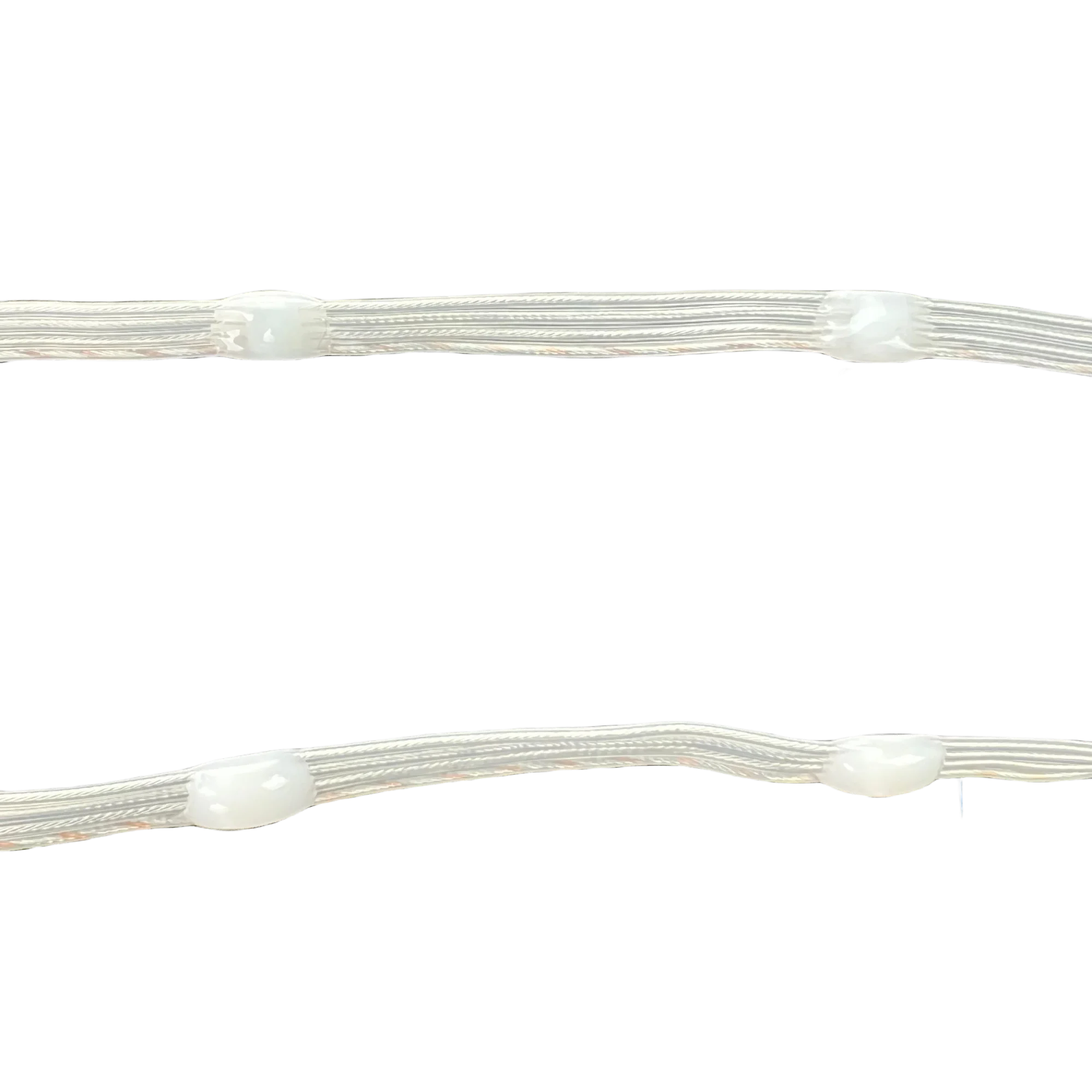

LED Space:                                         2cm/2.5cm 5cm/10cm spacing

LED quantity:                                       one LED as one pixel(addressable);total 50ct/100ct/200ct/string

Power injection:                                   suggest to add power every 300 pixels

Wire color:                                           24AWG all Clear 4PIN wire (VCC+,DATA,Backup DATA,GND)

waterproof pigtails type:

4 core xConnect/13.5mm(ray wu) series Clear color waterproof male and female connectors at ends

https://www.aliexpress.us/item/3256806108546940.html

4Pin JST SM connectors:

https://www.aliexpress.us/item/2251801434623831.html

input end:                 0.2m long 4Pin female connector with clear flat wire

output end:               0.2m long 4Pin male connector with clear flat wire

standard 4 core waterproof Pigtails pinout diagram for our pixel lights:

for pigtails:

Brown:- 5/12v +

Yellow: data

Green: back up data

Blue: GND

Input end: male connector(screw end with bare pin)

Output end: female connector(with hole)

Warm tips: please joint the two data wires together to controller's DATA port,

                   do not connect the backup wire to GND
