EPOMAKER HE80 75% US QWERTY Layout Hot-Swap Creamy Gasket Wired Hall Effect Magnetic Mechanical Keyboard DKS SOCD for PC/Mac

EPOMAKER HE80 75% US QWERTY Layout Hot-Swap Creamy Gasket Wired Hall Effect Magnetic Mechanical Keyboard DKS SOCD for PC/Mac

The HE80 Hall Effect keyboard combines adjustable 0.02mm actuation and creamy gasket-mount design with ultra-low latency, delivering precise, quiet keystrokes for competitive gaming and ergonomic comfort.

-75% Compact Layout with 82 Keys

-Gaming Keyboard with Hall Effect Switch

-8K Polling & 32K Scan Rate (0.125ms Ultra-Low Latency)

-Per-key Programmable RGB Backlight

-Creamy Gasket-Mount Design with 4 Layers of Sound -Dampening Materials

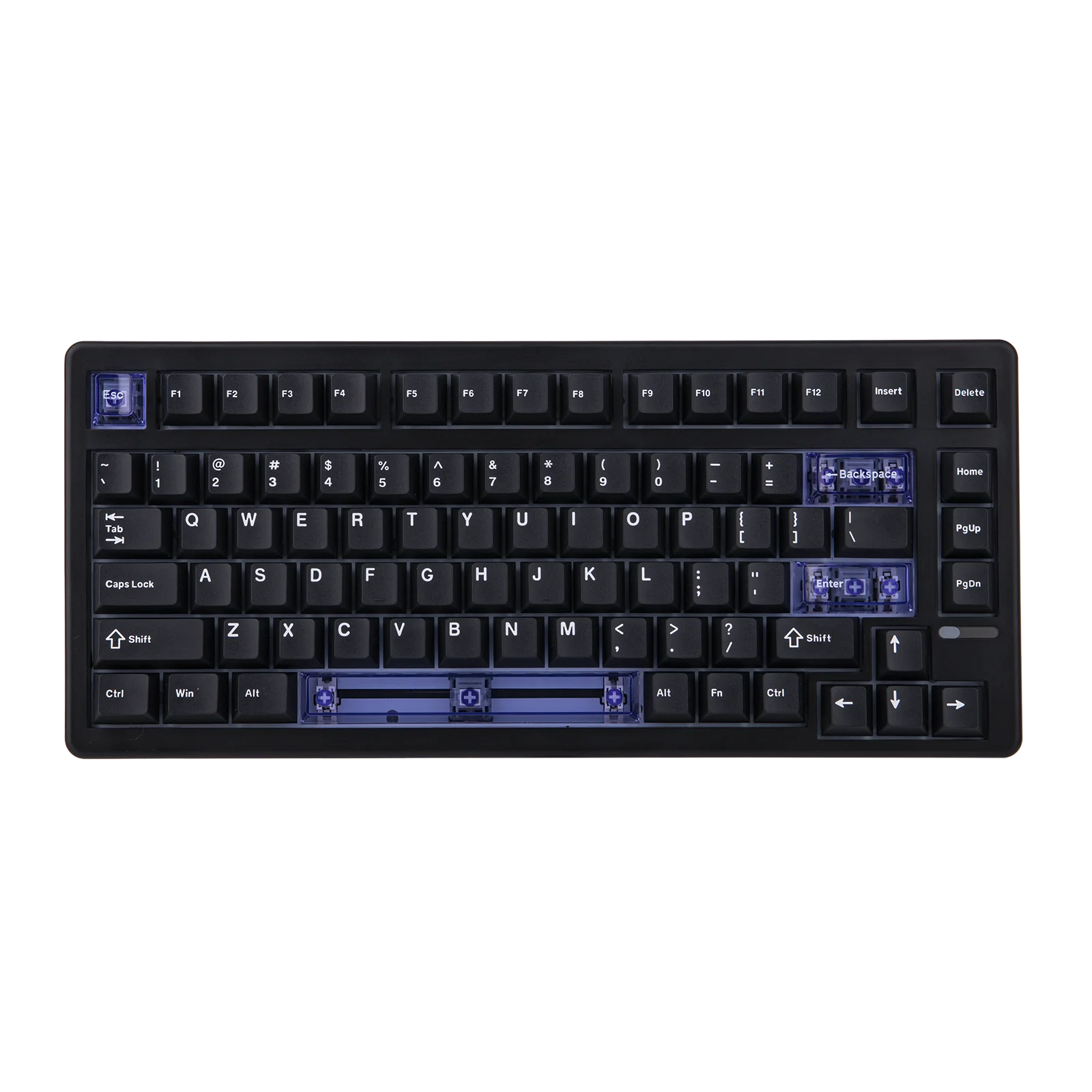

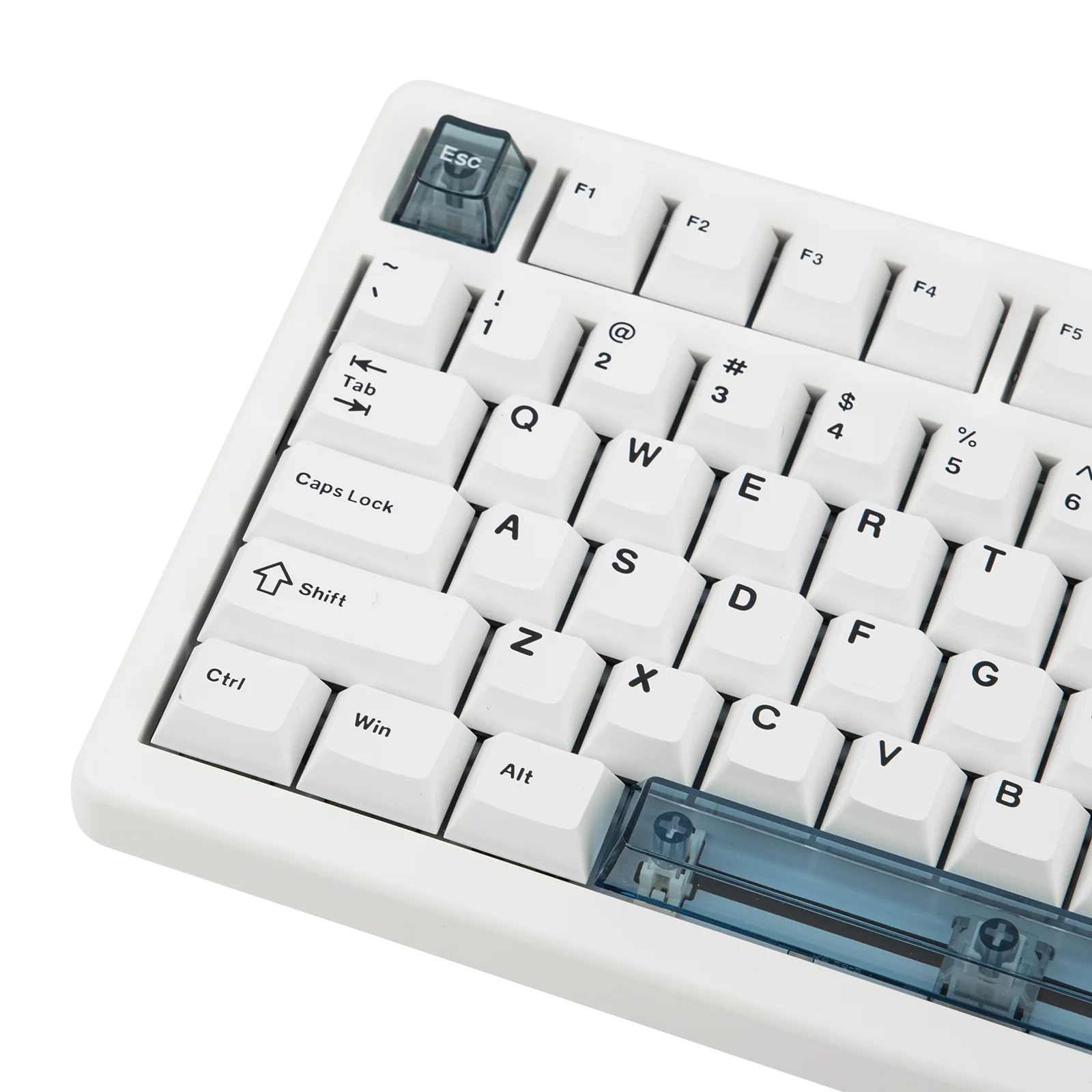

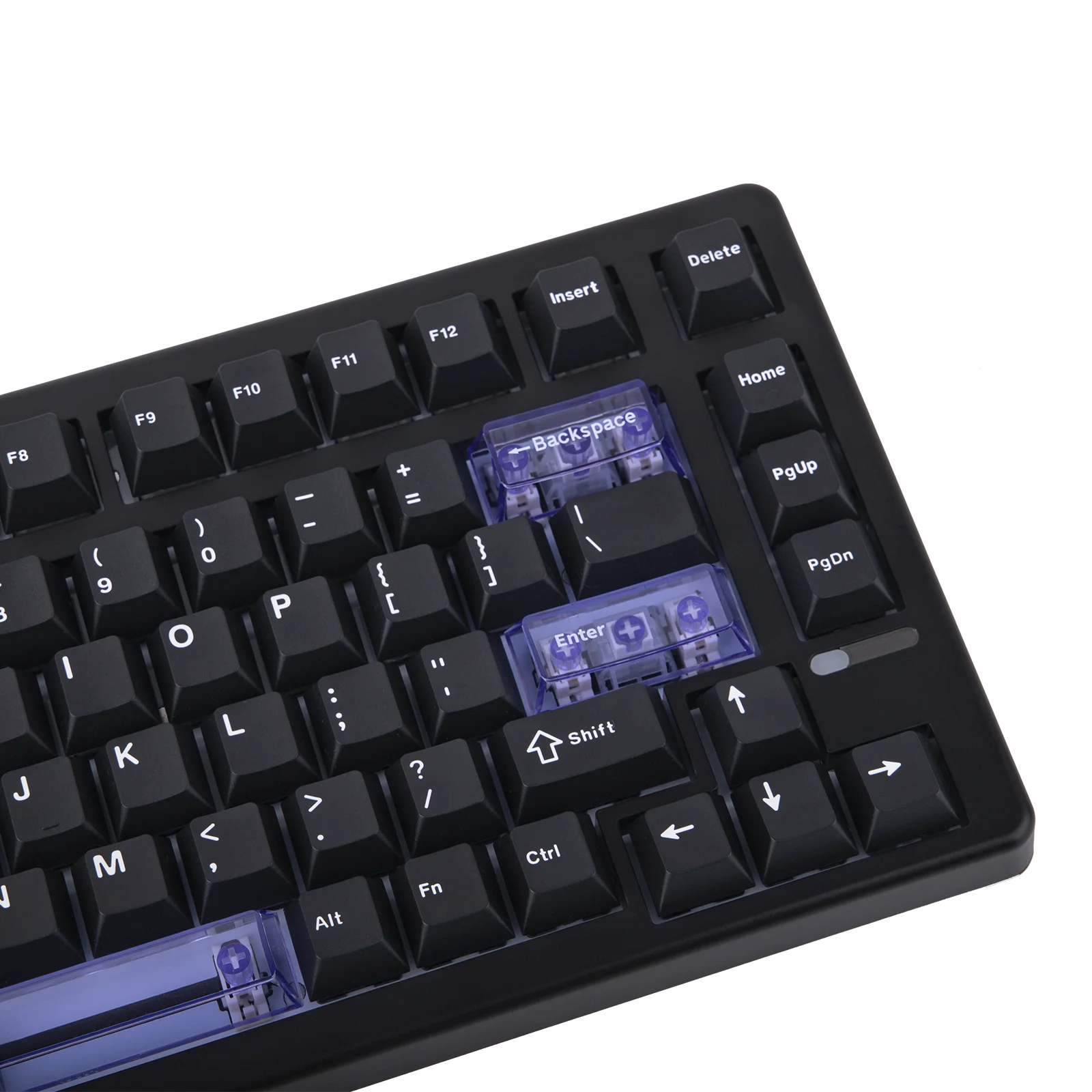

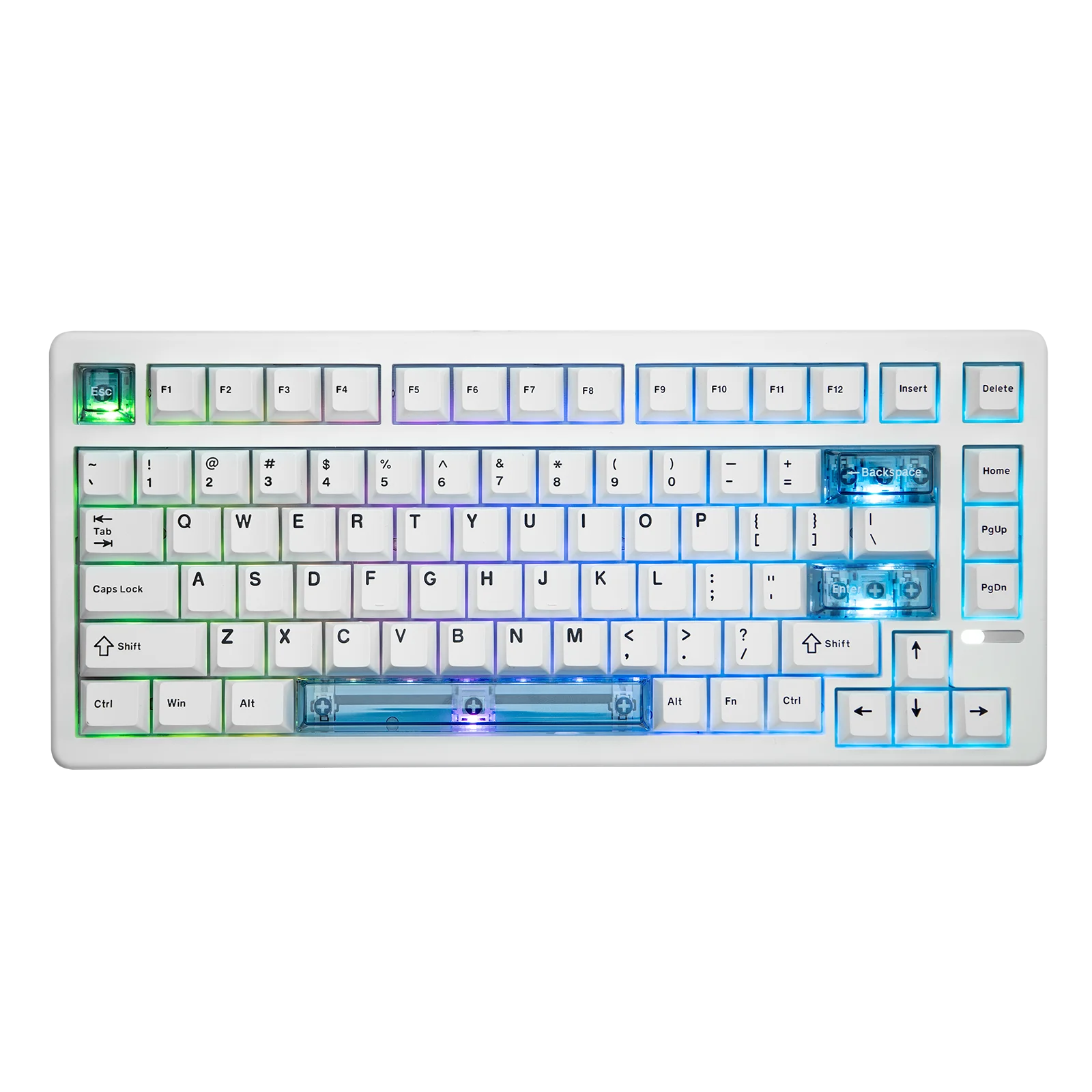

75% Functional Layout

Maximize desk space for optimized desk space usage and enhanced typing comfort. With 82 lubed keys, the HE80 wired keyboard features essential arrow keys and function keys but comes in compact size, offering more space for mouse movement for gaming and work efficiency.

0.02mm Fast Trigger with Zero Dead Zone

Glide through complex patterns with unmatched fluidity and precision, as this hall effect keyboard handles complex maneuvers with rapid speed and accuracy. With trigger and release travel adjustable per 0.02mm, the slightest flick of your finger delivers precise execution of commands

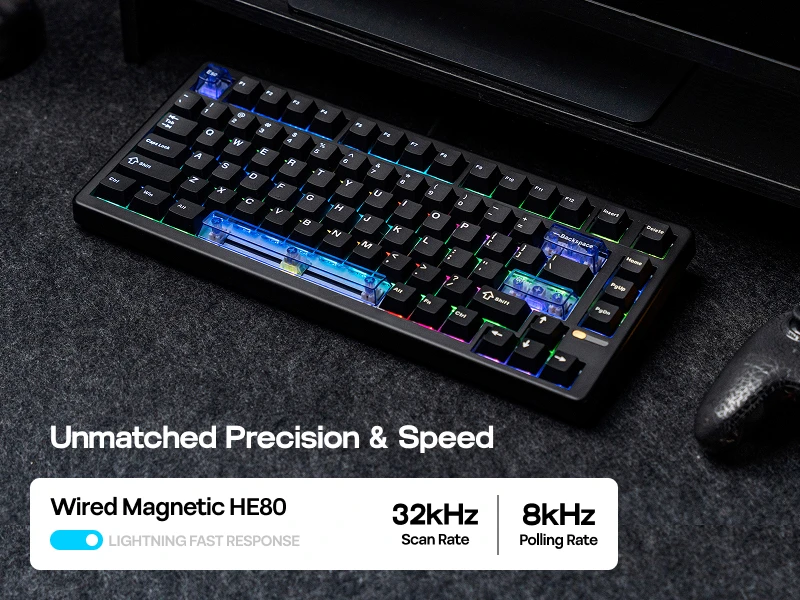

8000 Polling & 32000 Scan Rate

Featuring top-tier chips and well-tuned magnetic switch, the HE80 magnetic keyboard promises 8k Hz polling with 32K scan rate and 128K single key scans (125 to 8k adjustable). As hall effect switches trigger without physical contact between switch and PCB, the latency is significantly reduced to a mere 0.125ms, 8x quicker than conventional 1k polling keyboard.

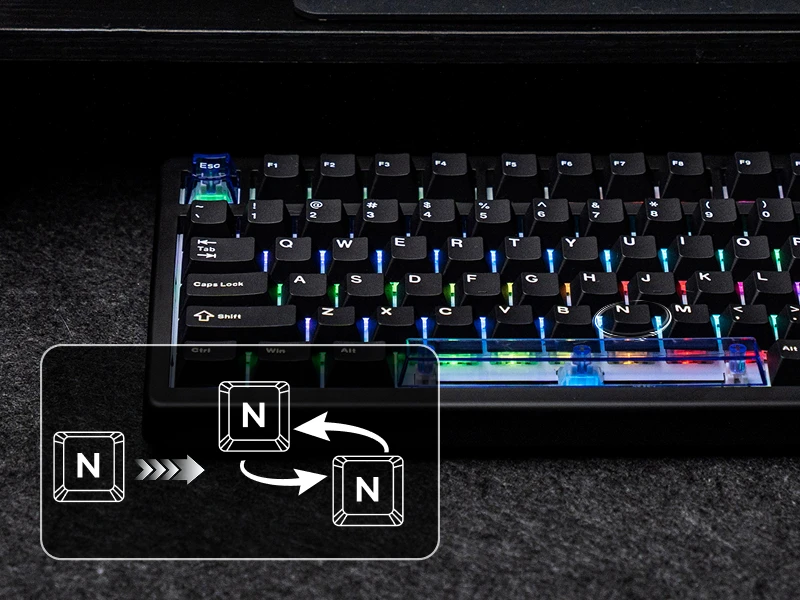

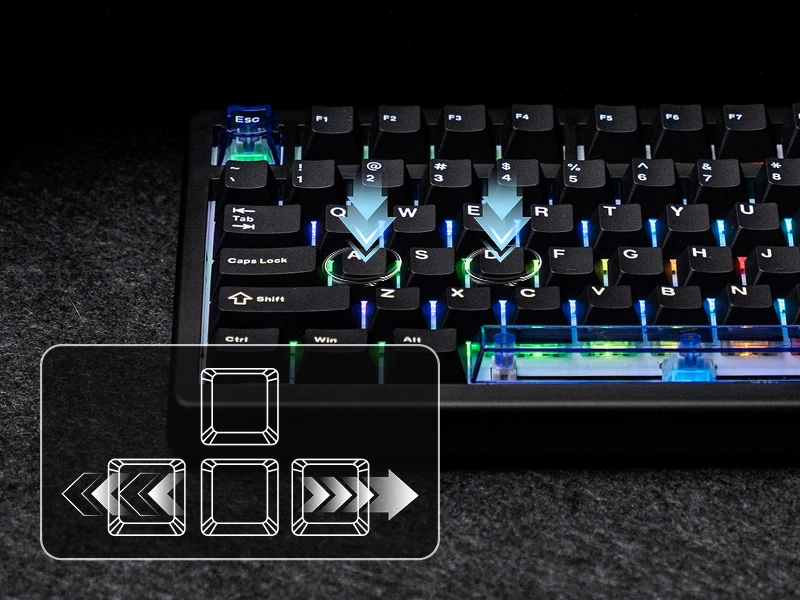

Snap Key (SOCD) & Dynamic Keystroke (DKS)

SOCD prioritizes your latest key press of opposite directions, ensures your movement in gaming is executed in-time without your character freeze on the spot. Program a single key with up to 4 functions depending on trigger or release travel with DKS, or 2 functions per tap or hold, for seamless and fast action in game.

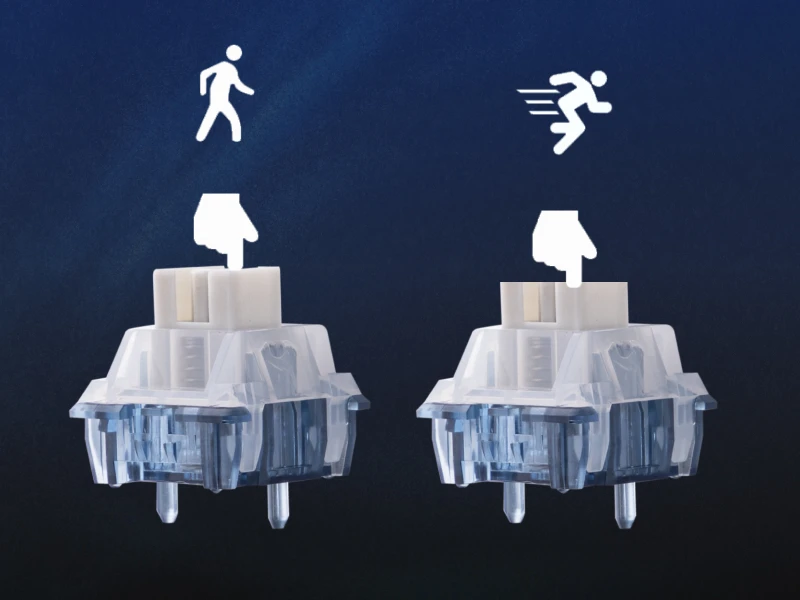

Adjustable Actuation and End Travel

Every millisecond counts in professional gaming, with programmable actuation and release travel, press or lift your fingers for only 0.02mm to active or stop action, giving you the edge you needed for fast-paced gaming, such as FPS, MOBA, or Rhythm games

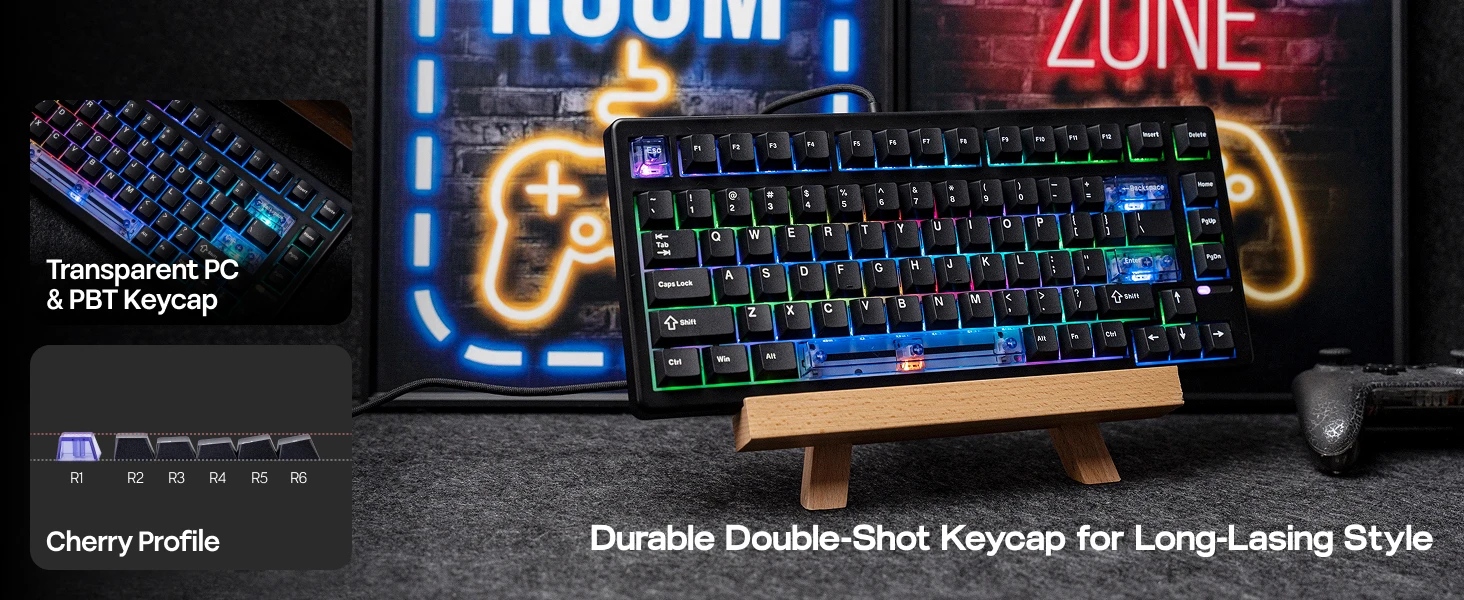

Double-Shot PBT Keycaps

Crafted with double-shot molding, the legends and characters on HE80 keyboard remain vibrant and clear against daily wear. The usage of premium PBT material keeps the HE80 keyboard in premium condition without getting greasy or overly shining, maintain its sleek, minimalist modern design in all black.

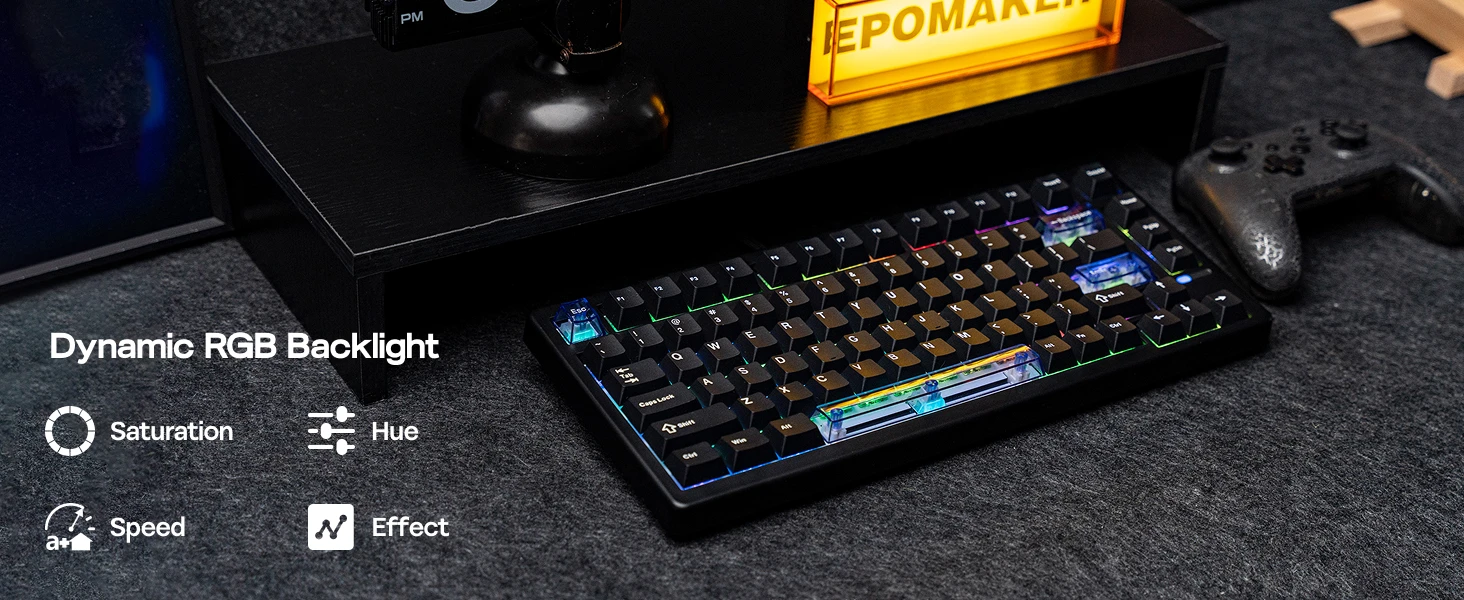

Programmable RGB Backlight

Offering dozens of pre-saved light effects and per-key customizable light patterns, the HE80 RGB keyboard offers personalization and stunning typing joy. Adjustable in color, saturation, tune, brightness and light speed, get creative with the south-facing backlight of HE80 for static lights in productive night, or immersive dynamic light that dances as your finger goes

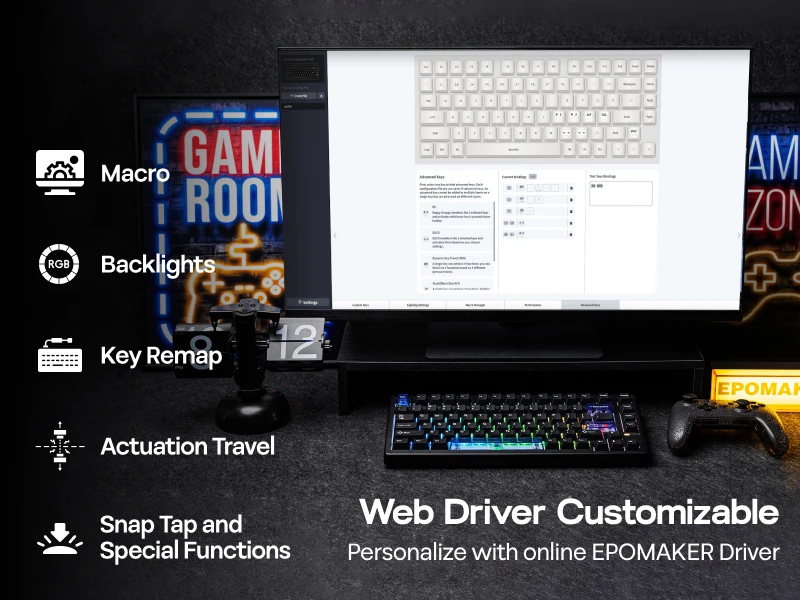

Online EPOMAKER Driver

Customize key functions, actuation travel, macro or backlight across devices, OS system and space, with the chrome-based web software of HE80 that saves you the hassle of download. Experience with SOCD, DKS, MT and RT functions, design personalized backlight effect, tailor keyboard sensitivity or record macro, all is available with real-time visual feedback

Specifications:

Brand: EPOMAKER

Model: HE80 Wired Hall Effect Keyboard

Layout: 75% US Layout, QWERTY

Number of Keys: 82 Keys

Battery: No Battery

Connectivity: Wired Only (USB A to USB C)

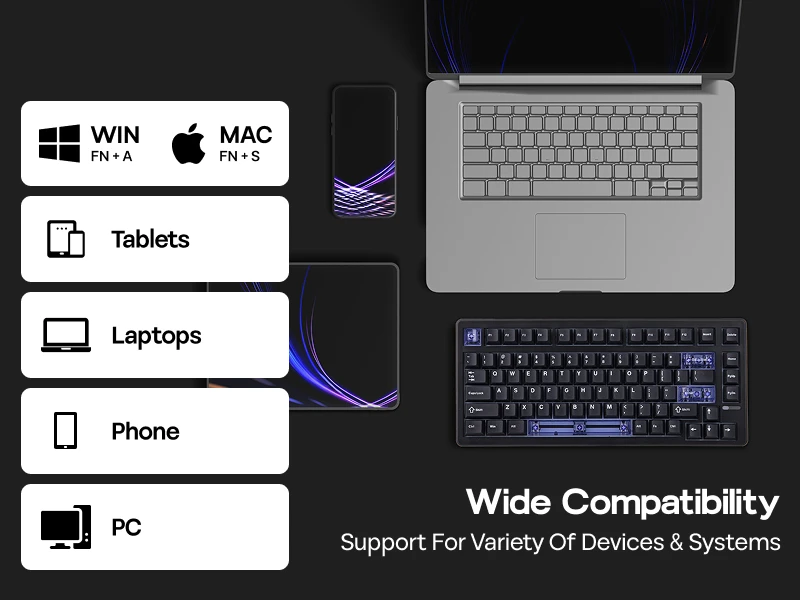

Compatibility: Mac/WIN/Android/Linux/PS4/5/Switch

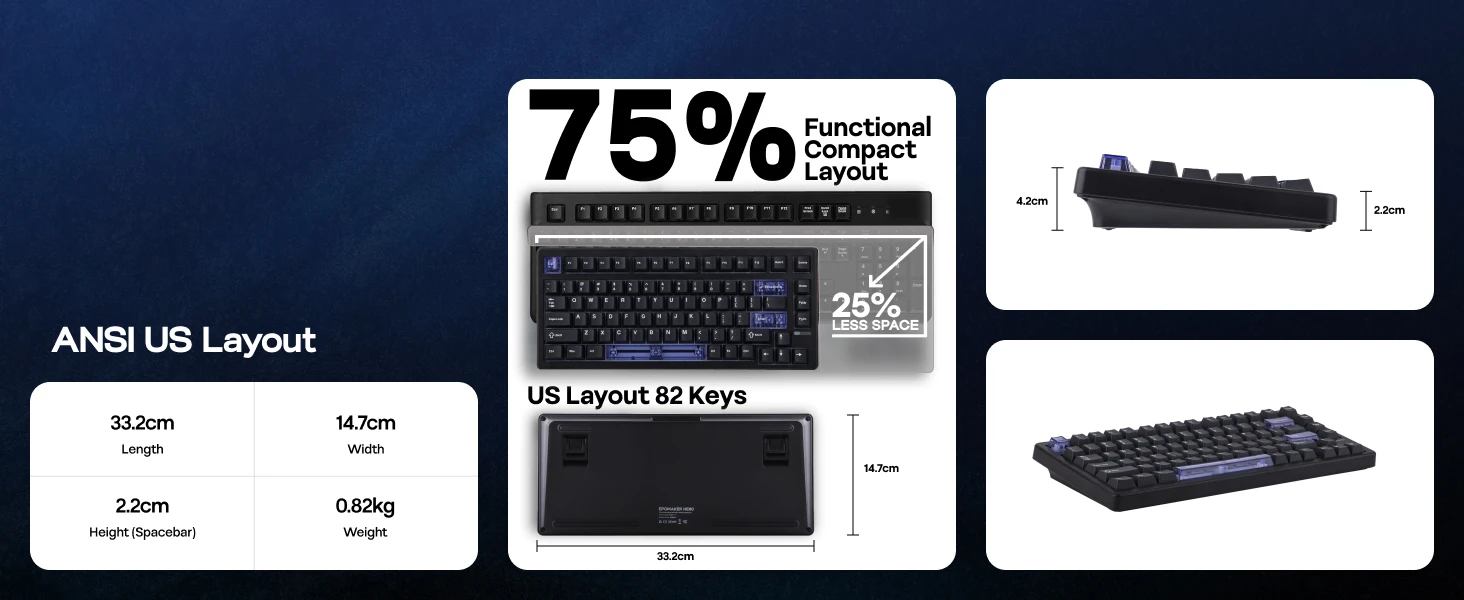

Keyboard Dimensions: 33.2*14.6*4.2cm

Keyboard Weight: 0.83kg

Front Height: 2.2cm

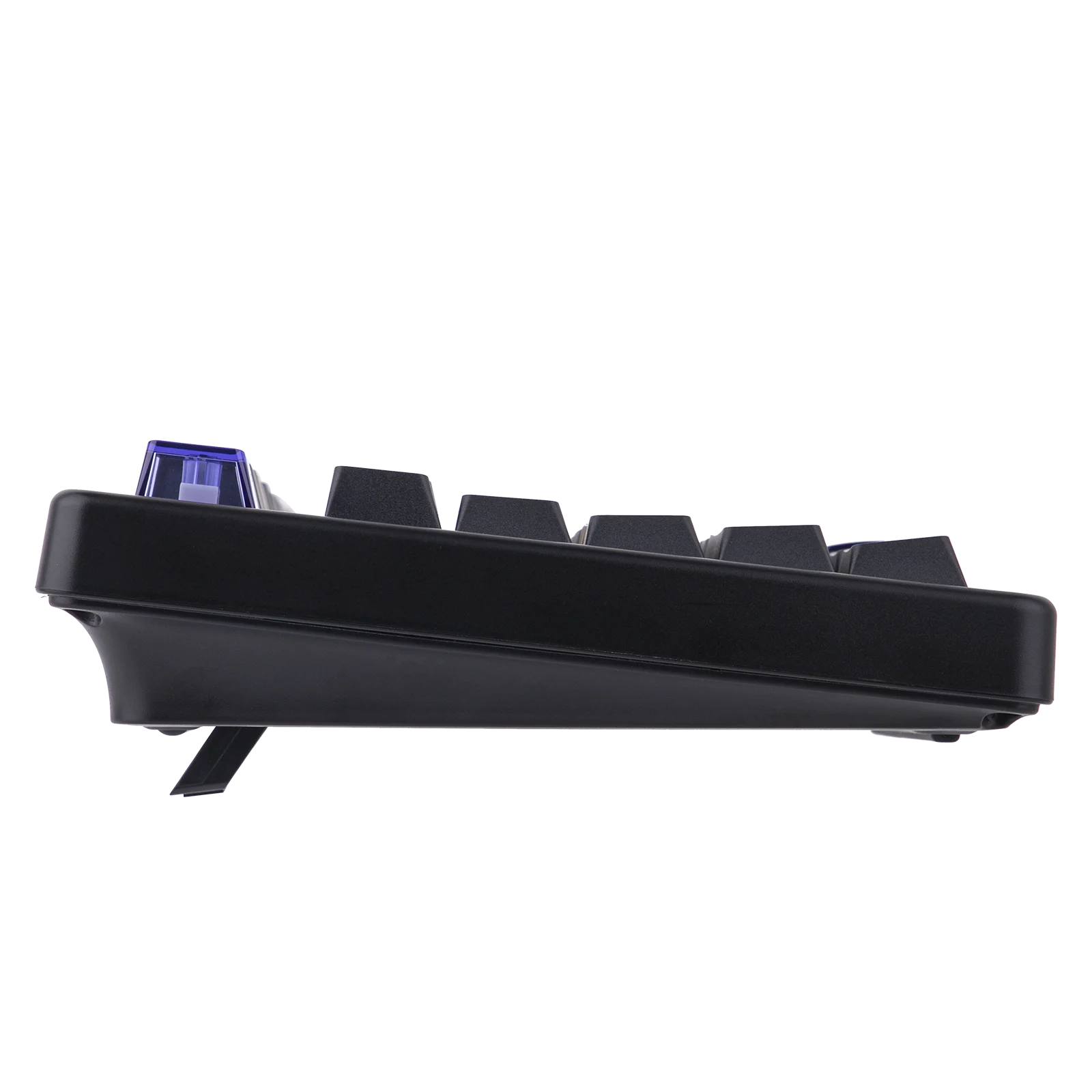

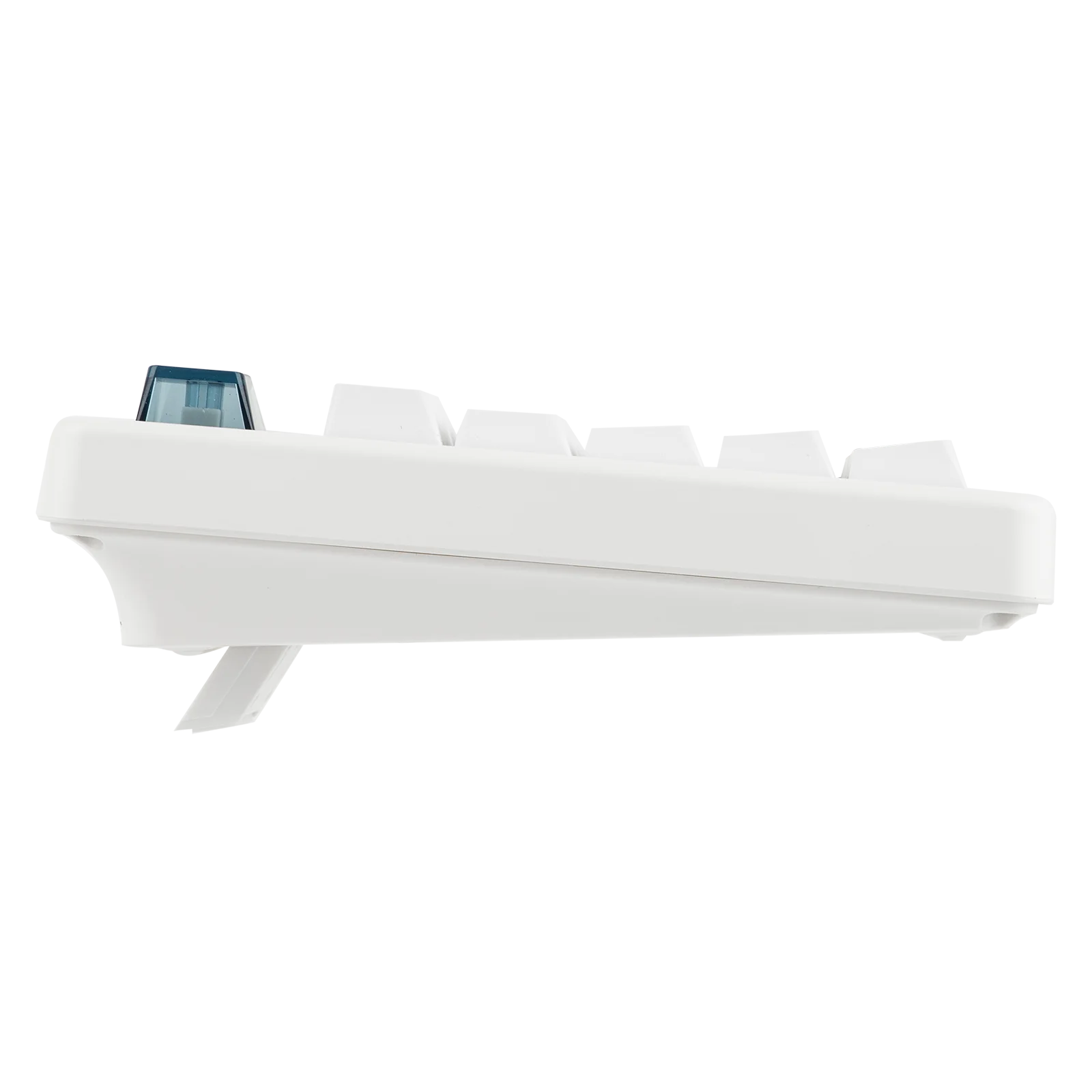

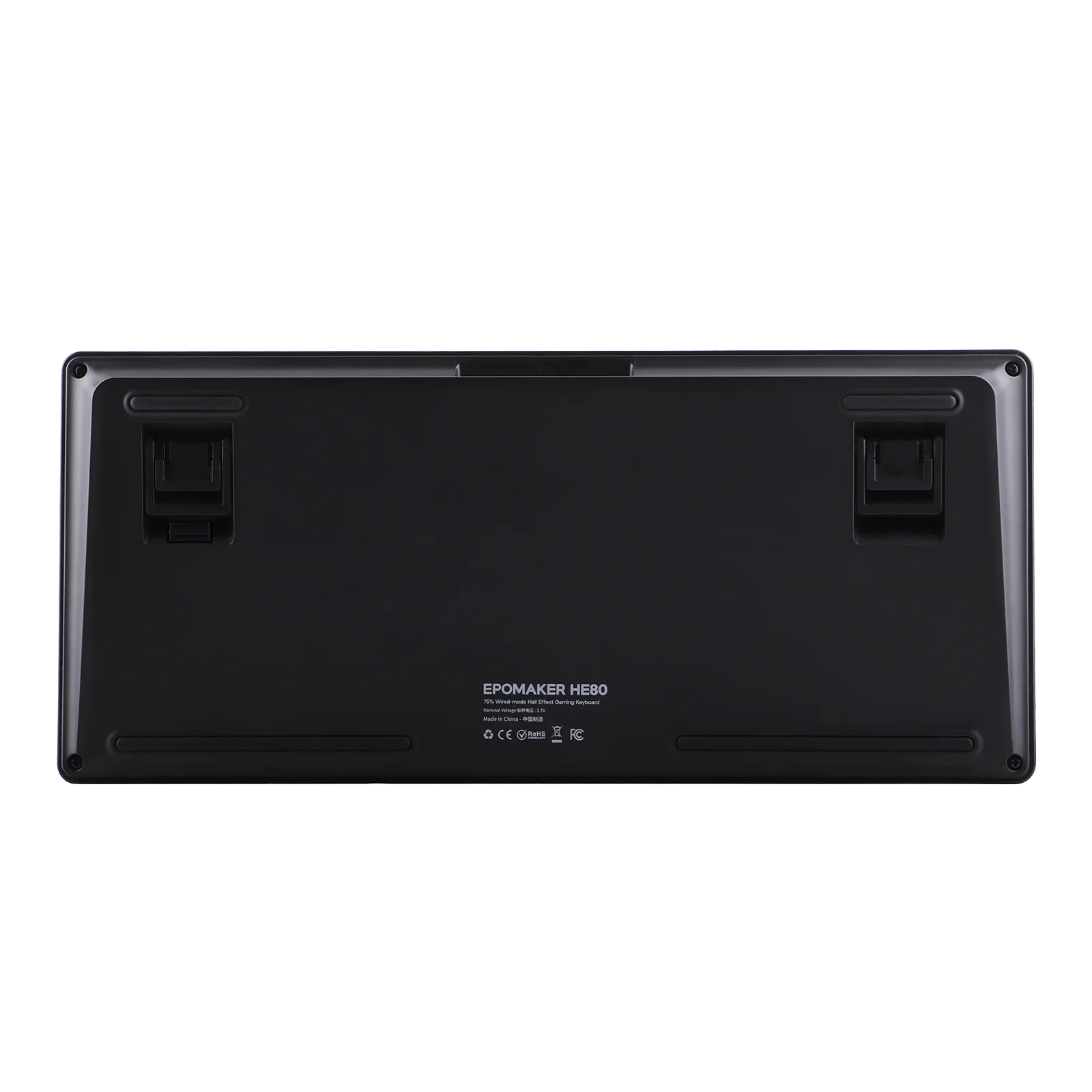

Typing Angle: 6, 8.5 and 11.5 degree.

Case Material: Plastic

Plate Material: FR4 Plate

Flex-Cut: No Flex-Cut

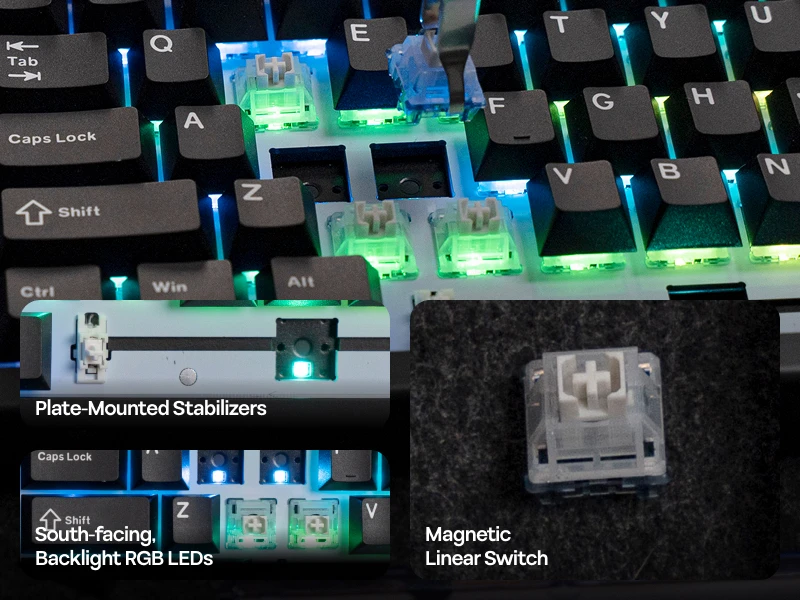

Stabilizers: Plate-Mount Stabilizer

Mounting Structure: Gasket-Mount

Sound Dampening: 4 Layers of Paddings, including Latex Sandwich Foam, IXPE Switch Pad, Bottom Silicone and Bottom Foam.

Keycaps Profile: Cherry Profile

Keycaps Material: PBT Keycap and Extra PC Transparent Keycap

Keycaps Manufacturing Technique: Double-Shot

Switch: Hall Effect Magnetic Switch

Hot swappable: Yes, with other south-facing magnetic switches

RGB: Yes, per-key south-facing RGB backlight

Polling Rate: 8000hz polling in wired mode (125 to 8k adjustable)

Scan Rate: 32,000 scanning and 128,000 per-key scanning

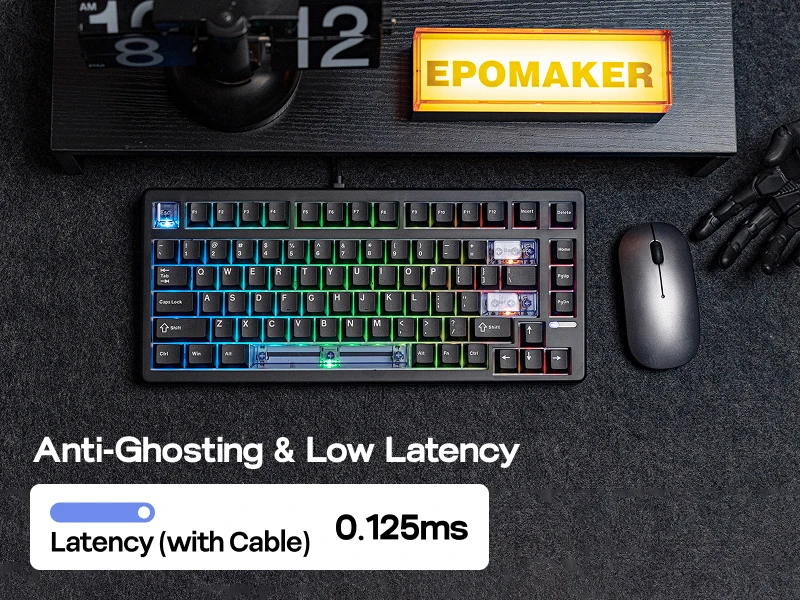

Latency: 0.125ms

Anti-Ghosting: Yes, HE80 supports N-Key Rollover

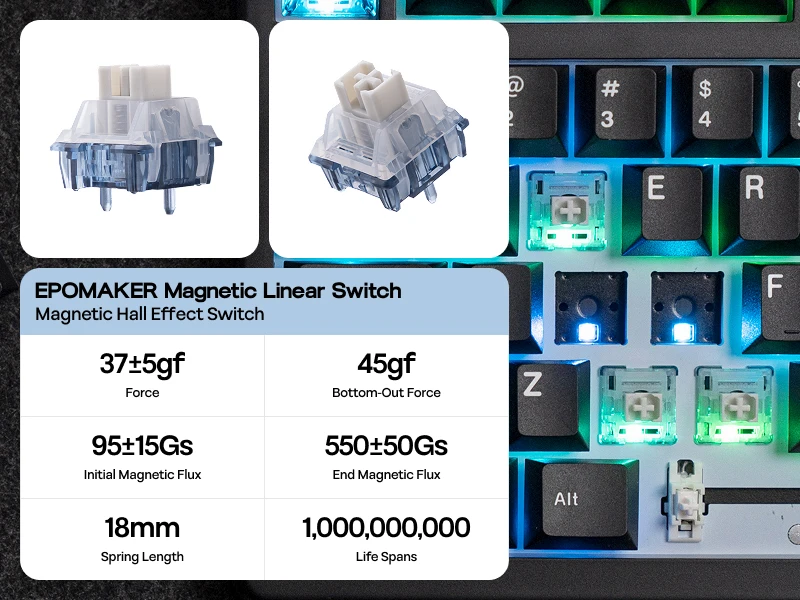

Specification for EPOMAKER MagneX Switch:

Switch Type: Magnetic Hall Effect Switch

Initial Force: 30gf Min

Trigger Force: 37±5gf

Bottom-out Force: 45gf Max

Trigger Travel: Adjustable from 0.1mm to 3.3mm, per 0.02mm, in EPOMAKER Web Driver

Total Travel: 3.4±0.1mm

Initial Magnetic Flux (if PCB is 1.6mm thick): 90±10Gs

End Magnetic Flux (if PCB is 1.6mm thick): 550±55Gs

Material of Top Cover: PC

Material of Bottom Base: PC

Material of Stem: POM

Spring Length: 18mm

Lubed or Not: Lubed in Factory

Life spans: 1,000,000,000

Package Content:

1* HE80 Wired Magnetic Hall Effect Gaming Keyboard

1* Multilingual Manual (EN, ES, FR, IT, KR, JP, CN)

3* Extra Magnetic Switch

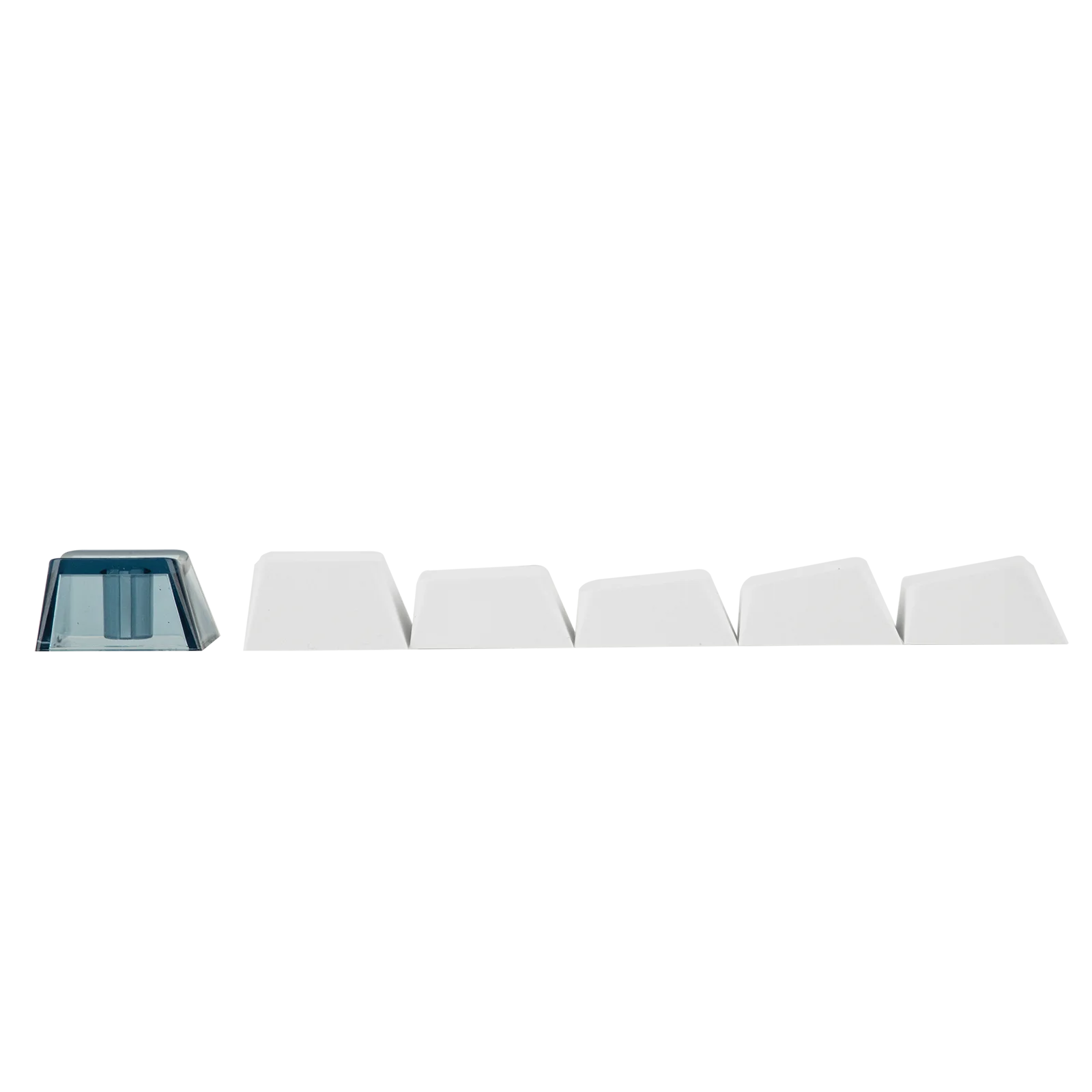

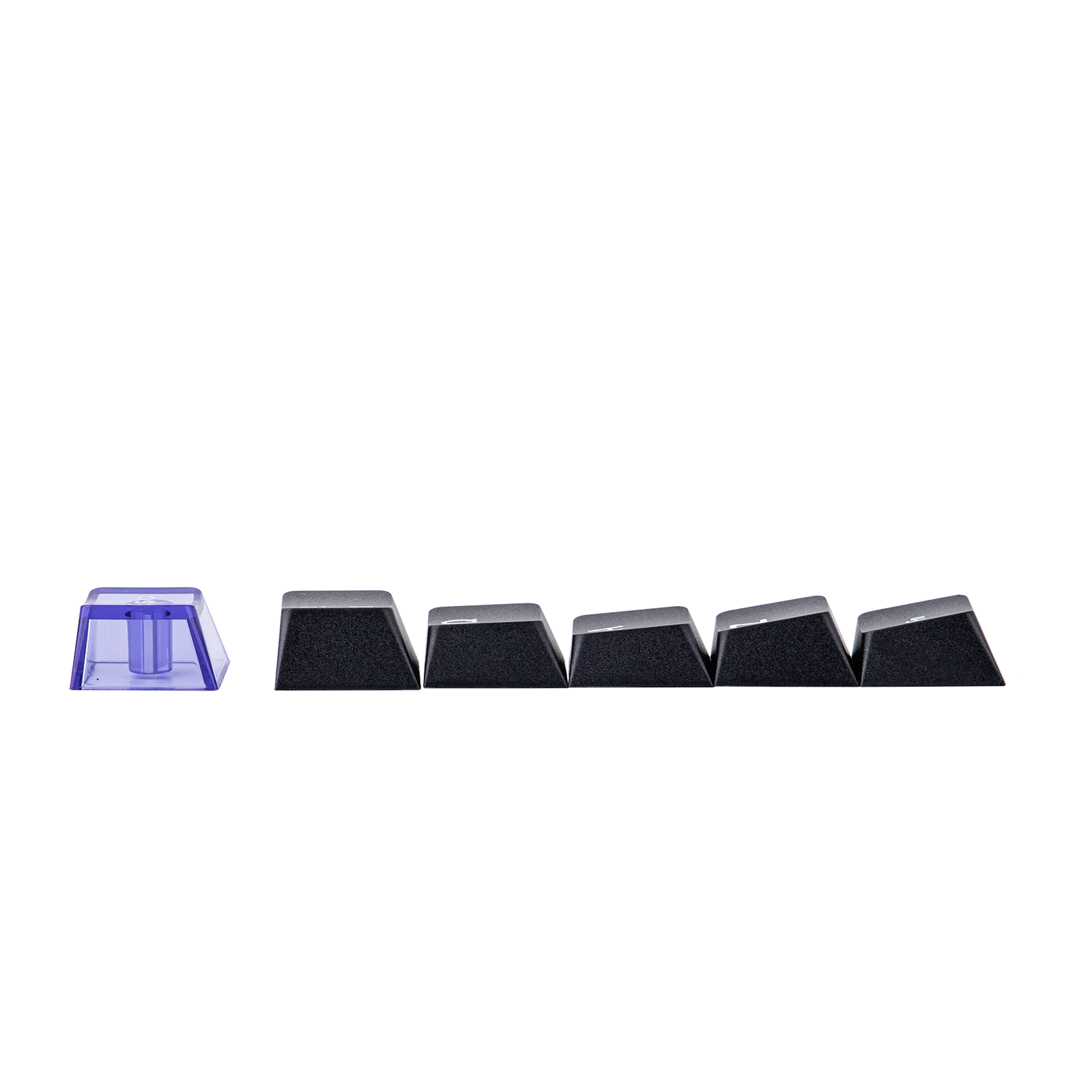

3* Additional PBT Keycaps

1* 2-in-1 Keycap-and-Switch Puller
