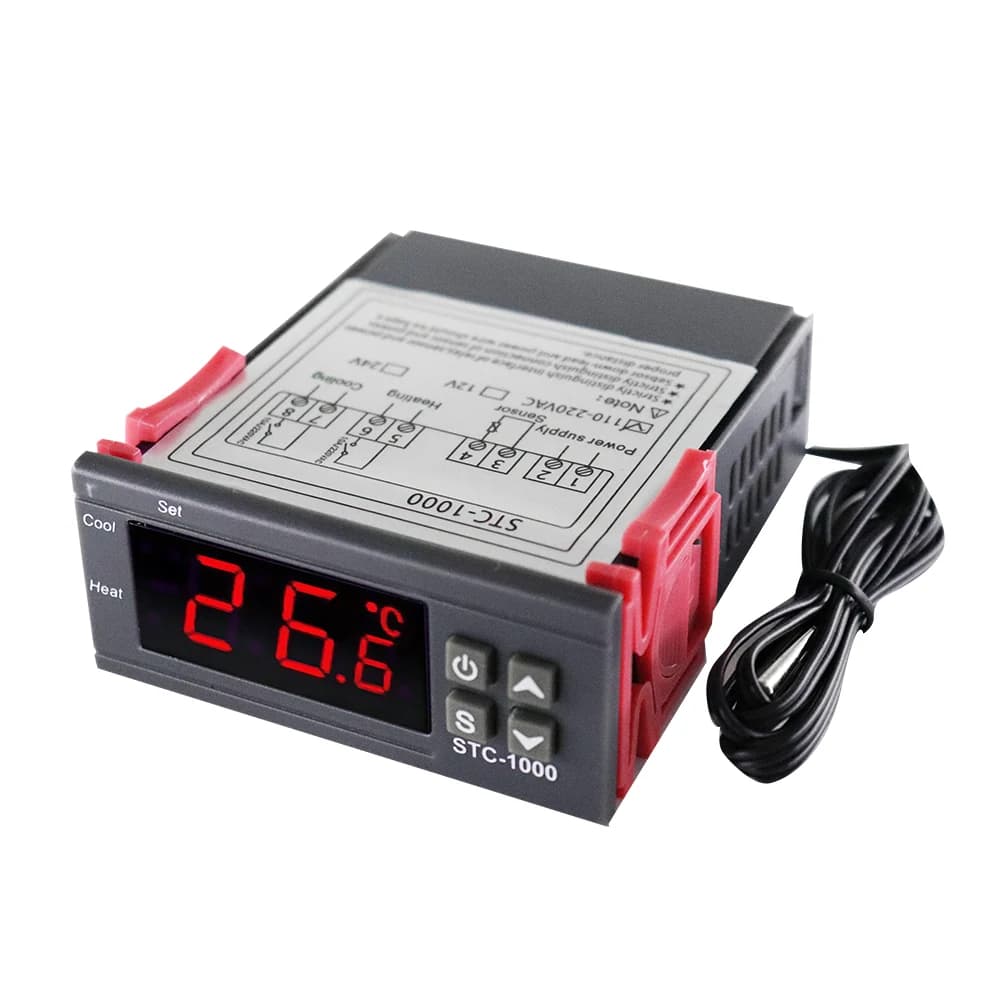

Digital Temperature Controller Thermostat Thermoregulator incubator Relay LED 10A Heating Cooling STC-1000 STC 1000 12V 24V 220V

Technical Parameters:

1.Temperature measuring range: -50 ° C ~ 99 ° C

2.Resolution: 0.1 ° C;

3.Accuracy:+- 1° C (-50 ° C ~ 70 ° C);

4.Sensor error delay: 1 minute

5.Power supply: 110-220VAC 50/60Hz,  12Vdc , 24Vdc ( Choose power supply when you place order ) ;

6.Power consumption: <3W;

7.Sensor: NTC sensor (1PC);

8.Relay contact capacity: Two Relay Cool 10A/220VAC; Heat 10A/220VAC;

9.Ambient temperature: 0 ° C ~ 60 ° C;

10.Storage temperature: -30 ° C ~ 75 ° C;

11.Relative humidity: 20% ~ 85% (No condensate)

12.Sensor length: 1.0m

13. Front Panel Size: 75x34.5mm ; Product Size: 75x34.5x85 mm ; Mounting Size: 71x29mm

Menu Instruction:
