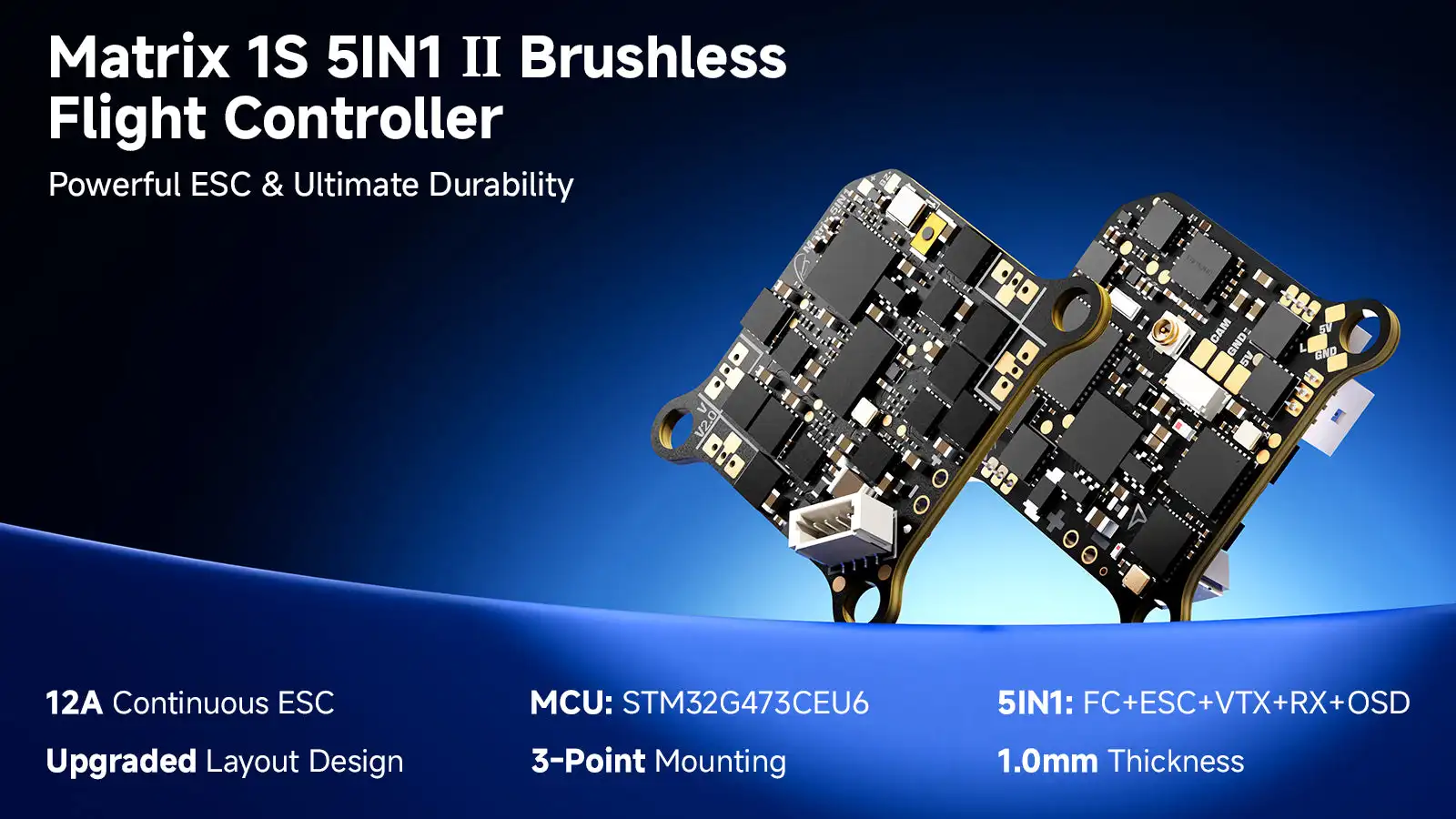

BETAFPV Matrix 1S Brushless Flight Controller (5IN1 II) For FPV Air65 II Air75 II Meteor65 Pro Meteor75 Pro Whoop Drone

Power input: 1S Only

Current: 12A continuous, 18A peak

ESC firmware: A_X_5_96KHz_V0.19.hex for BB51 Bluejay firmware

Digital signal protocol: DShot300, DShot600

VTX

Output power: 25/100/200/400/PIT

Frequency: 5.8GHz 48 channels, with Raceband: 5658~5917MHz

Channel SEL: SmartAudio2.0

Modulation type: FM

Frequency control: PLL

All harmonic: Max -50dBm

Frequency stability: ±100KHz (Typ.)

Frequency precision: ±200KHz (Typ.)

Channel carrier error: ±1.5dB

Antenna port: 50 Ω

Operating temperature: -10℃~80℃

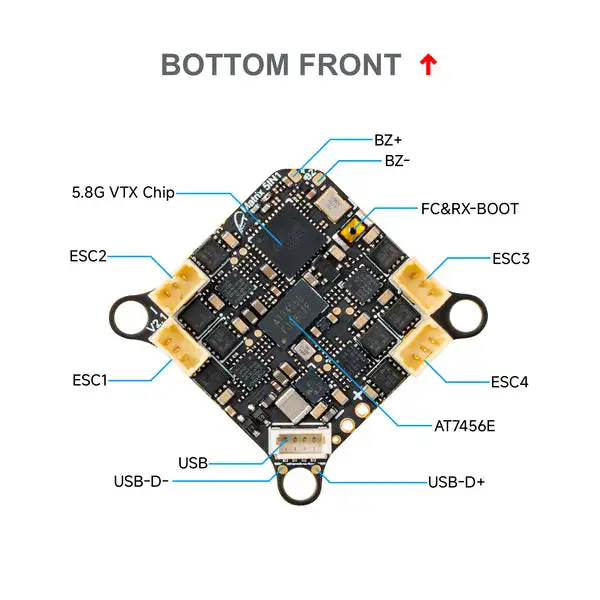

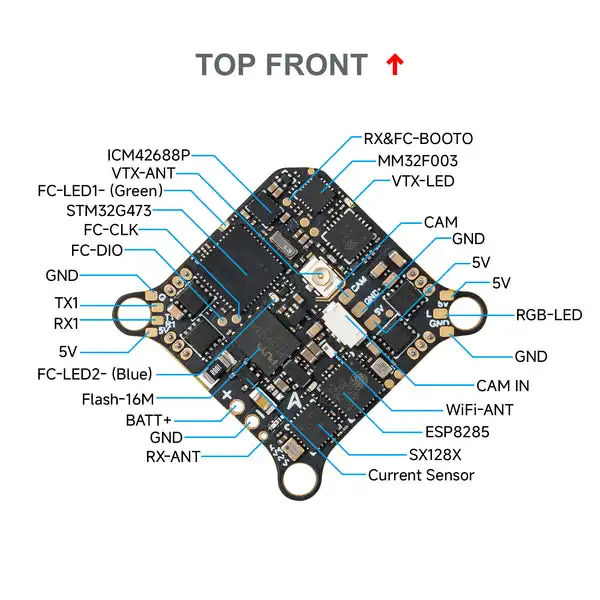

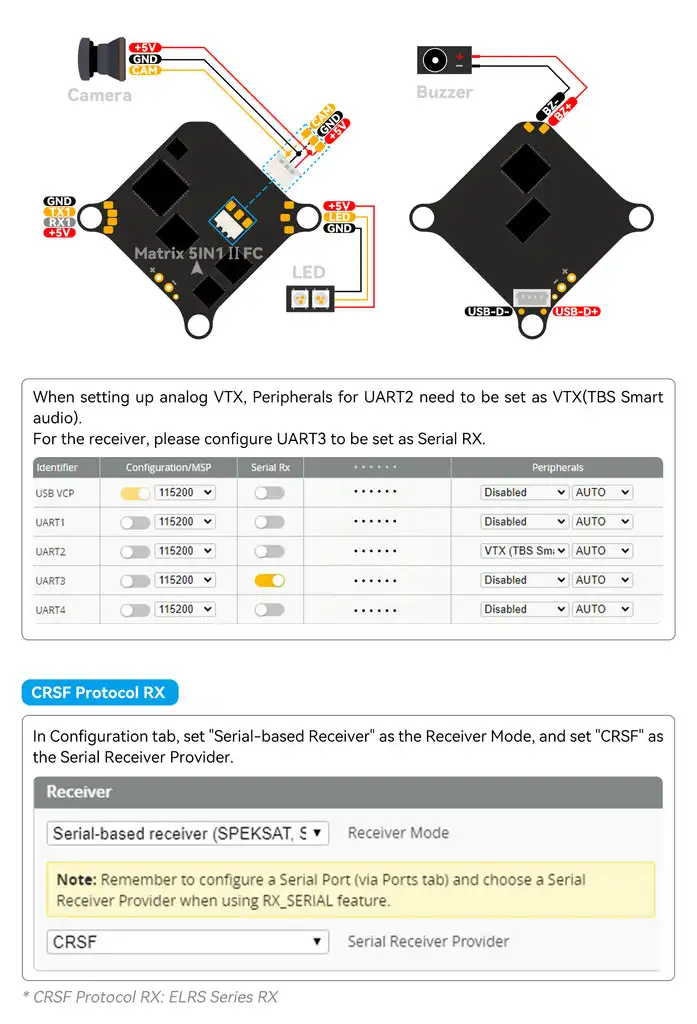

Diagram

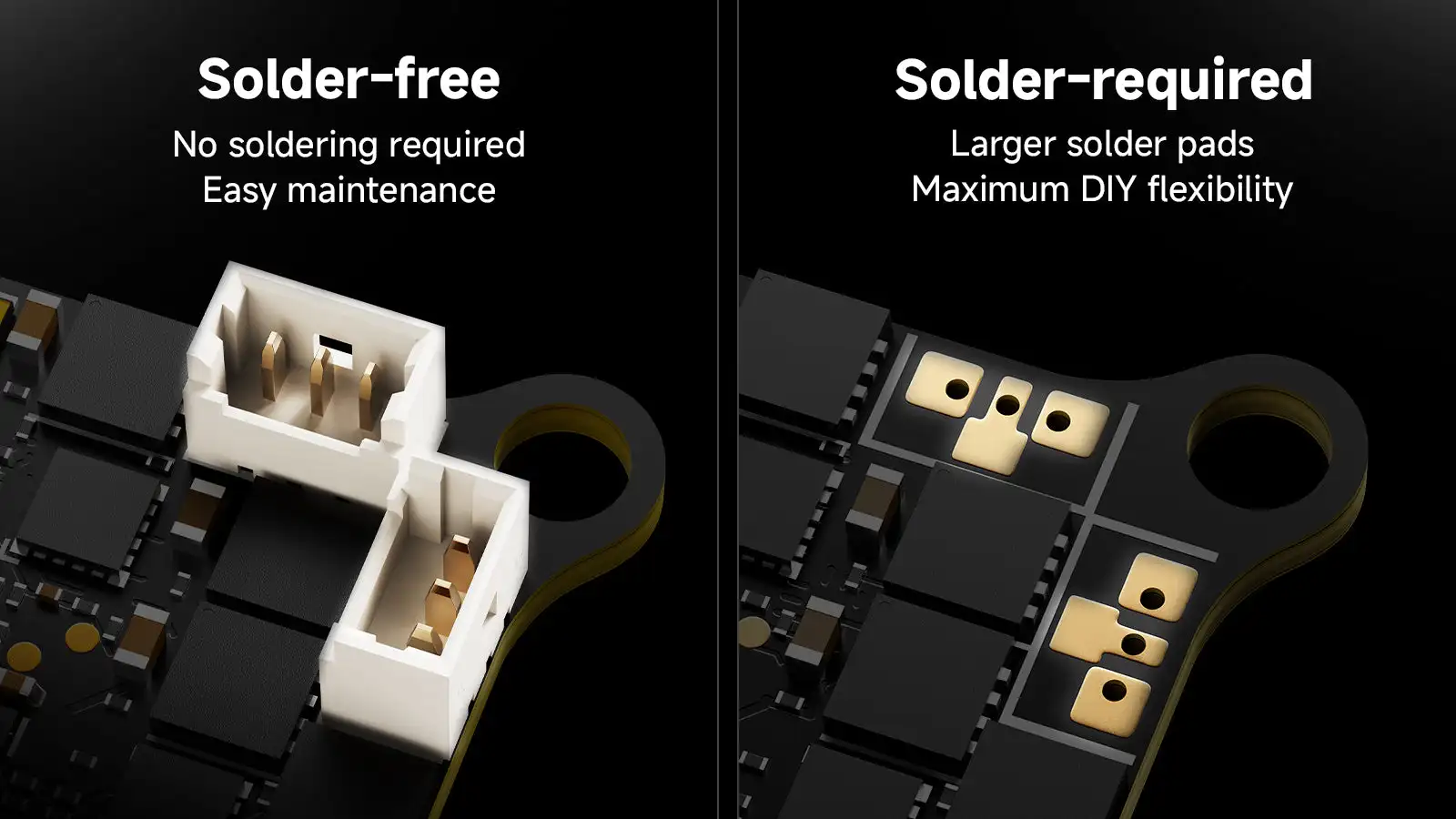

Two Build Options: Solder-free Or Solder-required

To suit different builders, the Matrix 5IN1 II is available in two versions: solder-free and solder-required. The solder-free version has motor connectors and power cable pre-soldered for quick and easy installation, while the solder-required version includes the gold-plated JST1.25 connectors and BT2.0 U cable in the package for custom wiring. Larger solder pads allows direct soldering to save weight.

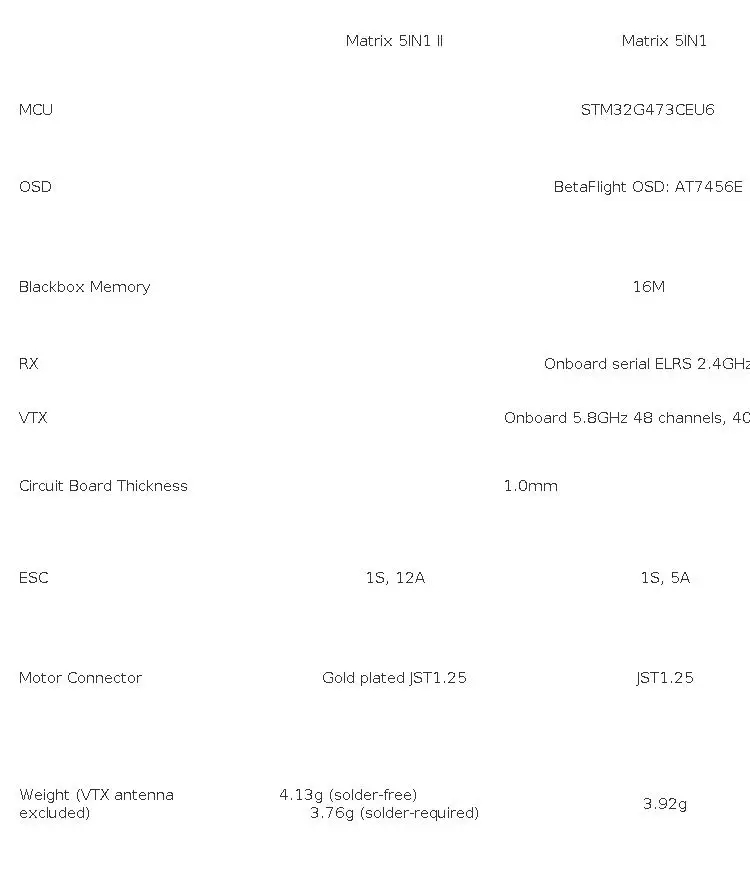

Matrix 5IN1 II vs. Matrix 5IN1 vs. Air 5IN1

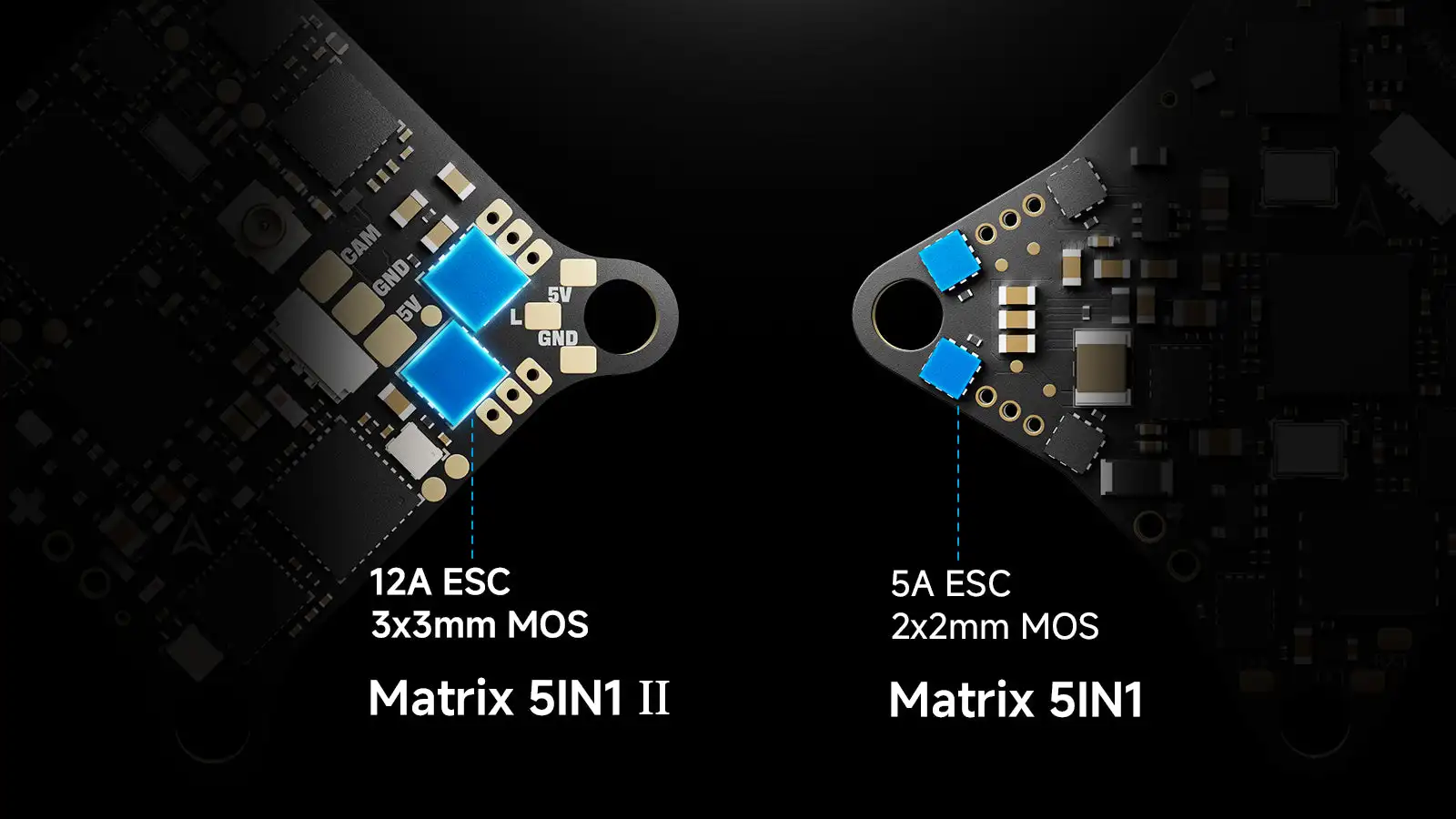

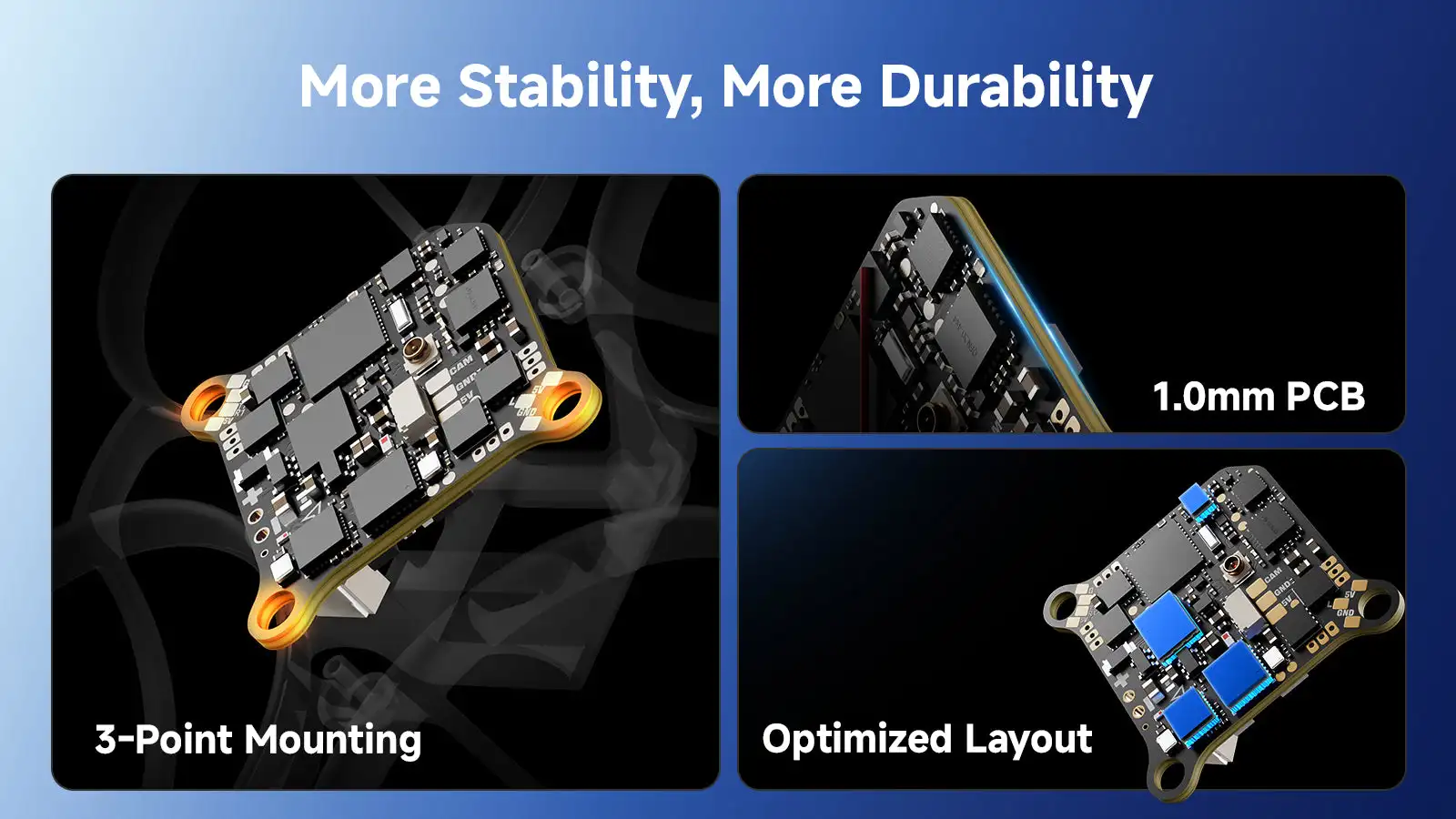

All three flight controllers share the same core MCU, OSD, RX, and VTX. The Matrix 5IN1 II is the next-generation balance, blending the durable 1mm-thick board and larger solder pads of the Matrix series with a remarkably lightweight design—adding only 0.16g compared to the Air 5IN1. It stands out with its 12A continuous (18A peak) ESC, gold-plated connectors, and three-point mounting, delivering superior power and the most robust crash protection for high-performance builds.

Recommended Parts

Drones: Air65 II, Air75 II,  Meteor65 Pro, Meteor75 Pro

Frames: Air65 Champion Frame, Air65 II Frame, Air75 II Frame, Meteor65 Pro Frame, Meteor75 Pro Frame

Motors: 0702/0702SE Motors, 0802/0802SE Motors, 1102 Motors

Camera: C03 Micro Camera

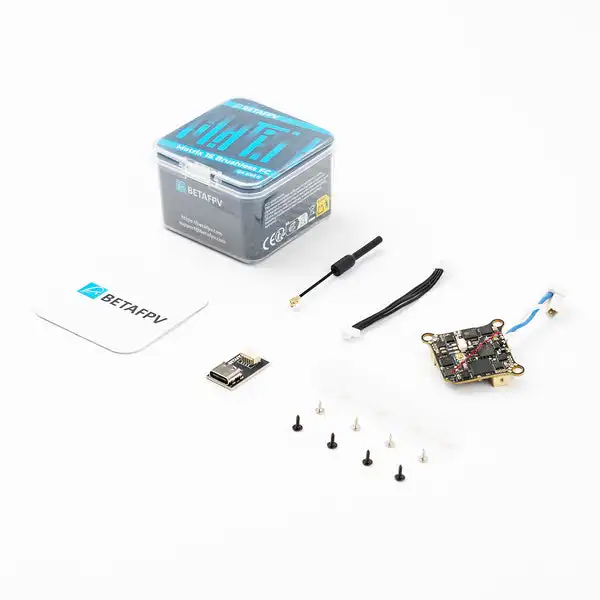

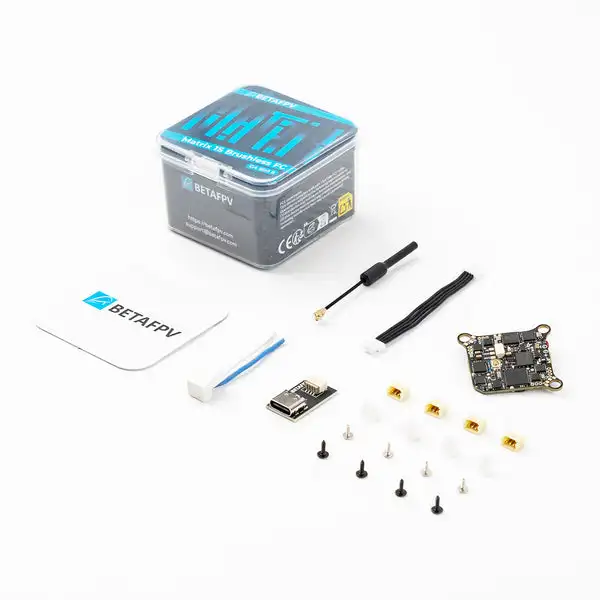

Package

Matrix 1S 5IN1 II Brushless Flight Controller (Solder-free Version)

1 * Matrix 1S 5IN1 II Brushless Flight Controller (Solder-free Version)

1 * Type-C to SH1.0 Adapter

1 * SH1.0-4Pin Adapter Cable

1 * 5.8G Antenna

4 * M1.2*4 Self-tapping Screws

4 * M1.4*5 Self-tapping Screws

4 * Shock Absorbing Balls

Matrix 1S 5IN1 II Brushless Flight Controller (Solder-required Version)

1 * Matrix 1S 5IN1 II Brushless Flight Controller (Solder-required Version)

4 * JST 1.25mm Gold Plated Connectors

1 * BT2.0 U Cable

1 * Type-C to SH1.0 Adapter

1 * SH1.0-4Pin Adapter Cable

1 * 5.8G Antenna

4 * M1.2*4 Self-tapping Screws

4 * M1.4*5 Self-tapping Screws

4 * Shock Absorbing Balls
