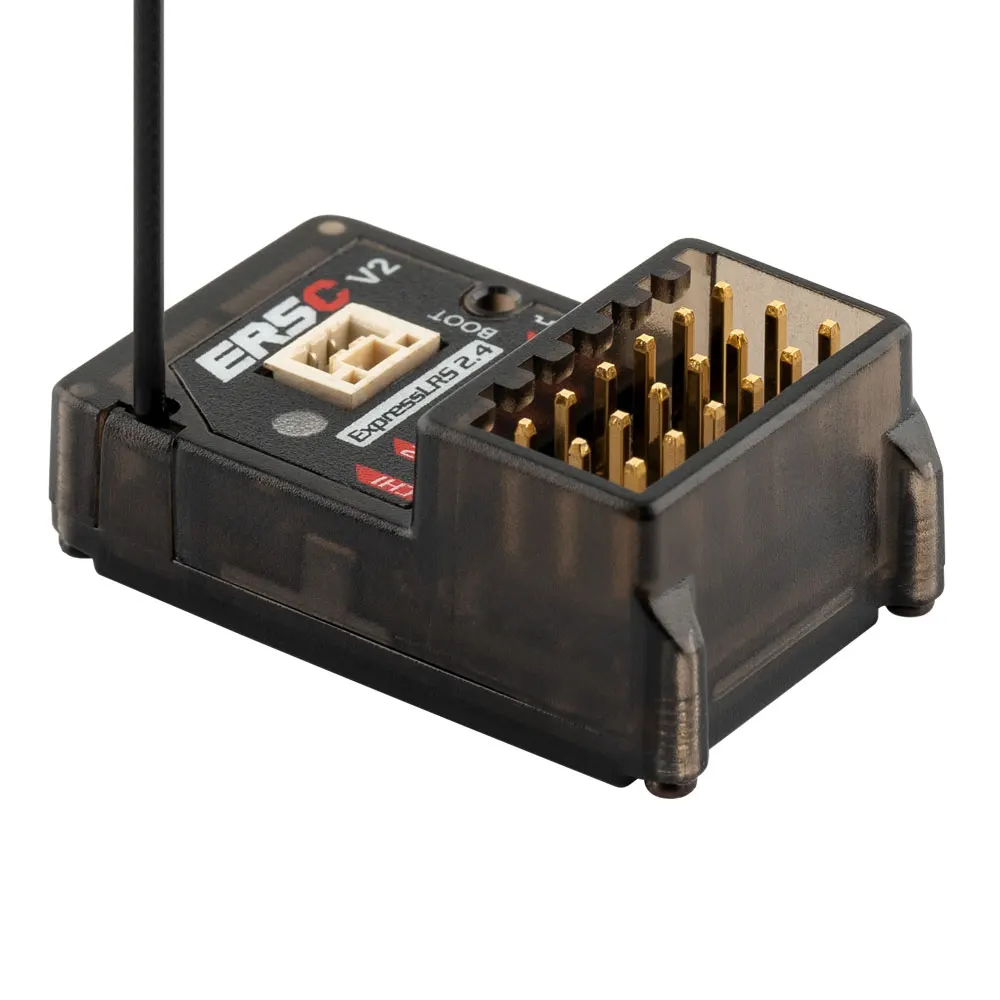

RadioMaster ER5C V2 2.4GHz ELRS PWM Receiver for Surface Marine RC Applications

ER5C V2 receiver is based on the high-performance, revolutionary ExpressLRS system, featuring high reliability,

highly flexible configuration, ultra-fast response speeds, and an ultra-long receiving range, bringing with it a brand-new usage experience.

The ER5C V2 ELRS receiver can drive up to 5 servos and has built-in receiver voltage telemetry and battery telemetry

with the ability to automatically detect which voltage input to use. It is designed for all types of surface & marine R/C applications.

Feature

Based on the Revolutionary ExpressLRS System

High performance, high reliability, flexible configuration, fast response speed and ultra-long range

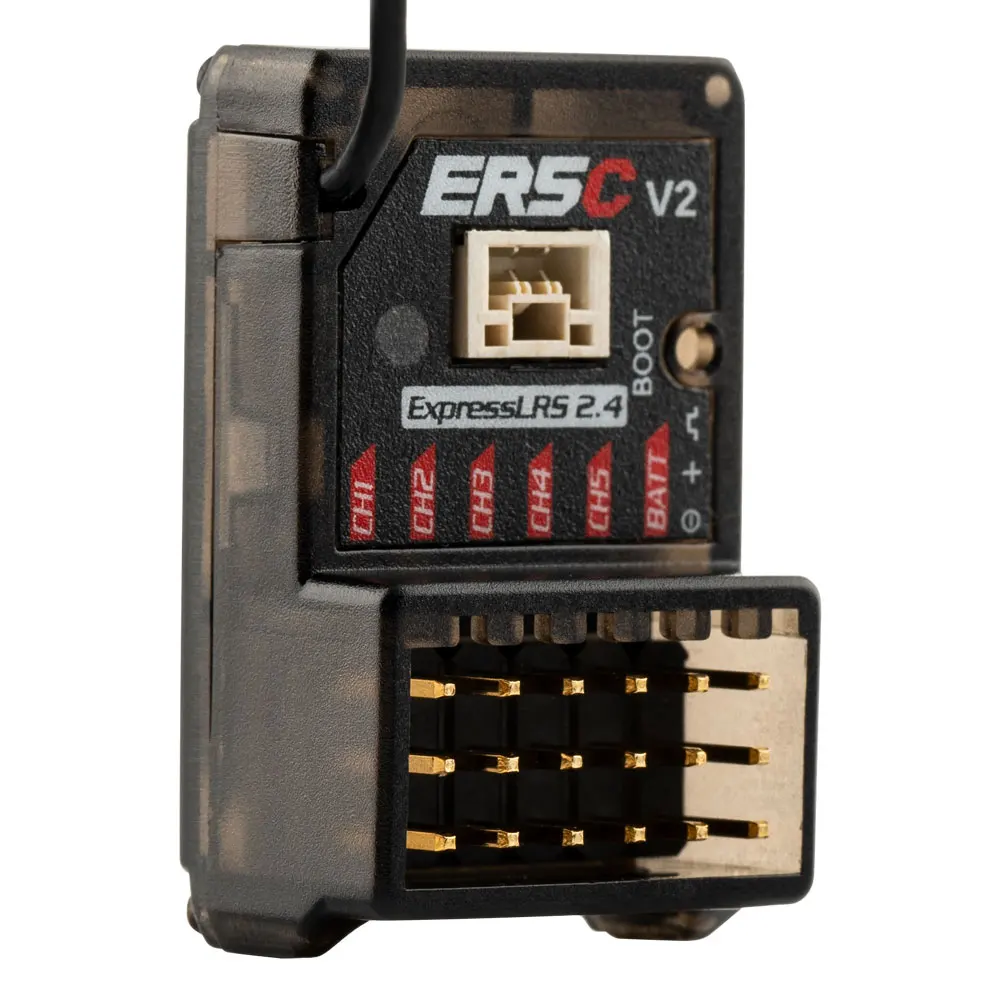

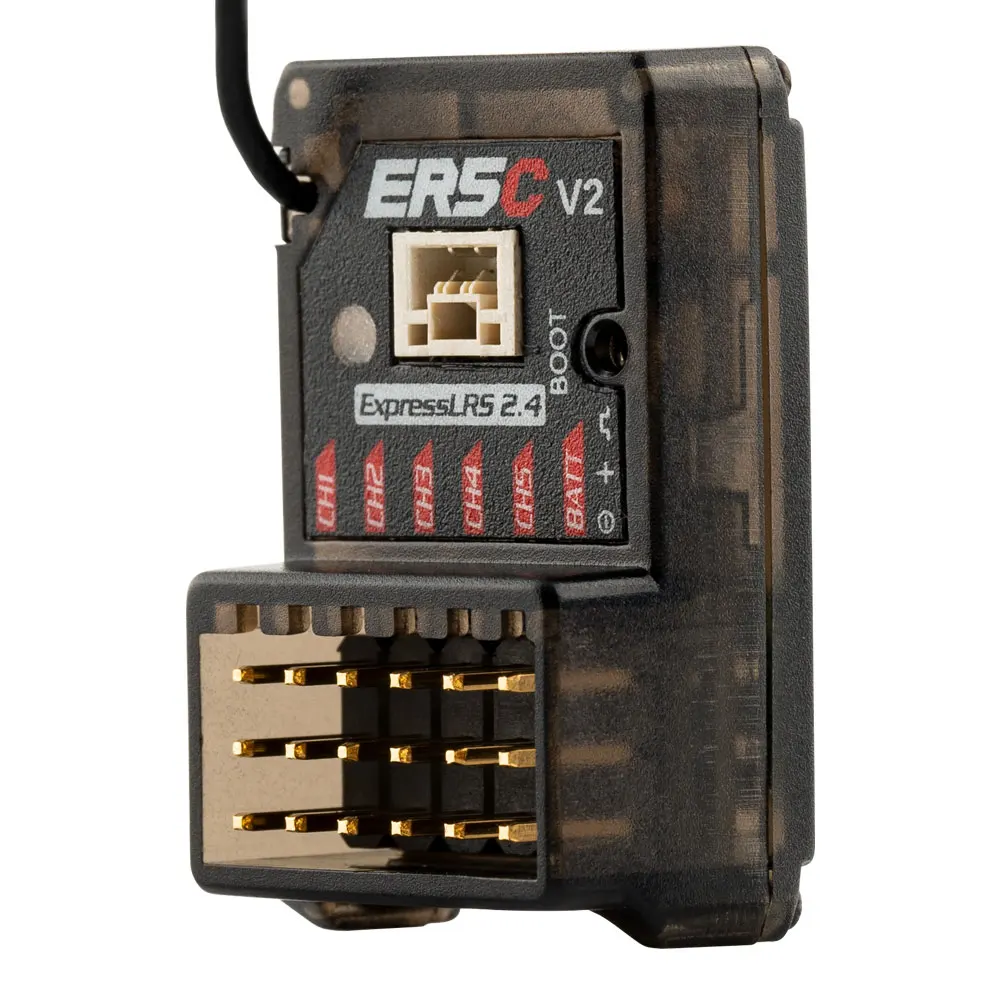

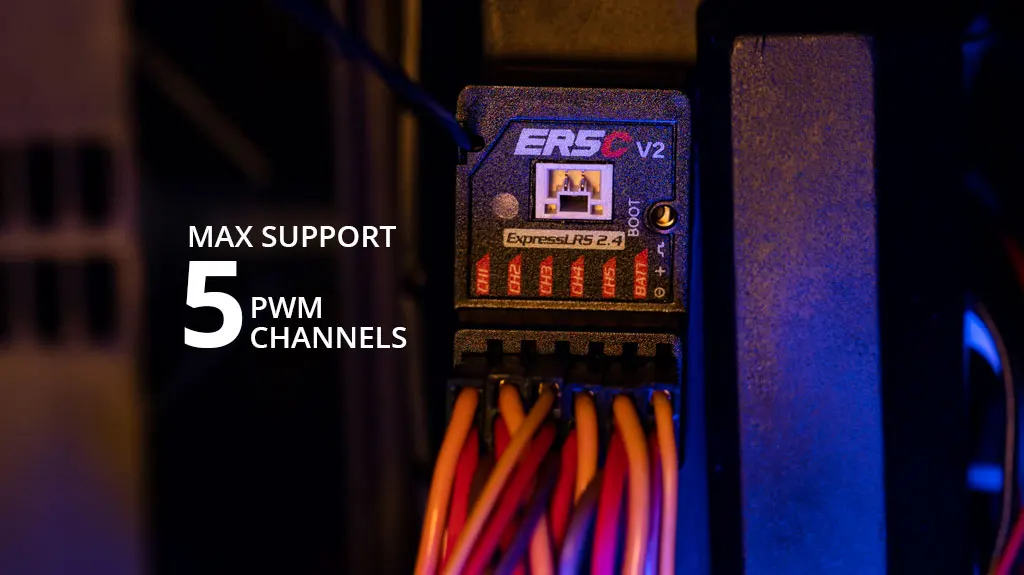

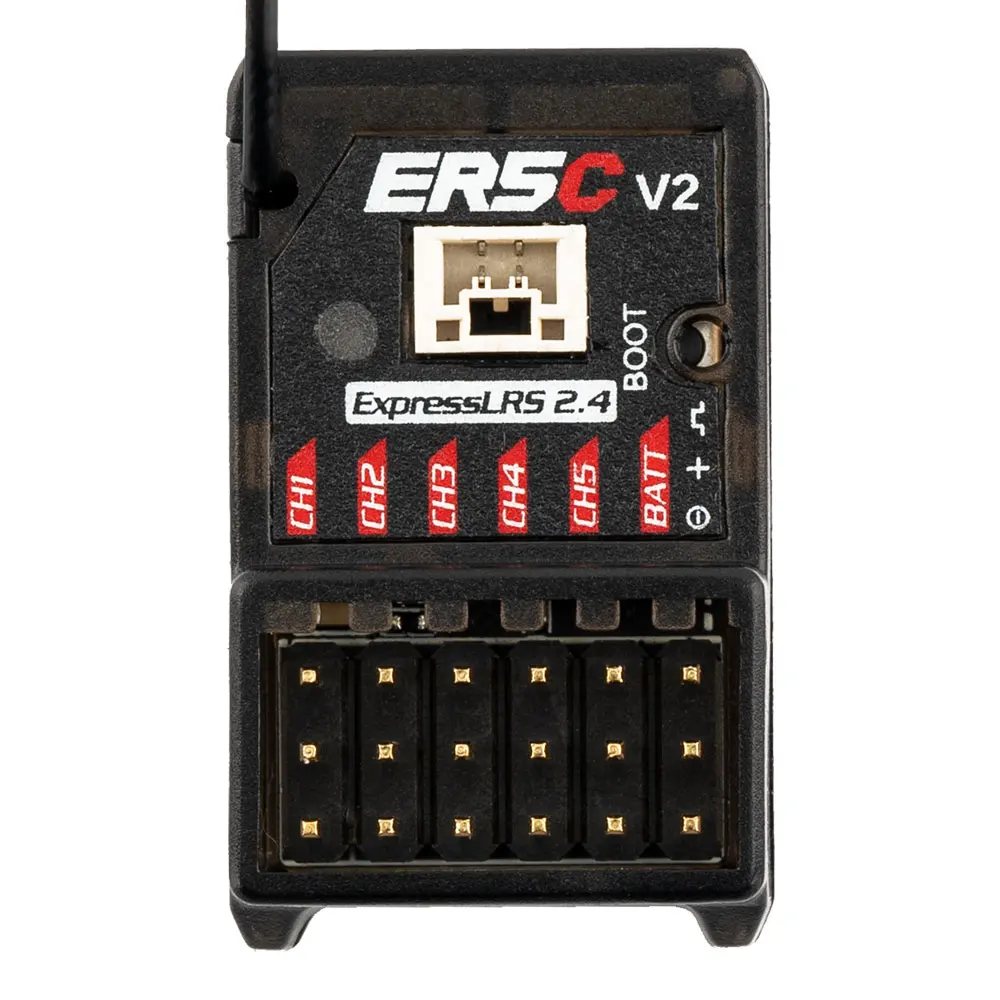

Support 5 PWM Channels

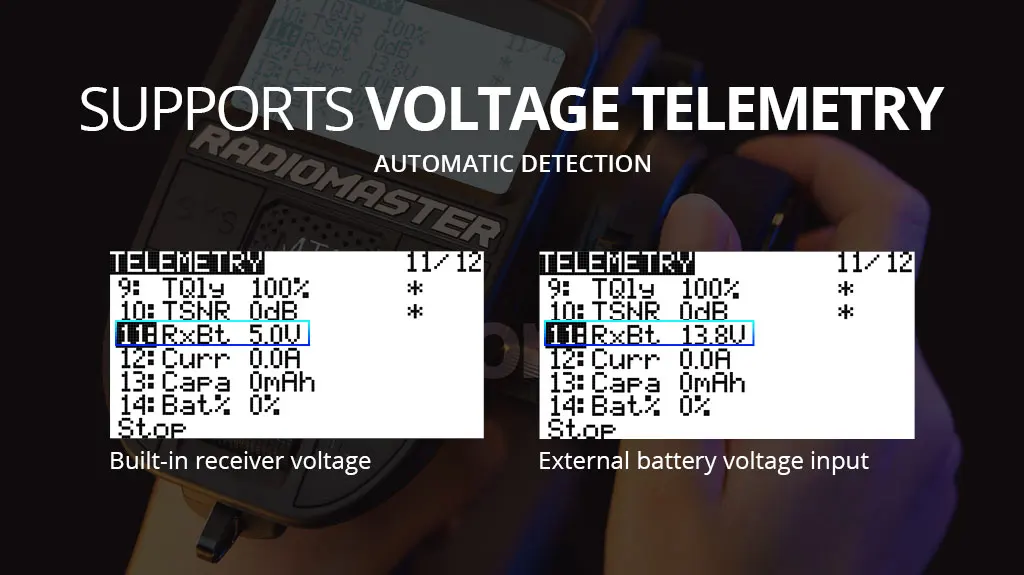

Automatically detects voltage telemetry

of external battery voltage or receiver battery /ESC BEC voltage

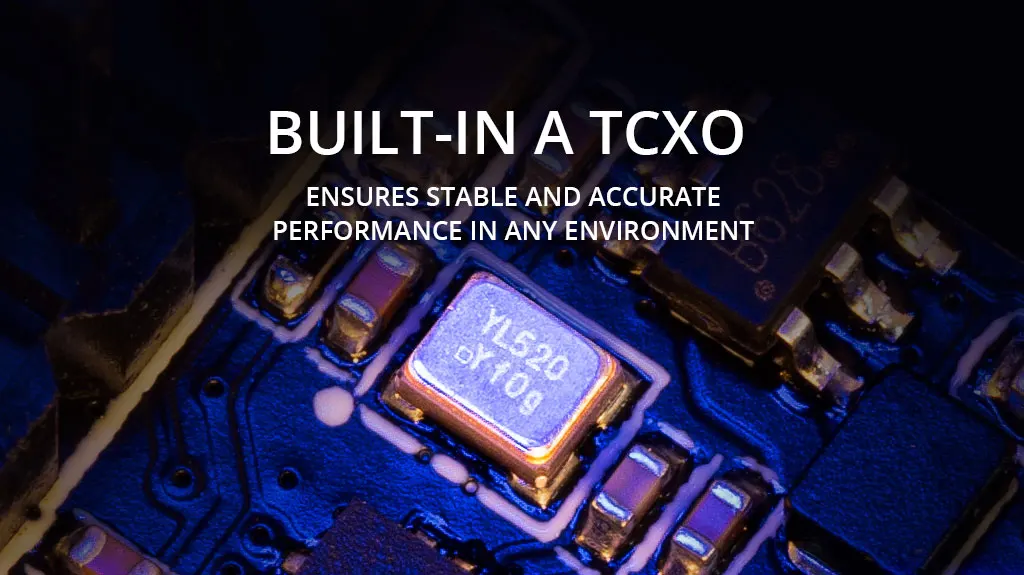

Built-in a TCXO (temperature compensated crystal oscillator), ensures stable and accurate performance in any

environment

Optimized ground up PCB design

Supports Wi-Fi updates and WEBUI configuration

Compact size, easy to install. Perfect for surface & marine R/C applications

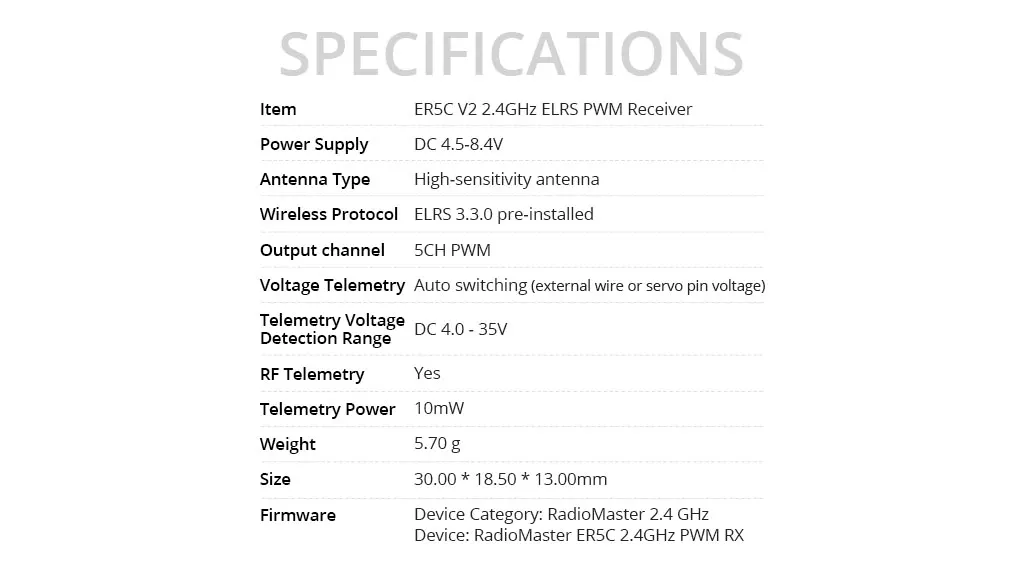

Specifications

Item: ER5C V2 2.4GHz ELRS PWM Receiver

Power supply: DC 4.5-8.4V

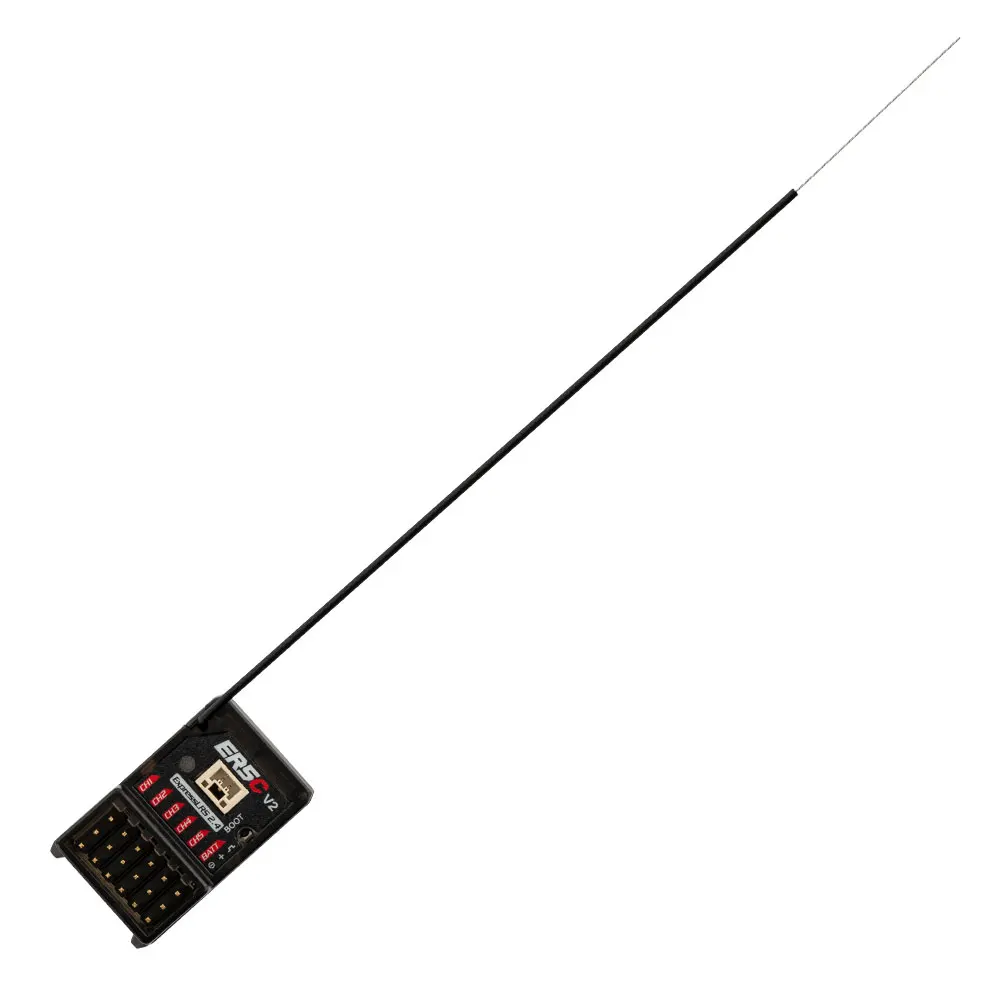

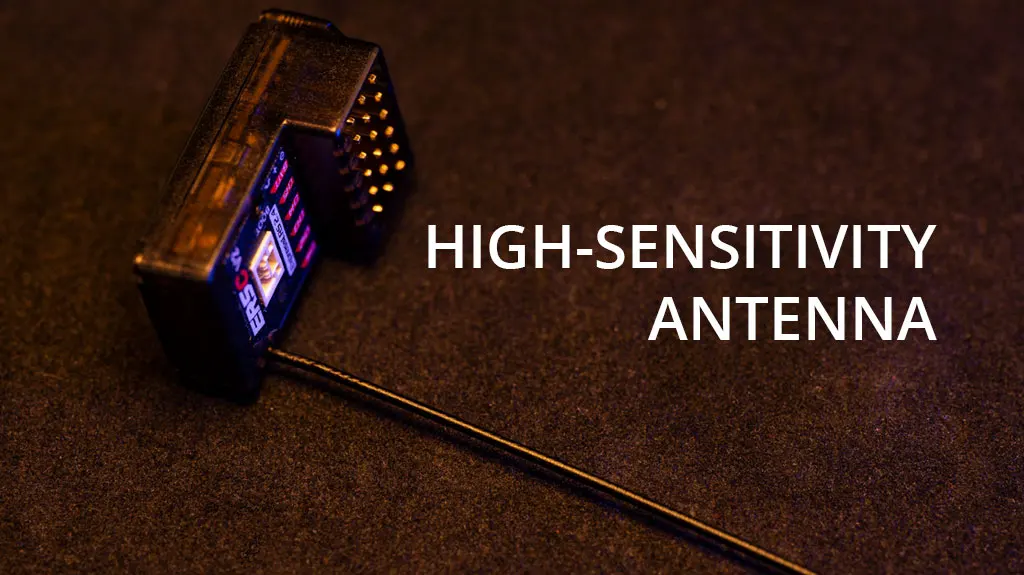

Antenna type: High-sensitivity antenna

Wireless Protocol: ELRS 3.3.0

pre-installed

Channels: 5

Telemetry Voltage Detection Range: DC

4.0 - 35V

RF Telemetry: Yes

Telemetry Power: 10mw

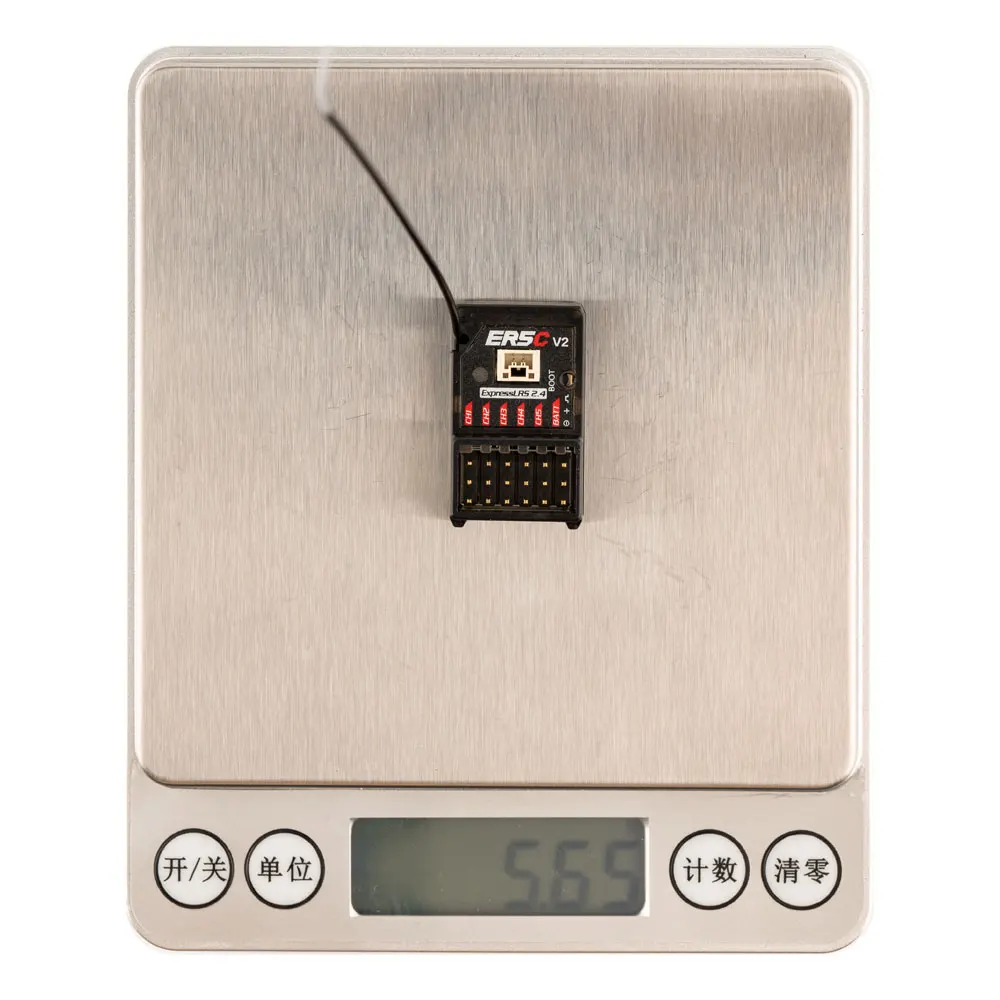

Weight: 5.7 grams

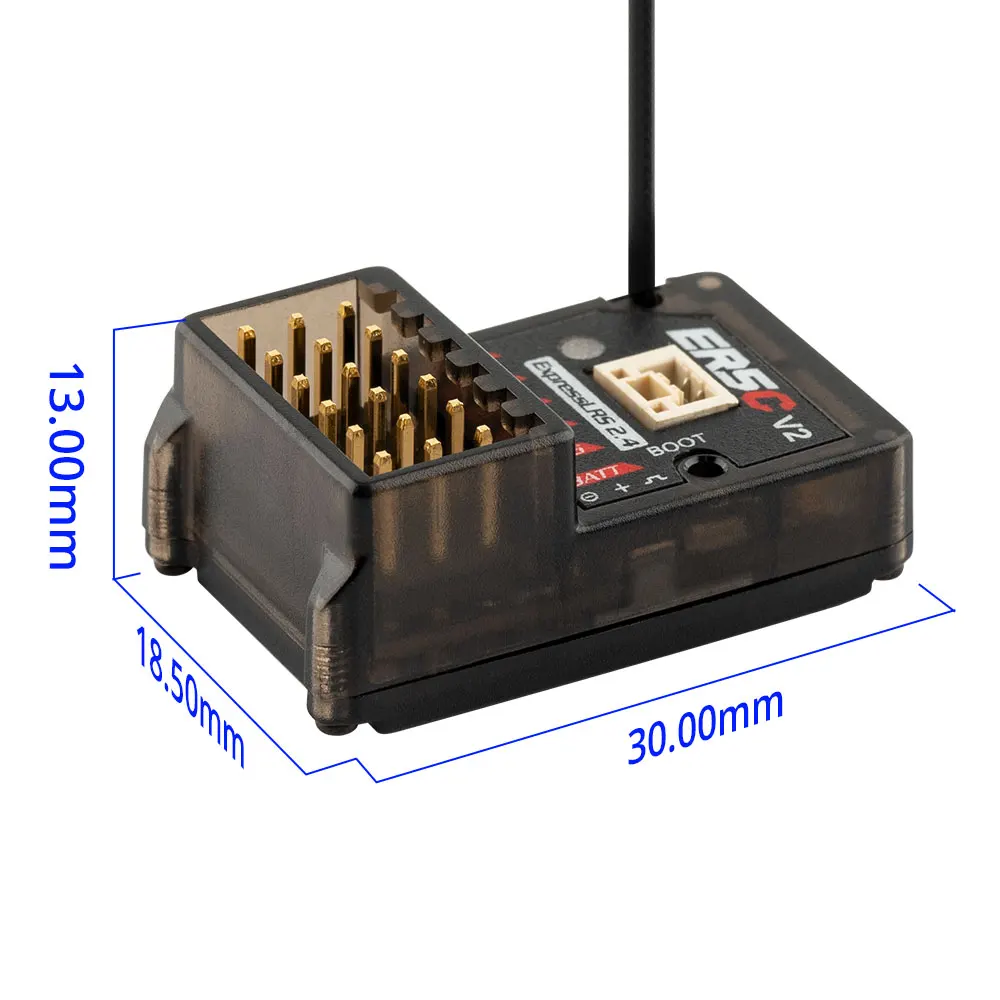

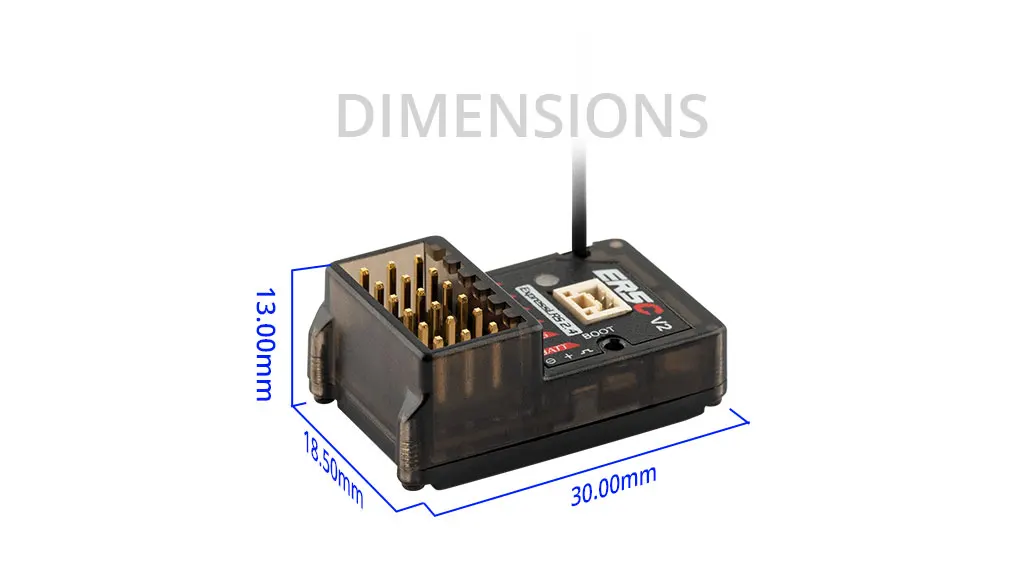

Size: 30.0 * 18.5 * 13.0mm

Firmware:Device

Category: RadioMaster 2.4 GHz / Device: RadioMaster ER5C 2.4GHz PWM RX

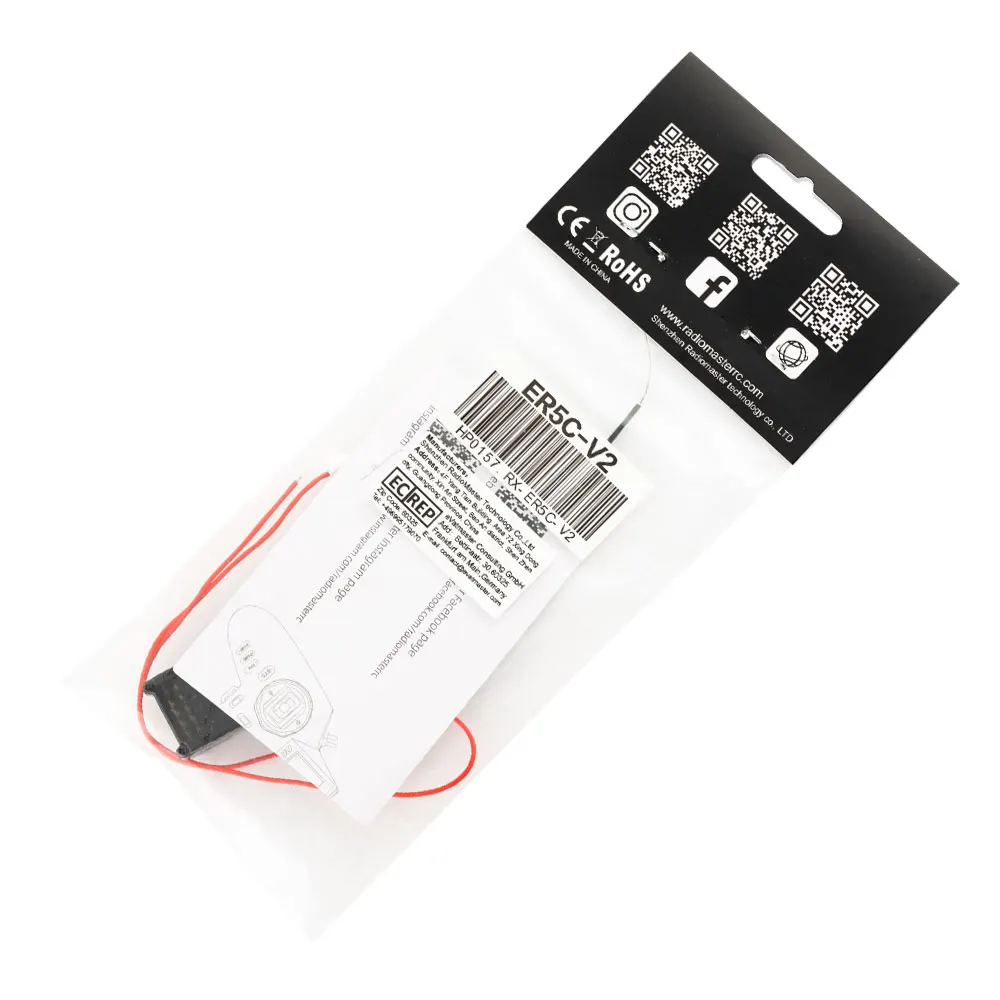

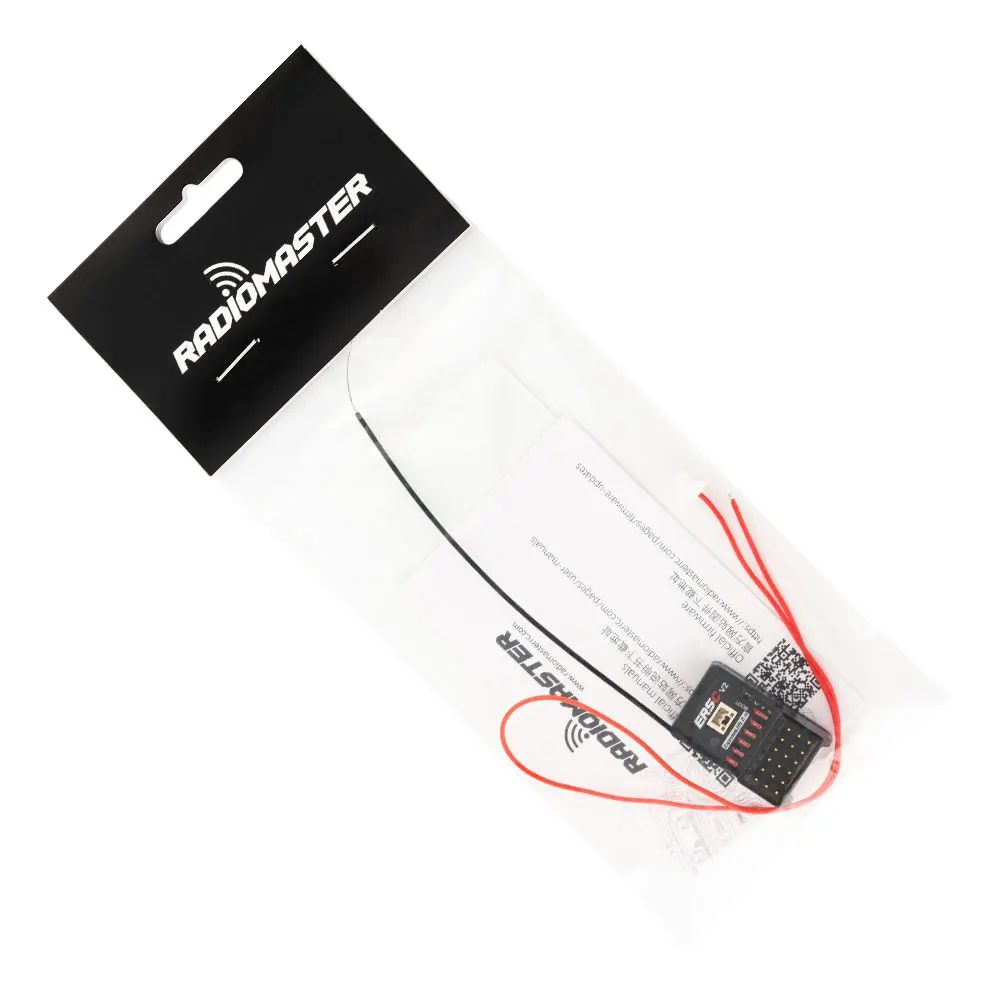

Package Including

1 * ER5C V2 2.4GHz ELRS PWM Receiver

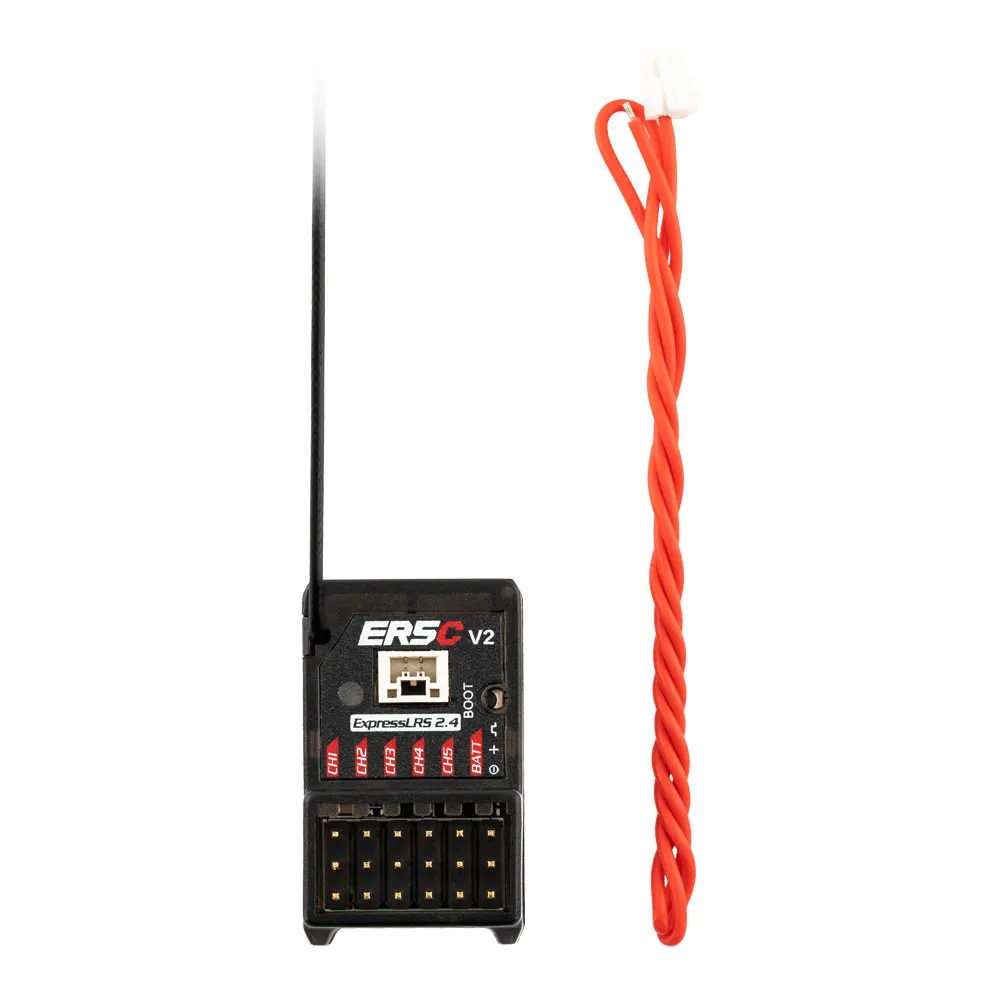

1 * Voltage telemetry wire

1 * User Card
