EARU 40A 63A Adjustable Over Under Current Voltage Protector Relay Switch Power kWh Energy Meter Voltmeter Automatic Reclosing

EAPDX/EAPDX-RG Functions:

1. Over-Voltage Proteciton: 240V-300V (Adjustable) (Default: 270V)

2. Under-Voltage Protection: 140V-200V (Adjustable) (Default: 170V)

3. Over-Current Protection: 1A-40A/63A (Adjustable)

4. Startup Delay Time: 1-300s (Adjustable) (Default: 5s)

5. Relay Reset Time: 1-300s (Adjustable) (Default: 30s)

6. Over Current Reset Time: 1-300s (Adjustable) (Default: 30s)

7. Voltage Meter

8. Ammeter

9. Restore Factory Settings

10. Automatic Recovery

EAPDX-63VAE-RGB Functions:

1. Over-Voltage Proteciton: 230V-300V (Adjustable) (Default: 280V)

2. Under-Voltage Protection: 80V-210V (Adjustable) (Default: 160V)

3. Over-Current Protection: 1A-63A (Adjustable) (Default: 50A)

4. Reconnect Time (Delay on Time): 1-600s (Adjustable) (Default: 5s)

5. Reset Battery Level

6. Voltage Calibration

7. Energy Meter

8. Voltage Meter

9. Ammeter

10. Restore Factory Settings

11. Automatic Recovery

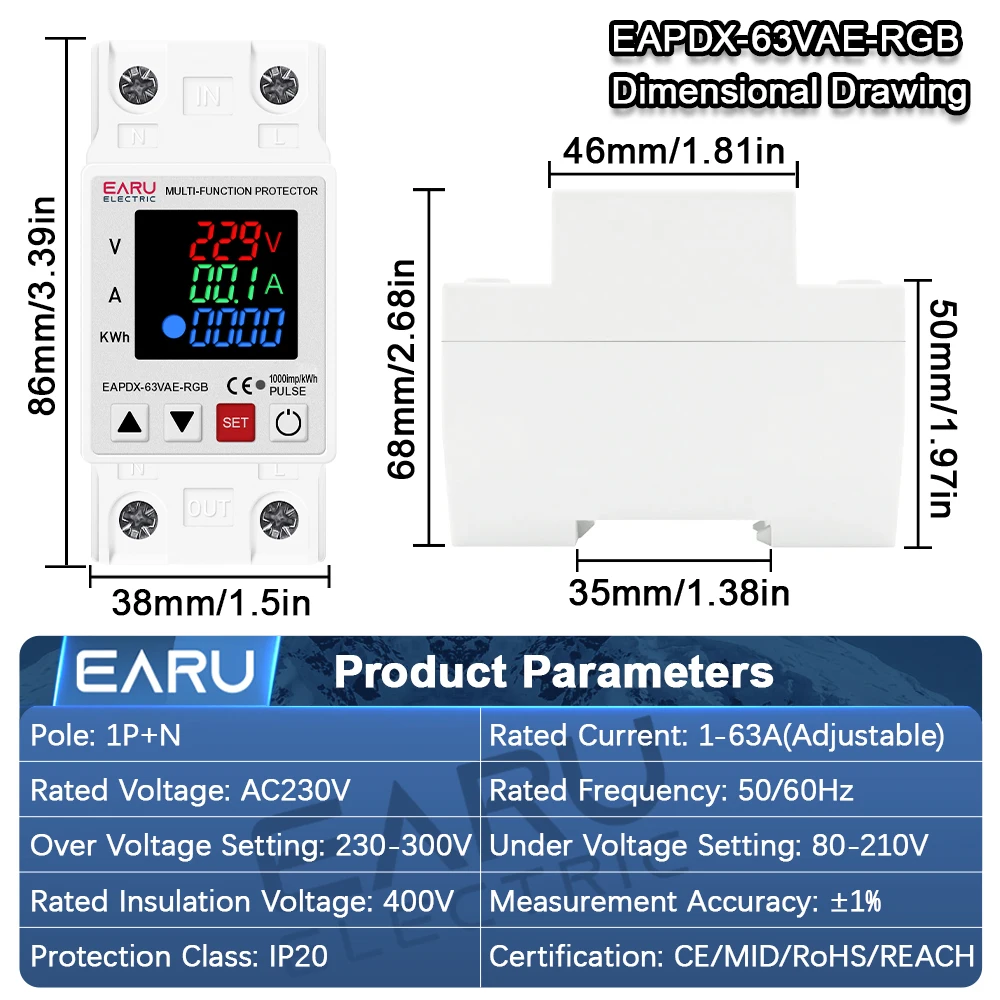

Parameters:

EAPDX Screen Color: Red-Red

EAPDX-RG Screen Color: Red-Green

Poles: 1P+N

Rated Current: 1-40A/63A (Adjustable)

Rated Voltage: AC230V

Rated Frequency: 50/60Hz
