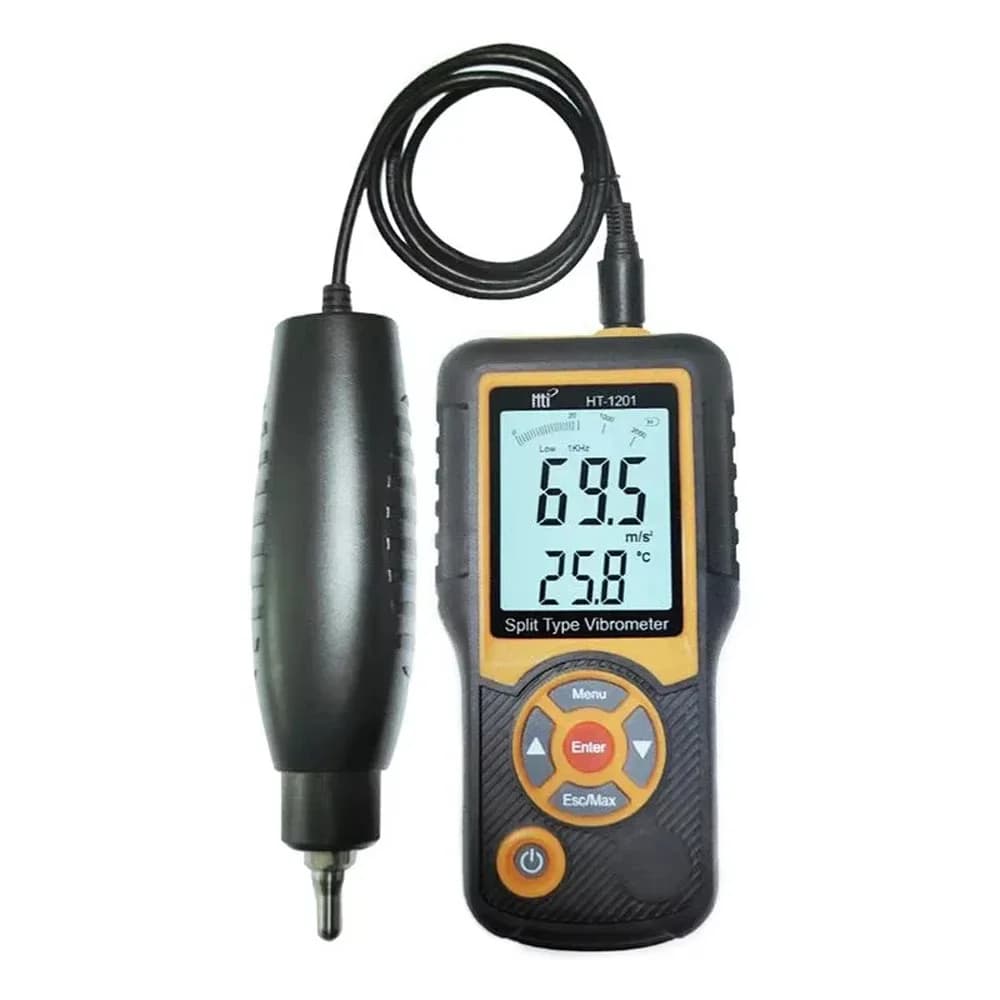

Vibration Analyzer Tester HT-1201 Portable LCD Meter Vibrometer Gauge Tester Analyzer 0.1-199.9m/s Vibration Tester Analyzer

Specification:

Model: HT-1201

Vibration acquisition: piezoceramic accelerometer (shearing type )

LCD display: three and a half digit display



Measurement range:

Acceleration: 0.1-199.9m/s2 (peak value)

Speed: 0.1-199.9mm/s (effective value)

Displacement: 0.001-1.999mm (effective value)

Measurement accuracy: ±(5%+2digits)



Frequency range:

Acceleration: 15Hz - 1KHz (LO), 1KHz - 10KHz (HI)

Speed: 15Hz - 1KHz (LO)

Displacement: 15Hz - 1KHz (LO)

Temperature measurement 0℃ - 60℃

Temperature accuracy: ±2℃

Automatic power-off time: 4 minutes

Operation temperature: 0℃ - 45℃

Storage temperature: -20℃ - 60℃

Operation humidity: 20%RH - 90%RH(No condensation)

Power supply: 3 x AA battery (NOT included)



Package List:

1 x Vibration Meter

1 x Probe

1 x Handle

1 x Plastic Box

1 x User Manual
