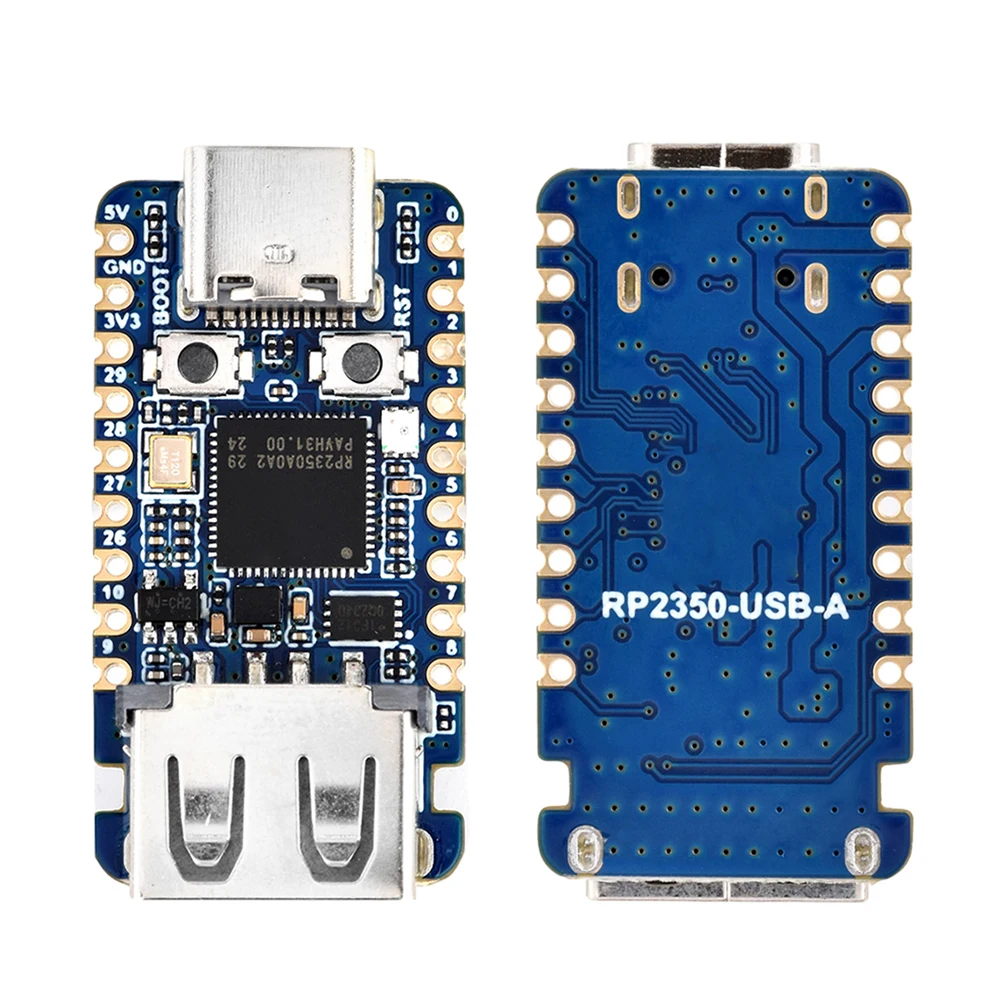

RP2350 USB-A Mini Development Board RP2350A Waveshare Expansion Board Programmable I/O Compatible with USB 2.0/1.1 Transmission

Features:
1. Dual core dual architecture processor: Unique dual core, dual architecture, with a clock speed of 150MHz and strong performance.
2. Large capacity storage: Built in 520KB SRAM and 2MB on-chip Flash to meet various needs.
3. Flexible GPIO design: 15 multifunctional GPIO pins with strong scalability and flexible development.
4. Convenient interface design: Adopting Type-C interface, it can be directly soldered and integrated, and the stamp hole design is convenient for embedded applications.
5. Low power consumption and rich peripherals: Supports low-power mode, accelerated floating-point library, and 12 programmable PIO state machines.

Product Features:
Adopting the official independently designed RP2350A microcontroller chip
Unique dual core and dual architecture, equipped with dual core ARM Cortex-M33 processor and dual core Hazard 3 RISC-V processor, with a clock operating frequency of up to 150MHz
Built in 520KB SRAM and 2MB on-chip Flash
Adopting Type-C interface, keeping up with the trend of the times, no need to worry about forward and backward insertion
Stamp hole design, can be directly welded and integrated into the user's self-designed base plate
USB 1.1 Host and Device Support
Onboard 1 USB expansion port, compatible with USB 2.0/1.1 transmission
Support low-power sleep and sleep mode
Can be recognized as a large capacity storage device through USB for drag and drop downloads
15 GPIO pins of RP2350A lead out
2 SPI, 2 I2C, 2 UART, 4 12 bit ADCs, and 14 controllable PWM channels
Accurate on-chip clock and timer
Built in temperature sensor
On-chip accelerated floating-point library
12 programmable I/O (PIO) state machines for custom peripheral support
Mini size 33mm * 17.5mm

Package Include:
1X development board
RP2350-USB-A
