Product Description

Working voltage: 5V
Link method: USB Type-C
Product size: 207mm * 104mm * 13mm
Supported Platforms : pc /ps3/ps4/switch/ Android/Steam
Product Specifications:1Mini Keyboard,1Data Cable Type-C,1Keycap Puller, 1 extra switch

Characteristic:

Dual core ARM Cortex-M0+@ 133MHZ
Supported by dedicated QSPI bus, up to 16MB off chip flash memory
Fully connected AHB crossover switch
Integrated 264kB on-chip SRAM in six independent groups
40nm process node manufacturing, low dynamic power consumption, and low leakage
1ms delay, no frame leakage rate above 95%
Supports firmware updates
more functions and compatibility coming soon

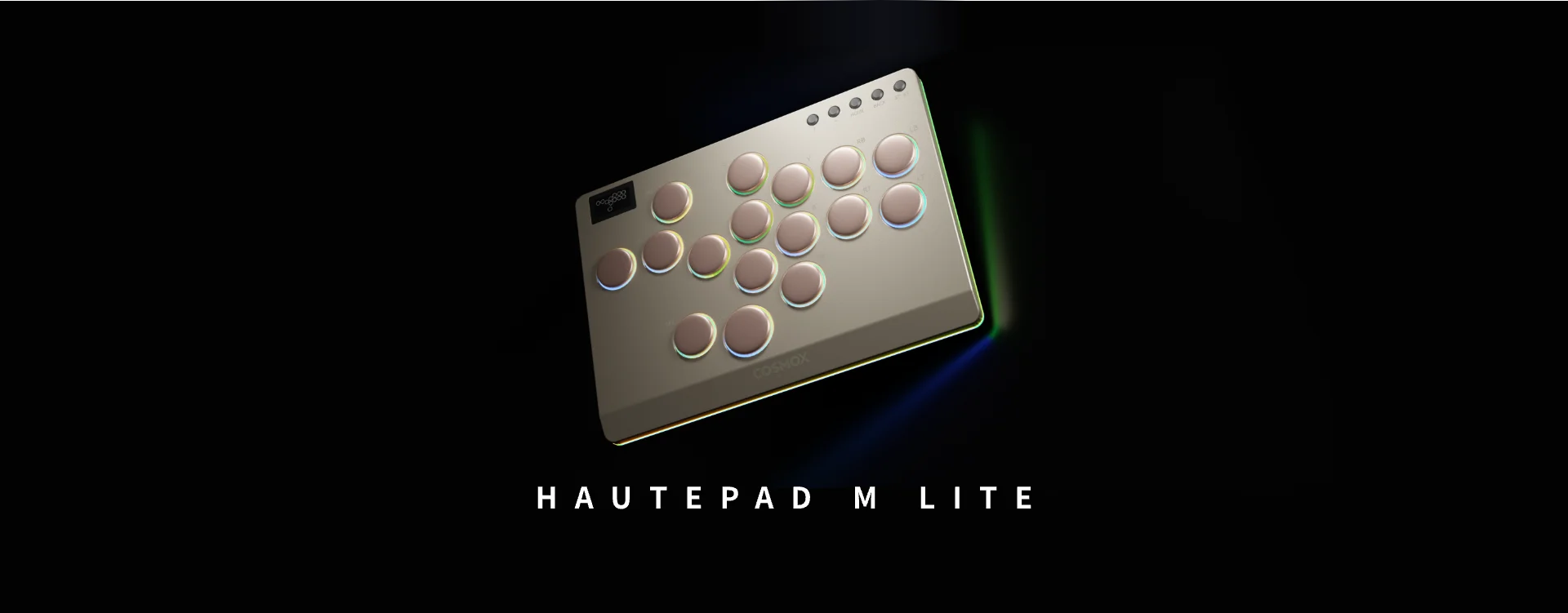

This is a mini hitbox controller made of ABS material. It abandons the heavy acrylic. It is very light, easy to carry and store, and has RGB lighting effects, making you more immersive.

01 Compatibility

B — Xinput mode (Windows/Steam)
A — SWITCH mode
X — PS3 / Dinput mode (Raspberry Pi / Android)
Y — PS4 mode (Compatible with PS4 games on PS5 console）
RT — KEYBOARD mode

Input Mode

To change the input mode, hold one of the buttons(as shown above) as the controller is plugged in.
Tips：
This product defaults to Xinput mode，Input mode is saved across power cycles.
If there are games that do not compatible the above input modes , you can enter the Web Configurator to modify them for normal use.

PS4/PS5 Mode

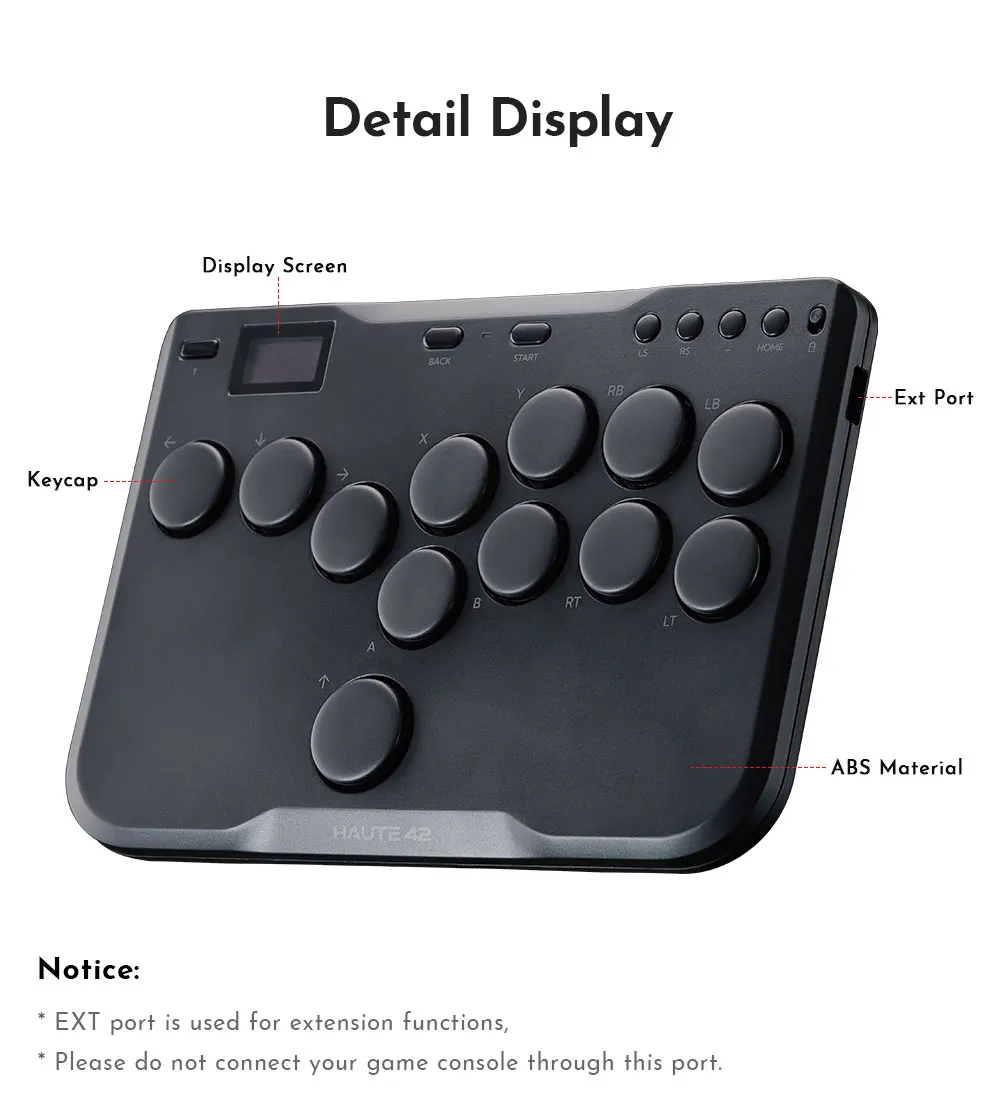

About PS4 8 minute disconnection，there are two ways， one is insert a dongle or a officially authorized PS4 wired controller to the EXT.port，We don't have a recommend one，there are too many choices，maybe you can discuss with other nice players in haute42 group，ficial Website：www.haute42.com

SOCD Modes

Simultaneous Opposite Cardinal Direction (SOCD) cleaning will ensure
the controller obeys certain directional input rules when sending inputs
to the computer/console. Users can choose 1 of the 3 SOCD Modes
while the controller is in use by pressing one of the following button
default combinations:
● HOME + START + UP = Up Priority mode
Up + Down = Up, Left + Right = Neutral (Standard stickless behavior).
● HOME + START + DOWN = Neutral mode
Up + Down = Neutral, Left + Right = Neutral
● HOME + START +LEFT =Last Input Priority (Last Win)
Hold Up then hold Down = Down, then release and re-press Up = Up.
Applies to both axes.
The selected SOCD mode is saved across power cycles
Invert D-Pad Y-axis
A toggle is available to invert the Y-axis input of the D-pad, allowing
some additional input flexibility. The default hotkey to toggle is to press
● HOME + START + RIGHT = Y-axis inersion
This is a temporary hotkey mapping for this feature, so keep an eye on
updated releases for this to change.

Web Configurator

This product contains a built-in web-based configuration application which can be started up by holding START when plugging your controller into a PC. Then access http://192.168.7.1 in a web browser to begin configuration.

TURBO

Hold TURBO，then press the button which you need to be set for turbo function，then this button will be continuous sending while you press it,to cancel this turbo key，just repeat the privious step.
The turbo key that set will be cleard when power off.
These keys can be set as a Turbo key: A / B / X / Y / LB / RB / LT / RT

04 RGB LED Setting

●BACK + START + X Next Animation
●BACK + START + A Previous Animation
●BACK + START + Y Brightness Up
●BACK + START + B Brightness Down
●BACK + START + RB LED Parameter Up
●BACK + START + RT LED Parameter Down
●BACK + START + LB Pressed Parameter Up
●BACK + START + LT Pressed Parameter Down
