Waveshare Industrial 8-Ch Digital Input & Output Module, DC 7~36V Wide Voltage Power Supply, Modbus RTU Protocol, Rail-Mount

DESCRIPTION
Industrial 8-Ch Digital Input & Output Module, DC 7~36V Wide Voltage Power Supply, Modbus RTU Protocol, Multiple Isolation Protection Circuits, Rail-Mount Support
8-Ch Digital Input & Output Module
DC 7~36V Wide Voltage Power Supply
Modbus RTU Protocol
Multiple Isolation Protection Circuits
DI/DO Linkage Control

Features At A Glance
This is an industrial grade 8DI / 8DO digital isolated input & output module with RS485 control interface. Supports passive / active input, adopts Modbus RTU protocol with built-in protection circuits such as power isolation, magnetical isolation, resettable fuse, and TVS.
Configurable device address (1~255), multi devices can be cascaded on RS485 bus
Onboard voltage regulator, supports 7~36V wide range power supply
Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal
Onboard unibody magnetical isolation, allows signal isolation, high reliability, strong anti-interference
Onboard resettable fuse and TVS (Transient Voltage Suppressor), effectively suppresses surge voltage and transient spike voltage in the circuit, provides over-current/over-voltage proof, lightningproof & anti-electrostatic
Supports passive and active digital input, with bi-directional optocoupler isolation, built in debouncing algorithm. Supports DI/DO linkage control or DO toggle control
The output utilizes Darlington transistors with optocoupler isolation, provides stronger driving capability with up to 500mA sinking current, built in flyback diode protection
Features flash-on, flash-off function, by passing argument to the command, it is possible to turn on the output for a while and then close it automatically
Rail-mount case design, support stacking combination, easy to install and safer to use
Multiple LEDs for indicating the input & output status, MCU status and signal transceiving status
Specifications
COMMUNICATION INTERFACE
RS485
BAUD RATE
4800, 9600, 19200, 38400, 57600, 115200, 128000, 256000
DEFAULT COMMUNICATION FORMAT
9600, N, 8, 1
MODBUS PROTOCOL
Standard Modbus RTU protocol
POWER SUPPLY
DC 7~36V
DIGITAL INPUT
8DI, 5~36V, passive / active input (NPN or PNP), built-in bi-directional optocoupler isolation
DIGITAL OUTPUT
8DO, 5~36V, open-drain output, output load: 500mA per channel (MAX)
Primary Function

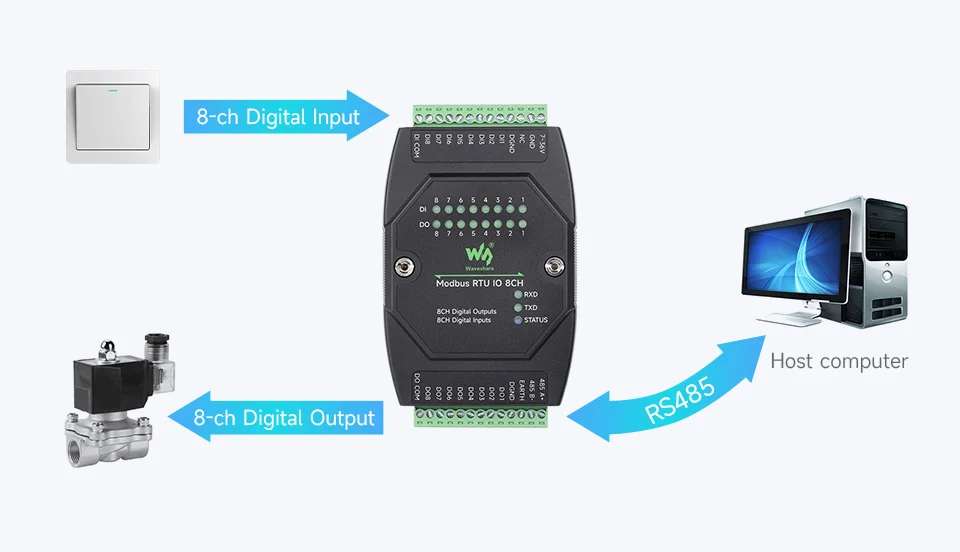

Supports Reading Digital Input By Sending Modbus RTU Protocol Commands Via RS485 For Digital Output Control

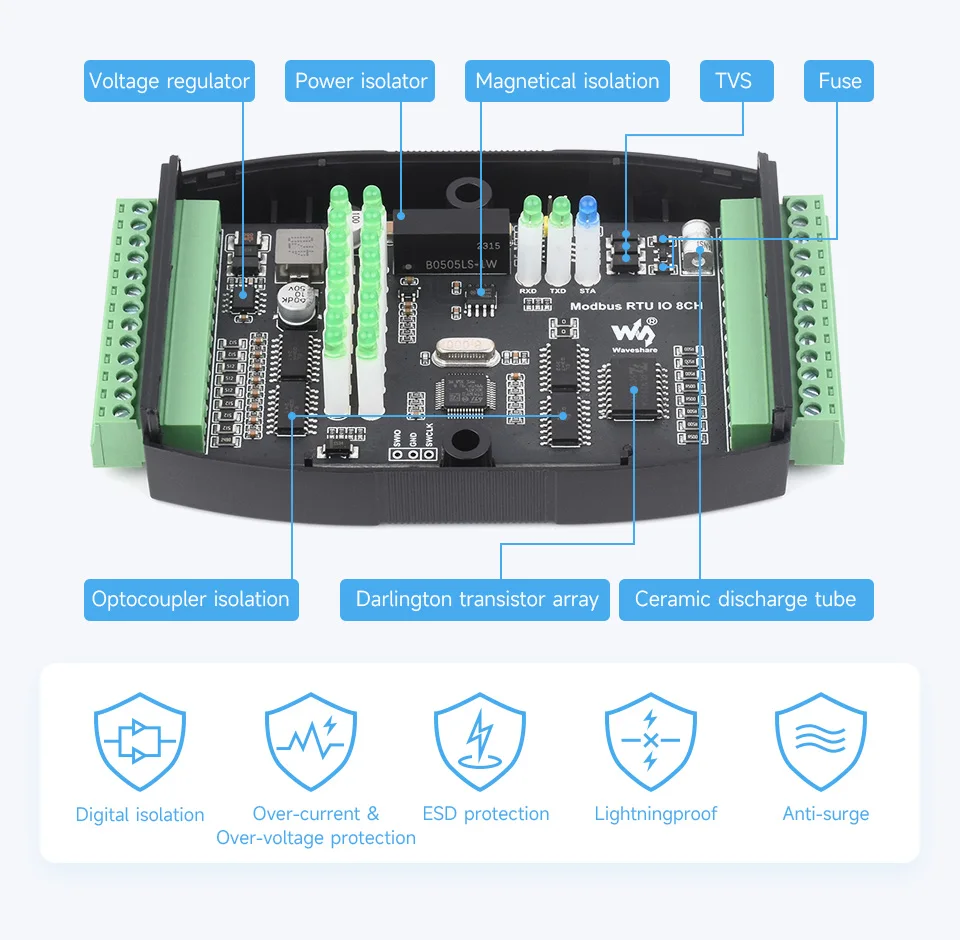

Industrial Grade Isolated Protection
Onboard power and signal dual isolation for RS485 communication, provides stable isolation voltage, features high reliability and strong anti-interference performance. Built-in TVS (transient voltage suppression tube) can effectively suppress the surge voltage and transient peak voltage in the circuit, lightningproof & ESD protection. Built-in resettable fuse and protection diode to ensure stable current and voltage output, provides over-current and over-voltage proof, improves shock-proof performance, suitable for industrial environments with high requirement.

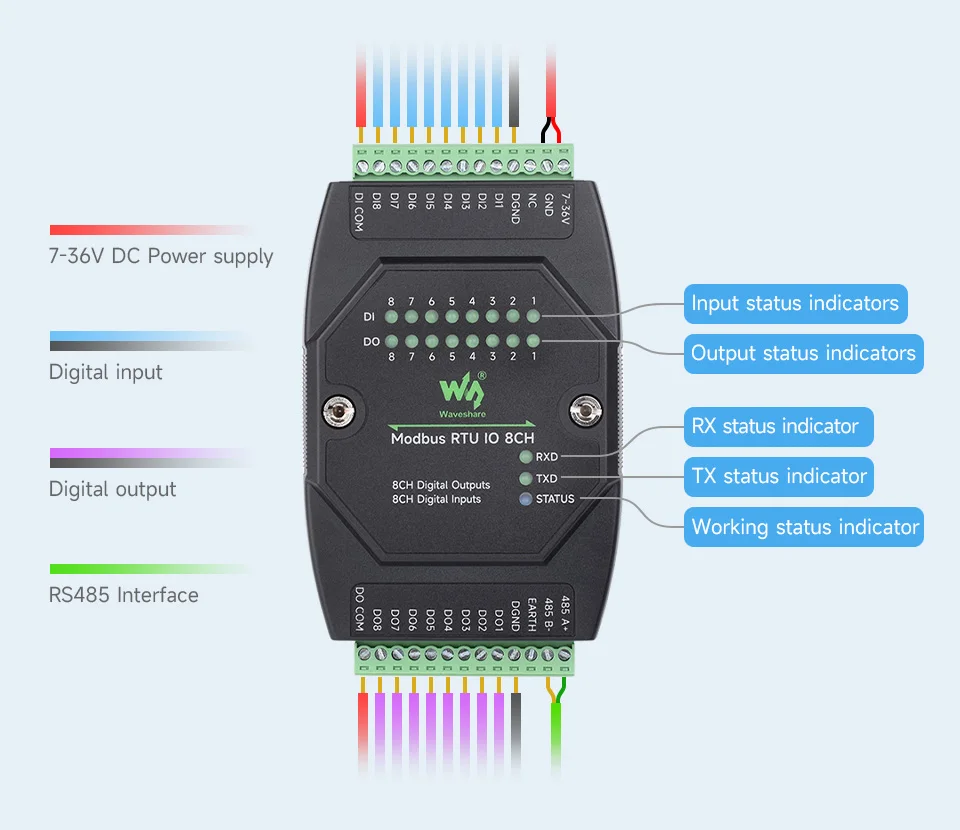

Interface Introduction

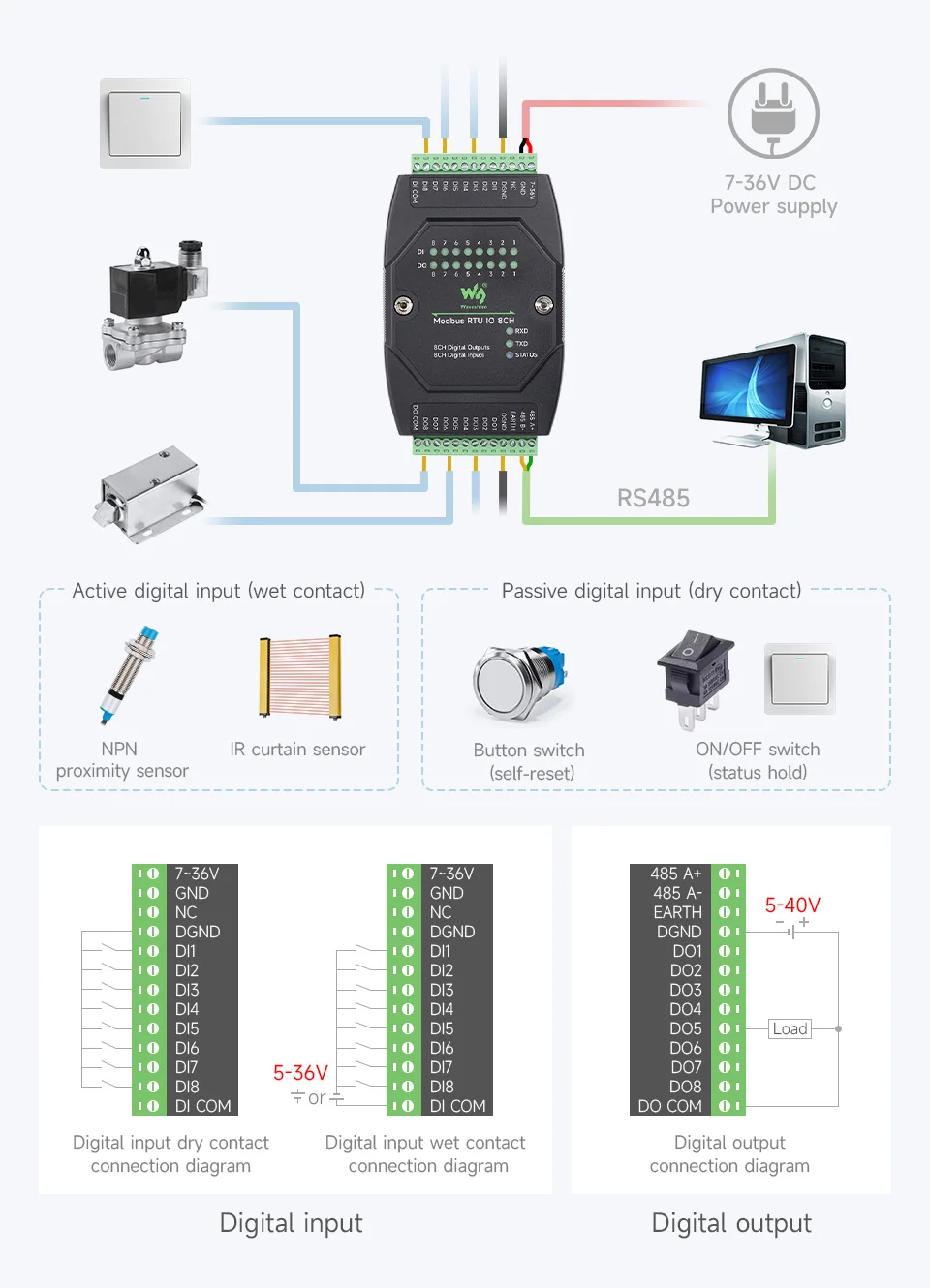

Full Isolation For Digital Input & Output
Supports Passive And Active Digital Input (PNP Type Or NPN Type), With Bi-Directional Optocoupler Isolation. Adopts Darlington Transistor Open-Drain Output, Up To 500mA Sinking Current Per Channel For Directly Driving Relays

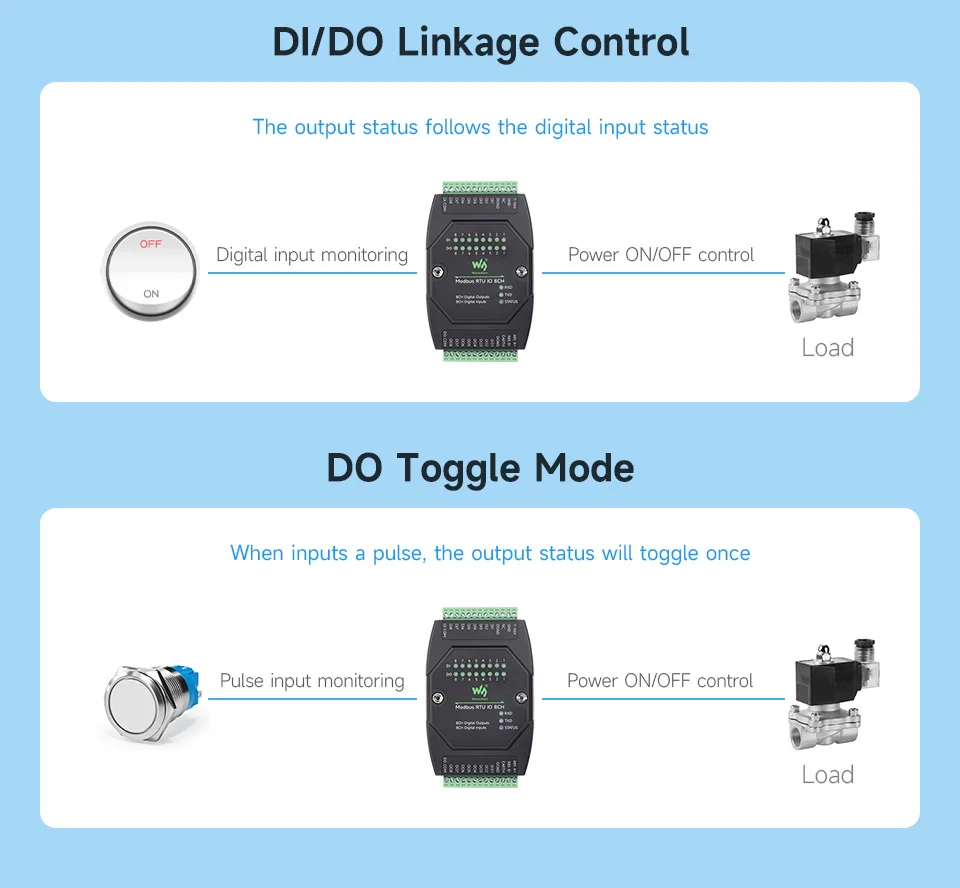

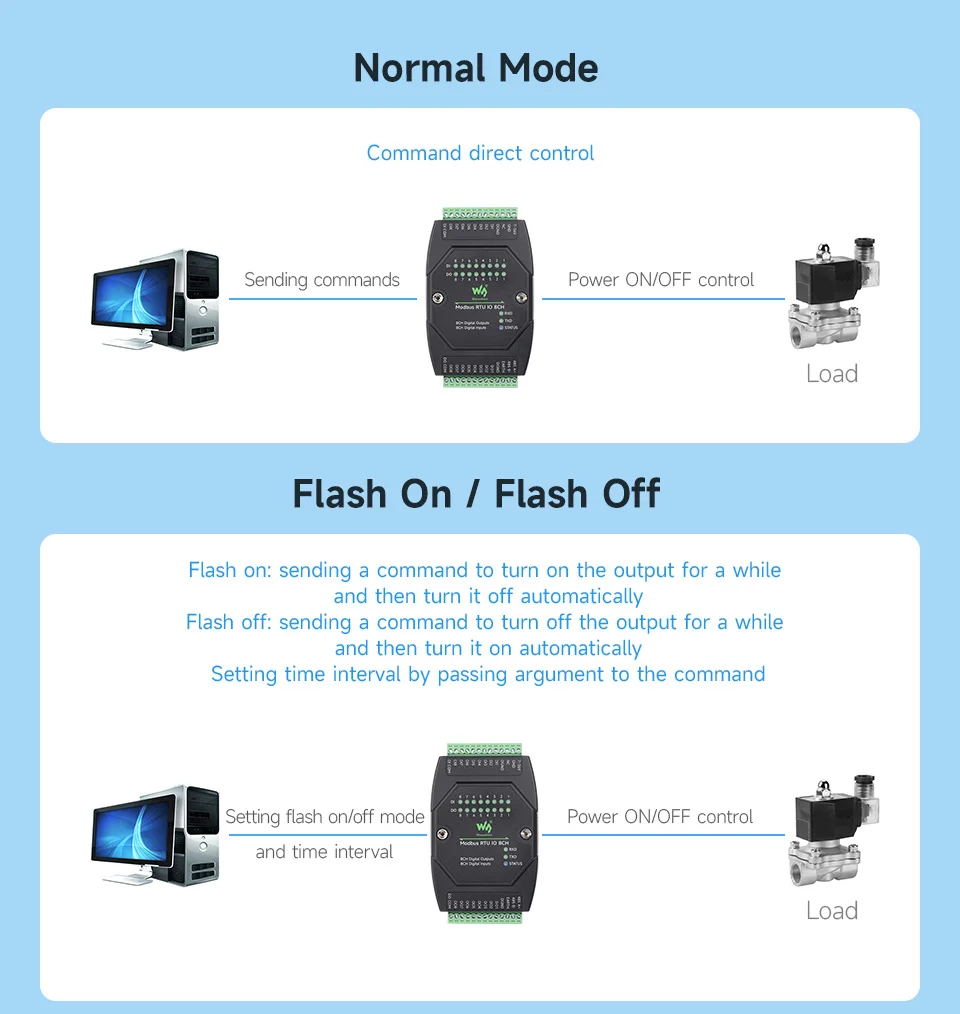

Multiple Modes For Various Automation Scenarios
Supports Multiple Output Control Modes, Each Channel Supports Independent
Control Mode Setting

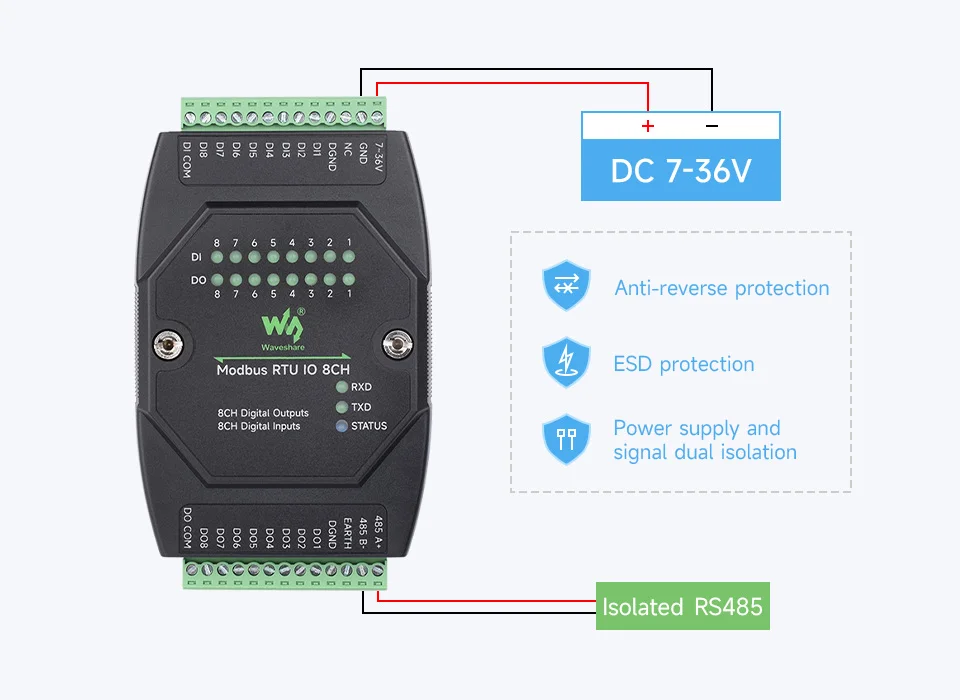

Wide Voltage Power Supply, Isolated RS485 Interface
Built-In Fuse And Anti-Reverse Protection, With Power And Signal Dual Isolation

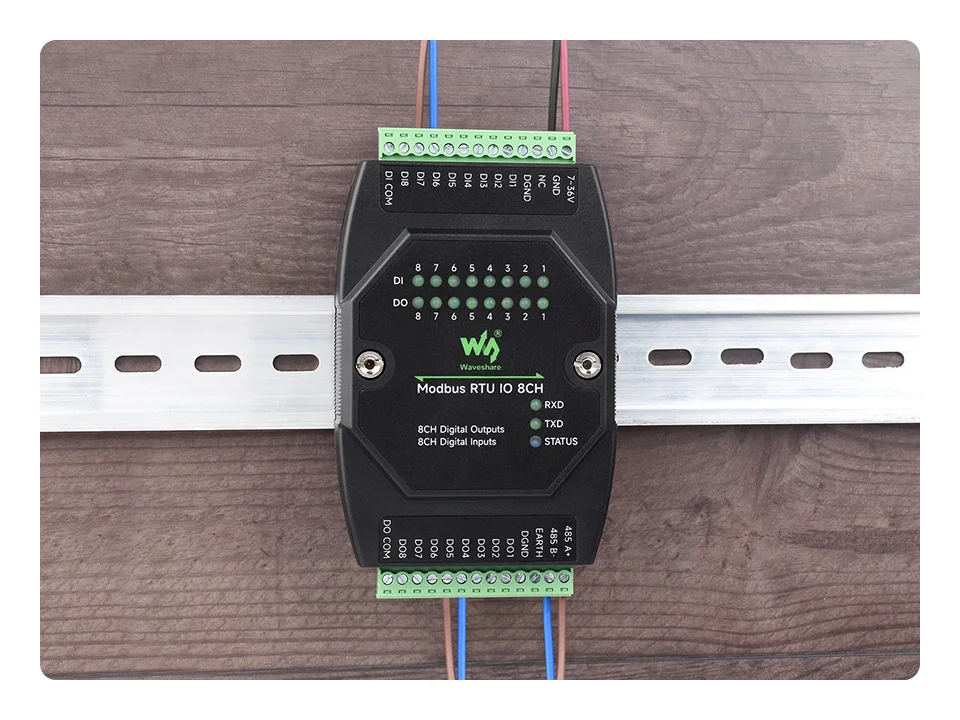

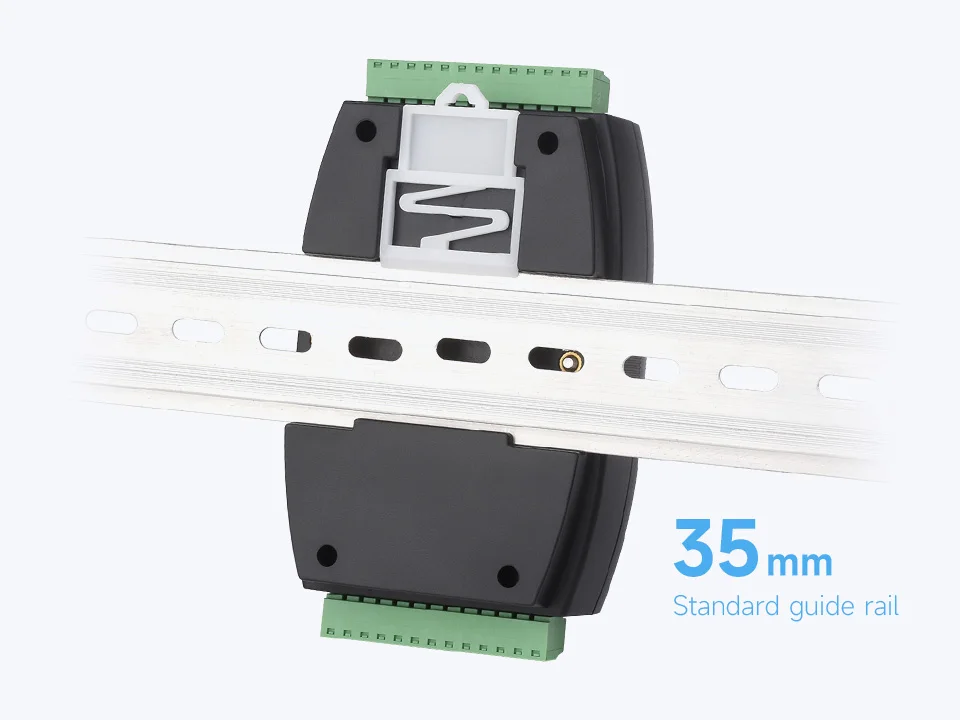

Rail-Mount Support
Supports 35mm Standard Guide Rail, With Rail-Mount Buckle, Easy To Install

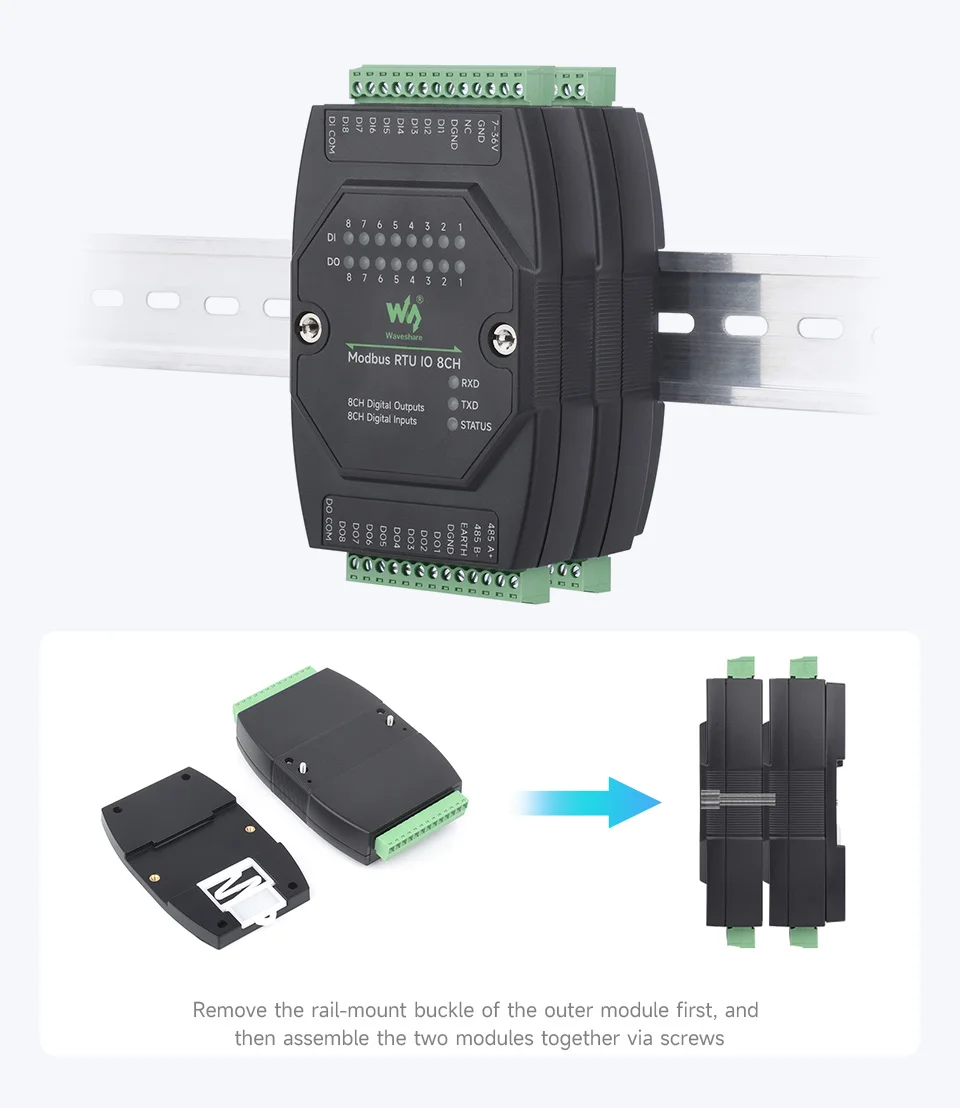

Supports Stacking Installation

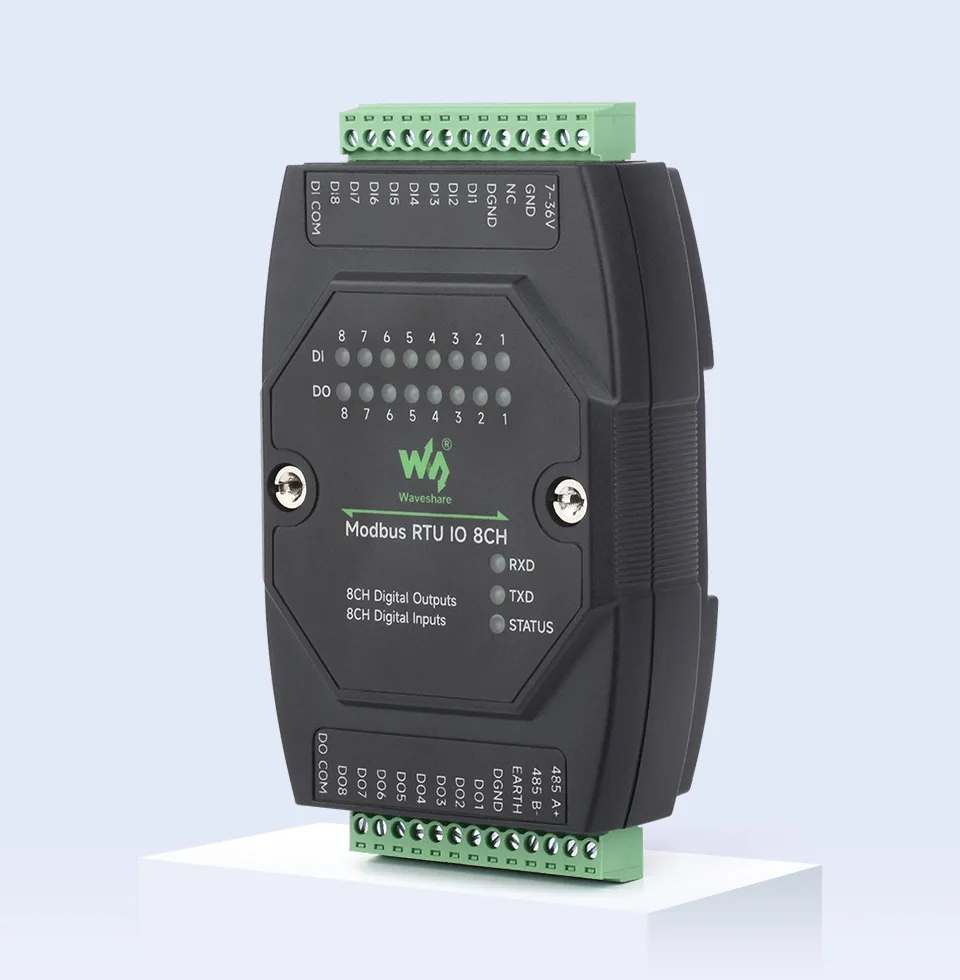

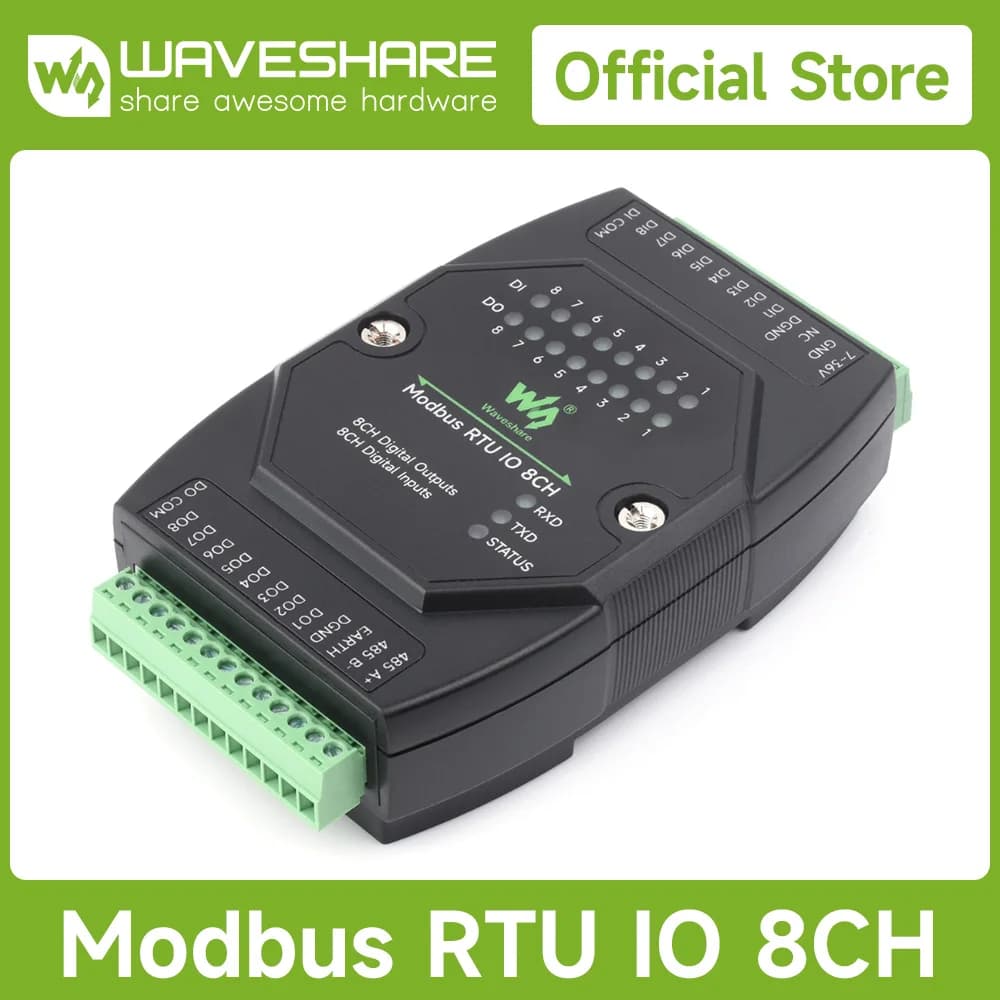

Product Show

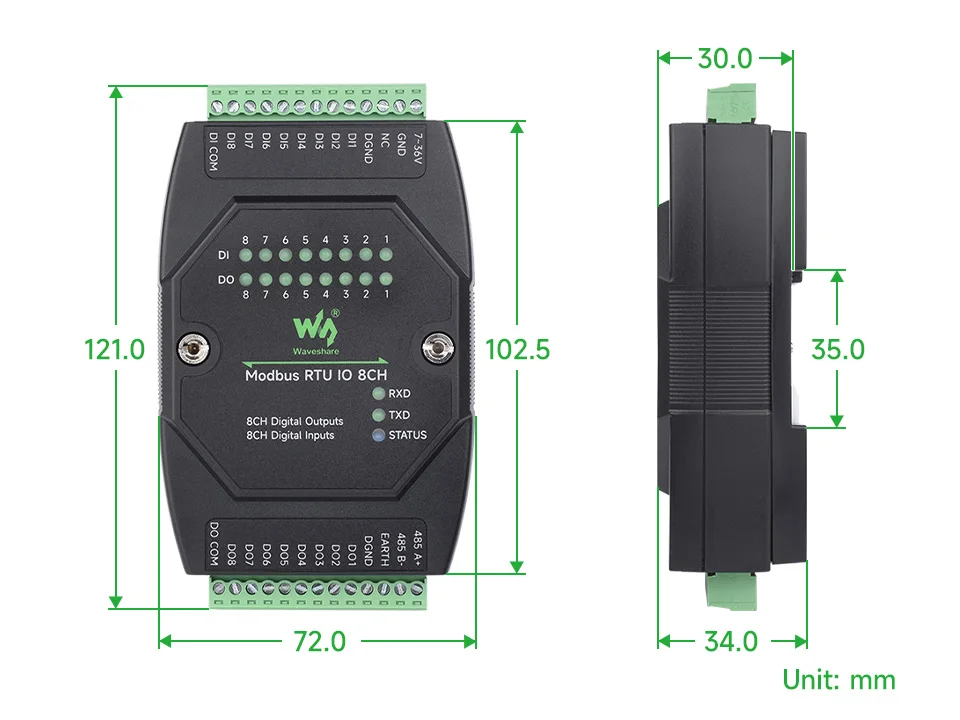

Dimensions

Resources & Services

Wiki:www.waveshare.com/wiki/Modbus_RTU_IO_8CH

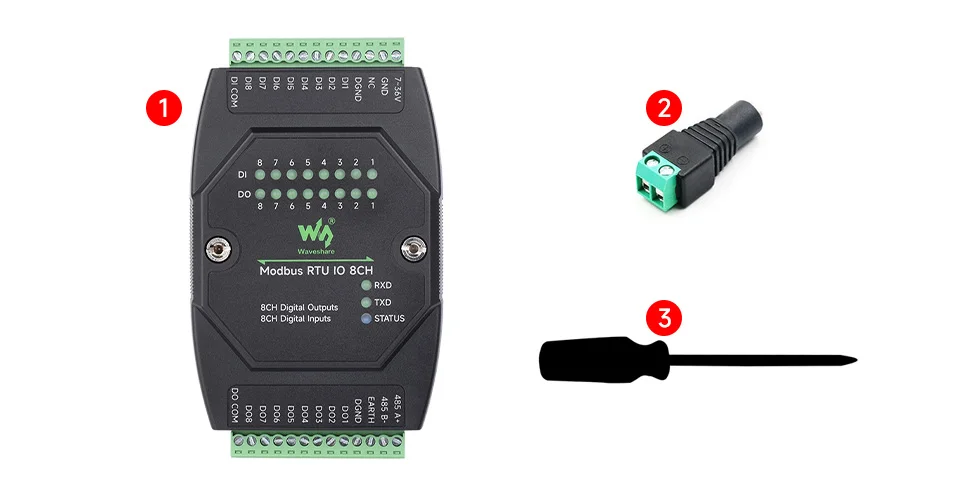

PACKAGE CONTENT
Weight:0.141 kg
The power supply of this product is not included, it is recommended to purchase12V power supplyif you need it.Package Contains
Modbus RTU IO 8CH x1
Power supply terminal adapter x1
Screwdriver x1
