Description

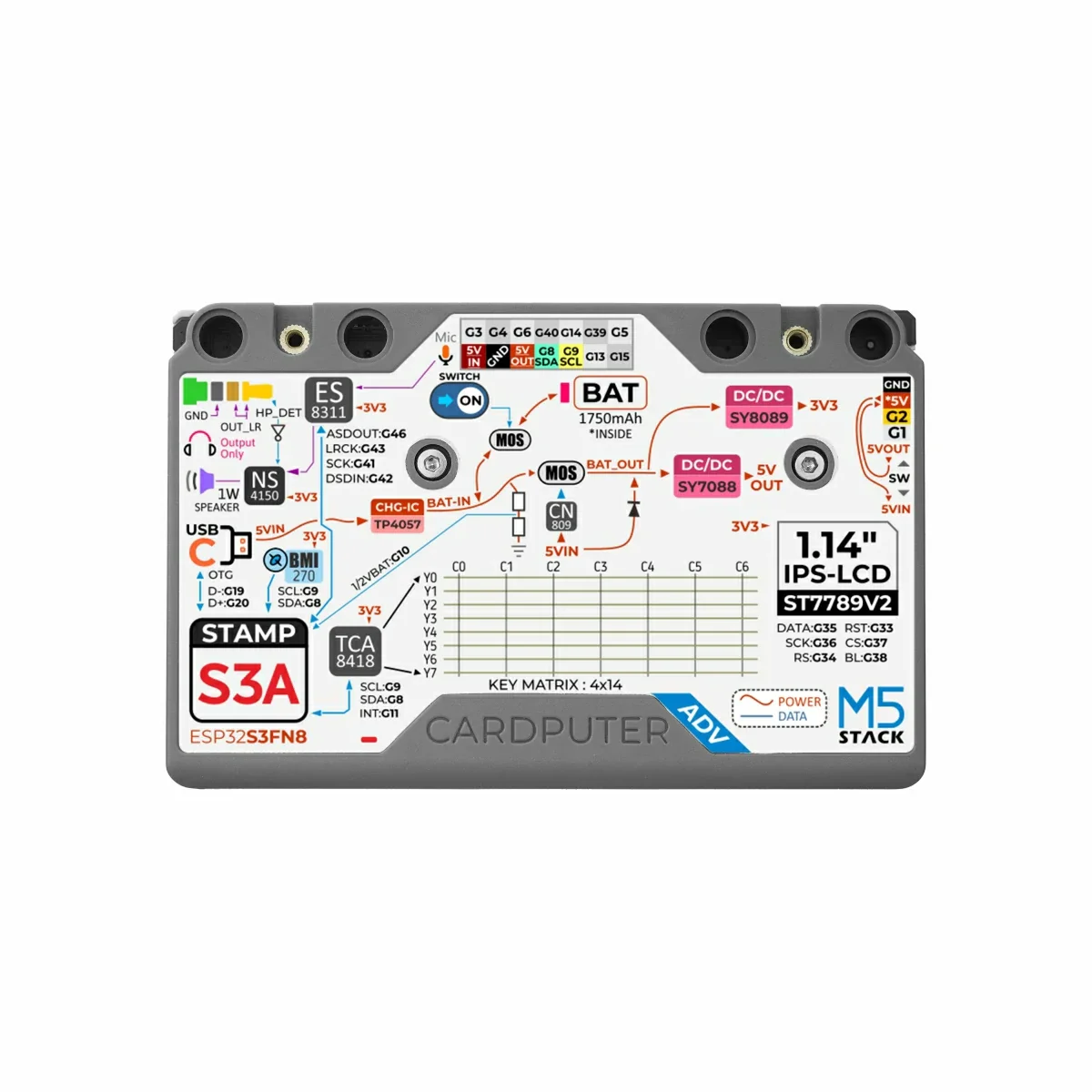

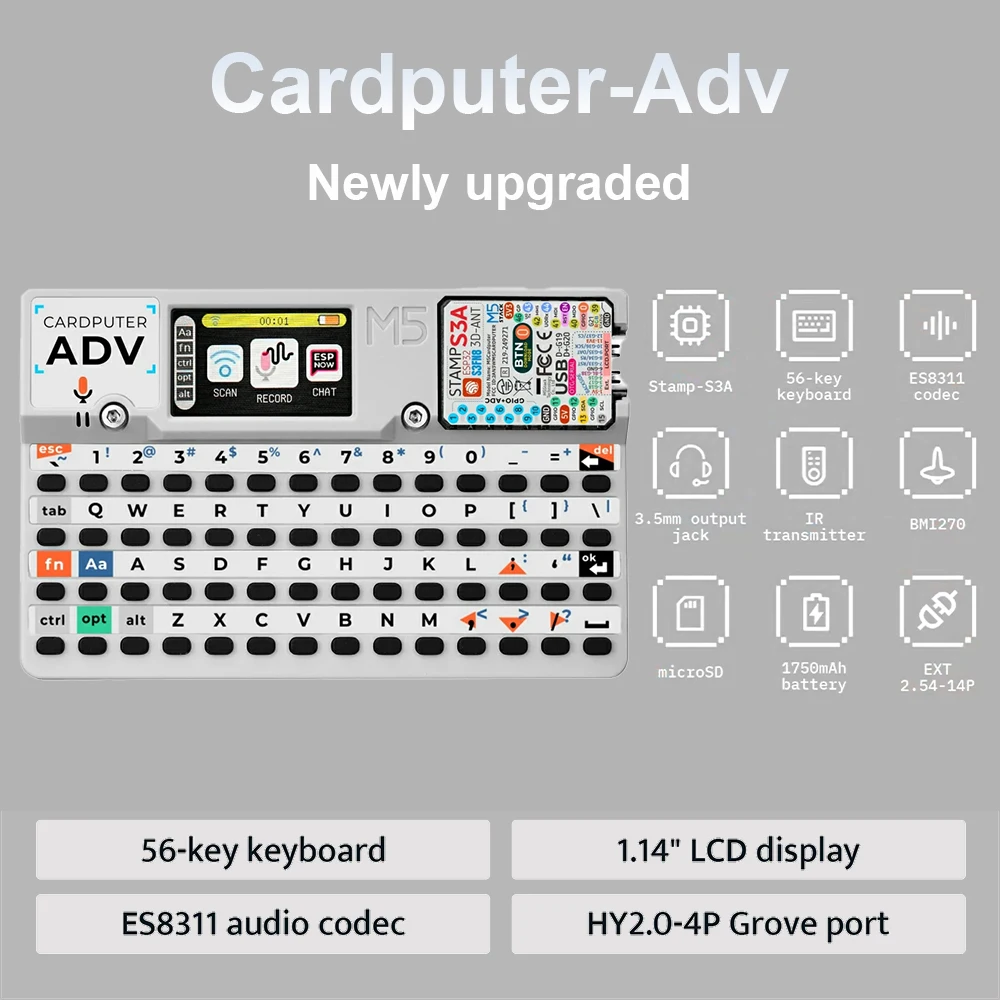

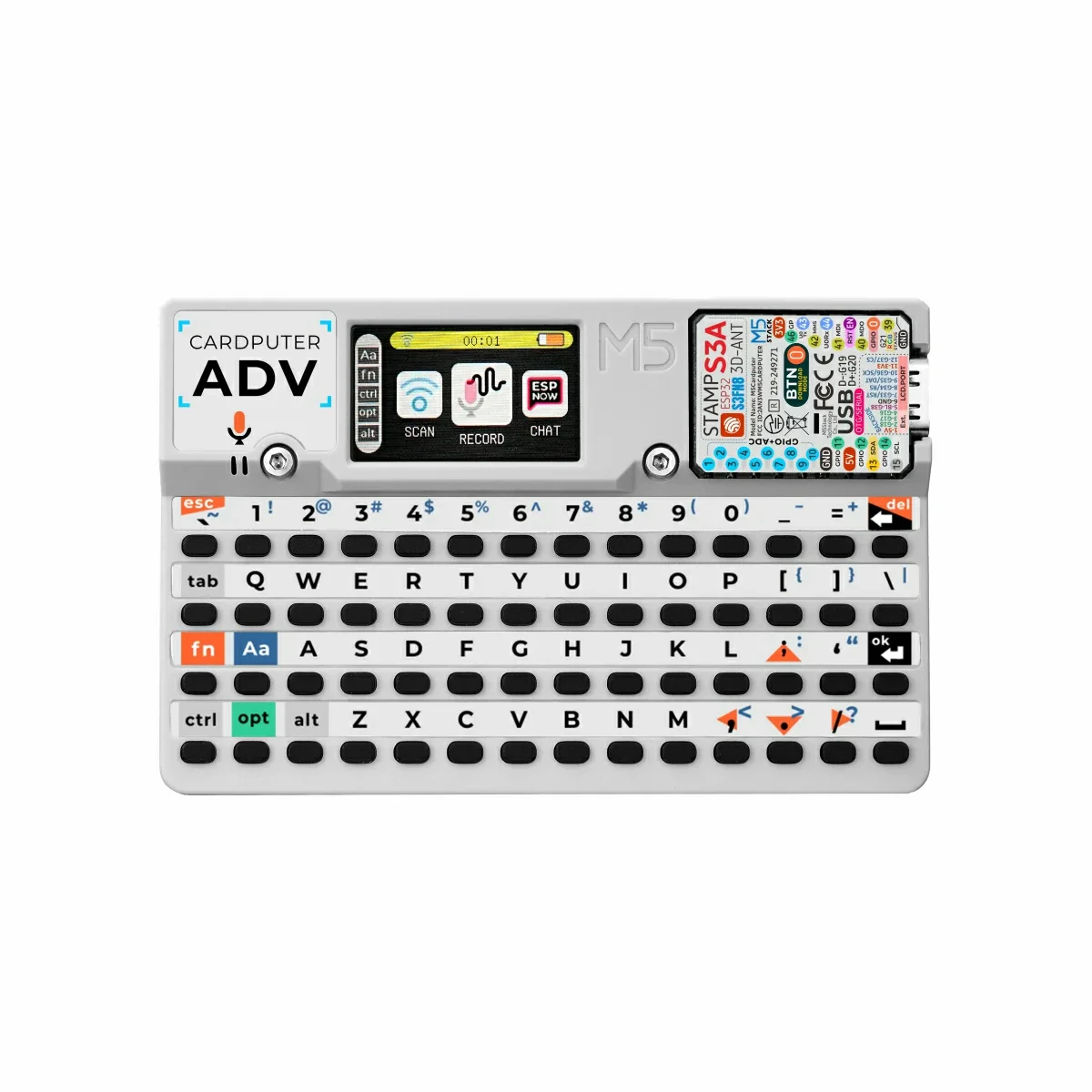

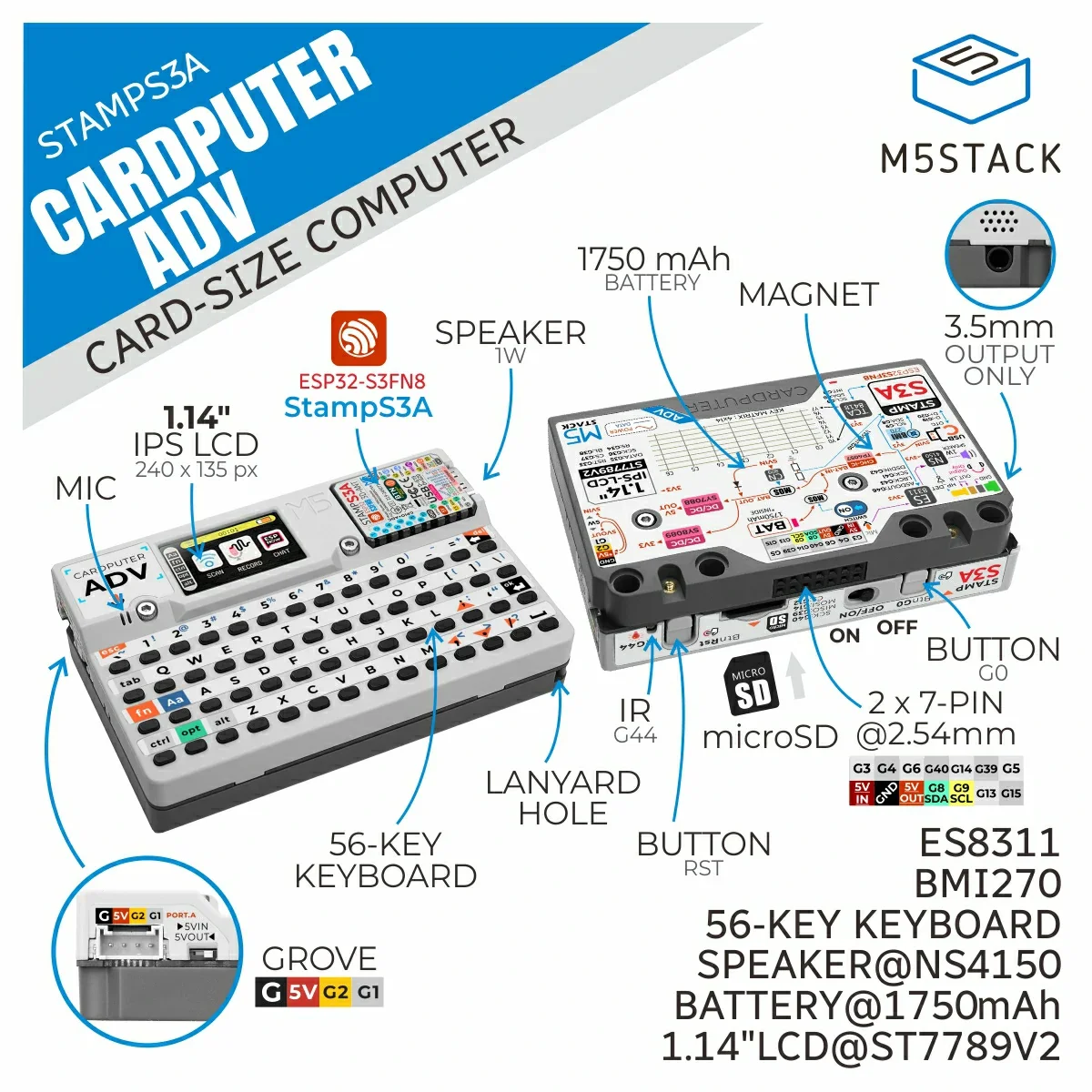

Cardputer-Adv is a programmable card-sized computer powered by the Stamp-S3A core module (based on ESP32-S3FN8). It integrates a 1.14" LCD display and a 56-key minimalist keyboard for convenient interaction and input operations.
In terms of audio, it features an ES8311 audio codec, a high SNR MEMS microphone, an NS4150B amplifier, and a 1W speaker, providing high-quality audio input and output capabilities. Additionally, it has a 3.5mm audio output jack for connecting external headphones or speakers. Internally, it is equipped with a 1750mAh high-capacity lithium battery, combined with a low-power design and an independent power switch to ensure good battery life. It integrates a 6-axis motion sensor BMI270, an infrared emitter, a microSD card slot, and also provides an HY2.0-4P Grove port and an EXT 2.54-14P expansion bus for connecting sensors and other peripherals. The base contains magnets for metal attachment and is compatible with LEGO hole extensions. This product is suitable for quick function prototyping, industrial control, home automation, and other scenarios.

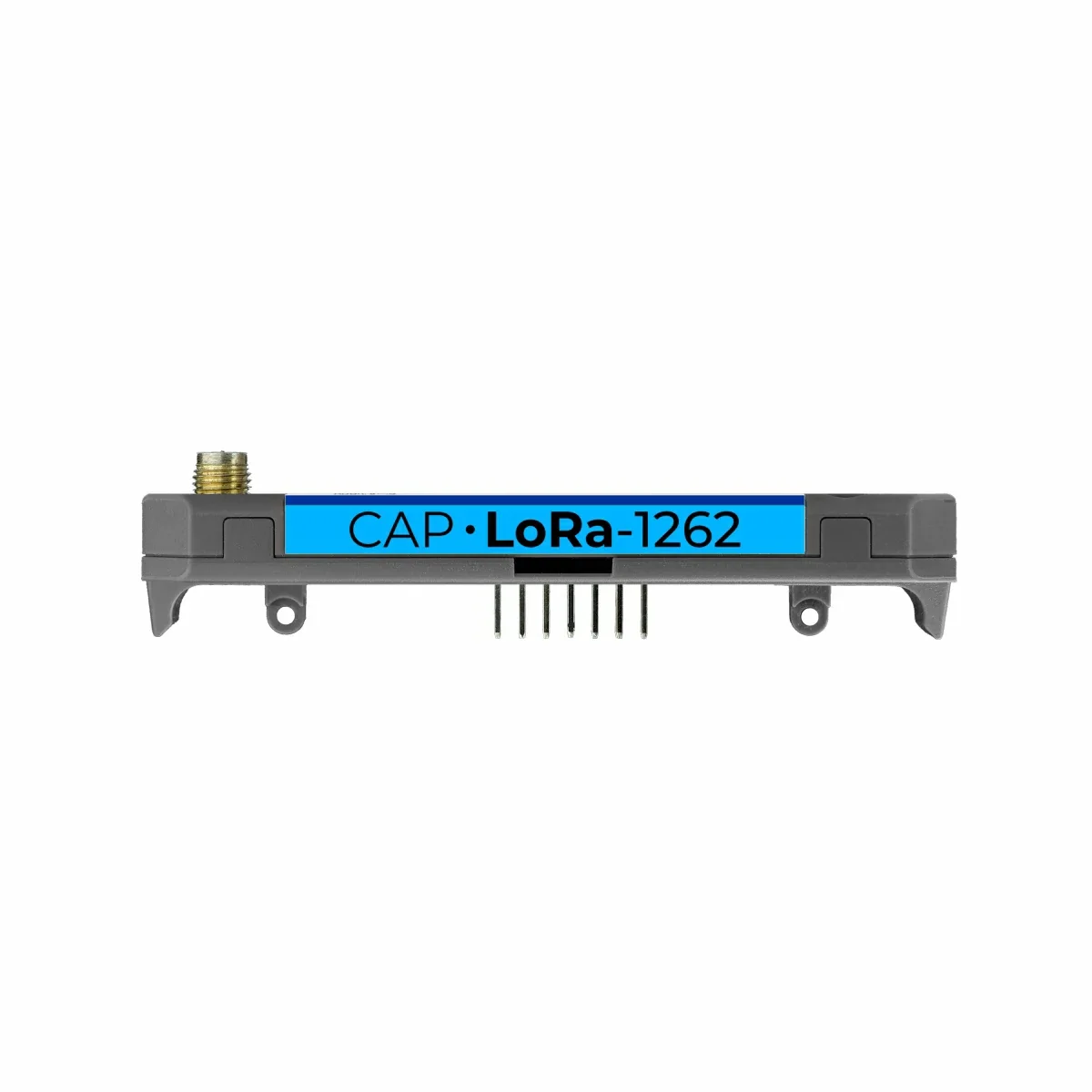

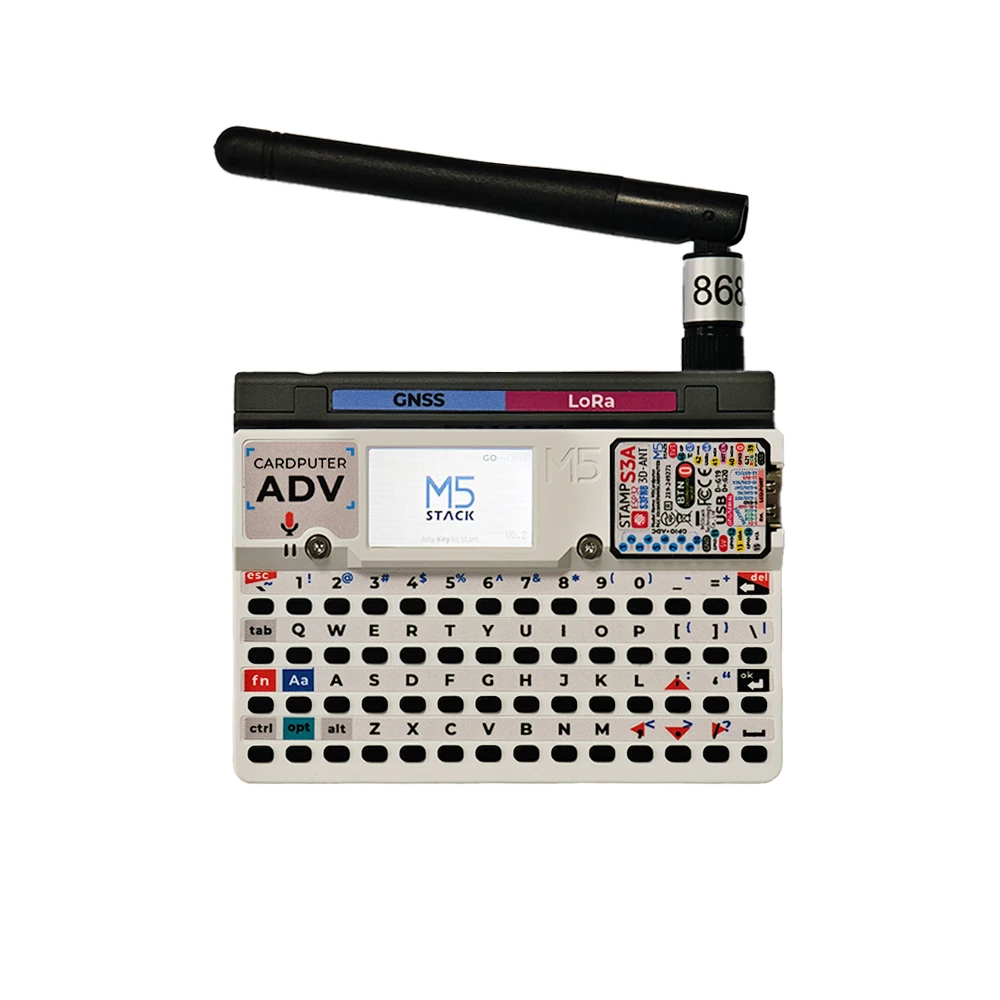

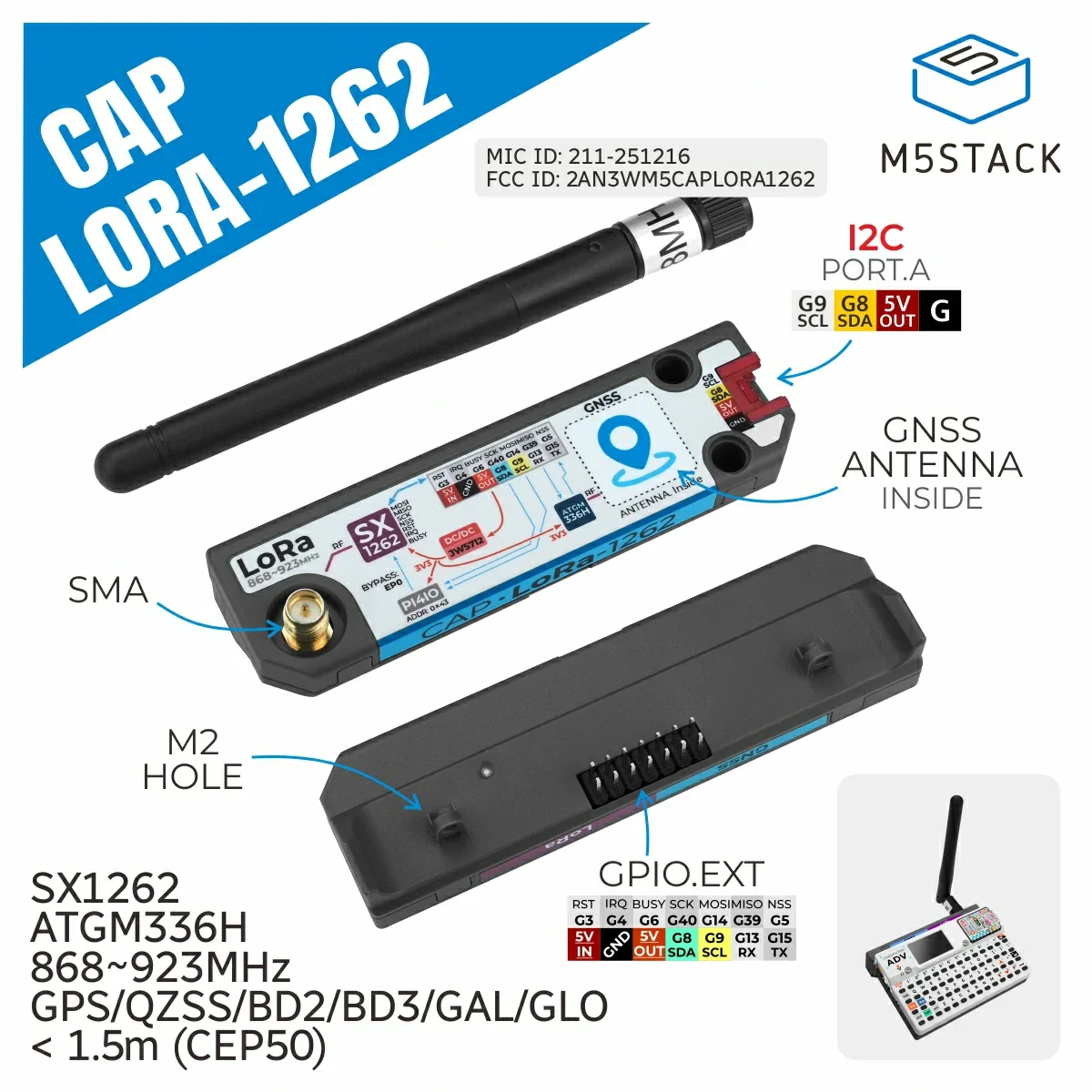

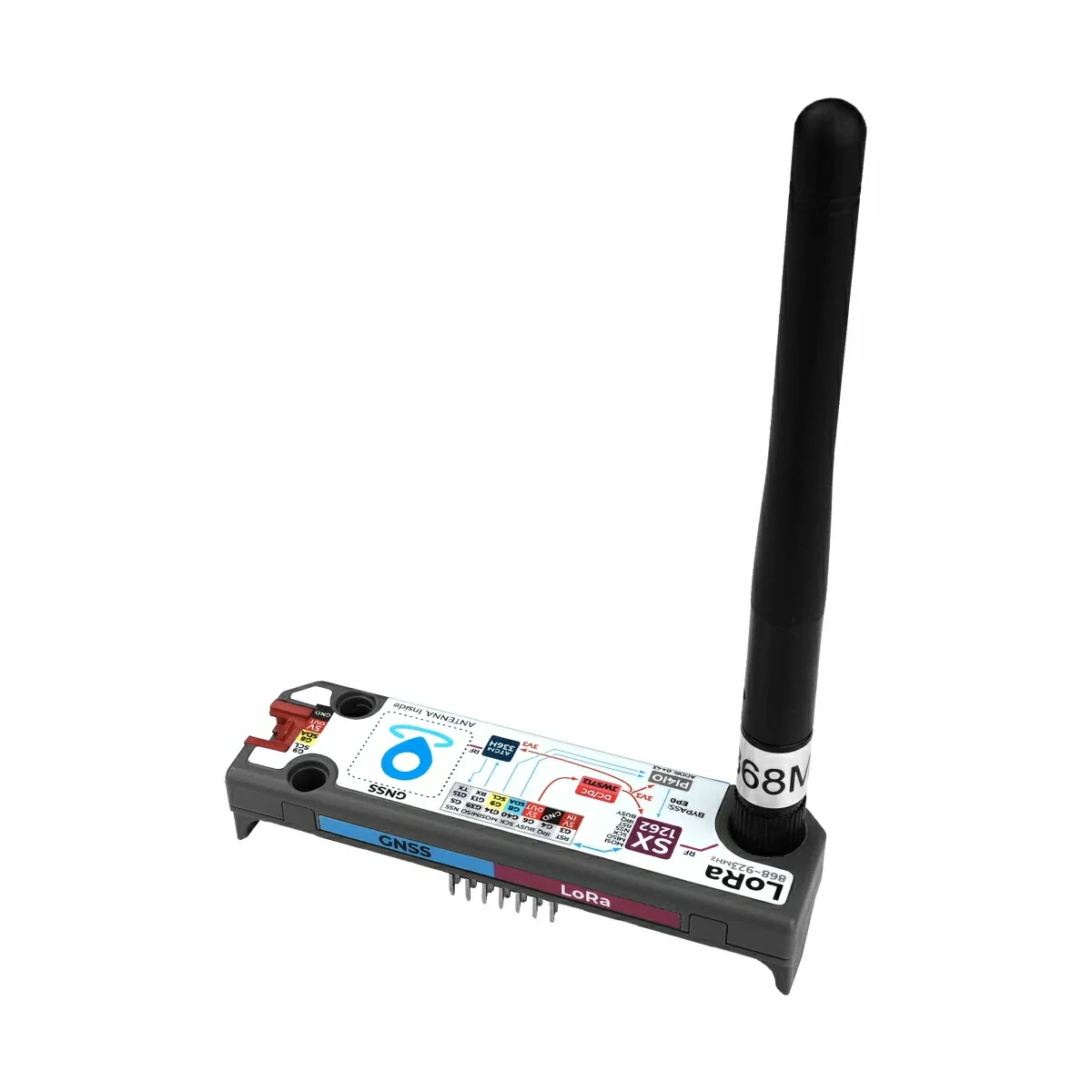

Cap LoRa-1262 is a high-performance communication expansion module that integrates LoRa communication and GNSS global positioning and navigation, designed for use with Cardputer-Adv. The module is equipped with an HY2.0-4P expansion interface, enabling stable connection and functional expansion with host devices.
The LoRa module adopts a solution based on the SX1262 chip and is equipped by default with an external RP-SMA antenna. In addition, a shielding cover design is used to further enhance anti-interference capability and optimize overall performance, providing stronger interference resistance and long-range communication capability. It supports the 868MHz ~ 923MHz frequency band, delivering long-distance, low-power wireless links for Internet of Things (IoT) scenarios.

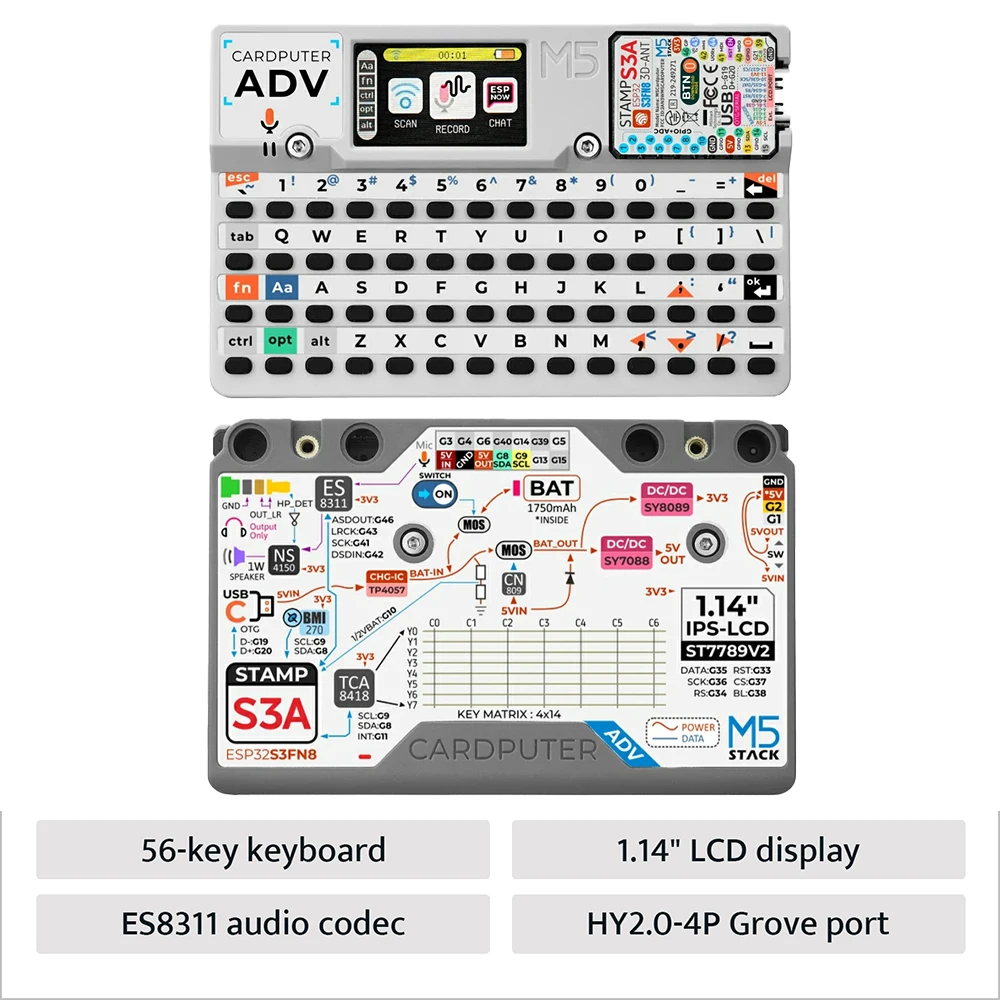

Features

—Stamp-S3A core controller
—56-key keyboard
—1.14" LCD display
—160gf comfortable keypress feel
—ES8311 audio codec
—High SNR MEMS microphone
—NS4150B amplifier + 1W speaker

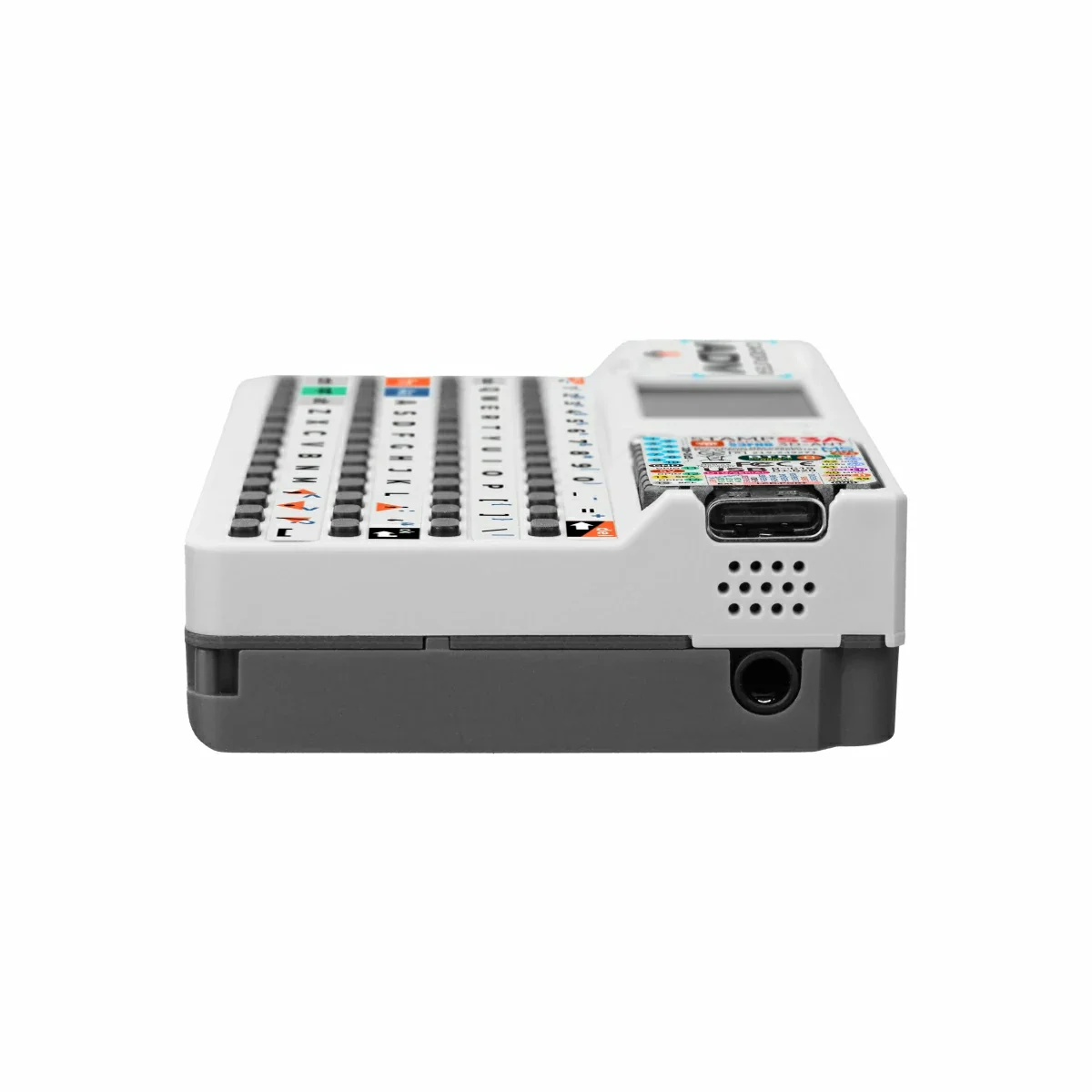

—3.5mm audio output interface
—Infrared emitter
—6-axis motion sensor BMI270

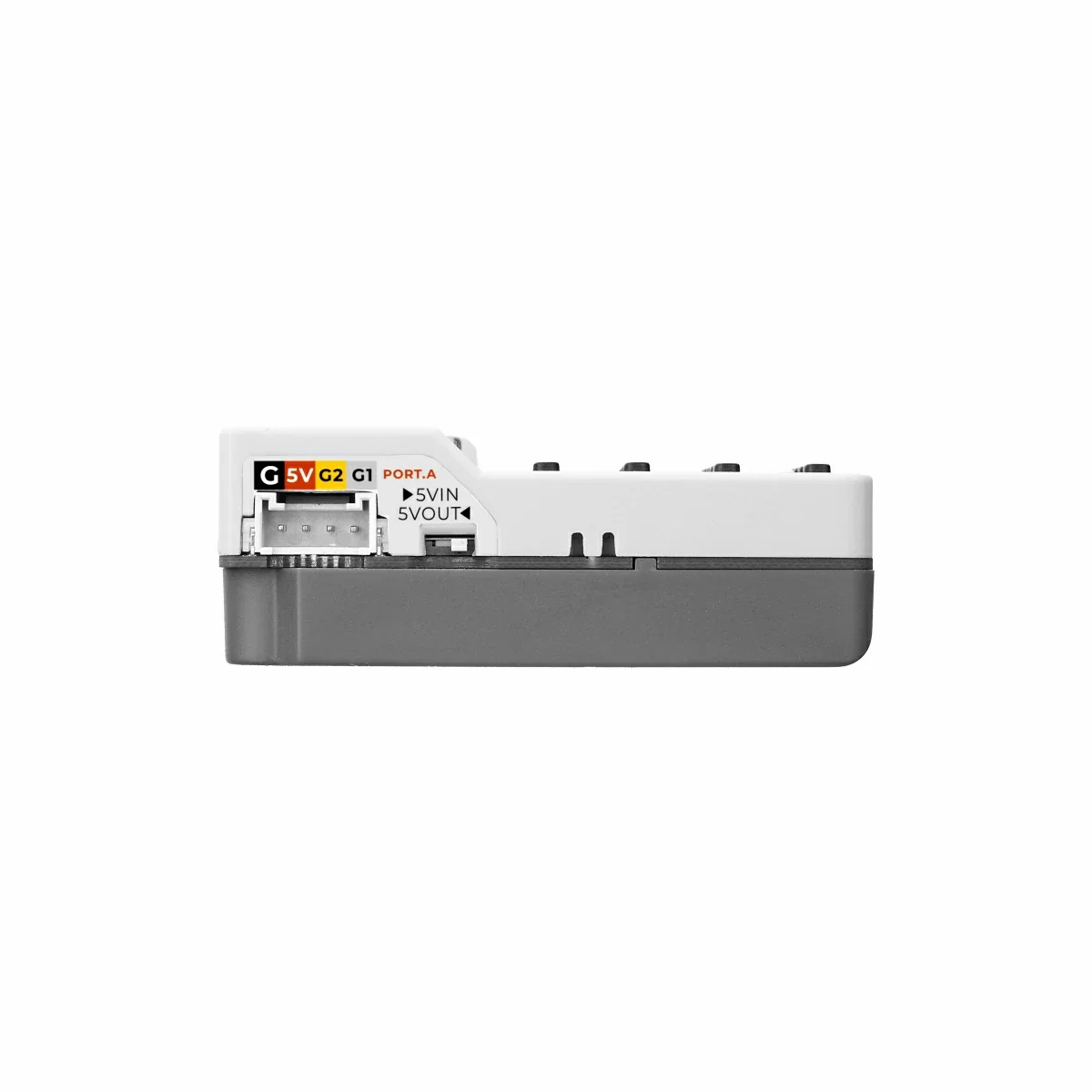

—HY2.0-4P Grove port
—EXT 2.54-14P expansion bus
—microSD card slot
—Built-in 1750mAh battery
—Magnetic back design
—LEGO hole compatible
—Development Platform
—Arduino
—UiFlow2
—ESP-IDF
—PlatformIO

Includes

*1 x Cardputer-Adv
*1 x Cap LoRa-1262
*1 x LoRa Rubber Antenna

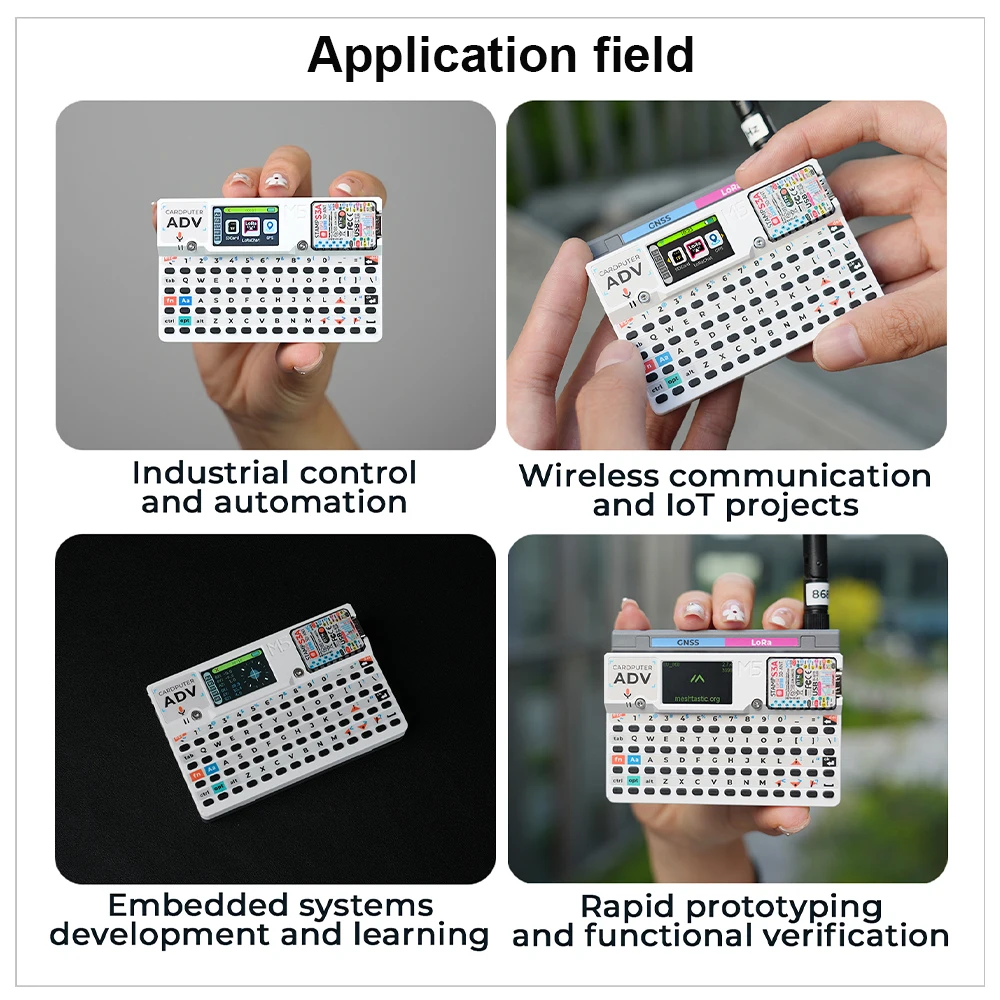

Applications

—Rapid prototyping and functional verification
—Industrial control and automation
—Embedded systems development and learning
—Wireless communication and IoT projects

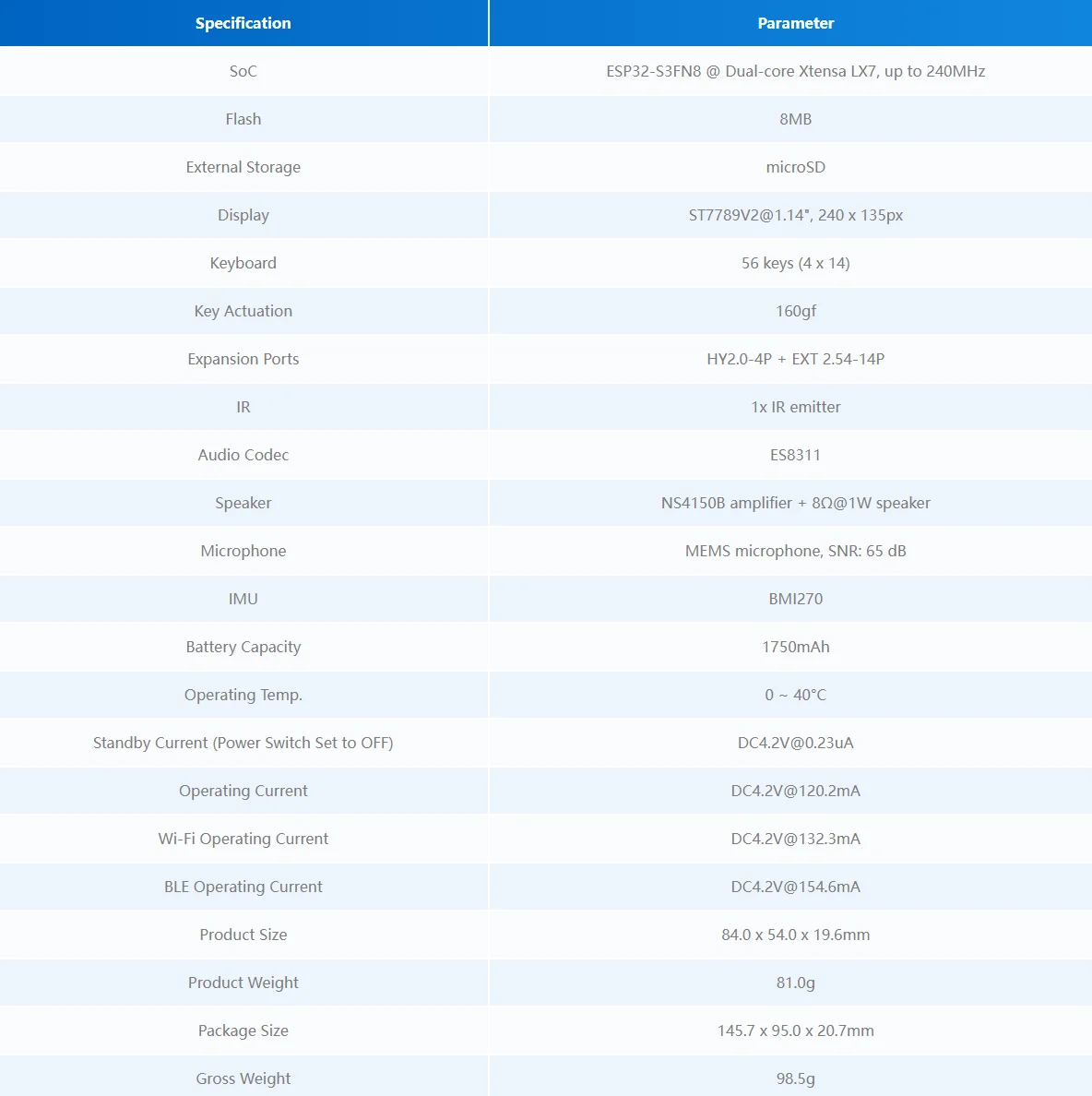

Specifications

Learn

Download Mode

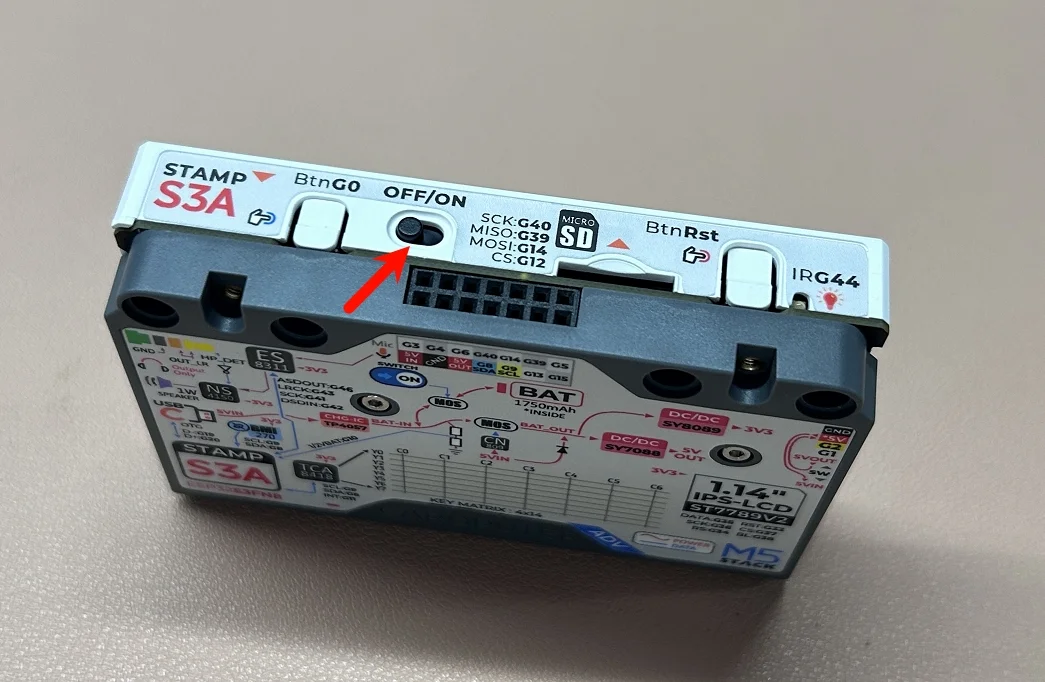

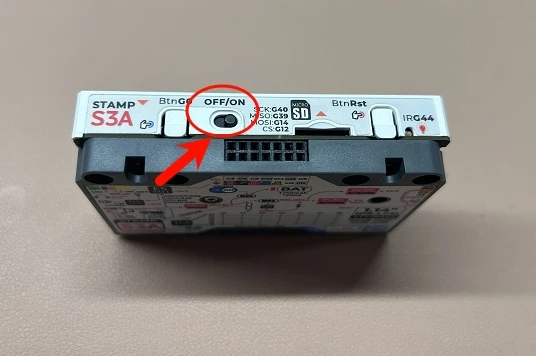

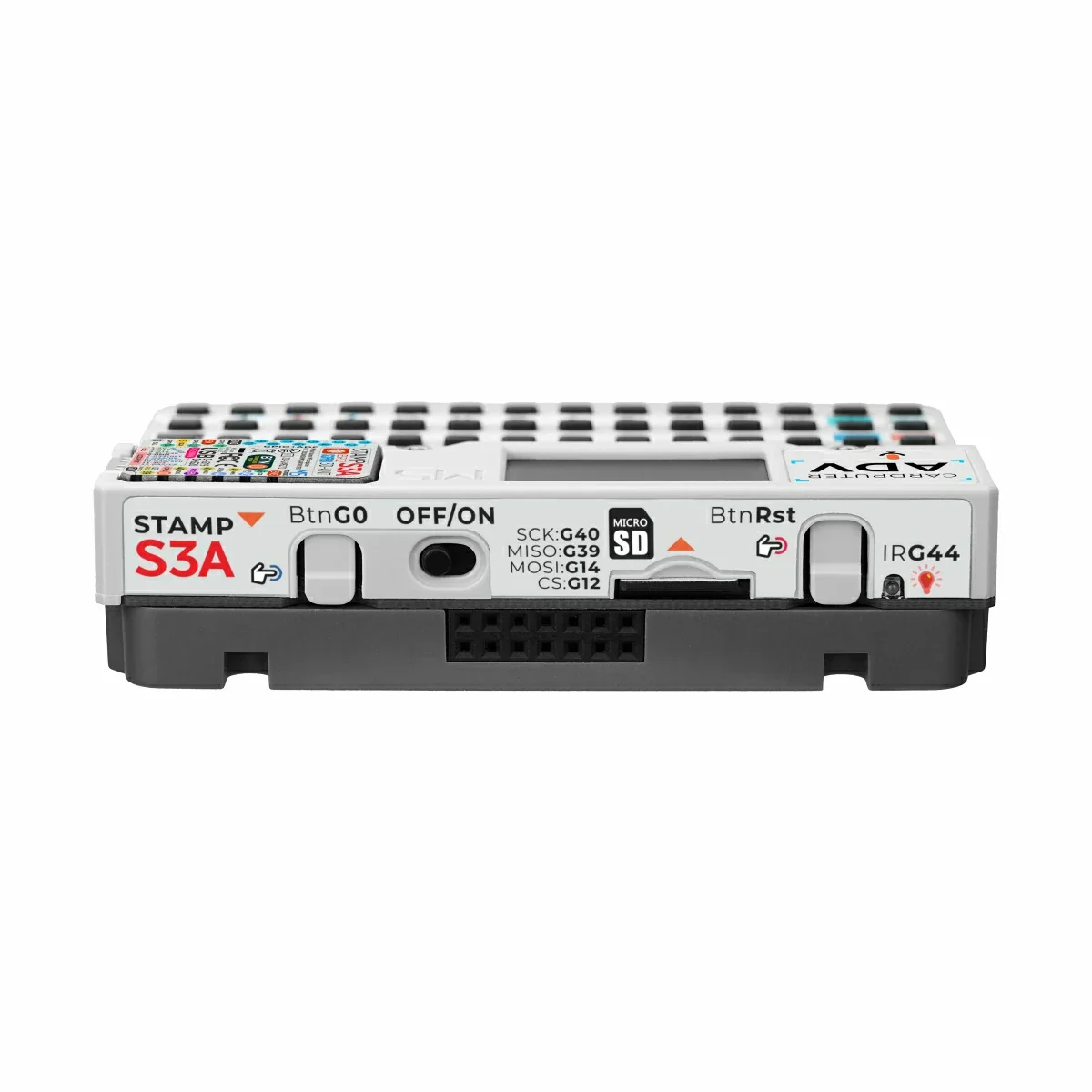

To enter download mode, set the side power switch of the Cardputer-Adv to the OFF position. Then, before powering on, hold the G0 button, apply power to the device, and release it afterward. The device will then enter download mode.

Charging Notes

When charging the Cardputer-Adv, please switch the power to ON.

Note

When a 3.5mm headphone jack is inserted, the speaker amplifier will be disabled.
