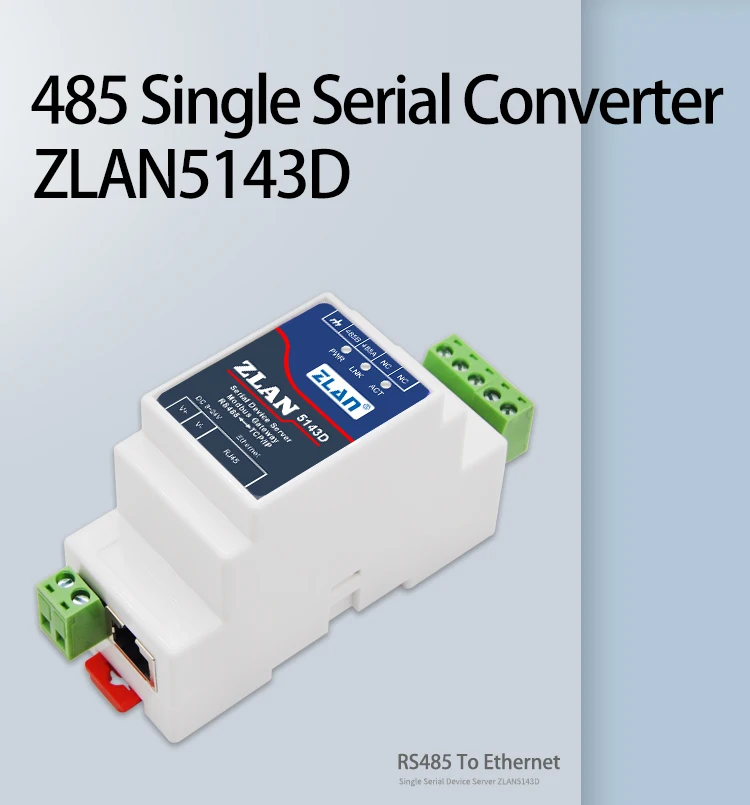

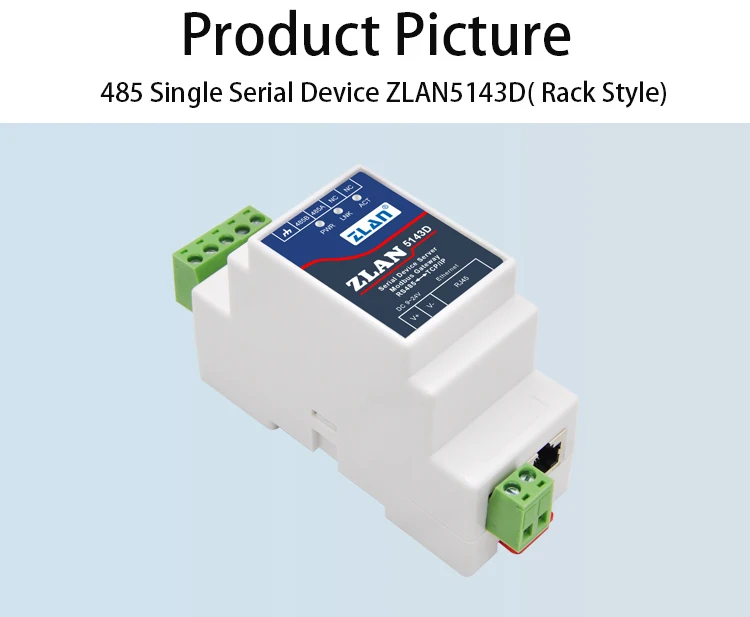

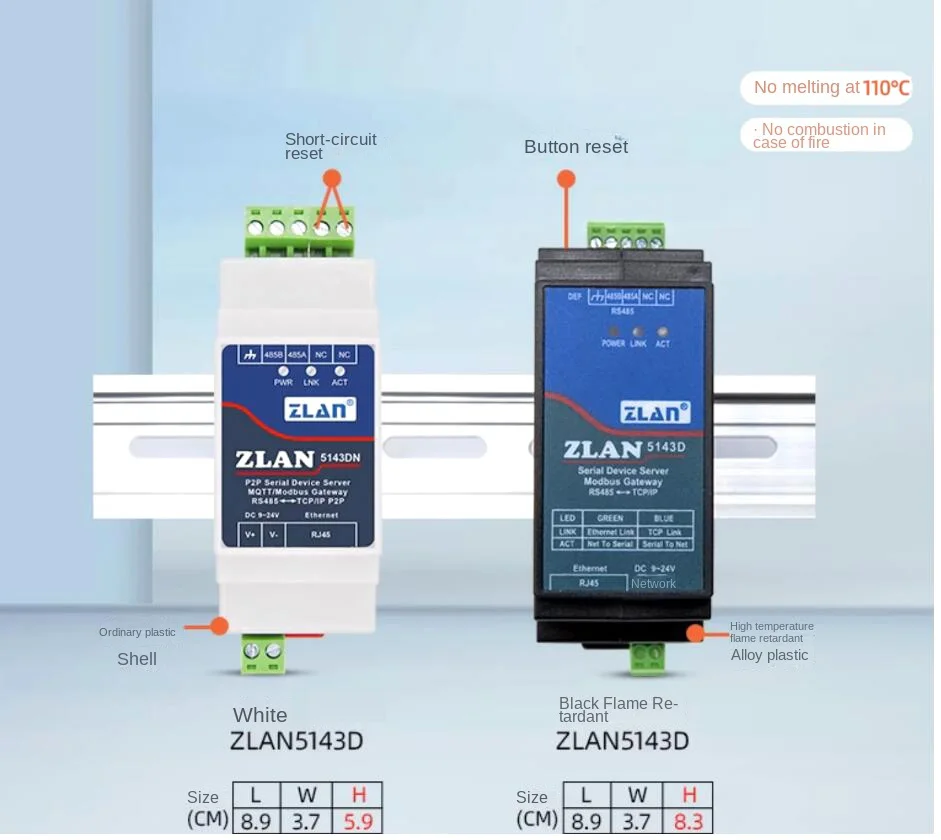

ZLAN 5143D Din Rail Serial RS485 to Ethernet TCP IP Server Ethernet Converter with Adaptor Optional

ZLAN5143D is a kind of RS485 to Ethernet Converter Modbus RTU TCP Gateway industrial serial to ethernet converter specially designed for industrial environment, which integrates serial port server, Modbus gateway, MQTT gateway, RS485 to JSON and other functions. It has an RS485 interface and a 10M/100M Ethernet interface. It uses guide-way type installation way, the volume is compact and installation is convenient. Terminal type power supply access, 9~24V wide voltage input. Because there is only RS485 interface, the RS232 interface which is not commonly used on industrial instruments is cancelled, which saves the cost and volume and has a higher cost performance ratio compared with ordinary products

Feature

ZLAN5143D has the following features:

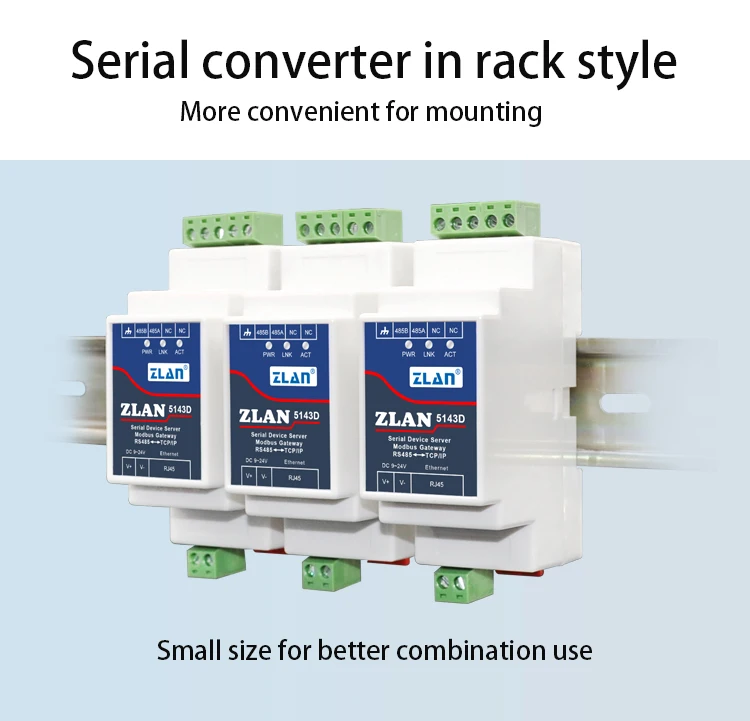

1)    Guide-way design: suitable for internal installation of cabinet in industrial field.

2)    Compact size: relative to the ordinary serial port server, the width is small, does not take up space.

3)    Terminal type power supply, 9~24V wide voltage input, with anti-opposite power connection protection.

4)    Terminal RS485 interface, support 32 slave devices, baud rate support 300 ~ 115200bps.

5)    Abundant panel indicator light for debugging: in connection, not only indicates whether the network cable is connected to the 100M_LINK light, but also indicates the LINK light TCP connection established; Data indicator light has "serial port to network port", "network port to serial port" independent indicator light.

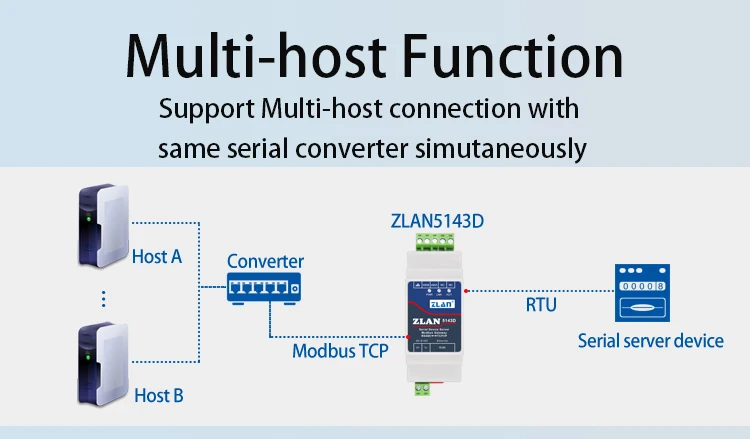

1)    Support TCP server, TCP client, UDP mode, UDP multicast. Support TCP server side function as TCP client. Support 30 TCP connections as a TCP server and 7 destination IP as a TCP client.

2)    The baud rate supports 1200~115200bps, data bits support 5~9 bits, and parity can be None, Odd, Even, Mark, Space. CTS/RTS hardware flow control and XON/XOFF soft flow control.

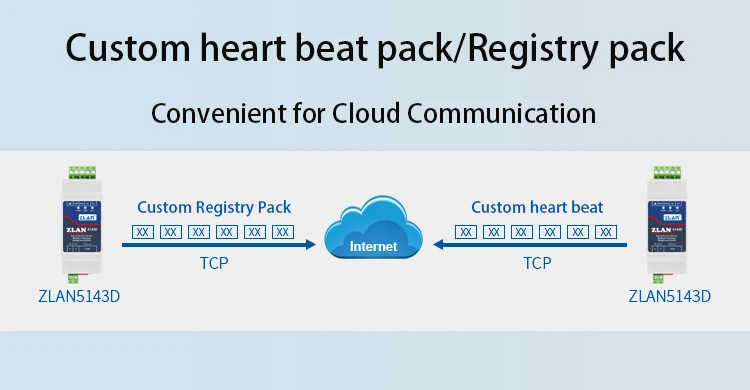

3)    Support the function of sending MAC address when device connecting to facilitate cloud management of devices.

4)    Provide search, configure the device secondary development package DLL on PC.

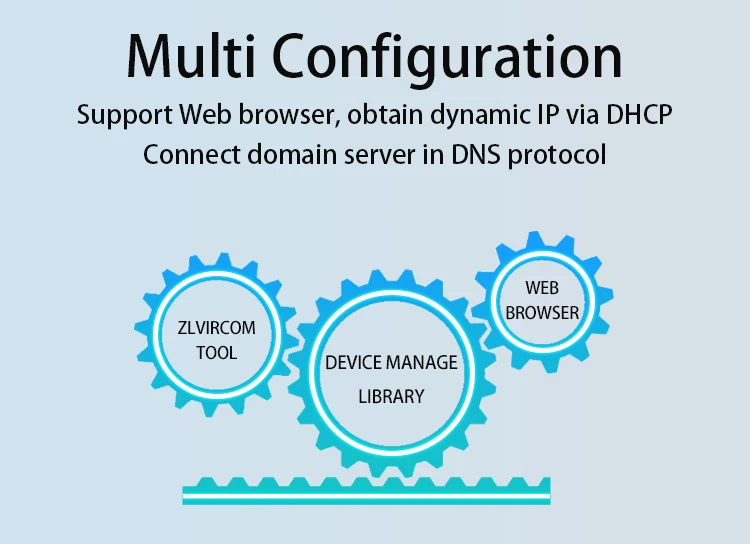

5)    Support Web browser configuration, support DHCP dynamic access IP, DNS protocol connect domain name server address.

6)    Support remote search device, configure device parameter, device program upgrade on cloud.

7)    Support remote viewing of TCP connection status, serial port data sending and receiving status of devices through software. Virtual serial port supports data monitoring.

Application

 RS485 to Ethernet Converter Modbus RTU TCP Gateway industrial serial to ethernet converter
