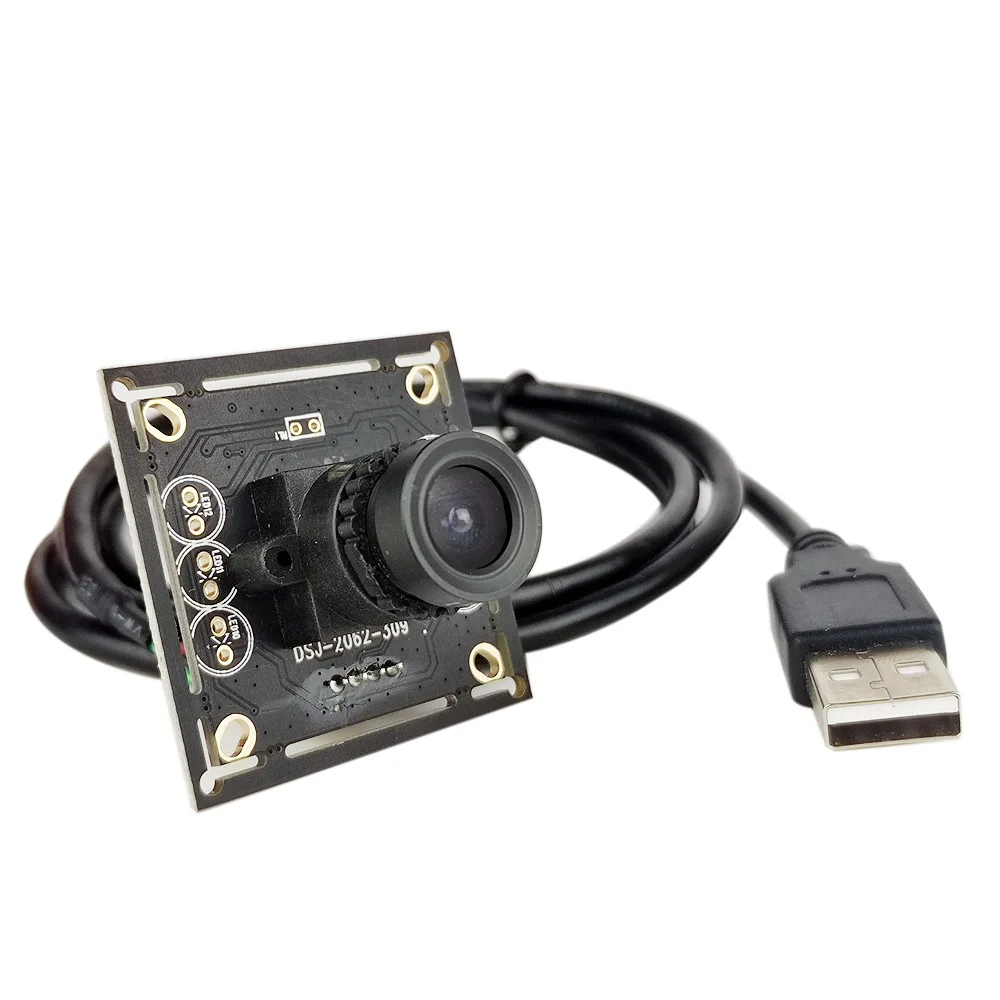

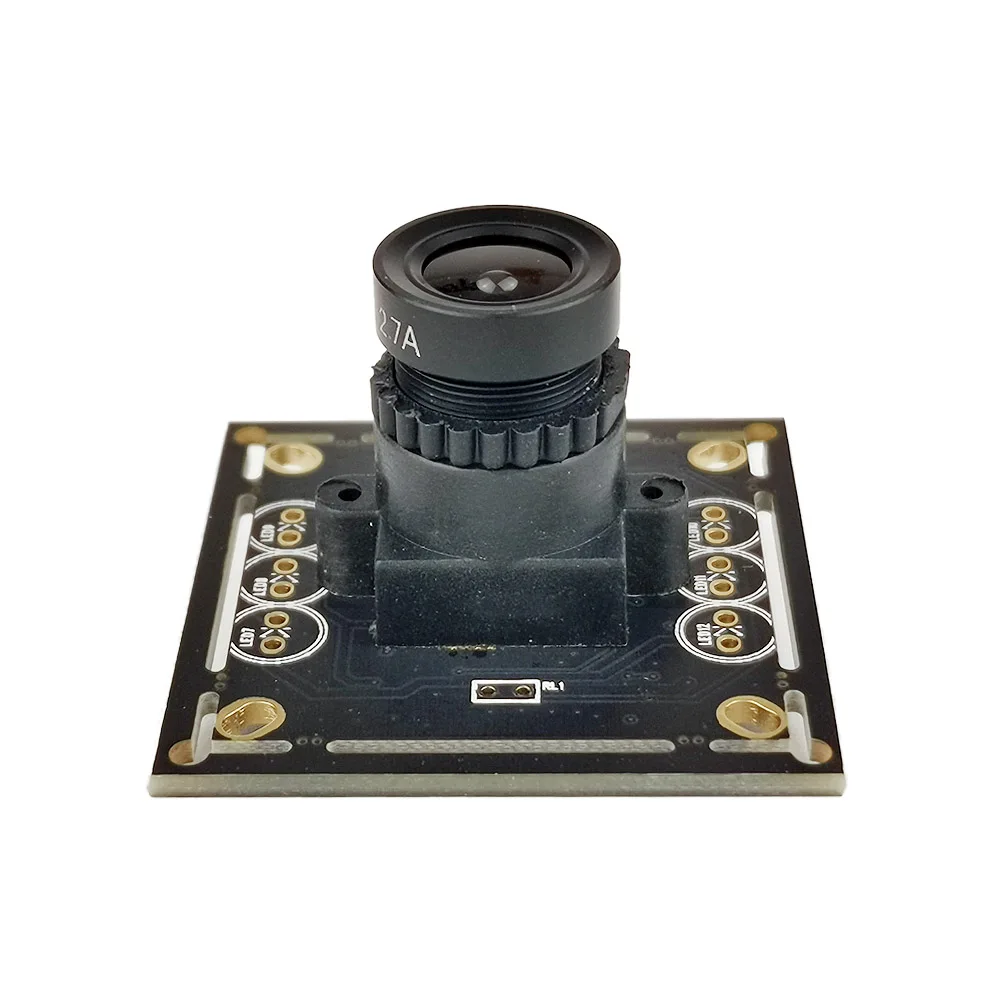

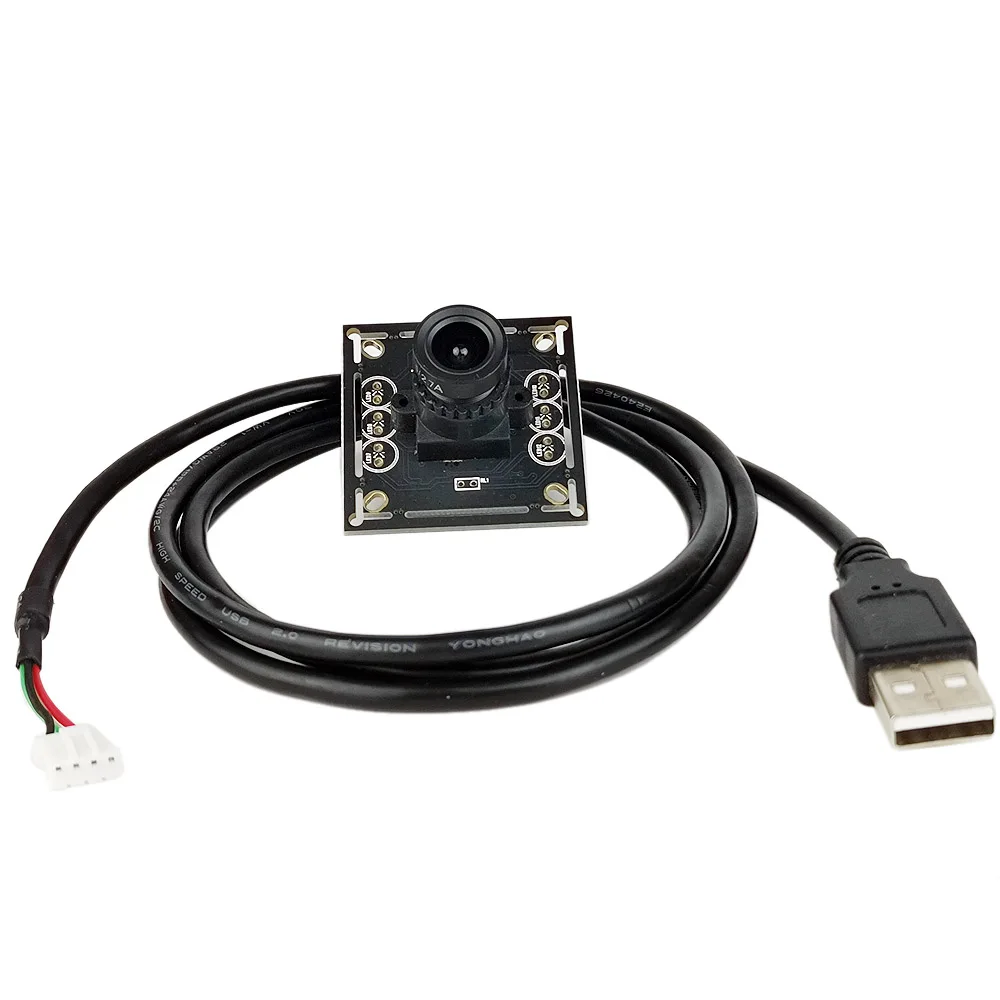

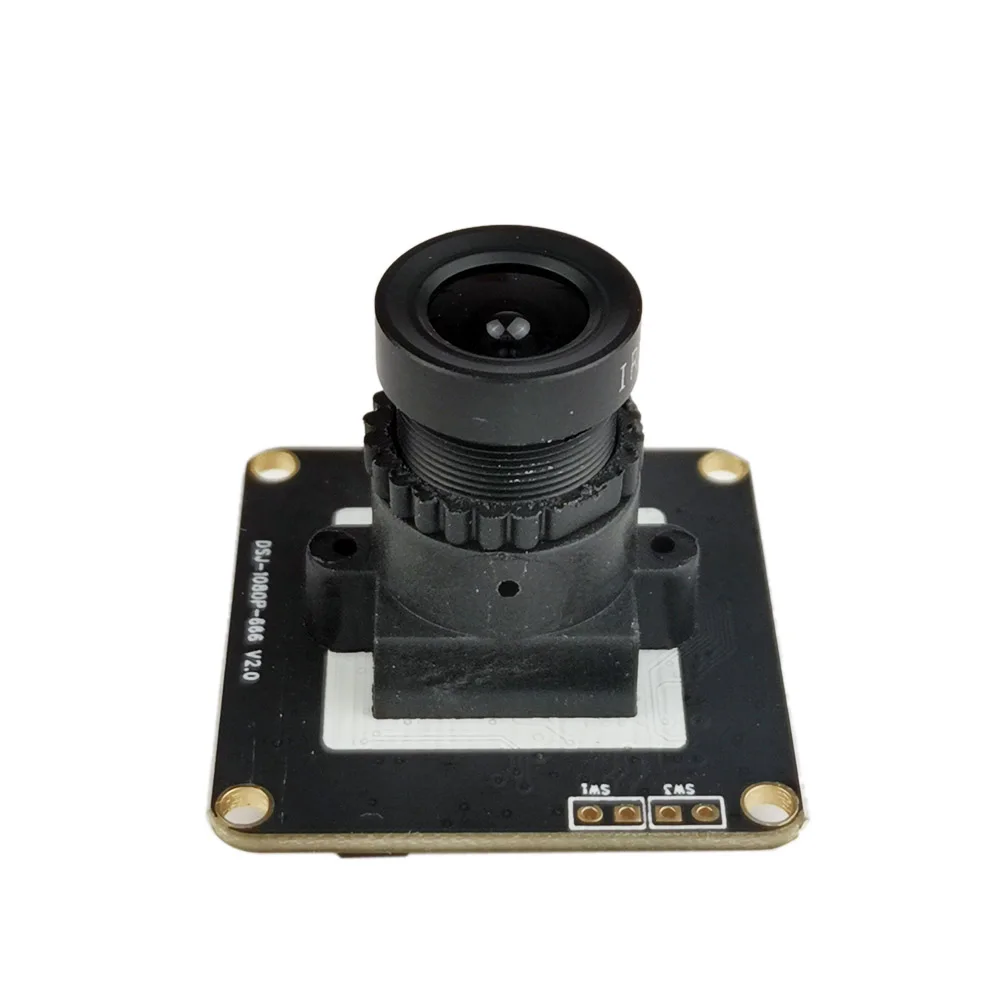

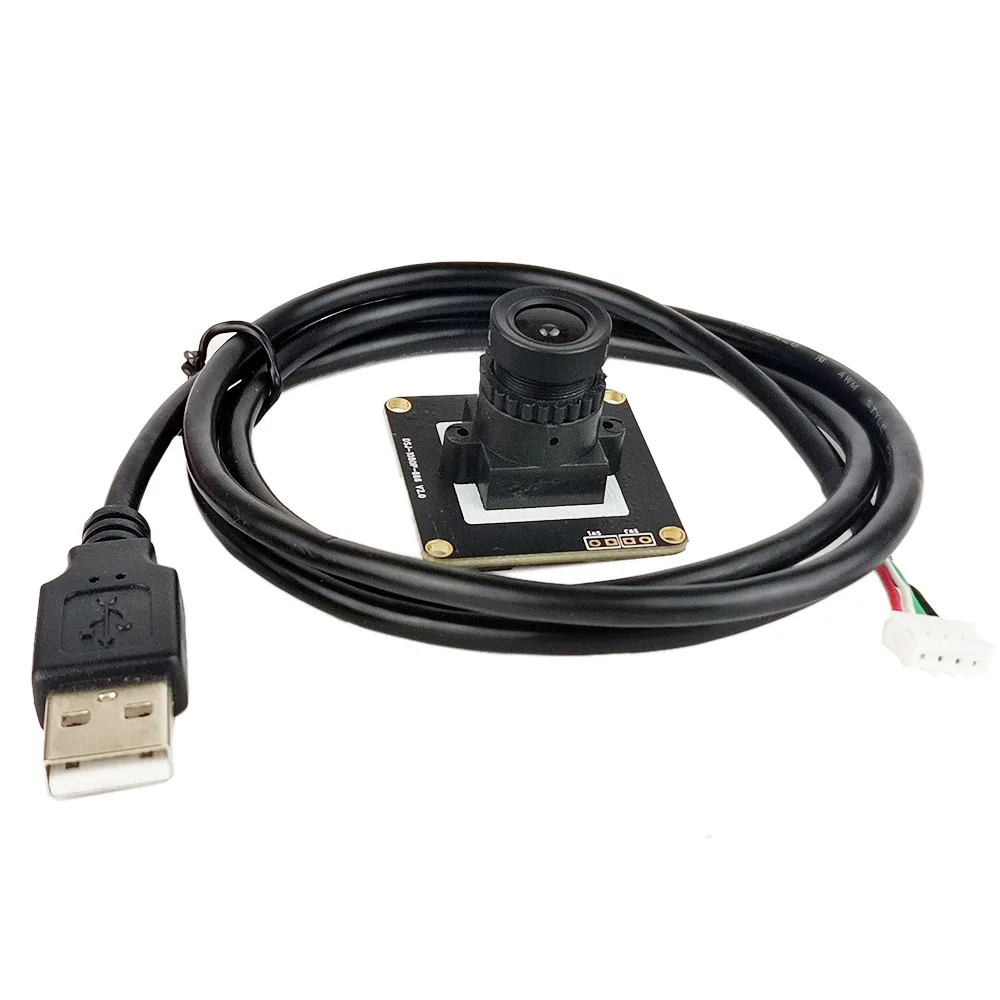

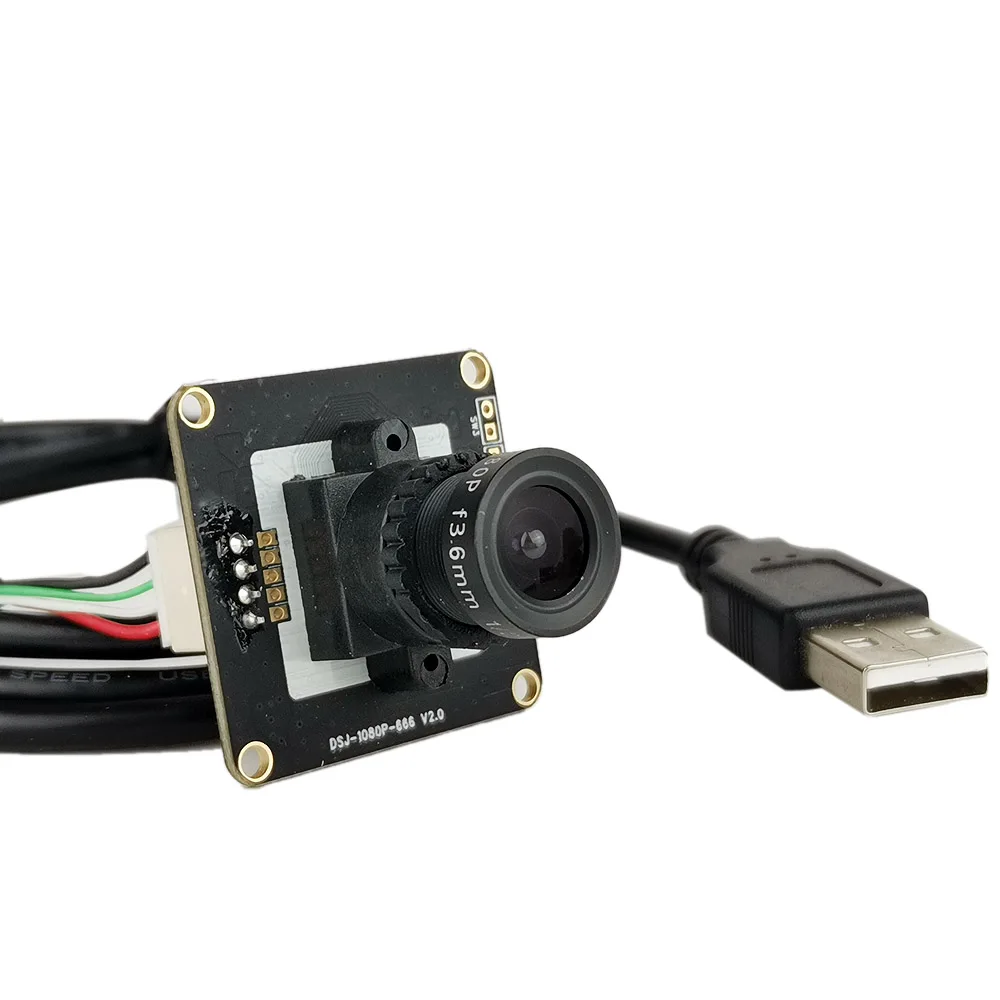

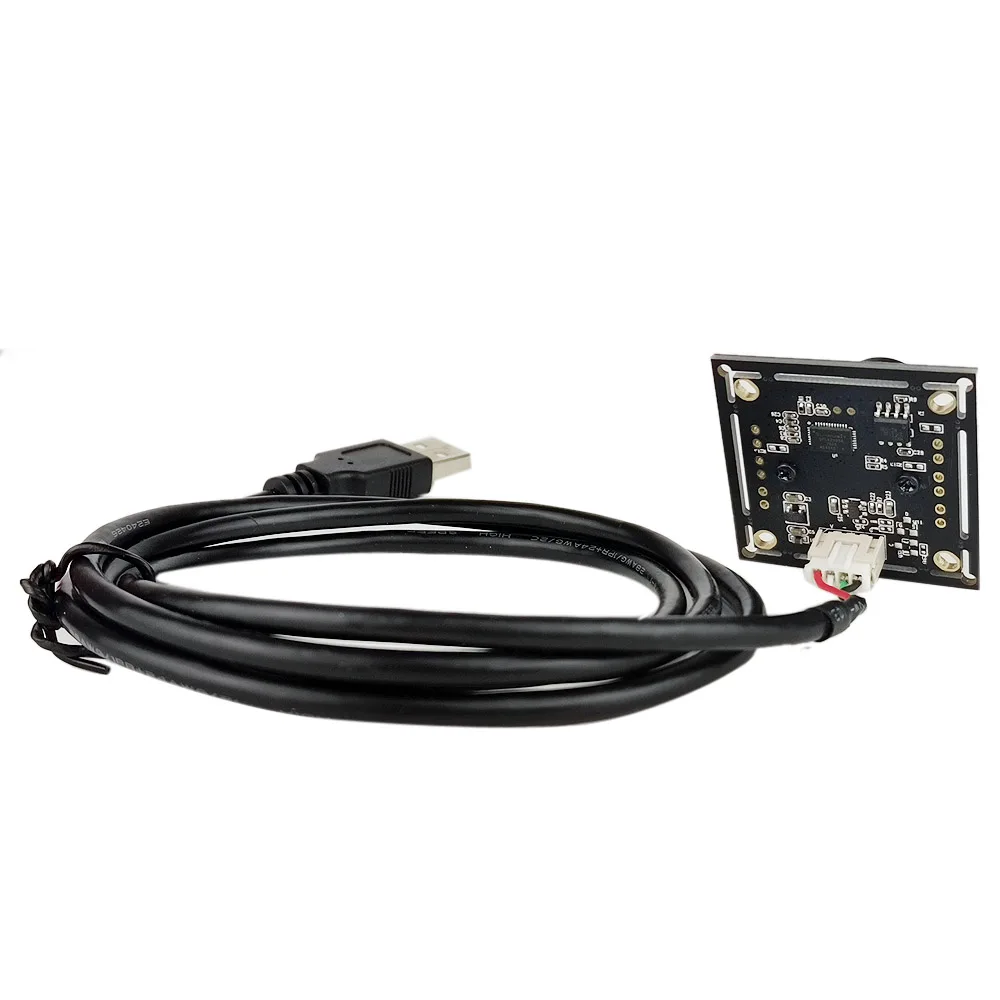

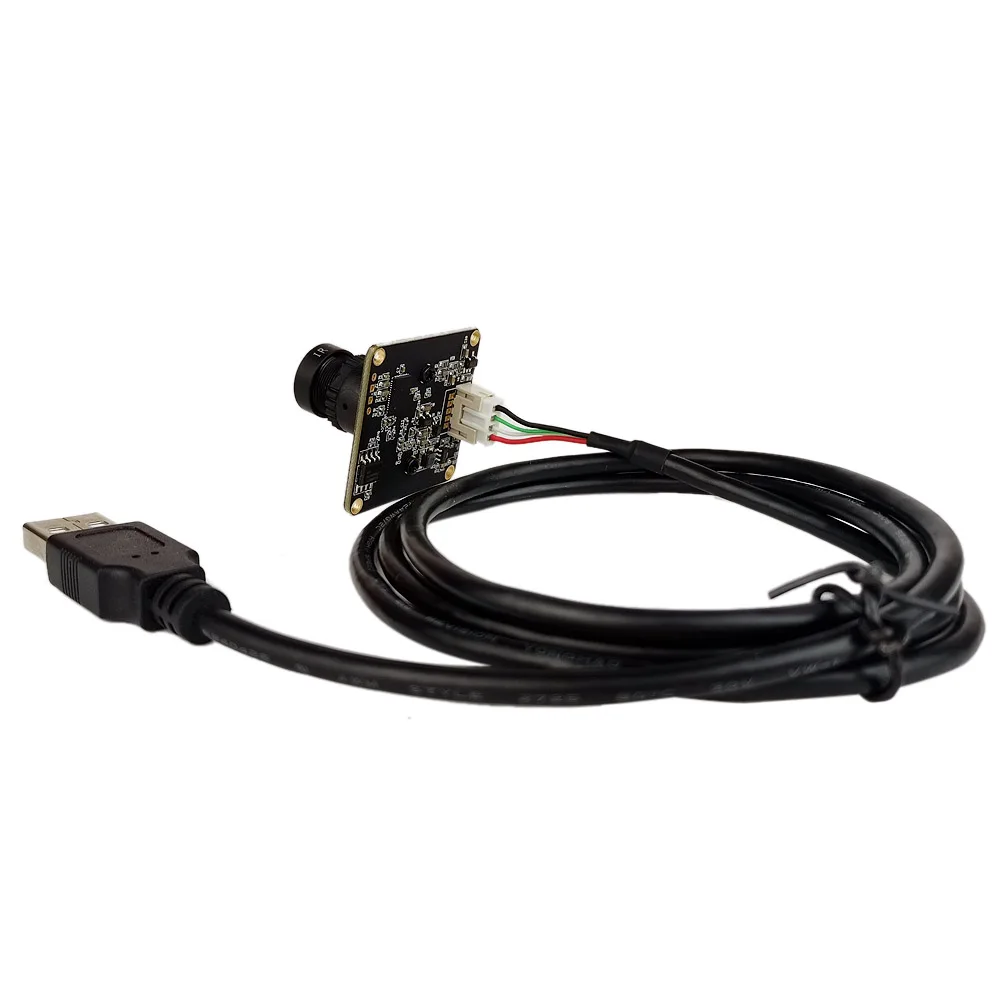

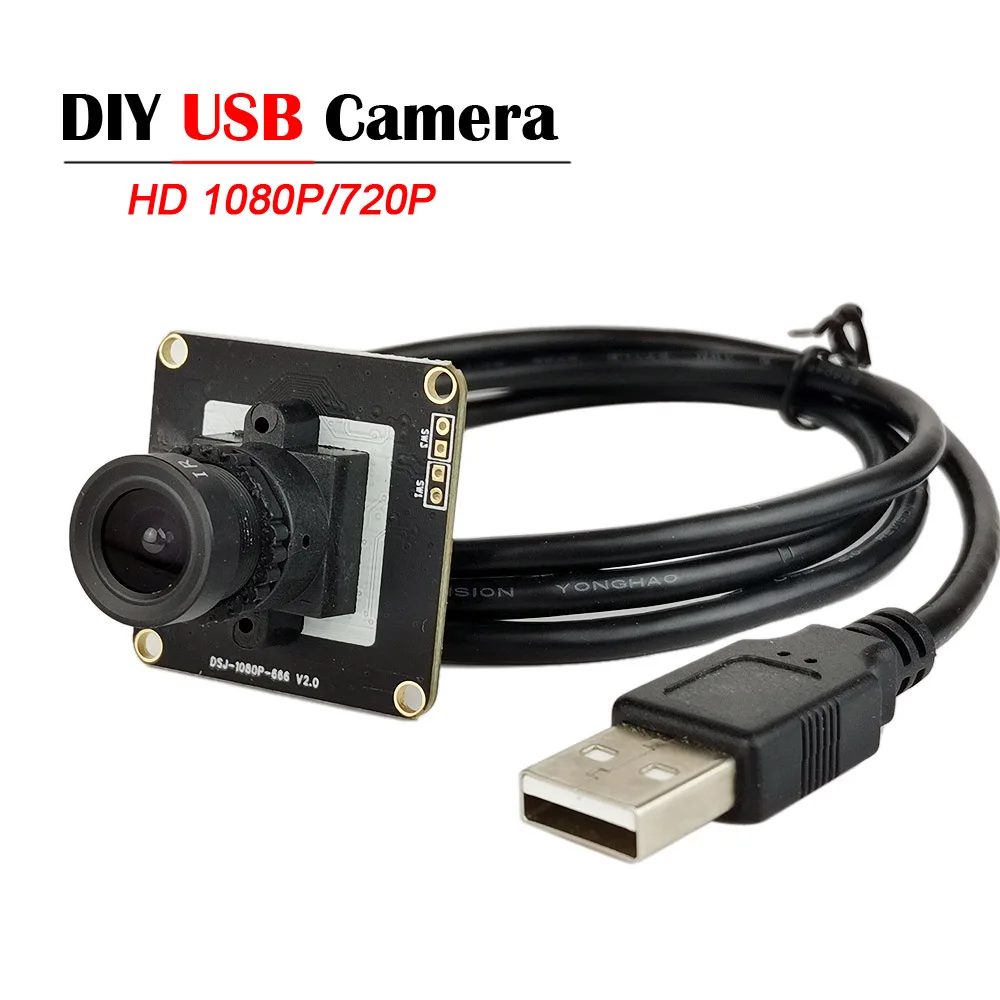

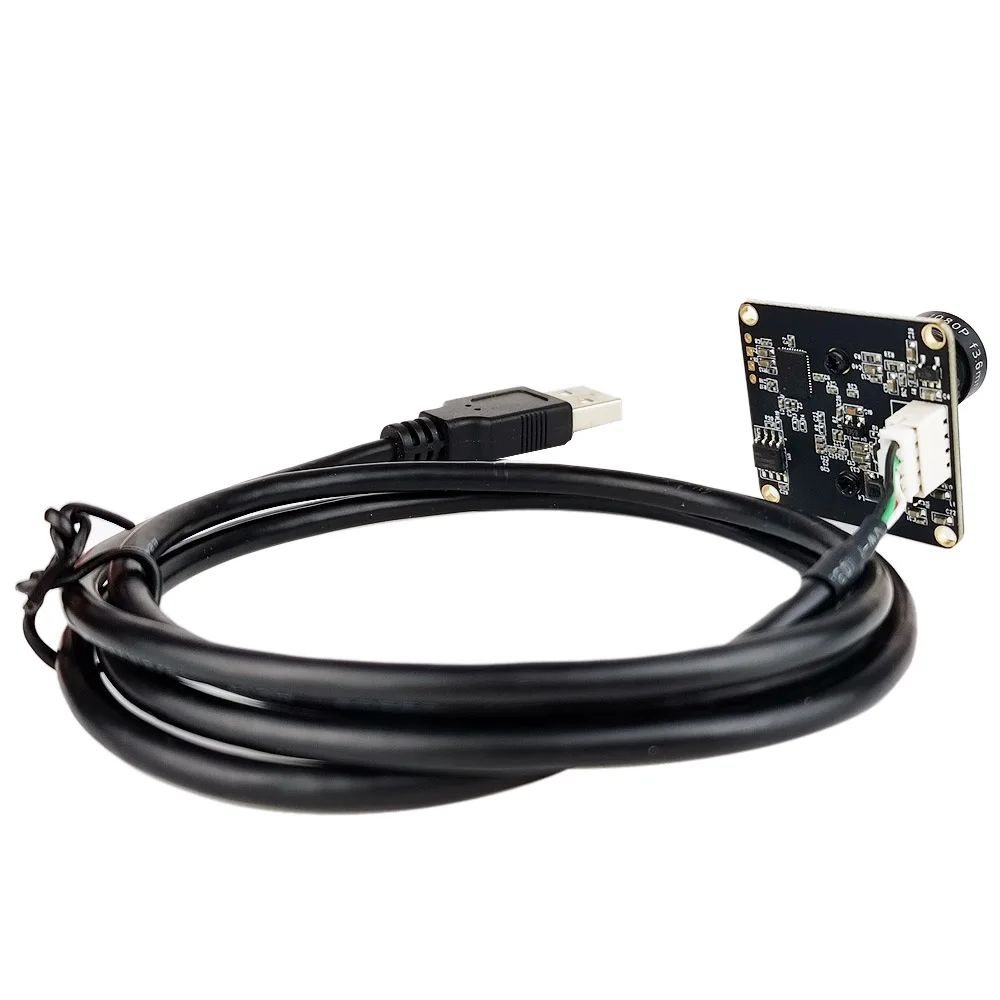

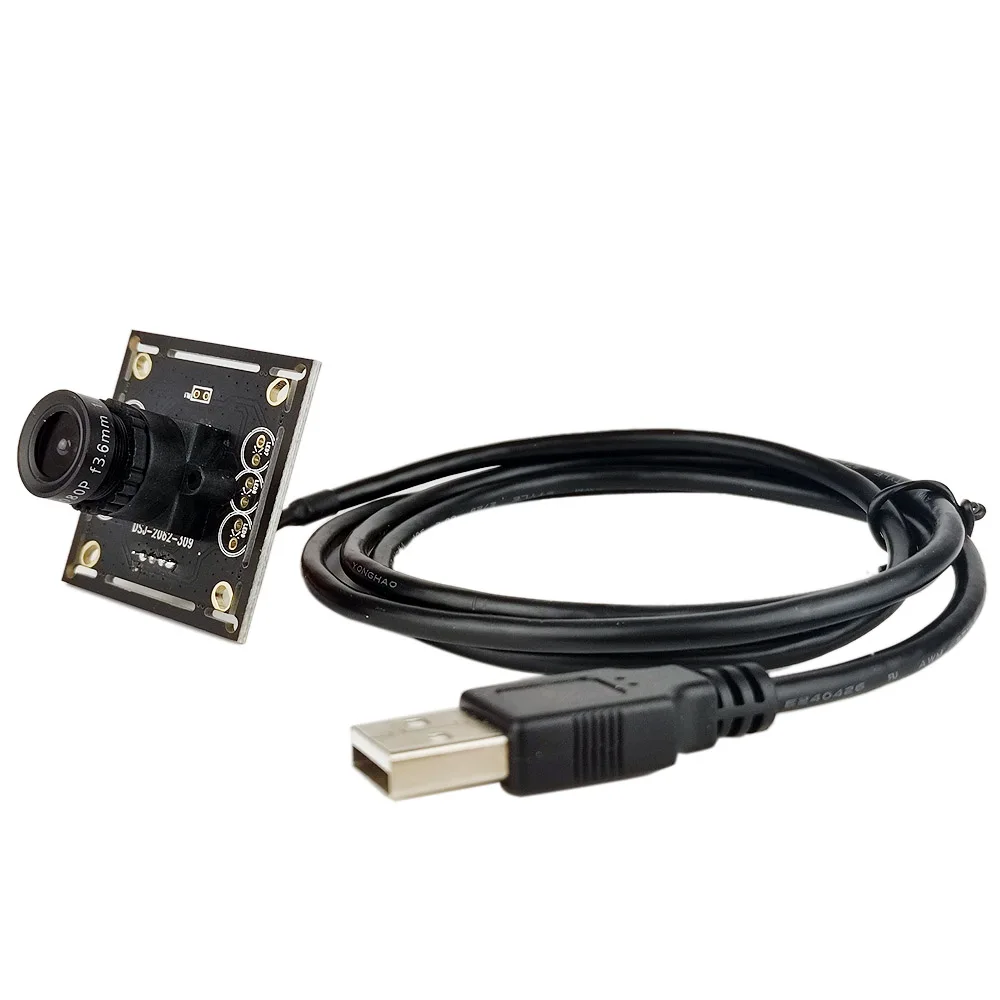

DIY HD 1080P USB Camera Module 2MP CMOS OV2710 High Speed Webcam 720P UVC Usb2.0 USB Cameras

DIY HD 1080P USB Camera Module 2MP CMOS OV2710 High Speed Webcam 720P UVC Usb2.0 USB Cameras

720P USB Camera Product Parameters:

Sensor: 720P CMOS

Lens Size: 1/4

The most effective pixel: FULL HD 1280(H)X720(V)

Output image format: MJPEG / YUV2 (YUYV)

Supported resolution:

320*240 MJPEG@30fps 352*288 YUV2@30fps

352*288 MJPEG@30fps 640*480 YUV2@25fps

800*600 MJPEG@30fps 320*240 YUV2@30fps

1280*720 MJPEG@25fps 800*600 YUV2@15fps

640*480 MJPEG@25fps 1280*720 YUV2@10fps

Special function: Lens correction/ Defective pixel correction/ Black sun cancellation

Minimum illumination: 0.051lux

Shutter type: Electronic rolling shutter / Frame exposure

USB protocol: USB2.0 HS/FS

Interface type: USB2.0 High Speed

Support OTG protocol: USB2.0 OTG

Support free drive protocol: USB Video Class (UVC)

Automatic exposure control AEC: Support

Automatic white balance AEB: Support

Automatic gain control AGC: support

Adjustable parameters: brightness, contrast, color saturation, hue, clarity

Gamma White balance Backlight contrast Exposure

Lens: 2.8/3.6/6/8/2/16/2.8-12(Manual)mm for optional

Night vision function: support, need to cooperate with infrared lens 850 or 940nm, with infrared light board to achieve

Infrared light board power supply interface: support 2P-2.0mm socket

Power supply mode: USB BUS POWER 4P-2.0mm socket

Working voltage: DC 5V

Working current: 120mA~220mA

Working temperature: 0～60℃

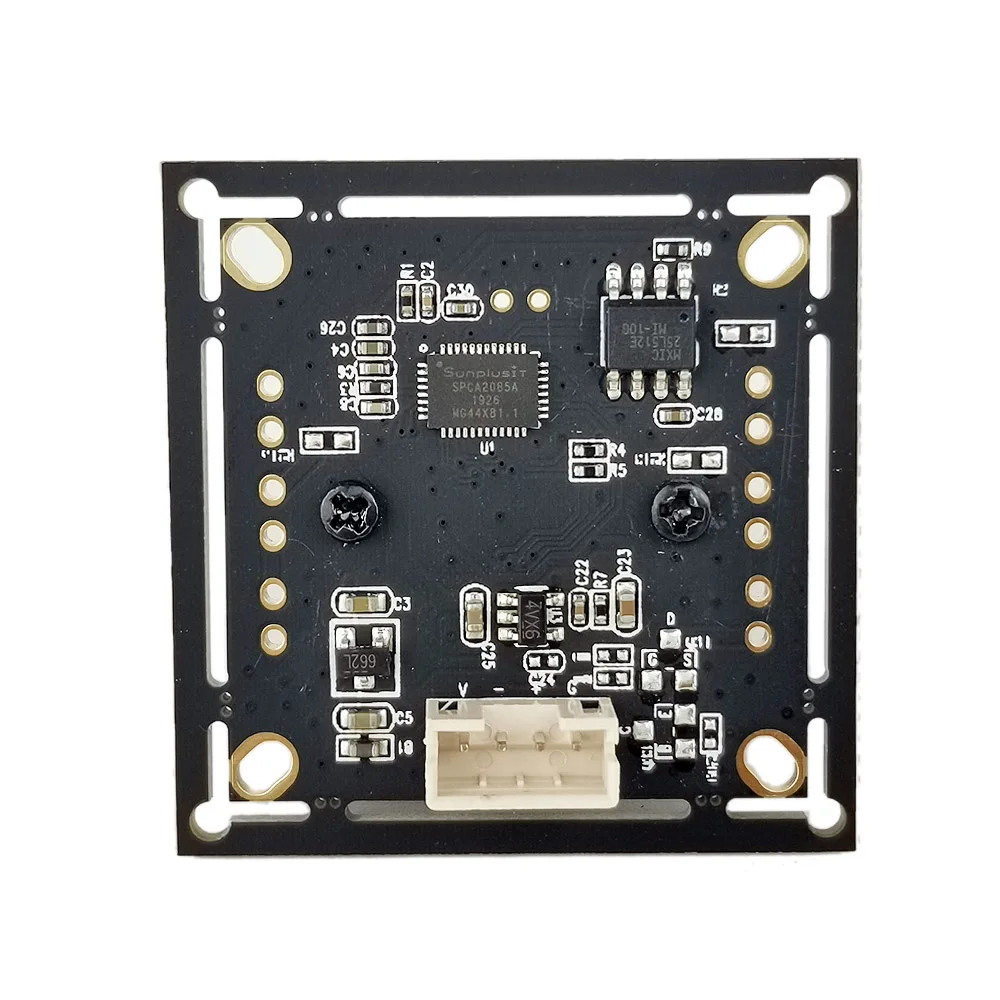

Board size/weight: 38X38mm (compatible with 32X32mm) / about 30g

Cable length: standard 1 meter / cable

Supported systems:

WinXP/Vista/Win7/Win8

Linux with UVC (above linux-2.6.26)

MAC-OS X 10.4.8 or later

Wince with UVC

Android 4.0 or above with UVC

1080P USB Camera Feature:

1080P USB Camera Feature:

1.High Speed 1080P HD USB Camera Module

2.Equiped with HD 3.6/6/8/12/16/1.8/2.8-12mm lens

3.Can drive 30fps@1080P and 60fps@720p and 120fps@480p

4.CMOS 1080P sensor for high quality image and low power consumption.

5.High speed USB 2.0 interface for high resolution PC camera interface.

6.high pixel technology for sharp image and accurate color reproduction.

7.low light performance – ideal for any lighting condition.

8.Super small outline and thin profile for embedded applications.

9.UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above.

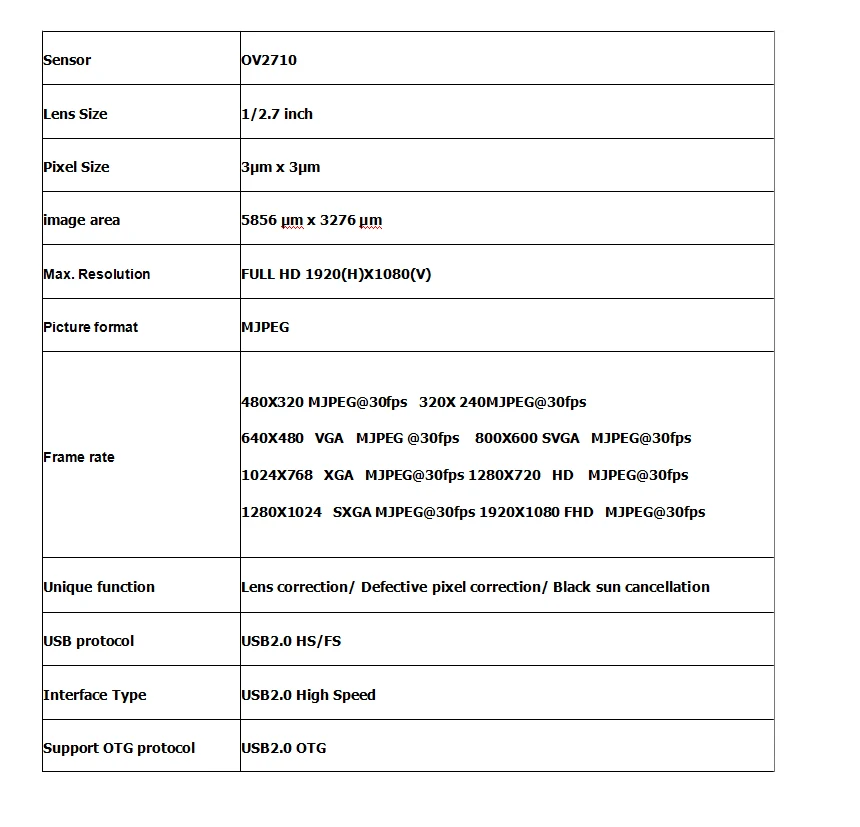

Specification:
