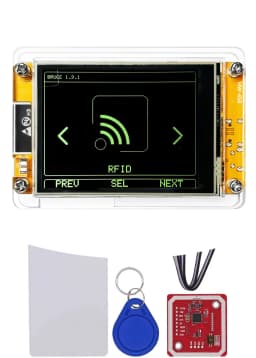

ESP32 Bruce CYD 2432S028 Wi-Fi Bluetooth NFC PN532 GNSS ATGM336H and Defensive Tools Enable Network Secure & Reliable Wireless

Product Highlights

▶This is ESP32 Bruce is an Open-Source firmware based on ESP32 hardware, specifically designed for Red Team operations in the field of network security, providing a range of offensive security testing capabilities. Its main uses include conducting penetration testing and security assessments for various wireless communication methods.

▶Use the CYD Bruce you can unlock Flipper-Zero-like features on the ESP32 2432S028 device.

▶This board flashed the ESP32-Bruce 1.9.1 firmware on the Cheap Yellow Display, offering powerful WiFi and Bluetooth testing features on an affordable and accessible hardware platform. With the CYD Bruce, you can easily work with WiFi, BLE, Sub-GHz module ( CC1101 ), NFC ( PN532 ), GPS ( ATGM336H / NEO-6M ), IR and more, this combination offers a powerful wireless development platform for exploration.

Hardware compatibility:

The Bruce firmware design is compatible with the Cheap Yellow Display ecosystem and development boards similar to CYD.

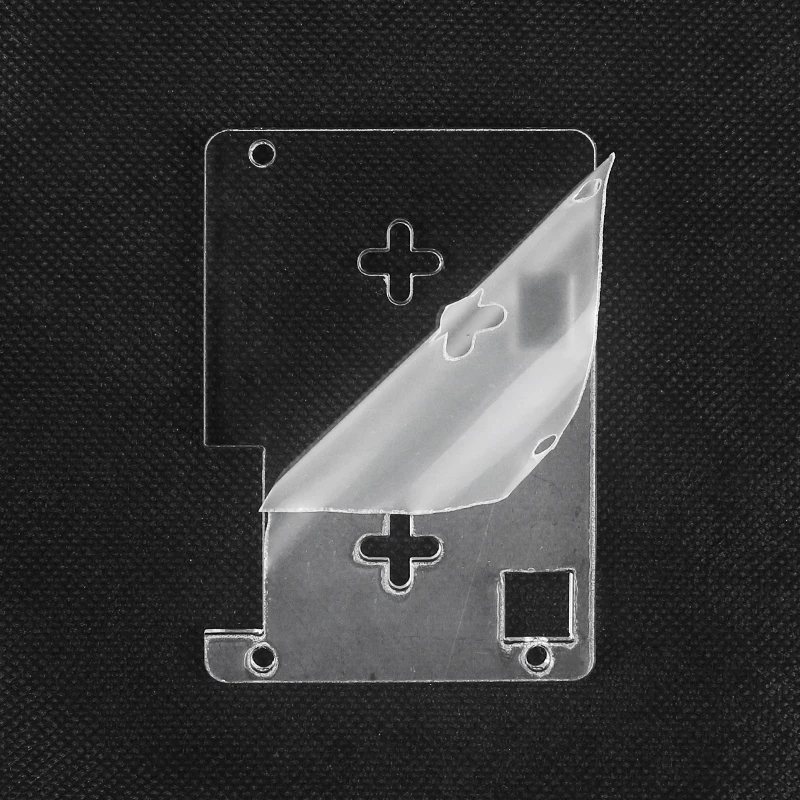

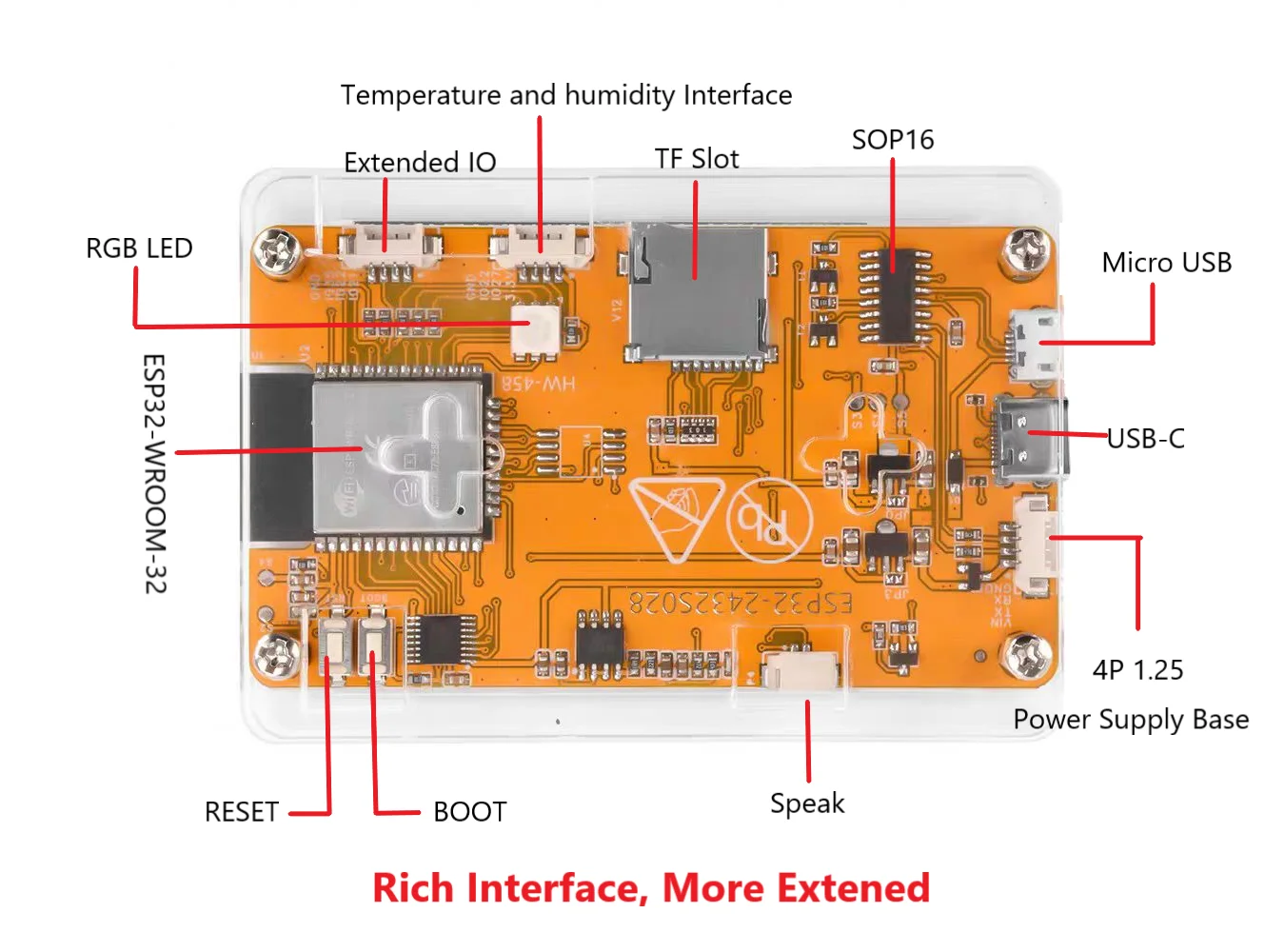

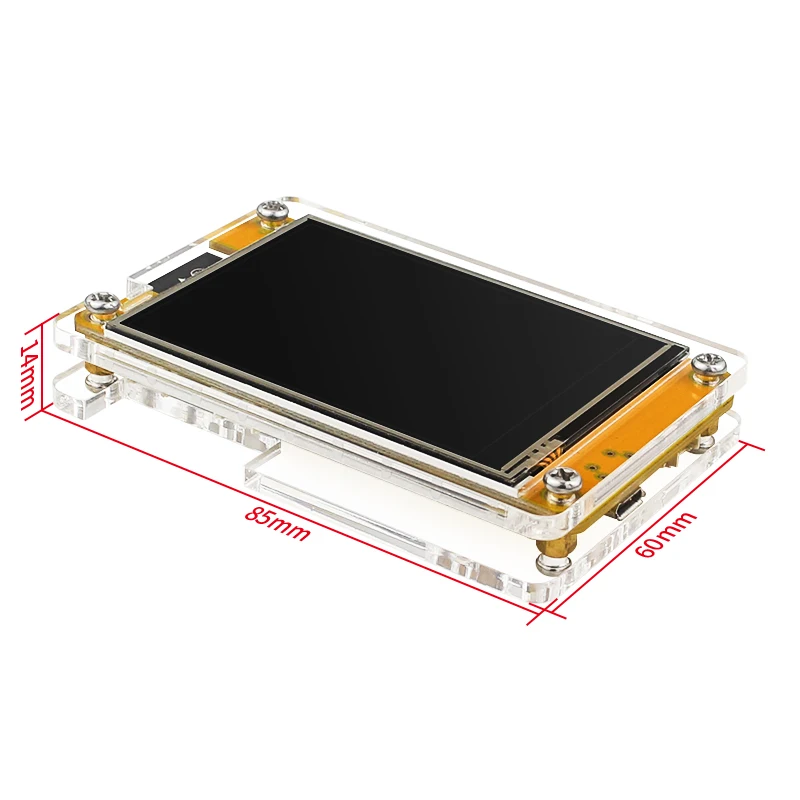

▶USB-C and Micro-USB Ports, Micro-SD card slot, acrylic case.

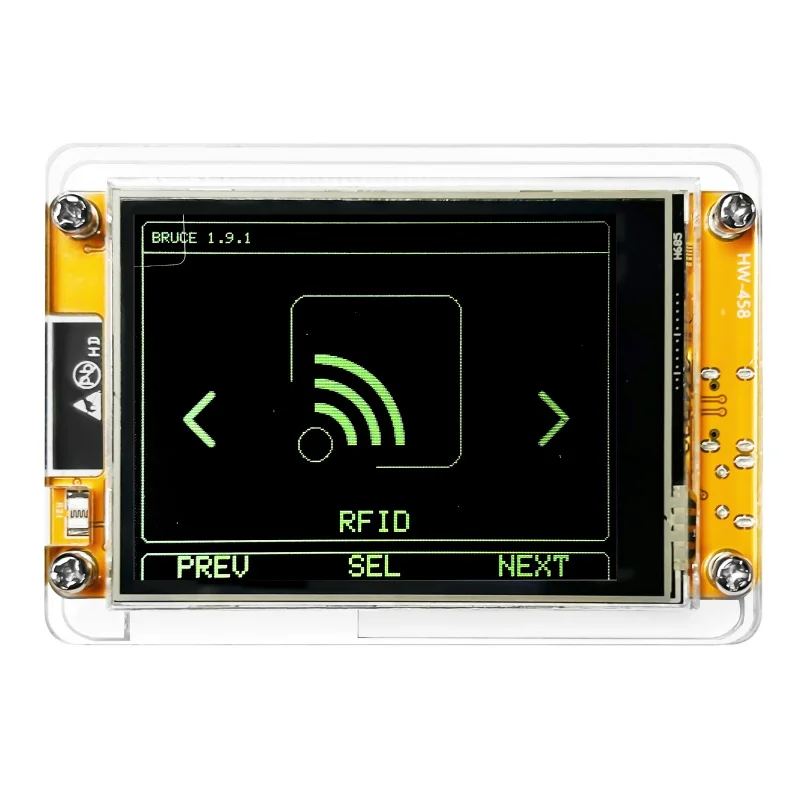

▶CYD(Cheap Yellow Display) with 2.8'', 240*380 touch screen,  with driver chip ST7789.

▶To Power on plug it into a laptop, phone charger or powerbank.

▶This device functions with or without and SD card, but you won't be able to save your work without one.

Where to find more information about Bruce:

Bruce Firmware Github: https://github.com/pr3y/Bruce

(if you want update to new firmware, choose the Bruce-CYD-2USB.bin)

How to Connect All Multiple Modules to CYD - GPS, NFC, IR, RF, CC1101, NRF24 & Speaker Setup:

https://www.youtube.com/watch?v=PrMbeogrfOo

Notice:

1. This link is for ESP32 Bruce, not for NMMiner. But this device is NMMiner License Inside, you can flash to NMMiner (for free) from https://flash.nmminer.com , choose device: esp32-2432s028r-st7789.

2. The Micro SD card (not included). which is required for some of the capabilities of marauder.

3. This board is a development board for learning usage, to use of the software for any illegal or unauthorized activities is strictly prohibited.

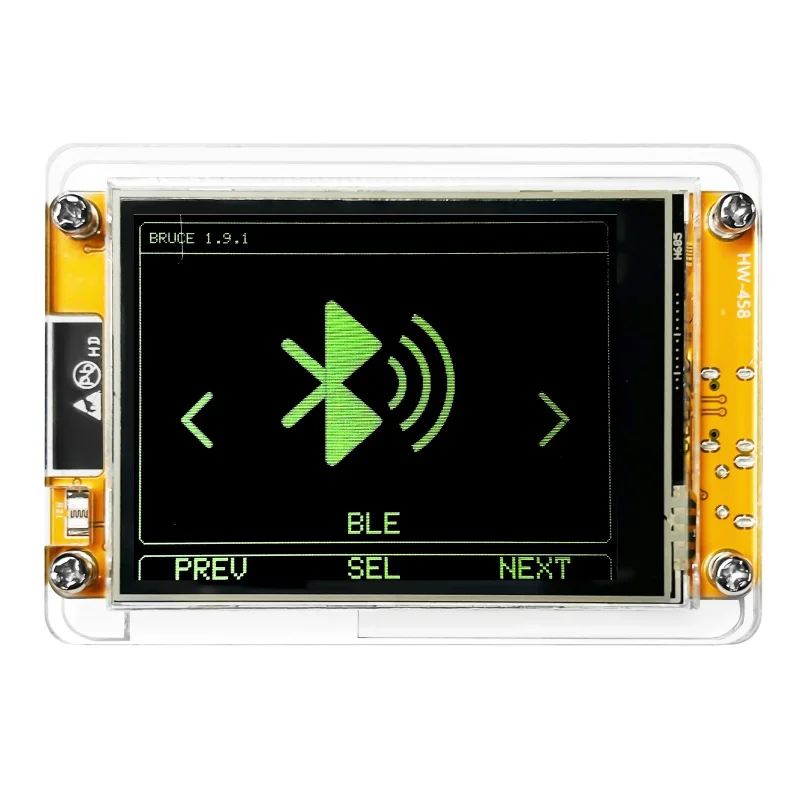

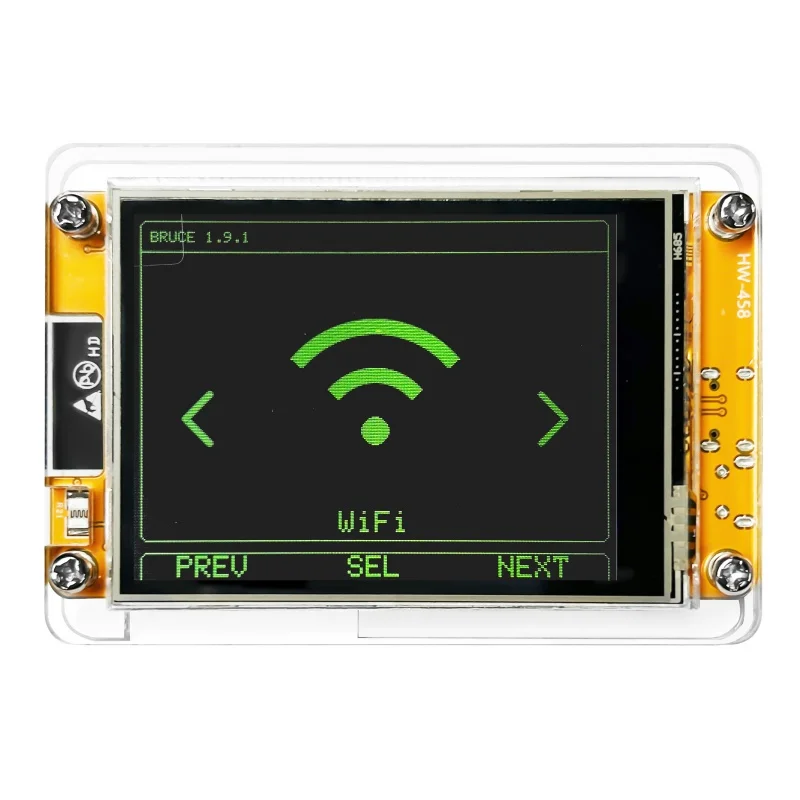

WiFi & BLE

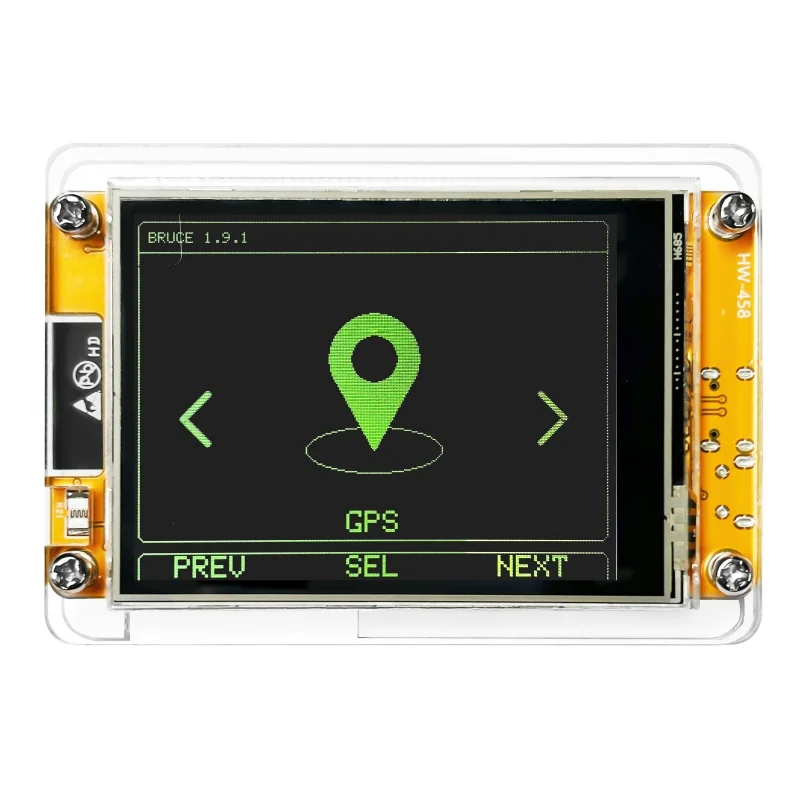

GPS

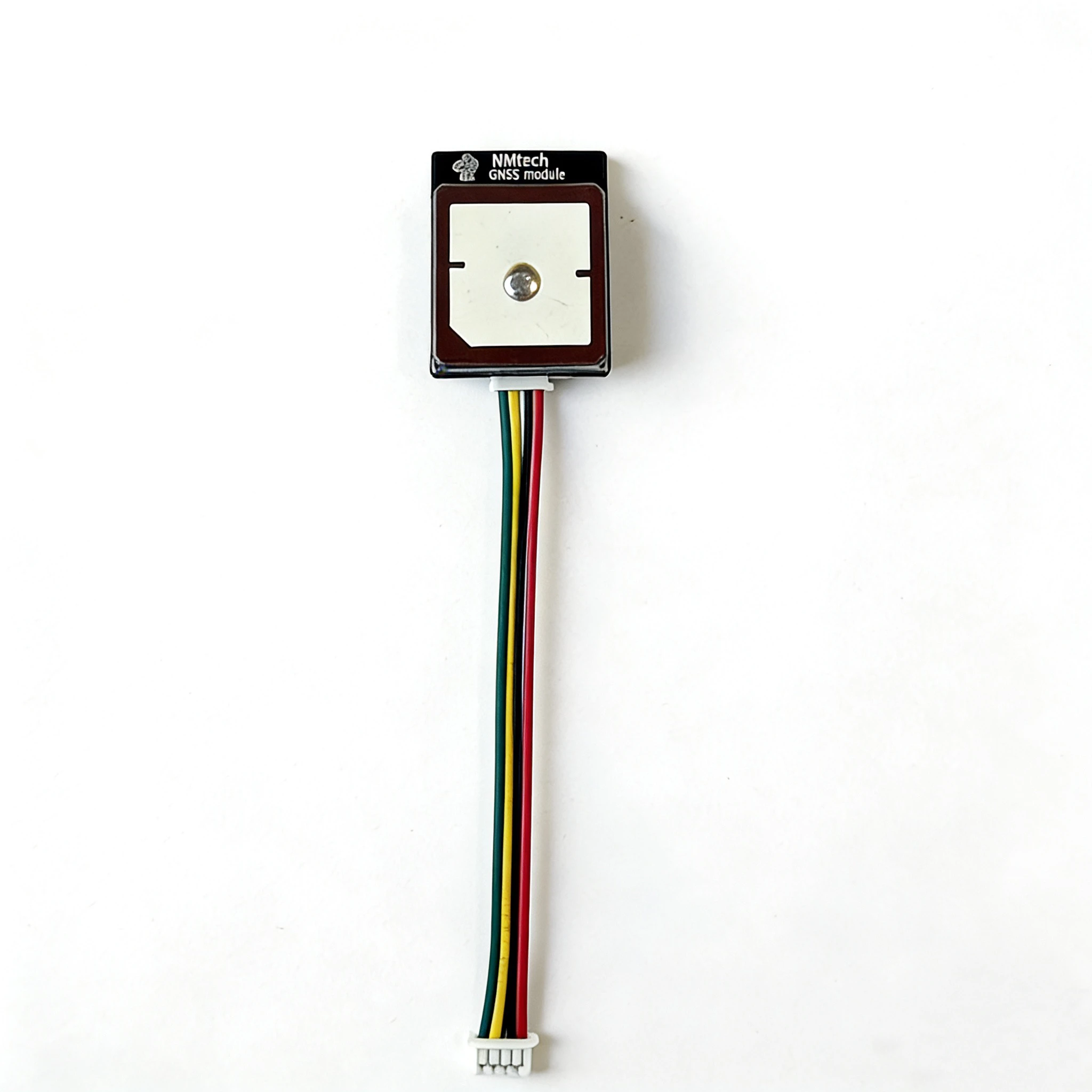

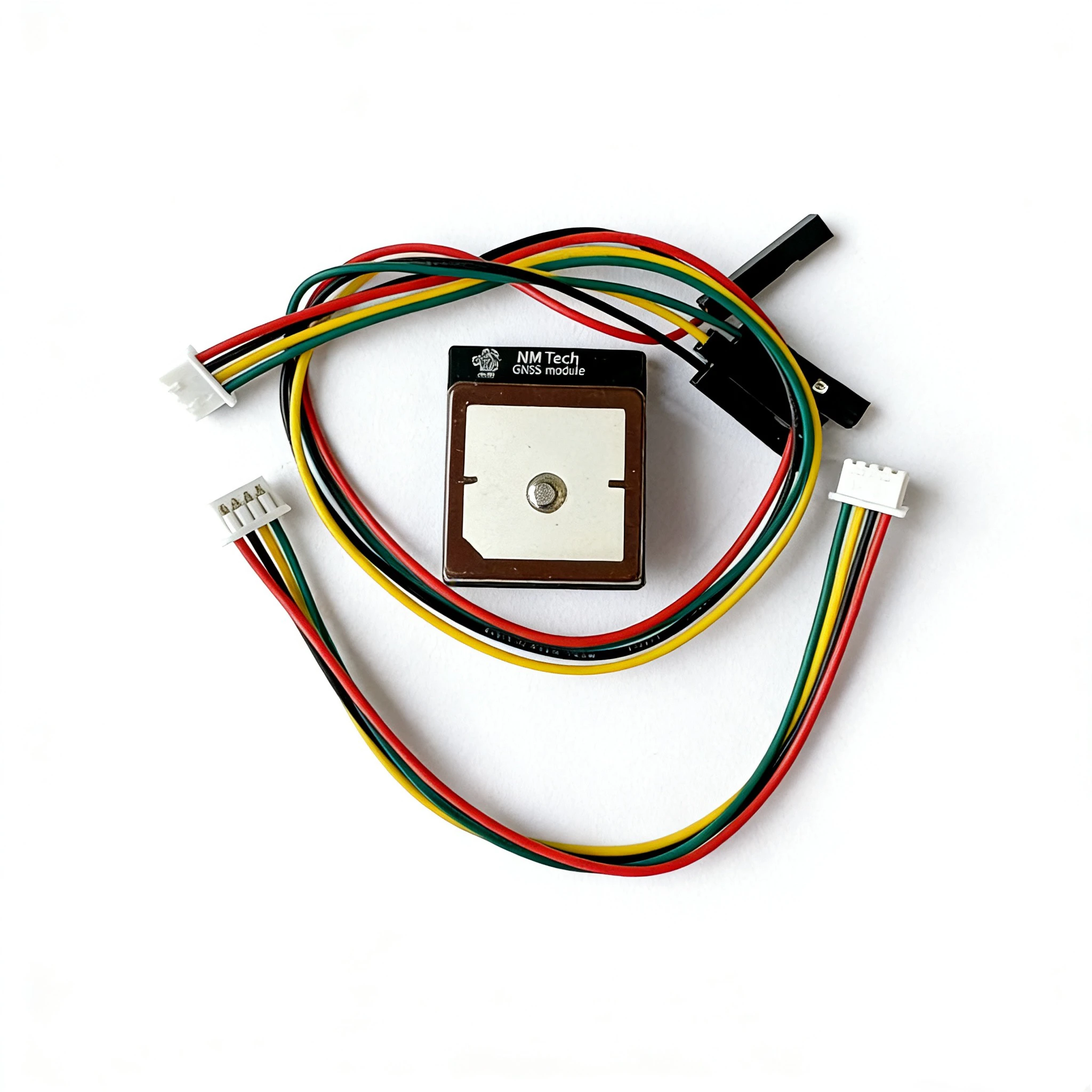

GPS has been upgraded, as shown in the following picture！！

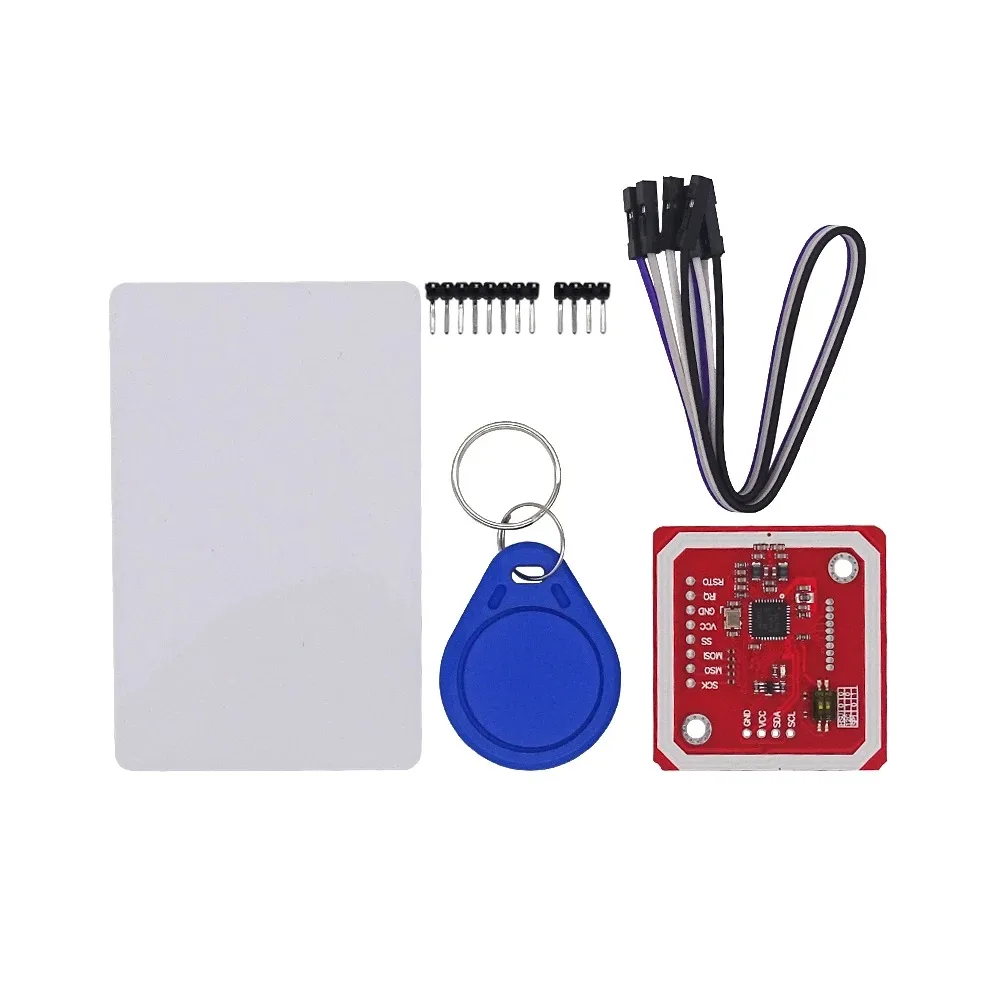

RFID&NFC

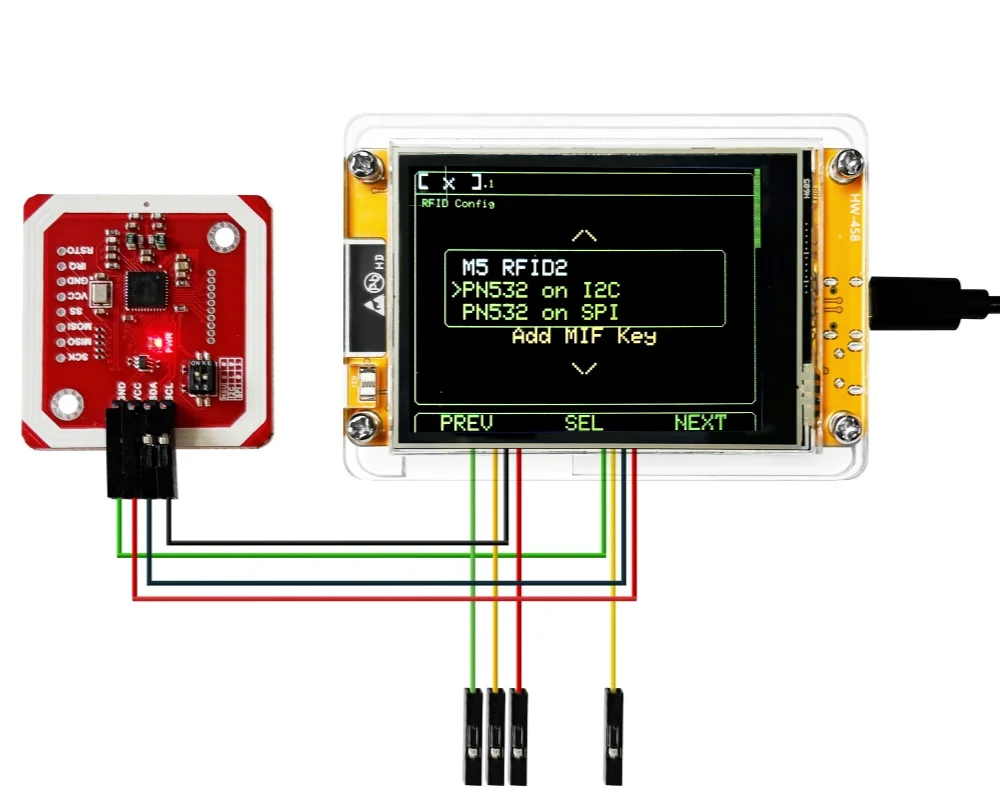

How to Connect NFC

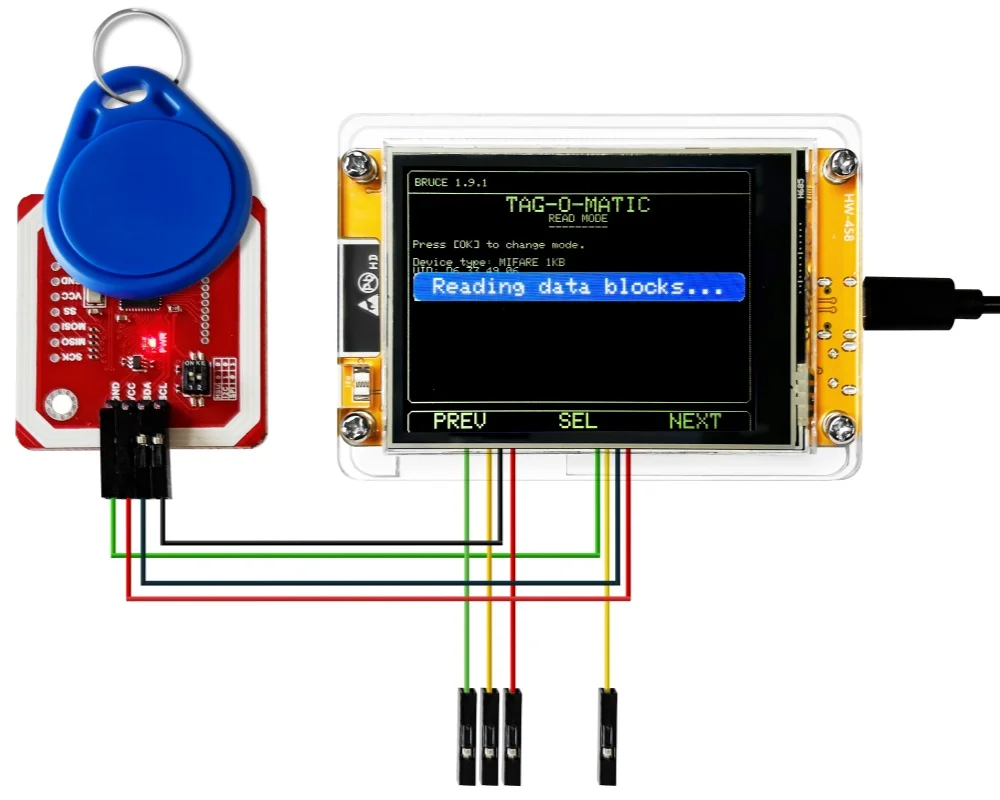

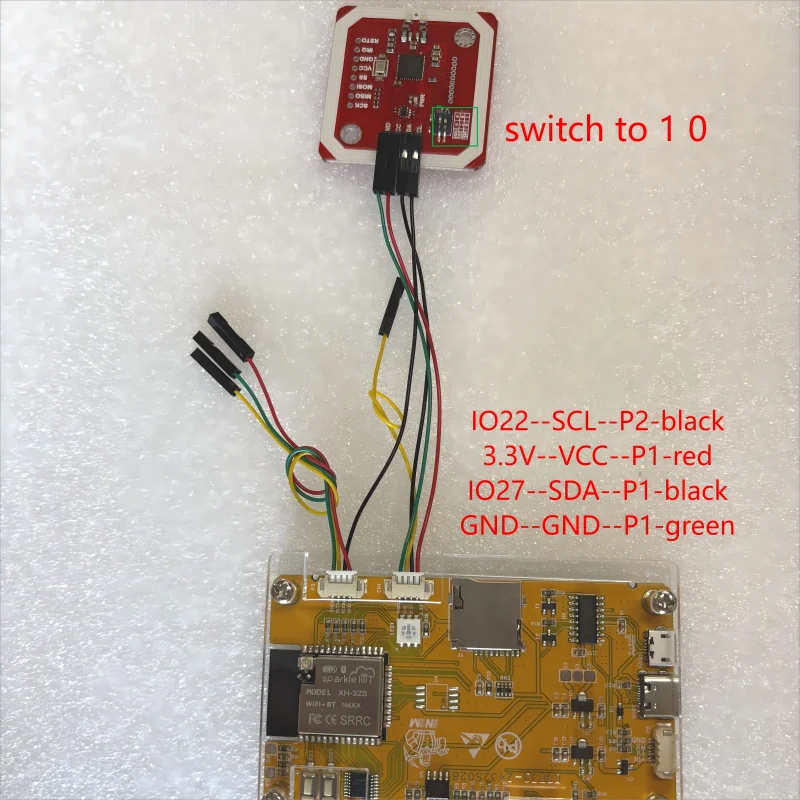

Connection 1: Normal CYD Connection to PN532

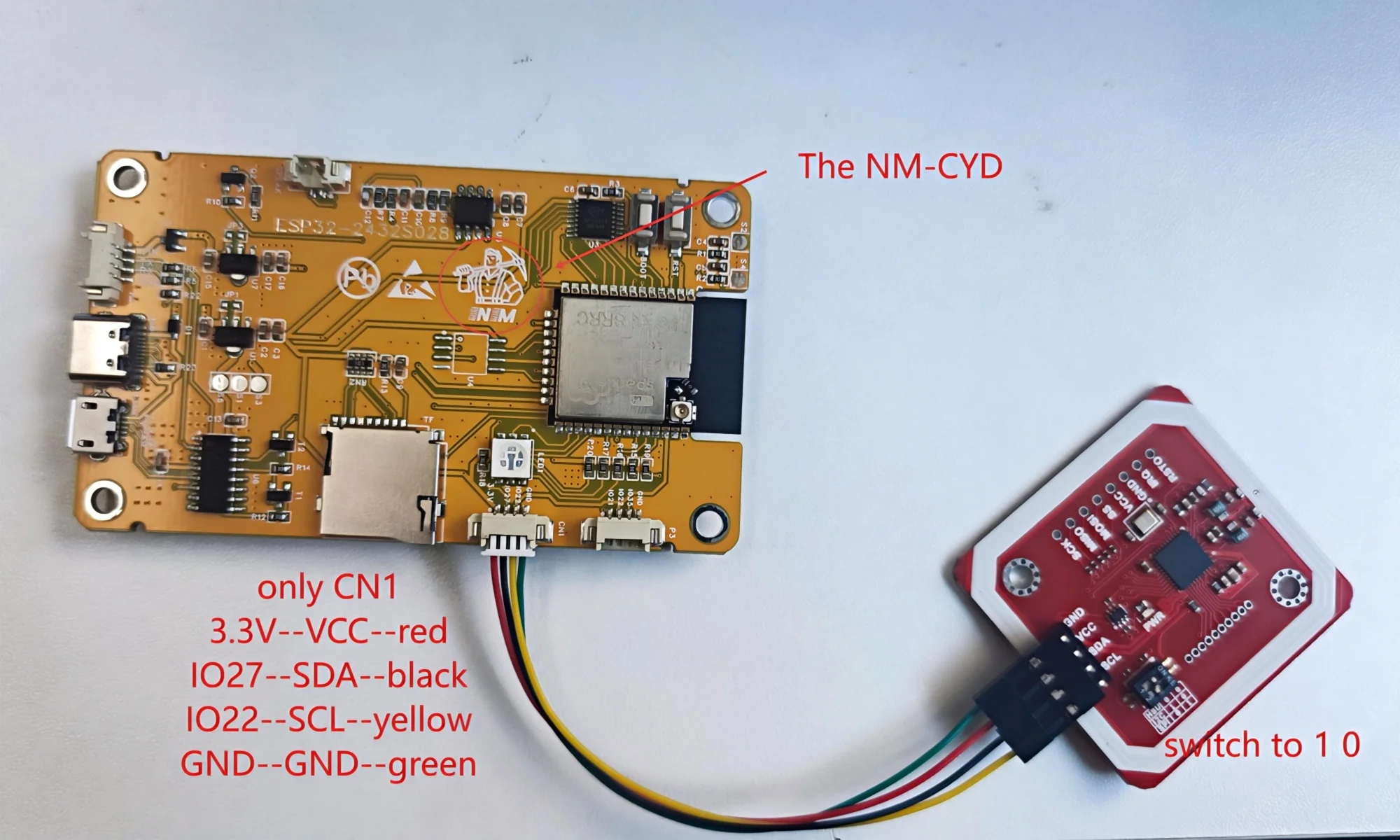

Connection 2: the NM-CYD optimised the PIN to support PN532 (only CN1)

the Connection 2 only the NM-CYD supported, you should check the logo of NMTech from the board

•Step 1:switch PN532 to mode "1 0"

•Step 2:Connect PN532 to CYD Bruce

•Step 3:Change the RFID mode,PN532 I2C

•Step 4:Read the NFC Card

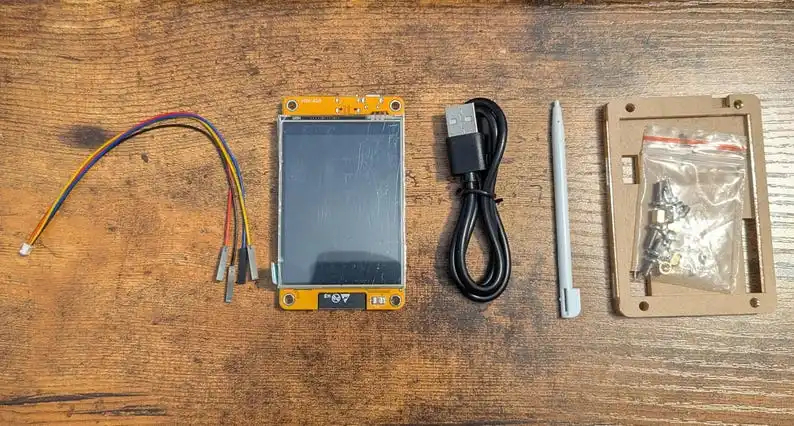

Packing List
