XINPUGUANG Flexible Solar Panel Sets 18V 100W 150W 200W 300W 400W For Car/Home/Camping Waterproof Mono Cell Solar Charge Battery

XINPUGUANG 18V 100W 150W 200W 300W 400W Flexible Solar Panel Sets For Car/Home/Camping Waterproof Mono Solar Charge Battery

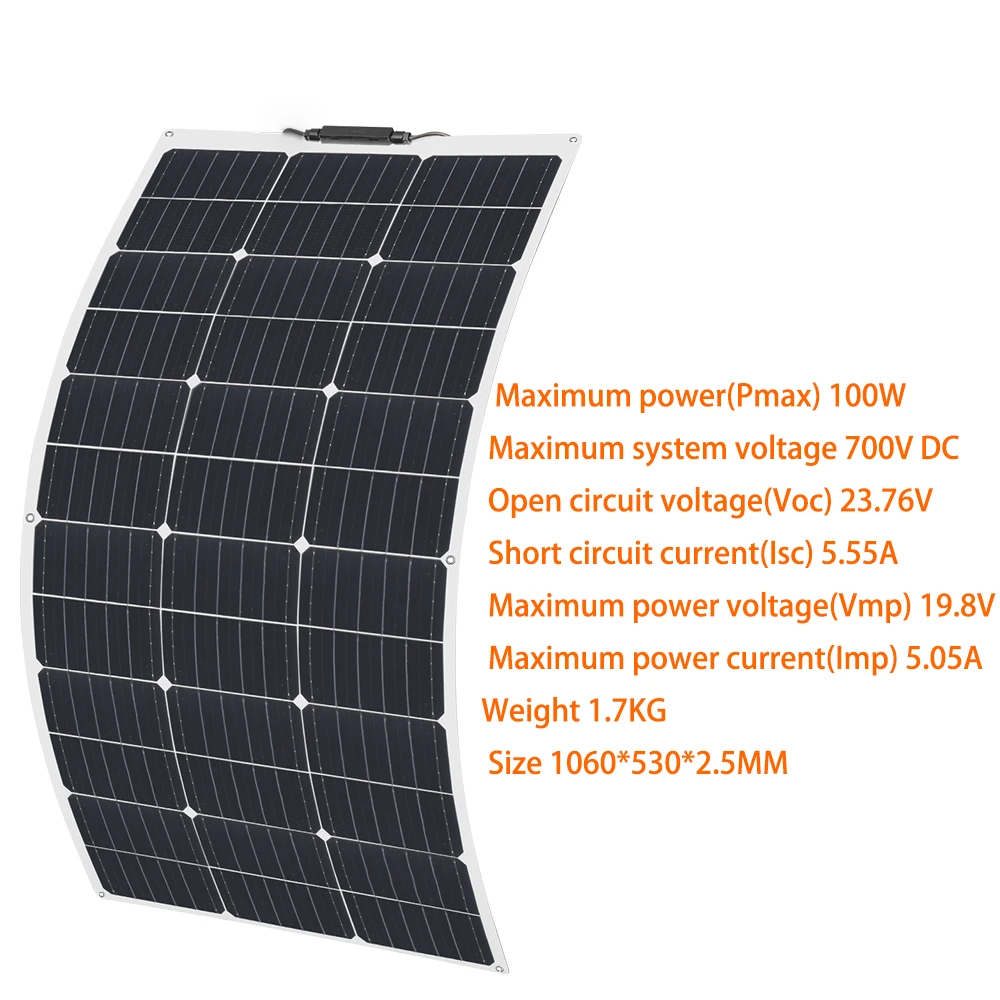

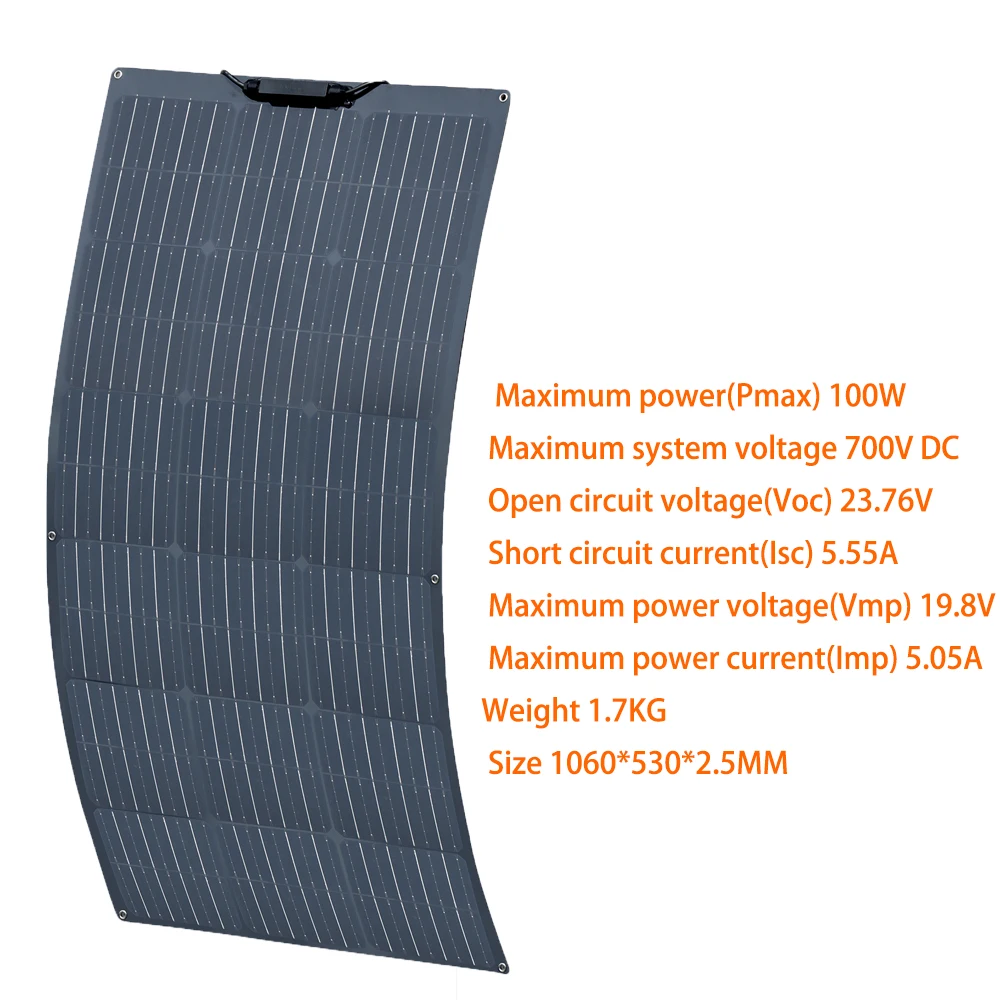

Maximum power(Pmax)                           100W

Output tolerance                                  ± 3%

Maximum system voltage                       700V DC

Open circuit voltage(Voc)                        23.7V

Short circuit current(Isc)                          5.55A

Maximum power voltage(Vmp)               19.8V

Maximum power current(Imp)                 5.05A

Cell efficiency                                        24%

Operating temperature(NOCT)          45±2℃

Temperature range                                 -40℃～+80℃

Number of cells                                      33pcs

Weight                                               1700g

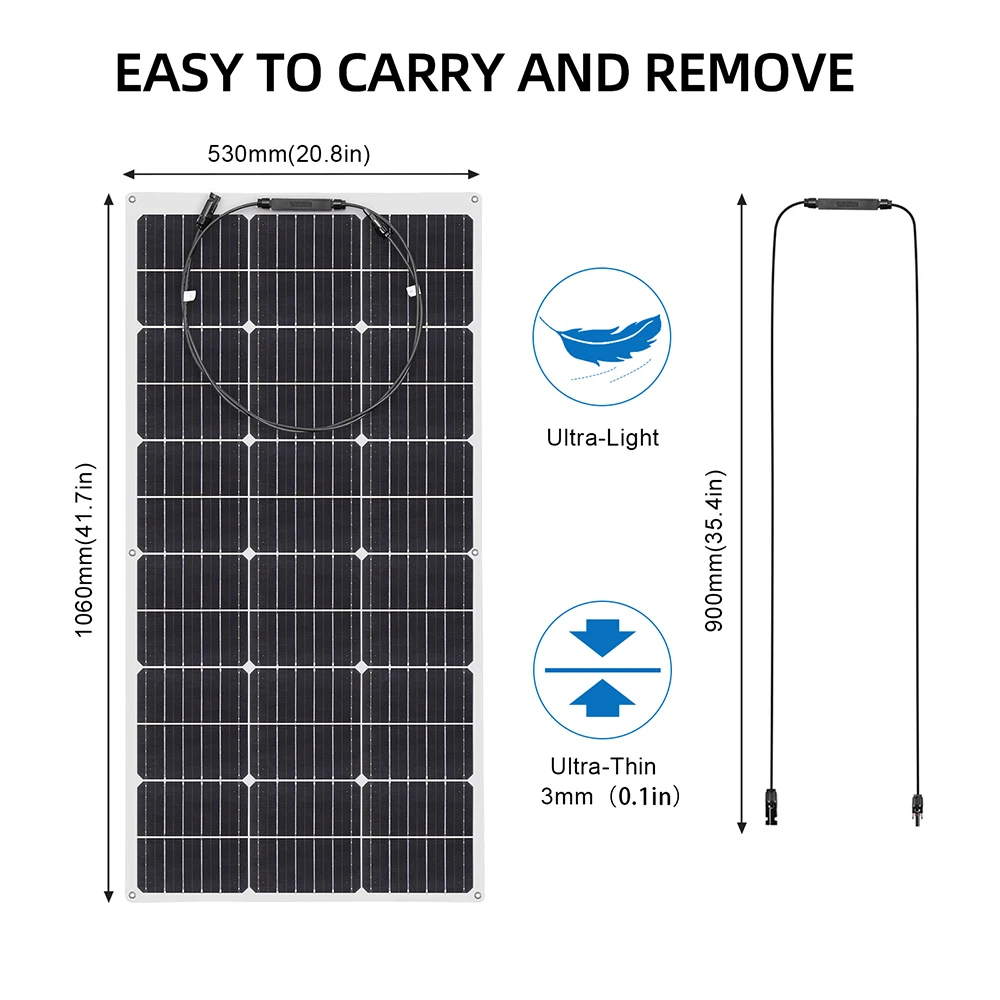

Size                   975*550*3mm/ 1060*530*3 mm

Standard Test Conditions : lrradiance 1000w/m2,Temperature 25℃,AM=1.5

Material structure：

1 floor: PET

2 floor: EVA Film

3 floor: High Efficiency Solar Cell

4 floor: EVA Film

5 floor: TPT Backsheet

waterproof level：IP67（Junction Box）

(The above data is based on the laboratory standard test environment)

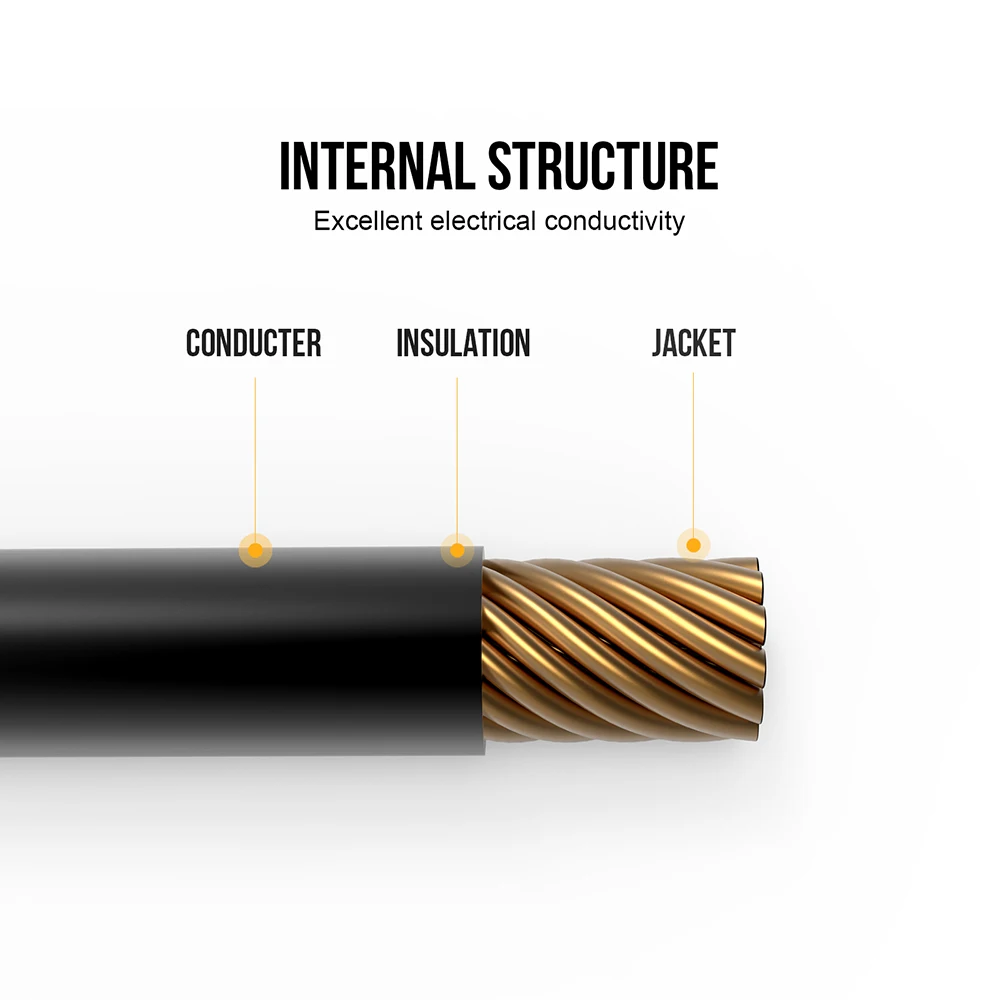

For field connections,use minimun No.14AWG copper wires insulated for a minimum 90℃

Standard Test Conditions:

AM=1.5 IRRADIANCE=1000W/m2 Temp.=25℃

(The size is manually measured and there is a certain error. Customers who want accurate size please don't buy，thank you）

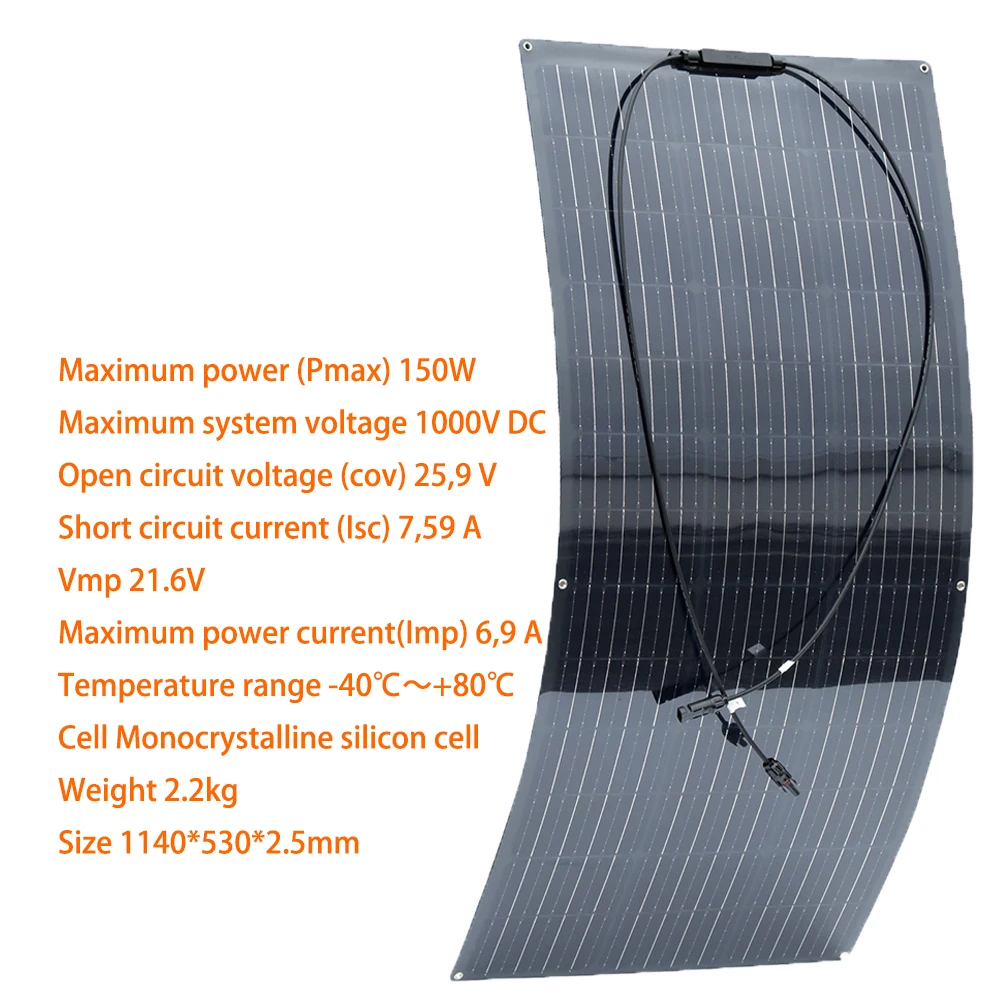

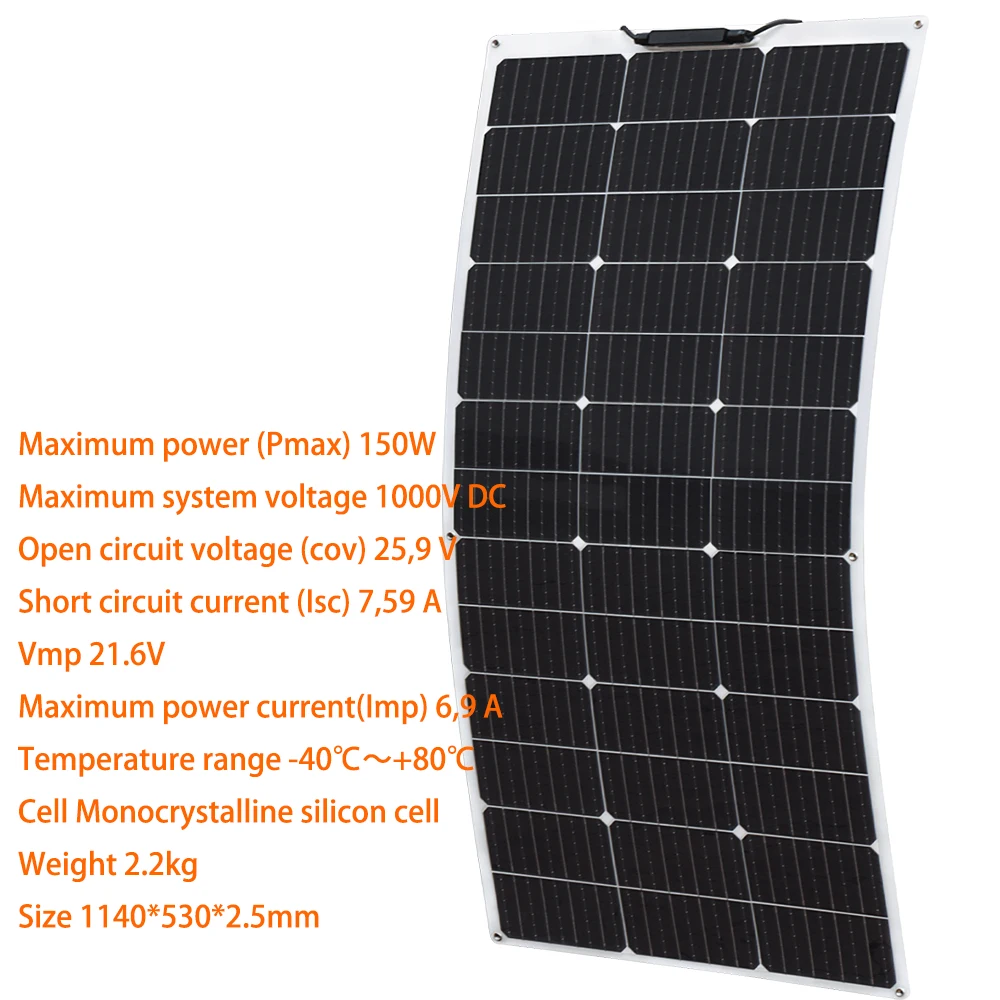

Maximum power (Pmax) 150W

Maximum system voltage 1000V DC

Open circuit voltage (cov) 25,9 V

Short circuit current (Isc) 7,59 A

Vmp 21.6V

Maximum power current(Imp) 6,9 A

Temperature range -40℃～+80℃

Cell Monocrystalline silicon cell

Number of cells 39 pieces

Cell efficiency 23%.

Weight 2.2kg

Size 1140*530*2.5mm

Standard test conditions lrradiance 1000w/m^2,Temperature 25℃, AM=1.5

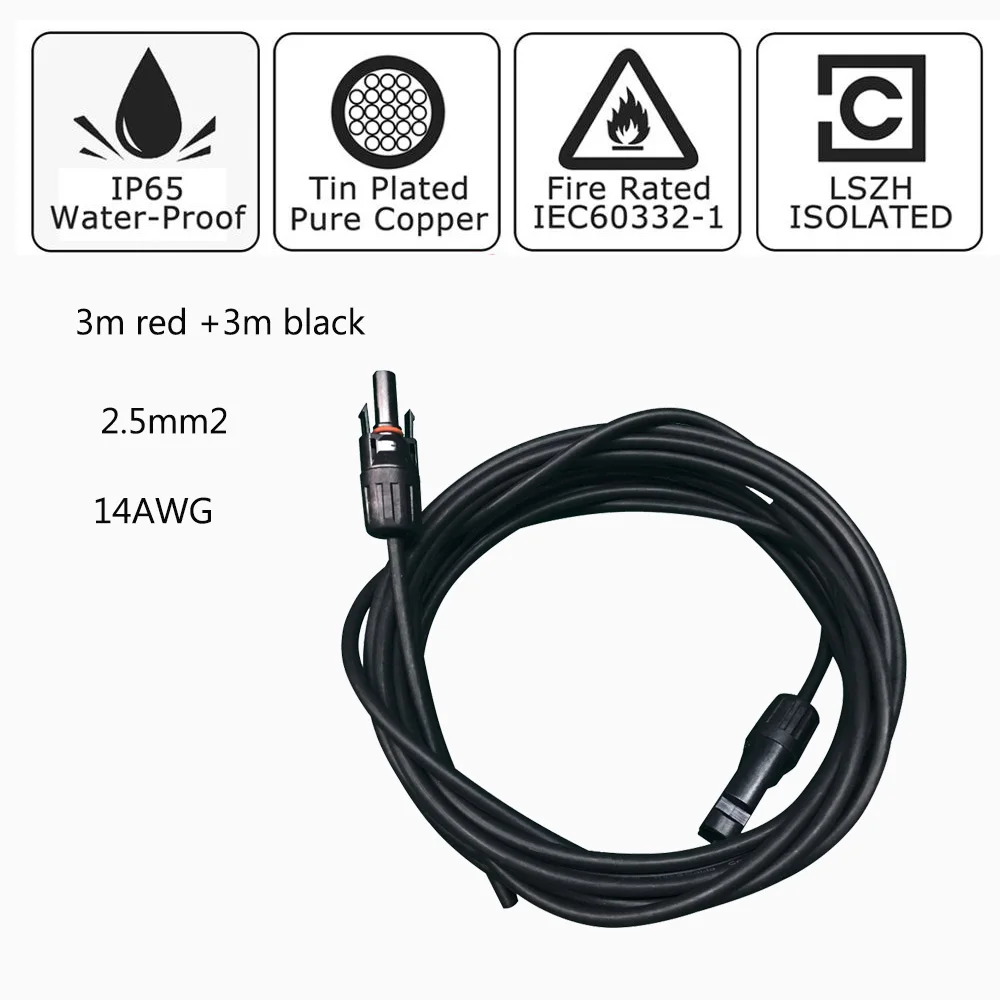

Output port 0.9 m long MC -4 connector wire

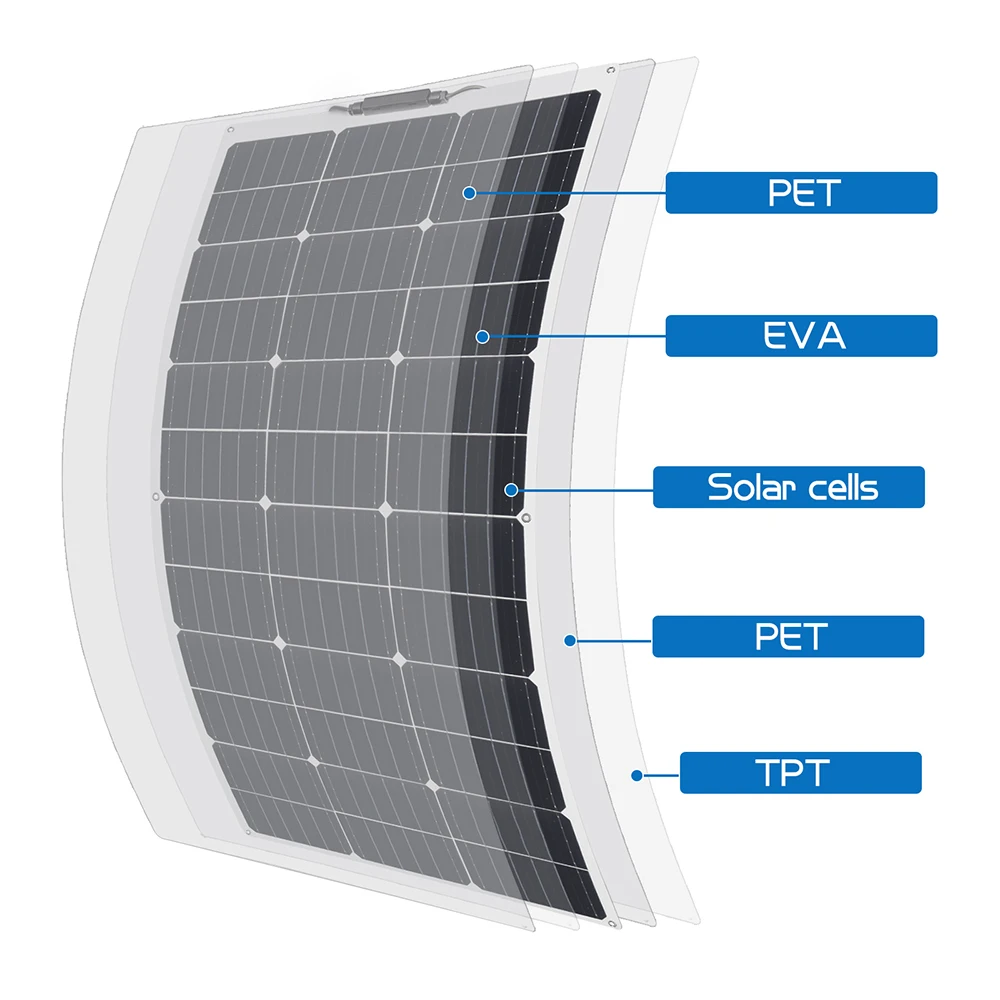

Material structure：

1 floor: PET

2 floor: EVA Film

3 floor: High Efficiency Solar Cell

4 floor: EVA Film

5 floor: TPT Backsheet

waterproof level：IP67（Junction Box）

(The above data is based on the laboratory standard test environment)

For field connections,use minimun No.14AWG copper wires insulated for a minimum 90℃

Standard Test Conditions:

AM=1.5 IRRADIANCE=1000W/m2 Temp.=25℃

(The size is manually measured and there is a certain error. Customers who want accurate size please don't buy，thank you）

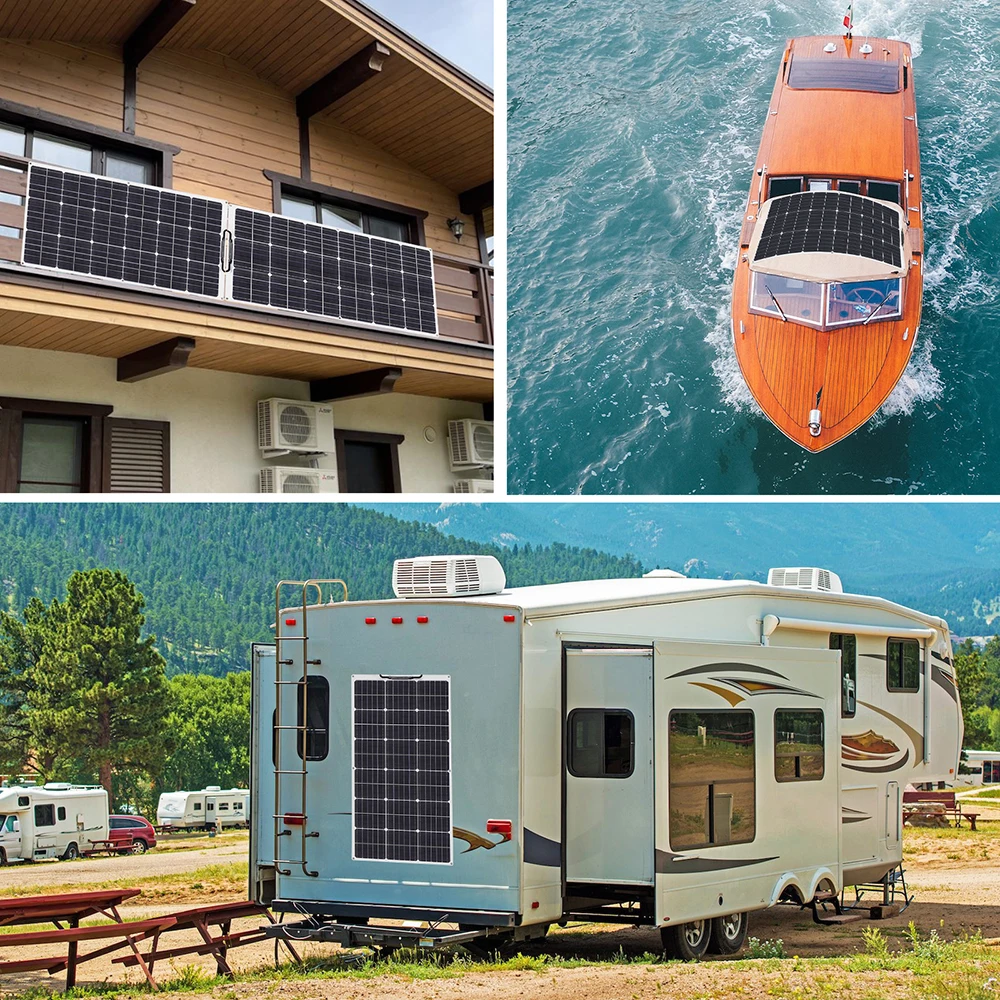

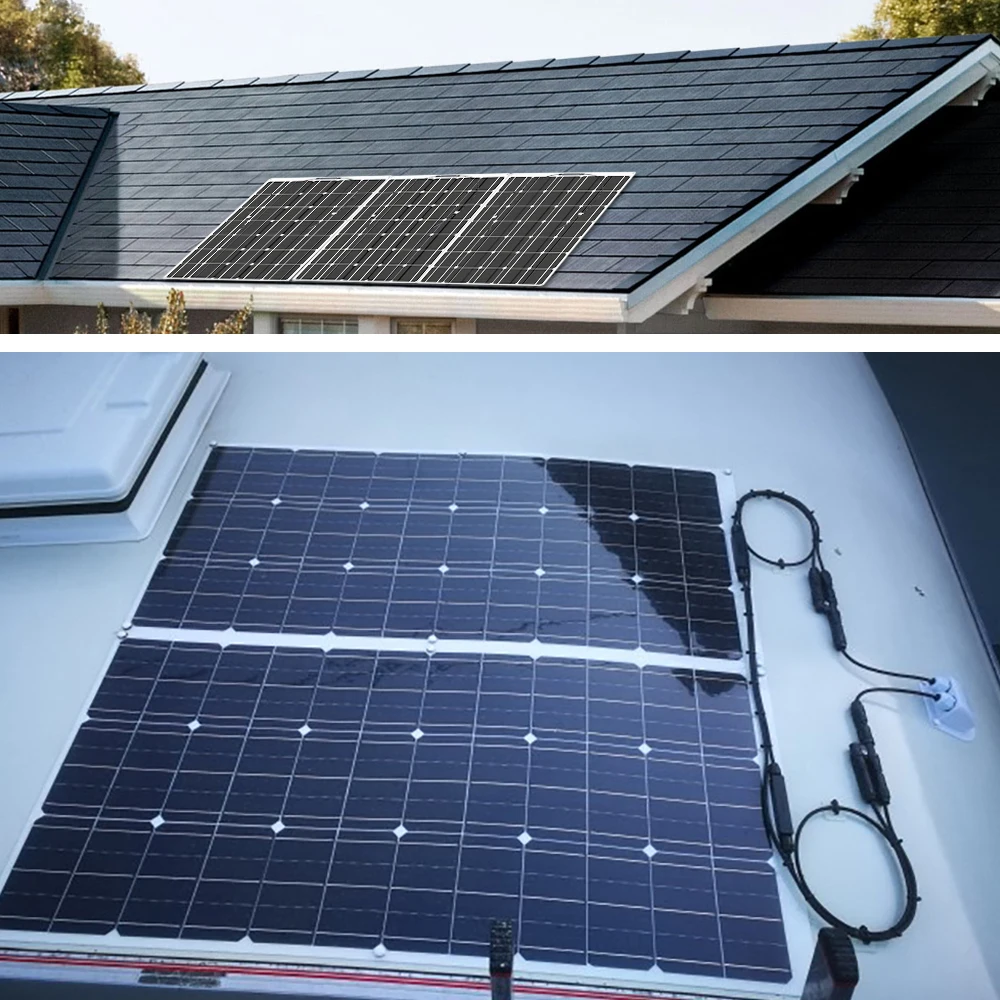

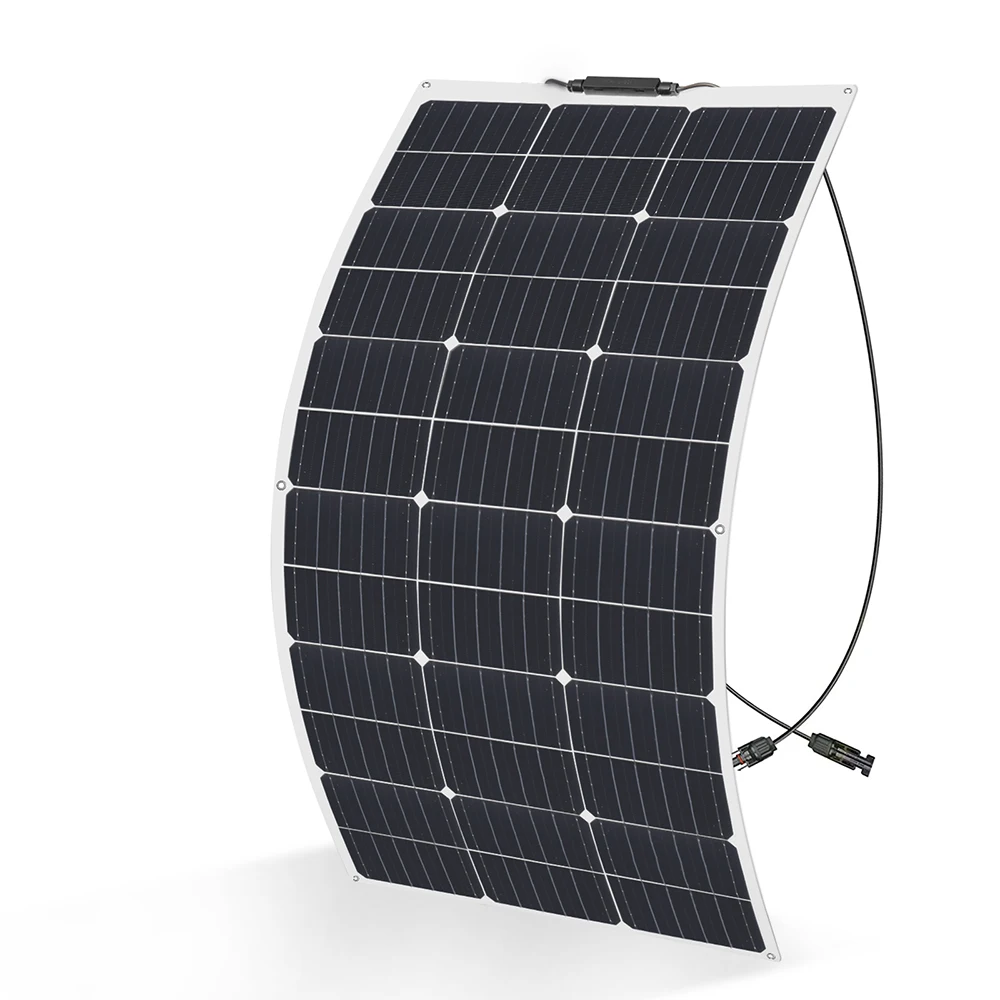

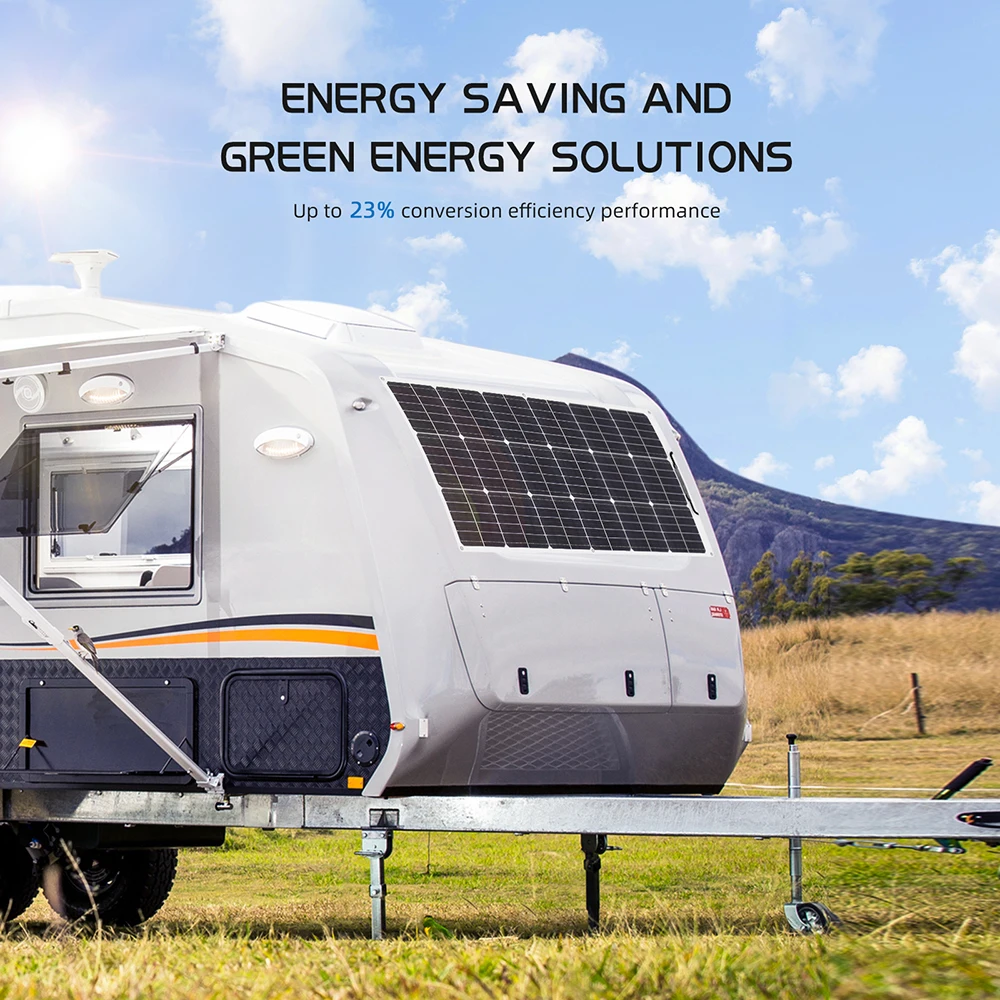

Easy to use:Semi-flexible panels can be mounted on irregular surfaces such as RV roofs, boats, tents, vaulted roofs, etc. Up to 30 degrees.

High efficiency, Light weight:only 1.5mm thick, easy to hang, disassemble and carry.

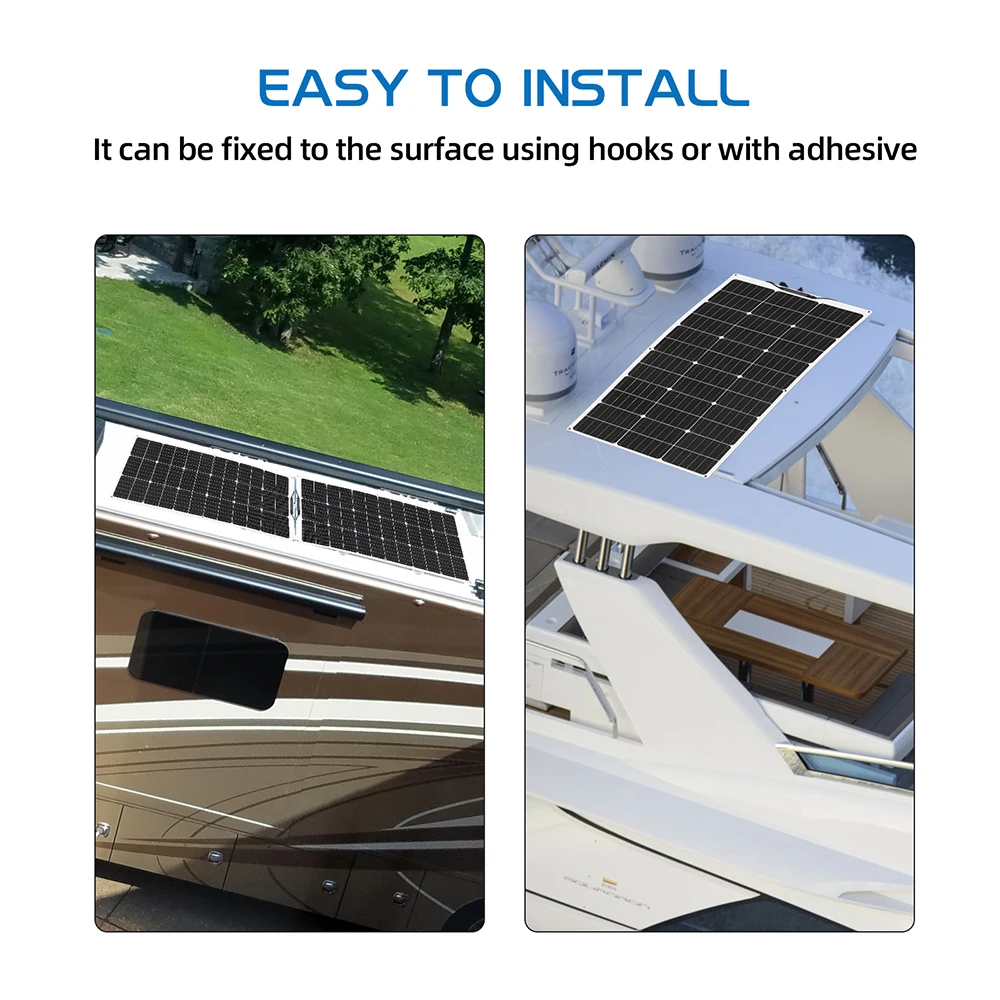

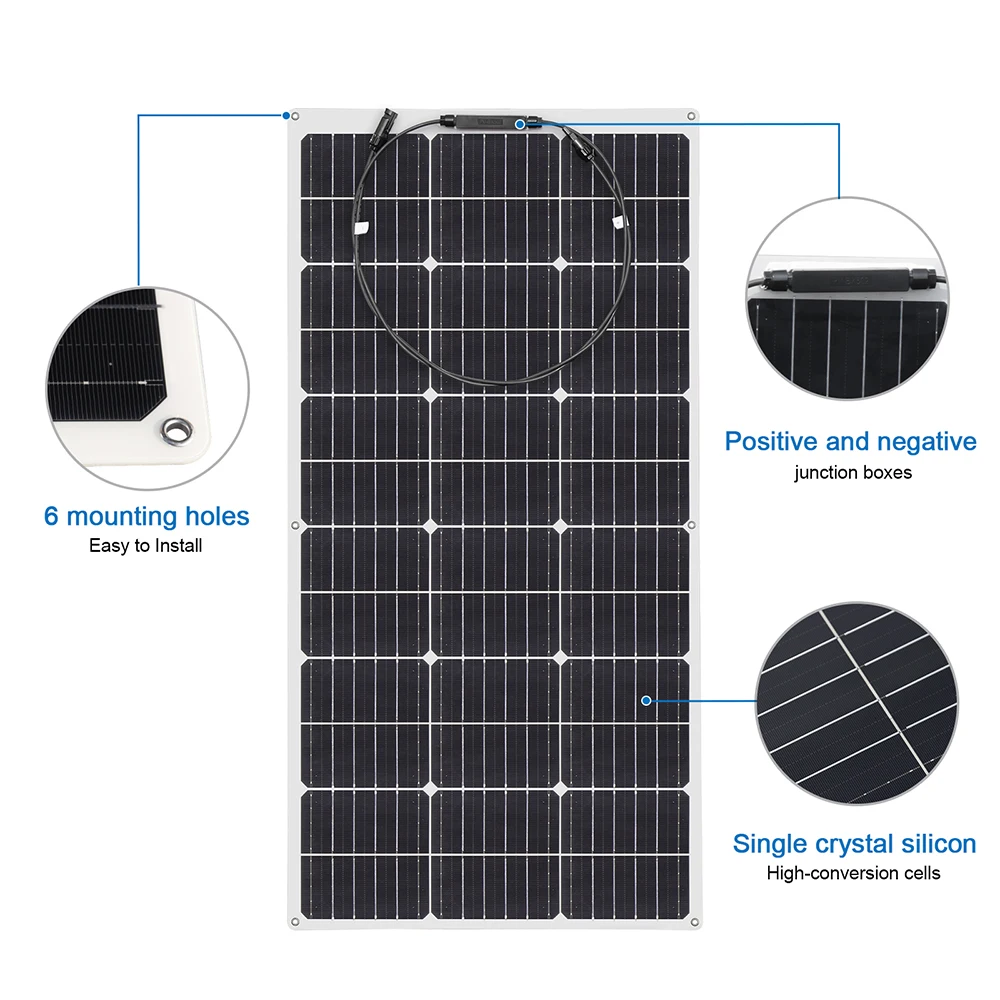

Easy to install:Metal holes in the four corners of the product for fixing screws and mounting. Each solar panel has been tested several times.

As a professional solar panel manufacturer with more than ten years of production experience. Choose us, your interests will be the best protection.


Our Advantages


The junction box on the back of the solar panel is IP67 rated, and the waterproof rating is the same as IPHONE X and IPHONE 8 PLUS.


The junction box on the back of the solar panel has a Schottky diode built in to prevent reverse current.


About transparation:


For Brazilian customer:Since the size of this product exceeds the size limit of Brazil Post, we need to use other logistics delivery. Other logistics companies will charge an additional fee.

If you are willing to pay additional fees, please send us the address information and CPF before placing the order. We will ask the logistics provider for the amount.

The transportation method of the product is for reference only. Aliexpress standard shipping has listed solar panels as prohibited products.


We will choose EMS, DHL, UPS, FEDEX, DPEX and other commercial express according to the specific situation.

FAQ

Why did the title write 12V solar panels, and the product page wrote 18v solar panels?

Many customers will have a misunderstanding when choosing solar panels. They want to buy 12v solar panels to charge 12v batteries.

In fact, the voltage of the solar panel is affected by the light intensity.If the light is weak, the voltage of the solar panel will drop.

We set the solar panel voltage to 16v-21.5v to ensure that the solar panel still maintains enough voltage to charge the battery when the light is weak.

Why did I not get 100w in the actual test of the 100w solar panel I purchased?

The maximum power of this solar panel is 100w, the maximum is obtained in the laboratory.

Due to geographical constraints, most areas cannot get the maximum power of 100w.

So how do you test the maximum power of a solar panel in your-self area?

Wait for a sunny day, flatten the solar panels on the ground at 12 noon. Use a multimeter to test the metal sheets in the solar panel junction box, or directly test the M C 4 connector.
