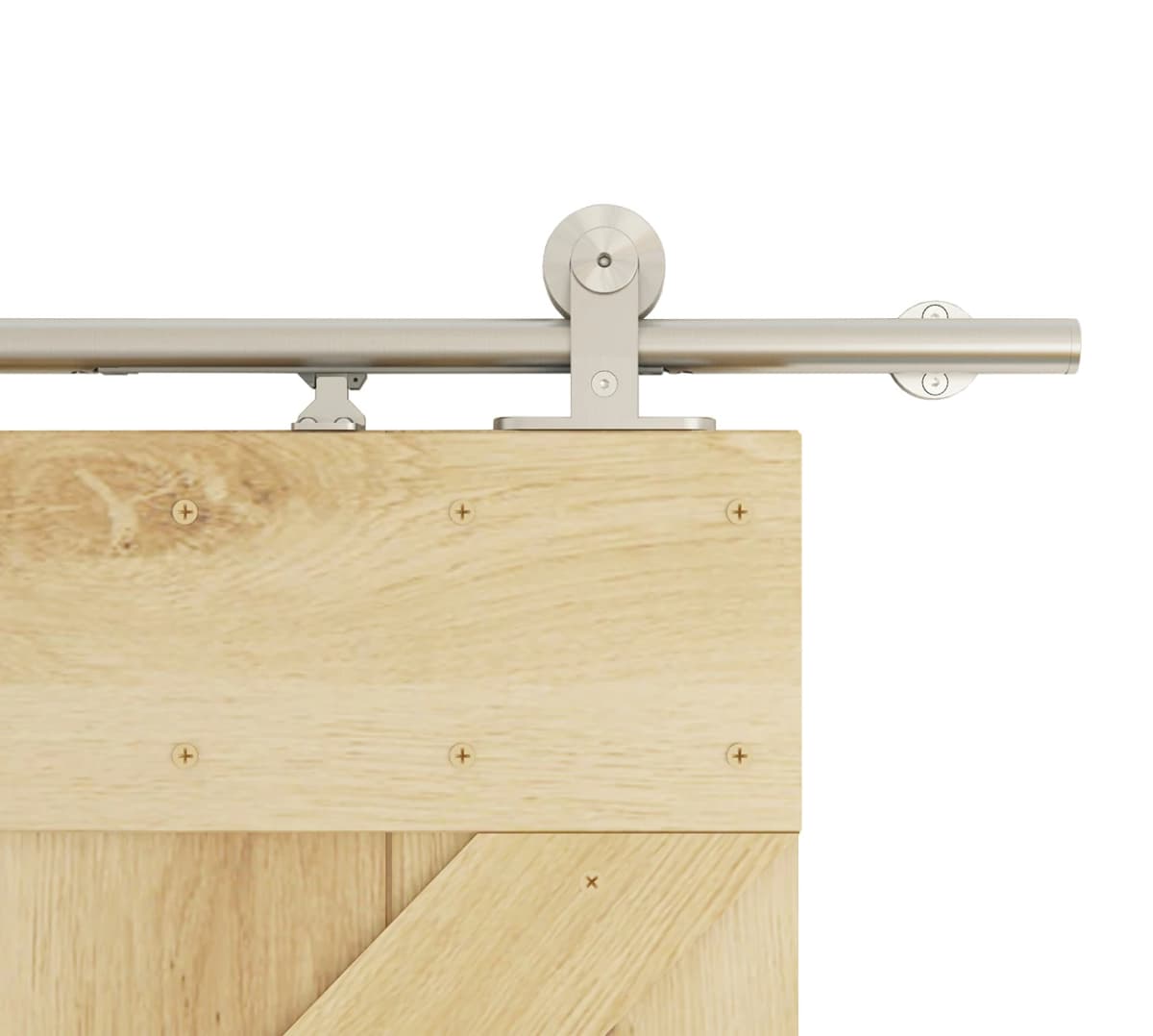

Integrated Soft Close Sliding Hardware Brushed Stainless Steel Top Mount Studio Barn Door Style Track Kit

DIYHD 5FT/ 6FT / 6.6FT Integrated Soft Close Sliding Hardware Brushed Stainless Steel Top Mount Studio Barn Door Style Track Kit

Hardware Only,Not including door panel

Material:Stainless Steel;

Surface:Brushed;

Soft Close Kit can hold Max door weight 80kgs;

Top mount kit suitable for door thickness 1 3/8" to 1 3/4";

No stops offered for this design,soft close system pre-fixed at both sides will function as stops;

Full set kit for single door including:

Track with pre-installed track&wall connectors*1

Roller*2;

Soft close mechanism*2(pre-fixed on the track)

T trigger*2;

Floor guide*1

Full set kit for double door including:

Track with pre-installed track&wall connector*2

Joint in tube connector*1

Roller*4

Soft close mechanism*4(pre-fixed on the track)

T trigger*4

Floor guide*4

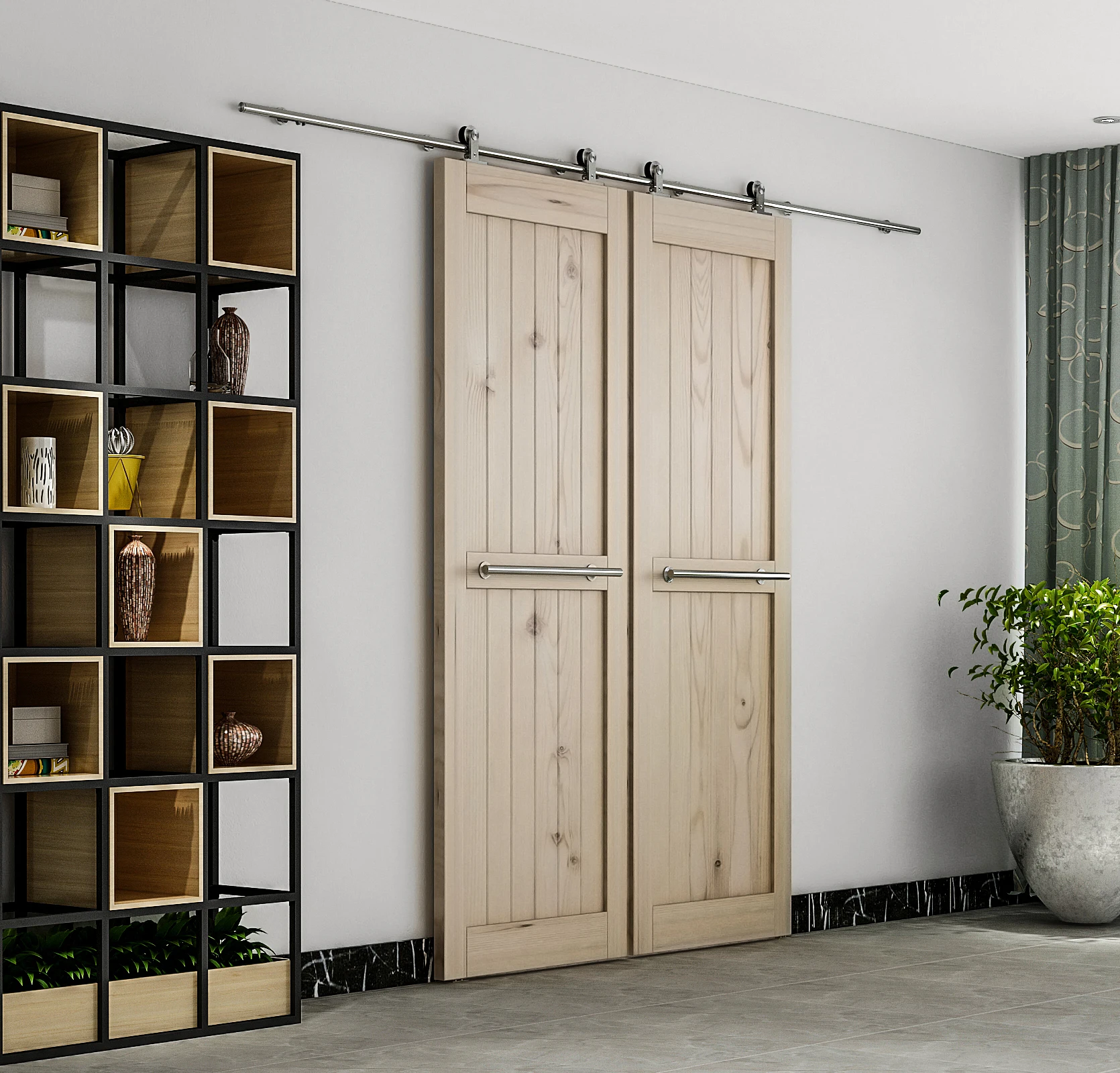

Gallary of 10FT / 12FT / 13FT Double Sliding Door,Hardware Only,Not Including Door

Tec details

The height from top of the door to the top of the roller is 4";

The gap between door and wall is about 3/5";

The length between 2 center track connector is 19 11/16";

Wooden plank required for studs wall;
