maXpeedingrods GT35 GT3582 Universal Turbo Turbocharger T3 4 Bolts W/ Oil Fuel Lines 600+HP

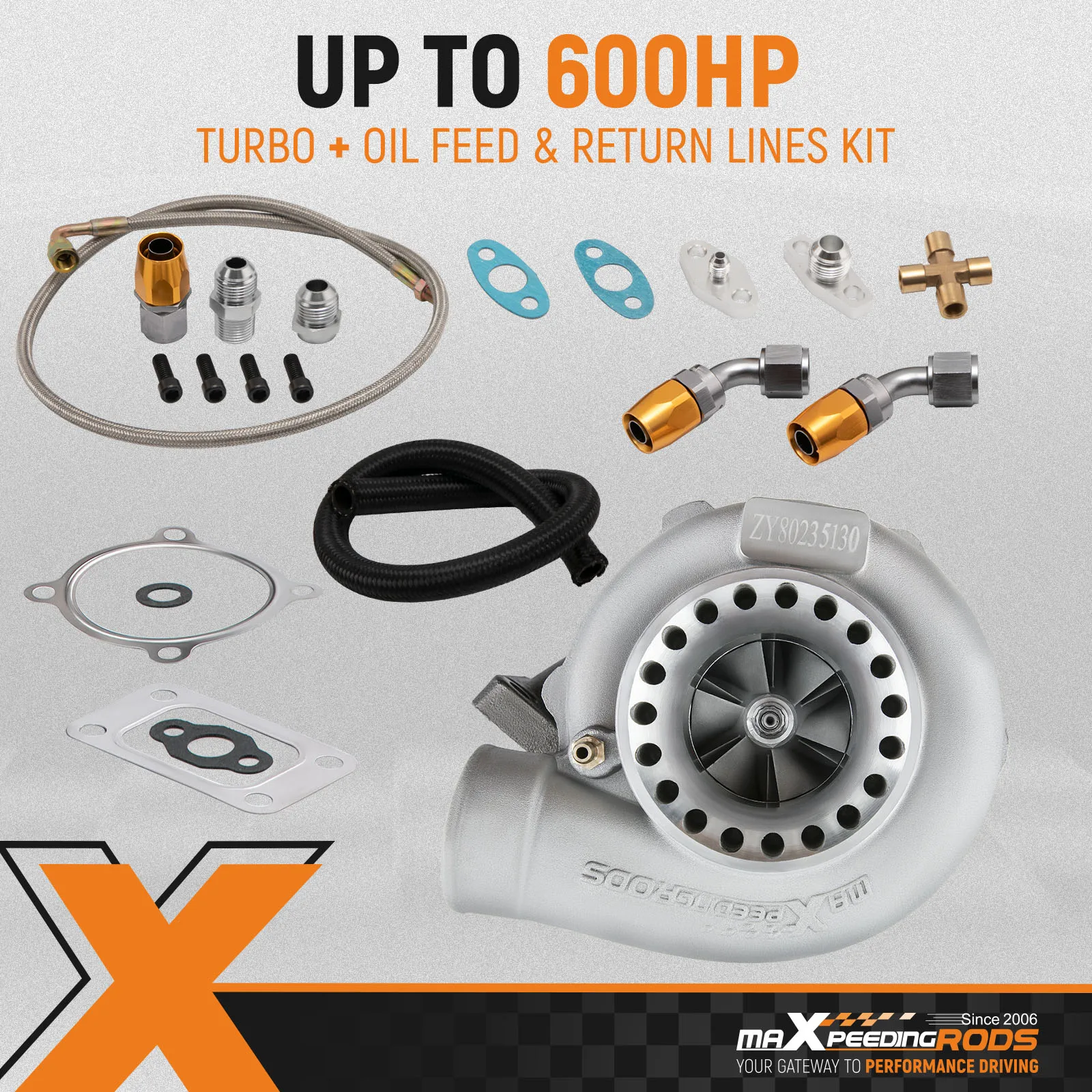

Turbo+Oil feed+Return Line Kit Universal Turbocharger Floating/Journal bearing

NOTE： Lacking of oil will casue turbocharger shaft play and damage , please adjust your oil pressure & make sure turbochager is fully lubricated.
Oil Feed Oil Return Lines Details

Oil feed/inlet: M10*7/16-24
Oil drian/outlet: 2*M8*1.25

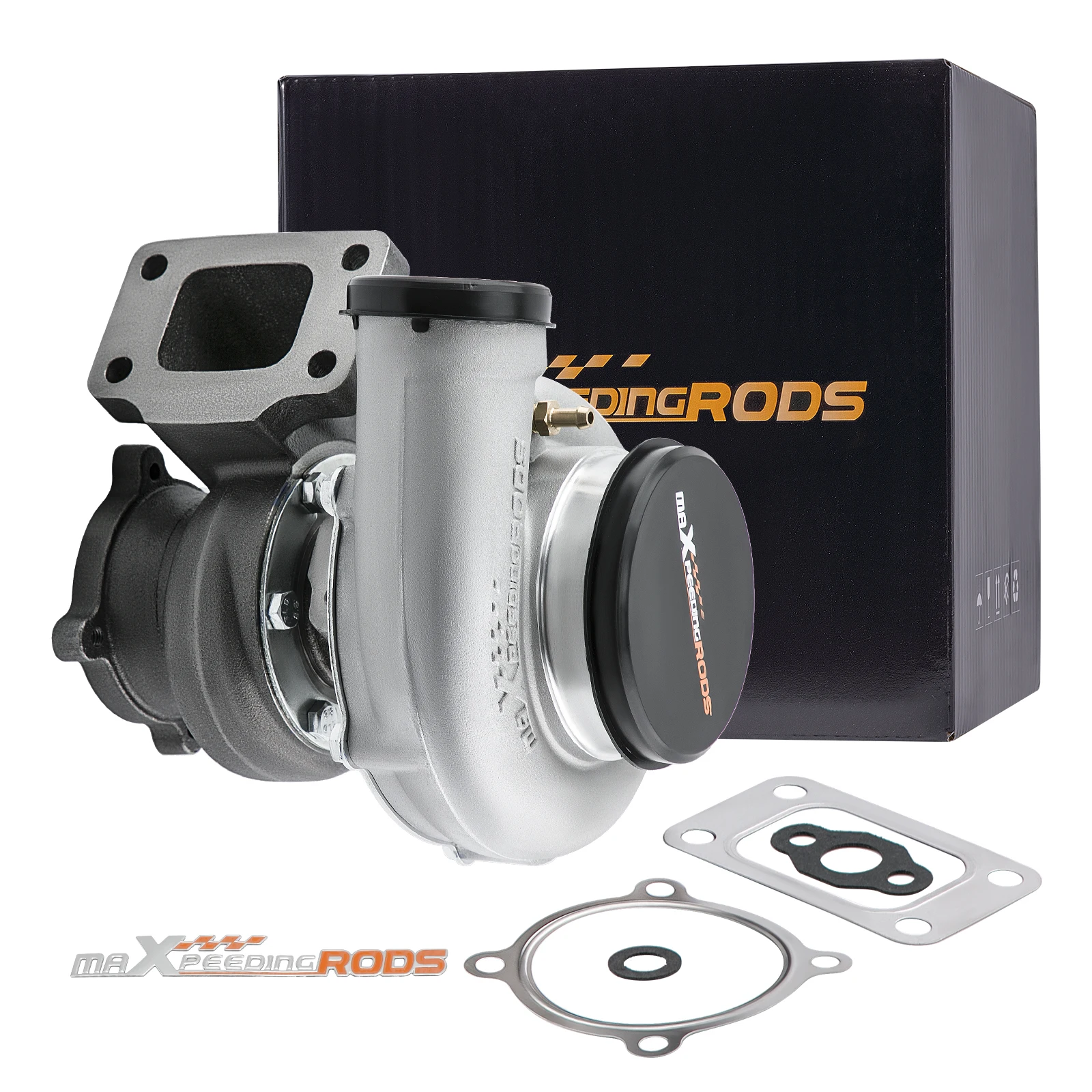

Turbocharger
Application

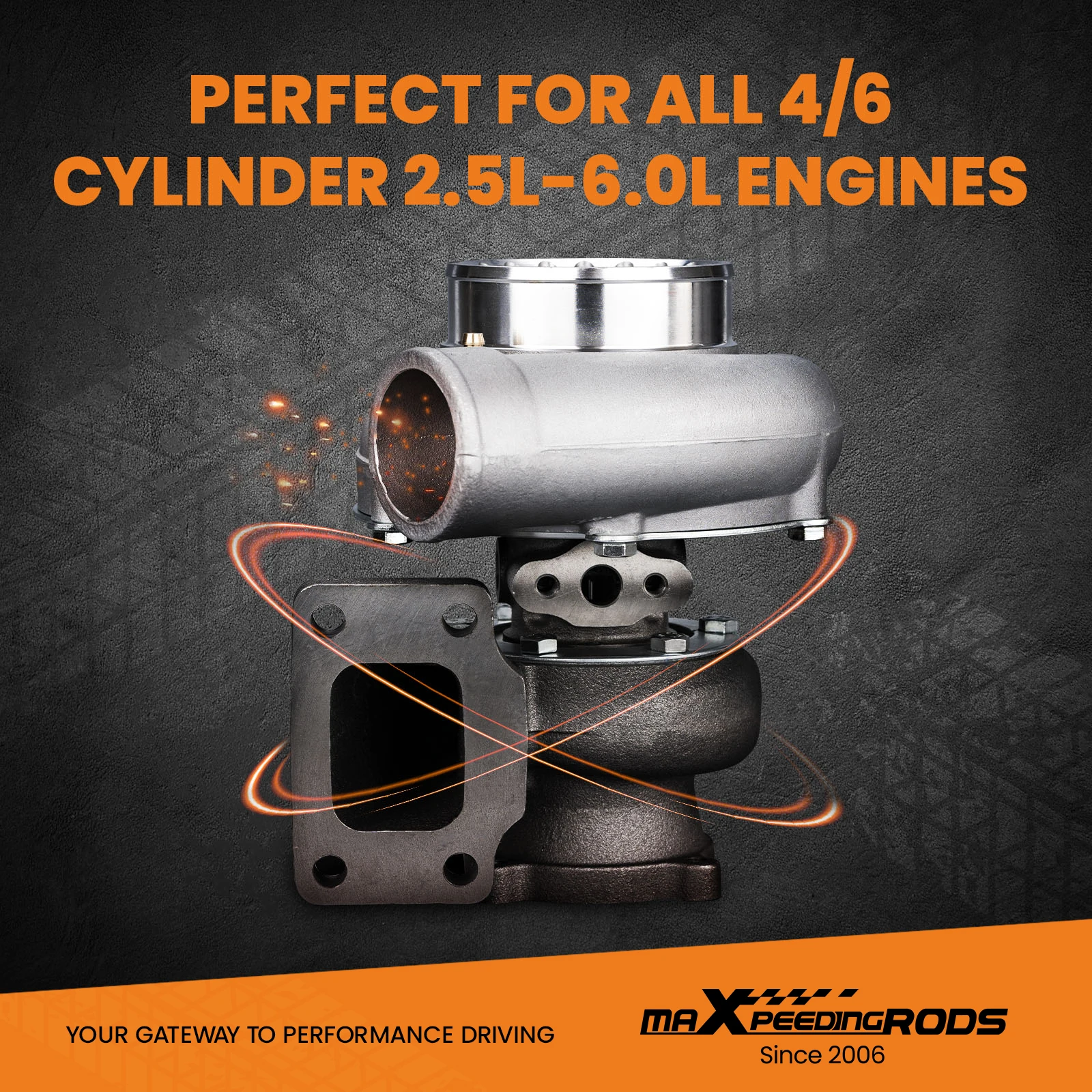

Bigger HP Applications, perfect for all 4/6 cylinder and 3.0L-6.0L engines

Specification
Turbine Side:

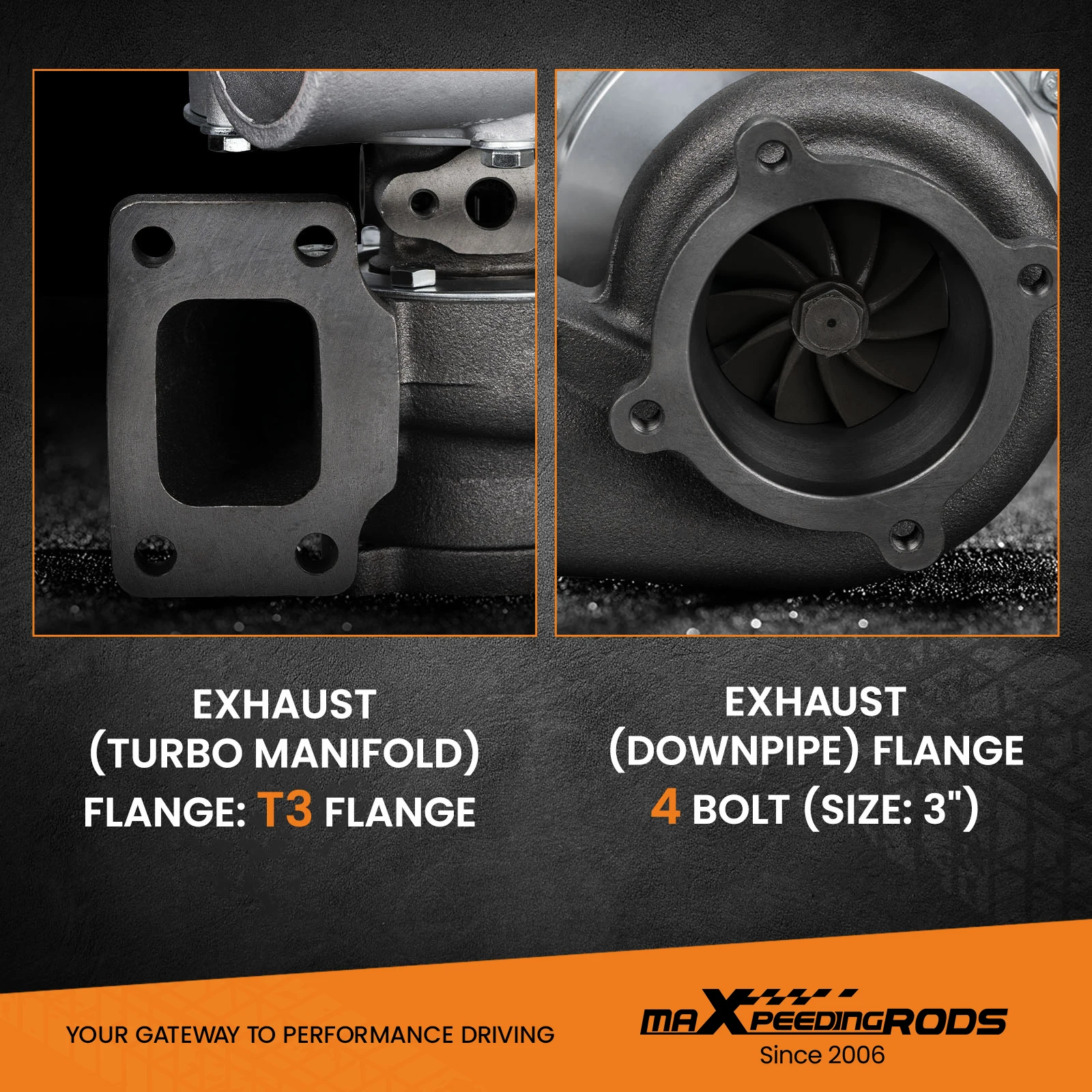

Exhaust Inlet Flange: T3 Flange
Exhaust Outlet Flange: 4-Bolt
Turbine Trim: 84.2
Turbine A/R: 0.63
Turbine Inducer Diameter: 68mm
Turbine Exducer Diameter: 62.4mm

Compressor Side:
Compressor Trim: 56.9
Compressor A/R: 0.7
Compressor Inducer Diameter: 61.5mm
Compressor Exducer Diameter: 81.5mm
Compress Inlet Size(Air intake): 4 inch (103.5mm)
Compressor Outlet Size: 2.5 inch (63.6mm)

Bearing Type: Floating/Journal Bearing
Thrust bearing: 270 degree

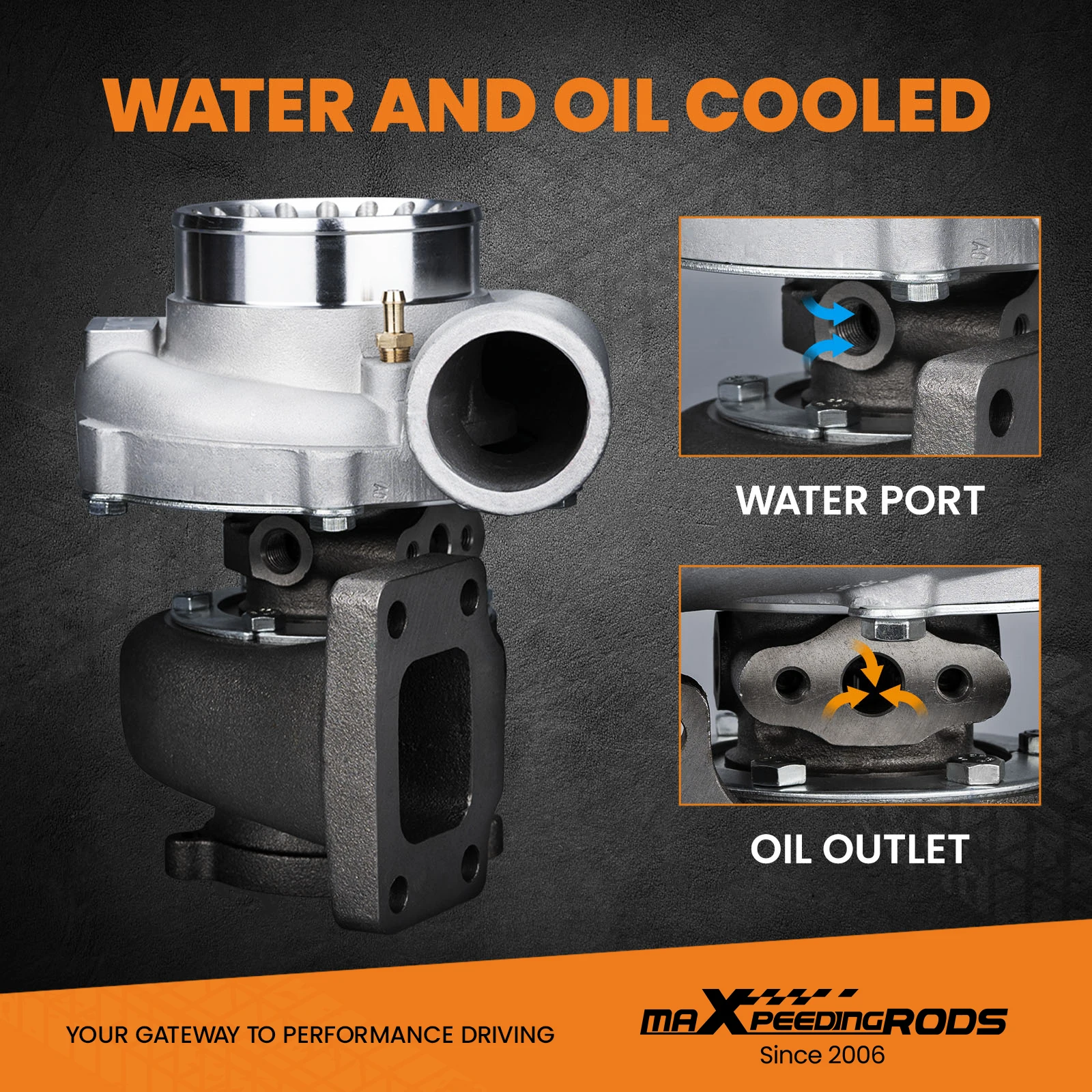

Cooling Type: Water + Oil Cooling

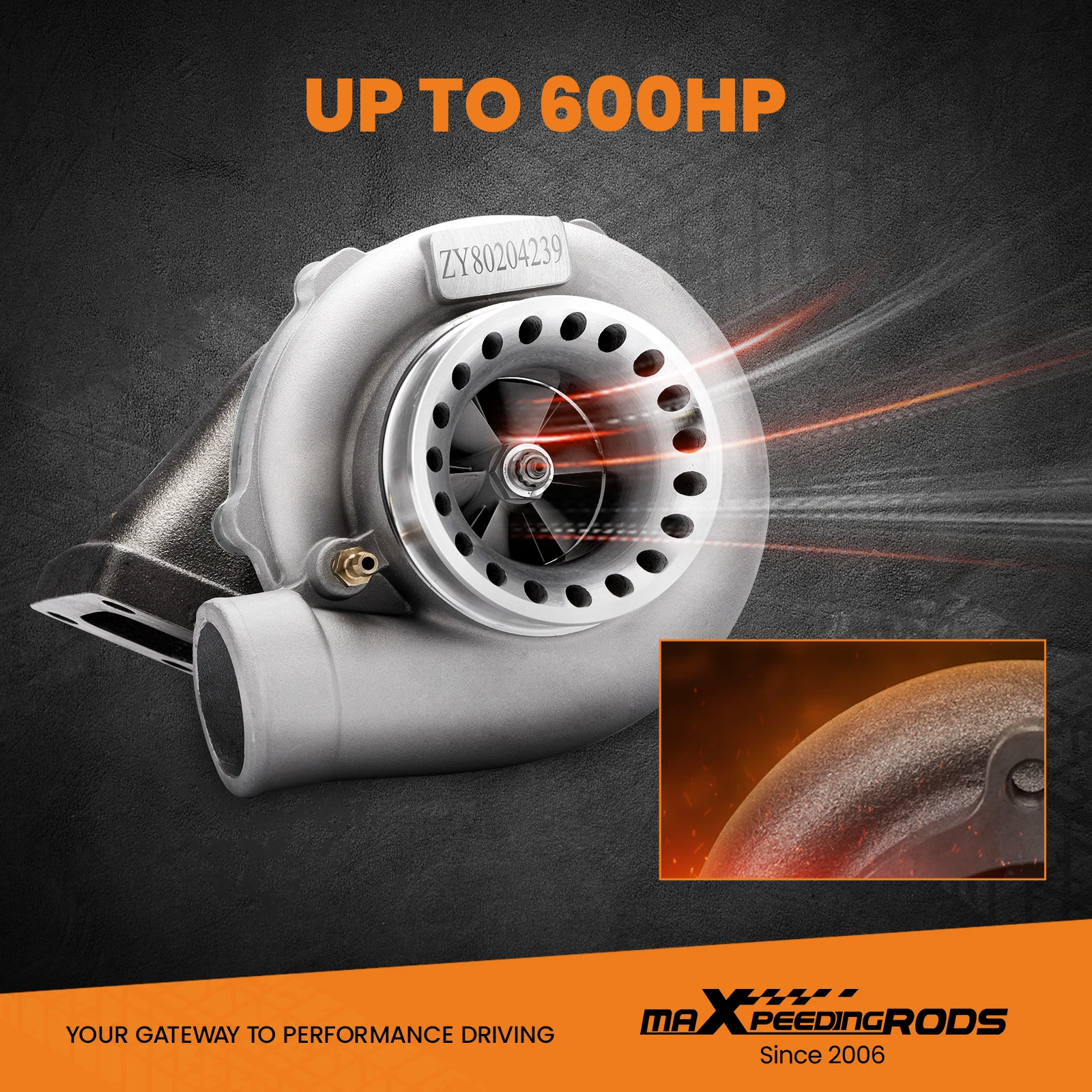

Horse Power: Up to 600HP
Turbo Type: Individual
Universal Fitment: Yes
Finish:Matte
Wastegate:Without Wastegate
Oil feed/inlet: M10*7/16-24
Oil Outlet: M14.1 & 2*M8*1.25
Water inlet/outlet: M14* 1.5
Maximum PSI: 22
Condition: Brand New
Pakage Size: 26 x 25 x 23 cm
Pakage Weight: 8350g

Accessories:

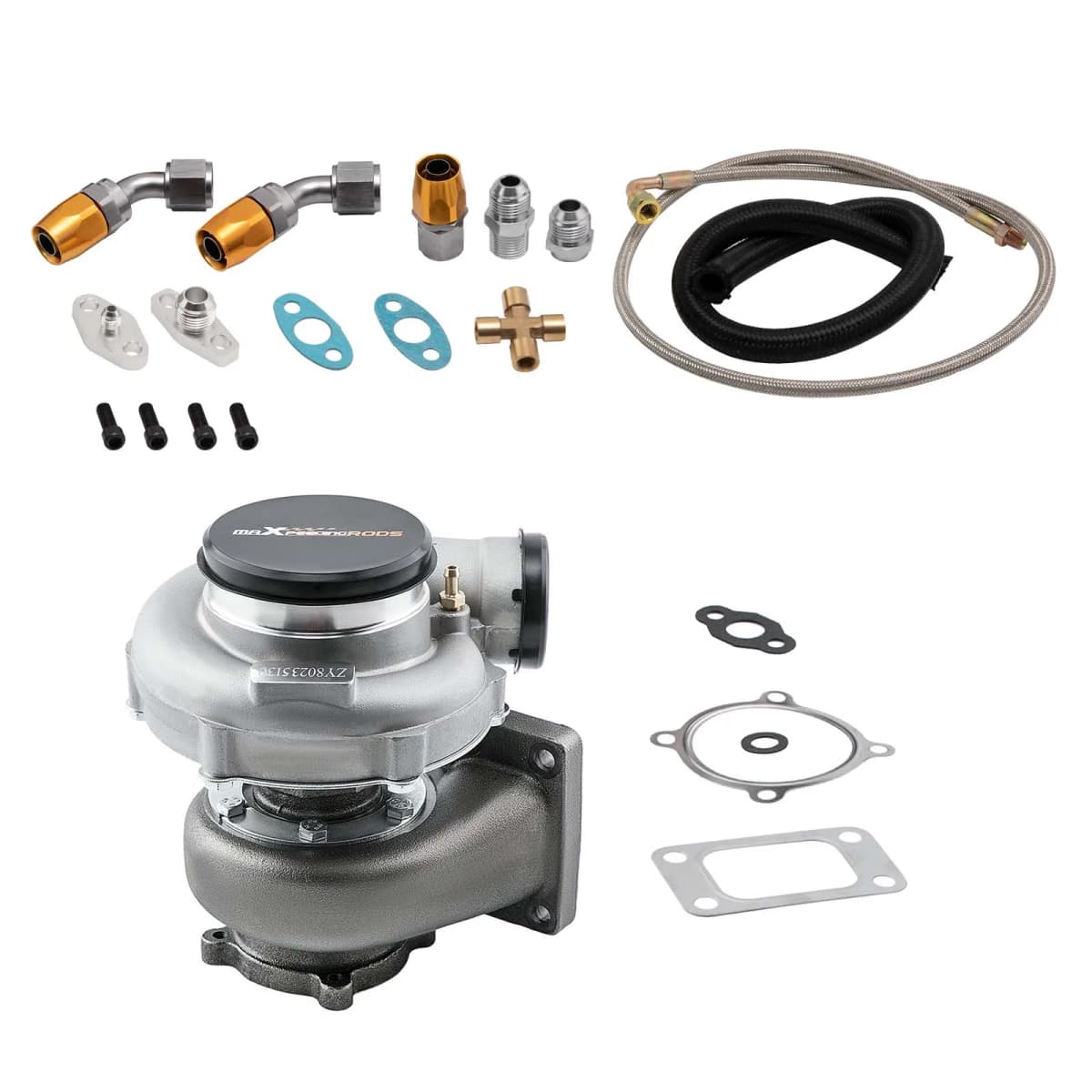

You will get exactly as shown in the picture above

Notes:
* Please check the specifications carefully before bidding. If you are not sure about these information, please feel free to contact us: via the message
* This is universal application turbo, so modification might be required for some vehicles.
