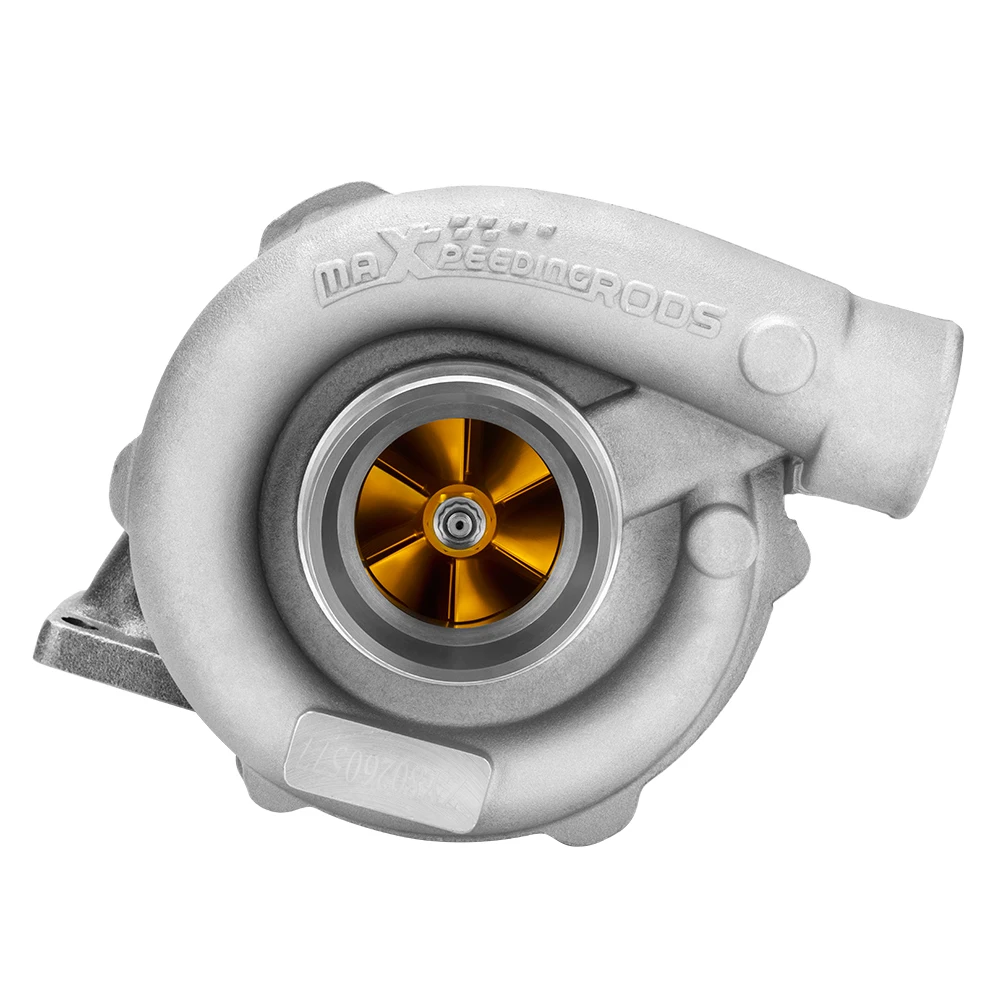

T3/T4 Upgrade Billet Turbo 63 A/R T04E 400+HP BOV Adapter Oil Return Feed Line

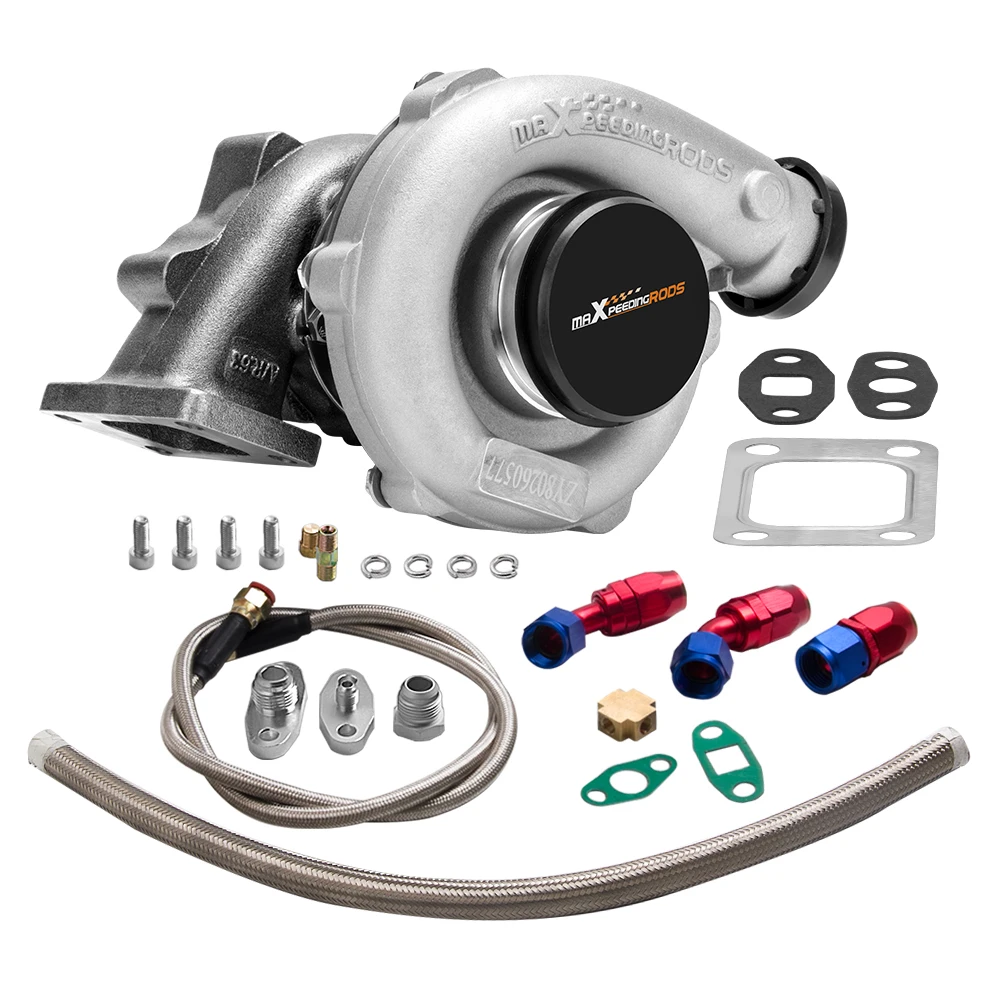

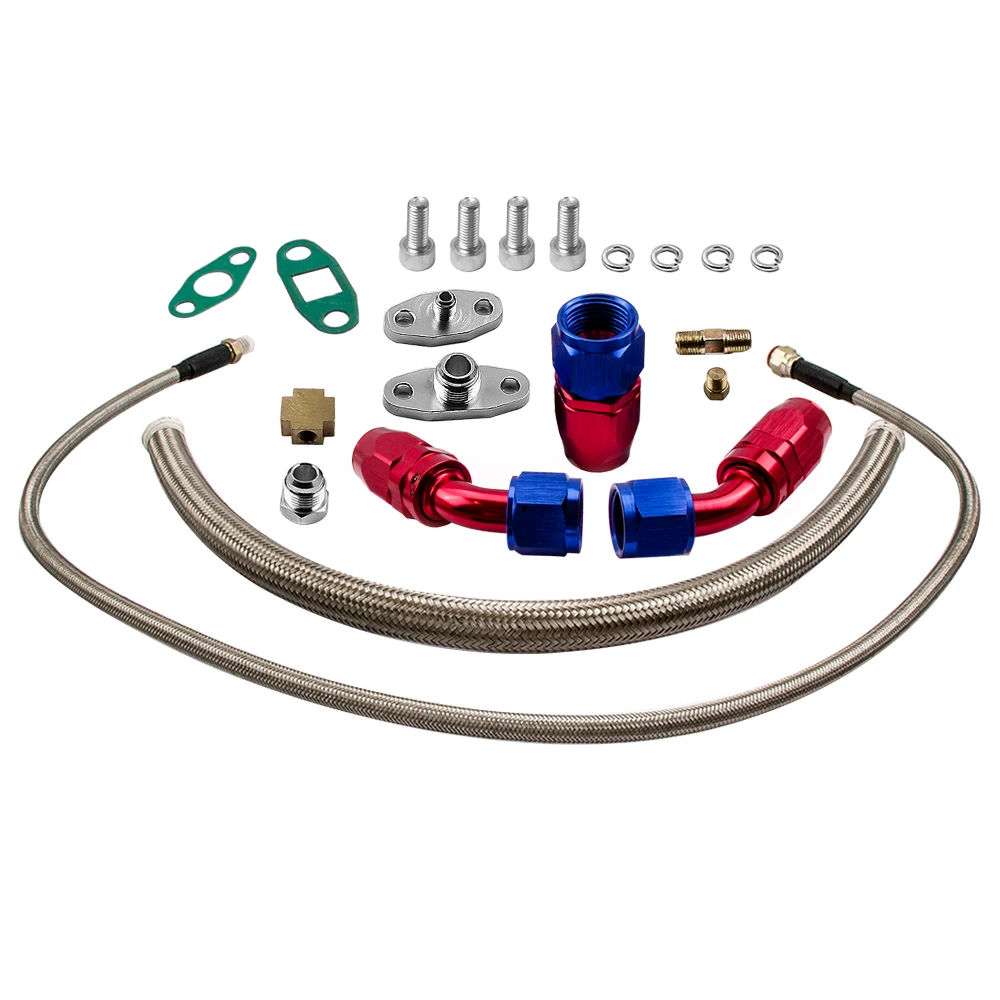

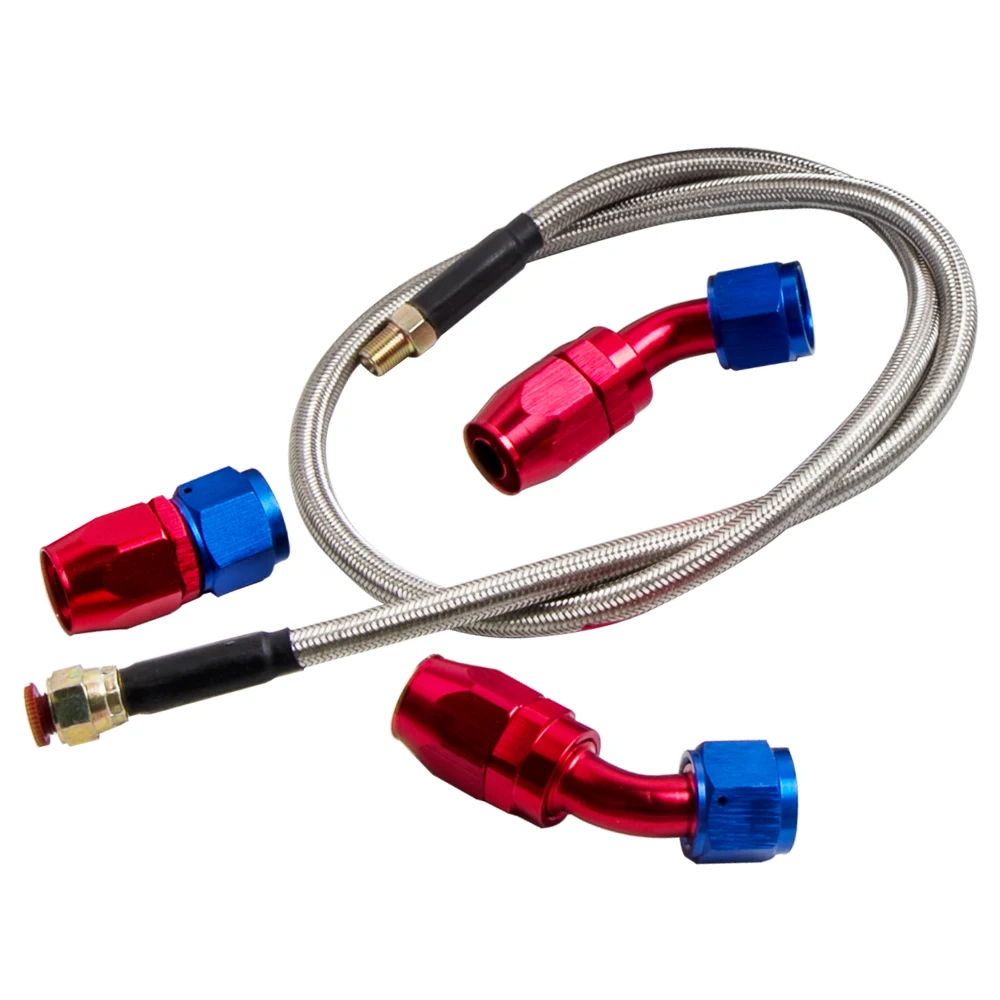

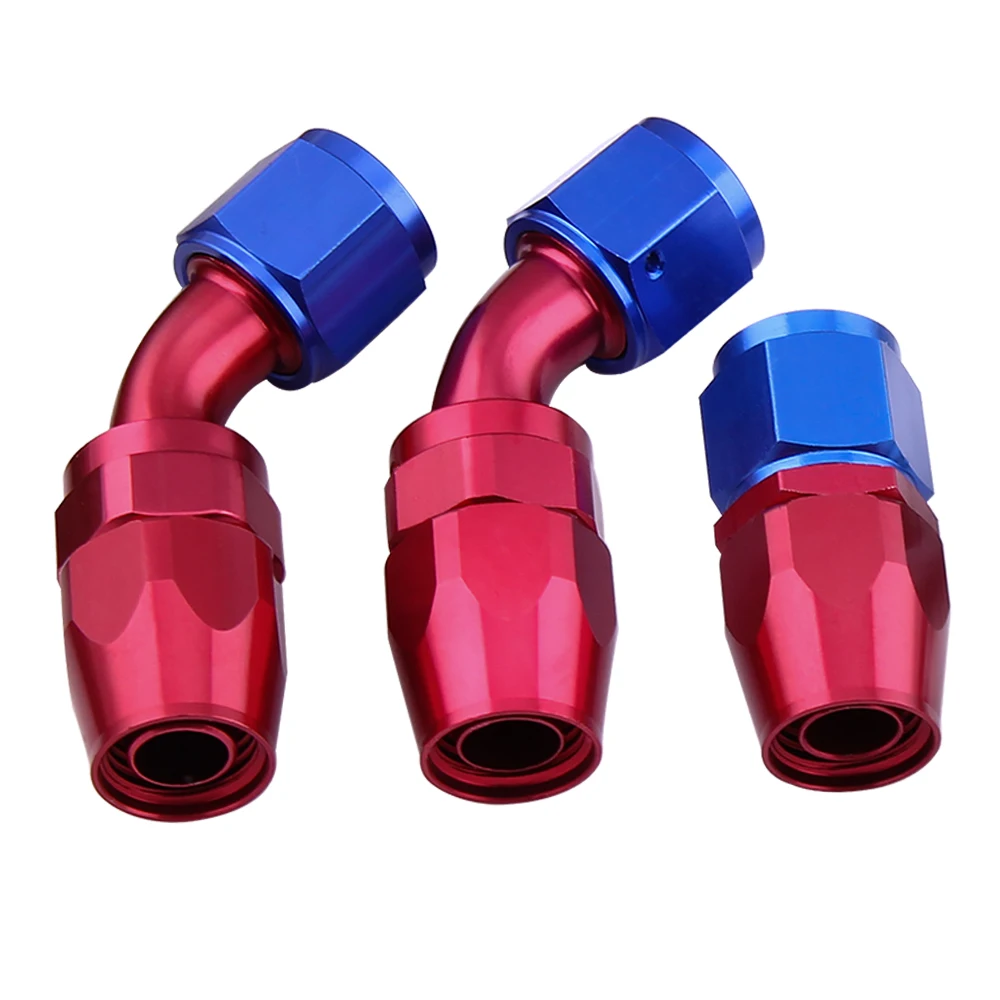

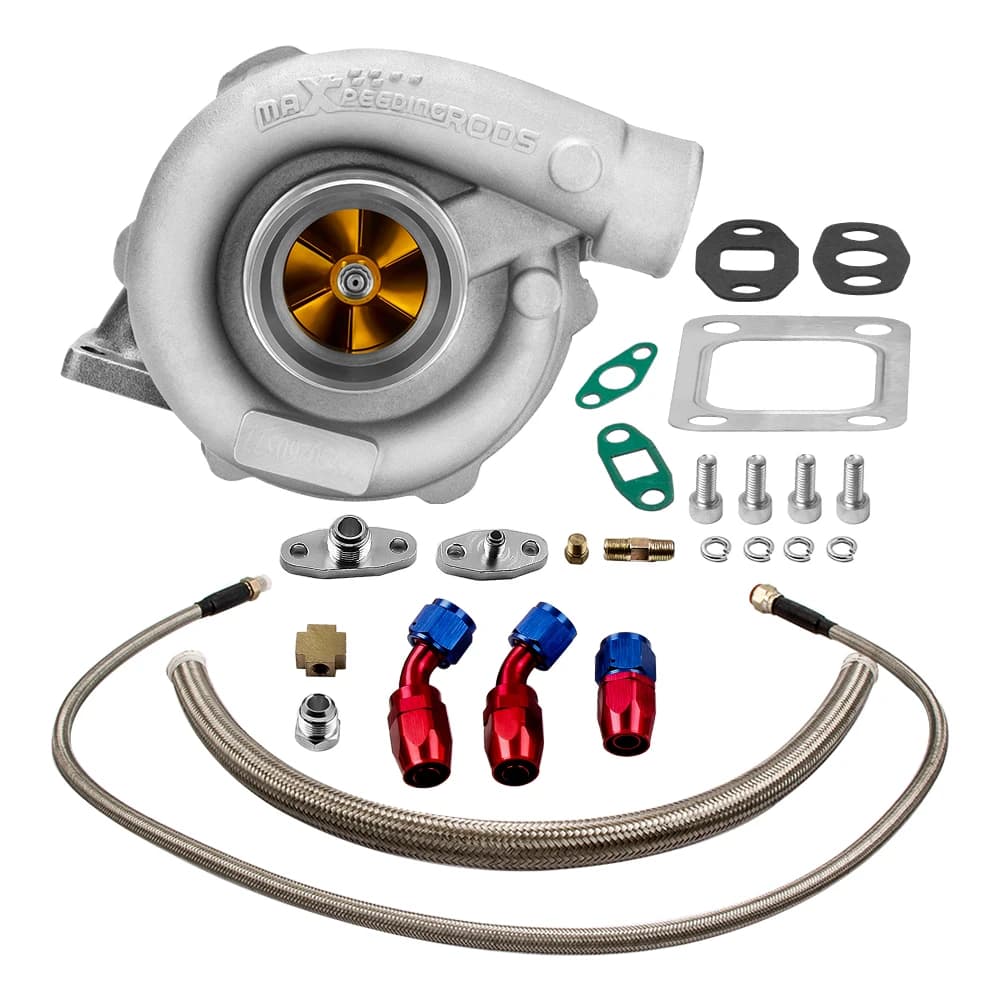

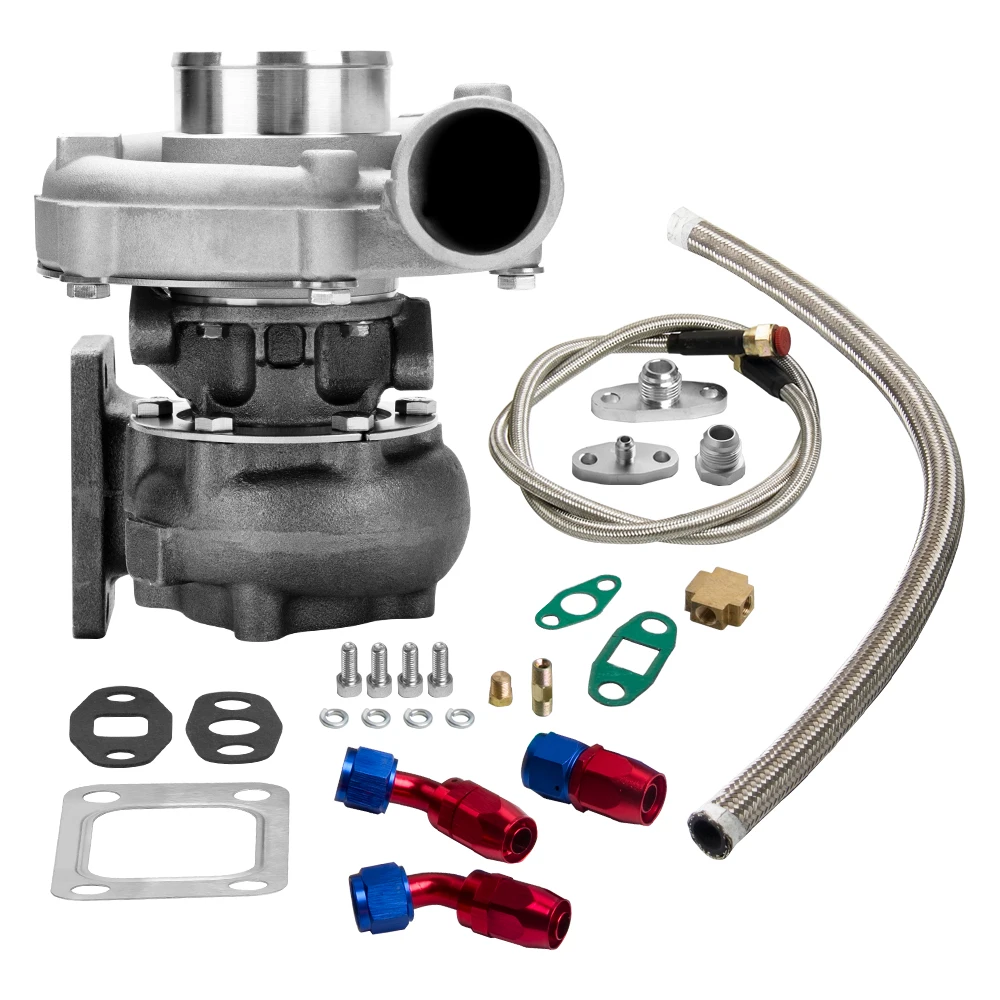

T04E T3/T4 .63 A/R BILLET TURBO COMPRESSOR STAGE III+OIL FEED&RETURN LINE KIT

Fit for:

Universal for 1.5L to 2.5L any 4/6 cylinder engine up to 400+HP

Specification:

Turbine:

Turbine Intake Flange: T3 T4 4 bolt Flange Patterns

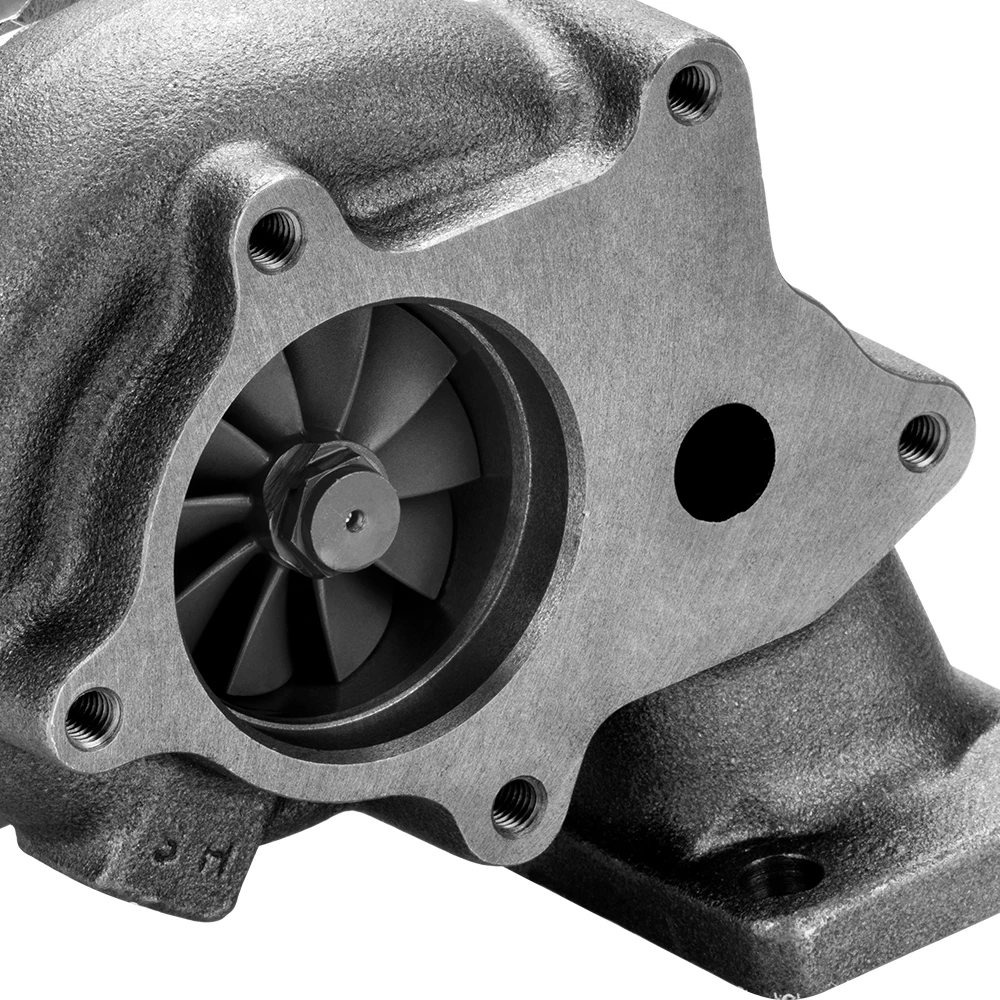

Turbine Exhaust Flange: Standard T3 5 bolt flange pattern

Turbine Trim: 74.2

Turbine A/R: 0.63

Turbine Inducer: 64.8mm

Turbine Exducer: 55.8mm

Turbine exhaust inlet: 44.5mm/81mm

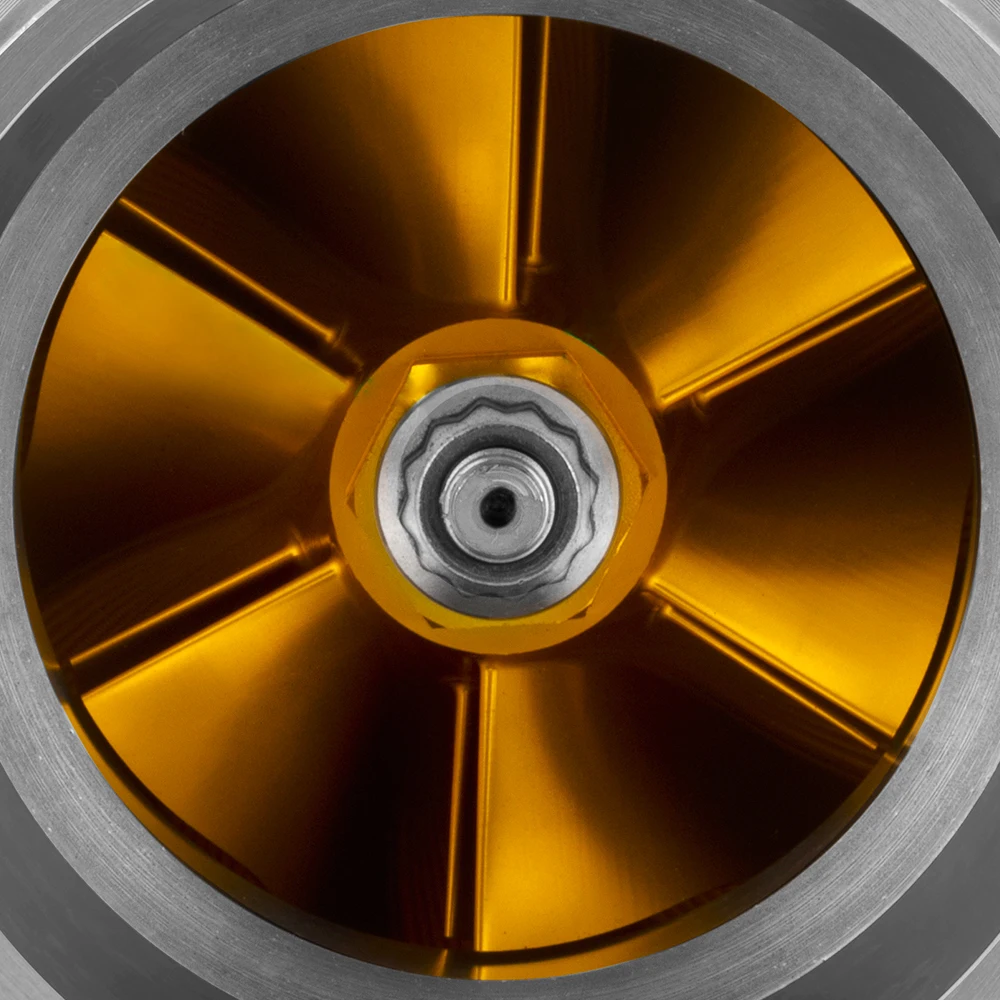

Compressor:

Compressor Trim: 48.1

Compressor A/R: 0.5

Compressor Inducer: 52.7mm

Compressor Exducer: 76mm

Compressor outlet: 45mm(inside diameter)/53mm(outer diameter)

Compressor inlet: 68 mm(inside diameter)/72mm(outer diameter)

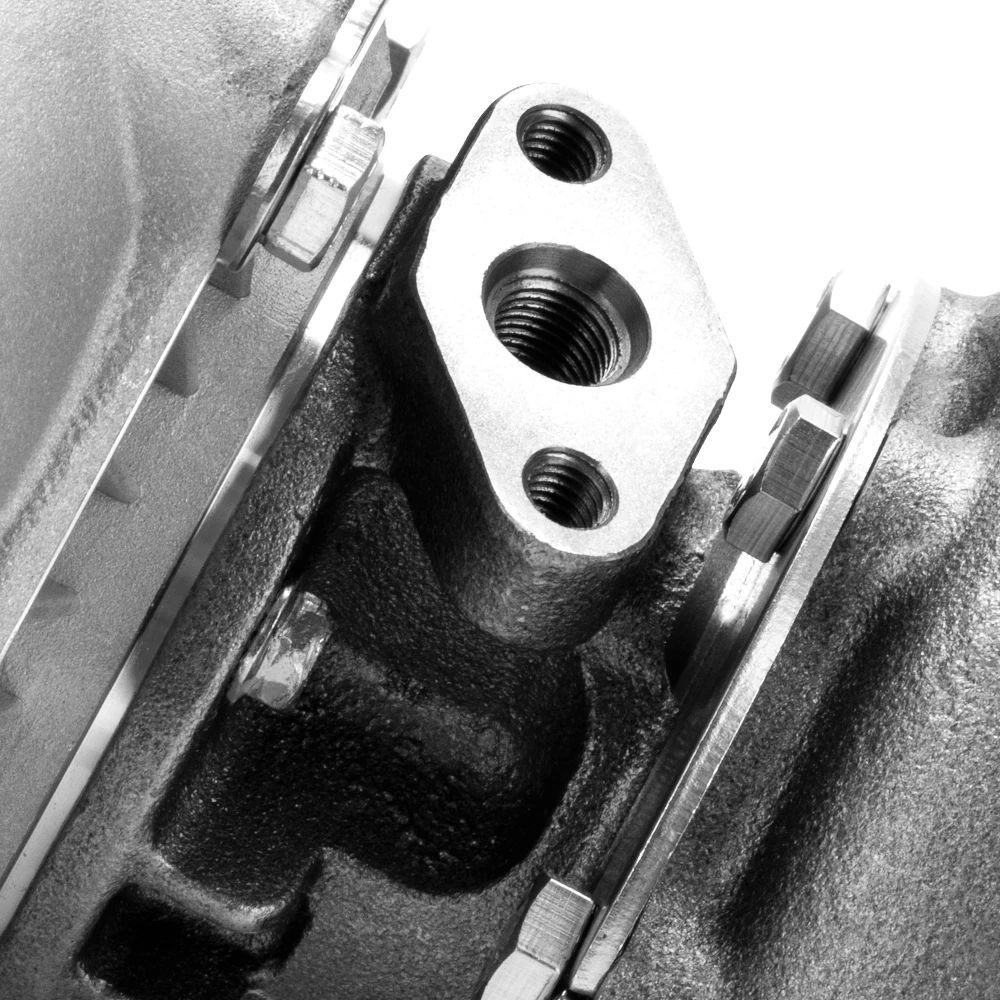

Oil Inlet:

M12*1.25

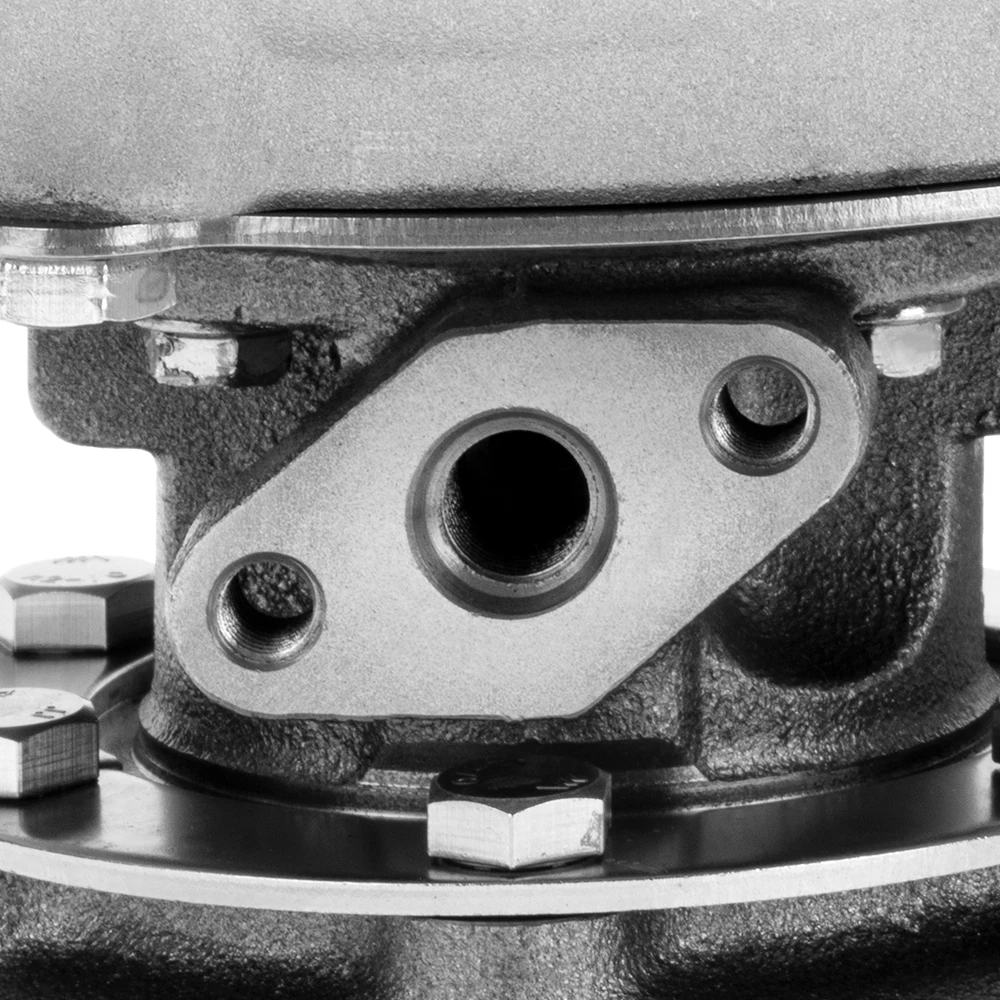

Oil Outlet:

2*M8*1.25

Wastegate:

W/O Wastegate

Cooling Type:

Oil Cooled

Bearing Type:

Floating Bearing

Trust Bearing:
