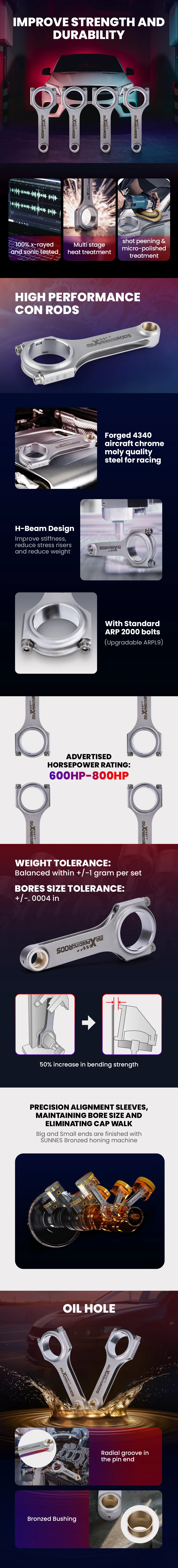

Connecting Rods Rod Conrods for Mazda MX5 1.6 16v Miata 1.8 133mm for Mazda MX5 1.6 16v Miata 1.8 Pleuel ARP2000 bolt 4340 Hbeam

EN24 4340 Connecting Rods ARP Bolts for Mazda Miata MX5 B6 BP 1.6 1.8 133mm

4x Connecting Rod Rods Conrods for Mazda Miata MX5 B6 1.6 1.8 133mm ARP 2000

Application

For Mazda B6 1.6 / B6F B6-E/B6-9 Engine
For Mazda BP 1.8 Engine

Dimensions:

Connecting Rod Length Center to Center: 133.00mm/5.236in
Approximate Connecting Rod Weight: 527g
Big End Bore Diameter: 48.00mm/1.890in
Pin End Bore Diameter: 20.00mm/0.787in
Big End Width: 21.84mm/0.860in
Small End Width: 21.84mm/0.860in

Specification:

Beam Style: H-beam Street/Strip
Material: 4340 Chromoly Steel
Finish: Shot-peened
Wrist Pin Style: Floating
Clearanced for Stroker: Yes
Cap Retention Style: Through-bolt
Connecting Rod Bolt Brand: ARP
Connecting Rod Bolt Diameter: 5/16"
Connecting Rod Bolt Material: Alloy Steel
Fastener Yield Strength (psi): 220,000 psi (ARP 2000)
Upgrade Fasteners: ARP L19 (260,000 psi) optional
Connecting Rod Bolt Head Style: 12-point
CNC Machined: High Precision
Rod Cap Alignment: Precision dowels
Bore Tolerance: ±0.005 mm
Balancing: ±1 gram per rod
Weight Matched Set: Yes
Remanufactured: No
Testing: Magnafluxed, X-rayed, Ultrasonically tested
Heat Treated: Yes

Performance Ratings

Advertised Horsepower Rating: 200HP/piece
Advertised RPM Rating: 7,000rpm





Packaging

Quantity: Sold as a set of 4
Package Size: 28CM*20CM*10CM

​
