4pcs H Beam EN24 Conrods Connecting Rods for Toyota Starlet GT Turbo 4EFTE 1.3L Balanced Shot peen crankshaft Floating

Con Rods Connecting Rod for Toyota Glanza V EP91 4E-FTE 118mm Bielle Pleuel ARP

Application

For Toyota Starlet GT 1.3 Turbo 4E-FE/4EFTE
For Toyota Starlet/Tercel/Corolla/Paseo 4E-FE/4EFTE
For Toyota Cynos/Corolla II/Sprinter/Corsa 4E-FE/4EFTE
Pin Type: Floating Pin Piston

Dimensions

Center to center length:118mm/4.646"
Big end diameter:43mm/1.693"
Small end diameter:18mm/0.709"
Big end width:20.8mm/0.819"
Small end width:20.8mm/0.819"

Specification

*Type: Forged 4340 aircraft chrome moly quality steel for racing

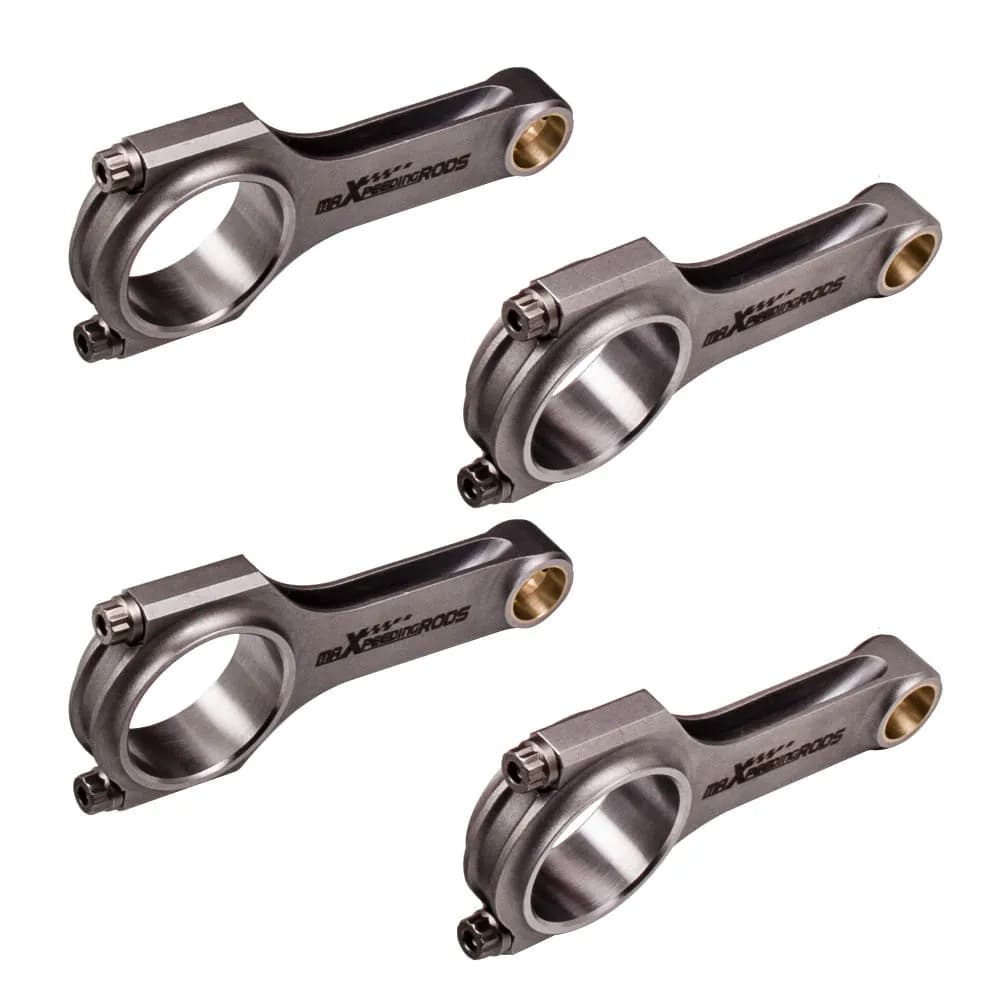

*H-beam Conrods Quantity: 4 Pieces as showing in picture
*Bolts: Including ARP 2000 5/16" bolts (Note: Extra cost for upgrading to ARP L19 bolts)
*The connecting rods all include ARP 2000 bolts, which are rated at 220,000 psi, and the optional ARP L19 material at 260,000 psi is available as an upgraded product. *Advertised Horsepower Rating:200HP/piece
*Top acceleration: 9000rpm
*package size：28CM*21CM*10CM

Feature

1. TÜV PRODUCT TEST AND TÜV ISO 9001 CERTIFIED；
2. Material: Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing；
3. ARP 2000 bolts ,Optional ARP L19 fasteners available as an upgrade；
4. H-Beam design reduces weight without compromising strength；
5.Heat-treating & Shot-peened for remained consistent and strong. Shot-peened finish to remove potential for stress risers；
6.High precision CNC machined,Precision rod cap alignment dowels；
7.Bores finished to +/- .01 mm；
8.Balanced to within +/- 1 g per rod；
9. Each rod is magnetic particle tested to ensure free of flaws；
10.Use X-rayed, sonic tested；
11.Custom Service.

Note

*Professional installation is highly recommended ；
*Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.
