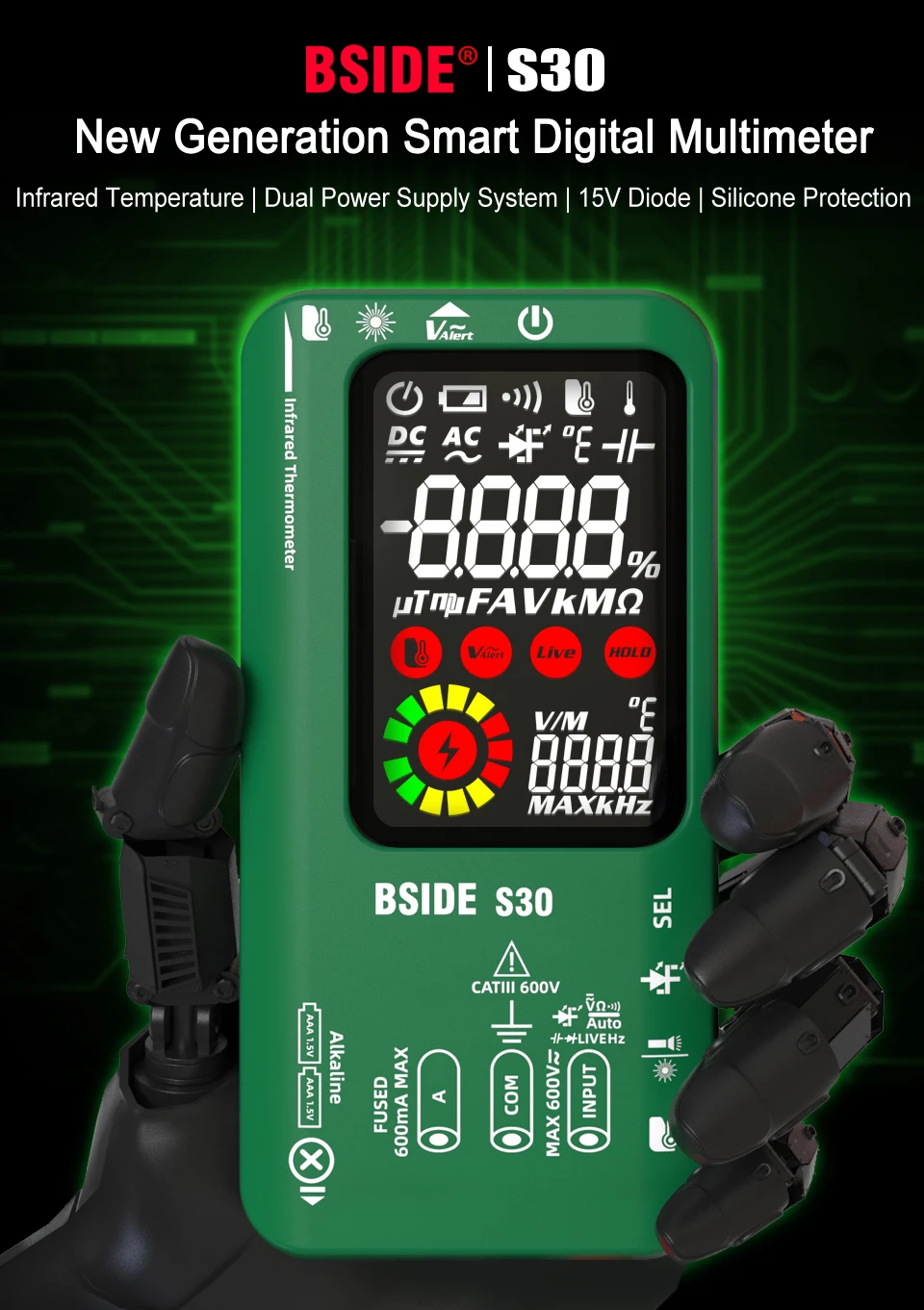

BSIDE Digital Multimeter Smart Infrared Temperature 15V Diode LED Tester True RMS 9999 DC AC Voltage Rechargeable Multiteter DMM

Why it's necessary to get a BSIDE S30?

1. The latest design: smart digital multimeter + infrared laser thermometer；more widely used and convenient.

2. Dual power supply system: support lithium battery (built-in 1100mA) and 1.5V AAA battery at the same time. Effectively solve the anxiety of power consumption.

3. High voltage 15V LED lamp/diode detection: S30 is also used in LED lighting maintenance and testing industry.

Features:

Professional Smart Digital Multimeter with Infrared thermometer.

Maximum display 9999 Counts.

EBTN Color 3.8''Large HD LCD display.

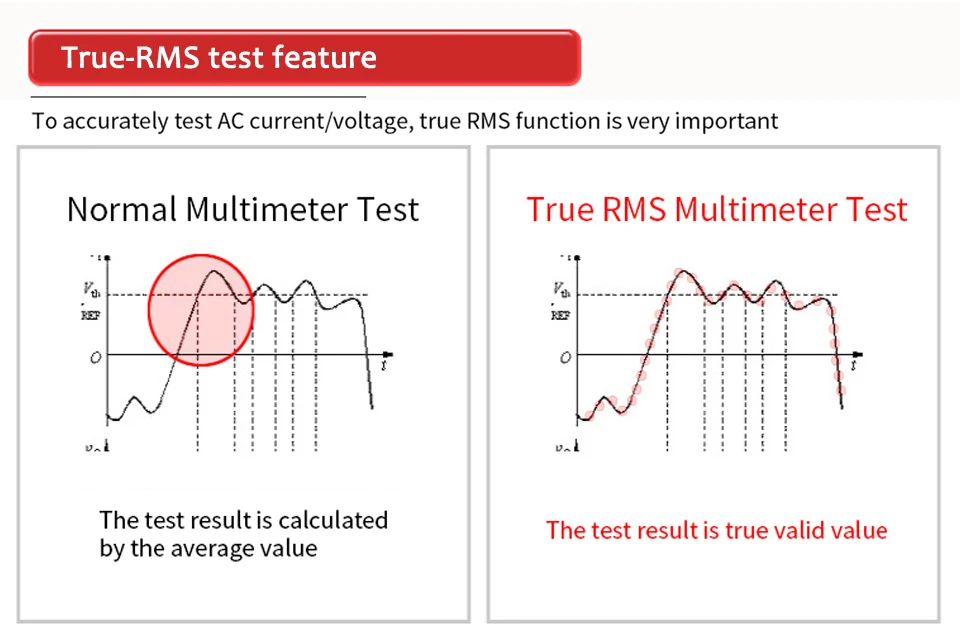

True RMS, Auto/Manual Range.

Infrared temperature measurement: -20°C/400°C（-4°F/752°F）

Laser indicator: Yes (localizable/indication)

Low voltage diode：Measure Diodes Within 2.0V
High voltage diode：Open Circuit Voltage 15V.

Two power supply systems are supported:
1. Built-in Rechargeable Battery (USB charging)
2. 1.5V AA battery*2 (Not included)

Equipped with High-quality all-inclusive silicone soft rubber leather case.

Equipped with high-quality portable cloth bag.

Also can be used as a professional voltage detector with adjustable sensitivity.

Auto range, Auto power off, low battery indication with flashlight.

CAT111 600 high safety gauge to meet the global test maintenance.

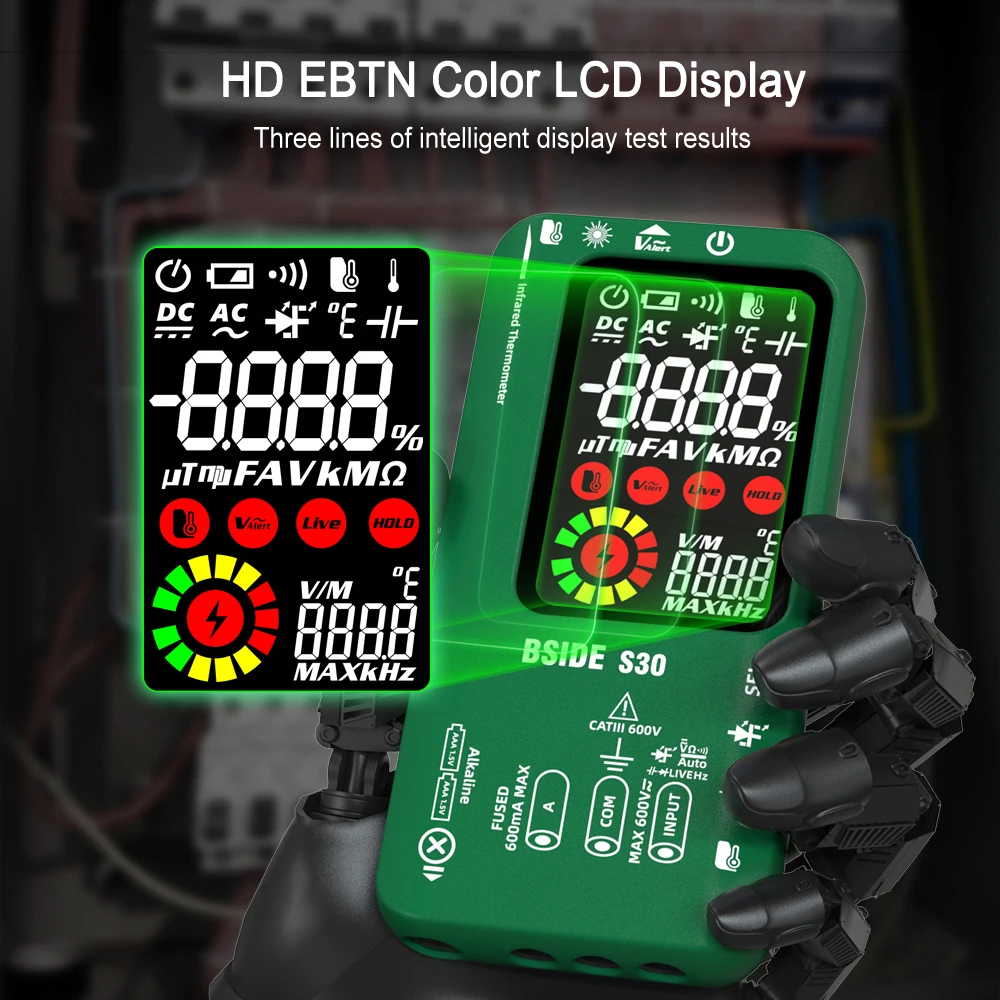

3.8'' HD EBTN Color LCD Display

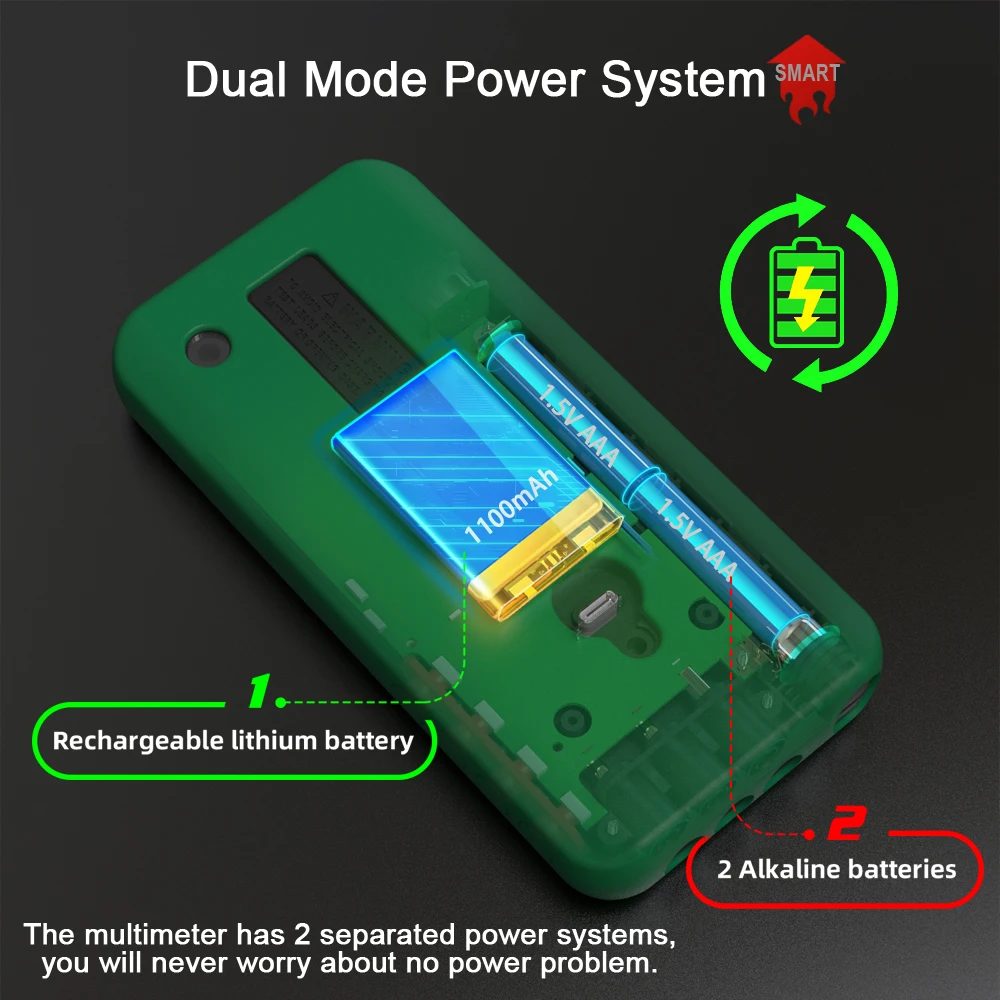

Dual Mode Power System

1. Built-in 1100mA lithium battery (support USB charging)
2. Support 2*1.5V AAA battery (not included)

Effectively solve the anxiety of power consumption.

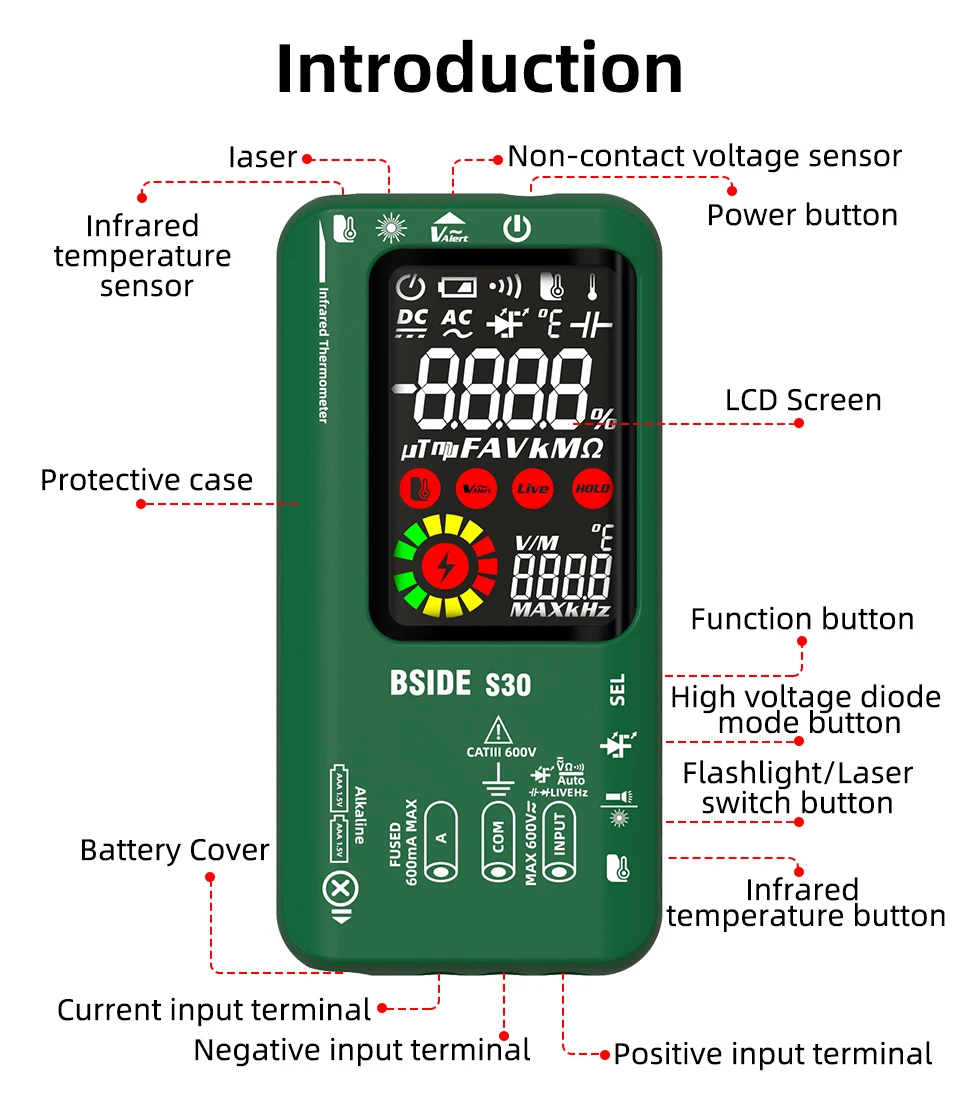

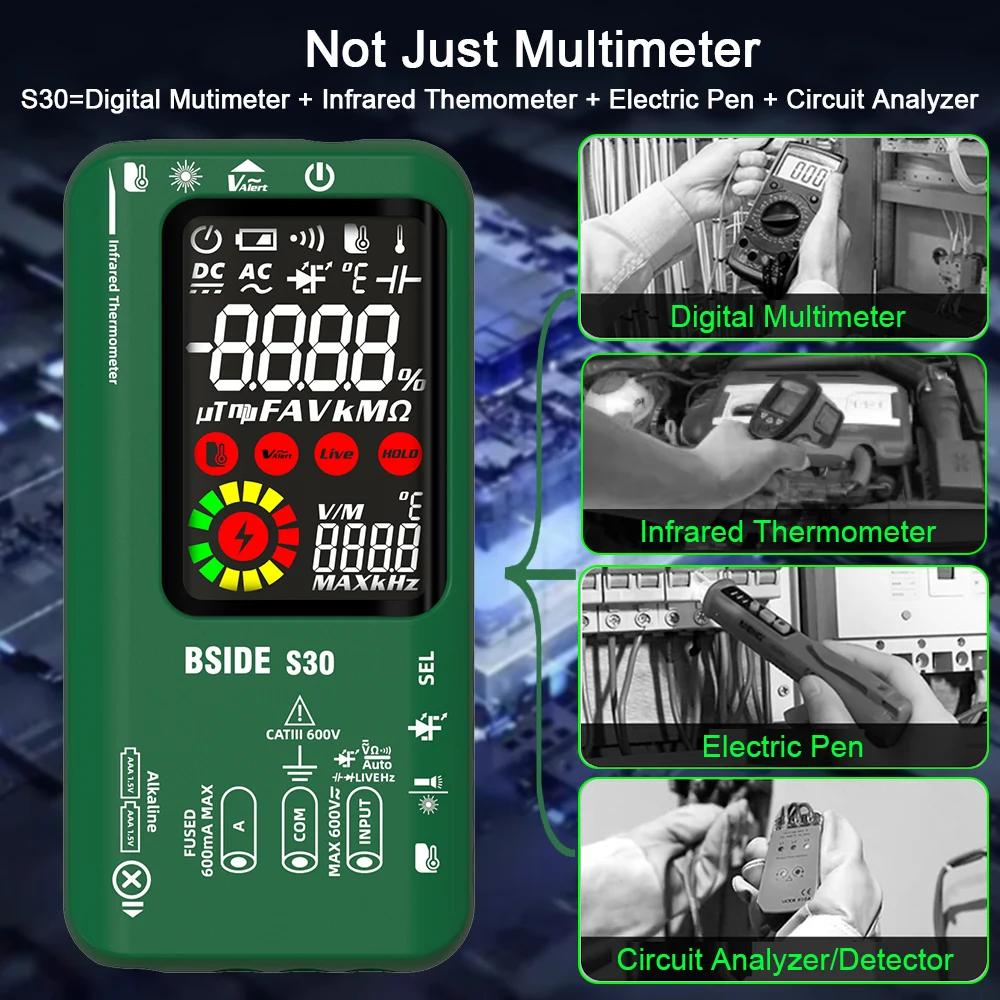

Not Just Multimeter

S30=Digital Mutimeter + Infrared Themometer + Electric Pen + Circuit Analyzer

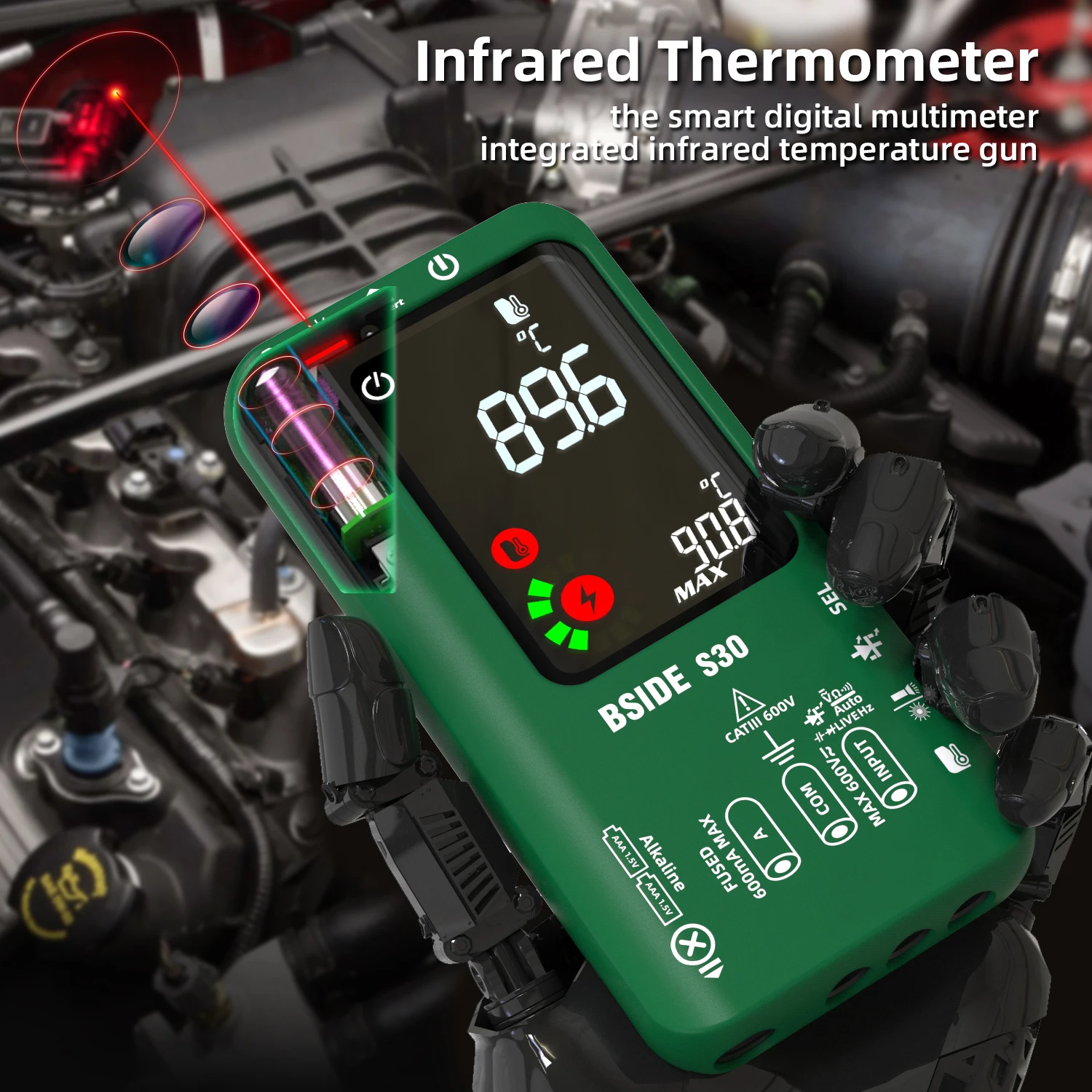

Infrared temperature measurement

And have laser indicator(Positioning)
-20°C~400°C/-4°F~752°F

High-Voltage 15V Diode Mode

Can measure diodes and voltage regulators
with a voltage drop of less than 15V
and can light up light-emitting diodes

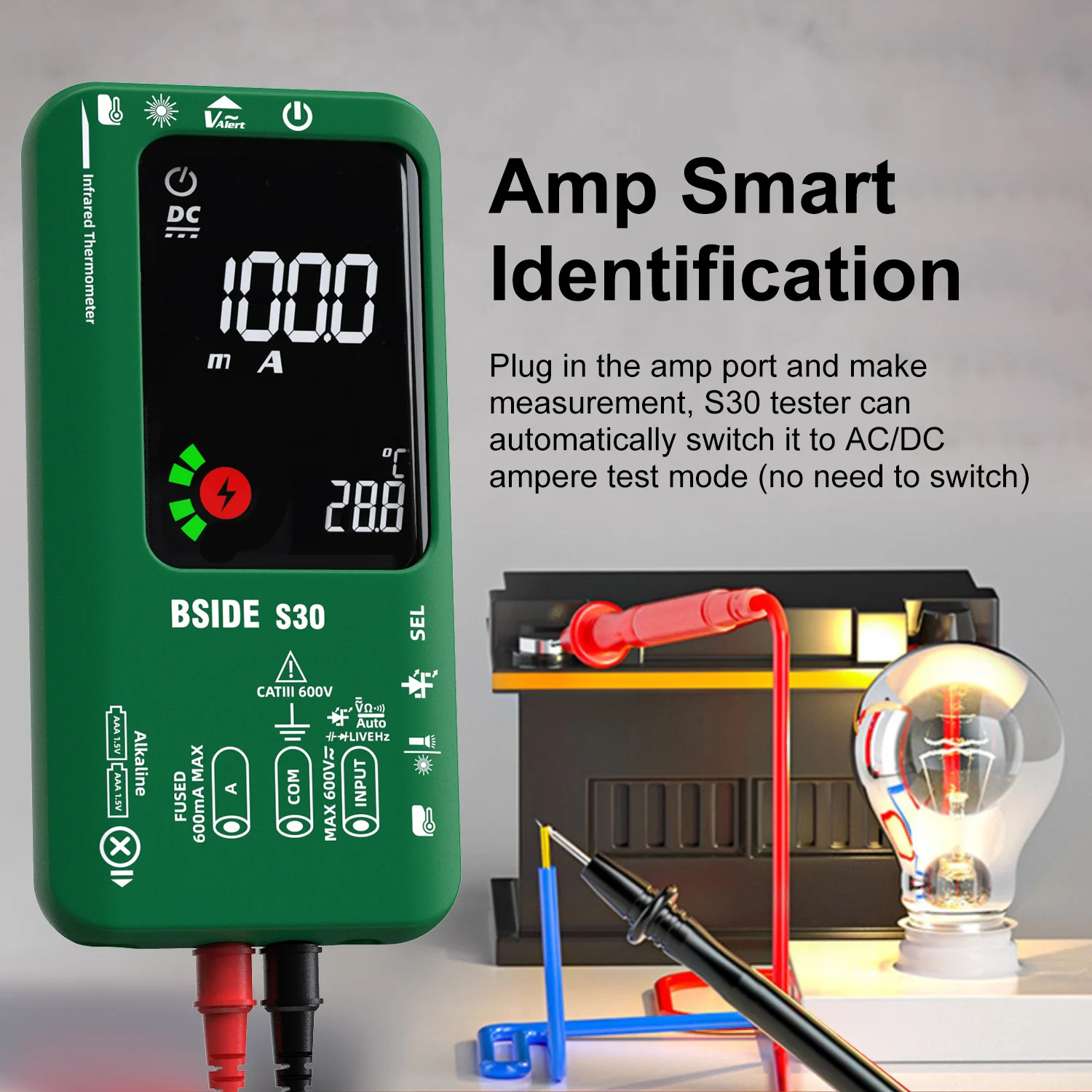

DC/AC Current Smart Identification

Plug in the amp port and make measurement, S30 tester can automatically switch it to DC/AC current test mode (no need to switch)

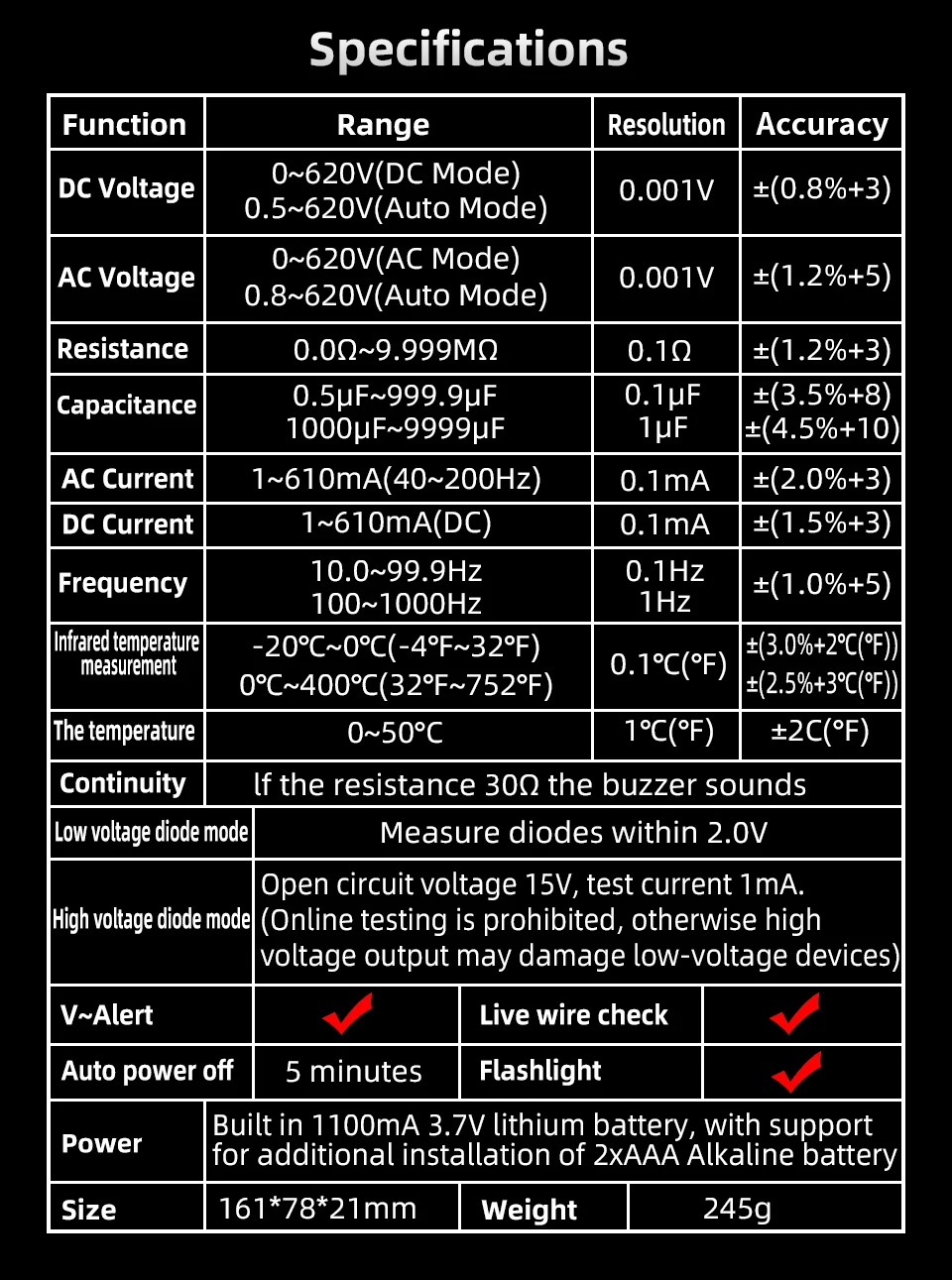

Specifications:

Max Display : 9999 Digits.

Display : HD Color LCD.

DC Voltage : 0-620V. Resolution : 0.001V. Accuracy(±0.8%+3).
AUTO MODE.
0.5-620V. Resolution : 0.001V. Accuracy(±0.8%+3).

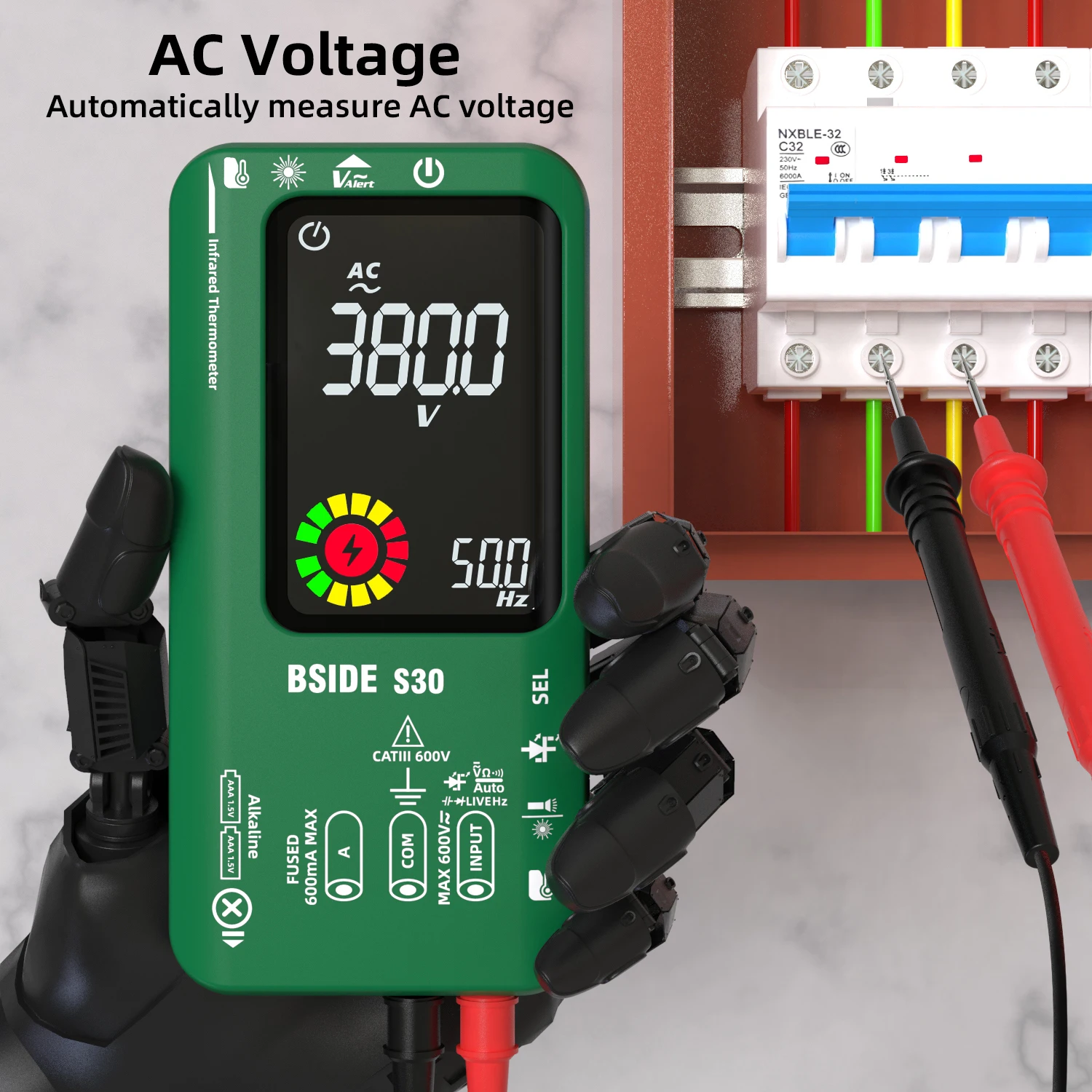

AC Voltage: 0-620V.Resolution : 0.001V. Accuracy(±1.2%+5).
AUTO AUTO MODE.0.8-620V.Resolution : 0.001V. Accuracy(±1.2%+5).

DC Current: 1-610mA. Resolution : 0.1mA .Accuracy(±1.5%+3).

AC Current: 1-610mA 40-200HZ Resolution : 0.1mA .Accuracy(±2.0%+3).

Resistance:0Ω-10MΩ Resolution : 0.1Ω Accuracy(±1.2%+3).

Capacitance:0.5uF-1000 uF Resolution : 0.1 uF Accuracy(±3.5%+8).1000 uF-10mF Resolution : 0.1 uF Accuracy(±4.5%+10).

Frequency:10Hz-99.9Hz Resolution : 0.1Hz Accuracy(±1.0%+5). 100Hz-1000Hz Resolution : 1Hz Accuracy(±1.0%+5).

Infrared temperature measurement:-20°C/0°C（-4°F/32°F）CResolution : 0.1°C (F) Accuracy(±3.0%+2°C(F)). 0 °C /400°C（32°F/752°F）°CResolution : 0.1°C (F) Accuracy(±2.5%+3°C(F)).
Object distance ratio：4:1

Low voltage diode：Measure Diodes Within 2.0V
High voltage diode：Open Circuit Voltage 15V,Test Current 1mA

Continuity: If the resistance is less than 30Ω, the continuity beeper sounds

V-Alert (non contact voltage detection): Yes

Live wire check: Yes

Dual mode Power: 1100mA Lithium battery+1.5 V (AAA) x 2

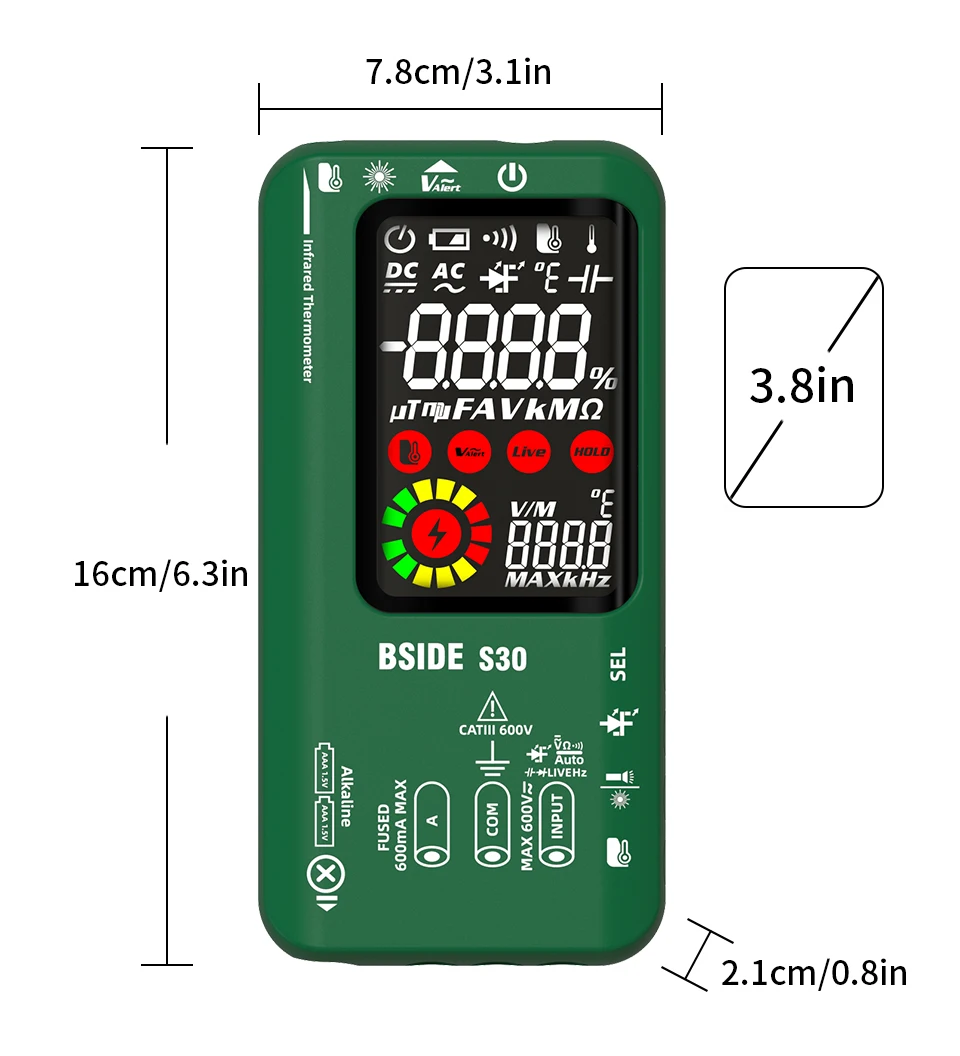

Size: 161 x 78 x 21 mm

Weight:245g

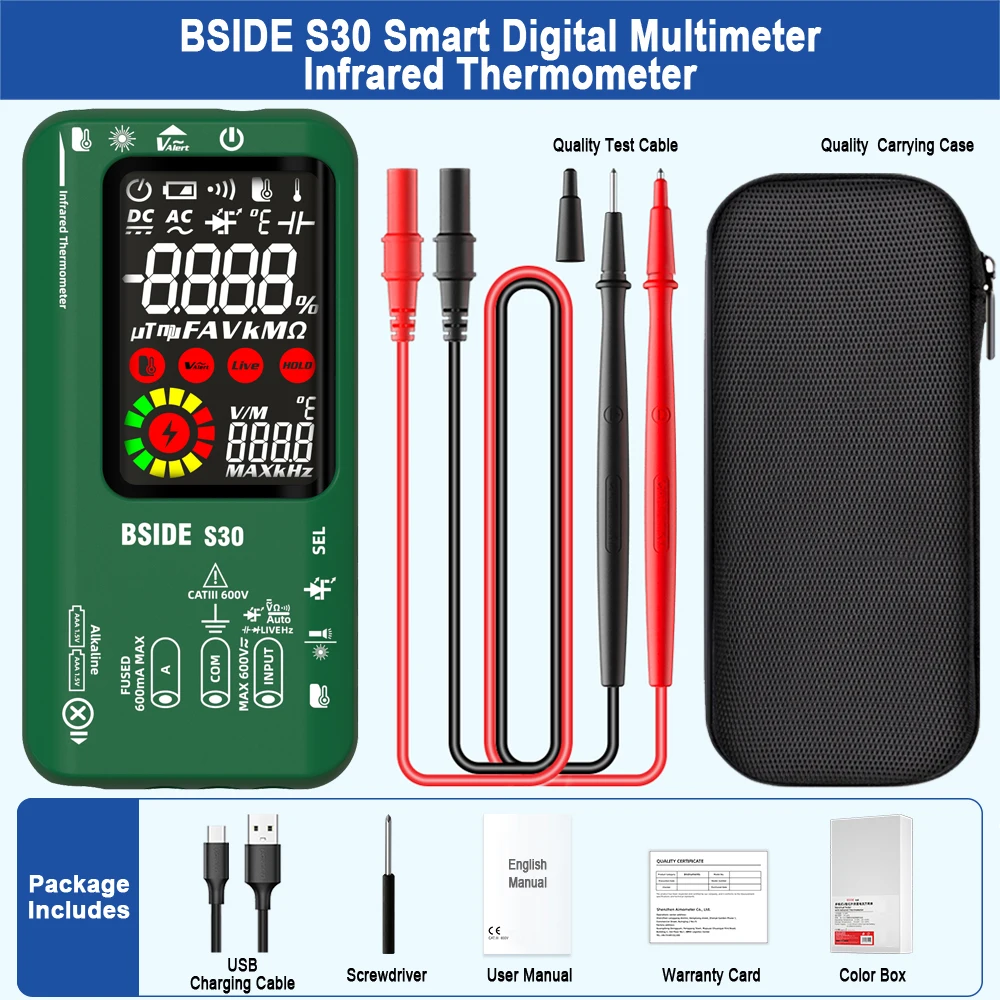

Package Includes:

1 x BSIDE S30 Smart Digital Multimeter Infrared thermometer(Built-in Lithium Battery)

1 x Upgrade Test Leads. 1 x USB Charging Cable.

1 x Carrying Case. 1 x Screwdriver.

1 x User Manual. 1 x Color Box.
