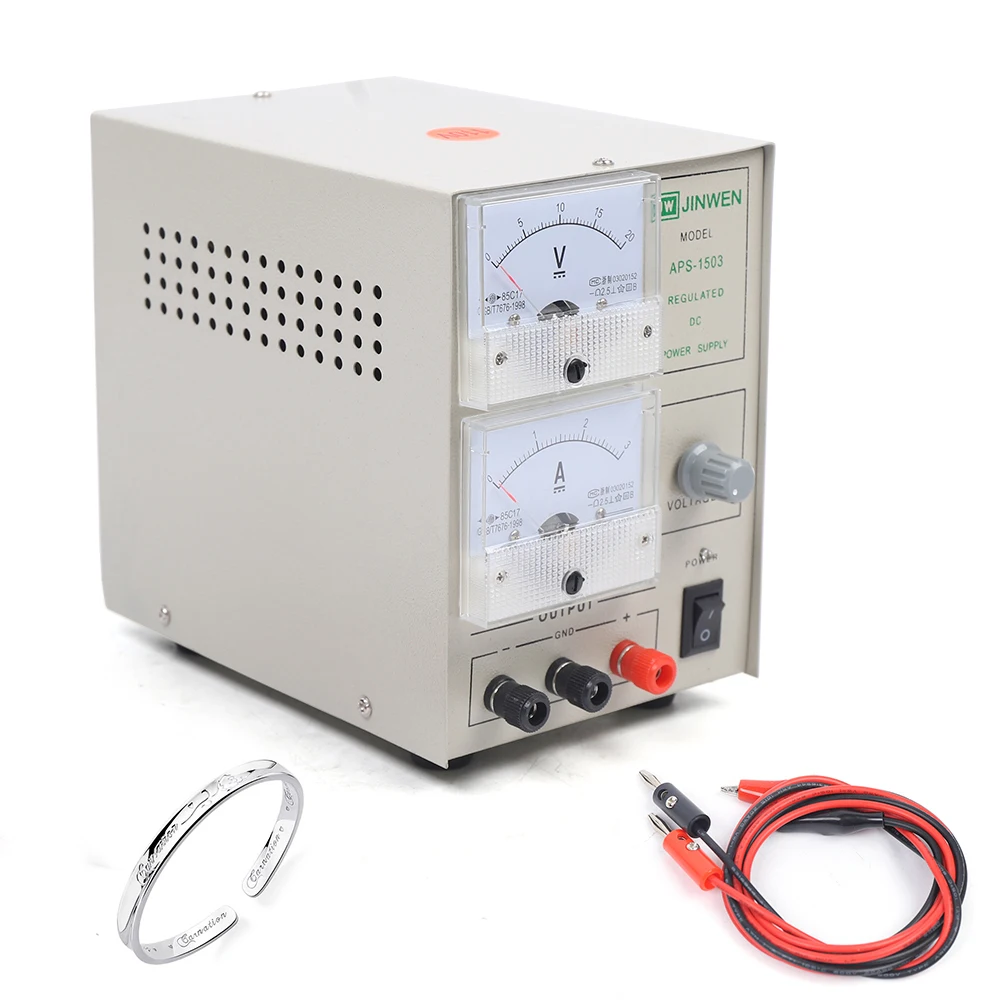

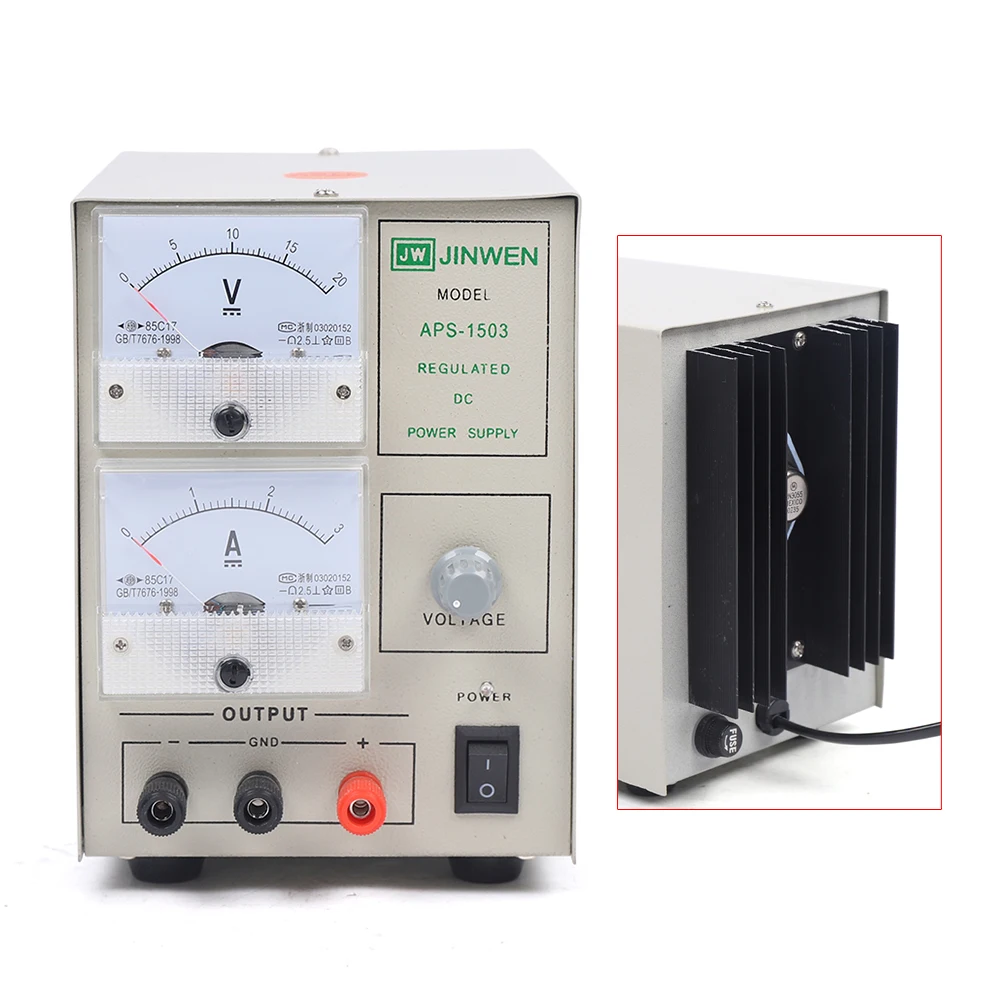

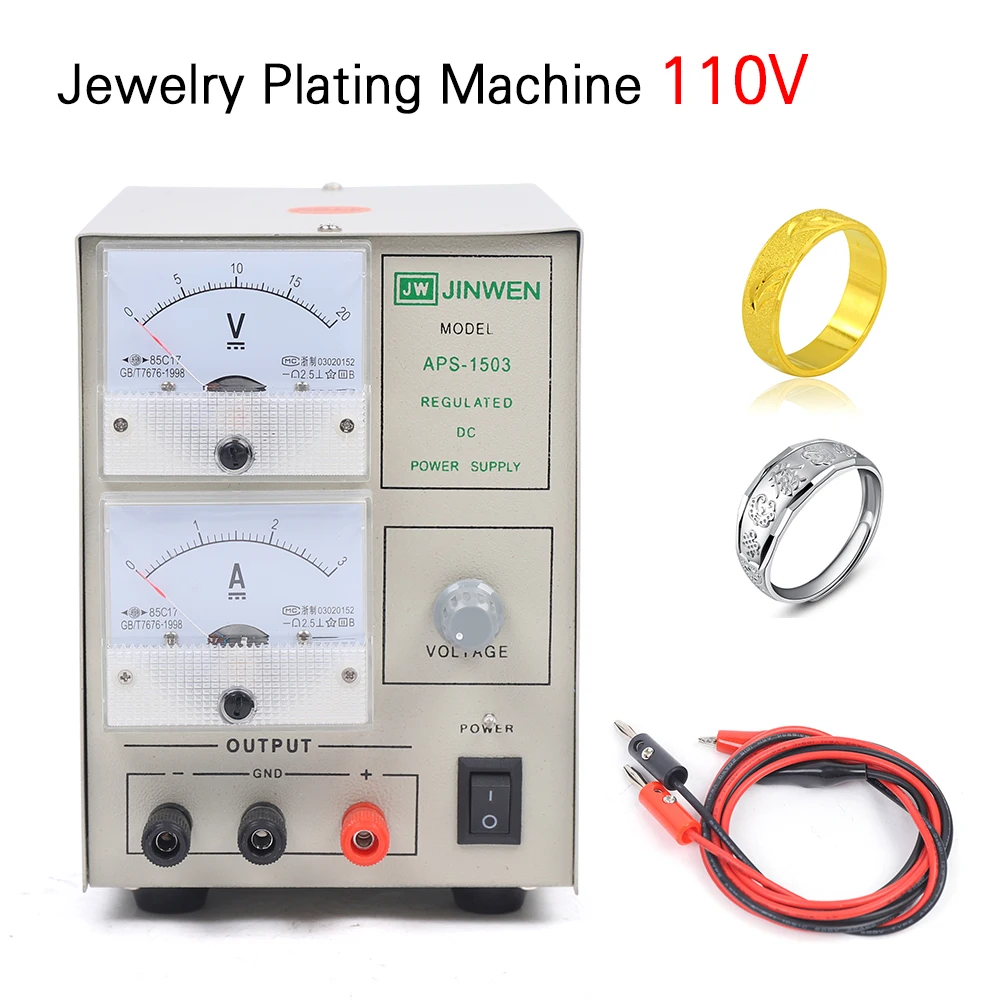

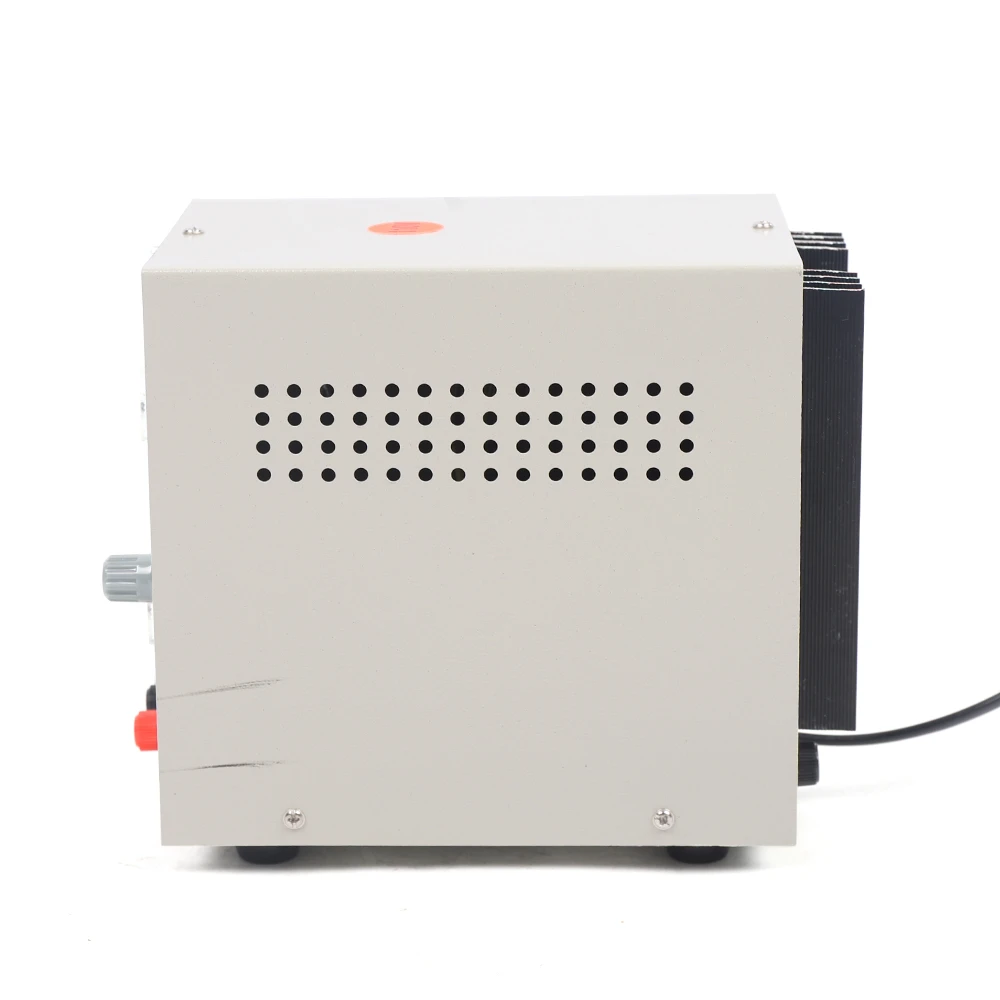

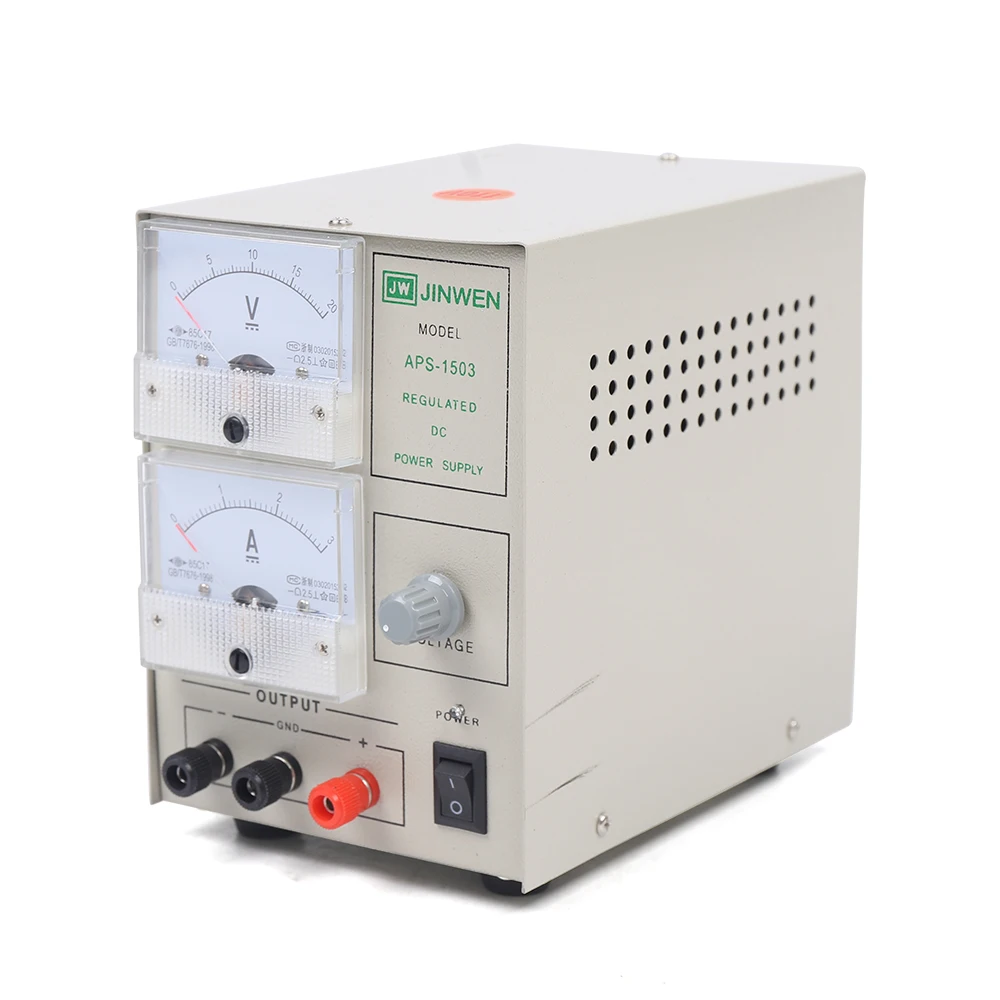

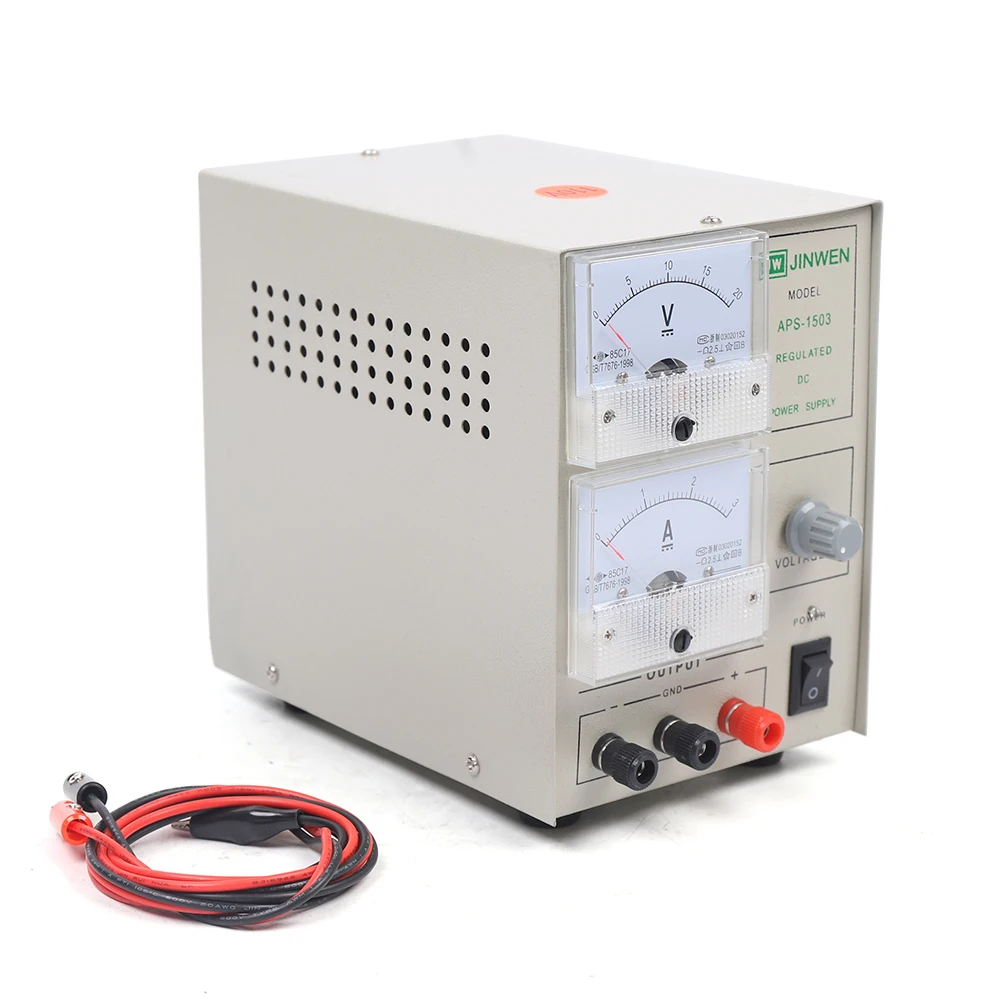

Jewelry Micro-inlay Electric Gold Machine Silver Plating Machine 2.2KG

Description

Model: 1503
Product size: 162*170*117 (mm)
Product weight: 2200g
Maximum ampere: 3A

Features

△The electroplating surface treatment power supply has high efficiency, and has the functions of automatic voltage regulation, steady current, overvoltage and overcurrent protection of thyristor rectifier, and undervoltage and phase loss protection functions.
△Small size, light weight, easy to carry.
△The voltage is adjustable, you can adjust it as needed.
△The conductive connecting wire is made of high-quality materials, which is comfortable to the touch and highly conductive.

Use:

It has obvious effect on various kinds of plating (copper, nickel, chromium, gold, silver, electrophoresis, etc.), the coating is uniform, especially for irregularly performing workpieces (less plating time)

Instructions

1: Platinum plating method
Positive (+): titanium mesh
Negative (-): clip jewelry
Voltage: 3-4 volts
Temperature: 30-40℃
The electroplated items need to be shaken at the beginning, the recommended gold plating time: 90-120 seconds
2: Gold plating method (14K.18K.24K)
Temperature: 70℃-80℃
The electroplated items need to be shaken, and the recommended gold plating time is: 20-50 seconds
Accessories for electroplating: beaker, titanium mesh, gold plating machine, water line, electric furnace, thermometer

3: Silver plating method
Positive (+): titanium mesh
Negative (-): clip jewelry
1: Follow the electrolytic cleaning salt procedure to clean first
2: After electrolysis, 3 beaker cleanings are required
3: 54 grams of silver salt 54% 500cc distilled water
Temperature: 40℃，Voltage: 3V,
The electroplated items need to be shaken, the recommended electroplating time: 3-5 seconds

Note

All silver salt, electrolytic cleaning salt, and beaker cleaning must use pure distilled water.

Electroplating steps

S 1: Polished with cloth wheel and sander
S 2: Ultrasonic cleaning machine plus dewaxing water (heating) cleaning
S 3: Polishing with a polishing machine
S 4: Steam cleaner cleaning
S 5: Electrolysis and electroplating procedures completed

Package includes

1* electroplating machine
2* conductive wire

If you are interested in the product or have any questions, please feel free to contact us, we will reply to you within 24 hours.
