Adjustable DC Lab Power Supply 30V 10A /60V 5A/120V 3A Digital Bench Power Source For Titanium Anodized Repair Voltage Regulator

Specific parameters

Input voltage:AC 220V 50HZ or 110V 60HZ
Output voltage:0 ~ 5V/30V /60V/120V
Output current:0 ~ 10A /5A/3A
Voltage resolution:10mV
Current resolution:1mA
Output Voltage ranges from 0 to rating voltage with continuous adjustment .
Voltage regulation : Line regulation<5mV. Load regulation<5mV.
Recovery time<500us(50% Load change, minimum load 0.5A)
Ripple & Noise<5m Vrms, 100m Vp-p
Temperature coefficient<100p pm/C.
Output current ranges from 0 to rating current with continuous adjustment
Current regulation line regulation<3mA. load regulation<3mA.
Indicator Meter
Voltage display precision: +-(0.5% of rdg + 2 digits).
Current display precision: +-(0.5% of rdg + 2 digits).
Operation Temperature & Humidity : 0 ~ 40 C, RH<80%.
Storage Temperature & Humidity : -10 ~ 70 C, RH<70%.

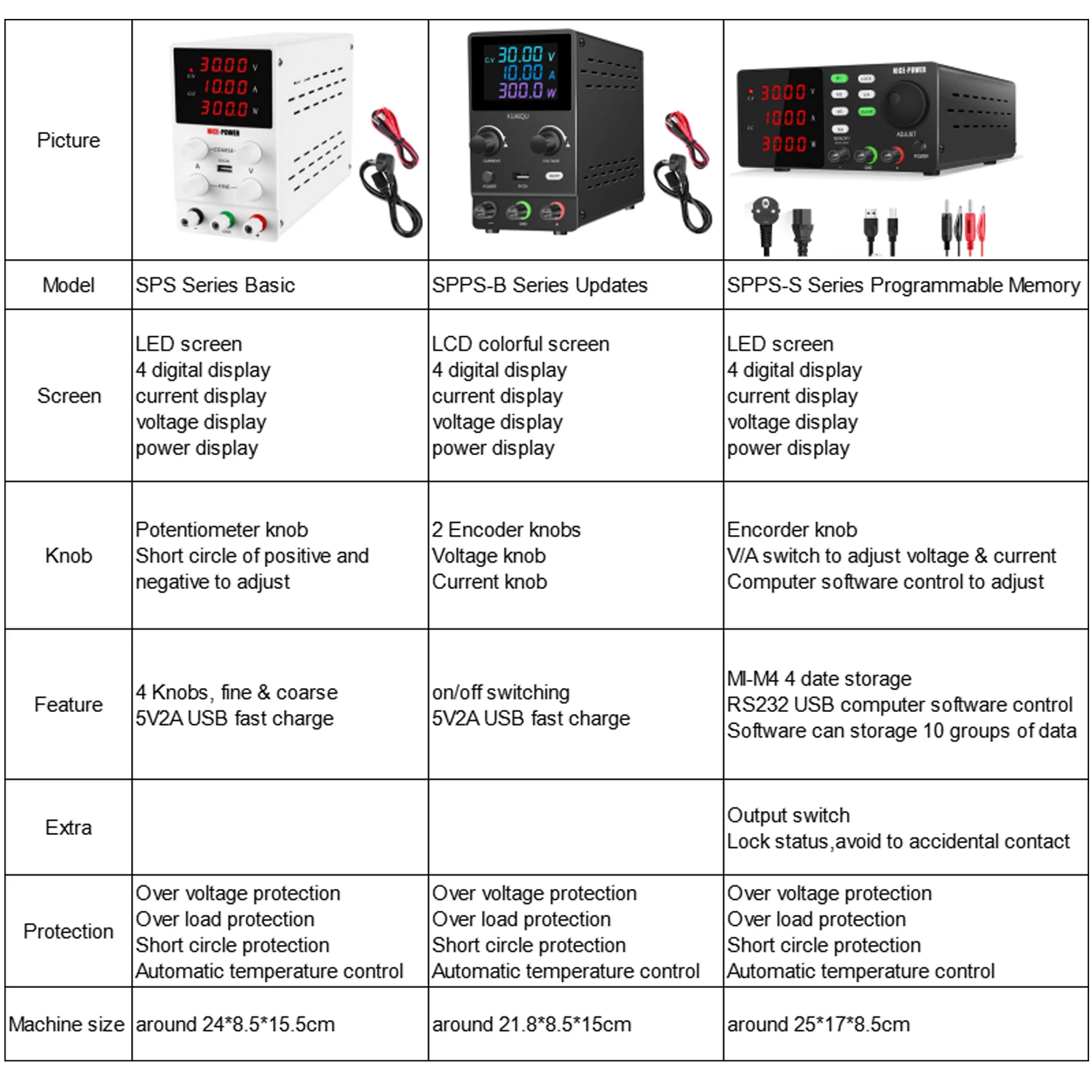

SPPS-B Series Updates

SPS Series Basic

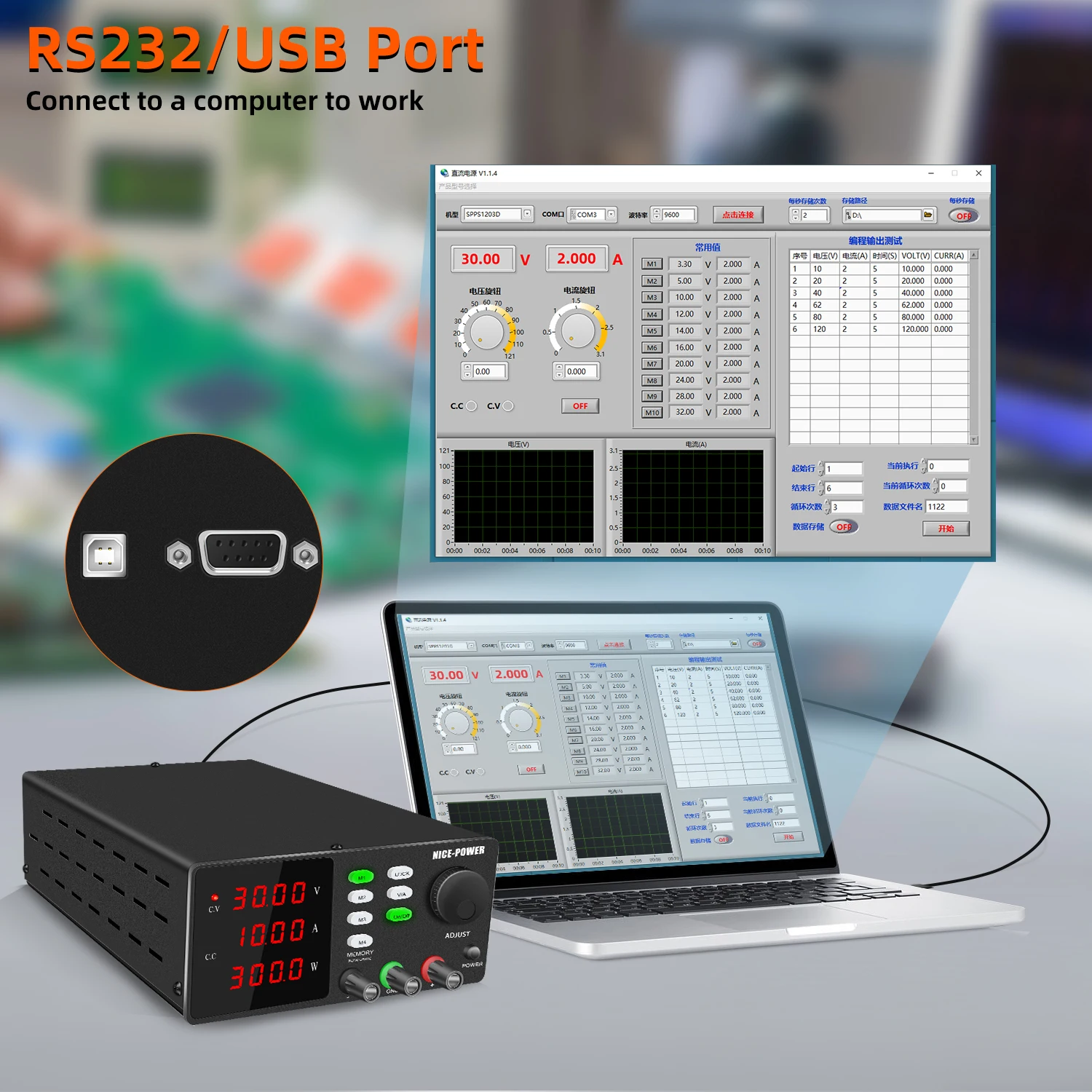

With RS-232 interfaces, you can directly connect to the computer and store data. Please contact us when you receive the package, and we will provide you with software immediately.

Ten sets of stored data can be set when connected to a computer, you can quickly and accurately adjust the voltage/current, set multiple memory values, export data tables/graphs, program outputs and more.

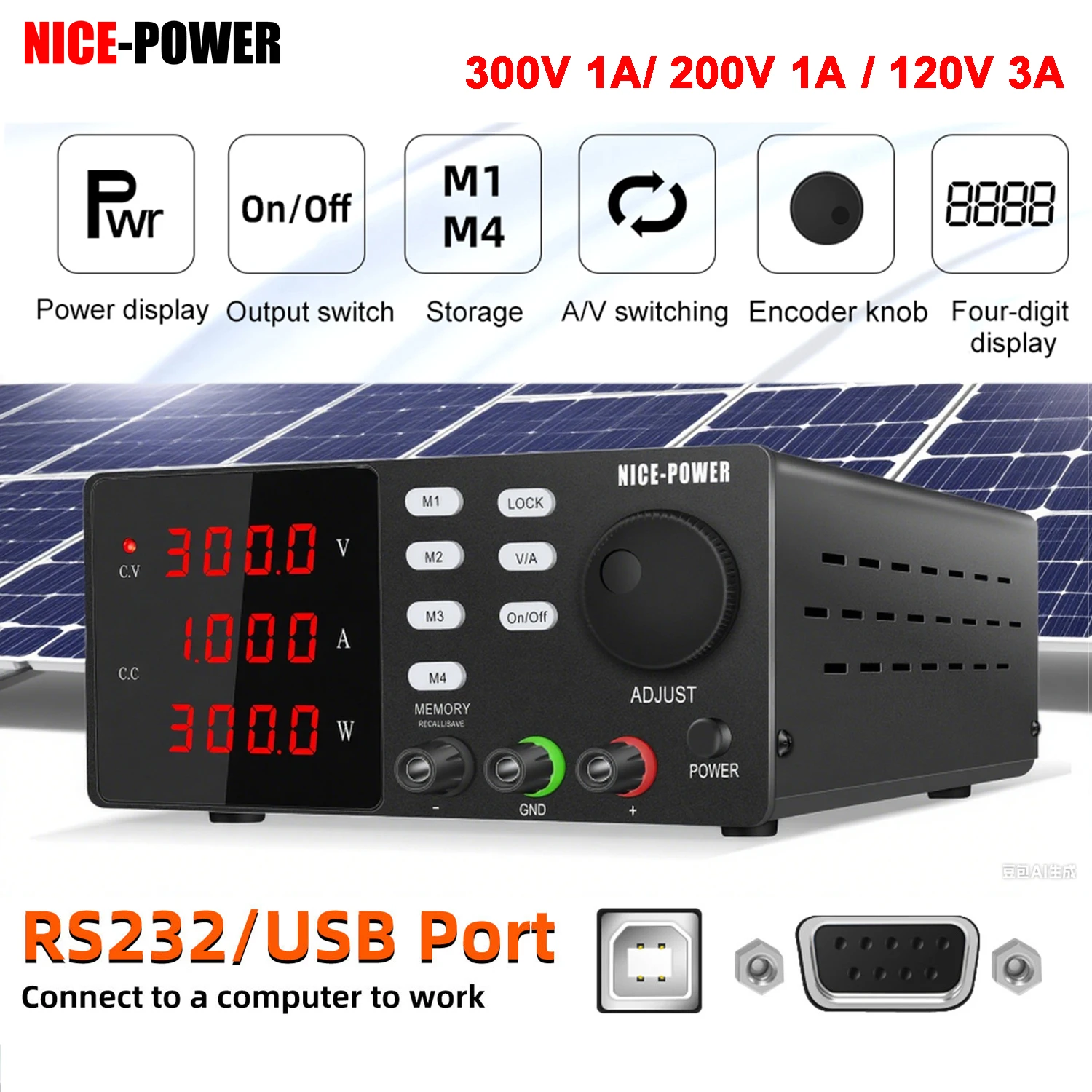

Programmable DC power supply features:

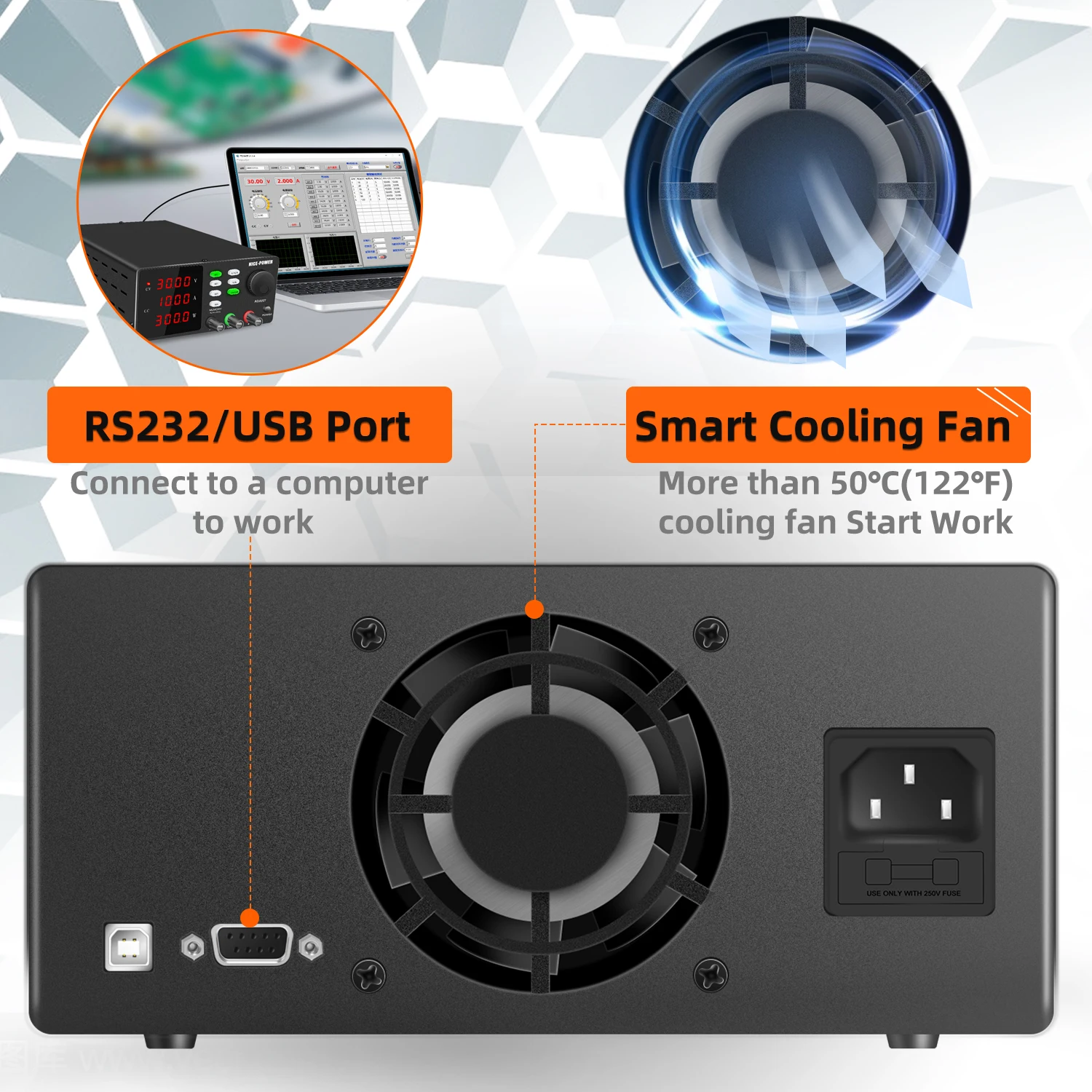

🔥【Programmable DC Power Supply】You can connect the dc power supply variable to your computer via the back USB or RS232 port to precise control or upgrade your dc power supply. You can see install the software and driver download address on Product guides and documents on the our detail page or reach out to us through the Aliexpress backend for detailed instructions on downloading.

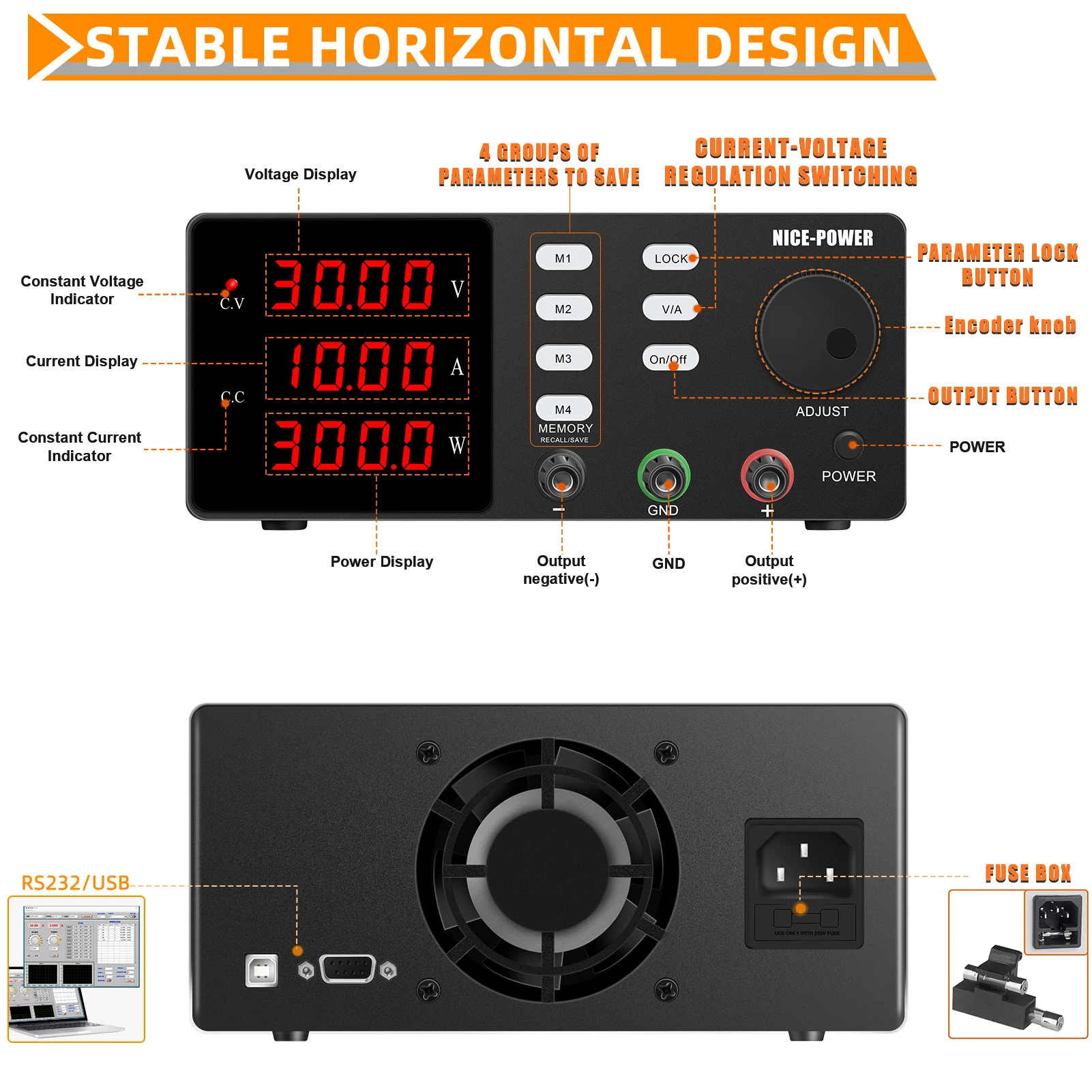

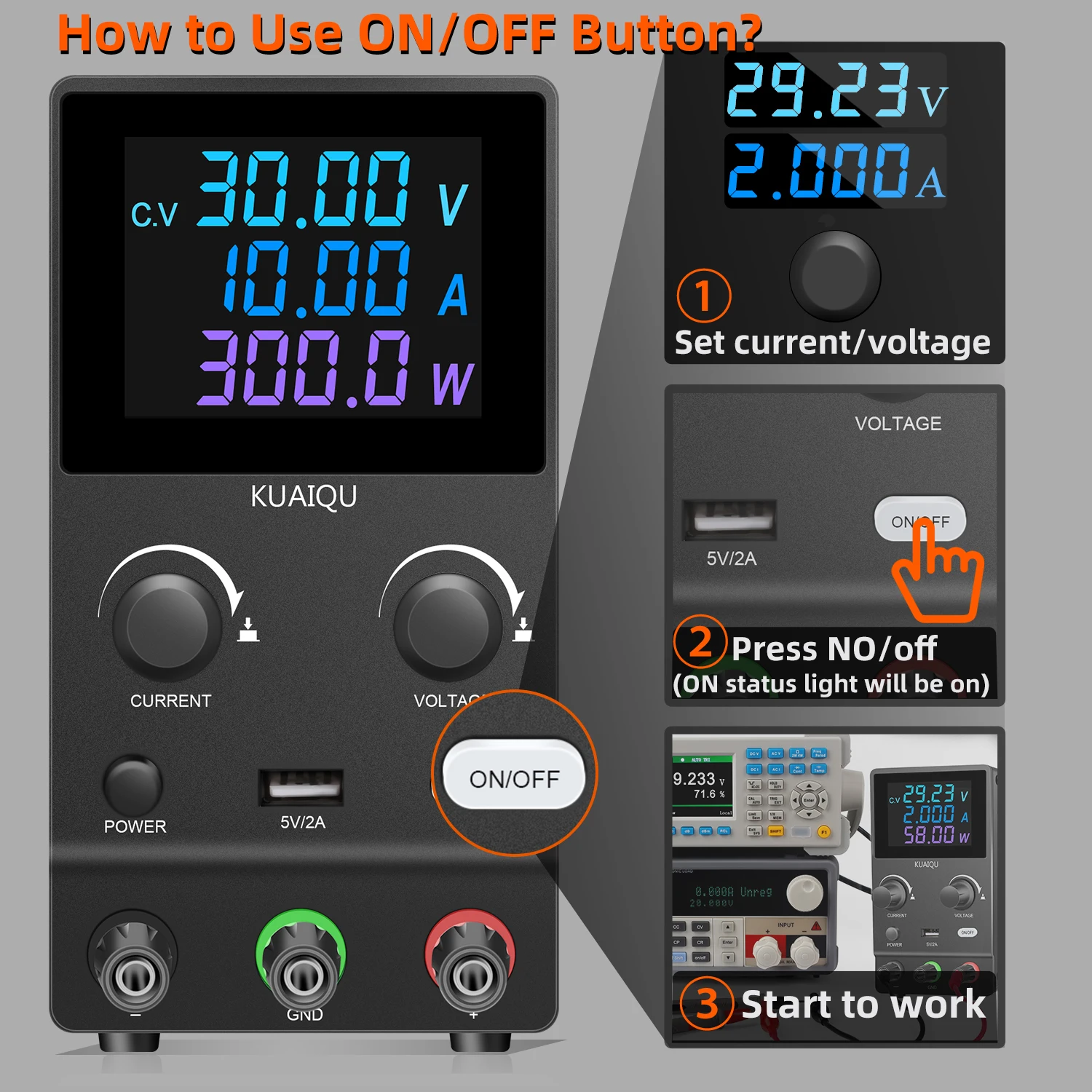

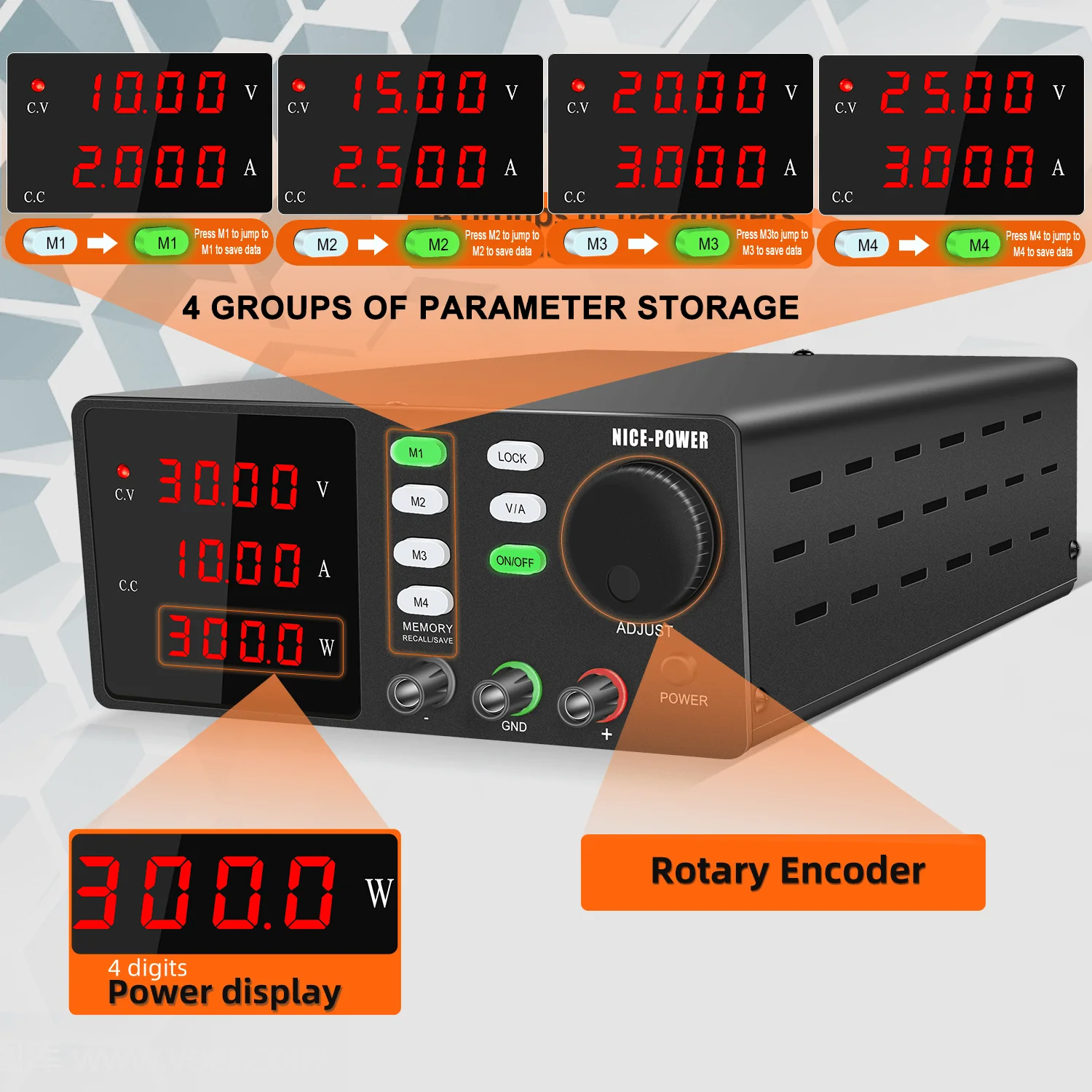

🔥【Memory Storage, Output Switch】The dc power supply with four sets of data storage function button M1-M4. you can save four sets of commonly used voltage and current value combinations and recall it for use at any time without repeated input. The output switch controls the output of the DC power supply and prevents damage to the load.

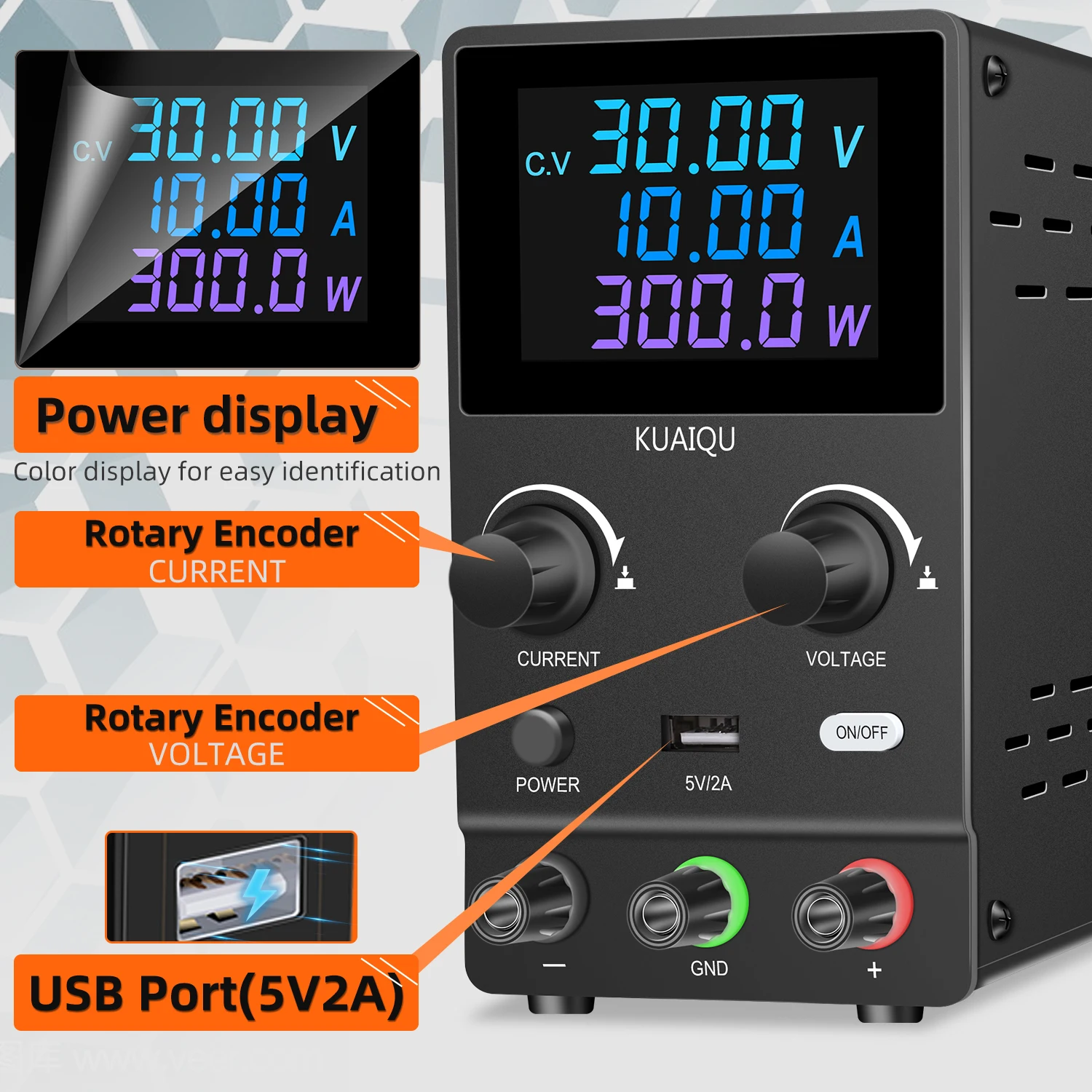

🔥【4-digit Color LED Display】The dc power supply variable 30v 5a has a high resolution of 0.01V and 0.01A, and our dc power supply the voltage can be adjusted up to 32V. The 4-digit back-lit color LCD display provides more accurate and clearly visible readings for the voltage and current value.

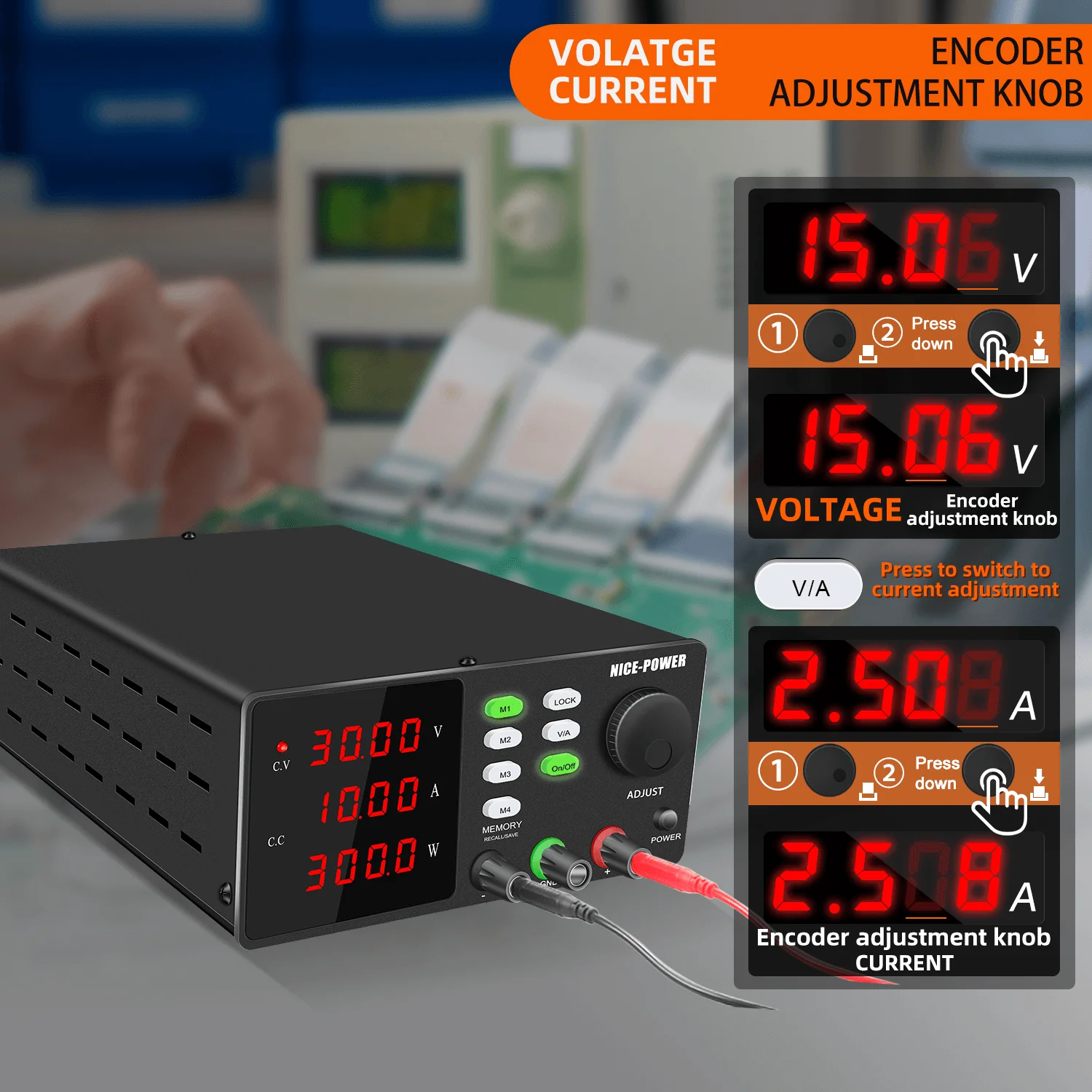

🔥【Encoder Adjustment Knob, Lock Button】The encoder adjustment knob can be used to precisely regulate the voltage and current. Press the knob to determine the number of digits to be regulated and rotate the pushbutton to regulate the desired voltage/current value. The lock button prevents you from accidentally touching other buttons to avoid re-adjustment.

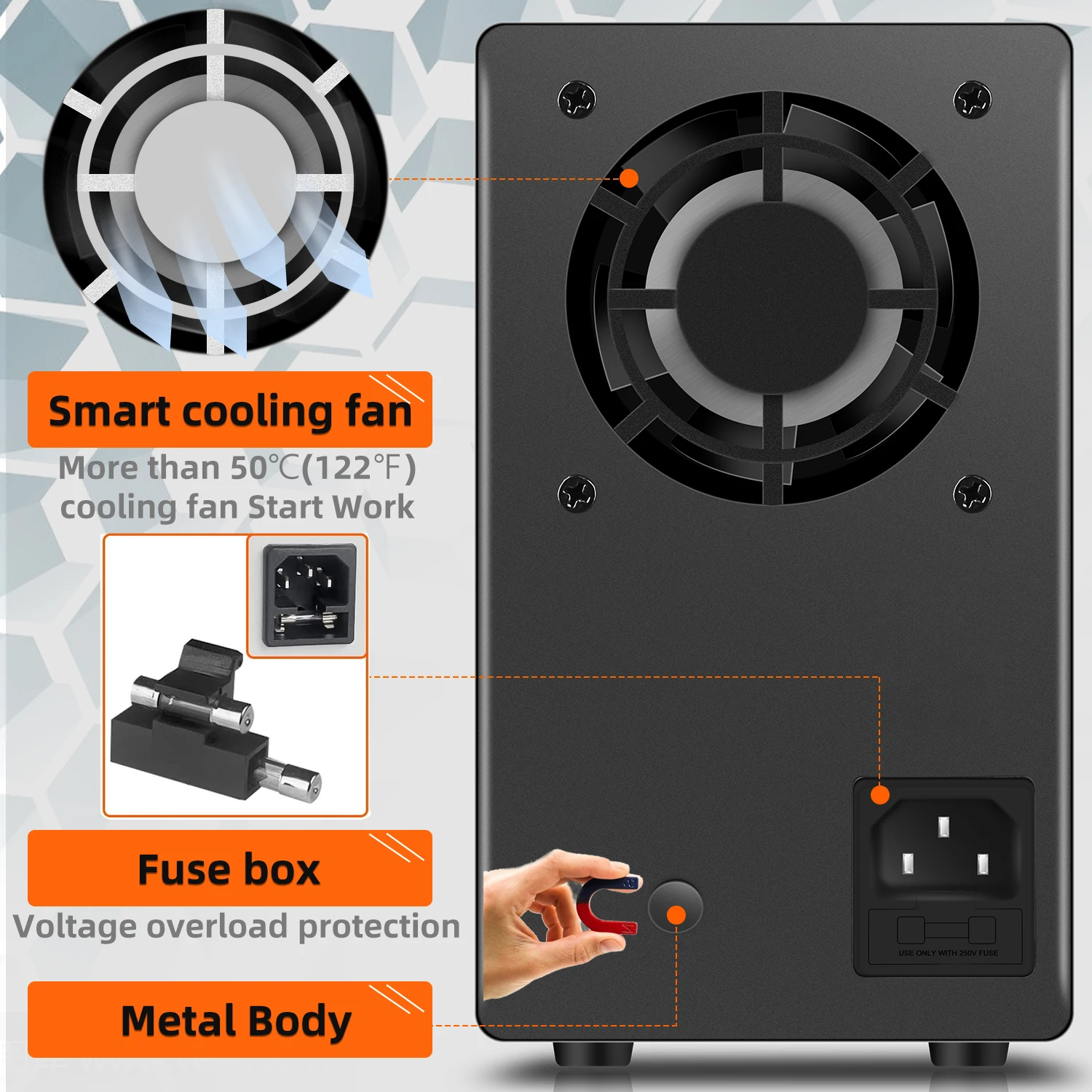

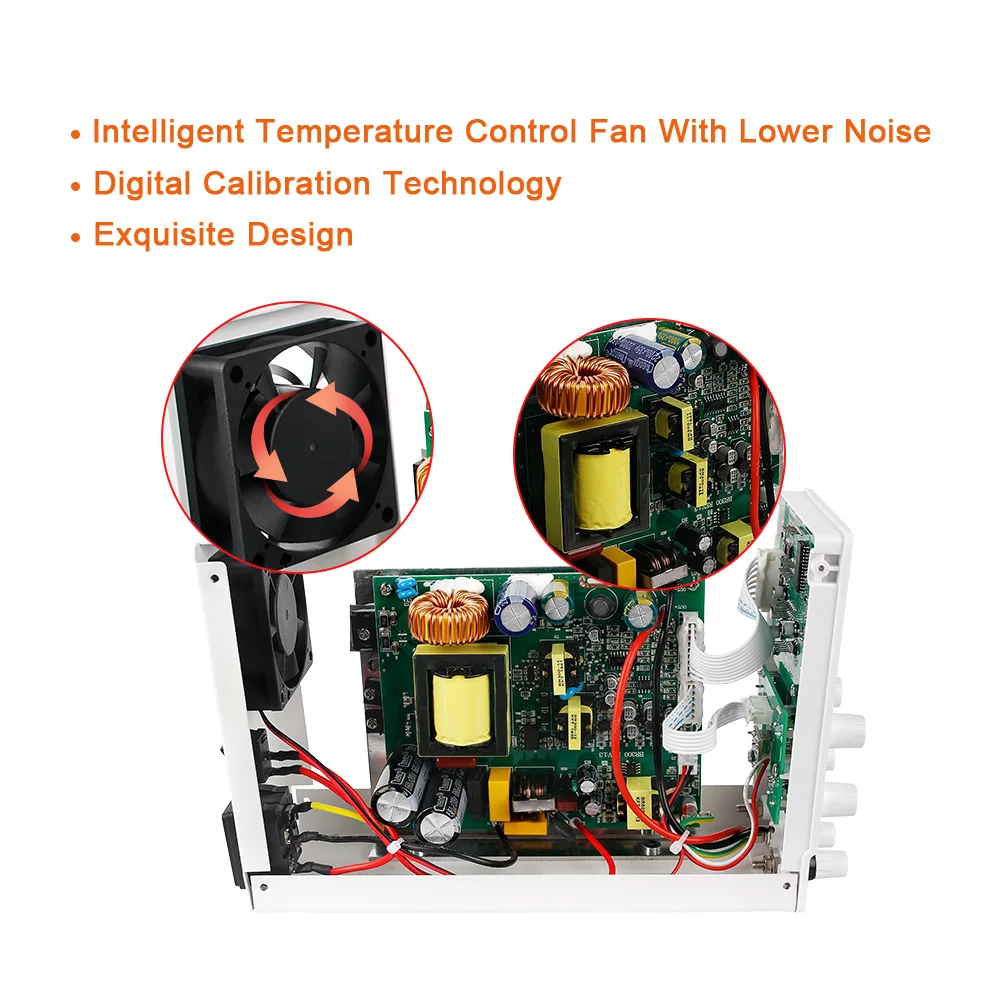

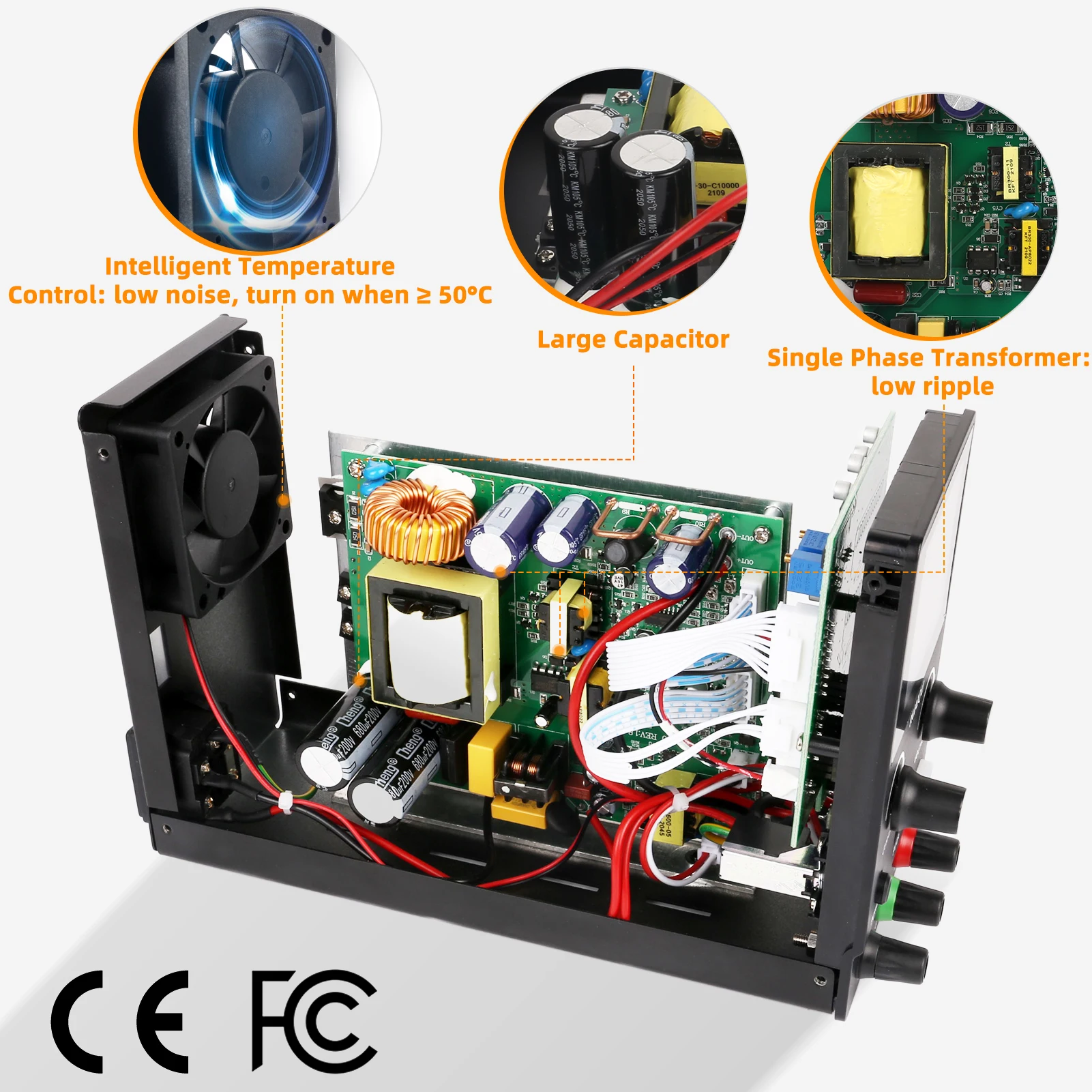

🔥【Multiple Protections,Intelligent Cooling Fan】Safety is our priority. The DC power supply built-in smart cooling fan,low arc noise & low ripple,and dc power supply variable comes multiple protection of Over-voltage, over-current, over-power, over-temperature, short-circuit powerful protection function.

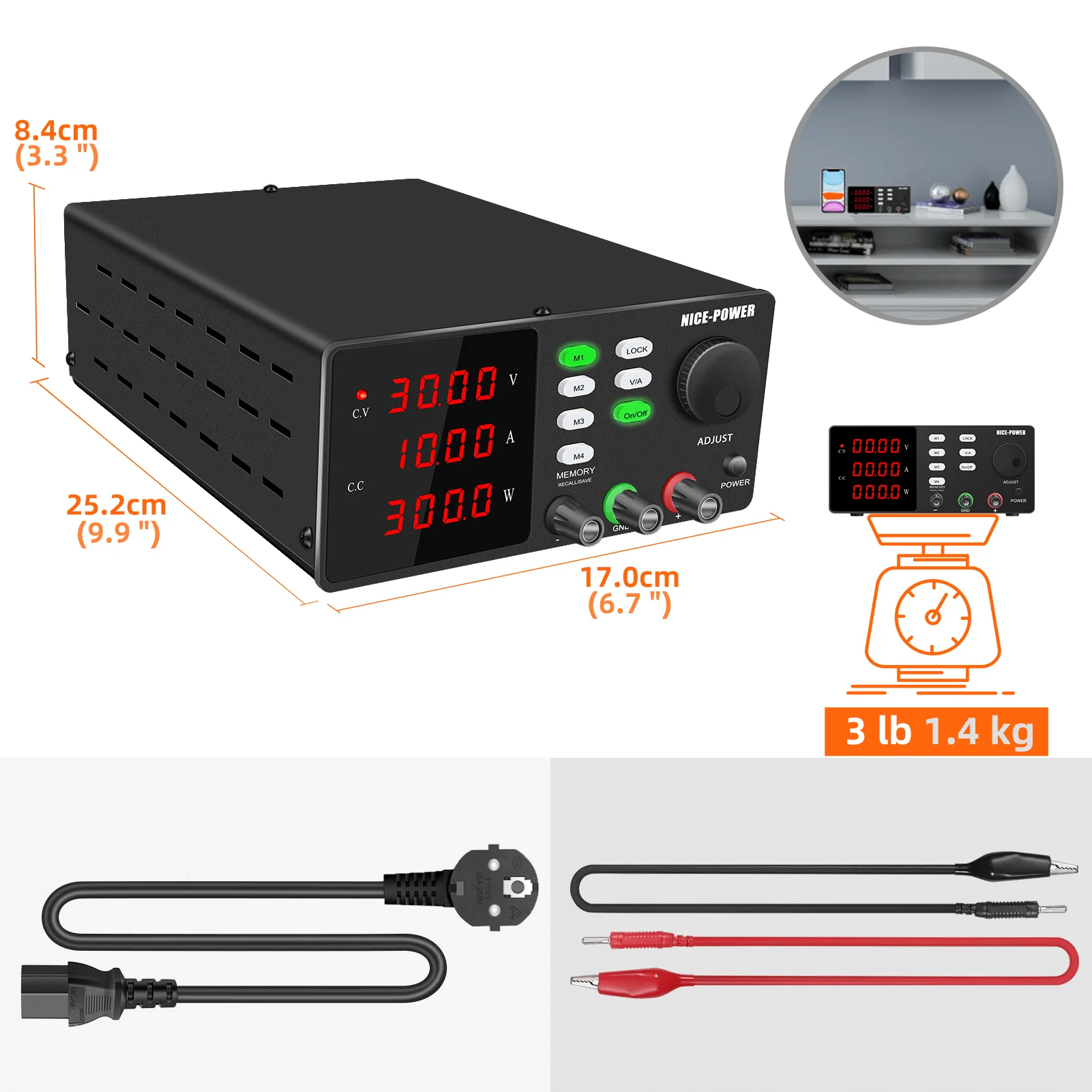

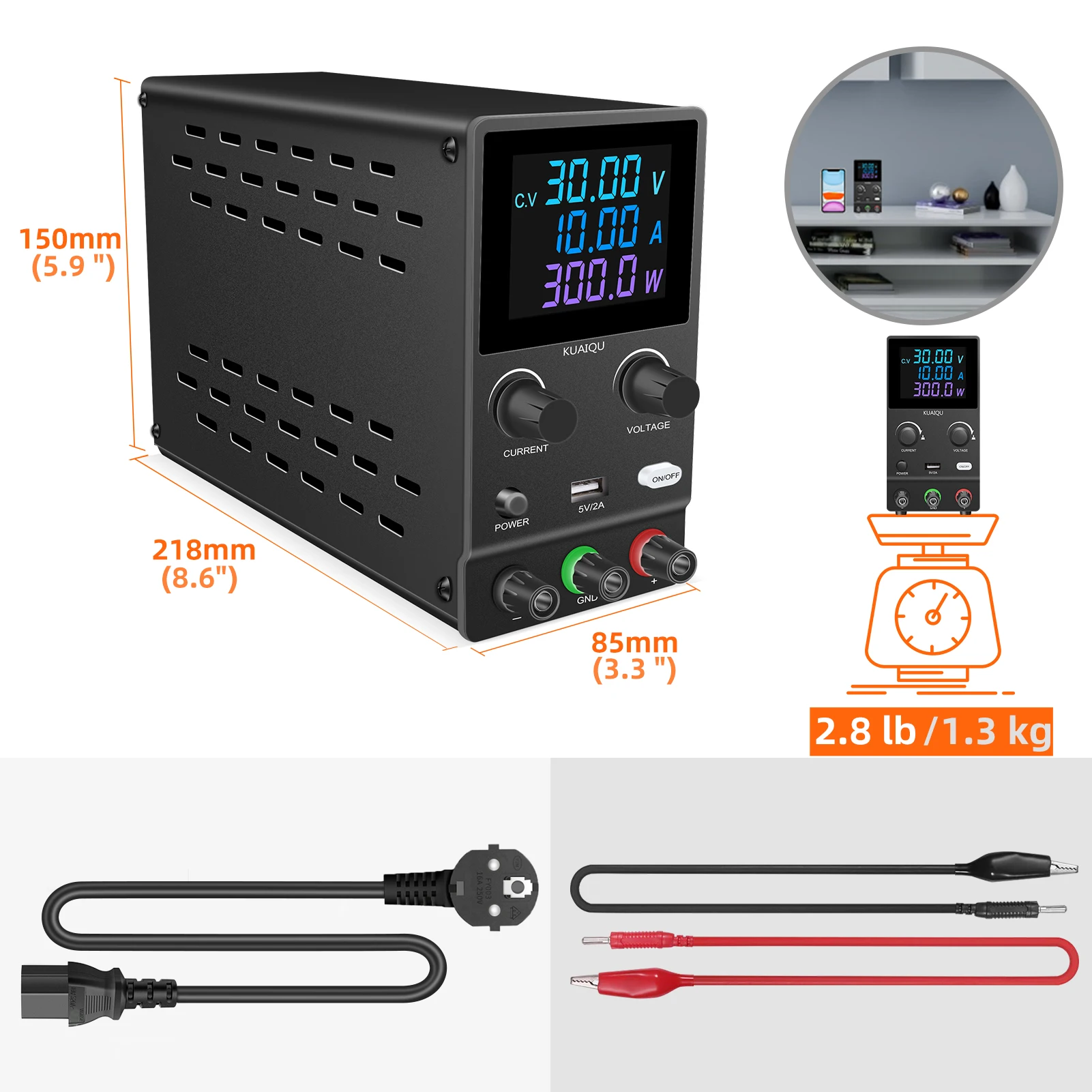

🔥【Packaging and After-Sales】1 x programmable DC power supply,1 set of output power cables, 1x USB cable(connect to the computer), 1x user manual, 1x power cord, We provide lifetime technical support. If you are not satisfied with the product you received, please feel free to contact us.

Which application areas can use it

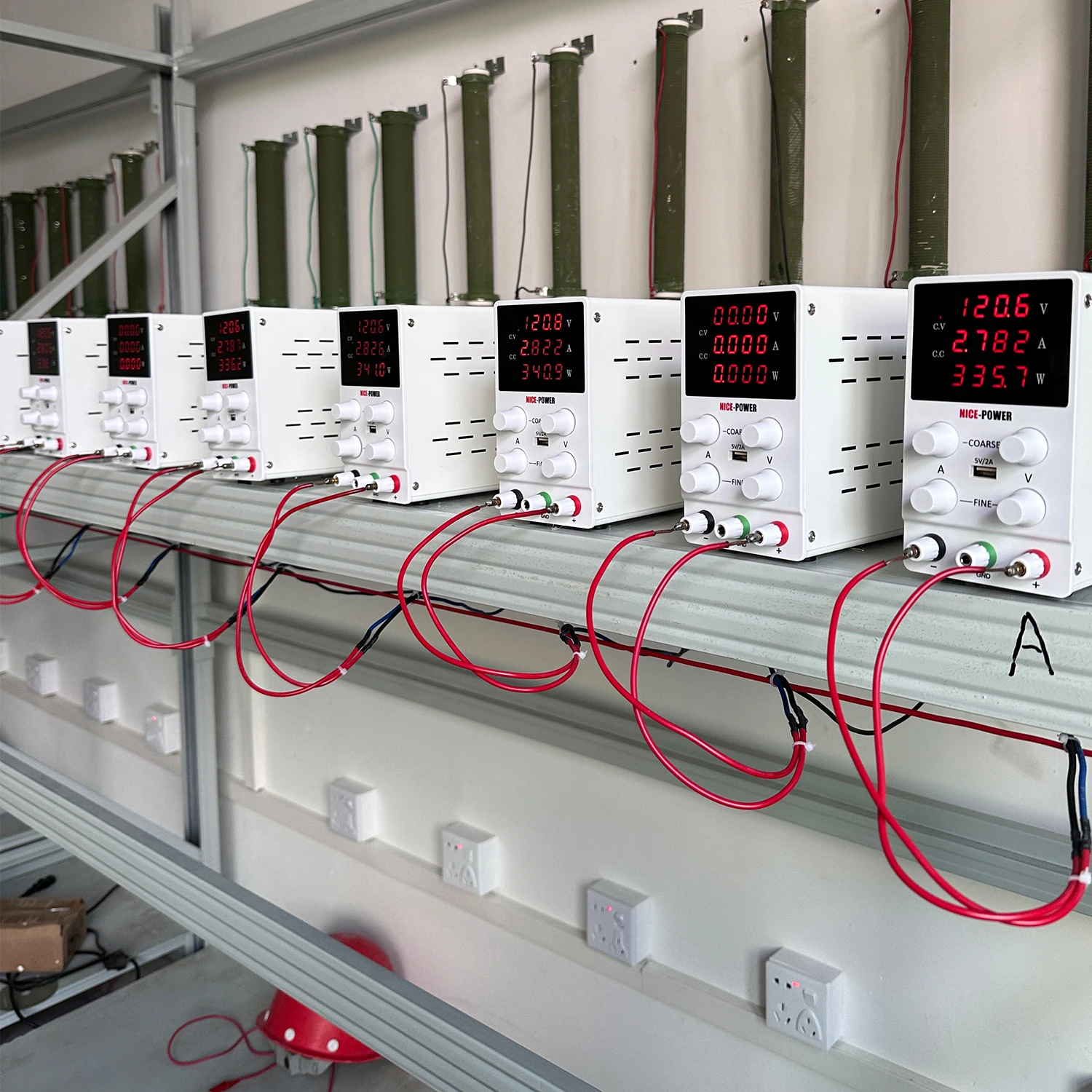

1. Factory production testing field：For Production line test.
2.Mobile phone repair field:For Mobile phone、computer repair
3.Automotive sector:such as charging car batteries, repairing car parts, aging car parts, Car DVD, car audio,etc
4.Electrical appliance maintenance field：Maintenance of various circuit boards, resistors, jewelry,capacitors, relays, DC motors, LEDs,household appliances, and other electrical equipment that require power supply
5.Jewelry field: For electroplating、titanium oxide,etc
6.Battery charging field:Charging lithium batteries,Car Battery ,charging other batteries
7.Drone field: Rapid charging of drones
8.Research laboratory and school field:For Laboratory,scientific research teaching,school ,etc
9.Security monitoring system field:For Security monitoring system, fire protection system, building automation system
10.Modification field:Converting electric bicycles and cars,etc
