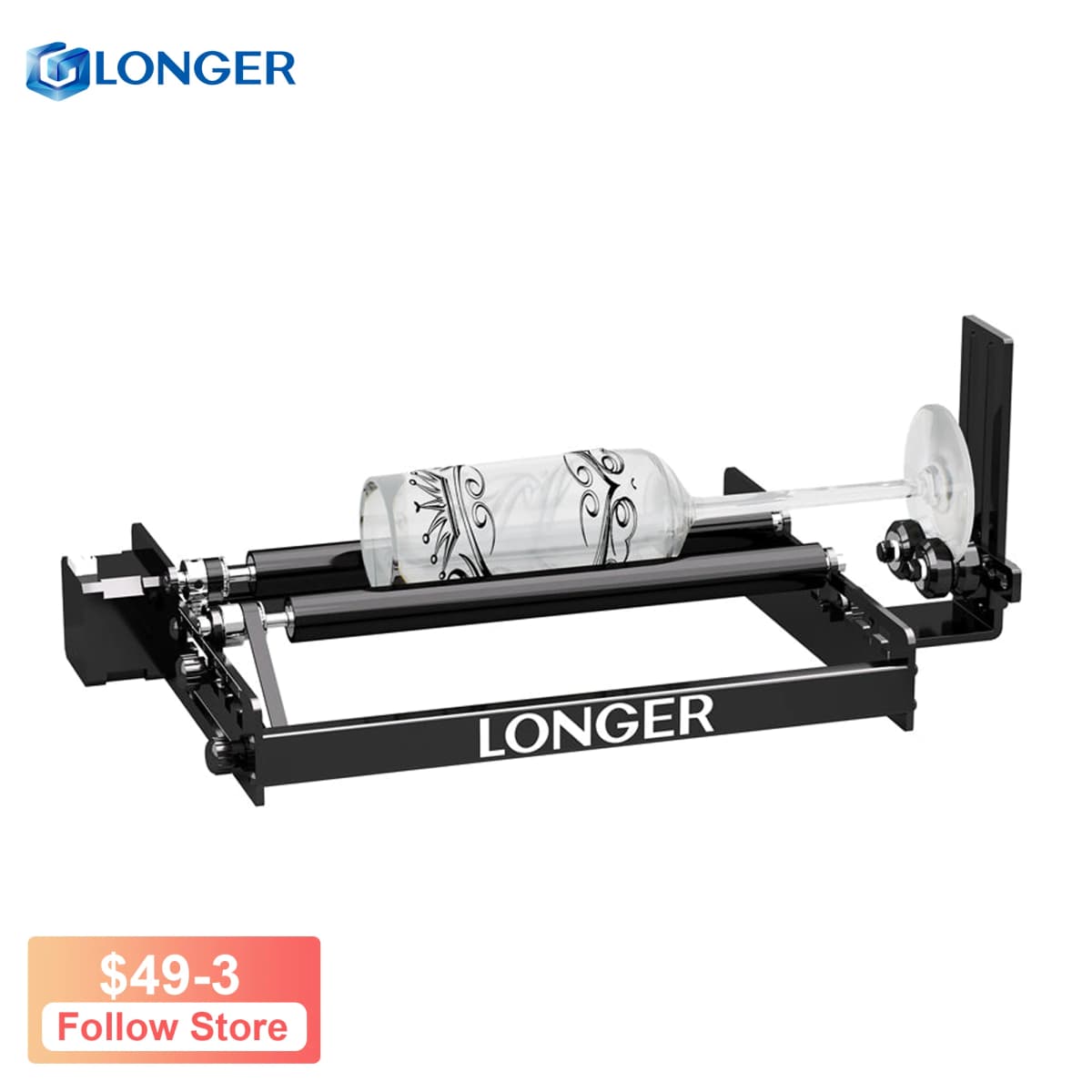

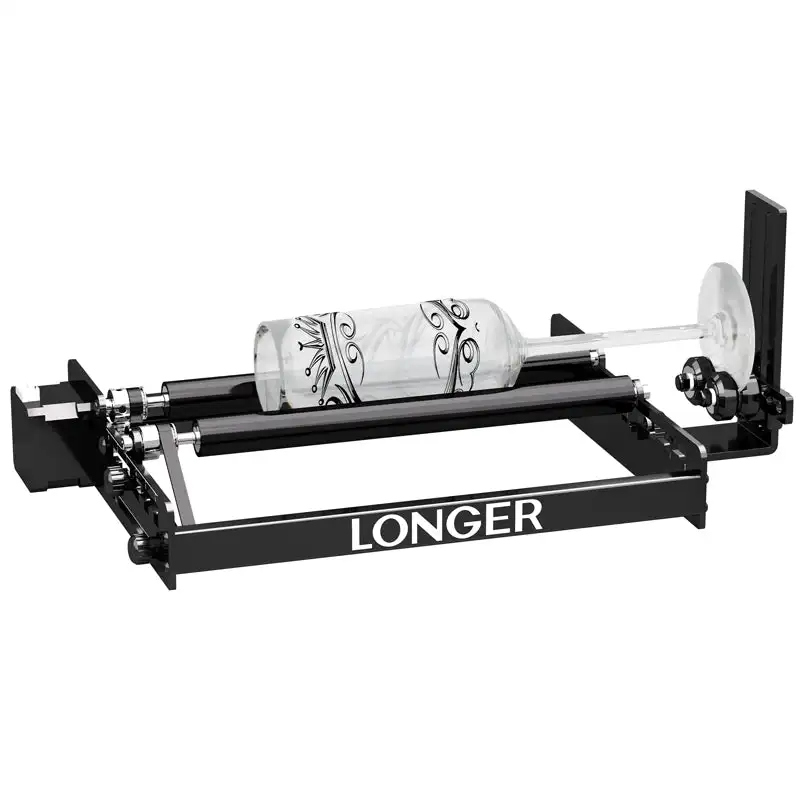

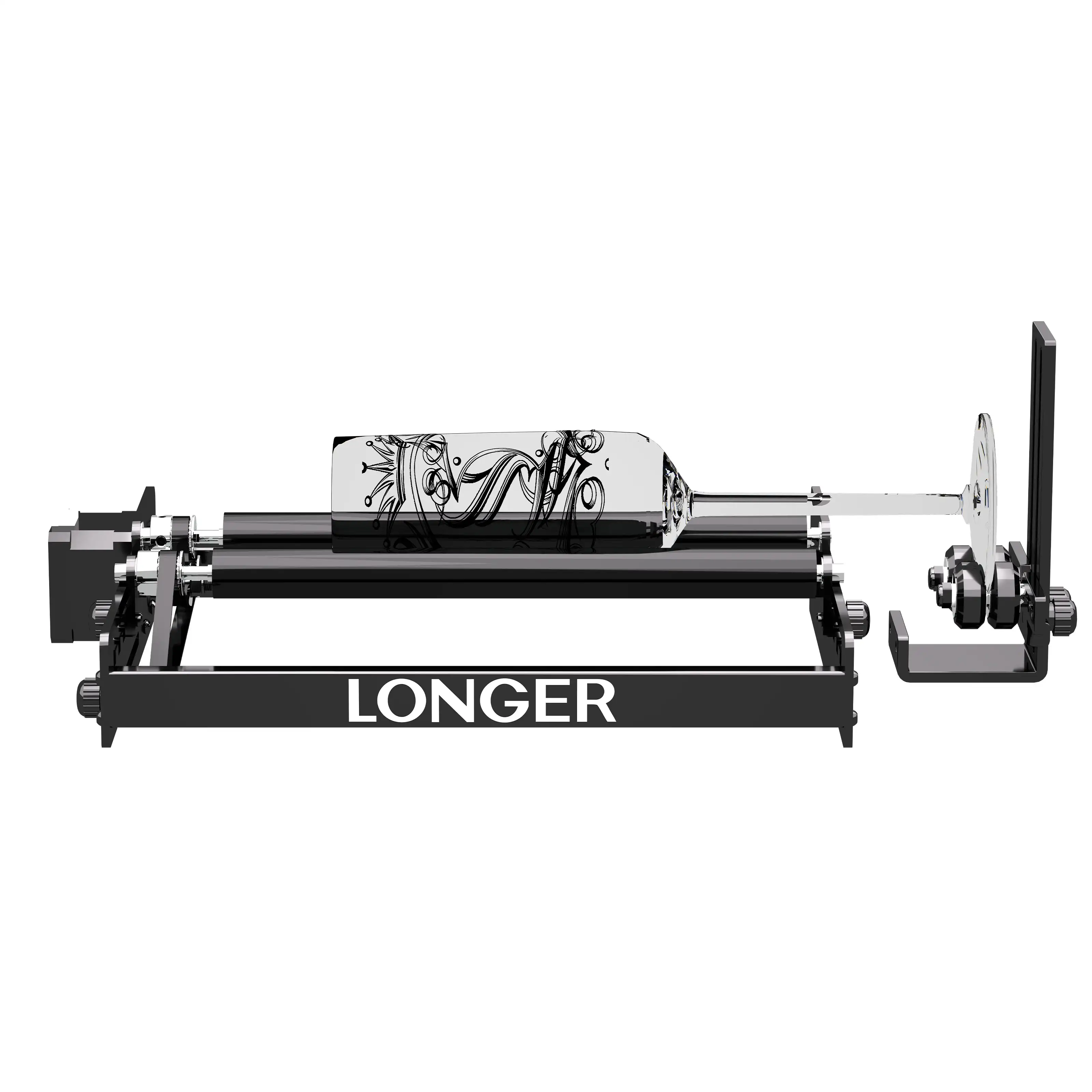

Rotary Roller Upgrade Kits For Laser Engraver Cutting Machine Engraving Cutting Cylindrical object

Rotary Roller Upgrade Kits For Laser Engraver Cutting Machine Engraving Cutting Cylindrical object

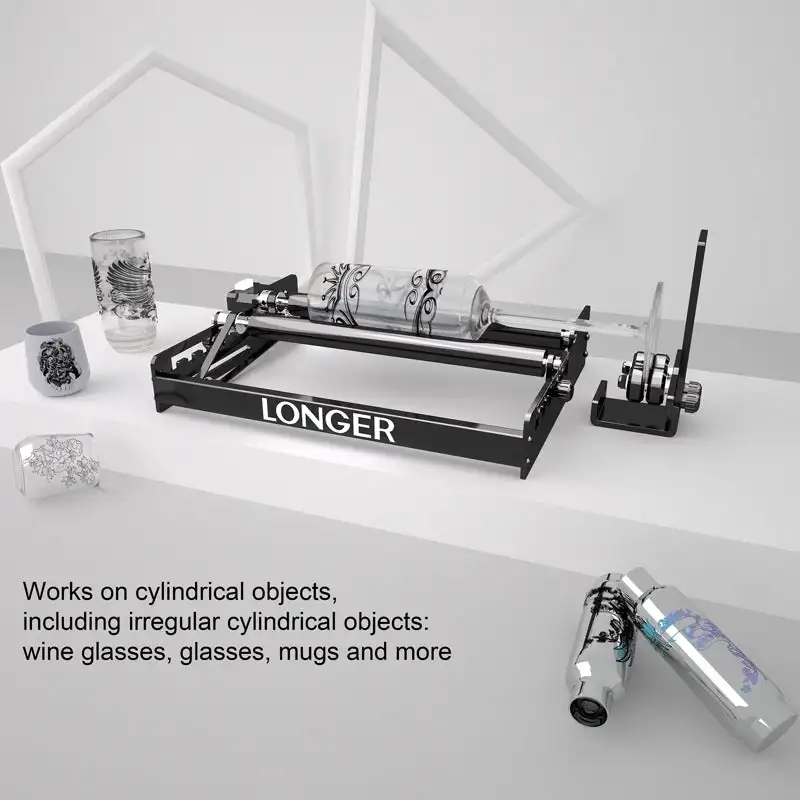

Works on cylindrical objects including irregular cylindrical objects: wine glasses,glasses, mugs and more, 360° Auto Rotating Roller.

Stable support and positioning ensure that the roller remains stable and accurate during the work process, improving the completion rate of your works.

Adjustable range: 33-135mm high.

【6-200mm Huge engraving space】The diameter can be adjusted in 6 gears, from 6mm and up to 200mm. Supports a maximum engraving diameter of 200mm.

【100% Pre-assembled, plug and play with laser engraver】 No installation required, just need to connect the Y-axis cable to the engraving machine to use.

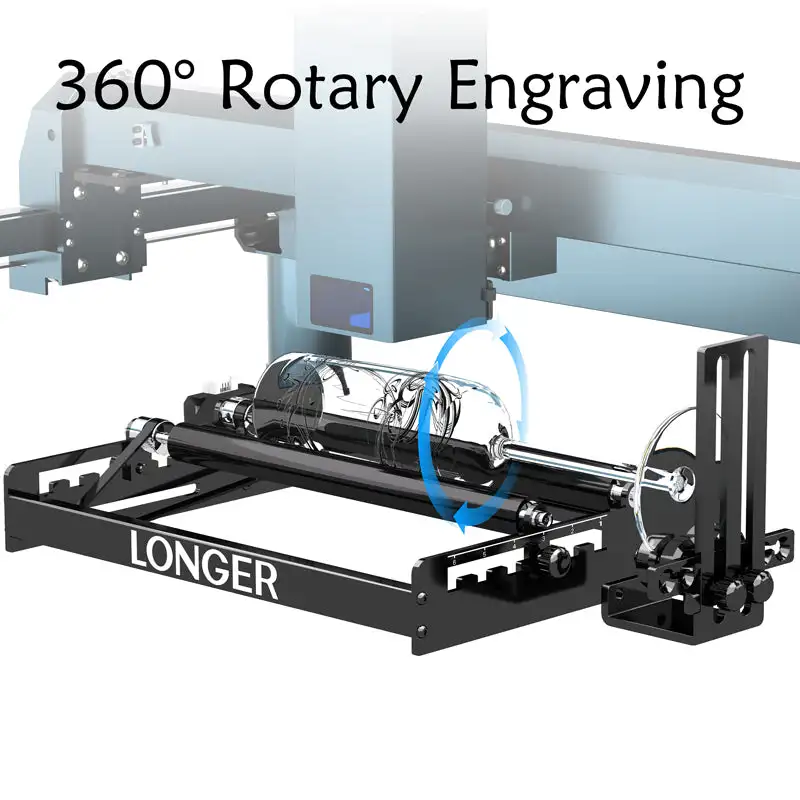

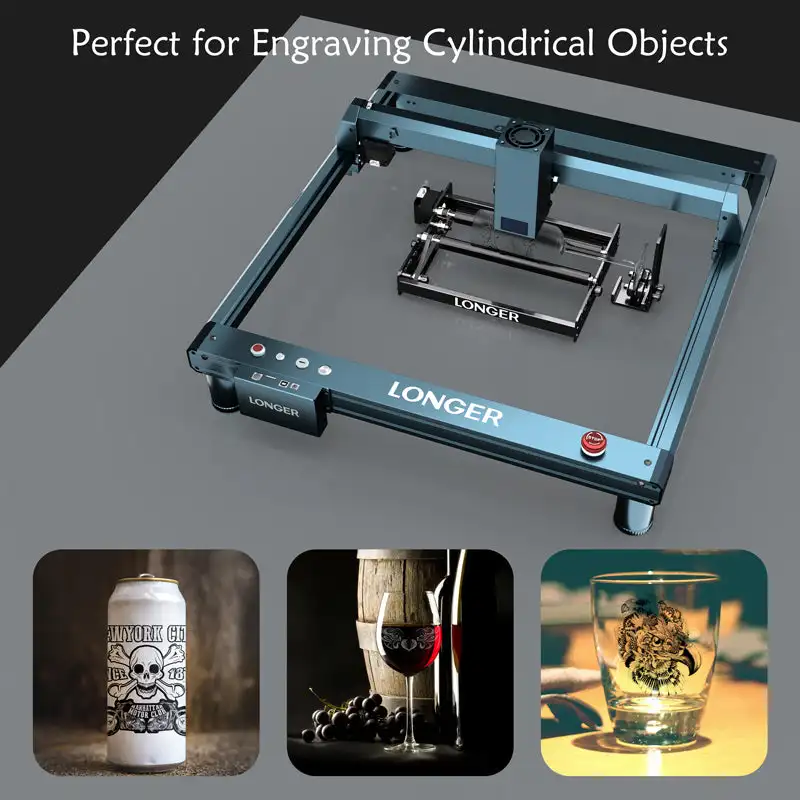

【Y-axis laser engraver attachment】360° engraving of cylinders or Ultra-fine object, round wood, bowls, cups, beverage cans, bottles, pipes and over-length plate etc.

【Easy and fast sliding adjustment & sturdy durable】Just slide and fix screw by hand, adjust the distance according to the different sizes of cylindrical objects. Choose high-friction 70A anti-slip rubber shaft and Steel Construction, longer service life.

【Widely compatible】Comes with 2 motor extension cables, can be compatible with other brands of engraving machines.

How to adjuste gear of the roller?

1: Distance between two axes is 5mm, suitable for engraving 6-38mm diameter objects

2: Distance between two axes is 23mm, suitable for engraving 38-70mm diameter objects

3: Distance between two axes is 41mm, suitable for engraving 70-102mm diameter objects

4: Distance between two axes is 59mm, suitable for engraving 102-134mm diameter objects

5: Distance between two axes is 77mm, suitable for engraving 134-166mm diameter objects

6: Distance between two axes is 95mm, suitable for engraving 166-200mm diameter objects
