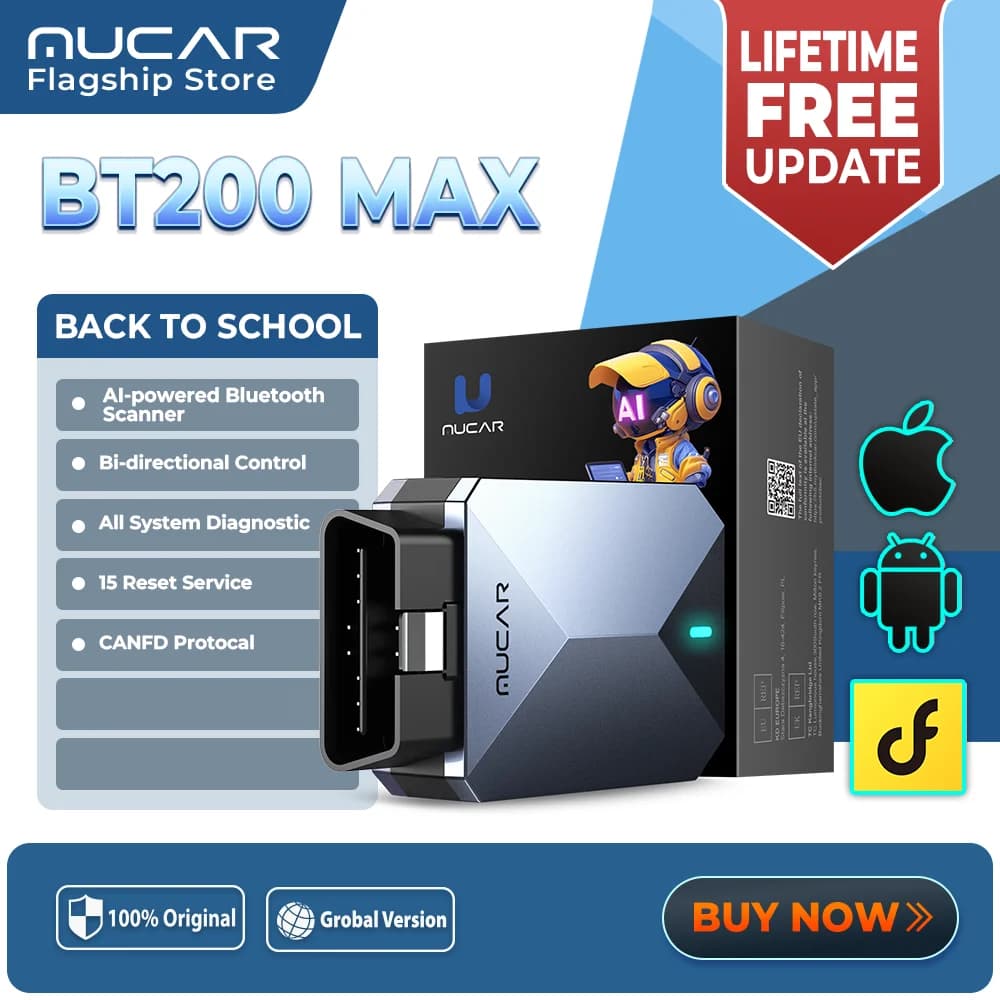

MUCAR BT200 MAX AI Automotive Tool OBD2 Bluetooth Scanner CANFD Active Test 15 Reset Full System Diagnose For All Cars Life Free

🥇2026 NEW Lifetime Free Update All In One MUCAR BT200 MAX OBD2 Blutooth Scanner with AI intelligent diagnosis system!!!

 Support CANFD、ELM32、GMLAN、MSCAN Protocal,Bi-directional Control,All System Diagnostic,15 Reset Service,Full OBD2 Funcions,Full Car Manufacture Brands Software, Auto Vin Scan for most cars!!!

✅AI diagnosis system+✅Global Version+✅CAN FD、ELM327、GMLAN、MSCAN+ ✅3000+ Active Tests(Bi-directional Control)+✅15+ Hot Reset Service+✅IMMO Keys(Basic)+✅All System Scan+✅AUTO VIN+✅ 120+ Car Makes+✅22 Kinds of Languages+✅ FCA AutoAuth+✅ Bluetooth 5.0+✅Android & iOS+✅ DollarFix APP💯Lifetime Free Update and Use 💯Best OBD2 Bluetooth Scanner👍👍

👍👍👍 Buy once, Free for life, Saving you a lot of time and money.

👏Selling Points of THINKCAR THINKSCAN MUCAR BT200 MAX

All Functions lifetime Free Update,no subscription fees!!!

✅【Free Lifetime Upate】:MUCAR BT200 MAX is an affordable, reliable automotive diagnostic tool that offers lifetime free update—no subscriptions or renewal fees. It stays current with ongoing upgrades for vehicle compatibility and software optimization.

✅ DF-AI: MUCAR BT200 Max is the first bluetooth obd2 scanner with an Al diagnostic system on DollarFix APP, Providing users with multi-dimensional, high-precision, industrial-grade technical support services.

✅【Bi-Directional Controls 3000+ Active Tests】:MUCAR BT200 MAX bidirectional scanner can send action commends to vehicle sub-systems or components for active test without using vehicle controls. It can perform various tests such as: EVAP Test, Fuel Trim Reset, Injector Buzz Test, Window/ Mirror/ Door Lock Test, Pump and Value Tests, etc. Get functions from "Diagnose>Car Model>System>Active Test".

✅【15+ Hot Services】: Car scanner diagnostic tool, with over 15+ Services, including advanced functions such as Oil Reset,ETS,GEAR,SAS,INJEC,BMS,Brake Reset, the MUCAR BT200 MAX is designed for serious automotive professionals.

✅【Full System Diagnostics】: OBD2 scanner diagnostic tool, the MUCAR BT200 MAX provides full system bi-directional diagnostics for over 120+ car brands and 10,000+ models. Whether you're troubleshooting engine troubles or resolving warnings, this tool has you covered. It supports TPMS,A/F,TCM,SRS,EPB,SAS,BCM,ECM and other system diagnosis, ensuring you can tackle various issues effectively

✅MUCAR BT200 Max supports CANFD, EML327,GM-LAN and MSCAN
proprietary vehicle networks that provide access to thousands of additional parameters that are off-limits to all other wireless OBD scanners.

✅Support FCA (AutoAuth) , access to the security gateway module on 2017 and newer for Fiat/ Chrysler/ Dodge/ Jeep vehicles(2017-2024), so that the diagnostic tool can clear codes, run bi-directional active tests（MUCAR BT200 MAX only provides a login and purchase portal, and users are required to register for an FCA account and pay a membership fee in order to perform the relevant automotive diagnostics)

✅Support 22 Kinds of Languages：English, French, Spanish, German, Italian, Portuguese, Japanese, Russian, Polish, Traditional Chinese, Turkish, Greek, Korean, Hungarian, Dutch, Vietnamese, Arabic, Persian, Khmer, Lao, Burmese, Thai

✅ Global Version, no IP limit

✅200,000+ Vehicle Coverage: Supports full OBD1/OBD2/JOBD&CAN protocols protocols, compatible with over 99% OBD2/EOBD cars up to 2024,covering 200000+ US, Asian and European vehicles

✅Support Live Data Stream+Tntelligent Auto VIN +Over-voltage and Battery Drain Protection+DTC Lookup+Reading Of Fault Codes+Diagnostic Feedback+Print Diagnostic Report

✅Use with DollarFix APP and Other Third-Party Apps such as OBD Fusion,Car Scanner,Infocar,Torque pro,DashCommand..., which provide users with more abundant services

Why choose MUCAR BT200 Max Bluetooth OBD2 Scanner instead of others？

Additional Functions Of MUCAR BT200 MAX Than Other Bluetooth Scanner:

✨1.DF-AI

Description:MUCAR BT200 Max is the first bluetooth obd2 scanner with an Al diagnostic system, Providing users with multi-dimensional, high-precision, industrial-grade technical support services.

✨2.Compatible with third-party apps, such as OBD Fusion, Car Scanner, Infocar, Torque pro, DashCommand...

✨3.Custom dashboard

Description: Users can select OBD data streams, and images are dynamically displayed on the dashboard

Function: Users can monitor specific data while driving

✨4.Smart sleep

Description: The MUCAR BT200 MAX connector will not consume the battery power even if it is plugged into the car for a long time

Function: It is not necessary to unplug the BT200 MAX every time after use, which is convenient for the car owner to use it next time

✨5.Voltage overvoltage load protection to avoid hardware damage

Description: Hardware upgrade to avoid burning the hardware motherboard when overvoltage occurs

✨6.Manage overspeed warning and coolant high temperature warning

Description: When the DollarFix app is opened, the app will obtain the vehicle speed and coolant temperature. If the limit is exceeded, the app will alarm

DF-AI Test Case Of MUCAR BT200 MAX:

Intelligent report generation:

①Automatic diagnostic report analysis and generation: Understand and extract the core data of the diagnostic instrument report provided by the user, conduct intelligent analysis and induction, and output a comprehensive diagnostic analysis report with clear structure and rigorous technology, which greatly improves the efficiency of information processing and the quality of decision-making basis

Through the diagnostic report page, perform report summary analysis or specific fault code analysis

How to Use the MUCAR BT200 Max?

Compatible with Andriod & IOS

1.Download DollarFix app, or other third-party Apps
2.Connect MUCAR BT200 Max in App
3.Download Software
4.Turn On Your Car
5.One-Click Via Bluetooth
6.Start Diagnosis

⚠️ Note: Recommend to Use Official DollarFix APP, other apps function are not compelete; check with app provider to confirm compatibility.

MUCAR BT200 MAX Support Full OBD2 Functions Lifetime Free Update!

Supports OBDII protocol & EOBD protocol and New Added GM-LAN,Ford MS-CAN, ELM327
1. Standard OBDII Agreement:
ISO 14230-4(KWP2000)/IOS 15765-4(CAN)/ISO 9141-2(IOS)/ISO14229(UDS)/SAEJ 1850(VPW&PWM)

2. New Added GM-LAN,Ford MS-CAN, ELM327 Agreement:
MUCAR BT200 Max supports EML327, GM-LAN and Ford-MSC proprietary vehicle networks that provide access to thousands of additional parameters that are off-limits to all other wireless OBD scanners.

3. Full Obd2 Functions
Mode 1: Read live data stream
Mode 2: Read freeze frame data
Mode 3: Read DTCs(diagnostic trouble codes)
Mode 4: Clear dtcs
Mode 5: Oxygen sensor monitoring
Mode 6: System monitoring
Mode 7: Read pending DTCs
Mode 8: Control operation of on-board system
Mode 9: Read vehicle information
Mode 10: Request emissions-related diagnostic trouble codes with permanent status after a clear/reset emission-related diagnostic information.

BT200 MAX Built-in CAN FD Protocals

MUCAR BT200 MAX is compatible with CAN-FD protocol and supports the latest For GM vehicles manufactured after 2020. Adopts advanced CRC algorithms to accommodate more data from 8 to 64 bytes in the CAN frame, which runs faster than other products and reduces the risk of undetected errors to greatly enhance the user experience.

​MUCAR BT200 MAX supports the following vehicles with CANFD protocol:

GM: CANFD models

[2021][Chevrolet][Onix] CANFD6&14

[2021][Chevrolet][Tracker] CANFD6&14

[2021][Chevrolet][Suburban] CCMA

[2021][Cadillac][Escalade ESV] CCMA

[2021][Cadillac][Escalade] CCMA

[2021[GMC][YUKON XL] CCMA

[2021[GMC][YUKON] CCMA

[2023][Chevrolet][Montana] CANFD6&14

[2024][Buick][Electra E5] VSIM

[2024][GMC][Sierra] H/U TCM 10 Speed (MGM)/10 Speed (MGU)

[2021][Chevrolet][Onix] All Systems

[2021][Chevrolet][Tracker] All Systems

[2021][Chevrolet][Suburban] CCMA

[2021][Cadillac][Escalade ESV] CCMA

[2021][Cadillac][Escalade] CCMA

[2021[GMC][YUKON XL] CCMA

[2021[GMC][YUKON] CCMA

[2023][Chevrolet][Montana] All Systems

[2024][Buick][Electra E5] VSIM

[2024][GMC][Sierra] H/U TCM 10 Speed (MGM)/10 Speed (MGU)

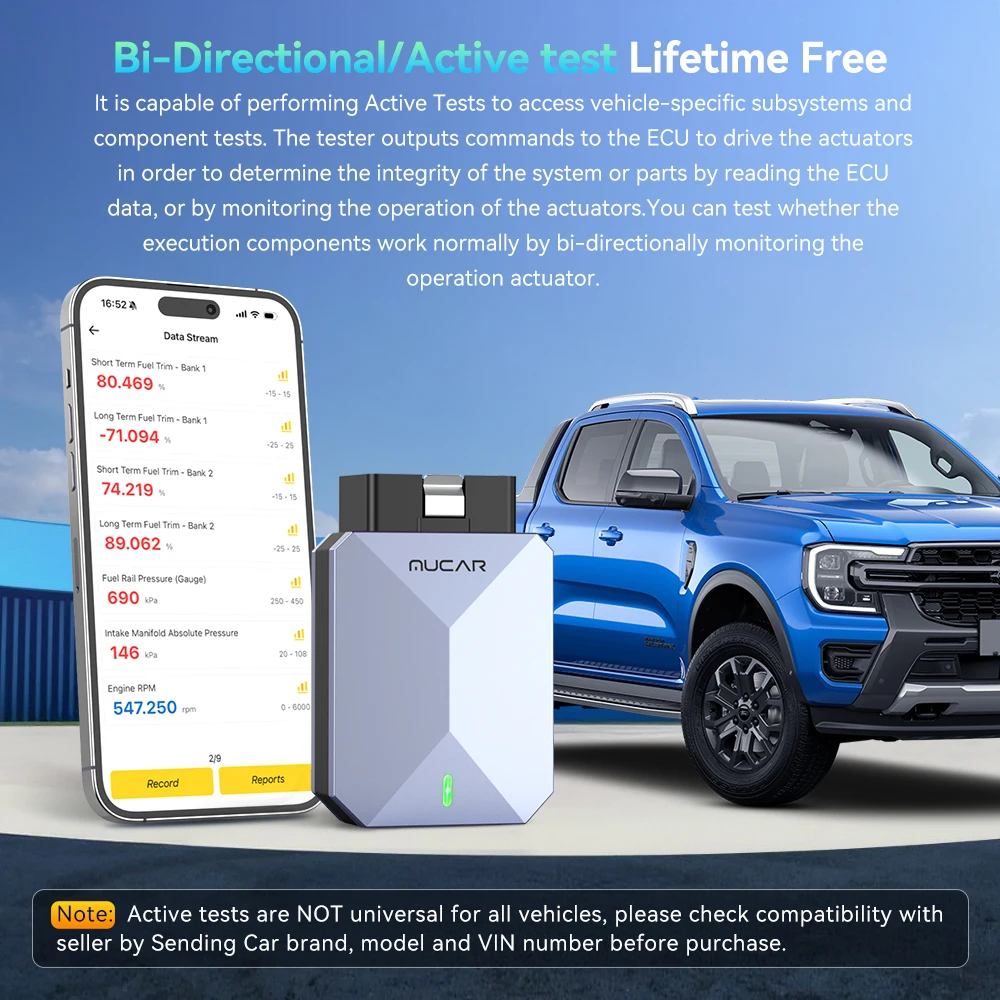

MUCAR BT200 MAX Support bi-directional contronal( Active Test) Lifetime Free Update!

Active testing is one of the most useful features in automotive maintenance and greatly improves mechanic efficiency.MUCAR BT200 MAX bidirectional scanner can send action commends to vehicle sub-systems or components for active test without using vehicle controls. It can perform various tests such as: EVAP Test, Fuel Trim Reset, Injector Buzz Test, Window/ Mirror/ Door Lock Test, Pump and Value Tests, etc. Get functions from "Diagnose>Car Model>System>Active Test".

✔ Bi-Directional Control is a feature that allows for two-way communication and control between scanner and car systems. It enables drive solenoids and actuators for active testing, sending commands to the system/component to test its operating status without using the vehicle controls. By utilizing Bi-Directional Control, technicians, mechanicians, car dealer, auto repair shop, DIYer or individual owner can actively monitor and control the behavior of a system, let you quickly understand whether a specific system, component, or subsystem is operating normally. It provides a more comprehensive and interactive approach to testing and troubleshooting, allowing for efficient identification and resolution of issues, pinpoint issues and greatly improve diagnostic efficiency.

✔ Frequently-used Active Tests including: Evap Tests/ Purge Solenoid/ Fuel Injector Test/ Cycling A/C Clutch Relay/ Cycling Abs Motor Pump/ Cooling Fan Test/ Headlamp Test/ Sunroof/ Operate Mirrors/ Turn On The Sound Horn/ Turn On The Radiator Fan/ Open/Close Windows/ Turn On/Off The Lights/ Test Door Lock Actuators/ A/C Compressor Activation/ Modulate The Throttle/ Compression Test/ Turn On/Off Front And Rear Side Acm Solenoid/ Turn The Fuel Pump On And Off/ Cycling The A/C/ Clutch On And Off/ Left Clutch Electromagnetic Coil Test/ Acceleration Device Test/ Oil Pressure Control Test/ Dynamic Camera Aiming/ Vehicle Level Position Calibration/ Brake Vacuum Pump/ Inlet And Outlet Valve Tests/ Open Brakes Tests/ Parking Brake Botors/ Wheel Speed Sensor Supply/...

MUCAR BT200 MAX Support FCA Cars，Unlock More Functions

Note: FCA AutoAuth Access not free!!There is an annual fee for Autoauth account, but the payment is charged by AutoAuth directly. THINKCAR & MUCAR is not involved in any transaction process.

What's FCA US SGW?

FCA vehicles (Fiat Chrysler Automobiles) have been protected with an SGW security module (Secure since 2017 Gateway) to prevent unauthorized diagnostics and security attacks.
This module limits diagnostic capabilities without authorized diagnostic tools. This limits functions ranging from Bi-directional testing to DTC clearing. The vehicle’s SGW will need to be "unlocked" by the authenticated tester, and the Diagnostic tools.

Now FCA US is using the Automatic Authentication Authority (AutoAuth) to manage user accounts for access to SGW vehicles.

The vehicles equipped with security gateways mainly include the following models: Chrysler series, Maserati series, Fiat series, Renault series, Nissan series, Mercedes-Benz series, and Volkswagen series.

689bt can support reading version information, reading fault codes, and reading data streams without purchasing a gateway account;
After purchasing a gateway account, our equipment can support reading version information, reading fault codes, reading data streams, action testing, clearing fault codes, special functions, and maintenance functions.

> Fit for FCA Vehicles from 2017-2024, Compatible with300/Pacifica/Challenger/Charger/Durango/Journey/Ram 1000/Ram 1500(DS)/Ram 1500(DT)/Ram 2500/Ram 3500 Cab Chassis/Ram 3500 Cab Chassis 10K/Ram 3500 Pickup/Ram 4500/Ram 5500/ProMaster City/Cherokee/Compass/Compass (Brazil, China, India, Mexico)/Grand Commander/Renegade/Wrangler (JL)/Giulia/Giulietta/Stelvio/500X/500X/500BEV/Toro/Doblo/Ducato/Novo Strada/Mobi/... More keeps growing

THINKCAR Europe FCA Purchase:
Available for purchase on the THINKCAR Official website: https://www.thinkcar.com/
1. Click "Explore"
2. Choose "FCA"

Chrysler series uses 12+8 adapter to unlock the security gateway

2018 and later:
Chrysler: 300, Grand Voyager
Dodge: Challenger, Charger, Durango, Journey, Ram 1500, Ram 2500, Ram 3500, Ram 4500, Ram 5500
JEEP: Grand Cherokee, Renegade, New Wrangler (JL), Grand Commander

2019 and later:
JEEP: Cherokee, Compass

2020 and later:
JEEP: Gladiator

2018 and later:
Alfa Romeo: GIULIA
Fiat: 500L, 500X, 500, Novo Uno fl, Toro

2018 and later:
Maserati series

Security Gateway Module

Location: Usually near the steering column, but sometimes behind the radio.
Operation: Plug the adapter into the socket to perform various special functions.

Nissan 16+32 adapter

Applicable to Nissan models with B18 chassis (14th generation Nissan Sylphy, Sentra). There is currently no software unlocking method, only physical unlocking is possible.

Method: Turn off the ignition switch, then turn it back on. Press the accelerator twice within 10 seconds, then perform calibration.

✔️For VW/Audi/Skoda/Sate models after 2018 with firewall gateway, please open the engine hood (turn off the network firewall) before performing basic settings, matching and other special functions.

Volkswagen Series：

2020~2023 Golf 8
2021~2023 Land Cruiser
2021~2023 Land Cruiser
2022~2023 Lingdu L
2022~2023 New Weiran
ID.4 CROZZ, ID.6 CROZZ
ID.3, ID.4X, ID.6X

Audi Series：
2020~2023 Audi A3L
Q2 e-tron, Q4 e-tron, Q5 e-tron

Skoda Series：
2021~2023 Octavia PRO

Volkswagen Security Gateway unlock requires manual SFD activation to obtain a token

Purchase website： https://vagupdate.com/sfd/sfd-token

The website needs to provide the following information: (paid service $40/time)
1. VIN (Vehicle Identification Number)
2. Brand (such as Volkswagen, Audi, Skoda)
3. Unlock request structure (unlock request information displayed on the "Manual SFD Activation" interface)

Renault models and years that require unlocking the security gateway

Renault Model Online Gateway Unlocking Operation Guide

1) Purchase the GW unlocking software and physical token (USB) from Renault's official website: Use a PC to log in to Renault's official website: https://asos.renault.com/#/presentation , and register an account in the upper right corner. 2) Download the SGW unlocking software, purchase the token, and also purchase a physical token (USB). The operation process is on the page

👋If you want to know more about security gateway unlocking, please feel free to contact us.

MUCAR BT200 MAX Support 15 Maintenance Resets Lifetime Free Update!

NOTE: Not all reset services are available for all cars, please contact the seller with the car brand/model/year to ensure the functions you want are compatible with your cars.

1.Oil Lamp Reset Service:allows you to perform reset for a new calculation of Engine Oil Life system once changed the oil.

2.SAS service:helps clear the fault steering angle sensor memories and plays an important role in the steering angle sensor calibration.

3.BAT battery service:allows the scan tool to evaluate the battery charge state,monitor the close-circuit current, register the battery replacement,and activate the rest state of the vehicle.

4.DPF service:specially works for Diesel Particulate Filter system with DPF regeneration,DPF component replacement teach-in and DPF teach-in after replacing the engine control unit.

5.EPB service:it is important in the maintenance of electronic braking system's safety and efficiency.

6.TPMS service:makes sense in displaying sensor IDs from the vehicle's ECU,inputting TPMS sensor replacement IDs and testing sensors.

7.IMMO Key Programming:the unique car key programming and read pin code function,it is mainly used to disable the lost vehicle keys and program a new replacement key fob.8.ABS Bleeding:ABS brake bleeding to get a firm brake pad after air exhaustion after repair ABS pump system.

9.Sunroof Reset:The sunroof memory generally needs to be reset when the vehicle’s battery is replaced or the car dies.

10.Suspension Reset:Try reset electronic suspension air ride with the massage system close all doors koeo flip through measage system go to suspension reset or on off.

11.Gearbox Reset:Procedure Reset Transmission Adaptive Learning DIY. Start the car and drive.Once you perform this procedure the Engine Control Unit (ECU) and Transmission Control Unit (TCU) will work together to learn how you drive by monitoring your driving pattern.After you follow this programing method of the TCU/ECU drive the car.

12.AFS Headlamp Reset:'AFS' means Adaptive Front lighting System(at night with the Bi-Xenon headlights) it swivels either side,pressing that button means they stay pointing straight ahead and don't turn when you turn the steering wheel.

13.Injector Coding:Leaking injectors and some dead injectors can be missed even when an injector is disabled. Other problems with the ignition system and mechanical components also may not show an rpm loss when an injector is turned off.

14.Throttle AdaptationThe throttle body is a tube containing a pivoting flat valve (butterfly) that is used to control the amount of air entering an engine.In an electronically fuel injected car,a throttle position sensor and air flow sensor communicate with the computer,which supplies the corresponding amount of fuel needed at the injectors.It must need re-learning throttle sensor position after clearing or repair

15.Gear Learning:The scan tool monitors certain camshaft position sensors signals to determine if all conditions are met to continue with the procedure for Engine running

MUCAR BT200 MAX Support OE- Level Full System Diagnosis Lifetime Free Update!

As an OE level automotive diagnostic tool, MUCAR BT200 MAX can access most car ECUs to read, clear codes, retrieve live data, freeze frame, ECU information and perform active tests, matching, adaptation, turn off warning lights, reset monitors. Full range car models and full car system diagnose make it a professional automotive diagnostic tool.
​
​Include : ABS System, Engine System, SAS System , TPMS System , IMMO System , Battery System ,Oil Service System , SRS System ,DPF System ，Air Conditioning System，Transmission System, etc...
​
​Brief introduction of its capabilities in full systems diagnostic as follows:
​
​1. For Engine System: help detect the engine ignition, fuel injection, air and fuel ratio, and exhaust emission conditions in Engine system to enhance vehicle performance, save energy and reduce exhaust emission.
​
​2. For Transmission: It makes great sense in the safety driving when your car is slipping or difficult to shift, this diagnostic tool can figure the problems out via reading codes in the Transmission system, or check the health status via live data viewing.
​
​3. For ABS System: Diagnosing an ABS problem should always start with a visual inspection of all brake components, next you will need to retrieve ABS codes to tell you where the problem is, and this is what this diagnostic does for you.
​
​4. For SRS System: SRS, safety restraint system, is made up of impact sensors, a control module, and the airbags themselves, and this diagnostic tool can detect every electronic parameter to check its health status.
​
​5. To diagnose Brake System if you feel the brake pedal is mushy and notice unusual odor or noise, etc. A properly operating brake system is critical to ensure safe vehicle control and operation;
​
​6. To diagnose Emission System if the system is affected by vehicle age or poor quality fuel. A good emission system reduces harmful gases to a large degree and protects you from being fined;
​
​7. To diagnose Fuel system if vehicle won’t start or “Check Engine” light is illuminated. Check car’s fuel system regularly ensures the best performance of your car with the lowest emissions;
​
​8. To diagnose Transmission if your car is slipping or difficult to shift. The system plays an important part in the overall performance of your car;
​
​9. To diagnose Wiper System if you observe chattering or streaking wiper. If the car is not regularly checked, the accident might happen because you can’t see clearly;
​
​10:To diagnose Light System if you see rapid signal blinking or dimming lights. And many more ....

MUCAR BT200 Max Support Up to 120+ Car Brands, 22 Languages

It is compatibale with almost all vehilcle models of American, European,Asian Makes
✔1. American Car List:Need standard obd2 and release year from 1996-nowFor Chrysler, For Ford, For GM, For Jeep, For Lincoln, For Buick, For Cadillac, For Chevrolet,For Dodge, For HM, ect...

✔2. European Car List:Need standard obd2 and release year from 2000-nowFor Mercedes, For Benz, For Smart, For Sprinter, For BMW, For Volkswagen, For Skoda, For Audi, For Opel, For Lamborghini, For Porsche, For Maybach, For Ford, For Land Rover, For Jaguar, For Aston Martin, For Bentley, For Rolls-Royce, For Rover, For Mini, For Vauxhall, For DR, For Ferrari, For Fiat, For Abarth, For Lancia, For Alfa Romeo, For Maserati,For Bugatti, For Peugeot, For Citroen, For Renault, For Saab, For Volvo, For GM, For GMSA, For Dacia, For Seat,ect ...

✔3. Asian Car List:Need standard obd2 and release year from 2008-nowFor Thailand Isuzu, For Acura, For Daewoo, For Jianghuai cars (GM), For Ssangyong, For Infiniti, For Proton, For Honda, For Mazda, For Perodua, For Jiangling Automobile, For Mahindra (MAHINDRA), For Isuzu, For Suzuki, For Byd auto, For Chery cars, For Toyota, For Nissan, For Kia, For The Car, For The Great Wall in cars, For Daihatsu, For Changan automobile, For Geely automobile, For Xiamen Jinlong, For Zhongxing automobile, For Hafei automobile, For New Kay, For Gonow automobile, For Changhe automobile, For Hyundai, For Liuzhou Wuling, For Subaru, For Xiali, For Australia ford, For Mitsubishi, For TATA, For Zhongtai automobile, For Horton, For MARUTI, For Lexus

>> IMMO Matching/Key fob Pro-gramming: Compatible with Toyota,Honda,Hyundai,Kia etc.

✔ NOTE: IMMO functions not for All cars, so Please send VIN and required function to to us check compatibility before purchase.

Support 22 Languges:

English, French, Spanish, German, Italian, Portuguese, Japanese, Russian, Polish, Traditional Chinese, Turkish, Greek, Korean, Hungarian, Dutch, Vietnamese, Arabic, Persian, Khmer, Lao, Burmese, Thai

MUCAR BT200 MAX Supports DollarFix APP and Other Third-Party Apps ：

MUCAR BT200 Max works with dozens of popular third-party apps such as"OBD Fusion,Car Scanner,Infocar,Torque pro,DashCommand,GaragePro,OBD Auto Doctor,OBD JScan,Dr. Prius,MotorData,AlfaOBD".

With third party apps, you can enable convenience features (including remote start and door lock/unlock) and change configuration on select models.

Note: many apps are currently available exclusively on Android; check with app provider to confirm compatibility.

DollarFix community online

• The first exclusive community for car owners and technicians, where car owners and technicians can seamlessly communicate about maintenance solutions

• Support real-time interaction + case sharing to create a technical mutual assistance ecosystem.

MUCAR BT200 MAX Support More Functions Such as Followings

✔Read Live Data Stream：
Real-time data is visualized in a variety of formats, including graphs, numeric, meter displays and clear 4-in-1 data charts, allowing you to effortlessly monitor real-time performance. Data logging/reporting is available for playback and further analysis.

✔Tntelligent Auto VIN：
With intelligent AutoVIN quick recognition, it is easy to connect to your car without the need for manual input.

✔Over-voltage and Battery Drain Protection

✔Support Vehicles Diagnostic Report:
1.Generate diagnostic report in DollarFix APP
​2.Download the diagnosis report and transfer it to the computer to print the diagnosis report
​3.Share your diagnosis report with your partner or car owner

✔One-click WiFi Lifetime Free Update:
​Life-time frequent software updates are provided. That’s important because you want a scanner that will be compatible with current and future vehicles. Simply click the update button you will get the latest version(more car models, bug fix) of this MUCAR Driverscan. Of course, you will still get all functions if you do not want to update your device.

Configuration&Requirements

16 Pins Standard OBD Port
Android 5.1 or ios 9.0 and above

Package List

1*BT200 Max connector
1*User Manual
1*Carrying case
