BSIDE Profesional Digital Multimeter Smart 9999 EMF Multitester DC AC Voltage Capacitor Ohm Diode Live Electric Tester USB charg

Order Notice:

The A10 product is currently the most cost-effective smart multimeter with a built-in rechargeable lithium battery on the market.

The test parameters of S10/S11 are exactly the same, the difference is: S10 uses 1.5V AAA battery power supply（Not included）; S11 built-in 800mA rechargeable lithium battery.

The S20 product is the highest version of the series, adding EMF detection function.

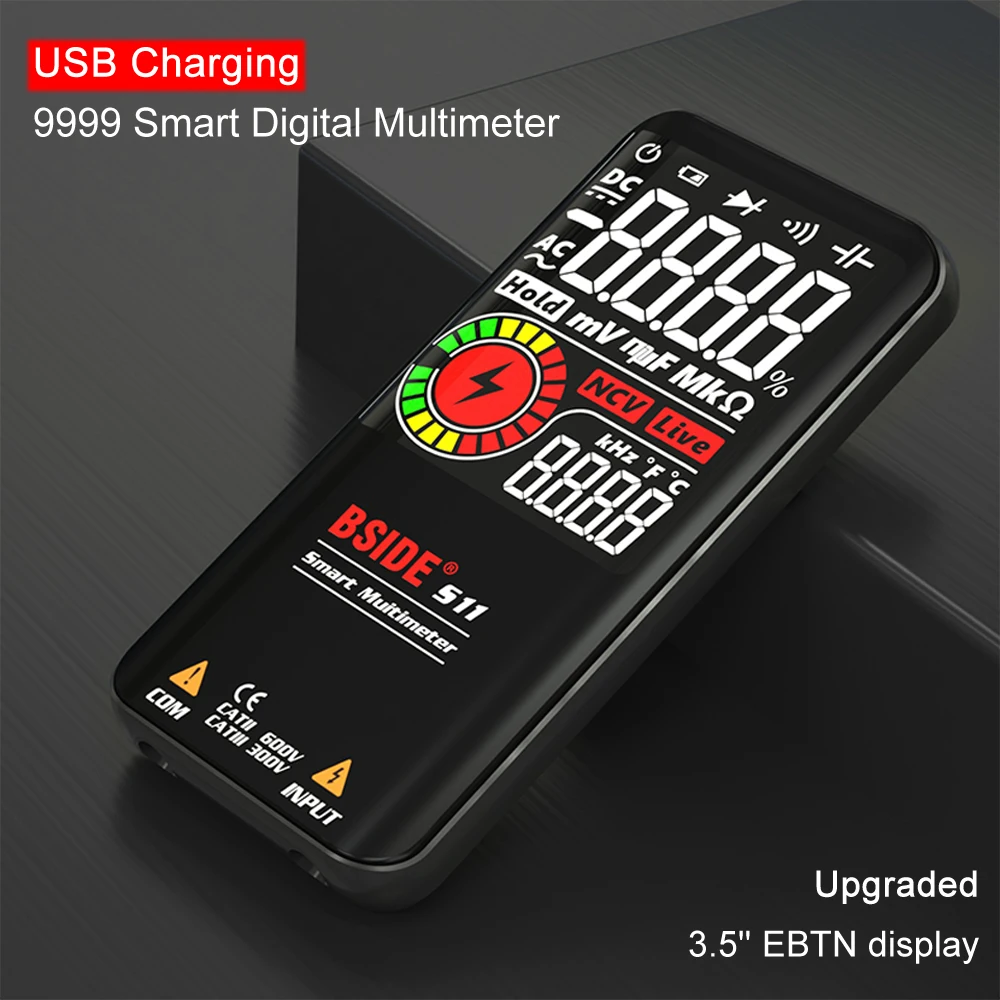

USB charging design - energy saving and environmental protection.

Fully functional - wide range of application scenarios.

Upgraded version - 3.5'' large screen high-definition EBTN display

No visual limitations/Solve industry pain points.

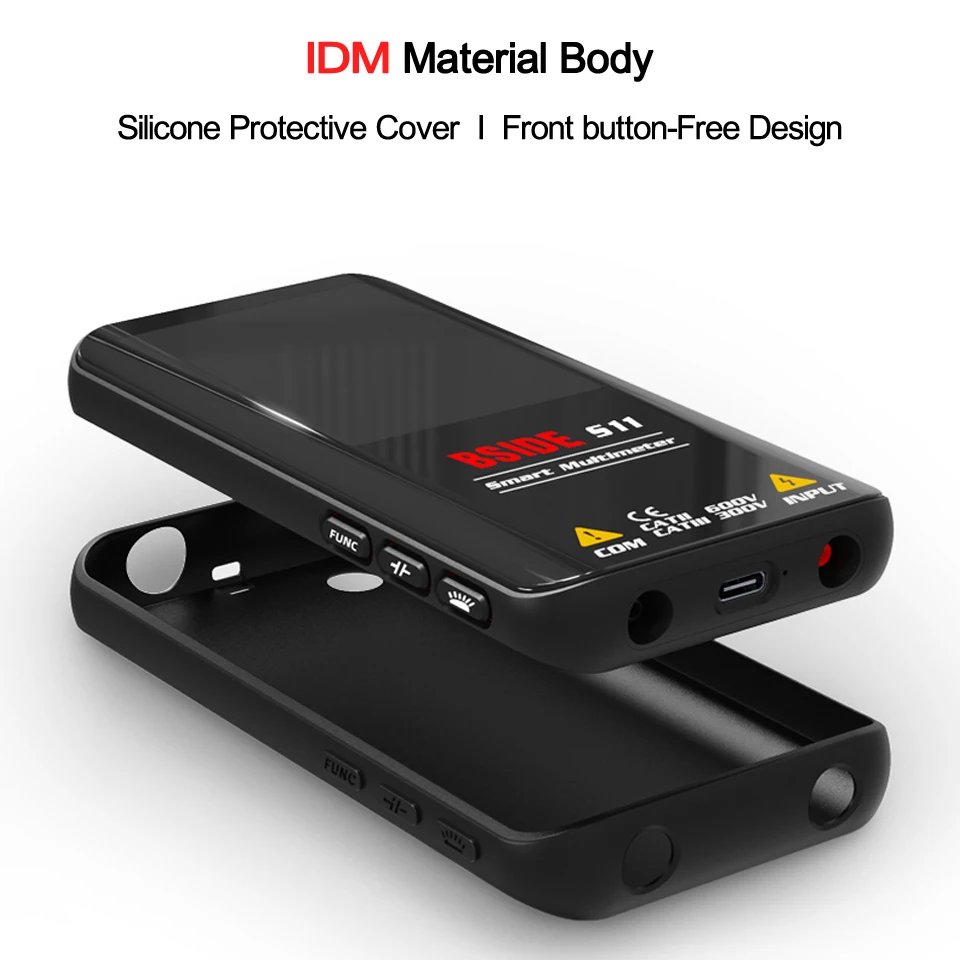

IDM Material Body.

Silicone Protective Cover/Front button-Free Design.

Specifications:

Display: 9999 counts.

Screen: 3.5 inch.

DC Voltage: 0-620V ±(0.5%+3); Resolution: 0.001V.

AC Voltage: 0-620V ±(0.5%+5); Resolution: 0.001V.

Resistance:1Ω-999.9Ω ±(2.0%+5); 1kΩ-60MΩ ±(1.0%+3); Resolution: 0.11Ω.

Capacitance: 1nF-999.9nF ±(6.0%+5); 1uF-99.99mF ±(3.0%+3); Resolution: 0.001nF.

Frequency:

1Hz-1000Hz ±(1.0%+5) (ACV:2V-10V); Resolution: 0.001Hz.

1KHz-60KHz ±(1.0%+5) (ACV:10V-620V); Resolution: 0.001Hz.

Duty Cycle: 0.1%-99.9% ±(3.0%+5) (ACV:2V-620V); Resolution: 0.1%.

Diode: Auto identify diode if less than 3.0V.

V-Alert(non-contact voltage detection): beep alarm sounds.

Live Check: alarm beep sounds, LCD screen display stripe.

Continuity: If the resistance is less than 30Ω, the beeper sounds.

S10 Power: 1.5V (AAA) x 2.

S11 Power: Built-in rechargeable lithium battery.

Package Size: 147*85*42mm.

Package Weight: 180g

Package Includes:

1 * Multimeter.    1 * Test Lead.

1 * English user Manual.    1 * Packing Box.

1 * Protective shell.（S11/S20）

1 * USB charging cable.（A10/S11/S20）

1 * EVA portable cloth bag.（A10/S11/S20）
